K8s集群+Rancher Server：部署DolphinScheduler 3.2.2集群

[root@master ~]# mkdir opt/dolphinscheduler
#
[root@master ~]# cd opt/dolphinscheduler

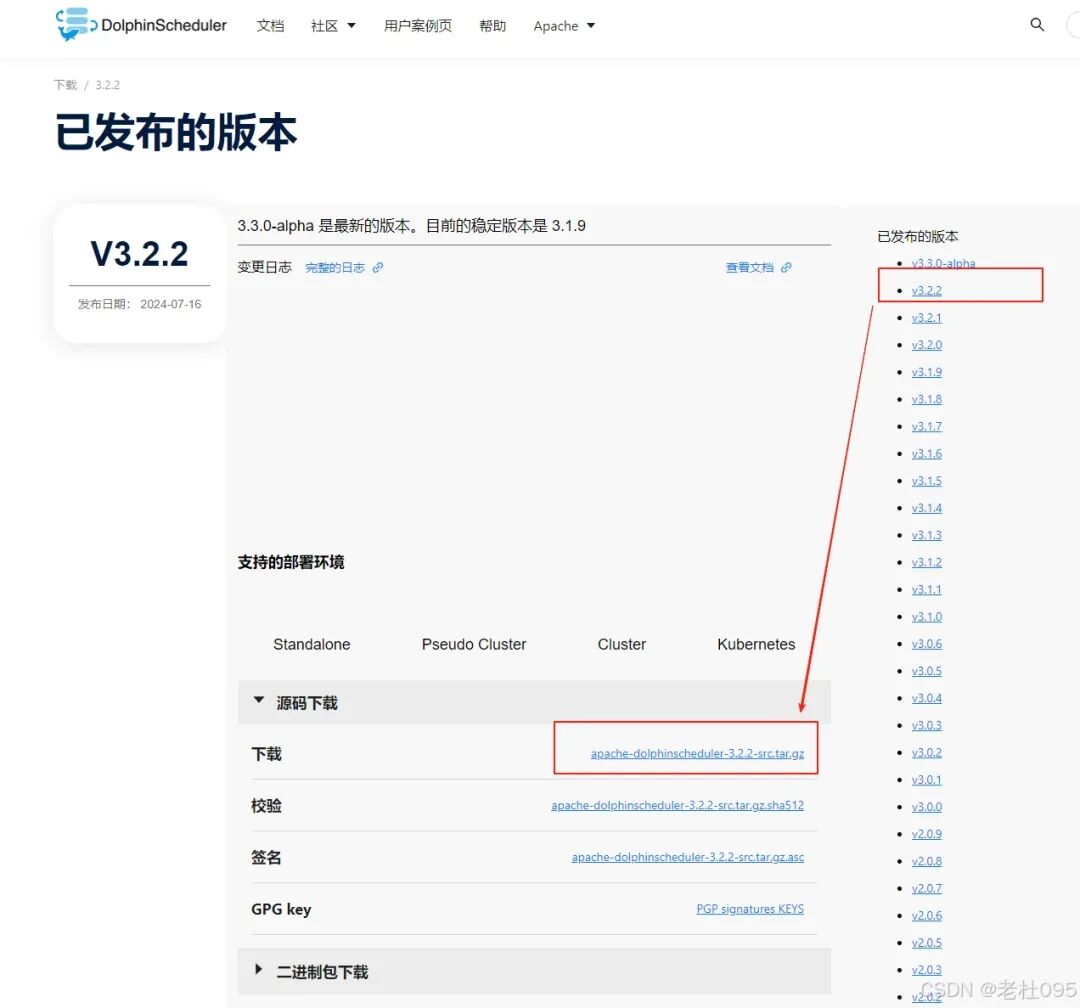

[root@master dolphinscheduler]# curl -Lo https://dlcdn.apache.org/dolphinscheduler/3.2.2/apache-dolphinscheduler-3.2.2-src.tar.gz
[root@master dolphinscheduler]# tar -xzvf ./apache-dolphinscheduler-3.2.2-src.tar.gz

[root@master dolphinscheduler]# cd /opt/dolphinscheduler/apache-dolphinscheduler-3.2.2-src/deploy/kubernetes/dolphinscheduler
[root@master dolphinscheduler]# vim Chart.yaml

# Application charts are a collection of templates that can be packaged into versioned archives
# to be deployed.
#
# Library charts provide useful utilities or functions for the chart developer. They're included as
# a dependency of application charts to inject those utilities and functions into the rendering
# pipeline. Library charts do not define any templates and therefore cannot be deployed.
type: application
# This is the chart version. This version number should be incremented each time you make changes
# to the chart and its templates, including the app version.
version: 3.3.0-alpha
# This is the version number of the application being deployed. This version number should be
# incremented each time you make changes to the application.
appVersion: 3.3.0-alpha
dependencies:
- name: postgresql
  version: 10.3.18
  # Due to a change in the Bitnami repo, https://charts.bitnami.com/bitnami was truncated only
  # containing entries for the latest 6 months (from January 2022 on).
  # This URL: https://raw.githubusercontent.com/bitnami/charts/archive-full-index/bitnami
  # contains the full 'index.yaml'.
  # See detail here: https://github.com/bitnami/charts/issues/10833

#repository
: https://raw.githubusercontent.com/bitnami/charts/archive-full-index/bitnami
  repository: https://raw.gitmirror.com/bitnami/charts/archive-full-index/bitnami
  condition: postgresql.enabled
- name: zookeeper
  version: 6.5.3
  # Same as above.

#repository
: https://raw.githubusercontent.com/bitnami/charts/archive-full-index/bitnami
  repository: https://raw.gitmirror.com/bitnami/charts/archive-full-index/bitnami
  condition: zookeeper.enabled
- name: mysql
  version: 9.4.1

#repository
: https://raw.githubusercontent.com/bitnami/charts/archive-full-index/bitnami
  repository: https://raw.gitmirror.com/bitnami/charts/archive-full-index/bitnami
  condition: mysql.enabled
- name: minio
  version: 11.10.13

#repository
: https://raw.githubusercontent.com/bitnami/charts/archive-full-index/bitnami
  repository: https://raw.gitmirror.com/bitnami/charts/archive-full-index/bitnami
  condition: minio.enabled

[root@master dolphinscheduler]# helm repo add bitnami-full-index  https://raw.gitmirror.com/bitnami/charts/archive-full-index/bitnami
[root@master dolphinscheduler]# helm repo add bitnami https://charts.bitnami.com/bitnami
[root@master dolphinscheduler]# helm dependency update .

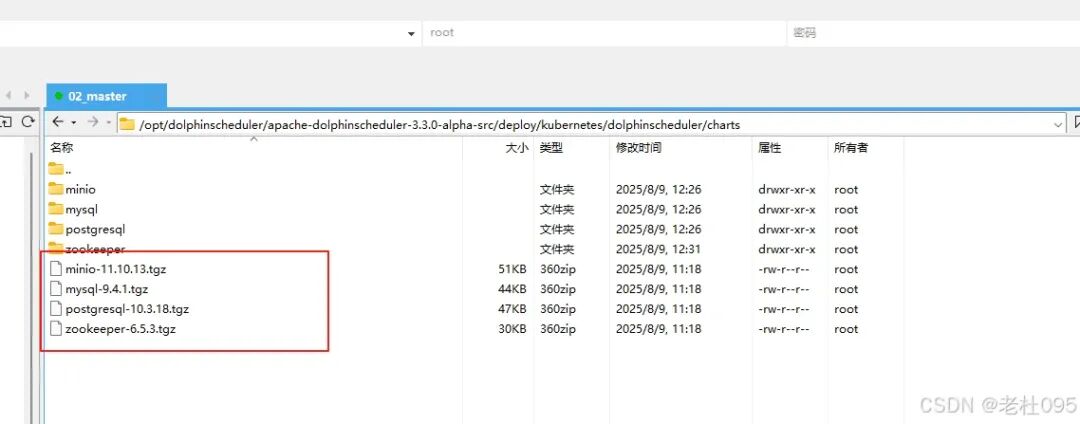

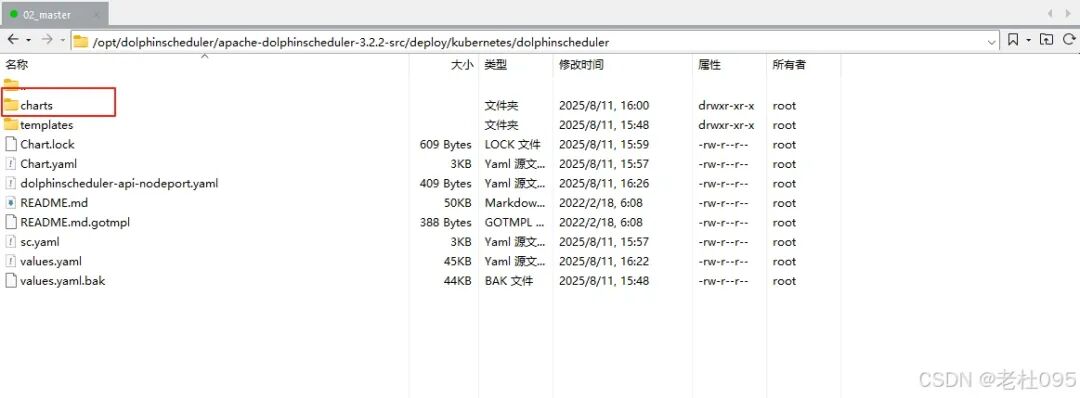

[root@master dolphinscheduler]# tar -zxvf minio-11.10.13.tgz
[root@master dolphinscheduler]# tar -zxvf postgresql-10.3.18.tgz
[root@master dolphinscheduler]# tar -zxvf zookeeper-6.5.3.tgz

cd /opt/dolphinscheduler/apache-dolphinscheduler-3.2.2-src/deploy/kubernetes/dolphinscheduler
vim values.yaml

# -- World time and date for cities in all time zones
timezone: "Asia/Shanghai"
# -- Used to detect whether dolphinscheduler dependent services such as database are ready
initImage:
  # -- Image pull policy. Options: Always, Never, IfNotPresent
  pullPolicy: "IfNotPresent"
  # -- Specify initImage repository

#busybox
: "busybox:1.30.1"
  busybox: "registry.cn-hangzhou.aliyuncs.com/docker_image-ljx/busybox:1.30.1"
image:
  # -- Docker image repository for the DolphinScheduler
  registry: registry.cn-hangzhou.aliyuncs.com/docker_image-ljx
  # -- Docker image version for the DolphinScheduler
  tag: 3.2.2
  # -- Image pull policy. Options: Always, Never, IfNotPresent
  pullPolicy: "IfNotPresent"
  # -- Specify a imagePullSecrets
  pullSecret: ""
  # -- master image
  master: dolphinscheduler-master
  # -- worker image
  worker: dolphinscheduler-worker
  # -- api-server image
  api: dolphinscheduler-api
  # -- alert-server image
  alert: dolphinscheduler-alert-server
  # -- tools image
  tools: dolphinscheduler-tools

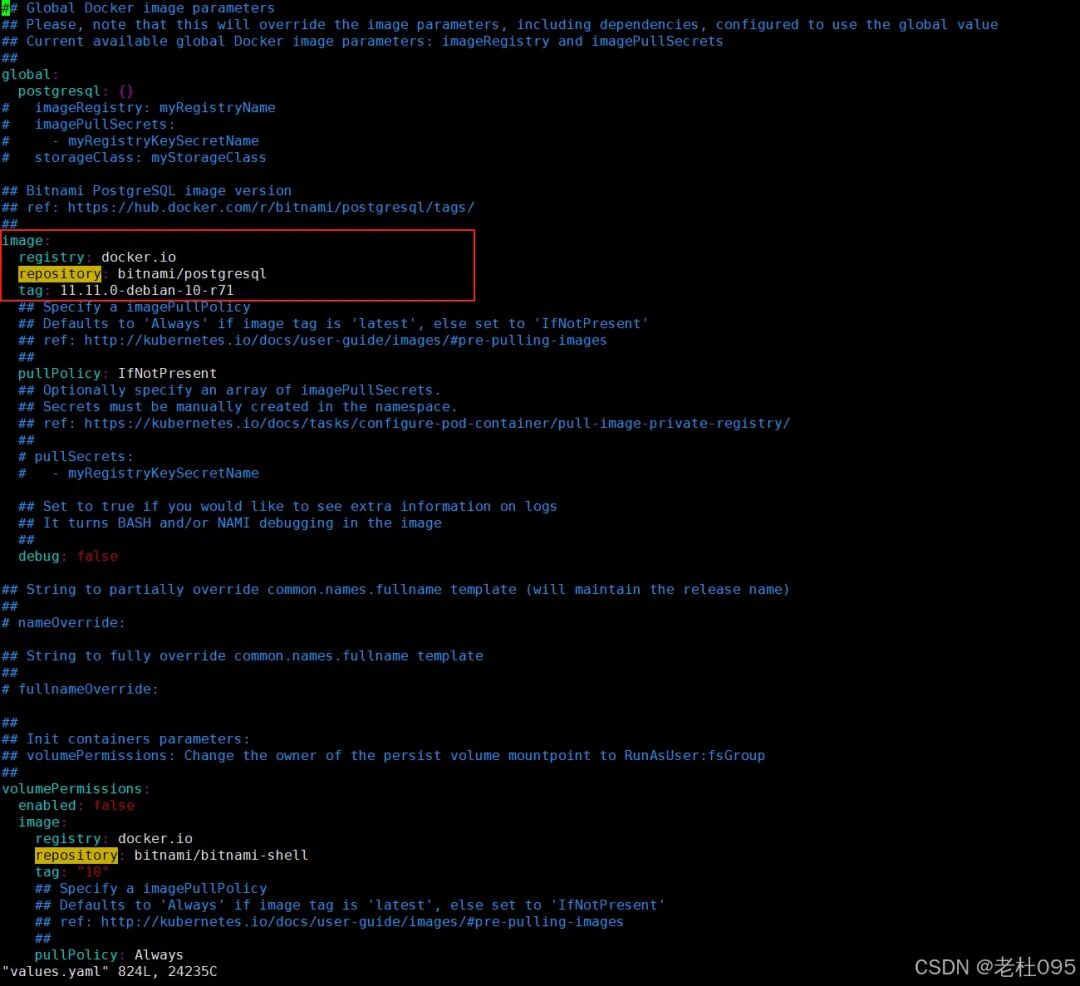

image:
  registry: docker.io
  repository: bitnami/postgresql
  tag: 11.11.0-debian-10-r71
  ## Specify a imagePullPolicy
  ## Defaults to 'Always' if image tag is 'latest', else set to 'IfNotPresent'
  ## ref: http://kubernetes.io/docs/user-guide/images/
#pre
-pulling-images
  ##
  pullPolicy: IfNotPresent
  ## Optionally specify an array of imagePullSecrets.
  ## Secrets must be manually created in the namespace.
  ## ref: https://kubernetes.io/docs/tasks/configure-pod-container/pull-image-private-registry/
  ##
  # pullSecrets:
  #   - myRegistryKeySecretName
  ## Set to true if you would like to see extra information on logs
  ## It turns BASH and/or NAMI debugging in the image
  ##
  debug: false

datasource:
  # -- The profile of datasource
  profile: postgresql
postgresql:
  image:
    registry: docker.io
    repository: bitnami/postgresql
    tag: 11.11.0-debian-10-r71
  # -- If not exists external PostgreSQL, by default, the DolphinScheduler will use a internal PostgreSQL
  enabled: true
  # -- The username for internal PostgreSQL
  postgresqlUsername: "root"
  # -- The password for internal PostgreSQL
  postgresqlPassword: "root"
  # -- The database for internal PostgreSQL
  postgresqlDatabase: "dolphinscheduler"
  # -- The driverClassName for internal PostgreSQL
  driverClassName: "org.postgresql.Driver"
  # -- The params for internal PostgreSQL
  params: "characterEncoding=utf8"
  persistence:
    # -- Set postgresql.persistence.enabled to true to mount a new volume for internal PostgreSQL
    enabled: false
    # -- `PersistentVolumeClaim` size
    size: "20Gi"
    # -- PostgreSQL data persistent volume storage class. If set to "-", storageClassName: "", which disables dynamic provisioning
    storageClass: "-"

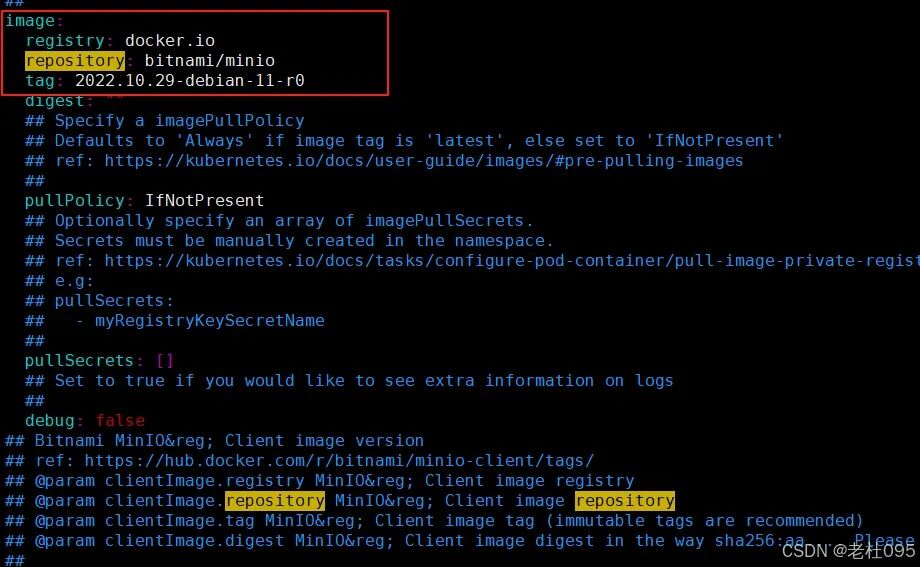

image:
  registry: docker.io
  repository: bitnami/minio
  tag: 2022.10.29-debian-11-r0
  digest: ""
  ## Specify a imagePullPolicy
  ## Defaults to 'Always' if image tag is 'latest', else set to 'IfNotPresent'
  ## ref: https://kubernetes.io/docs/user-guide/images/
#pre
-pulling-images
  ##
  pullPolicy: IfNotPresent
  ## Optionally specify an array of imagePullSecrets.
  ## Secrets must be manually created in the namespace.
  ## ref: https://kubernetes.io/docs/tasks/configure-pod-container/pull-image-private-registry/
  ## e.g:
  ## pullSecrets:
  ##   - myRegistryKeySecretName
  ##
  pullSecrets: []
  ## Set to true if you would like to see extra information on logs
  ##
  debug: false

minio:
  image:
    registry: docker.io
    repository: bitnami/minio
    tag: 2022.10.29-debian-11-r0
  # -- Deploy minio and configure it as the default storage for DolphinScheduler, note this is for demo only, not for production.
  enabled: true
  auth:
    # -- minio username
    rootUser: minioadmin
    # -- minio password
    rootPassword: minioadmin
  persistence:
    # -- Set minio.persistence.enabled to true to mount a new volume for internal minio
    enabled: false
  # -- minio default buckets
  defaultBuckets: "dolphinscheduler"

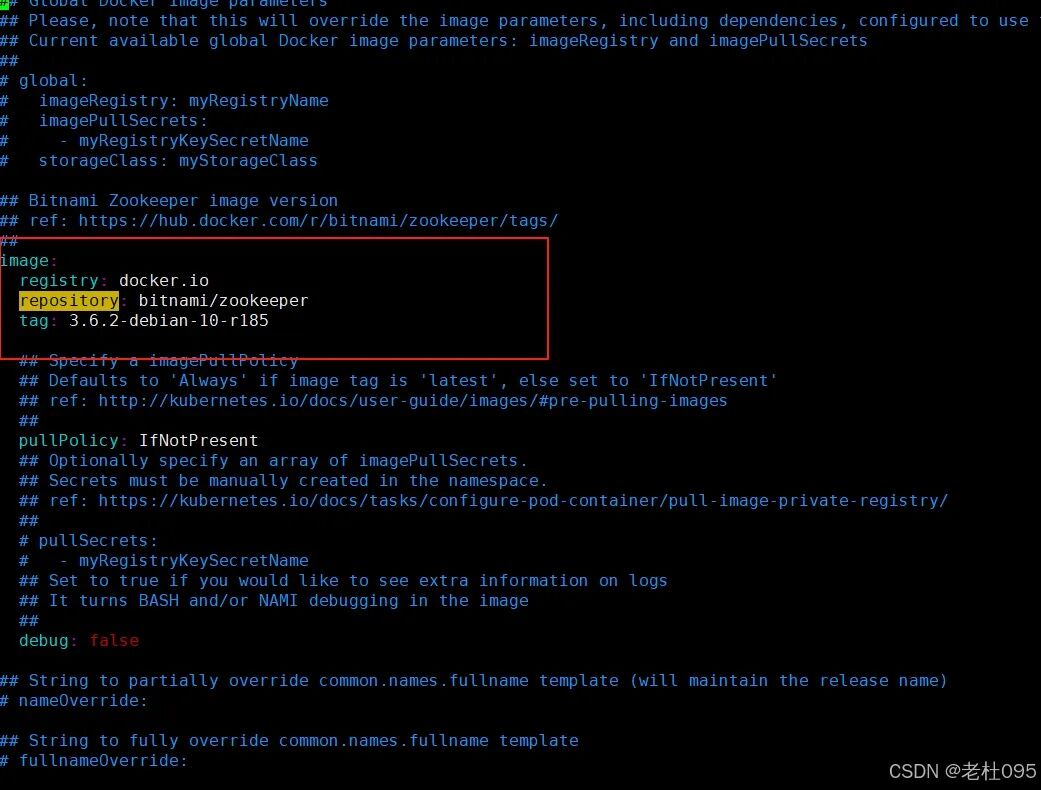

image:
  registry: docker.io
  repository: bitnami/zookeeper
  tag: 3.6.2-debian-10-r185
  ## Specify a imagePullPolicy
  ## Defaults to 'Always' if image tag is 'latest', else set to 'IfNotPresent'
  ## ref: http://kubernetes.io/docs/user-guide/images/
#pre
-pulling-images
  ##
  pullPolicy: IfNotPresent
  ## Optionally specify an array of imagePullSecrets.
  ## Secrets must be manually created in the namespace.
  ## ref: https://kubernetes.io/docs/tasks/configure-pod-container/pull-image-private-registry/
  ##
  # pullSecrets:
  #   - myRegistryKeySecretName
  ## Set to true if you would like to see extra information on logs
  ## It turns BASH and/or NAMI debugging in the image
  ##
  debug: false

zookeeper:
  image:
    registry: docker.io
    repository: bitnami/zookeeper
    tag: 3.6.2-debian-10-r185
  # -- If not exists external registry, the zookeeper registry will be used by default.
  enabled: true
  service:
    # -- The port of zookeeper
    port: 2181
  # -- A list of comma separated Four Letter Words commands to use
  fourlwCommandsWhitelist: "srvr,ruok,wchs,cons"
  persistence:
    # -- Set `zookeeper.persistence.enabled` to true to mount a new volume for internal ZooKeeper
    enabled: false
    # -- PersistentVolumeClaim size
    size: "20Gi"
    # -- ZooKeeper data persistent volume storage class. If set to "-", storageClassName: "", which disables dynamic provisioning
    storageClass: "-"

master:
  # -- Enable or disable the Master component
  enabled: true
  replicas: "1"
  resources:
    limits:
      memory: "4Gi"
      cpu: "4"
    requests:
      memory: "2Gi"
      cpu: "500m"
  persistentVolumeClaim:
    # -- Set `worker.persistentVolumeClaim.enabled` to `true` to enable `persistentVolumeClaim` for `worker`
    enabled: true
    ## dolphinscheduler data volume
    dataPersistentVolume:
      # -- Set `worker.persistentVolumeClaim.dataPersistentVolume.enabled` to `true` to mount a data volume for `worker`
      enabled: true
      # -- `PersistentVolumeClaim` access modes
      accessModes:
      - "ReadWriteOnce"
      # -- `Worker` data persistent volume storage class. If set to "-", storageClassName: "", which disables dynamic provisioning
      storageClassName: "-"
      # -- `PersistentVolumeClaim` size
      storage: "20Gi"
  env:
    # -- The jvm options for master server
    JAVA_OPTS: "-Xms1g -Xmx1g -Xmn512m"

## 创建了一个存储类
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: nfs-storage
  annotations:
    storageclass.kubernetes.io/is-default-class: "true"
provisioner: k8s-sigs.io/nfs-subdir-external-provisioner
parameters:
  archiveOnDelete: "true"  ## 删除pv的时候，pv的内容是否要备份
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nfs-client
  labels:
    app: nfs-client
  # replace with namespace where provisioner is deployed
  namespace: default
spec:
  replicas: 1
  strategy:
    type: Recreate
  selector:
    matchLabels:
      app: nfs-client
  template:
    metadata:
      labels:
        app: nfs-client
    spec:
      serviceAccountName: nfs-client
      containers:
        - name: nfs-client
          image: registry.cn-hangzhou.aliyuncs.com/lfy_k8s_images/nfs-subdir-external-provisioner:v4.0.2
          # resources:
          #    limits:
          #      cpu: 10m
          #    requests:
          #      cpu: 10m
          volumeMounts:
            - name: nfs-client-root
              mountPath: persistentvolumes
          env:
            - name: PROVISIONER_NAME
              value: k8s-sigs.io/nfs-subdir-external-provisioner
            - name: NFS_SERVER
              value: 192.168.255.140 ## 指定自己nfs服务器地址
            - name: NFS_PATH
              value: data/nfsdata  ## nfs服务器共享的目录
      volumes:
        - name: nfs-client-root
          nfs:
            server: 192.168.255.140
            path: data/nfsdata
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: nfs-client
  # replace with namespace where provisioner is deployed
  namespace: default
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: nfs-client-runner
rules:
  - apiGroups: [""]
    resources: ["nodes"]
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources: ["persistentvolumes"]
    verbs: ["get", "list", "watch", "create", "delete"]
  - apiGroups: [""]
    resources: ["persistentvolumeclaims"]
    verbs: ["get", "list", "watch", "update"]
  - apiGroups: ["storage.k8s.io"]
    resources: ["storageclasses"]
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources: ["events"]
    verbs: ["create", "update", "patch"]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: run-nfs-client
subjects:
  - kind: ServiceAccount
    name: nfs-client
    # replace with namespace where provisioner is deployed
    namespace: default
roleRef:
  kind: ClusterRole
  name: nfs-client-runner
  apiGroup: rbac.authorization.k8s.io
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: leader-locking-nfs-client
  # replace with namespace where provisioner is deployed
  namespace: default
rules:
  - apiGroups: [""]
    resources: ["endpoints"]
    verbs: ["get", "list", "watch", "create", "update", "patch"]
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: leader-locking-nfs-client
  # replace with namespace where provisioner is deployed
  namespace: default
subjects:
  - kind: ServiceAccount
    name: nfs-client
    # replace with namespace where provisioner is deployed
    namespace: default
roleRef:
  kind: Role
  name: leader-locking-nfs-client
  apiGroup: rbac.authorization.k8s.io

# 执行发布安装
kubectl apply -f sc.yaml
# 查看nfs-client-provisioner pod 是否安装成功
kubectl get pod -A

worker:
  # -- Enable or disable the Worker component
  enabled: true
  replicas: "1"
  resources:
    limits:
      memory: "4Gi"
      cpu: "2"
    requests:
      memory: "2Gi"
      cpu: "500m"
  persistentVolumeClaim:
    # -- Set `worker.persistentVolumeClaim.enabled` to `true` to enable `persistentVolumeClaim` for `worker`
    enabled: true
    ## dolphinscheduler data volume
    dataPersistentVolume:
      # -- Set `worker.persistentVolumeClaim.dataPersistentVolume.enabled` to `true` to mount a data volume for `worker`
      enabled: true
      # -- `PersistentVolumeClaim` access modes
      accessModes:
      - "ReadWriteOnce"
      # -- `Worker` data persistent volume storage class. If set to "-", storageClassName: "", which disables dynamic provisioning
      storageClassName: "nfs-storage"
      # -- `PersistentVolumeClaim` size
      storage: "20Gi"
  env:
    # -- The jvm options for master server
    JAVA_OPTS: "-Xms1g -Xmx1g -Xmn512m"

alert:
  # -- Enable or disable the Worker component
  enabled: true
  replicas: "1"
  resources:
    limits:
      memory: "2Gi"
      cpu: "1"
    requests:
      memory: "1Gi"
      cpu: "500m"
  persistentVolumeClaim:
    # -- Set `worker.persistentVolumeClaim.enabled` to `true` to enable `persistentVolumeClaim` for `worker`
    enabled: true
    ## dolphinscheduler data volume
    dataPersistentVolume:
      # -- Set `worker.persistentVolumeClaim.dataPersistentVolume.enabled` to `true` to mount a data volume for `worker`
      enabled: true
      # -- `PersistentVolumeClaim` access modes
      accessModes:
      - "ReadWriteOnce"
      # -- `Worker` data persistent volume storage class. If set to "-", storageClassName: "", which disables dynamic provisioning
      storageClassName: "-"
      # -- `PersistentVolumeClaim` size
      storage: "20Gi"
  env:
    # -- The jvm options for master server
    JAVA_OPTS: "-Xms1g -Xmx1g -Xmn512m"

[root@master dolphinscheduler]# helm template dolphinscheduler -f values.yaml ./

[root@master dolphinscheduler]# kubectl create namespace dolphinscheduler

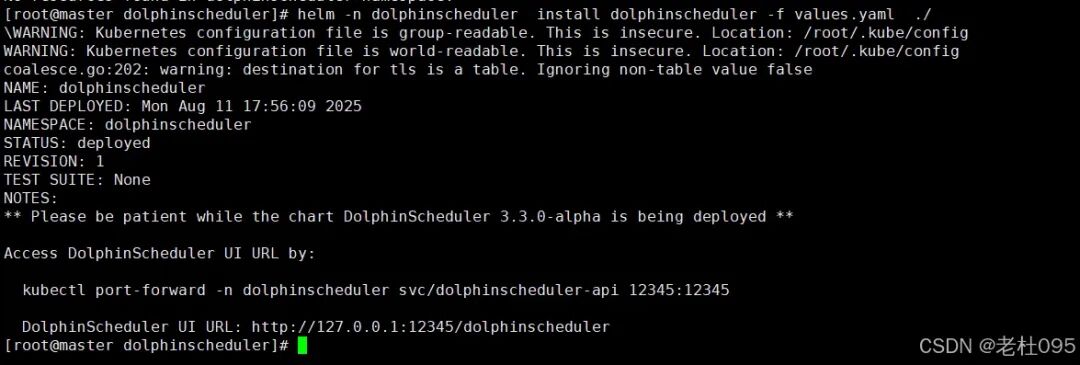

[root@master dolphinscheduler]# helm -n dolphinscheduler  install dolphinscheduler -f values.yaml  ./

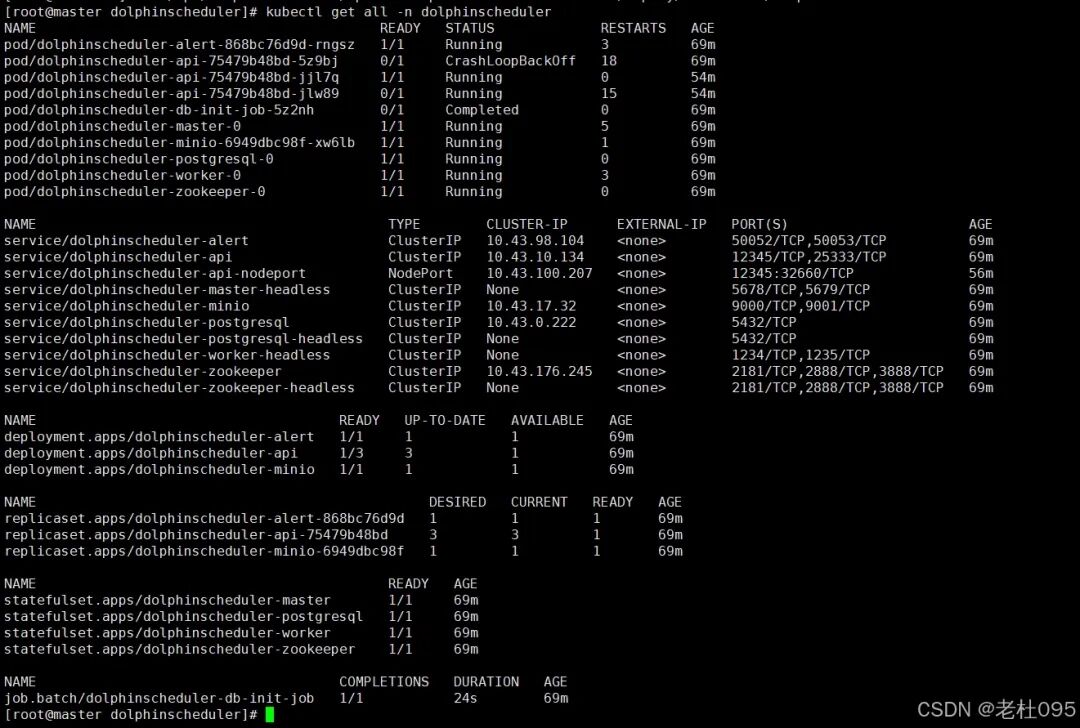

[root@master dolphinscheduler]# kubectl get all -n dolphinscheduler

用户案例

天翼云Zoom网易邮箱

每日互动 惠生工程  作业帮

博世智驾 蔚来汽车 长城汽车

集度长安汽车思科网讯

食行生鲜联通医疗联想

新网银行唯品富邦消费金融

自如有赞伊利当贝大数据

珍岛集团传智教育Bigo

YY直播  拈花云科太美医疗

Cisco Webex兴业证券

迁移实战

发版消息

加入社区

• GitHub: https://github.com/apache/dolphinscheduler
• 官网：https://dolphinscheduler.apache.org/en-us
• 订阅开发者邮件：dev@dolphinscheduler@apache.org
• X.com：@DolphinSchedule
• YouTube：https://www.youtube.com/@apachedolphinscheduler
• Slack：https://join.slack.com/t/asf-dolphinscheduler/shared_invite/zt-1cmrxsio1-nJHxRJa44jfkrNL_Nsy9Qg

同样地，参与Apache DolphinScheduler 有非常多的参与贡献的方式，主要分为代码方式和非代码方式两种。

📂非代码方式包括：

完善文档、翻译文档；翻译技术性、实践性文章；投稿实践性、原理性文章；成为布道师；社区管理、答疑；会议分享；测试反馈；用户反馈等。

👩‍💻代码方式包括：

查找Bug；编写修复代码；开发新功能；提交代码贡献；参与代码审查等。

贡献第一个PR(文档、代码) 我们也希望是简单的，第一个PR用于熟悉提交的流程和社区协作以及感受社区的友好度。

社区汇总了以下适合新手的问题列表：https://github.com/apache/dolphinscheduler/pulls?q=is%3Apr+is%3Aopen+label%3A%22first+time+contributor%22

优先级问题列表：https://github.com/apache/dolphinscheduler/pulls?q=is%3Apr+is%3Aopen+label%3Apriority%3Ahigh

如何参与贡献链接：https://dolphinscheduler.apache.org/zh-cn/docs/3.2.2/%E8%B4%A1%E7%8C%AE%E6%8C%87%E5%8D%97_menu/%E5%A6%82%E4%BD%95%E5%8F%82%E4%B8%8E_menu

如果你❤️小海豚，就来为我点亮Star吧！

https://github.com/apache/dolphinscheduler

你的好友秀秀子拍了拍你

并请你帮她点一下“分享”
