1、安装Prometheus

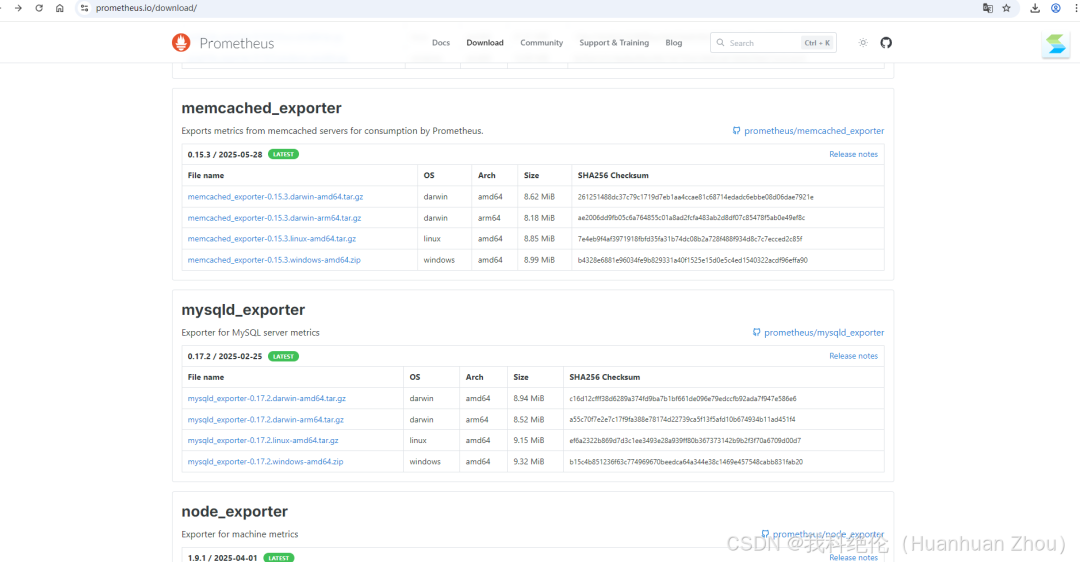

官方地址：https://prometheus.io/download/
wget https://github.com/prometheus/prometheus/releases/download/v2.7.2/prometheus-2.7.2.linux-amd64.tar.gz
上传至任意目录即可。
[root@my opt]# tar -xvf prometheus-2.26.0.linux-amd64.tar.gz
[root@my opt]# cd prometheus-2.26.0.linux-amd64/
[root@my prometheus-2.26.0.linux-amd64]# ./prometheus --config.file=prometheus.yml &

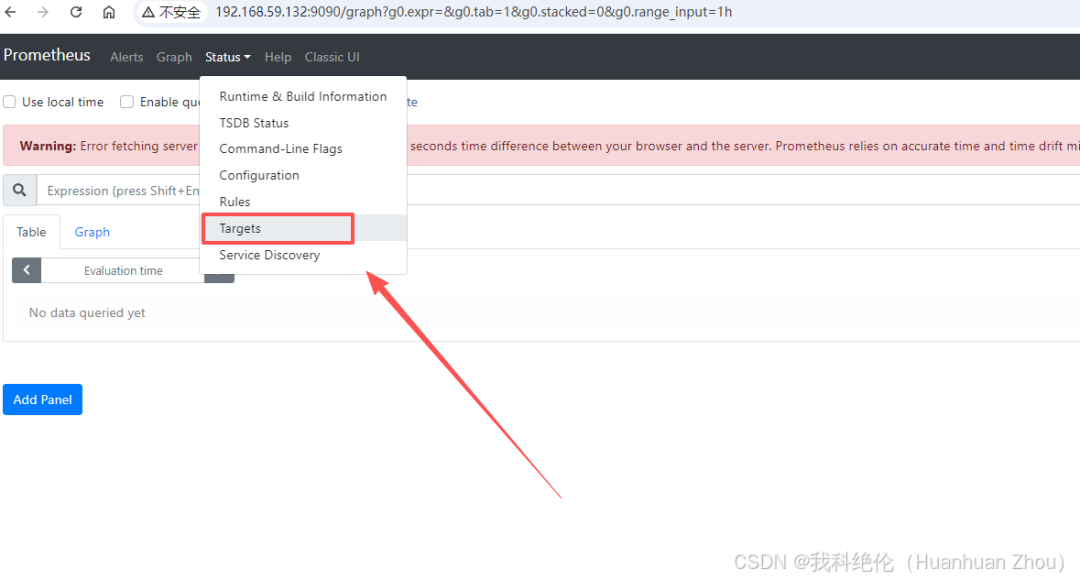

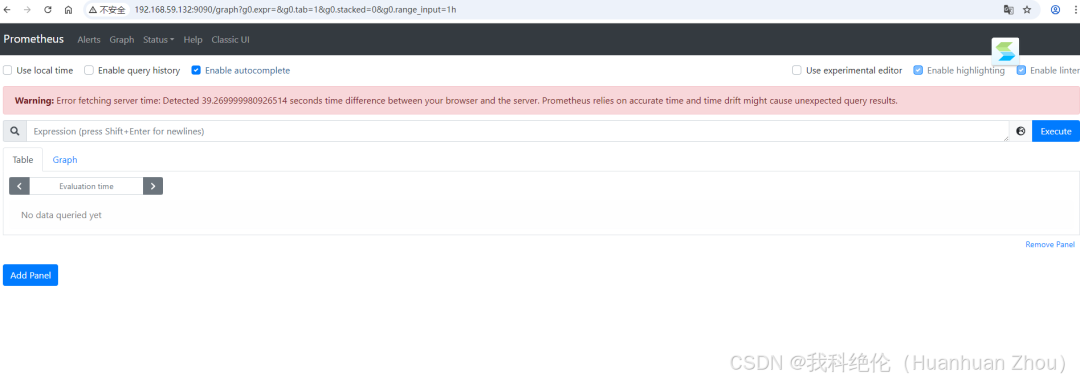

输入： “ip地址”+":9090" 在浏览器中进行访问，如果出现可视化界面说明成功；
http://192.168.59.132:9090/
2、添加主机监控
wget https://github.com/prometheus/node_exporter/releases/download/v0.17.0/node_exporter-0.17.0.linux-amd64.tar.gz
[root@my opt]# tar -xvf node_exporter-1.8.2.linux-amd64.tar.gz
[root@my opt]# cd node_exporter-1.8.2.linux-amd64/
[root@my node_exporter-1.8.2.linux-amd64]# ./node_exporter &
• 本Centos中访问： curl http://localhost:9100/metrics

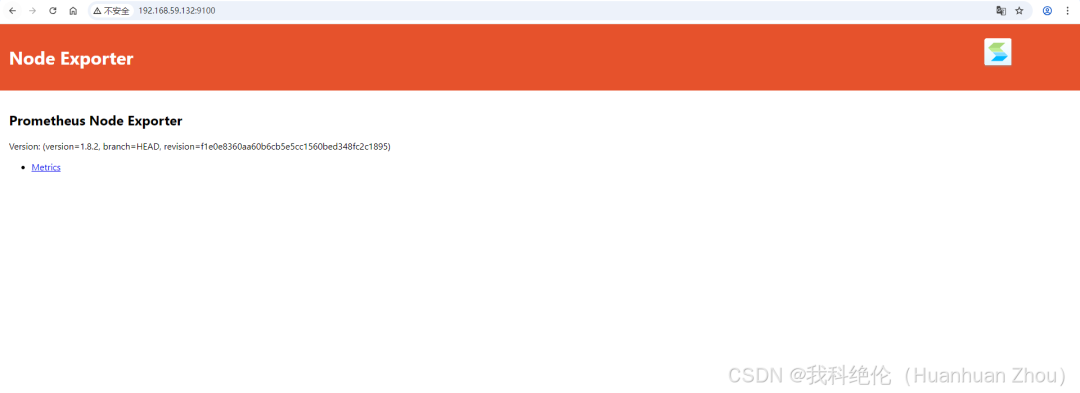

• 电脑浏览器中访问： ip地址:9100
http://192.168.59.132:9100

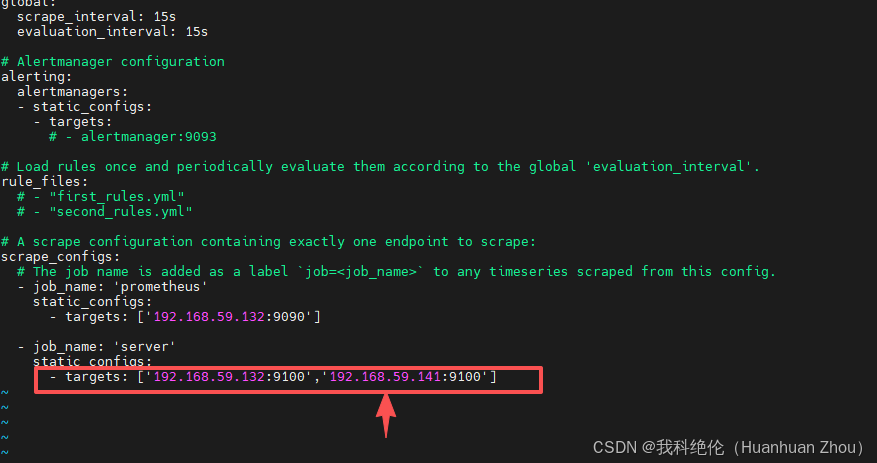

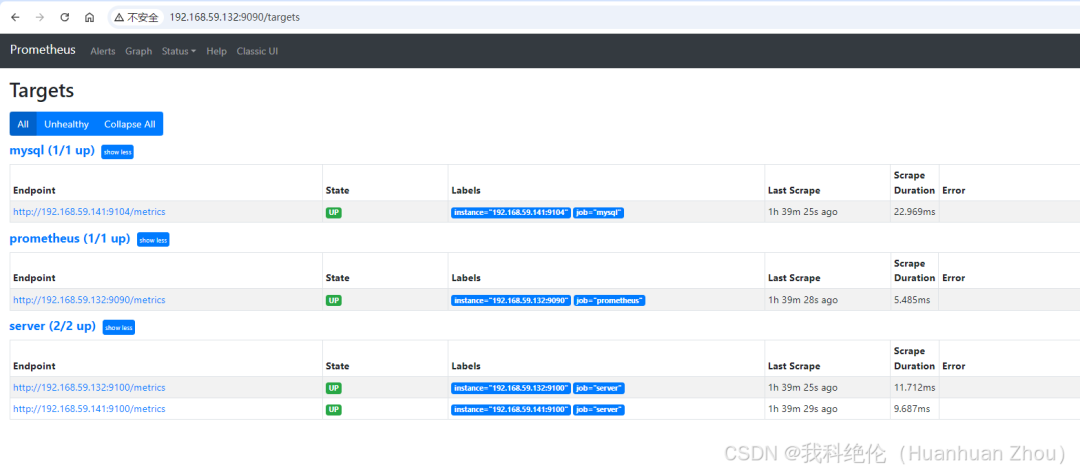

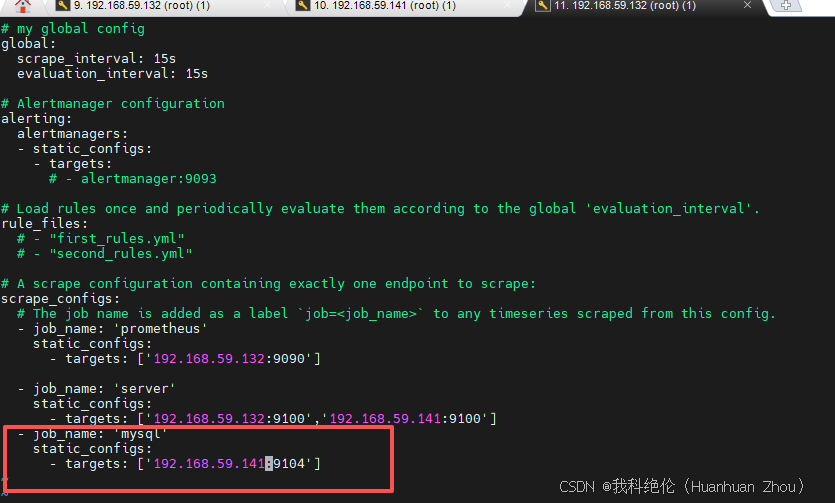

去Prometheus的配置文件中加上这个exporter的地址

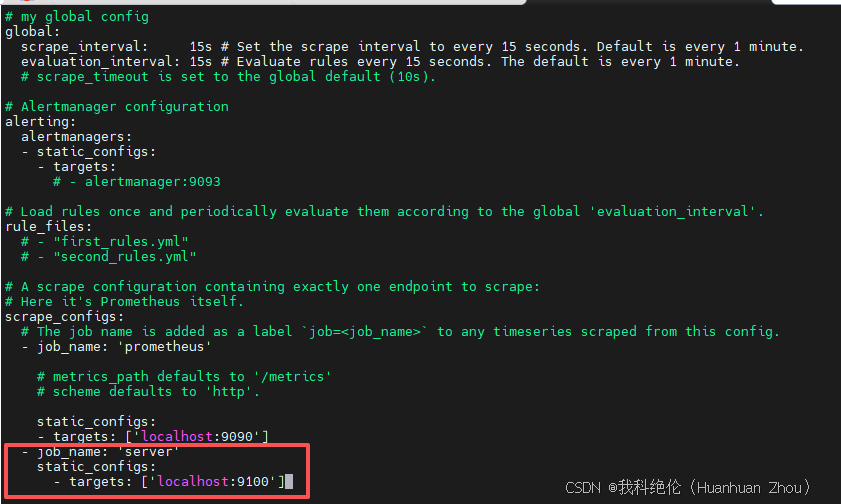

[root@my prometheus-2.26.0.linux-amd64]# vi prometheus.yml
添加以下内容
- job_name: 'server'
static_configs:
- targets: ['localhost:9100']
3、安装Grafana
wget https://dl.grafana.com/oss/release/grafana-6.0.0.linux-amd64.tar.gz
[root@my opt]# tar -xvf grafana-6.0.0.linux-amd64.tar.gz
[root@my opt]# cd grafana-6.0.0/
[root@my grafana-6.0.0]# ./bin/grafana-server web &

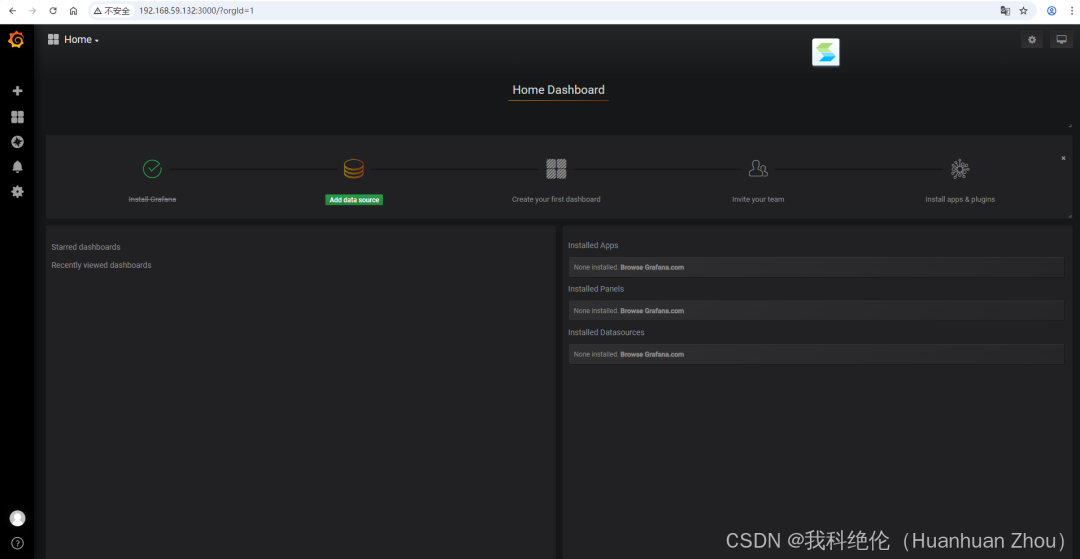

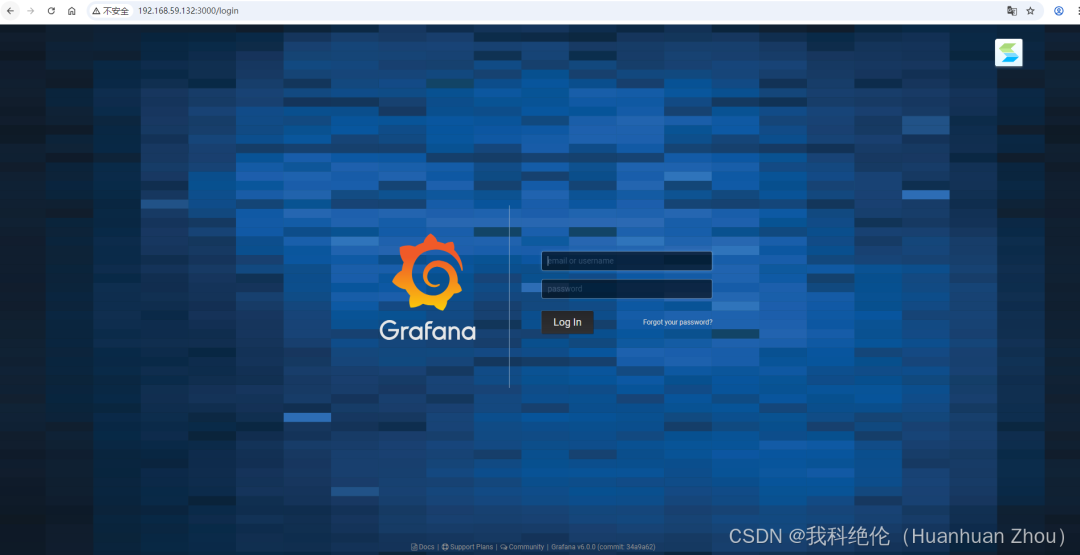

浏览器输入 IP:3000 来访问Grafana.
管理员账号密码默认是admin/admin。首次登陆会提示修改管理员密码。
http://192.168.59.132:3000

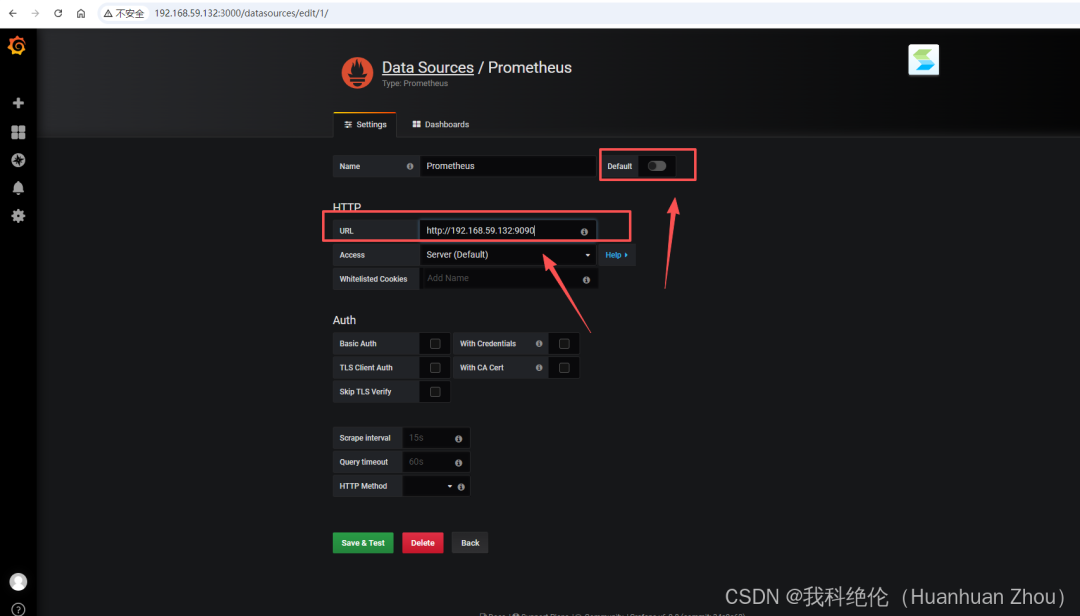

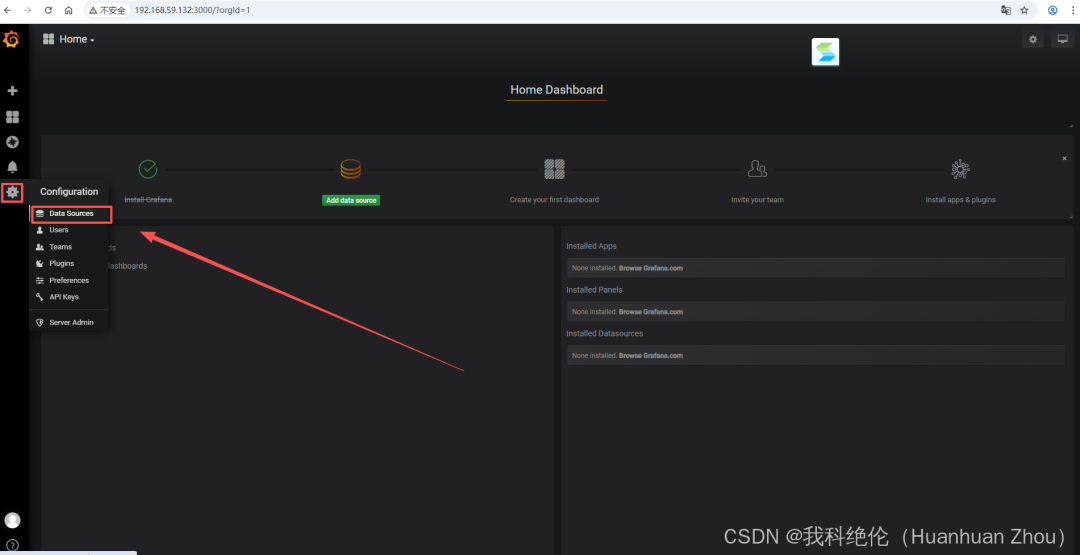

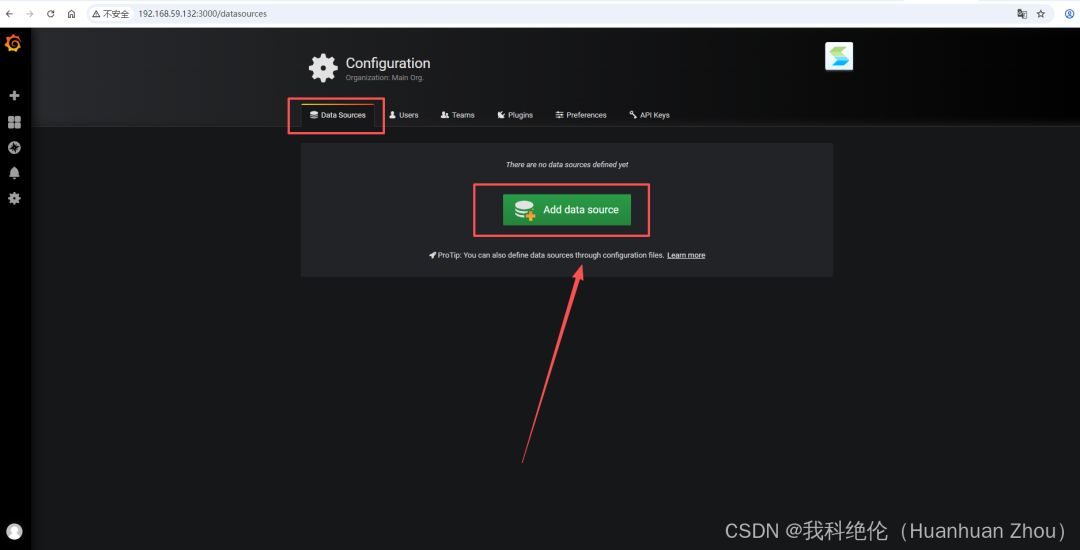

添加数据源

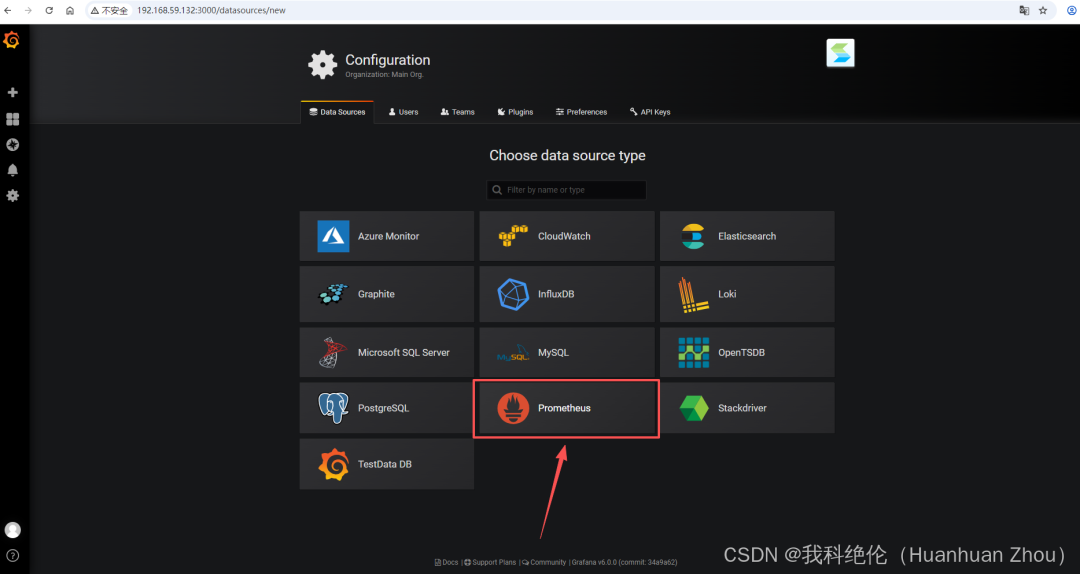

选择Prometheus

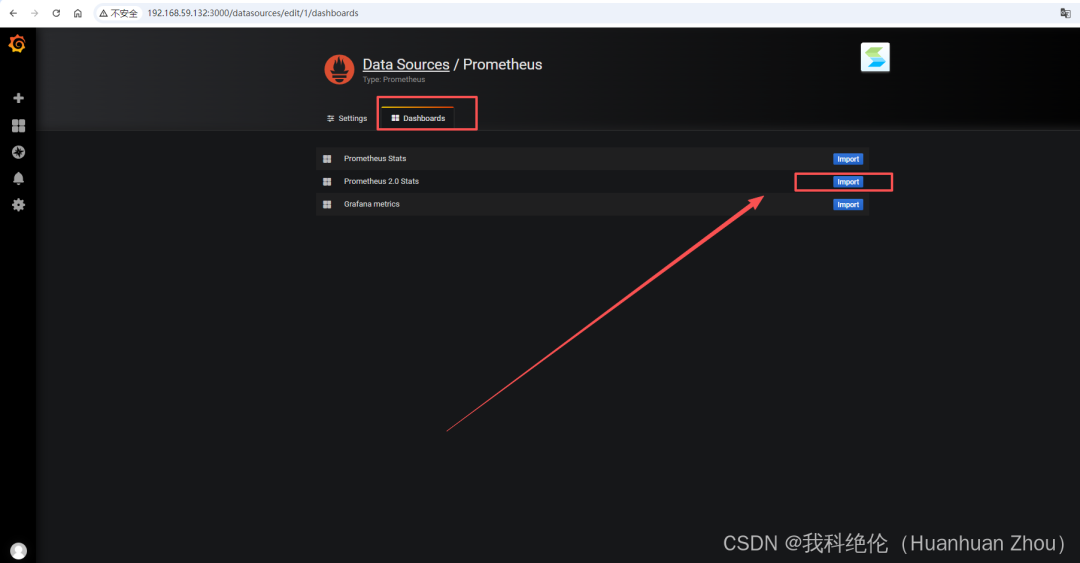

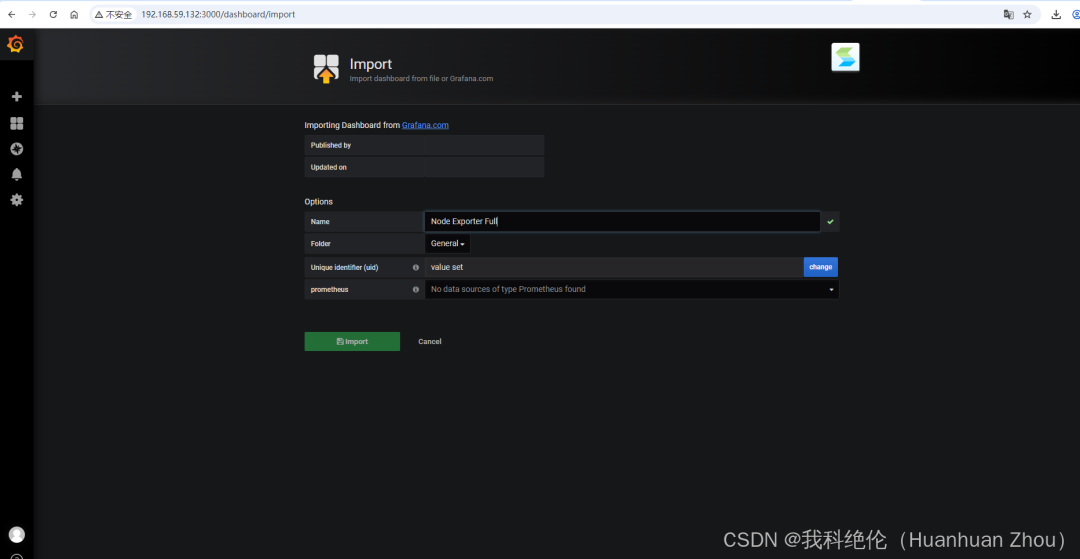

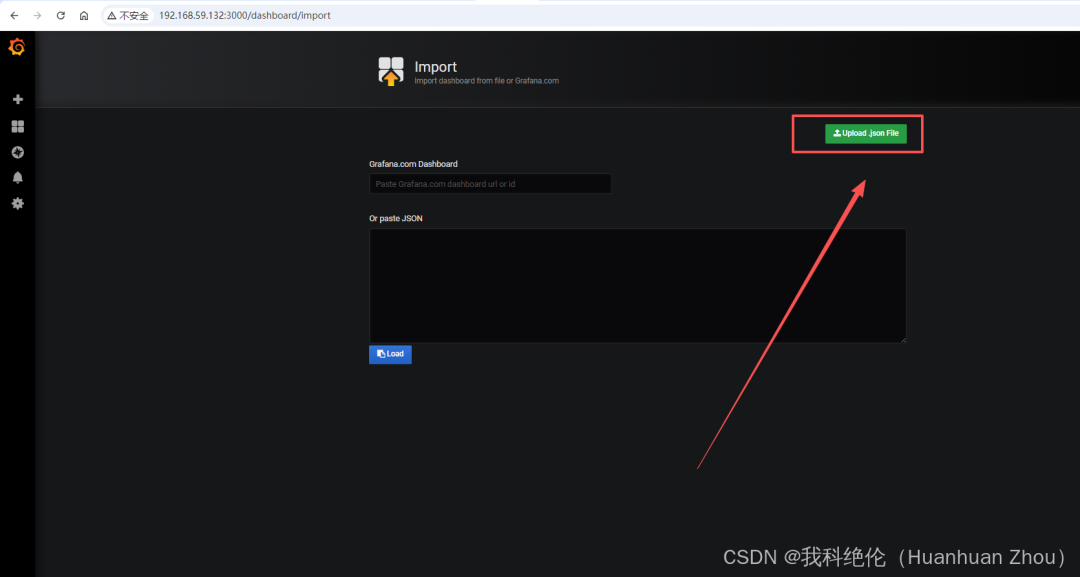

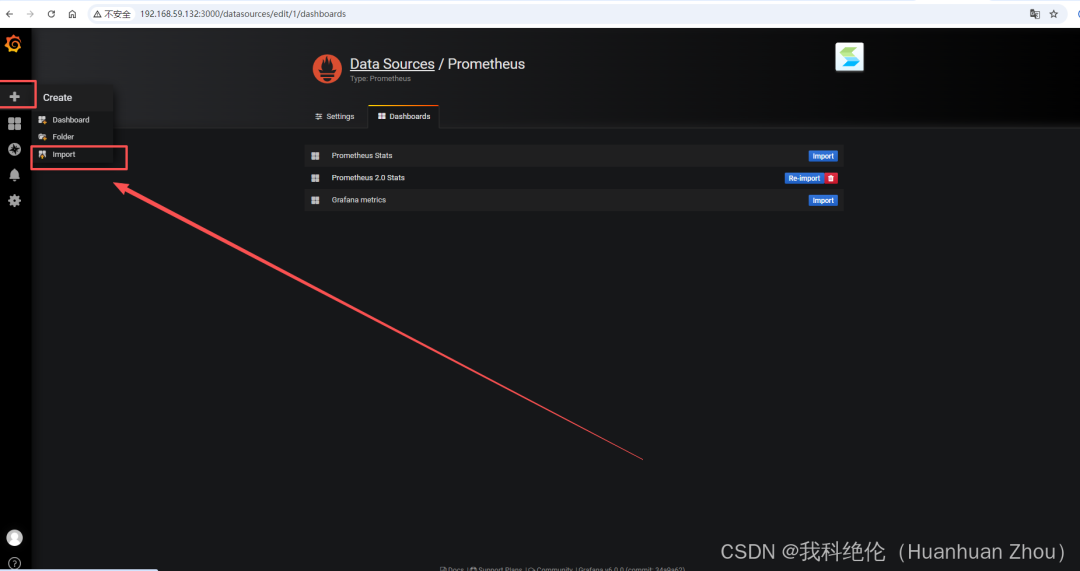

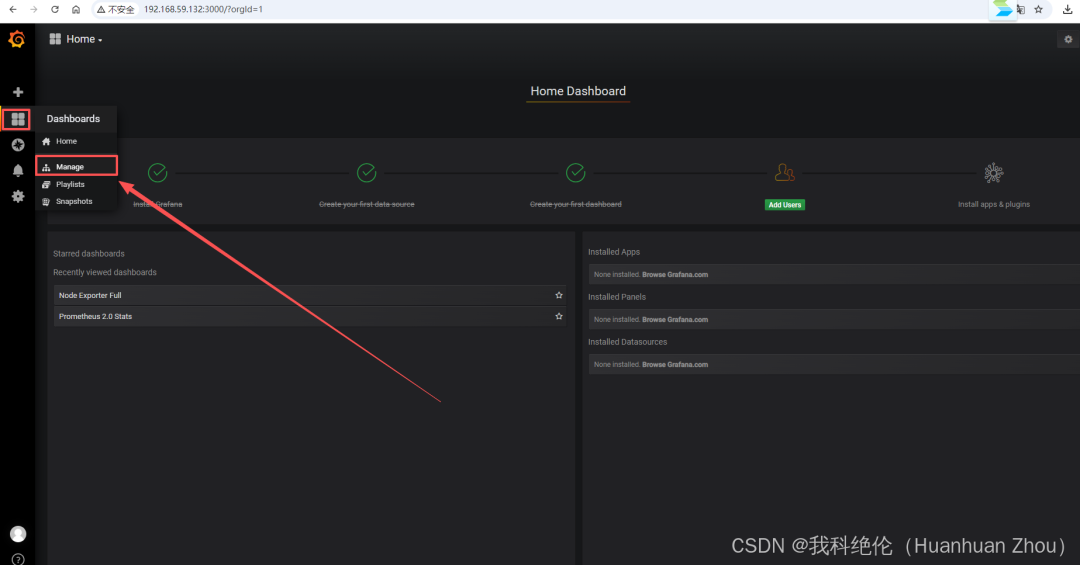

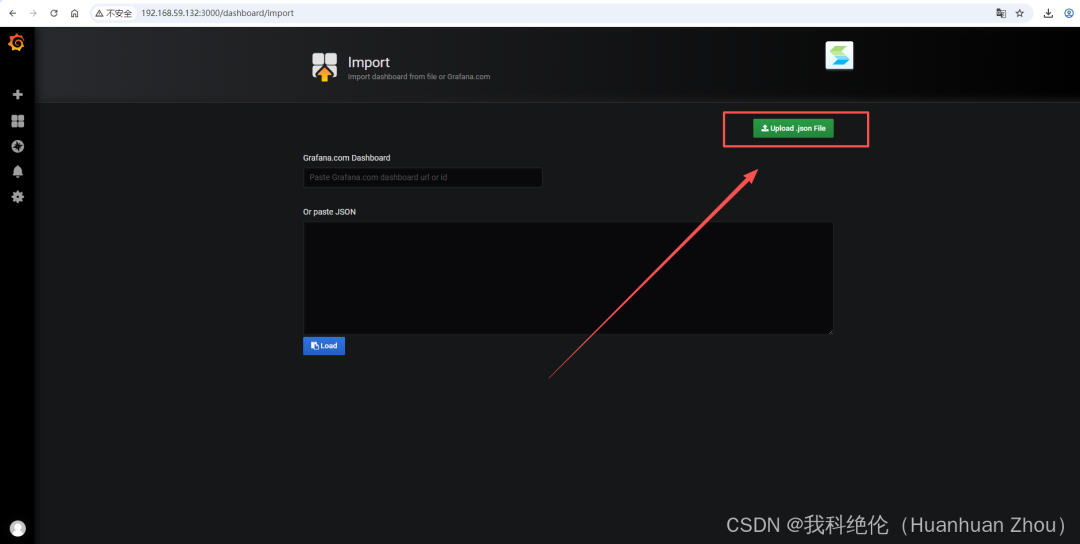

先输入名称，然后填入http://ip+9090然后直接点Save&Test，成功后则直接点击Dashboards选择展示面板

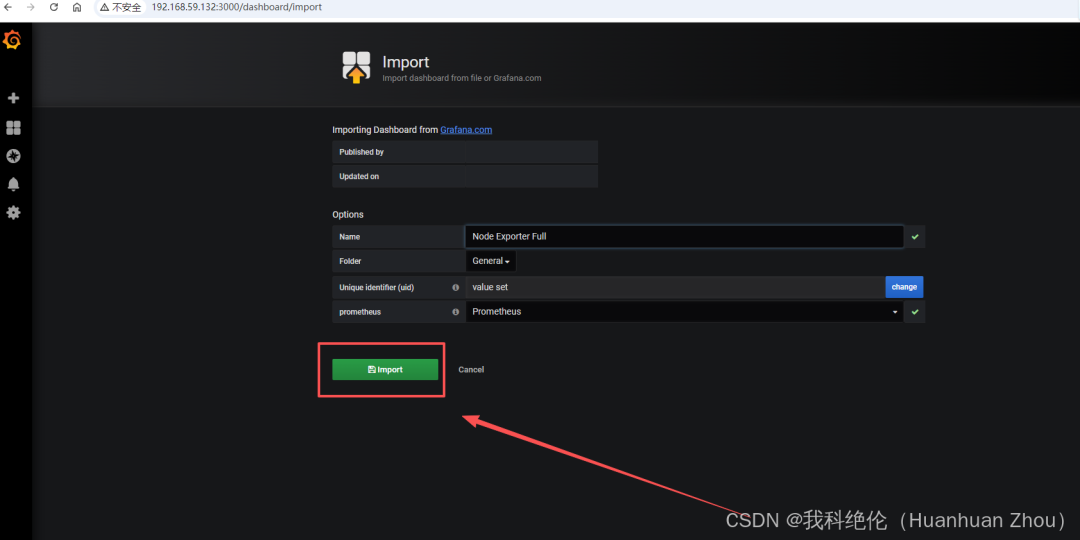

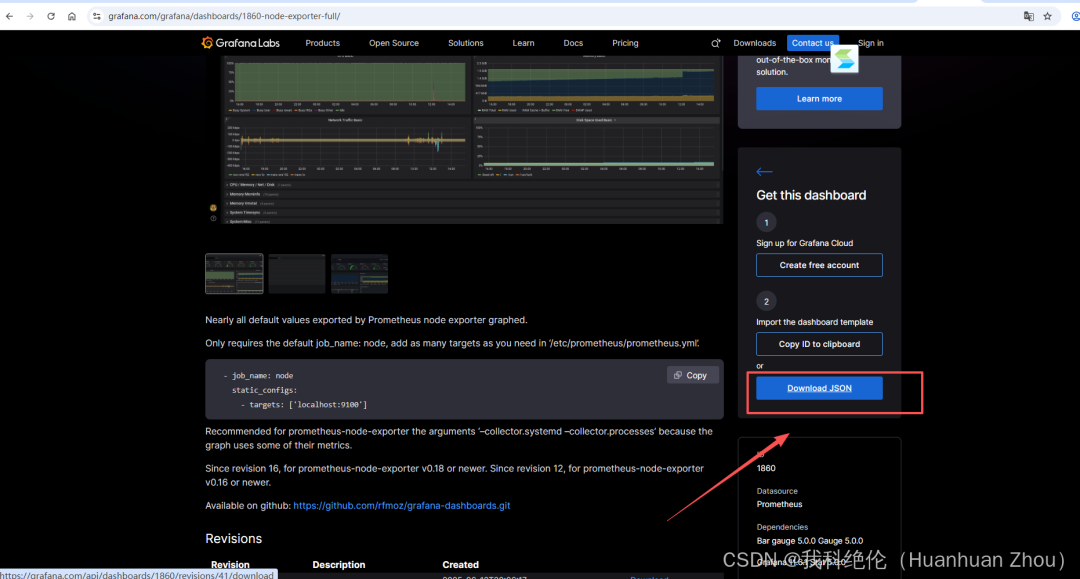

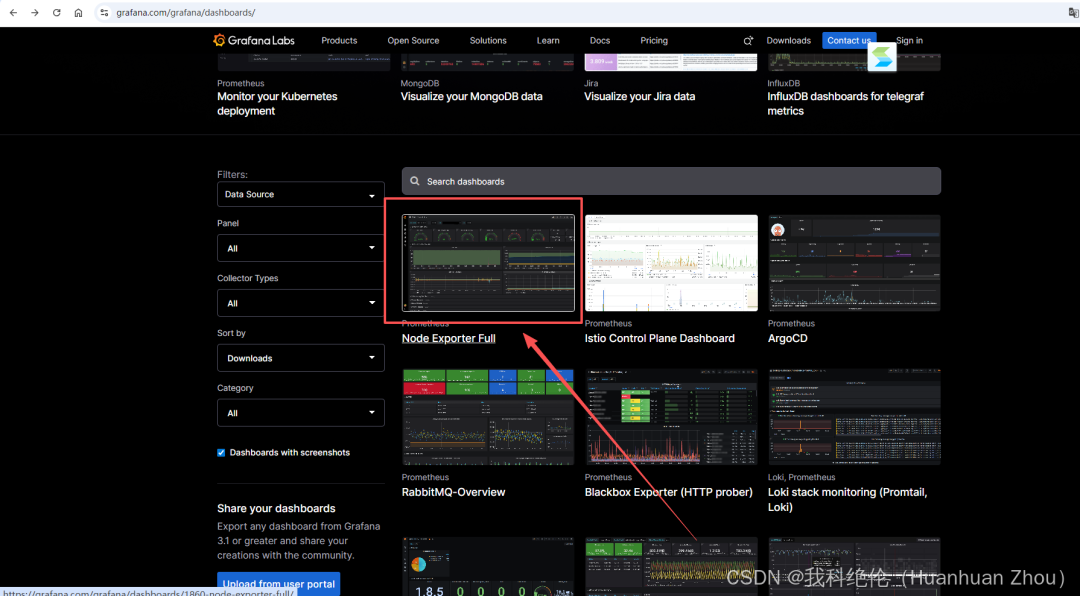

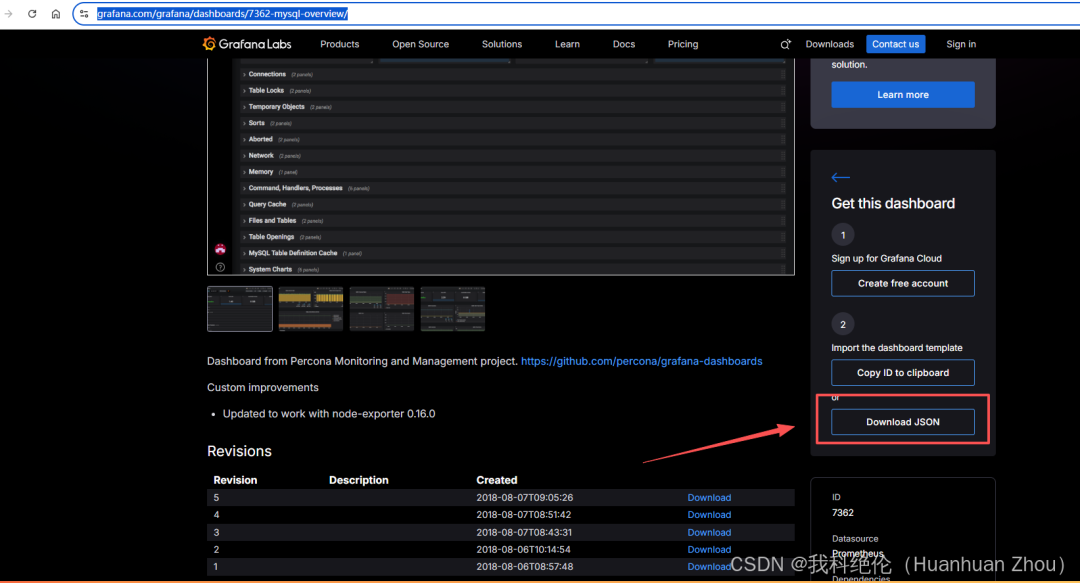

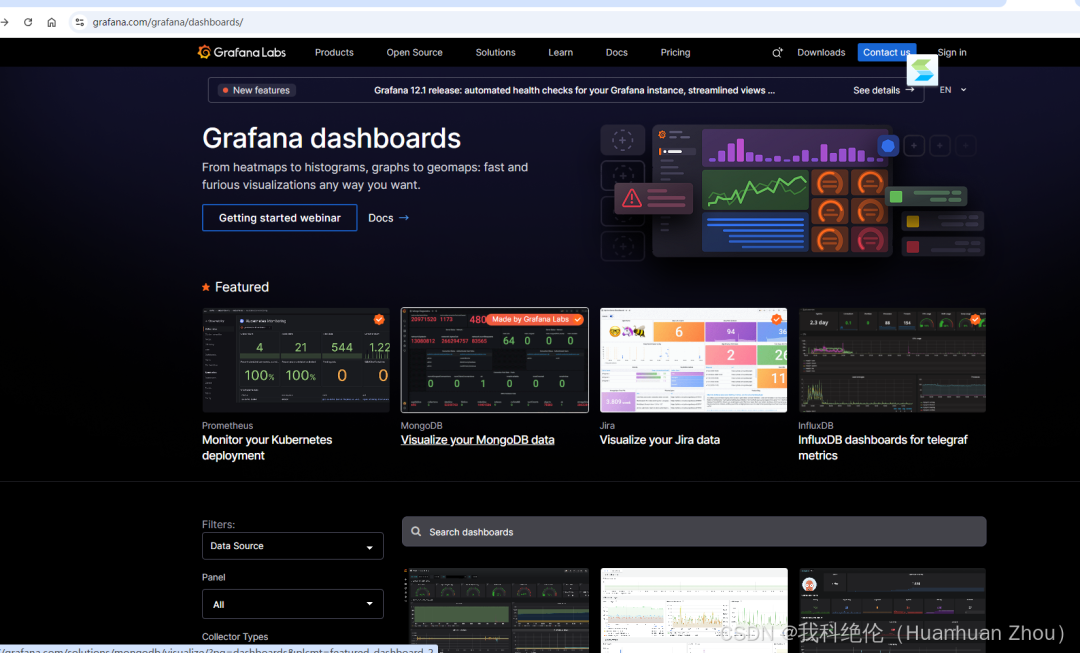

模板的下载地址：
https://grafana.com/grafana/dashboards/?collector=nodeexporter

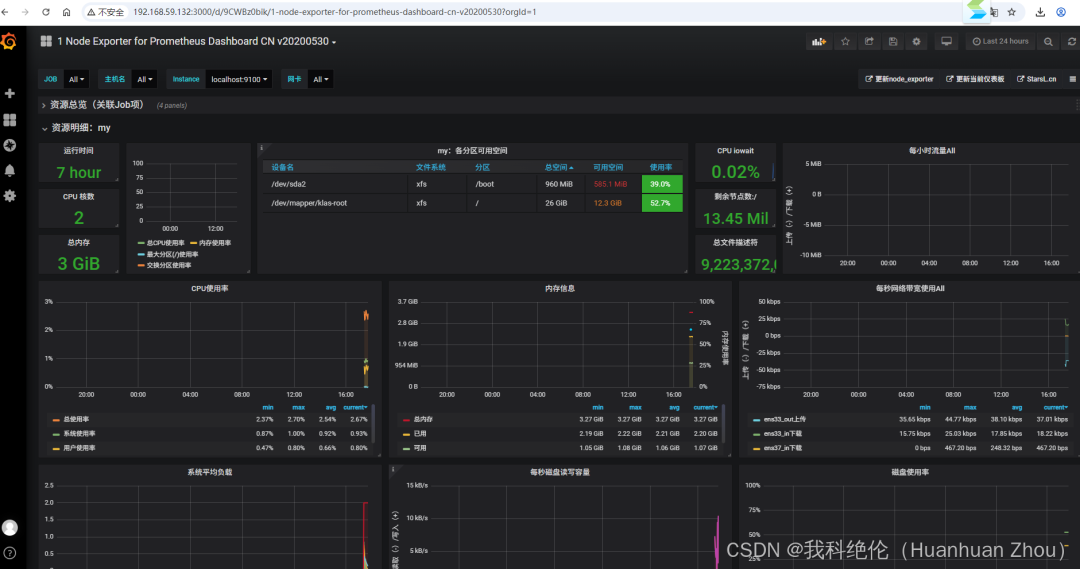

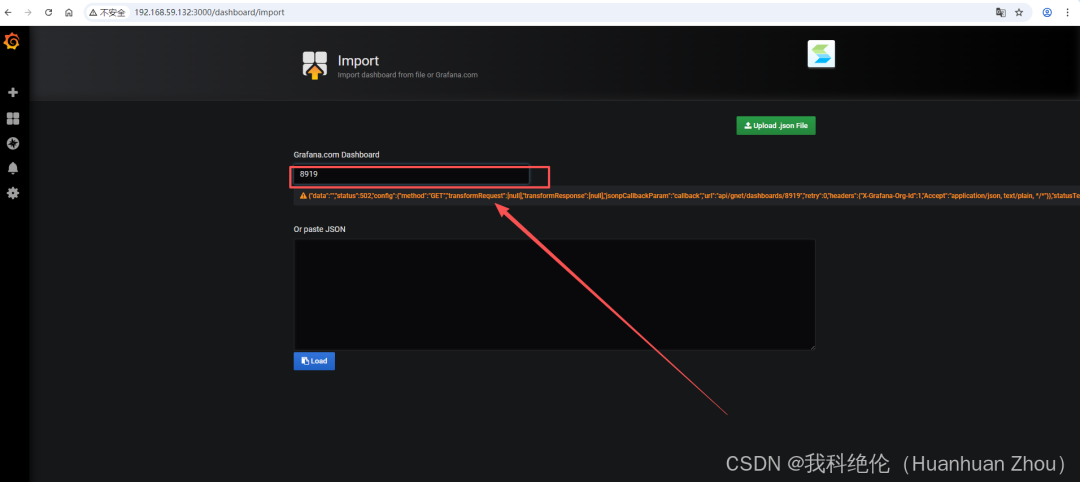

8919模板：
{
"__inputs": [
{
"name": "DS_PROMETHEUS",
"label": "Prometheus",
"description": "",
"type": "datasource",
"pluginId": "prometheus",
"pluginName": "Prometheus"
}
],
"__requires": [
{
"type": "panel",
"id": "bargauge",
"name": "Bar Gauge",
"version": ""
},
{
"type": "grafana",
"id": "grafana",
"name": "Grafana",
"version": "6.7.3"
},
{
"type": "panel",
"id": "graph",
"name": "Graph",
"version": ""
},
{
"type": "datasource",
"id": "prometheus",
"name": "Prometheus",
"version": "1.0.0"
},
{
"type": "panel",
"id": "singlestat",
"name": "Singlestat",
"version": ""
},
{
"type": "panel",
"id": "table",
"name": "Table",
"version": ""
}
],
"annotations": {
"list": [
{
"$$hashKey": "object:5583",
"builtIn": 1,
"datasource": "-- Grafana --",
"enable": true,
"hide": true,
"iconColor": "rgba(0, 211, 255, 1)",
"name": "Annotations & Alerts",
"type": "dashboard"
}
]
},
"description": "支持 Node Exporter v0.16及以上的版本，精简优化重要指标展示。包含：CPU 内存 磁盘 IO 网络 温度等监控指标。https://github.com/starsliao/Prometheus",
"editable": true,
"gnetId": 8919,
"graphTooltip": 0,
"id": null,
"iteration": 1590766977242,
"links": [
{
"icon": "external link",
"tags": [],
"targetBlank": true,
"title": "更新node_exporter",
"tooltip": "",
"type": "link",
"url": "https://github.com/prometheus/node_exporter/releases"
},
{
"icon": "external link",
"tags": [],
"targetBlank": true,
"title": "更新当前仪表板",
"tooltip": "",
"type": "link",
"url": "https://grafana.com/dashboards/8919"
},
{
"icon": "external link",
"tags": [],
"targetBlank": true,
"title": "StarsL.cn",
"tooltip": "",
"type": "link",
"url": "https://starsl.cn"
},
{
"asDropdown": true,
"icon": "external link",
"tags": [],
"targetBlank": true,
"title": "",
"type": "dashboards"
}
],
"panels": [
{
"collapsed": true,
"datasource": "${DS_PROMETHEUS}",
"gridPos": {
"h": 1,
"w": 24,
"x": 0,
"y": 0
},
"id": 187,
"panels": [
{
"columns": [],
"datasource": "${DS_PROMETHEUS}",
"description": "分区使用率、磁盘读取、磁盘写入、下载带宽、上传带宽，如果有多个网卡或者多个分区，是采集的使用率最高的网卡或者分区的数值。",
"fontSize": "100%",
"gridPos": {
"h": 12,
"w": 24,
"x": 0,
"y": 1
},
"id": 185,
"pageSize": 10,
"showHeader": true,
"sort": {
"col": null,
"desc": false
},
"styles": [
{
"$$hashKey": "object:5989",
"alias": "主机名",
"align": "auto",
"colorMode": null,
"colors": [
"rgba(245, 54, 54, 0.9)",
"rgba(237, 129, 40, 0.89)",
"rgba(50, 172, 45, 0.97)"
],
"dateFormat": "YYYY-MM-DD HH:mm:ss",
"decimals": 1,
"link": false,
"linkTooltip": "",
"linkUrl": "",
"mappingType": 1,
"pattern": "nodename",
"thresholds": [],
"type": "string",
"unit": "bytes"
},
{
"$$hashKey": "object:5990",
"alias": "IP（链接到明细）",
"align": "auto",
"colorMode": null,
"colors": [
"rgba(245, 54, 54, 0.9)",
"rgba(237, 129, 40, 0.89)",
"rgba(50, 172, 45, 0.97)"
],
"dateFormat": "YYYY-MM-DD HH:mm:ss",
"decimals": 2,
"link": true,
"linkTargetBlank": true,
"linkTooltip": "点击链接到资源明细",
"linkUrl": "/d/9CWBz0bik/node_exporter?orgId=1&var-job=All&var-hostname=All&var-node=${__cell}&var-device=All",
"mappingType": 1,
"pattern": "instance",
"thresholds": [],
"type": "number",
"unit": "short"
},
{
"$$hashKey": "object:5991",
"alias": "内存",
"align": "auto",
"colorMode": null,
"colors": [
"rgba(245, 54, 54, 0.9)",
"rgba(237, 129, 40, 0.89)",
"rgba(50, 172, 45, 0.97)"
],
"dateFormat": "YYYY-MM-DD HH:mm:ss",
"decimals": 2,
"link": false,
"mappingType": 1,
"pattern": "Value #B",
"thresholds": [],
"type": "number",
"unit": "bytes"
},
{
"$$hashKey": "object:5992",
"alias": "CPU核",
"align": "auto",
"colorMode": null,
"colors": [
"rgba(245, 54, 54, 0.9)",
"rgba(237, 129, 40, 0.89)",
"rgba(50, 172, 45, 0.97)"
],
"dateFormat": "YYYY-MM-DD HH:mm:ss",
"decimals": null,
"mappingType": 1,
"pattern": "Value #C",
"thresholds": [],
"type": "number",
"unit": "short"
},
{
"$$hashKey": "object:5993",
"alias": " 运行时间",
"align": "auto",
"colorMode": null,
"colors": [
"rgba(245, 54, 54, 0.9)",
"rgba(237, 129, 40, 0.89)",
"rgba(50, 172, 45, 0.97)"
],
"dateFormat": "YYYY-MM-DD HH:mm:ss",
"decimals": 2,
"mappingType": 1,
"pattern": "Value #D",
"thresholds": [],
"type": "number",
"unit": "s"
},
{
"$$hashKey": "object:5994",
"alias": "分区使用率*",
"align": "auto",
"colorMode": "cell",
"colors": [
"rgba(50, 172, 45, 0.97)",
"rgba(237, 129, 40, 0.89)",
"rgba(245, 54, 54, 0.9)"
],
"dateFormat": "YYYY-MM-DD HH:mm:ss",
"decimals": 2,
"mappingType": 1,
"pattern": "Value #E",
"thresholds": [
"70",
"85"
],
"type": "number",
"unit": "percent"
},
{
"$$hashKey": "object:5995",
"alias": "CPU使用率",
"align": "auto",
"colorMode": "cell",
"colors": [
"rgba(50, 172, 45, 0.97)",
"rgba(237, 129, 40, 0.89)",
"rgba(245, 54, 54, 0.9)"
],
"dateFormat": "YYYY-MM-DD HH:mm:ss",
"decimals": 2,
"mappingType": 1,
"pattern": "Value #F",
"thresholds": [
"70",
"85"
],
"type": "number",
"unit": "percent"
},
{
"$$hashKey": "object:5996",
"alias": "内存使用率",
"align": "auto",
"colorMode": "cell",
"colors": [
"rgba(50, 172, 45, 0.97)",
"rgba(237, 129, 40, 0.89)",
"rgba(245, 54, 54, 0.9)"
],
"dateFormat": "YYYY-MM-DD HH:mm:ss",
"decimals": 2,
"mappingType": 1,
"pattern": "Value #G",
"thresholds": [
"70",
"85"
],
"type": "number",
"unit": "percent"
},
{
"$$hashKey": "object:5997",
"alias": "磁盘读取*",
"align": "auto",
"colorMode": "cell",
"colors": [
"rgba(50, 172, 45, 0.97)",
"rgba(237, 129, 40, 0.89)",
"rgba(245, 54, 54, 0.9)"
],
"dateFormat": "YYYY-MM-DD HH:mm:ss",
"decimals": 2,
"mappingType": 1,
"pattern": "Value #H",
"thresholds": [
"10485760",
"20485760"
],
"type": "number",
"unit": "Bps"
},
{
"$$hashKey": "object:5998",
"alias": "磁盘写入*",
"align": "auto",
"colorMode": "cell",
"colors": [
"rgba(50, 172, 45, 0.97)",
"rgba(237, 129, 40, 0.89)",
"rgba(245, 54, 54, 0.9)"
],
"dateFormat": "YYYY-MM-DD HH:mm:ss",
"decimals": 2,
"mappingType": 1,
"pattern": "Value #I",
"thresholds": [
"10485760",
"20485760"
],
"type": "number",
"unit": "Bps"
},
{
"$$hashKey": "object:5999",
"alias": "下载带宽*",
"align": "auto",
"colorMode": "cell",
"colors": [
"rgba(50, 172, 45, 0.97)",
"rgba(237, 129, 40, 0.89)",
"rgba(245, 54, 54, 0.9)"
],
"dateFormat": "YYYY-MM-DD HH:mm:ss",
"decimals": 2,
"mappingType": 1,
"pattern": "Value #J",
"thresholds": [
"30485760",
"104857600"
],
"type": "number",
"unit": "bps"
},
{
"$$hashKey": "object:6000",
"alias": "上传带宽*",
"align": "auto",
"colorMode": "cell",
"colors": [
"rgba(50, 172, 45, 0.97)",
"rgba(237, 129, 40, 0.89)",
"rgba(245, 54, 54, 0.9)"
],
"dateFormat": "YYYY-MM-DD HH:mm:ss",
"decimals": 2,
"mappingType": 1,
"pattern": "Value #K",
"thresholds": [
"30485760",
"104857600"
],
"type": "number",
"unit": "bps"
},
{
"$$hashKey": "object:6001",
"alias": "",
"align": "right",
"colorMode": null,
"colors": [
"rgba(245, 54, 54, 0.9)",
"rgba(237, 129, 40, 0.89)",
"rgba(50, 172, 45, 0.97)"
],
"decimals": 2,
"pattern": "/.*/",
"thresholds": [],
"type": "hidden",
"unit": "short"
}
],
"targets": [
{
"expr": "node_uname_info{job=~\"$job\"} - 0",
"format": "table",
"instant": true,
"interval": "",
"legendFormat": "",
"refId": "A"
},
{
"expr": "node_memory_MemTotal_bytes{job=~\"$job\"} - 0",
"format": "table",
"hide": false,
"instant": true,
"interval": "",
"legendFormat": "",
"refId": "B"
},
{
"expr": "count(node_cpu_seconds_total{job=~\"$job\",mode='system'}) by (instance)",
"format": "table",
"hide": false,
"instant": true,
"interval": "",
"legendFormat": "",
"refId": "C"
},
{
"expr": "sum(time() - node_boot_time_seconds{job=~\"$job\"})by(instance)",
"format": "table",
"hide": false,
"instant": true,
"interval": "",
"legendFormat": "",
"refId": "D"
},
{
"expr": "max((node_filesystem_size_bytes{job=~\"$job\",fstype=~\"ext.?|xfs\"}-node_filesystem_free_bytes{job=~\"$job\",fstype=~\"ext.?|xfs\"}) *100/(node_filesystem_avail_bytes {job=~\"$job\",fstype=~\"ext.?|xfs\"}+(node_filesystem_size_bytes{job=~\"$job\",fstype=~\"ext.?|xfs\"}-node_filesystem_free_bytes{job=~\"$job\",fstype=~\"ext.?|xfs\"})))by(instance)",
"format": "table",
"hide": false,
"instant": true,
"interval": "",
"legendFormat": "",
"refId": "E"
},
{
"expr": "(1 - avg(irate(node_cpu_seconds_total{job=~\"$job\",mode=\"idle\"}[5m])) by (instance)) * 100",
"format": "table",
"hide": false,
"instant": true,
"interval": "",
"legendFormat": "",
"refId": "F"
},
{
"expr": "(1 - (node_memory_MemAvailable_bytes{job=~\"$job\"} (node_memory_MemTotal_bytes{job=~\"$job\"})))* 100",
"format": "table",
"hide": false,
"instant": true,
"interval": "",
"legendFormat": "",
"refId": "G"
},
{
"expr": "max(irate(node_disk_read_bytes_total{job=~\"$job\"}[5m])) by (instance)",
"format": "table",
"hide": false,
"instant": true,
"interval": "",
"legendFormat": "最大读取",
"refId": "H"
},
{
"expr": "max(irate(node_disk_written_bytes_total{job=~\"$job\"}[5m])) by (instance)",
"format": "table",
"hide": false,
"instant": true,
"interval": "",
"legendFormat": "最大写入",
"refId": "I"
},
{
"expr": "max(irate(node_network_receive_bytes_total{job=~\"$job\"}[5m])*8) by (instance)",
"format": "table",
"hide": false,
"instant": true,
"interval": "",
"legendFormat": "下载带宽",
"refId": "J"
},
{
"expr": "max(irate(node_network_transmit_bytes_total{job=~\"$job\"}[5m])*8) by (instance)",
"format": "table",
"hide": false,
"instant": true,
"interval": "",
"legendFormat": "上传带宽",
"refId": "K"
}
],
"timeFrom": null,
"timeShift": null,
"title": "服务器资源总览表(每页10行)",
"transform": "table",
"type": "table"
},
{
"aliasColors": {
"192.168.200.241:9100_Total": "dark-red",
"Idle - Waiting for something to happen": "#052B51",
"guest": "#9AC48A",
"idle": "#052B51",
"iowait": "#EAB839",
"irq": "#BF1B00",
"nice": "#C15C17",
"sdb_每秒I/O操作%": "#d683ce",
"softirq": "#E24D42",
"steal": "#FCE2DE",
"system": "#508642",
"user": "#5195CE",
"磁盘花费在I/O操作占比": "#ba43a9"
},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "${DS_PROMETHEUS}",
"decimals": null,
"description": "",
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"fill": 0,
"fillGradient": 0,
"gridPos": {
"h": 8,
"w": 8,
"x": 0,
"y": 13
},
"hiddenSeries": false,
"id": 191,
"legend": {
"alignAsTable": false,
"avg": false,
"current": true,
"hideEmpty": true,
"hideZero": true,
"max": false,
"min": false,
"rightSide": false,
"show": true,
"sideWidth": null,
"sort": "current",
"sortDesc": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 2,
"links": [],
"maxPerRow": 6,
"nullPointMode": "null",
"options": {
"dataLinks": []
},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"repeat": null,
"seriesOverrides": [
{
"alias": "总平均使用率",
"lines": false,
"pointradius": 1,
"points": true,
"yaxis": 2
},
{
"alias": "总核数",
"color": "#C4162A"
}
],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "count(node_cpu_seconds_total{job=\"$job\", mode='system'})",
"format": "time_series",
"hide": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "总核数",
"refId": "B",
"step": 240
},
{
"expr": "sum(node_load5{job=\"$job\"})",
"format": "time_series",
"hide": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "总5分钟负载",
"refId": "A",
"step": 240
},
{
"expr": "avg(1 - avg(irate(node_cpu_seconds_total{job=\"$job\",mode=\"idle\"}[5m])) by (instance)) * 100",
"format": "time_series",
"hide": false,
"interval": "30m",
"intervalFactor": 1,
"legendFormat": "总平均使用率",
"refId": "F",
"step": 240
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "$job：整体总负载与整体平均CPU使用率",
"tooltip": {
"shared": true,
"sort": 2,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"decimals": null,
"format": "short",
"label": "总负载",
"logBase": 1,
"max": null,
"min": null,
"show": true
},
{
"decimals": 0,
"format": "percent",
"label": "平均使用率",
"logBase": 1,
"max": null,
"min": null,
"show": true
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"aliasColors": {
"192.168.200.241:9100_总内存": "dark-red",
"内存_Avaliable": "#6ED0E0",
"内存_Cached": "#EF843C",
"内存_Free": "#629E51",
"内存_Total": "#6d1f62",
"内存_Used": "#eab839",
"可用": "#9ac48a",
"总内存": "#bf1b00"
},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "${DS_PROMETHEUS}",
"decimals": 1,
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"fill": 0,
"fillGradient": 0,
"gridPos": {
"h": 8,
"w": 8,
"x": 8,
"y": 13
},
"height": "300",
"hiddenSeries": false,
"id": 195,
"legend": {
"alignAsTable": false,
"avg": false,
"current": true,
"max": false,
"min": false,
"rightSide": false,
"show": true,
"sort": "current",
"sortDesc": false,
"total": false,
"values": true
},
"lines": true,
"linewidth": 2,
"links": [],
"nullPointMode": "null",
"options": {
"dataLinks": []
},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"seriesOverrides": [
{
"$$hashKey": "object:3621",
"alias": "总内存",
"color": "#C4162A",
"fill": 0
},
{
"$$hashKey": "object:3622",
"alias": "总平均使用率",
"lines": false,
"pointradius": 1,
"points": true,
"yaxis": 2
}
],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "sum(node_memory_MemTotal_bytes{job=~\"$job\"})",
"format": "time_series",
"hide": false,
"instant": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "总内存",
"refId": "A",
"step": 4
},
{
"expr": "sum(node_memory_MemTotal_bytes{job=~\"$job\"} - node_memory_MemAvailable_bytes{job=~\"$job\"})",
"format": "time_series",
"hide": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "总已用",
"refId": "B",
"step": 4
},
{
"expr": "(sum(node_memory_MemTotal_bytes{job=~\"$job\"} - node_memory_MemAvailable_bytes{job=~\"$job\"}) sum(node_memory_MemTotal_bytes{job=~\"$job\"}))*100",
"format": "time_series",
"hide": false,
"interval": "30m",
"intervalFactor": 1,
"legendFormat": "总平均使用率",
"refId": "H"
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "$job：整体总内存与整体平均内存使用率",
"tooltip": {
"shared": true,
"sort": 2,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"$$hashKey": "object:3649",
"decimals": null,
"format": "bytes",
"label": "总内存量",
"logBase": 1,
"max": null,
"min": "0",
"show": true
},
{
"$$hashKey": "object:3650",
"decimals": null,
"format": "percent",
"label": "平均使用率",
"logBase": 1,
"max": null,
"min": null,
"show": true
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"aliasColors": {},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "${DS_PROMETHEUS}",
"decimals": 1,
"description": "",
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"fill": 0,
"fillGradient": 0,
"gridPos": {
"h": 8,
"w": 8,
"x": 16,
"y": 13
},
"hiddenSeries": false,
"id": 197,
"legend": {
"alignAsTable": false,
"avg": false,
"current": true,
"hideEmpty": false,
"hideZero": false,
"max": false,
"min": false,
"rightSide": false,
"show": true,
"sideWidth": null,
"sort": "current",
"sortDesc": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 2,
"links": [],
"nullPointMode": "null",
"options": {
"dataLinks": []
},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"seriesOverrides": [
{
"$$hashKey": "object:1773",
"alias": "总平均使用率",
"lines": false,
"pointradius": 1,
"points": true,
"yaxis": 2
},
{
"$$hashKey": "object:1774",
"alias": "总磁盘量",
"color": "#C4162A"
}
],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "sum(avg(node_filesystem_size_bytes{job=\"$job\",fstype=~\"xfs|ext.*\"})by(device,instance))",
"format": "time_series",
"instant": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "总磁盘量",
"refId": "E"
},
{
"expr": "sum(avg(node_filesystem_size_bytes{job=\"$job\",fstype=~\"xfs|ext.*\"})by(device,instance)) - sum(avg(node_filesystem_free_bytes{job=\"$job\",fstype=~\"xfs|ext.*\"})by(device,instance))",
"format": "time_series",
"instant": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "总使用量",
"refId": "C"
},
{
"expr": "(sum(avg(node_filesystem_size_bytes{job=\"$job\",fstype=~\"xfs|ext.*\"})by(device,instance)) - sum(avg(node_filesystem_free_bytes{job=\"$job\",fstype=~\"xfs|ext.*\"})by(device,instance))) *100/(sum(avg(node_filesystem_avail_bytes{job=\"$job\",fstype=~\"xfs|ext.*\"})by(device,instance))+(sum(avg(node_filesystem_size_bytes{job=\"$job\",fstype=~\"xfs|ext.*\"})by(device,instance)) - sum(avg(node_filesystem_free_bytes{job=\"$job\",fstype=~\"xfs|ext.*\"})by(device,instance))))",
"format": "time_series",
"instant": false,
"interval": "30m",
"intervalFactor": 1,
"legendFormat": "总平均使用率",
"refId": "A"
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "$job：整体总磁盘与整体平均磁盘使用率",
"tooltip": {
"shared": true,
"sort": 2,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"$$hashKey": "object:1799",
"decimals": 1,
"format": "bytes",
"label": "总磁盘量",
"logBase": 1,
"max": null,
"min": "0",
"show": true
},
{
"$$hashKey": "object:1800",
"decimals": null,
"format": "percent",
"label": "平均使用率",
"logBase": 1,
"max": null,
"min": null,
"show": true
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
}
],
"title": "资源总览（关联Job项）",
"type": "row"
},
{
"collapsed": false,
"datasource": "${DS_PROMETHEUS}",
"gridPos": {
"h": 1,
"w": 24,
"x": 0,
"y": 1
},
"id": 189,
"panels": [],
"title": "资源明细：$show_hostname",
"type": "row"
},
{
"cacheTimeout": null,
"colorBackground": false,
"colorPostfix": false,
"colorPrefix": false,
"colorValue": true,
"colors": [
"rgba(245, 54, 54, 0.9)",
"rgba(237, 129, 40, 0.89)",
"rgba(50, 172, 45, 0.97)"
],
"datasource": "${DS_PROMETHEUS}",
"decimals": 0,
"description": "",
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"format": "s",
"gauge": {
"maxValue": 100,
"minValue": 0,
"show": false,
"threshcisLabels": false,
"threshcisMarkers": true
},
"gridPos": {
"h": 2,
"w": 2,
"x": 0,
"y": 2
},
"hideTimeOverride": true,
"id": 15,
"interval": null,
"links": [],
"mappingType": 1,
"mappingTypes": [
{
"name": "value to text",
"value": 1
},
{
"name": "range to text",
"value": 2
}
],
"maxDataPoints": 100,
"nullPointMode": "null",
"nullText": null,
"pluginVersion": "6.4.2",
"postfix": "",
"postfixFontSize": "50%",
"prefix": "",
"prefixFontSize": "50%",
"rangeMaps": [
{
"from": "null",
"text": "N/A",
"to": "null"
}
],
"sparkline": {
"fillColor": "rgba(31, 118, 189, 0.18)",
"full": false,
"lineColor": "rgb(31, 120, 193)",
"show": false
},
"tableColumn": "",
"targets": [
{
"expr": "time() - node_boot_time_seconds{instance=~\"$node\"}",
"format": "time_series",
"hide": false,
"instant": true,
"interval": "",
"intervalFactor": 1,
"legendFormat": "",
"refId": "A",
"step": 40
}
],
"threshciss": "1,2",
"thresholds": "1,3",
"title": "运行时间",
"type": "singlestat",
"valueFontSize": "70%",
"valueMaps": [
{
"op": "=",
"text": "N/A",
"value": "null"
}
],
"valueName": "current"
},
{
"datasource": "${DS_PROMETHEUS}",
"fieldConfig": {
"defaults": {
"color": {
"mode": "thresholds"
},
"custom": {},
"decimals": 2,
"displayName": "",
"mappings": [
{
"from": "",
"id": 1,
"operator": "",
"text": "N/A",
"to": "",
"type": 1,
"value": "0"
}
],
"max": 100,
"min": 0,
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 70
},
{
"color": "#EAB839",
"value": 90
}
]
},
"unit": "percent"
},
"overrides": []
},
"gridPos": {
"h": 6,
"w": 3,
"x": 2,
"y": 2
},
"id": 177,
"options": {
"displayMode": "lcd",
"fieldOptions": {
"calcs": [
"last"
],
"defaults": {
"decimals": 1,
"mappings": [
{
"from": "",
"id": 1,
"operator": "",
"text": "N/A",
"to": "",
"type": 1,
"value": "0"
}
],
"max": 100,
"min": 0.1,
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "#EAB839",
"value": 70
},
{
"color": "red",
"value": 90
}
]
},
"unit": "percent"
},
"overrides": [],
"values": false
},
"orientation": "horizontal",
"reduceOptions": {
"calcs": [
"mean"
],
"values": false
},
"showUnfilled": true
},
"pluginVersion": "6.7.3",
"targets": [
{
"expr": "100 - (avg(irate(node_cpu_seconds_total{instance=~\"$node\",mode=\"idle\"}[5m])) * 100)",
"instant": true,
"interval": "",
"legendFormat": "总CPU使用率",
"refId": "A"
},
{
"expr": "avg(irate(node_cpu_seconds_total{instance=~\"$node\",mode=\"iowait\"}[5m])) * 100",
"hide": true,
"instant": true,
"interval": "",
"legendFormat": "IOwait使用率",
"refId": "C"
},
{
"expr": "(1 - (node_memory_MemAvailable_bytes{instance=~\"$node\"} (node_memory_MemTotal_bytes{instance=~\"$node\"})))* 100",
"instant": true,
"interval": "",
"legendFormat": "内存使用率",
"refId": "B"
},
{
"expr": "(node_filesystem_size_bytes{instance=~'$node',fstype=~\"ext.*|xfs\",mountpoint=\"$maxmount\"}-node_filesystem_free_bytes{instance=~'$node',fstype=~\"ext.*|xfs\",mountpoint=\"$maxmount\"})*100 (node_filesystem_avail_bytes {instance=~'$node',fstype=~\"ext.*|xfs\",mountpoint=\"$maxmount\"}+(node_filesystem_size_bytes{instance=~'$node',fstype=~\"ext.*|xfs\",mountpoint=\"$maxmount\"}-node_filesystem_free_bytes{instance=~'$node',fstype=~\"ext.*|xfs\",mountpoint=\"$maxmount\"}))",
"hide": false,
"instant": true,
"interval": "",
"legendFormat": "最大分区({{mountpoint}})使用率",
"refId": "D"
},
{
"expr": "(1 - ((node_memory_SwapFree_bytes{instance=~\"$node\"} + 1)/ (node_memory_SwapTotal_bytes{instance=~\"$node\"} + 1))) * 100",
"instant": true,
"legendFormat": "交换分区使用率",
"refId": "F"
}
],
"timeFrom": null,
"timeShift": null,
"title": "",
"type": "bargauge"
},
{
"columns": [],
"datasource": "${DS_PROMETHEUS}",
"description": "本看板中的：磁盘总量、使用量、可用量、使用率保持和df命令的Size、Used、Avail、Use% 列的值一致，并且Use%的值会四舍五入保留一位小数，会更加准确。\n\n注：df中Use%算法为：(size - free) * 100 (avail + (size - free))，结果是整除则为该值，非整除则为该值+1，结果的单位是%。\n参考df命令源码：",
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"fontSize": "100%",
"gridPos": {
"h": 6,
"w": 10,
"x": 5,
"y": 2
},
"id": 181,
"links": [
{
"targetBlank": true,
"title": "https://github.com/coreutils/coreutils/blob/master/src/df.c",
"url": "https://github.com/coreutils/coreutils/blob/master/src/df.c"
}
],
"pageSize": null,
"scroll": true,
"showHeader": true,
"sort": {
"col": 6,
"desc": false
},
"styles": [
{
"$$hashKey": "object:160",
"alias": "分区",
"align": "auto",
"colorMode": null,
"colors": [
"rgba(50, 172, 45, 0.97)",
"rgba(237, 129, 40, 0.89)",
"rgba(245, 54, 54, 0.9)"
],
"dateFormat": "YYYY-MM-DD HH:mm:ss",
"decimals": 2,
"mappingType": 1,
"pattern": "mountpoint",
"thresholds": [
""
],
"type": "string",
"unit": "bytes"
},
{
"$$hashKey": "object:161",
"alias": "可用空间",
"align": "auto",
"colorMode": "value",
"colors": [
"rgba(245, 54, 54, 0.9)",
"rgba(237, 129, 40, 0.89)",
"rgba(50, 172, 45, 0.97)"
],
"dateFormat": "YYYY-MM-DD HH:mm:ss",
"decimals": 1,
"mappingType": 1,
"pattern": "Value #A",
"thresholds": [
"10000000000",
"20000000000"
],
"type": "number",
"unit": "bytes"
},
{
"$$hashKey": "object:162",
"alias": "使用率",
"align": "auto",
"colorMode": "cell",
"colors": [
"rgba(50, 172, 45, 0.97)",
"rgba(237, 129, 40, 0.89)",
"rgba(245, 54, 54, 0.9)"
],
"dateFormat": "YYYY-MM-DD HH:mm:ss",
"decimals": 1,
"mappingType": 1,
"pattern": "Value #B",
"thresholds": [
"70",
"85"
],
"type": "number",
"unit": "percent"
},
{
"$$hashKey": "object:163",
"alias": "总空间",
"align": "auto",
"colorMode": null,
"colors": [
"rgba(245, 54, 54, 0.9)",
"rgba(237, 129, 40, 0.89)",
"rgba(50, 172, 45, 0.97)"
],
"dateFormat": "YYYY-MM-DD HH:mm:ss",
"decimals": 0,
"link": false,
"mappingType": 1,
"pattern": "Value #C",
"thresholds": [],
"type": "number",
"unit": "bytes"
},
{
"$$hashKey": "object:164",
"alias": "文件系统",
"align": "auto",
"colorMode": null,
"colors": [
"rgba(245, 54, 54, 0.9)",
"rgba(237, 129, 40, 0.89)",
"rgba(50, 172, 45, 0.97)"
],
"dateFormat": "YYYY-MM-DD HH:mm:ss",
"decimals": 2,
"link": false,
"mappingType": 1,
"pattern": "fstype",
"thresholds": [],
"type": "string",
"unit": "short"
},
{
"$$hashKey": "object:165",
"alias": "设备名",
"align": "auto",
"colorMode": null,
"colors": [
"rgba(245, 54, 54, 0.9)",
"rgba(237, 129, 40, 0.89)",
"rgba(50, 172, 45, 0.97)"
],
"dateFormat": "YYYY-MM-DD HH:mm:ss",
"decimals": 2,
"link": false,
"mappingType": 1,
"pattern": "device",
"preserveFormat": false,
"sanitize": false,
"thresholds": [],
"type": "string",
"unit": "short"
},
{
"$$hashKey": "object:166",
"alias": "",
"align": "auto",
"colorMode": null,
"colors": [
"rgba(245, 54, 54, 0.9)",
"rgba(237, 129, 40, 0.89)",
"rgba(50, 172, 45, 0.97)"
],
"decimals": 2,
"pattern": "/.*/",
"preserveFormat": true,
"sanitize": false,
"thresholds": [],
"type": "hidden",
"unit": "short"
}
],
"targets": [
{
"expr": "node_filesystem_size_bytes{instance=~'$node',fstype=~\"ext.*|xfs\",mountpoint !~\".*pod.*\"}-0",
"format": "table",
"hide": false,
"instant": true,
"interval": "",
"intervalFactor": 1,
"legendFormat": "总量",
"refId": "C"
},
{
"expr": "node_filesystem_avail_bytes {instance=~'$node',fstype=~\"ext.*|xfs\",mountpoint !~\".*pod.*\"}-0",
"format": "table",
"hide": false,
"instant": true,
"interval": "10s",
"intervalFactor": 1,
"legendFormat": "",
"refId": "A"
},
{
"expr": "(node_filesystem_size_bytes{instance=~'$node',fstype=~\"ext.*|xfs\",mountpoint !~\".*pod.*\"}-node_filesystem_free_bytes{instance=~'$node',fstype=~\"ext.*|xfs\",mountpoint !~\".*pod.*\"}) *100/(node_filesystem_avail_bytes {instance=~'$node',fstype=~\"ext.*|xfs\",mountpoint !~\".*pod.*\"}+(node_filesystem_size_bytes{instance=~'$node',fstype=~\"ext.*|xfs\",mountpoint !~\".*pod.*\"}-node_filesystem_free_bytes{instance=~'$node',fstype=~\"ext.*|xfs\",mountpoint !~\".*pod.*\"}))",
"format": "table",
"hide": false,
"instant": true,
"interval": "",
"intervalFactor": 1,
"legendFormat": "",
"refId": "B"
}
],
"title": "$show_hostname：各分区可用空间",
"transform": "table",
"type": "table"
},
{
"cacheTimeout": null,
"colorBackground": false,
"colorValue": true,
"colors": [
"rgba(50, 172, 45, 0.97)",
"rgba(237, 129, 40, 0.89)",
"#d44a3a"
],
"datasource": "${DS_PROMETHEUS}",
"decimals": 2,
"description": "",
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"format": "percent",
"gauge": {
"maxValue": 100,
"minValue": 0,
"show": false,
"thresholdLabels": false,
"thresholdMarkers": true
},
"gridPos": {
"h": 2,
"w": 2,
"x": 15,
"y": 2
},
"id": 20,
"interval": null,
"links": [],
"mappingType": 1,
"mappingTypes": [
{
"$$hashKey": "object:887",
"name": "value to text",
"value": 1
},
{
"$$hashKey": "object:888",
"name": "range to text",
"value": 2
}
],
"maxDataPoints": 100,
"nullPointMode": "connected",
"nullText": null,
"pluginVersion": "6.4.2",
"postfix": "",
"postfixFontSize": "50%",
"prefix": "",
"prefixFontSize": "50%",
"rangeMaps": [
{
"from": "null",
"text": "N/A",
"to": "null"
}
],
"sparkline": {
"fillColor": "rgba(31, 118, 189, 0.18)",
"full": true,
"lineColor": "#3274D9",
"show": true,
"ymax": null,
"ymin": null
},
"tableColumn": "",
"targets": [
{
"expr": "avg(irate(node_cpu_seconds_total{instance=~\"$node\",mode=\"iowait\"}[5m])) * 100",
"format": "time_series",
"hide": false,
"instant": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "",
"refId": "A",
"step": 20
}
],
"thresholds": "20,50",
"timeFrom": null,
"timeShift": null,
"title": "CPU iowait",
"type": "singlestat",
"valueFontSize": "80%",
"valueMaps": [
{
"$$hashKey": "object:890",
"op": "=",
"text": "N/A",
"value": "null"
}
],
"valueName": "avg"
},
{
"aliasColors": {
"cn-shenzhen.i-wz9cq1dcb6zwc39ehw59_cni0_in": "light-red",
"cn-shenzhen.i-wz9cq1dcb6zwc39ehw59_cni0_in下载": "green",
"cn-shenzhen.i-wz9cq1dcb6zwc39ehw59_cni0_out上传": "yellow",
"cn-shenzhen.i-wz9cq1dcb6zwc39ehw59_eth0_in下载": "purple",
"cn-shenzhen.i-wz9cq1dcb6zwc39ehw59_eth0_out": "purple",
"cn-shenzhen.i-wz9cq1dcb6zwc39ehw59_eth0_out上传": "blue"
},
"bars": true,
"dashLength": 10,
"dashes": false,
"datasource": "${DS_PROMETHEUS}",
"editable": true,
"error": false,
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"fill": 1,
"fillGradient": 0,
"grid": {},
"gridPos": {
"h": 6,
"w": 7,
"x": 17,
"y": 2
},
"hiddenSeries": false,
"id": 183,
"legend": {
"alignAsTable": true,
"avg": true,
"current": true,
"hideEmpty": true,
"hideZero": true,
"max": true,
"min": false,
"show": false,
"sort": "current",
"sortDesc": true,
"total": true,
"values": true
},
"lines": false,
"linewidth": 2,
"links": [],
"nullPointMode": "null as zero",
"options": {
"dataLinks": []
},
"percentage": false,
"pointradius": 1,
"points": false,
"renderer": "flot",
"repeat": null,
"seriesOverrides": [
{
"alias": "/.*_out上传$/",
"transform": "negative-Y"
}
],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "increase(node_network_receive_bytes_total{instance=~\"$node\",device=~\"$device\"}[60m])",
"interval": "60m",
"intervalFactor": 1,
"legendFormat": "{{device}}_in下载",
"metric": "",
"refId": "A",
"step": 600,
"target": ""
},
{
"expr": "increase(node_network_transmit_bytes_total{instance=~\"$node\",device=~\"$device\"}[60m])",
"hide": false,
"interval": "60m",
"intervalFactor": 1,
"legendFormat": "{{device}}_out上传",
"refId": "B",
"step": 600
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "每小时流量$device",
"tooltip": {
"msResolution": false,
"shared": true,
"sort": 0,
"value_type": "cumulative"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"format": "bytes",
"label": "上传（-）/下载（+）",
"logBase": 1,
"max": null,
"min": null,
"show": true
},
{
"format": "short",
"logBase": 1,
"max": null,
"min": null,
"show": false
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"cacheTimeout": null,
"colorBackground": false,
"colorPostfix": false,
"colorValue": true,
"colors": [
"rgba(245, 54, 54, 0.9)",
"rgba(237, 129, 40, 0.89)",
"rgba(50, 172, 45, 0.97)"
],
"datasource": "${DS_PROMETHEUS}",
"description": "",
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"format": "short",
"gauge": {
"maxValue": 100,
"minValue": 0,
"show": false,
"thresholdLabels": false,
"thresholdMarkers": true
},
"gridPos": {
"h": 2,
"w": 2,
"x": 0,
"y": 4
},
"id": 14,
"interval": null,
"links": [],
"mappingType": 1,
"mappingTypes": [
{
"name": "value to text",
"value": 1
},
{
"name": "range to text",
"value": 2
}
],
"maxDataPoints": 100,
"maxPerRow": 6,
"nullPointMode": "null",
"nullText": null,
"postfix": "",
"postfixFontSize": "50%",
"prefix": "",
"prefixFontSize": "50%",
"rangeMaps": [
{
"from": "null",
"text": "N/A",
"to": "null"
}
],
"sparkline": {
"fillColor": "rgba(31, 118, 189, 0.18)",
"full": false,
"lineColor": "rgb(31, 120, 193)",
"show": false
},
"tableColumn": "",
"targets": [
{
"expr": "count(node_cpu_seconds_total{instance=~\"$node\", mode='system'})",
"format": "time_series",
"instant": true,
"interval": "",
"intervalFactor": 1,
"legendFormat": "",
"refId": "A",
"step": 20
}
],
"thresholds": "1,2",
"title": "CPU 核数",
"type": "singlestat",
"valueFontSize": "80%",
"valueMaps": [
{
"op": "=",
"text": "N/A",
"value": "null"
}
],
"valueName": "current"
},
{
"cacheTimeout": null,
"colorBackground": false,
"colorPostfix": false,
"colorValue": true,
"colors": [
"rgba(245, 54, 54, 0.9)",
"rgba(237, 129, 40, 0.89)",
"rgba(50, 172, 45, 0.97)"
],
"datasource": "${DS_PROMETHEUS}",
"decimals": null,
"description": "",
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"format": "short",
"gauge": {
"maxValue": 100,
"minValue": 0,
"show": false,
"thresholdLabels": false,
"thresholdMarkers": true
},
"gridPos": {
"h": 2,
"w": 2,
"x": 15,
"y": 4
},
"id": 179,
"interval": null,
"links": [],
"mappingType": 1,
"mappingTypes": [
{
"name": "value to text",
"value": 1
},
{
"name": "range to text",
"value": 2
}
],
"maxDataPoints": 100,
"maxPerRow": 6,
"nullPointMode": "null",
"nullText": null,
"postfix": "",
"postfixFontSize": "50%",
"prefix": "",
"prefixFontSize": "50%",
"rangeMaps": [
{
"from": "null",
"text": "N/A",
"to": "null"
}
],
"sparkline": {
"fillColor": "rgba(31, 118, 189, 0.18)",
"full": false,
"lineColor": "rgb(31, 120, 193)",
"show": false
},
"tableColumn": "",
"targets": [
{
"expr": "avg(node_filesystem_files_free{instance=~\"$node\",mountpoint=\"$maxmount\",fstype=~\"ext.?|xfs\"})",
"format": "time_series",
"instant": true,
"interval": "",
"intervalFactor": 1,
"legendFormat": "",
"refId": "A",
"step": 20
}
],
"thresholds": "100000,1000000",
"title": "剩余节点数:$maxmount ",
"type": "singlestat",
"valueFontSize": "70%",
"valueMaps": [
{
"op": "=",
"text": "N/A",
"value": "null"
}
],
"valueName": "current"
},
{
"cacheTimeout": null,
"colorBackground": false,
"colorValue": true,
"colors": [
"rgba(245, 54, 54, 0.9)",
"rgba(237, 129, 40, 0.89)",
"rgba(50, 172, 45, 0.97)"
],
"datasource": "${DS_PROMETHEUS}",
"decimals": 0,
"description": "",
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"format": "bytes",
"gauge": {
"maxValue": 100,
"minValue": 0,
"show": false,
"thresholdLabels": false,
"thresholdMarkers": true
},
"gridPos": {
"h": 2,
"w": 2,
"x": 0,
"y": 6
},
"id": 75,
"interval": null,
"links": [],
"mappingType": 1,
"mappingTypes": [
{
"name": "value to text",
"value": 1
},
{
"name": "range to text",
"value": 2
}
],
"maxDataPoints": 100,
"maxPerRow": 6,
"nullPointMode": "null",
"nullText": null,
"postfix": "",
"postfixFontSize": "70%",
"prefix": "",
"prefixFontSize": "50%",
"rangeMaps": [
{
"from": "null",
"text": "N/A",
"to": "null"
}
],
"sparkline": {
"fillColor": "rgba(31, 118, 189, 0.18)",
"full": false,
"lineColor": "rgb(31, 120, 193)",
"show": false
},
"tableColumn": "",
"targets": [
{
"expr": "node_memory_MemTotal_bytes{instance=~\"$node\"}",
"format": "time_series",
"instant": true,
"interval": "",
"intervalFactor": 1,
"legendFormat": "{{instance}}",
"refId": "A",
"step": 20
}
],
"thresholds": "2,3",
"title": "总内存",
"type": "singlestat",
"valueFontSize": "80%",
"valueMaps": [
{
"op": "=",
"text": "N/A",
"value": "null"
}
],
"valueName": "current"
},
{
"cacheTimeout": null,
"colorBackground": false,
"colorPostfix": false,
"colorValue": true,
"colors": [
"rgba(245, 54, 54, 0.9)",
"rgba(237, 129, 40, 0.89)",
"rgba(50, 172, 45, 0.97)"
],
"datasource": "${DS_PROMETHEUS}",
"decimals": null,
"description": "",
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"format": "locale",
"gauge": {
"maxValue": 100,
"minValue": 0,
"show": false,
"thresholdLabels": false,
"thresholdMarkers": true
},
"gridPos": {
"h": 2,
"w": 2,
"x": 15,
"y": 6
},
"id": 178,
"interval": null,
"links": [],
"mappingType": 1,
"mappingTypes": [
{
"name": "value to text",
"value": 1
},
{
"name": "range to text",
"value": 2
}
],
"maxDataPoints": 100,
"maxPerRow": 6,
"nullPointMode": "null",
"nullText": null,
"postfix": "",
"postfixFontSize": "50%",
"prefix": "",
"prefixFontSize": "50%",
"rangeMaps": [
{
"from": "null",
"text": "N/A",
"to": "null"
}
],
"sparkline": {
"fillColor": "rgba(31, 118, 189, 0.18)",
"full": false,
"lineColor": "rgb(31, 120, 193)",
"show": false
},
"tableColumn": "",
"targets": [
{
"expr": "avg(node_filefd_maximum{instance=~\"$node\"})",
"format": "time_series",
"instant": true,
"intervalFactor": 1,
"legendFormat": "",
"refId": "A",
"step": 20
}
],
"thresholds": "1024,10000",
"title": "总文件描述符",
"type": "singlestat",
"valueFontSize": "70%",
"valueMaps": [
{
"op": "=",
"text": "N/A",
"value": "null"
}
],
"valueName": "current"
},
{
"aliasColors": {
"192.168.200.241:9100_Total": "dark-red",
"Idle - Waiting for something to happen": "#052B51",
"guest": "#9AC48A",
"idle": "#052B51",
"iowait": "#EAB839",
"irq": "#BF1B00",
"nice": "#C15C17",
"sdb_每秒I/O操作%": "#d683ce",
"softirq": "#E24D42",
"steal": "#FCE2DE",
"system": "#508642",
"user": "#5195CE",
"磁盘花费在I/O操作占比": "#ba43a9"
},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "${DS_PROMETHEUS}",
"decimals": 2,
"description": "",
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"fill": 1,
"fillGradient": 0,
"gridPos": {
"h": 8,
"w": 8,
"x": 0,
"y": 8
},
"hiddenSeries": false,
"id": 7,
"legend": {
"alignAsTable": true,
"avg": true,
"current": true,
"hideEmpty": true,
"hideZero": true,
"max": true,
"min": true,
"rightSide": false,
"show": true,
"sideWidth": null,
"sort": "current",
"sortDesc": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 2,
"links": [],
"maxPerRow": 6,
"nullPointMode": "null",
"options": {
"dataLinks": []
},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"repeat": null,
"seriesOverrides": [
{
"alias": "/.*_Total/",
"color": "#C4162A",
"fill": 0
}
],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "avg(irate(node_cpu_seconds_total{instance=~\"$node\",mode=\"system\"}[5m])) by (instance) *100",
"format": "time_series",
"hide": false,
"instant": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "系统使用率",
"refId": "A",
"step": 20
},
{
"expr": "avg(irate(node_cpu_seconds_total{instance=~\"$node\",mode=\"user\"}[5m])) by (instance) *100",
"format": "time_series",
"hide": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "用户使用率",
"refId": "B",
"step": 240
},
{
"expr": "avg(irate(node_cpu_seconds_total{instance=~\"$node\",mode=\"iowait\"}[5m])) by (instance) *100",
"format": "time_series",
"hide": false,
"instant": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "磁盘IO使用率",
"refId": "D",
"step": 240
},
{
"expr": "(1 - avg(irate(node_cpu_seconds_total{instance=~\"$node\",mode=\"idle\"}[5m])) by (instance))*100",
"format": "time_series",
"hide": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "总使用率",
"refId": "F",
"step": 240
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "CPU使用率",
"tooltip": {
"shared": true,
"sort": 2,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"decimals": 0,
"format": "percent",
"label": "",
"logBase": 1,
"max": null,
"min": null,
"show": true
},
{
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": false
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"aliasColors": {
"192.168.200.241:9100_总内存": "dark-red",
"使用率": "yellow",
"内存_Avaliable": "#6ED0E0",
"内存_Cached": "#EF843C",
"内存_Free": "#629E51",
"内存_Total": "#6d1f62",
"内存_Used": "#eab839",
"可用": "#9ac48a",
"总内存": "#bf1b00"
},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "${DS_PROMETHEUS}",
"decimals": 2,
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"fill": 1,
"fillGradient": 0,
"gridPos": {
"h": 8,
"w": 8,
"x": 8,
"y": 8
},
"height": "300",
"hiddenSeries": false,
"id": 156,
"legend": {
"alignAsTable": true,
"avg": true,
"current": true,
"hideEmpty": true,
"hideZero": true,
"max": true,
"min": true,
"rightSide": false,
"show": true,
"sort": "current",
"sortDesc": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 2,
"links": [],
"nullPointMode": "null",
"options": {
"dataLinks": []
},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"seriesOverrides": [
{
"$$hashKey": "object:1265",
"alias": "总内存",
"color": "#C4162A",
"fill": 0
},
{
"$$hashKey": "object:1266",
"alias": "使用率",
"color": "rgb(0, 209, 255)",
"lines": false,
"pointradius": 1,
"points": true,
"yaxis": 2
}
],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "node_memory_MemTotal_bytes{instance=~\"$node\"}",
"format": "time_series",
"hide": false,
"instant": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "总内存",
"refId": "A",
"step": 4
},
{
"expr": "node_memory_MemTotal_bytes{instance=~\"$node\"} - node_memory_MemAvailable_bytes{instance=~\"$node\"}",
"format": "time_series",
"hide": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "已用",
"refId": "B",
"step": 4
},
{
"expr": "node_memory_MemAvailable_bytes{instance=~\"$node\"}",
"format": "time_series",
"hide": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "可用",
"refId": "F",
"step": 4
},
{
"expr": "node_memory_Buffers_bytes{instance=~\"$node\"}",
"format": "time_series",
"hide": true,
"intervalFactor": 1,
"legendFormat": "内存_Buffers",
"refId": "D",
"step": 4
},
{
"expr": "node_memory_MemFree_bytes{instance=~\"$node\"}",
"format": "time_series",
"hide": true,
"intervalFactor": 1,
"legendFormat": "内存_Free",
"refId": "C",
"step": 4
},
{
"expr": "node_memory_Cached_bytes{instance=~\"$node\"}",
"format": "time_series",
"hide": true,
"intervalFactor": 1,
"legendFormat": "内存_Cached",
"refId": "E",
"step": 4
},
{
"expr": "node_memory_MemTotal_bytes{instance=~\"$node\"} - (node_memory_Cached_bytes{instance=~\"$node\"} + node_memory_Buffers_bytes{instance=~\"$node\"} + node_memory_MemFree_bytes{instance=~\"$node\"})",
"format": "time_series",
"hide": true,
"intervalFactor": 1,
"refId": "G"
},
{
"expr": "(1 - (node_memory_MemAvailable_bytes{instance=~\"$node\"} (node_memory_MemTotal_bytes{instance=~\"$node\"})))* 100",
"format": "time_series",
"hide": false,
"interval": "30m",
"intervalFactor": 10,
"legendFormat": "使用率",
"refId": "H"
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "内存信息",
"tooltip": {
"shared": true,
"sort": 2,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"$$hashKey": "object:1295",
"format": "bytes",
"label": null,
"logBase": 1,
"max": null,
"min": "0",
"show": true
},
{
"$$hashKey": "object:1296",
"format": "percent",
"label": "内存使用率",
"logBase": 1,
"max": "100",
"min": "0",
"show": true
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"aliasColors": {
"192.168.10.227:9100_em1_in下载": "super-light-green",
"192.168.10.227:9100_em1_out上传": "dark-blue"
},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "${DS_PROMETHEUS}",
"decimals": 2,
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"fill": 1,
"fillGradient": 0,
"gridPos": {
"h": 8,
"w": 8,
"x": 16,
"y": 8
},
"height": "300",
"hiddenSeries": false,
"id": 157,
"legend": {
"alignAsTable": true,
"avg": true,
"current": true,
"hideEmpty": true,
"hideZero": true,
"max": true,
"min": true,
"rightSide": false,
"show": true,
"sort": "current",
"sortDesc": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 1,
"links": [],
"nullPointMode": "null",
"options": {
"dataLinks": []
},
"percentage": false,
"pointradius": 2,
"points": false,
"renderer": "flot",
"seriesOverrides": [
{
"alias": "/.*_out上传$/",
"transform": "negative-Y"
}
],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "irate(node_network_receive_bytes_total{instance=~'$node',device=~\"$device\"}[5m])*8",
"format": "time_series",
"interval": "",
"intervalFactor": 1,
"legendFormat": "{{device}}_in下载",
"refId": "A",
"step": 4
},
{
"expr": "irate(node_network_transmit_bytes_total{instance=~'$node',device=~\"$device\"}[5m])*8",
"format": "time_series",
"interval": "",
"intervalFactor": 1,
"legendFormat": "{{device}}_out上传",
"refId": "B",
"step": 4
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "每秒网络带宽使用$device",
"tooltip": {
"shared": true,
"sort": 2,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"format": "bps",
"label": "上传（-）/下载（+）",
"logBase": 1,
"max": null,
"min": null,
"show": true
},
{
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": false
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"aliasColors": {
"15分钟": "#6ED0E0",
"1分钟": "#BF1B00",
"5分钟": "#CCA300"
},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "${DS_PROMETHEUS}",
"decimals": 2,
"editable": true,
"error": false,
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"fill": 1,
"fillGradient": 1,
"grid": {},
"gridPos": {
"h": 8,
"w": 8,
"x": 0,
"y": 16
},
"height": "300",
"hiddenSeries": false,
"id": 13,
"legend": {
"alignAsTable": true,
"avg": true,
"current": true,
"hideEmpty": true,
"hideZero": true,
"max": true,
"min": true,
"rightSide": false,
"show": true,
"sort": "current",
"sortDesc": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 2,
"links": [],
"maxPerRow": 6,
"nullPointMode": "null as zero",
"options": {
"dataLinks": []
},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"repeat": null,
"seriesOverrides": [
{
"alias": "/.*总核数/",
"color": "#C4162A"
}
],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "node_load1{instance=~\"$node\"}",
"format": "time_series",
"instant": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "1分钟负载",
"metric": "",
"refId": "A",
"step": 20,
"target": ""
},
{
"expr": "node_load5{instance=~\"$node\"}",
"format": "time_series",
"instant": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "5分钟负载",
"refId": "B",
"step": 20
},
{
"expr": "node_load15{instance=~\"$node\"}",
"format": "time_series",
"instant": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "15分钟负载",
"refId": "C",
"step": 20
},
{
"expr": " sum(count(node_cpu_seconds_total{instance=~\"$node\", mode='system'}) by (cpu,instance)) by(instance)",
"format": "time_series",
"instant": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "CPU总核数",
"refId": "D",
"step": 20
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "系统平均负载",
"tooltip": {
"msResolution": false,
"shared": true,
"sort": 2,
"value_type": "cumulative"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"format": "short",
"logBase": 1,
"max": null,
"min": null,
"show": true
},
{
"format": "short",
"logBase": 1,
"max": null,
"min": null,
"show": true
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"aliasColors": {
"vda_write": "#6ED0E0"
},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "${DS_PROMETHEUS}",
"decimals": 2,
"description": "Read bytes 每个磁盘分区每秒读取的比特数\nWritten bytes 每个磁盘分区每秒写入的比特数",
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"fill": 1,
"fillGradient": 1,
"gridPos": {
"h": 8,
"w": 8,
"x": 8,
"y": 16
},
"height": "300",
"hiddenSeries": false,
"id": 168,
"legend": {
"alignAsTable": true,
"avg": true,
"current": true,
"hideEmpty": true,
"hideZero": true,
"max": true,
"min": true,
"show": true,
"sort": "current",
"sortDesc": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 2,
"links": [],
"nullPointMode": "null",
"options": {
"dataLinks": []
},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"seriesOverrides": [
{
"alias": "/.*_读取$/",
"transform": "negative-Y"
}
],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "irate(node_disk_read_bytes_total{instance=~\"$node\"}[5m])",
"format": "time_series",
"interval": "",
"intervalFactor": 1,
"legendFormat": "{{device}}_读取",
"refId": "A",
"step": 10
},
{
"expr": "irate(node_disk_written_bytes_total{instance=~\"$node\"}[5m])",
"format": "time_series",
"hide": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "{{device}}_写入",
"refId": "B",
"step": 10
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "每秒磁盘读写容量",
"tooltip": {
"shared": true,
"sort": 2,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"decimals": null,
"format": "Bps",
"label": "读取（-）/写入（+）",
"logBase": 1,
"max": null,
"min": null,
"show": true
},
{
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": false
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"aliasColors": {},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "${DS_PROMETHEUS}",
"decimals": 1,
"description": "",
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"fill": 0,
"fillGradient": 0,
"gridPos": {
"h": 8,
"w": 8,
"x": 16,
"y": 16
},
"hiddenSeries": false,
"id": 174,
"legend": {
"alignAsTable": true,
"avg": true,
"current": true,
"hideEmpty": true,
"hideZero": true,
"max": true,
"min": true,
"rightSide": false,
"show": true,
"sideWidth": null,
"sort": "current",
"sortDesc": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 2,
"links": [],
"nullPointMode": "null",
"options": {
"dataLinks": []
},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"seriesOverrides": [
{
"$$hashKey": "object:966",
"alias": "/Inodes.*/",
"yaxis": 2
}
],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "(node_filesystem_size_bytes{instance=~'$node',fstype=~\"ext.*|xfs\",mountpoint !~\".*pod.*\"}-node_filesystem_free_bytes{instance=~'$node',fstype=~\"ext.*|xfs\",mountpoint !~\".*pod.*\"}) *100/(node_filesystem_avail_bytes {instance=~'$node',fstype=~\"ext.*|xfs\",mountpoint !~\".*pod.*\"}+(node_filesystem_size_bytes{instance=~'$node',fstype=~\"ext.*|xfs\",mountpoint !~\".*pod.*\"}-node_filesystem_free_bytes{instance=~'$node',fstype=~\"ext.*|xfs\",mountpoint !~\".*pod.*\"}))",
"format": "time_series",
"instant": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "{{mountpoint}}",
"refId": "A"
},
{
"expr": "node_filesystem_files_free{instance=~'$node',fstype=~\"ext.?|xfs\"} node_filesystem_files{instance=~'$node',fstype=~\"ext.?|xfs\"}",
"hide": true,
"interval": "",
"legendFormat": "Inodes：{{instance}}：{{mountpoint}}",
"refId": "B"
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "磁盘使用率",
"tooltip": {
"shared": true,
"sort": 2,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"$$hashKey": "object:979",
"decimals": null,
"format": "percent",
"label": "",
"logBase": 1,
"max": "100",
"min": "0",
"show": true
},
{
"$$hashKey": "object:980",
"decimals": 2,
"format": "percentunit",
"label": null,
"logBase": 1,
"max": "1",
"min": null,
"show": false
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"aliasColors": {
"vda_write": "#6ED0E0"
},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "${DS_PROMETHEUS}",
"decimals": 2,
"description": "Reads completed: 每个磁盘分区每秒读完成次数\n\nWrites completed: 每个磁盘分区每秒写完成次数\n\nIO now 每个磁盘分区每秒正在处理的输入/输出请求数",
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"fill": 0,
"fillGradient": 0,
"gridPos": {
"h": 9,
"w": 8,
"x": 0,
"y": 24
},
"height": "300",
"hiddenSeries": false,
"id": 161,
"legend": {
"alignAsTable": true,
"avg": true,
"current": true,
"hideEmpty": true,
"hideZero": true,
"max": true,
"min": true,
"show": true,
"sort": "current",
"sortDesc": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 1,
"links": [],
"nullPointMode": "null",
"options": {
"dataLinks": []
},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"seriesOverrides": [
{
"alias": "/.*_读取$/",
"transform": "negative-Y"
}
],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "irate(node_disk_reads_completed_total{instance=~\"$node\"}[5m])",
"format": "time_series",
"hide": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "{{device}}_读取",
"refId": "A",
"step": 10
},
{
"expr": "irate(node_disk_writes_completed_total{instance=~\"$node\"}[5m])",
"format": "time_series",
"hide": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "{{device}}_写入",
"refId": "B",
"step": 10
},
{
"expr": "node_disk_io_now{instance=~\"$node\"}",
"format": "time_series",
"hide": true,
"interval": "",
"intervalFactor": 1,
"legendFormat": "{{device}}",
"refId": "C"
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "磁盘读写速率（IOPS）",
"tooltip": {
"shared": true,
"sort": 2,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"decimals": null,
"format": "iops",
"label": "读取（-）/写入（+）I/O ops/sec",
"logBase": 1,
"max": null,
"min": null,
"show": true
},
{
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": true
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"aliasColors": {
"Idle - Waiting for something to happen": "#052B51",
"guest": "#9AC48A",
"idle": "#052B51",
"iowait": "#EAB839",
"irq": "#BF1B00",
"nice": "#C15C17",
"sdb_每秒I/O操作%": "#d683ce",
"softirq": "#E24D42",
"steal": "#FCE2DE",
"system": "#508642",
"user": "#5195CE",
"磁盘花费在I/O操作占比": "#ba43a9"
},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "${DS_PROMETHEUS}",
"decimals": null,
"description": "每一秒钟的自然时间内，花费在I/O上的耗时。（wall-clock time）\n\nnode_disk_io_time_seconds_total：\n磁盘花费在输入/输出操作上的秒数。该值为累加值。（Milliseconds Spent Doing I/Os）\n\nirate(node_disk_io_time_seconds_total[1m])：\n计算每秒的速率：(last值-last前一个值)/时间戳差值，即：1秒钟内磁盘花费在I/O操作的时间占比。",
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"fill": 1,
"fillGradient": 0,
"gridPos": {
"h": 9,
"w": 8,
"x": 8,
"y": 24
},
"hiddenSeries": false,
"id": 175,
"legend": {
"alignAsTable": true,
"avg": true,
"current": true,
"hideEmpty": true,
"hideZero": true,
"max": true,
"min": false,
"rightSide": false,
"show": true,
"sideWidth": null,
"sort": null,
"sortDesc": null,
"total": false,
"values": true
},
"lines": true,
"linewidth": 1,
"links": [],
"maxPerRow": 6,
"nullPointMode": "null",
"options": {
"dataLinks": []
},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"seriesOverrides": [],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "irate(node_disk_io_time_seconds_total{instance=~\"$node\"}[5m])",
"format": "time_series",
"interval": "",
"intervalFactor": 1,
"legendFormat": "{{device}}_每秒I/O操作%",
"refId": "C"
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "每1秒内I/O操作耗时占比",
"tooltip": {
"shared": true,
"sort": 2,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"decimals": null,
"format": "percentunit",
"label": "",
"logBase": 1,
"max": null,
"min": null,
"show": true
},
{
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": false
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"aliasColors": {
"vda": "#6ED0E0"
},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "${DS_PROMETHEUS}",
"decimals": 2,
"description": "Read time seconds 每个磁盘分区读操作花费的秒数\n\nWrite time seconds 每个磁盘分区写操作花费的秒数\n\nIO time seconds 每个磁盘分区输入/输出操作花费的秒数\n\nIO time weighted seconds每个磁盘分区输入/输出操作花费的加权秒数",
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"fill": 1,
"fillGradient": 1,
"gridPos": {
"h": 9,
"w": 8,
"x": 16,
"y": 24
},
"height": "300",
"hiddenSeries": false,
"id": 160,
"legend": {
"alignAsTable": true,
"avg": true,
"current": true,
"hideEmpty": true,
"hideZero": true,
"max": true,
"min": true,
"show": true,
"sort": "current",
"sortDesc": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 2,
"links": [],
"nullPointMode": "null as zero",
"options": {
"dataLinks": []
},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"seriesOverrides": [
{
"alias": "/,*_读取$/",
"transform": "negative-Y"
}
],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "irate(node_disk_read_time_seconds_total{instance=~\"$node\"}[5m]) irate(node_disk_reads_completed_total{instance=~\"$node\"}[5m])",
"format": "time_series",
"hide": false,
"instant": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "{{device}}_读取",
"refId": "B"
},
{
"expr": "irate(node_disk_write_time_seconds_total{instance=~\"$node\"}[5m]) irate(node_disk_writes_completed_total{instance=~\"$node\"}[5m])",
"format": "time_series",
"hide": false,
"instant": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "{{device}}_写入",
"refId": "C"
},
{
"expr": "irate(node_disk_io_time_seconds_total{instance=~\"$node\"}[5m])",
"format": "time_series",
"hide": true,
"interval": "",
"intervalFactor": 1,
"legendFormat": "{{device}}",
"refId": "A",
"step": 10
},
{
"expr": "irate(node_disk_io_time_weighted_seconds_total{instance=~\"$node\"}[5m])",
"format": "time_series",
"hide": true,
"interval": "",
"intervalFactor": 1,
"legendFormat": "{{device}}_加权",
"refId": "D"
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "每次IO读写的耗时（参考：小于100ms）(beta)",
"tooltip": {
"shared": true,
"sort": 2,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"format": "s",
"label": "读取（-）/写入（+）",
"logBase": 1,
"max": null,
"min": null,
"show": true
},
{
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": false
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"aliasColors": {
"192.168.200.241:9100_TCP_alloc": "semi-dark-blue",
"TCP": "#6ED0E0",
"TCP_alloc": "blue"
},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "${DS_PROMETHEUS}",
"decimals": 2,
"description": "Sockets_used - 已使用的所有协议套接字总量\n\nCurrEstab - 当前状态为 ESTABLISHED 或 CLOSE-WAIT 的 TCP 连接数\n\nTCP_alloc - 已分配（已建立、已申请到sk_buff）的TCP套接字数量\n\nTCP_tw - 等待关闭的TCP连接数\n\nUDP_inuse - 正在使用的 UDP 套接字数量\n\nRetransSegs - TCP 重传报文数\n\nOutSegs - TCP 发送的报文数\n\nInSegs - TCP 接收的报文数",
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"fill": 0,
"fillGradient": 0,
"gridPos": {
"h": 8,
"w": 16,
"x": 0,
"y": 33
},
"height": "300",
"hiddenSeries": false,
"id": 158,
"interval": "",
"legend": {
"alignAsTable": true,
"avg": false,
"current": true,
"hideEmpty": true,
"hideZero": true,
"max": true,
"min": false,
"rightSide": true,
"show": true,
"sideWidth": null,
"sort": "current",
"sortDesc": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 1,
"links": [],
"nullPointMode": "null",
"options": {
"dataLinks": []
},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"seriesOverrides": [
{
"alias": "/.*Sockets_used/",
"color": "#E02F44",
"lines": false,
"pointradius": 1,
"points": true,
"yaxis": 2
}
],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "node_netstat_Tcp_CurrEstab{instance=~'$node'}",
"format": "time_series",
"hide": false,
"instant": false,
"interval": "",
"intervalFactor": 1,
"legendFormat": "CurrEstab",
"refId": "A",
"step": 20
},
{
"expr": "node_sockstat_TCP_tw{instance=~'$node'}",
"format": "time_series",
"interval": "",
"intervalFactor": 1,
"legendFormat": "TCP_tw",
"refId": "D"
},
{
"expr": "node_sockstat_sockets_used{instance=~'$node'}",
"hide": false,
"interval": "30m",
"intervalFactor": 1,
"legendFormat": "Sockets_used",
"refId": "B"
},
{
"expr": "node_sockstat_UDP_inuse{instance=~'$node'}",
"interval": "",
"legendFormat": "UDP_inuse",
"refId": "C"
},
{
"expr": "node_sockstat_TCP_alloc{instance=~'$node'}",
"interval": "",
"legendFormat": "TCP_alloc",
"refId": "E"
},
{
"expr": "irate(node_netstat_Tcp_PassiveOpens{instance=~'$node'}[5m])",
"hide": true,
"interval": "",
"legendFormat": "{{instance}}_Tcp_PassiveOpens",
"refId": "G"
},
{
"expr": "irate(node_netstat_Tcp_ActiveOpens{instance=~'$node'}[5m])",
"hide": true,
"interval": "",
"legendFormat": "{{instance}}_Tcp_ActiveOpens",
"refId": "F"
},
{
"expr": "irate(node_netstat_Tcp_InSegs{instance=~'$node'}[5m])",
"interval": "",
"legendFormat": "Tcp_InSegs",
"refId": "H"
},
{
"expr": "irate(node_netstat_Tcp_OutSegs{instance=~'$node'}[5m])",
"interval": "",
"legendFormat": "Tcp_OutSegs",
"refId": "I"
},
{
"expr": "irate(node_netstat_Tcp_RetransSegs{instance=~'$node'}[5m])",
"hide": false,
"interval": "",
"legendFormat": "Tcp_RetransSegs",
"refId": "J"
},
{
"expr": "irate(node_netstat_TcpExt_ListenDrops{instance=~'$node'}[5m])",
"hide": true,
"interval": "",
"legendFormat": "",
"refId": "K"
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "网络Socket连接信息",
"tooltip": {
"shared": true,
"sort": 2,
"value_type": "individual"
},
"transformations": [],
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": true
},
{
"format": "short",
"label": "已使用的所有协议套接字总量",
"logBase": 1,
"max": null,
"min": null,
"show": true
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"aliasColors": {
"filefd_192.168.200.241:9100": "super-light-green",
"switches_192.168.200.241:9100": "semi-dark-red",
"使用的文件描述符_10.118.72.128:9100": "red",
"每秒上下文切换次数_10.118.71.245:9100": "yellow",
"每秒上下文切换次数_10.118.72.128:9100": "yellow"
},
"bars": false,
"cacheTimeout": null,
"dashLength": 10,
"dashes": false,
"datasource": "${DS_PROMETHEUS}",
"description": "",
"fieldConfig": {
"defaults": {
"custom": {}
},
"overrides": []
},
"fill": 0,
"fillGradient": 1,
"gridPos": {
"h": 8,
"w": 8,
"x": 16,
"y": 33
},
"hiddenSeries": false,
"hideTimeOverride": false,
"id": 16,
"legend": {
"alignAsTable": false,
"avg": false,
"current": true,
"max": false,
"min": false,
"rightSide": false,
"show": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 2,
"links": [],
"nullPointMode": "null",
"options": {
"dataLinks": []
},
"percentage": false,
"pluginVersion": "6.4.2",
"pointradius": 1,
"points": false,
"renderer": "flot",
"seriesOverrides": [
{
"alias": "/每秒上下文切换次数.*/",
"color": "#FADE2A",
"lines": false,
"pointradius": 1,
"points": true,
"yaxis": 2
},
{
"alias": "/使用的文件描述符.*/",
"color": "#F2495C"
}
],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "node_filefd_allocated{instance=~\"$node\"}",
"format": "time_series",
"instant": false,
"interval": "",
"intervalFactor": 5,
"legendFormat": "使用的文件描述符",
"refId": "B"
},
{
"expr": "irate(node_context_switches_total{instance=~\"$node\"}[5m])",
"interval": "",
"intervalFactor": 5,
"legendFormat": "每秒上下文切换次数",
"refId": "A"
},
{
"expr": " (node_filefd_allocated{instance=~\"$node\"}/node_filefd_maximum{instance=~\"$node\"}) *100",
"format": "time_series",
"hide": true,
"instant": false,
"interval": "",
"intervalFactor": 5,
"legendFormat": "使用的文件描述符占比_{{instance}}",
"refId": "C"
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "打开的文件描述符(左 )/每秒上下文切换次数(右)",
"tooltip": {
"shared": true,
"sort": 2,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"format": "short",
"label": "使用的文件描述符",
"logBase": 1,
"max": null,
"min": null,
"show": true
},
{
"format": "short",
"label": "context_switches",
"logBase": 1,
"max": null,
"min": null,
"show": true
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
}
],
"refresh": false,
"schemaVersion": 22,
"style": "dark",
"tags": [
"Prometheus",
"node_exporter",
"StarsL.cn"
],
"templating": {
"list": [
{
"allValue": null,
"current": {},
"datasource": "${DS_PROMETHEUS}",
"definition": "label_values(node_uname_info, job)",
"hide": 0,
"includeAll": true,
"index": -1,
"label": "JOB",
"multi": false,
"name": "job",
"options": [],
"query": "label_values(node_uname_info, job)",
"refresh": 1,
"regex": "",
"skipUrlSync": false,
"sort": 5,
"tagValuesQuery": "",
"tags": [],
"tagsQuery": "",
"type": "query",
"useTags": false
},
{
"allValue": null,
"current": {},
"datasource": "${DS_PROMETHEUS}",
"definition": "label_values(node_uname_info{job=~\"$job\"}, nodename)",
"hide": 0,
"includeAll": true,
"index": -1,
"label": "主机名",
"multi": false,
"name": "hostname",
"options": [],
"query": "label_values(node_uname_info{job=~\"$job\"}, nodename)",
"refresh": 1,
"regex": "",
"skipUrlSync": false,
"sort": 5,
"tagValuesQuery": "",
"tags": [],
"tagsQuery": "",
"type": "query",
"useTags": false
},
{
"allFormat": "glob",
"allValue": null,
"current": {},
"datasource": "${DS_PROMETHEUS}",
"definition": "label_values(node_uname_info{job=~\"$job\",nodename=~\"$hostname\"},instance)",
"hide": 0,
"includeAll": false,
"index": -1,
"label": "Instance",
"multi": false,
"multiFormat": "regex values",
"name": "node",
"options": [],
"query": "label_values(node_uname_info{job=~\"$job\",nodename=~\"$hostname\"},instance)",
"refresh": 2,
"regex": "",
"skipUrlSync": false,
"sort": 1,
"tagValuesQuery": "",
"tags": [],
"tagsQuery": "",
"type": "query",
"useTags": false
},
{
"allFormat": "glob",
"allValue": null,
"current": {},
"datasource": "${DS_PROMETHEUS}",
"definition": "label_values(node_network_info{device!~'tap.*|veth.*|br.*|docker.*|virbr.*|lo.*|cni.*'},device)",
"hide": 0,
"includeAll": true,
"index": -1,
"label": "网卡",
"multi": true,
"multiFormat": "regex values",
"name": "device",
"options": [],
"query": "label_values(node_network_info{device!~'tap.*|veth.*|br.*|docker.*|virbr.*|lo.*|cni.*'},device)",
"refresh": 2,
"regex": "",
"skipUrlSync": false,
"sort": 1,
"tagValuesQuery": "",
"tags": [],
"tagsQuery": "",
"type": "query",
"useTags": false
},
{
"allValue": null,
"current": {},
"datasource": "${DS_PROMETHEUS}",
"definition": "query_result(topk(1,sort_desc (max(node_filesystem_size_bytes{instance=~'$node',fstype=~\"ext.?|xfs\",mountpoint!~\".*pods.*\"}) by (mountpoint))))",
"hide": 2,
"includeAll": false,
"index": -1,
"label": "最大挂载目录",
"multi": false,
"name": "maxmount",
"options": [],
"query": "query_result(topk(1,sort_desc (max(node_filesystem_size_bytes{instance=~'$node',fstype=~\"ext.?|xfs\",mountpoint!~\".*pods.*\"}) by (mountpoint))))",
"refresh": 2,
"regex": "/.*\\\"(.*)\\\".*/",
"skipUrlSync": false,
"sort": 5,
"tagValuesQuery": "",
"tags": [],
"tagsQuery": "",
"type": "query",
"useTags": false
},
{
"allValue": null,
"current": {},
"datasource": "${DS_PROMETHEUS}",
"definition": "label_values(node_uname_info{job=~\"$job\",instance=~\"$node\"}, nodename)",
"hide": 2,
"includeAll": false,
"index": -1,
"label": "展示使用的主机名",
"multi": false,
"name": "show_hostname",
"options": [],
"query": "label_values(node_uname_info{job=~\"$job\",instance=~\"$node\"}, nodename)",
"refresh": 1,
"regex": "",
"skipUrlSync": false,
"sort": 5,
"tagValuesQuery": "",
"tags": [],
"tagsQuery": "",
"type": "query",
"useTags": false
}
]
},
"time": {
"from": "now-24h",
"to": "now"
},
"timepicker": {
"hidden": false,
"now": true,
"refresh_intervals": [
"15s",
"30s",
"1m",
"5m",
"15m",
"30m"
],
"time_options": [
"5m",
"15m",
"1h",
"6h",
"12h",
"24h",
"2d",
"7d",
"30d"
]
},
"timezone": "browser",
"title": "1 Node Exporter for Prometheus Dashboard CN v20200530",
"uid": "9CWBz0bik",
"variables": {
"list": []
},
"version": 48
}
4、添加其他机器主机监控
其他机器上安装node_exporter即可。
[root@localhost opt]# tar -xvf node_exporter-0.18.1.linux-amd64.tar.gz
[root@localhost opt]# chown -R root:root node_exporter-0.18.1.linux-amd64
[root@localhost opt]# cd node_exporter-0.18.1.linux-amd64/
[root@localhost node_exporter-0.18.1.linux-amd64]# ./node_exporter &
重启服务即可。
5、添加MySQL监控
下载地址：https://github.com/prometheus/mysqld_exporter/releases/download/v0.15.1/mysqld_exporter-0.15.1.linux-amd64.tar.gz
也可以在网盘下载：
通过网盘分享的文件：mysqld_exporter-0.11.0.linux-amd64.tar.gz
链接: https://pan.baidu.com/s/1370ATIF1T3_0ftPOl-IYeQ 提取码: trc5
[root@localhost opt]# tar -xvf mysqld_exporter-0.11.0.linux-amd64.tar.gz
[root@localhost opt]# cd mysqld_exporter-0.11.0.linux-amd64/
[root@localhost mysqld_exporter-0.11.0.linux-amd64]# vi .my.cnf
添加
[client]
user=root
password=123456
port=3306
[root@localhost mysqld_exporter-0.11.0.linux-amd64]# nohup ./mysqld_exporter --config.my-cnf=".my.cnf" &
浏览器访问：http://IP:9104
http://192.168.59.141:9104/
在prometheus.yml中加入job
[root@my prometheus-2.26.0.linux-amd64]# vi prometheus.yml
添加以下内容：
- job_name: 'mysql'
static_configs:
- targets: ['localhost:9104']
[root@my prometheus-2.26.0.linux-amd64]# nohup ./prometheus --config.file=prometheus.yml &
浏览器访问：
http://192.168.59.132:9090/
下载granfana模板
地址：https://grafana.com/grafana/dashboards/7362-mysql-overview/
导入下载的json文件
其他中间件监控可以自行下载添加即可。
Python大模型优化策略指南：从Transformer架构到遗传算法、蚁群算法调优，涵盖模型压缩、量化部署与DeepSeek集成等，赠送可运行的项目代码+教学PPT，助你攻克算力围墙！
关键点
1.零基础友好：从基础概念到实战代码，全程图解+案例拆解，哪怕没学过Python也能轻松掌握大模型优化技巧。
2.硬核干货：一本书搞定深度学习全链路优化，覆盖模型训练、压缩、部署全流程，详解梯度下降、遗传算法、神经网络优化等核心技术，附赠可运行代码库。
3.实战派秘籍：真实项目经验直接搬进书里，书中包含自动驾驶、医疗诊断等落地场景优化方案，带你解决实际业务痛点。
4前沿技术解码：独家解析分布式训练、混合专家系统等核心技术细节，手把手教你用API调通大模型。
5.算力焦虑终结者：小设备也能玩转大模型，量化训练、剪枝、蒸馏等黑科技全公开，教你用有限资源榨干模型性能。
6.产学研闭环：内容紧密结合校企合作案例，基于实际业务需求，确保知识点的实用性。
内容简介
本书是一本全面介绍Python大模型优化策略的专业书籍，旨在帮助读者掌握如何高效训练、优化、部署和调用大规模深度学习模型。掌握这些优化技巧将是推动大模型应用和提升AI行业竞争力的关键。
本书以深度学习和大模型技术为引，系统讲解了各种优化算法，并深入探讨了两者的融合与应用。本书涵盖了机器学习与深度学习概述、Transformer模型与大模型概述、模型训练与优化技巧、模型调用与优化基础、大模型优化概述、常用的优化算法概述、遗传算法、多目标优化与遗传算法进阶、蚁群算法、鲸鱼优化算法、萤火虫优化算法、神经网络优化算法、大模型与优化应用实践、DeepSeek的介绍与使用等内容，每章通过实践练习介绍了大模型优化的实际应用。
本书面向具备机器学习和深度学习基础的读者，适合作为高等院校计算机相关专业的本科及专科教材。对于AI从业者、科研人员和工程师而言，本书能够助力他们在大模型训练与优化领域深入理解并积累实践经验。
作者简介
刘衍琦，硕士，毕业于大连理工大学数学科学学院计算几何与图形图像重点实验室，现为烟台理工学院人工智能学院教师。曾在东方电子股份有限公司、中科院计算所烟台分所任职，具有丰富的企业、研究所及高校从业经历。长期专注于大数据和人工智能的实践应用，主要研究领域包括机器学习、计算机视觉和自然语言处理。曾主持和参与多个科研项目，并授权多项国家专利。出版《计算机视觉与深度学习实战：以MATLAB、Python为工具》《PyTorch深度学习实战之目标检测》等著作。
高超，硕士，毕业于山东大学软件工程硕士专业。现为山东商务职业学院专任教师。具有丰富的企业及高校从业经历，曾在东方电子股份有限公司、烟台东方威斯顿电气有限公司任职。专注于电力物联网领域实践应用，主要研究领域包括电力规约的解析和处理、机器视觉和视频分析领域。
闫家硕，烟台理工学院人工智能协会会长、特纳科技（烟台）有限公司CEO。掌握人工智能技术开发。参与开发数字生命DL-A、DL-B项目，相关成果于GitHub开源并收获2.4k star；主持多项国家级与省级重点科研项目，包括《基于YoloV9-Self Attention 的恶劣天气辅助驾驶优化算法》（国家级大创立项）和《铁翼智盾——基于多模态大模型的无人机侦察与辅助决策系统》（山东省大学生创新大赛银奖）；带领团队开发的《云行卫道》项目在创客营竞赛中荣获第一名；参与研发《雷视特侦》自主式电力设备AI巡检机器人项目，获山东省高校智能机器人创意竞赛二等奖。个人荣获国家级奖项2项、省级奖项6项。
贾泽豪，烟台理工学院人工智能学院AI创新团队核心成员，主要研究领域包括计算机视觉、序列预测等。参与多个科研项目，发表数篇国际学术论文；荣获4项人工智能领域国家级赛事奖项；发表软件著作权2项；参与多项图书编著工作，其中主编教材1册，副主编教材1册；CSDN人工智能领域新星作者，累积文章阅读量超百万。
京东：https://item.jd.com/15108782.html
当当：https://product.dangdang.com/29922764.html
文中的概念来源于互联网，如有侵权，请联系我删除。
欢迎关注公众号：小周的数据库进阶之路，一起交流AI、数据库、中间件和云计算等技术。如果觉得读完本文有收获，可以转发给其他朋友，大家一起学习进步！感兴趣的朋友可以加我微信，拉您进群与业界的大佬们一起交流学习。
文章转载自小周的数据库进阶之路，如果涉嫌侵权，请发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。
