1、前言
DorisDB数据库，我们已经使用了有一段时间了，目前已经15套左右了。很多业务已经由初期测试到线上的深度使用了。
但伴随着业务量的增长，很多性能问题就暴露出来了，例如SQL查询效率如何？
因此，随着很多基础的自动化的完成，近期在考虑慢SQL方面的自动化建设。
慢SQL的采集、展示，用来方便DBA、开发来定期查看、优化。
2、实现方式
2.1、思考
如何实现慢SQL的采集、分析、展示呢？
日志格式：
fe/log/fe.audit.log
里面有2种日志：[query] 和 [slow_query]
慢SQL日志如下：
2021-08-15 09:05:49,223 [slow_query] |Client=10.1.1.2:42141|User=default_cluster:xxx|Db=default_cluster:xxx|State=EOF|Time=10|ScanBytes=1339|ScanRows=1|ReturnRows=1|StmtId=43542666|QueryId=edbdd4e3-fd64-11eb-b176-0ab2114db0b3|IsQuery=true|feIp=10.1.1.1|Stmt=SELECT 1
需求：
慢SQL实时采集
入库存储，方便分析，例如某时间段内的慢SQL数量、平均执行时间等等
写入性能好，可扩展
解决：
使用通用的日志采集工具，filebeat
DorisDB作为底层的存储，方便分析
kafka接入方式，快速、高效
SQL指纹暂时不好解决：
filebeat 采集时，使用正则处理？此种方式可能有一定性能损失，且SQL复杂，正则不好处理
入kafka 后，自己消费kafka，再使用TiDB Parser 解析，再写入DorisDB？如何写入，flink？kafka ？流程有点长
入库后，再使用其他方式分析？例如TiDB Parser ?这些待后面思考、测试
官方支持？这个是最方便的方式，后面咨询官方是否支持吧
每天级别的慢SQL分析，使用脚本分析，效率稍微差一些
综上，先实现DorisDB的实时采集吧，后面再细考虑下SQL指纹及汇总分析的实现
2.2、实现架构
【filebeat 过滤采集 】--> 【kakfa】 --> 【DorisDB】
3、具体实现
3.1、kafka 准备
【申请公司的kafka】：
topic: dorisdb_slow_log
client_id: dorisdb_slow_log-123
hosts: ["10.1.1.1:666","10.1.1.2:666","10.1.1.3:666","10.1.1.4:666","10.1.1.5:666"]
3.2、filebeat环境准备
下载filebeat，修改配置文件，开启filebeat采集
3.3、filebeat配置
此处的难点为：
只采集slow_query
切割列
【配置如下】：
path.home: opt/soft/filebeat/filebeat_999-1
path.config: opt/soft/filebeat/filebeat_999-1/conf
path.data: opt/soft/filebeat/filebeat_999-1/data
path.logs: opt/soft/filebeat/filebeat_999-1/log
#=============================================================================
filebeat.inputs:
- type: log
enabled: true
ignore_older: 5m
include_lines: ['[slow_query]']
paths:
- opt/soft/dorisdb999/fe/log/fe.audit.log
fields:
log_topics: dorisdb_slow_log
processors:
- script:
lang: javascript
id: my_filter
tag: enable
source: >
function process(event) {
var str= event.Get("message");
var slow_time =str.substr(0, 19);
var detail_query = str.substr(38);
var js_arr = detail_query.split("|");
var Client_tmp = js_arr[0];
var Client=Client_tmp.replace('Client=','');
var User_tmp = js_arr[1];
var User=User_tmp.replace('User=','');
var Db_tmp =js_arr[2];
var Db = Db_tmp.replace('Db=','');
var State_tmp = js_arr[3];
var State = State_tmp.replace('State=','');
var Time_tmp=js_arr[4];
var Time = Time_tmp.replace('Time=','');
var ScanBytes_tmp = js_arr[5];
var ScanBytes = ScanBytes_tmp.replace('ScanBytes=','');
var ScanRows_tmp = js_arr[6];
var ScanRows = ScanRows_tmp.replace('ScanRows=','');
var ReturnRows_tmp = js_arr[7];
var ReturnRows = ReturnRows_tmp.replace('ReturnRows=','');
var StmtId_tmp = js_arr[8];
var StmtId = StmtId_tmp.replace('StmtId=','');
var QueryId_tmp = js_arr[9];
var QueryId = QueryId_tmp.replace('QueryId=','');
var IsQuery_tmp = js_arr[10];
var IsQuery = IsQuery_tmp.replace('IsQuery=','');
var feIp_tmp = js_arr[11];
var feIp = feIp_tmp.replace('feIp=','');
var Stmt_tmp = js_arr[12];
var Stmt = Stmt_tmp.replace('Stmt=','');
var Stmt = Stmt.substring(0,65530)
event.Put("slow_time",slow_time);
event.Put("Client",Client);
event.Put("User",User);
event.Put("Db",Db);
event.Put("State",State);
event.Put("Time",Time);
event.Put("ScanBytes",ScanBytes);
event.Put("ScanRows",ScanRows);
event.Put("ReturnRows",ReturnRows);
event.Put("StmtId",StmtId);
event.Put("QueryId",QueryId);
event.Put("IsQuery",IsQuery);
event.Put("feIp",feIp);
event.Put("Stmt",Stmt);
event.Put("igid",'999-1');
event.Put("port",999);
event.Put("dorisdb_fe_ip",'10.10.10.10');
}
- drop_fields:
fields: ["ecs","agent","message","log","host"]
output.kafka:
enabled: true
hosts: ["10.1.1.1:666","10.1.1.2:666","10.1.1.3:666","10.1.1.4:666","10.1.1.5:666"]
topic: '%{[fields][log_topics]}'
worker: 1
timeout: 30s
broker_timeout: 10s
keep_alive: 0
compression: gzip
required_acks: 1
client_id: dorisdb_slow_log-123
3.4、开启filebeat
/usr/bin/nohup filebeat -c filebeat_999-1.yml -e >> filebeat_999-1.log 2>&1 &
4、DorisDB环境
4.1、创建集群
【部署集群】：
dorisdb_manage cluster deploy 999-1 --db_name=dorisdb_slow --user_name=xxx --user_password=xxx --auth_ip=10.1.1.1 --domain_name=xxx
注：此处为DBA自己实现的部署自动化
4.2、创建慢SQL表
CREATE TABLE `dorisdb_slow` (
`slow_time` datetime COMMENT "slow time",
`igid` varchar(40) COMMENT "",
`db_name` varchar(300) COMMENT "db name",
`fe_ip` varchar(30) COMMENT "fe ip",
`query_id` varchar(200) COMMENT "QueryId",
`time` bigint(20) COMMENT "SQL run time",
`client` varchar(30) COMMENT "client ip",
`user` varchar(200) COMMENT "user name",
`state` varchar(200) COMMENT "State",
`scan_bytes` bigint(20) COMMENT "ScanBytes",
`scan_rows` bigint(20) COMMENT "ScanRows",
`return_rows` bigint(20) COMMENT "ReturnRows",
`stmt_id` bigint(20) COMMENT "StmtId",
`is_query` varchar(50) COMMENT "IsQuery",
`stmt` varchar(65533) COMMENT "Stmt,Query Detail"
) ENGINE=OLAP
DUPLICATE KEY(`slow_time`, `igid`, `db_name`, `fe_ip`, `query_id`)
COMMENT "DorisDB慢SQL表"
PARTITION BY RANGE(`slow_time`)
(PARTITION p20210813 VALUES [('2021-08-13 00:00:00'), ('2021-08-14 00:00:00')),
PARTITION p20210814 VALUES [('2021-08-14 00:00:00'), ('2021-08-15 00:00:00')),
.......
PARTITION p20211230 VALUES [('2021-12-30 00:00:00'), ('2021-12-31 00:00:00')),
PARTITION p20211231 VALUES [('2021-12-31 00:00:00'), ('2022-01-01 00:00:00')))
DISTRIBUTED BY HASH(`igid`) BUCKETS 48
PROPERTIES (
"replication_num" = "1",
"in_memory" = "false",
"storage_format" = "DEFAULT"
);
4.3、创建kafka任务
CREATE ROUTINE LOAD dorisdb_slow_load_20210814 ON dorisdb_slow
columns (slow_time,igid,db_name,fe_ip,query_id,time,client,user,state,scan_bytes,scan_rows,return_rows,stmt_id,is_query,stmt)
PROPERTIES (
"format"="json",
"jsonpaths"="[\"$.slow_time\",\"$.igid\",\"$.Db\",\"$.feIp\",\"$.QueryId\",\"$.Time\",\"$.Client\",\"$.User\",\"$.State\",\"$.ScanBytes\",\"$.ScanRows\",\"$.ReturnRows\",\"$.StmtId\",\"$.IsQuery\",\"$.Stmt\"]",
"desired_concurrent_number"="8",
"max_error_number" = "9999999999",
"max_batch_rows"="200000",
"max_batch_size" = "104857600",
"strict_mode" = "false"
)
FROM KAFKA
(
"kafka_broker_list"= "10.1.1.1:666,10.1.1.2:666,10.1.1.3:666,10.1.1.4:666,10.1.1.5:666",
"kafka_topic" = "dorisdb_slow_log",
"property.kafka_default_offsets" = "OFFSET_END",
"property.client.id" = "dorisdb_slow_log-123",
"property.group.id" = "dorisdb_slow_load_20210814"
);

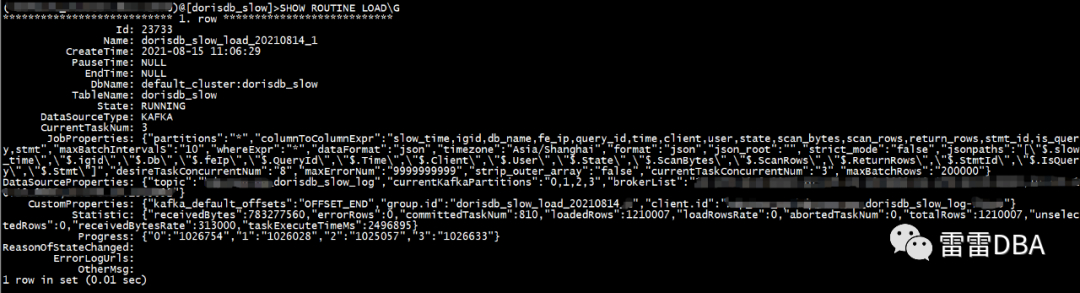

4.4、查看任务状态

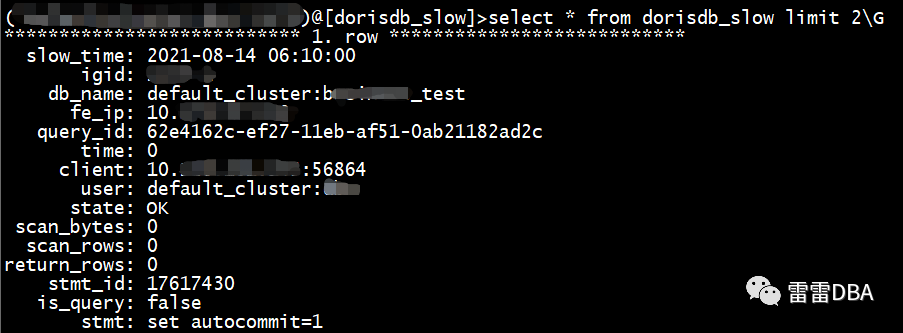

4.5、查看慢SQL
