Elastic-Job的执行原理及优化实践

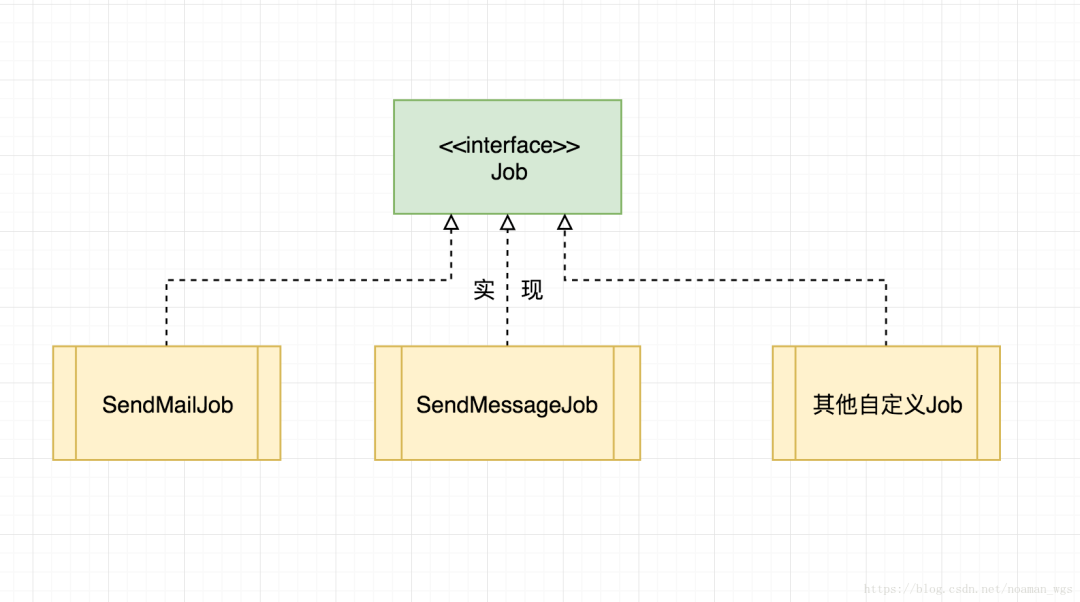

//定义一个作业类，实现用户的业务逻辑
public class HelloJob implements Job {
     ......
     实现业务逻辑
}
//根据作业类得到JobDetail
JobDetail jobDetail = JobBuilder.newJob(HelloJob.class)

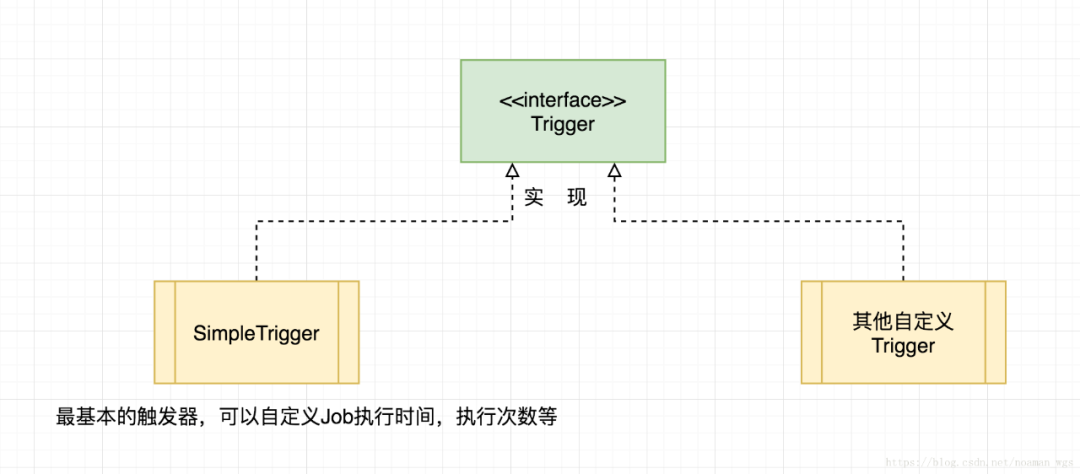

//定义一个触发器，按照规定的时间调度作业
Trigger trigger = TriggerBuilder.newTrigger("每隔1分钟执行一次")
//根据作业类和触发器创建调度器
Scheduler scheduler = scheduler.scheduleJob(jobDetail,trigger);
//启动调度器，开始执行任务
scheduler .start()

public class MyElasticJob implements SimpleJob {
    public void execute(ShardingContext context) {
         //实现业务逻辑
          ......
    }

     // 对zookeeper进行设置，作为分布式任务的注册中心
    private static CoordinatorRegistryCenter createRegistryCenter() {
        CoordinatorRegistryCenter regCenter = new ZookeeperRegistryCenter(new ZookeeperConfiguration("xxxx"));
        regCenter.init();
        return regCenter;
    }


    //设置任务的执行频率、执行的类
    private static LiteJobConfiguration createJobConfiguration() {
        JobCoreConfiguration simpleCoreConfig = JobCoreConfiguration.newBuilder("demoSimpleJob", "0/15 * * * * ?", 10).build();
        // 定义SIMPLE类型配置
        SimpleJobConfiguration simpleJobConfig = new SimpleJobConfiguration(simpleCoreConfig, MyElasticJob.class.getCanonicalName());
        // 定义Lite作业根配置
        LiteJobConfiguration simpleJobRootConfig = LiteJobConfiguration.newBuilder(simpleJobConfig).build();
        return simpleJobRootConfig;
    }
   //主函数
 public static void main(String[] args) {
        new JobScheduler(createRegistryCenter(), createJobConfiguration()).init();
    }
}

public class JobScheduler {

    public static final String ELASTIC_JOB_DATA_MAP_KEY = "elasticJob";

    private static final String JOB_FACADE_DATA_MAP_KEY = "jobFacade";

    //作业配置
    private final LiteJobConfiguration liteJobConfig;

   //注册中心
   private final CoordinatorRegistryCenter regCenter;

    //调度器门面
    private final SchedulerFacade schedulerFacade;

    //作业门面
    private final JobFacade jobFacade;

     private JobScheduler(final CoordinatorRegistryCenter regCenter, final LiteJobConfiguration liteJobConfig, final JobEventBus jobEventBus, final ElasticJobListener... elasticJobListeners) {
        JobRegistry.getInstance().addJobInstance(liteJobConfig.getJobName(), new JobInstance());

        this.liteJobConfig = liteJobConfig;

        this.regCenter = regCenter;

        List<ElasticJobListener> elasticJobListenerList = Arrays.asList(elasticJobListeners);

        setGuaranteeServiceForElasticJobListeners(regCenter, elasticJobListenerList);

        schedulerFacade = new SchedulerFacade(regCenter, liteJobConfig.getJobName(), elasticJobListenerList);

        jobFacade = new LiteJobFacade(regCenter, liteJobConfig.getJobName(), Arrays.asList(elasticJobListeners), jobEventBus);
    }

/**
     * 初始化作业.
     */
    public void init() {
        JobRegistry.getInstance().setCurrentShardingTotalCount(liteJobConfig.getJobName(), liteJobConfig.getTypeConfig().getCoreConfig().getShardingTotalCount());
        JobScheduleController jobScheduleController = new JobScheduleController(createScheduler(), createJobDetail(liteJobConfig.getTypeConfig().getJobClass()), liteJobConfig.getJobName());
        JobRegistry.getInstance().registerJob(liteJobConfig.getJobName(), jobScheduleController, regCenter);

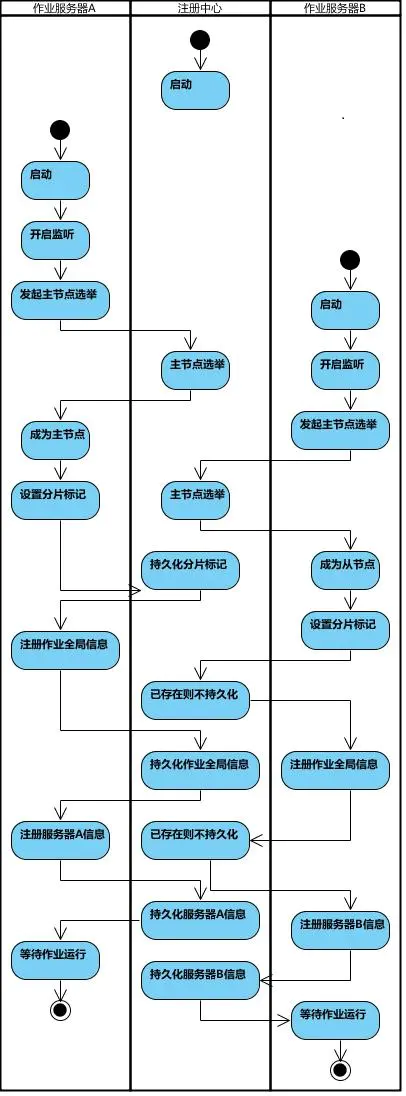

        schedulerFacade.registerStartUpInfo(liteJobConfig);
        jobScheduleController.scheduleJob(liteJobConfig.getTypeConfig().getCoreConfig().getCron());
    }

/**
     * 注册作业启动信息.
     *
     * @param liteJobConfig 作业配置
     */
    public void registerStartUpInfo(final LiteJobConfiguration liteJobConfig) {
        regCenter.addCacheData("/" + liteJobConfig.getJobName());
        // 开启所有监听器
        listenerManager.startAllListeners();
        // 选举主节点
        leaderService.electLeader();
        //持久化job的配置信息
        configService.persist(liteJobConfig);
        LiteJobConfiguration liteJobConfigFromZk = configService.load(false);
        // 持久化作业服务器上线信息
       serverService.persistOnline(!liteJobConfigFromZk.isDisabled());
        // 持久化作业运行实例上线相关信息，将服务实例注册到zk
        instanceService.persistOnline();
        // 设置 需要重新分片的标记
        shardingService.setReshardingFlag();
        // 初始化 作业监听服务
        monitorService.listen();
        // 初始化 调解作业不一致状态服务
        if (!reconcileService.isRunning()) {
            reconcileService.startAsync();
        }
    }

/**
     * 调度作业.
     *
     * @param cron CRON表达式
     */
    public void scheduleJob(final String cron) {
        try {
            if (!scheduler.checkExists(jobDetail.getKey())) {
                scheduler.scheduleJob(jobDetail, createTrigger(cron));
            }
            scheduler.start();
        } catch (final SchedulerException ex) {
            throw new JobSystemException(ex);
        }
    }

private JobDetail createJobDetail(final String jobClass) {
    JobDetail result = JobBuilder.newJob(LiteJob.class).withIdentity(liteJobConfig.getJobName()).build();
    //忽略其它代码
}

public final class LiteJob implements Job {

    @Setter
    private ElasticJob elasticJob;

    @Setter
    private JobFacade jobFacade;

    @Override
    public void execute(final JobExecutionContext context) throws JobExecutionException {
        JobExecutorFactory.getJobExecutor(elasticJob, jobFacade).execute();
    }
}

public final class JobExecutorFactory {

    /**
     * 获取作业执行器.
     *
     * @param elasticJob 分布式弹性作业
     * @param jobFacade 作业内部服务门面服务
     * @return 作业执行器
     */
    @SuppressWarnings("unchecked")
    public static AbstractElasticJobExecutor getJobExecutor(final ElasticJob elasticJob, final JobFacade jobFacade) {
        // ScriptJob
        if (null == elasticJob) {
            return new ScriptJobExecutor(jobFacade);
        }
        // SimpleJob
        if (elasticJob instanceof SimpleJob) {
            return new SimpleJobExecutor((SimpleJob) elasticJob, jobFacade);
        }
        // DataflowJob
        if (elasticJob instanceof DataflowJob) {
            return new DataflowJobExecutor((DataflowJob) elasticJob, jobFacade);
        }
        throw new JobConfigurationException("Cannot support job type '%s'", elasticJob.getClass().getCanonicalName());
    }
}

// AbstractElasticJobExecutor.java

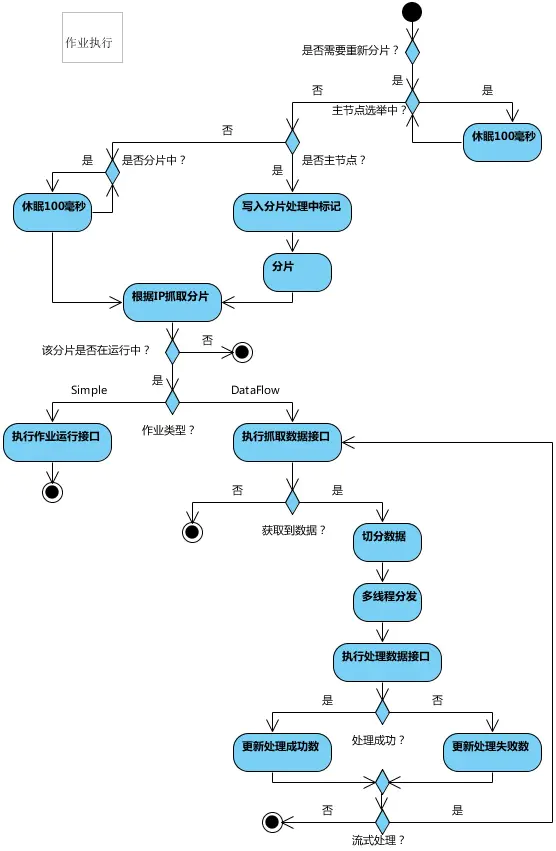

public final void execute() {
   // 检查作业执行环境
   try {
       jobFacade.checkJobExecutionEnvironment();
   } catch (final JobExecutionEnvironmentException cause) {
       jobExceptionHandler.handleException(jobName, cause);
   }
   // 获取当前作业服务器的分片上下文
   ShardingContexts shardingContexts = jobFacade.getShardingContexts();
   // 发布作业状态追踪事件(State.TASK_STAGING)
   if (shardingContexts.isAllowSendJobEvent()) {
       jobFacade.postJobStatusTraceEvent(shardingContexts.getTaskId(), State.TASK_STAGING, String.format("Job '%s' execute begin.", jobName));
   }
   // 跳过存在运行中的被错过作业
   if (jobFacade.misfireIfRunning(shardingContexts.getShardingItemParameters().keySet())) {
       // 发布作业状态追踪事件(State.TASK_FINISHED)
       if (shardingContexts.isAllowSendJobEvent()) {
           jobFacade.postJobStatusTraceEvent(shardingContexts.getTaskId(), State.TASK_FINISHED, String.format(
                   "Previous job '%s' - shardingItems '%s' is still running, misfired job will start after previous job completed.", jobName,
                   shardingContexts.getShardingItemParameters().keySet()));
       }
       return;
   }
   // 执行作业执行前的方法
   try {
       jobFacade.beforeJobExecuted(shardingContexts);
       //CHECKSTYLE:OFF
   } catch (final Throwable cause) {
       //CHECKSTYLE:ON
       jobExceptionHandler.handleException(jobName, cause);
   }
   // 执行普通触发的作业
   execute(shardingContexts, JobExecutionEvent.ExecutionSource.NORMAL_TRIGGER);
   // 执行被跳过触发的作业
   while (jobFacade.isExecuteMisfired(shardingContexts.getShardingItemParameters().keySet())) {
       jobFacade.clearMisfire(shardingContexts.getShardingItemParameters().keySet());
       execute(shardingContexts, JobExecutionEvent.ExecutionSource.MISFIRE);
   }
   // 执行作业失效转移
   jobFacade.failoverIfNecessary();
   // 执行作业执行后的方法
   try {
       jobFacade.afterJobExecuted(shardingContexts);
       //CHECKSTYLE:OFF
   } catch (final Throwable cause) {
       //CHECKSTYLE:ON
       jobExceptionHandler.handleException(jobName, cause);
   }
}
