深入理解Dubbo源码(三)，Dubbo与Spring的整合之注解方式

public interface DemoService {
    String sayHello(String name);
}

@Service
public class DemoServiceImpl implements DemoService {
    private static final Logger logger = LoggerFactory.getLogger(DemoServiceImpl.class);
    @Override
    public String sayHello(String name) {
        logger.info("Hello " + name + ", request from consumer: " + RpcContext.getContext().getRemoteAddress());
        return "Hello " + name + ", response from provider: " + RpcContext.getContext().getLocalAddress();
    }
}

@Component("demoServiceComponent")
public class DemoServiceComponent implements DemoService {
    @Reference
    private DemoService demoService;
    @Override
    public String sayHello(String name) {
        return demoService.sayHello(name);
    }
}

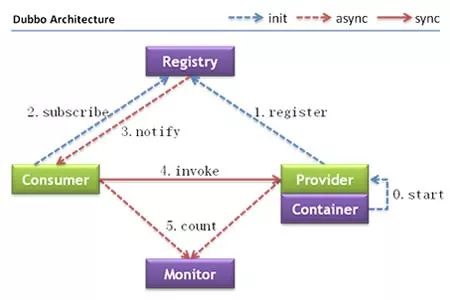

就像发送http请求一样，消费端只要知道服务提供方的ip地址和端口号，就可以发起远程rpc调用，但如果服务提供方服务器迁移或者增加节点，又或者某个节点故障维修，那会导致消费端不可用，所以需要一个注册中心来统一管理。消费端从注册中心拿到正常提供服务的所有服务提供者，服务提供者向注册中心注册，并保持心跳，当某个提供者不可用时，将提供者剔除，并通知所有消费者，或者消费者定时询问注册中心。Monitor暂时不讨论。

服务提供方向注册中心注册，暴露服务

@Configuration
@EnableDubbo(scanBasePackages = "org.apache.dubbo.demo.provider")
@PropertySource("classpath:/spring/dubbo-provider.properties")
static class ProviderConfiguration {
   @Bean
   public RegistryConfig registryConfig() {
       RegistryConfig registryConfig = new RegistryConfig();
       registryConfig.setAddress("multicast://224.5.6.7:1234");
       return registryConfig;
    }
 }

服务消费方通过注册中心发现服务

@Configuration
@EnableDubbo(scanBasePackages = "org.apache.dubbo.demo.consumer.comp")
@PropertySource("classpath:/spring/dubbo-consumer.properties")
@ComponentScan(value = {"org.apache.dubbo.demo.consumer.comp"})
 static class ConsumerConfiguration {


}

@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Inherited
@Documented
@EnableDubboConfig
@DubboComponentScan
public @interface EnableDubbo {
    @AliasFor(annotation = DubboComponentScan.class, attribute = "basePackages")
    String[] scanBasePackages() default {};
    @AliasFor(annotation = DubboComponentScan.class, attribute = "basePackageClasses")
    Class<?>[] scanBasePackageClasses() default {};
    @AliasFor(annotation = EnableDubboConfig.class, attribute = "multiple")
    boolean multipleConfig() default true;
}

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Import(DubboComponentScanRegistrar.class)
public @interface DubboComponentScan {
    String[] value() default {};
    String[] basePackages() default {};
    Class<?>[] basePackageClasses() default {};
}

Set<String> packagesToScan = getPackagesToScan(importingClassMetadata);
registerServiceAnnotationBeanPostProcessor(packagesToScan, registry);
registerReferenceAnnotationBeanPostProcessor(registry);

BeanDefinitionBuilder builder = rootBeanDefinition(ServiceAnnotationBeanPostProcessor.class);
builder.addConstructorArgValue(packagesToScan);
builder.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
AbstractBeanDefinition beanDefinition = builder.getBeanDefinition();
BeanDefinitionReaderUtils.registerWithGeneratedName(beanDefinition, registry);

 private void registerServiceBeans(Set<String> packagesToScan, BeanDefinitionRegistry registry) {
        DubboClassPathBeanDefinitionScanner scanner =
                new DubboClassPathBeanDefinitionScanner(registry, environment, resourceLoader);
        BeanNameGenerator beanNameGenerator = resolveBeanNameGenerator(registry);
        scanner.setBeanNameGenerator(beanNameGenerator);
        for (String packageToScan : packagesToScan) {
             Registers @Service Bean first
            scanner.scan(packageToScan);
             Finds all BeanDefinitionHolders of @Service whether @ComponentScan scans or not.
            Set<BeanDefinitionHolder> beanDefinitionHolders =
                    findServiceBeanDefinitionHolders(scanner, packageToScan, registry, beanNameGenerator);
            if (!CollectionUtils.isEmpty(beanDefinitionHolders)) {
                for (BeanDefinitionHolder beanDefinitionHolder : beanDefinitionHolders) {
                    registerServiceBean(beanDefinitionHolder, registry, scanner);
                }
            }
        }
    }

registerReferenceAnnotationBeanPostProcessor(registry);

public interface BeanPostProcessor {
   Object postProcessBeforeInitialization(Object var1, String var2) throws BeansException;
   Object postProcessAfterInitialization(Object var1, String var2) throws BeansException;
}

public interface InstantiationAwareBeanPostProcessor extends BeanPostProcessor {
    Object postProcessBeforeInstantiation(Class<?> var1, String var2) throws BeansException;
    boolean postProcessAfterInstantiation(Object var1, String var2) throws BeansException;
    PropertyValues postProcessPropertyValues(PropertyValues var1, PropertyDescriptor[] var2, Object var3, String var4) throws BeansException;
}

这是spring4.3.16的源码,dubbo2.7.2依赖的版本
.......
org.springframework.beans.factory.support.DefaultListableBeanFactory#resolveNamedBean(java.lang.Class<T>)
org.springframework.beans.factory.support.DefaultListableBeanFactory#resolveNamedBean(java.lang.Class<T>, java.lang.Object...)
org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#createBean(java.lang.String, org.springframework.beans.factory.support.RootBeanDefinition, java.lang.Object[])
org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#populateBean

@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Inherited
@Documented
@Import(DubboConfigConfigurationRegistrar.class)
public @interface EnableDubboConfig {
    boolean multiple() default true;
}

registerBeans(registry, DubboConfigConfiguration.Single.class);

@EnableDubboConfigBindings({
@EnableDubboConfigBinding(prefix = "dubbo.application", type = ApplicationConfig.class),
@EnableDubboConfigBinding(prefix = "dubbo.module", type = ModuleConfig.class),
@EnableDubboConfigBinding(prefix = "dubbo.registry", type = RegistryConfig.class),
@EnableDubboConfigBinding(prefix = "dubbo.protocol", type = ProtocolConfig.class),
@EnableDubboConfigBinding(prefix = "dubbo.monitor", type = MonitorConfig.class),
@EnableDubboConfigBinding(prefix = "dubbo.provider", type = ProviderConfig.class),
 @EnableDubboConfigBinding(prefix = "dubbo.consumer", type = ConsumerConfig.class),
@EnableDubboConfigBinding(prefix = "dubbo.config-center", type = ConfigCenterBean.class),
@EnableDubboConfigBinding(prefix = "dubbo.metadata-report", type = MetadataReportConfig.class)
})
public static class Single {


}

@Override
    public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
        if (beanName.equals(this.beanName) && bean instanceof AbstractConfig) {
            AbstractConfig dubboConfig = (AbstractConfig) bean;
            bind(prefix, dubboConfig);
            customize(beanName, dubboConfig);
        }
        return bean;
    }

BeanDefinitionBuilder builder = rootBeanDefinition(ServiceBean.class);
AbstractBeanDefinition beanDefinition = builder.getBeanDefinition();
MutablePropertyValues propertyValues = beanDefinition.getPropertyValues();
String[] ignoreAttributeNames = of("provider", "monitor", "application", "module", "registry", "protocol",
                "interface", "interfaceName", "parameters");
propertyValues.addPropertyValues(new AnnotationPropertyValuesAdapter(service, environment, ignoreAttributeNames));
// References "ref" property to annotated-@Service Bean
addPropertyReference(builder, "ref", annotatedServiceBeanName);
// Set interface
builder.addPropertyValue("interface", interfaceClass.getName());
// Convert parameters into map
builder.addPropertyValue("parameters", convertParameters(service.parameters()));
// ProviderConfig
// MonitorConfig
// ApplicationConfig
// ModuleConfig
// RegistryConfig
// ProtocolConfig
return builder.getBeanDefinition();

new AnnotationPropertyValuesAdapter(service, environment, ignoreAttributeNames)

if (!supportedApplicationListener) {
        export();
}

    public void export() {
        super.export();
         Publish ServiceBeanExportedEvent
        publishExportEvent();
    }

if (shouldDelay()) {
      delayExportExecutor.schedule(this::doExport, getDelay(), TimeUnit.MILLISECONDS);
} else {
      doExport();
}

if (exported) {
       return;
}
exported = true;
if (StringUtils.isEmpty(path)) {
     path = interfaceName;
}
doExportUrls();

@Override
protected Object doGetInjectedBean(Reference reference, Object bean, String beanName, Class<?> injectedType,
                                       InjectionMetadata.InjectedElement injectedElement) throws Exception {
        String referencedBeanName = buildReferencedBeanName(reference, injectedType);
        ReferenceBean referenceBean = buildReferenceBeanIfAbsent(referencedBeanName, reference, injectedType, getClassLoader());
        cacheInjectedReferenceBean(referenceBean, injectedElement);
        return buildProxy(referencedBeanName, referenceBean, injectedType);
 }

private ReferenceBean buildReferenceBeanIfAbsent(
String referencedBeanName, Reference reference,
Class<?> referencedType, ClassLoader classLoader)throws Exception {
        ReferenceBean<?> referenceBean = referenceBeanCache.get(referencedBeanName);
        if (referenceBean == null) {
            ReferenceBeanBuilder beanBuilder = ReferenceBeanBuilder
                    .create(reference, classLoader, applicationContext)
                    .interfaceClass(referencedType);
            referenceBean = beanBuilder.build();
            referenceBeanCache.put(referencedBeanName, referenceBean);
        }
        return referenceBean;
}

public final B build() throws Exception {
        checkDependencies();
        B bean = doBuild();
        configureBean(bean);
        return bean;
}

protected void configureBean(B bean) throws Exception {
        preConfigureBean(annotation, bean);
        configureRegistryConfigs(bean);
        configureMonitorConfig(bean);
        configureApplicationConfig(bean);
        configureModuleConfig(bean);
        postConfigureBean(annotation, bean);
}

 private Object buildProxy(String referencedBeanName, ReferenceBean referenceBean, Class<?> injectedType) {
    InvocationHandler handler = buildInvocationHandler(referencedBeanName, referenceBean);
    return Proxy.newProxyInstance(getClassLoader(), new Class[]{injectedType}, handler);
 }

 private static class ReferenceBeanInvocationHandler implements InvocationHandler {
        private final ReferenceBean referenceBean;
        private Object bean;
        private ReferenceBeanInvocationHandler(ReferenceBean referenceBean) {
            this.referenceBean = referenceBean;
        }
        @Override
        public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
            Object result;
            try {
                if (bean == null) { // If the bean is not initialized, invoke init()
                    // issue: https://github.com/apache/dubbo/issues/3429
                    init();
                }
                result = method.invoke(bean, args);
            } catch (InvocationTargetException e) {
                // re-throws the actual Exception.
                throw e.getTargetException();
            }
            return result;
        }
        private void init() {
            this.bean = referenceBean.get();
        }
    }

 @Override
 public Object getObject() {
        return get();
 }

public synchronized T get() {
        checkAndUpdateSubConfigs();
        if (destroyed) {
            throw new IllegalStateException("The invoker of ReferenceConfig(" + url + ") has already destroyed!");
        }
        if (ref == null) {
            init();
        }
        return ref;
  }

.....
Map<String, String> map = new HashMap<String, String>();
.....
appendParameters(map, this);
.....
 ref = createProxy(map);
.....
