干货分享 | 看如何用Python数据可视化来分析用户留存率，建议收藏

import matplotlib.pyplot as plt
import pandas as pd

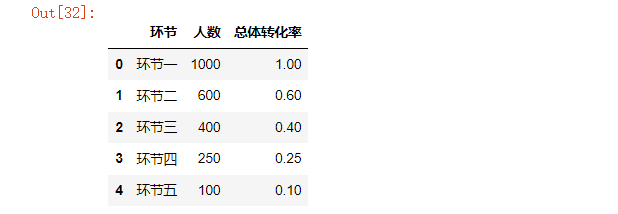

df = pd.DataFrame({"环节": ["环节一", "环节二", "环节三", "环节四", "环节五"],
                   "人数": [1000, 600, 400, 250, 100],
                   "总体转化率": [1.00, 0.60, 0.40, 0.25, 0.1]})

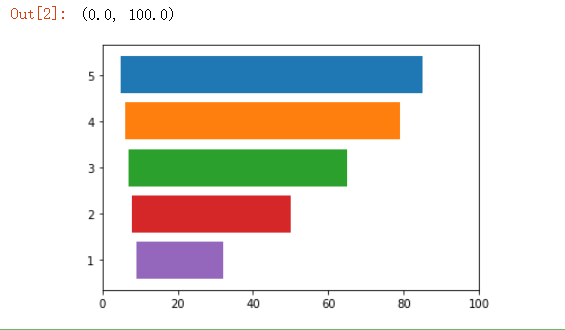

y = [5,4,3,2,1]
x = [85,75,58,43,23]
x_max = 100
x_min = 0
for idx, val in enumerate(x):
    plt.barh(y[idx], x[idx], left = idx+5)
plt.xlim(x_min, x_max)

from matplotlib import font_manager as fm

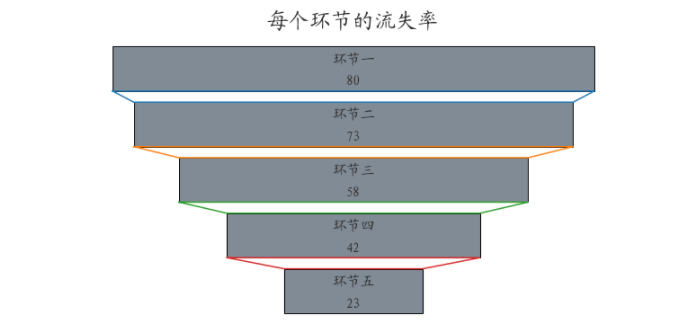

# funnel chart
y = [5,4,3,2,1]
labels = df["环节"].tolist()
x = df["人数"].tolist()
x_range = 100
font = fm.FontProperties(fname="KAITI.ttf")

fig, ax = plt.subplots(1, figsize=(12,6))
for idx, val in enumerate(x):
    left = (x_range - val)/2
    plt.barh(y[idx], x[idx], left = left, color='#808B96', height=.8, edgecolor='black')
    # label
    plt.text(50, y[idx]+0.1, labels[idx], ha='center',
             fontproperties=font, fontsize=16, color='#2A2A2A')
    # value
    plt.text(50, y[idx]-0.3, x[idx], ha='center',
             fontproperties=font, fontsize=16, color='#2A2A2A')

    if idx != len(x)-1:
        next_left = (x_range - x[idx+1])/2
        shadow_x = [left, next_left,
                    100-next_left, 100-left, left]
        shadow_y = [y[idx]-0.4, y[idx+1]+0.4,
                    y[idx+1]+0.4, y[idx]-0.4, y[idx]-0.4]
        plt.plot(shadow_x, shadow_y)
plt.xlim(x_min, x_max)
plt.axis('off')
plt.title('每个环节的流失率', fontproperties=font, loc='center', fontsize=24, color='#2A2A2A')
plt.show()

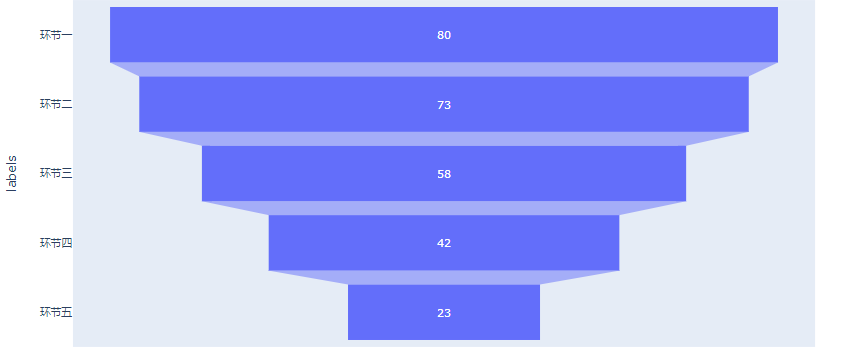

import plotly.express as px
data = dict(values=[80,73,58,42,23],
            labels=['环节一', '环节二', '环节三', '环节四', '环节五'])
fig = px.funnel(data, y='labels', x='values')
fig.show()

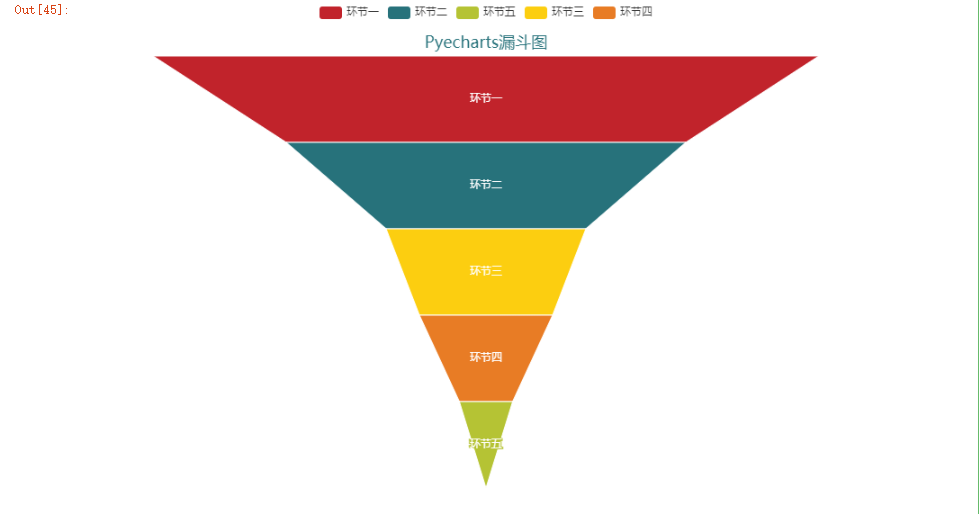

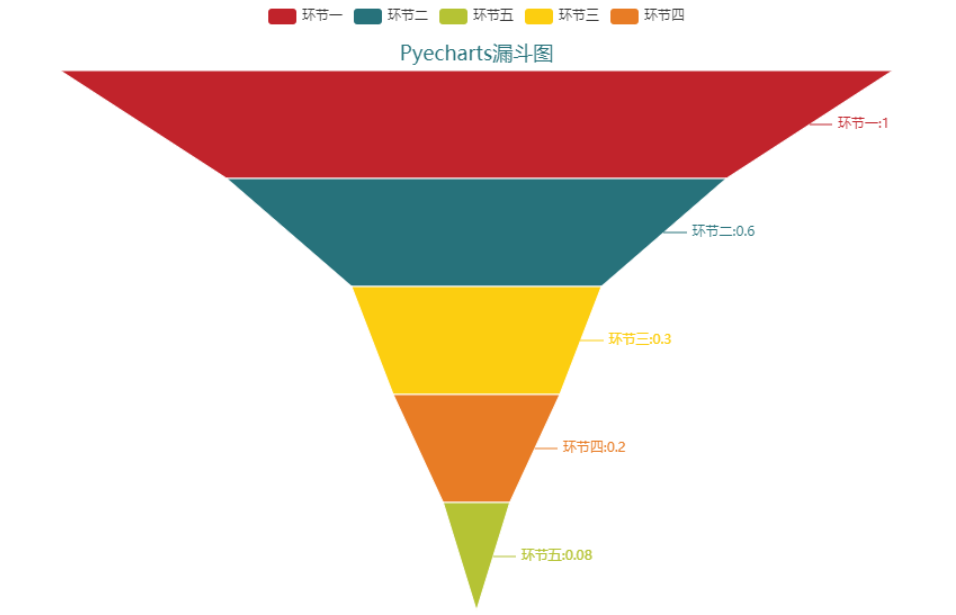

from pyecharts.charts import Funnel
from pyecharts import options as opts
from pyecharts.globals import ThemeType


c = (
    Funnel(init_opts=opts.InitOpts(width="900px", height="600px",theme = ThemeType.INFOGRAPHIC ))
    .add(
        "环节",
        df[["环节","总体转化率"]].values,
        sort_="descending",
        label_opts=opts.LabelOpts(position="inside"),
    )
    .set_global_opts(title_opts=opts.TitleOpts(title="Pyecharts漏斗图", pos_bottom = "90%", pos_left = "center"))
)
c.render_notebook()
