Flink实战：连接开启Kerberos认证的Kafka集群

大数据开发运维架构 2020-02-29

873

当kafka开启Kerberos认证后，如何使用Flink生产或消费数据呢？其实就是在生产消费者的代码中加入jaas.conf、keytab这些认证有关的配置，下面我们直接看代码：

版本信息：

flink1.9.0

kafka0.10.0

这里提示一下，如果版本依赖的不一致会报错，一定要对应版本：

java.lang.NoSuchMethodError: org.apache.flink.streaming.connectors.kafka.internal.KafkaConsumerThread

1.其实连接Kerberos集群很简单，需要下面三个文件：

1).KerberosServer的配置文件krb5.conf,让程序知道我应该哪个kdc去登录认证；

[libdefaults]
  udp_preference_limit = 1
  renew_lifetime = 3650d
  forwardable = true
  default_realm = CHINAUNICOM
  ticket_lifetime = 3650d
  dns_lookup_realm = false
  dns_lookup_kdc = false
  default_ccache_name = /tmp/krb5cc_%{uid}
  #default_tgs_enctypes = aes des3-cbc-sha1 rc4 des-cbc-md5
  #default_tkt_enctypes = aes des3-cbc-sha1 rc4 des-cbc-md5
[domain_realm]
  .CHINAUNICOM = CHINAUNICOM
[logging]
  default = FILE:/var/log/krb5kdc.log
  admin_server = FILE:/var/log/kadmind.log
  kdc = FILE:/var/log/krb5kdc.log
[realms]
  CHINAUNICOM = {
    admin_server = master98.hadoop.ljs
    kdc = master98.hadoop.ljs
  }

2).认证肯定需要指定认证方式这里需要一个jaas.conf文件，一般集群的conf目录下都有；

KafkaClient {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="D:\\kafkaSSL\\kafka.service.keytab"
    storeKey=true
    useTicketCache=false
    principal="kafka/salver32.hadoop.unicom@CHINAUNICOM"
    serviceName=kafka;
};

3).就是用户的登录认证票据和认证文件,票据和keytab文件这里就不在贴了；

2.为防止你依赖报错，这里贴下pom.xml依赖，可能有些冗余，自己删除即可：

<dependency>
  <groupId>org.apache.kafka</groupId>
  <artifactId>kafka-clients</artifactId>
  <version>${kafka.version}</version>
  <scope>compile</scope>
</dependency>
<dependency>
  <groupId>org.apache.flink</groupId>
  <artifactId>flink-hadoop-fs</artifactId>
  <version>${flink.version}</version>
</dependency>
<dependency>
  <groupId>org.apache.hadoop</groupId>
  <artifactId>hadoop-common</artifactId>
  <version>${hadoop.version}</version>
</dependency>
<dependency>
  <groupId>org.apache.hadoop</groupId>
  <artifactId>hadoop-hdfs</artifactId>
  <version>${hadoop.version}</version>
</dependency>
<dependency>
  <groupId>org.apache.httpcomponents</groupId>
  <artifactId>httpclient</artifactId>
  <version>${httpclient.version}</version>
</dependency>
<dependency>
  <groupId>org.apache.flink</groupId>
  <artifactId>flink-connector-kafka-0.10_2.11</artifactId>
  <version>1.9.0</version>
  <scope>compile</scope>
</dependency>

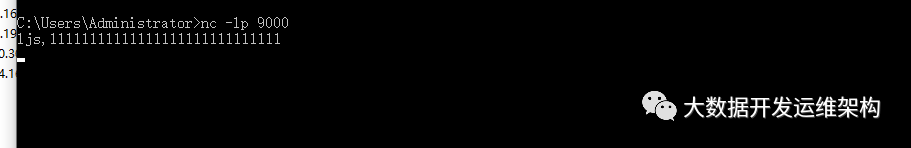

4.Flink接收socket端消息，发送到kafka:

5.Flink将socket接收的数据发送Kafka,代码实例：

package com.hadoop.ljs.flink.streaming;

import com.hadoop.ljs.flink.utils.CustomKeyedSerializationSchema;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaProducer010;
import org.apache.kafka.clients.producer.ProducerConfig;

import java.util.Properties;

/**
 * @author: Created By lujisen
 * @company ChinaUnicom Software JiNan
 * @date: 2020-02-29 09:31
 * @version: v1.0
 * @description: com.hadoop.ljs.flink.streaming
 */
public class FlinkKafkaKerberosProducer {
    public static final String topic="topic1";
    public static final String krb5Conf="D:\\kafkaSSL\\krb5.conf";
    public static final String kafkaJaasConf="D:\\kafkaSSL\\kafka_client_jaas.conf";
    public static final String bootstrapServers="salver31.hadoop.unicom:6667,salver32.hadoop.unicom:6667";
    public static final String hostname="localhost";
    public static final int port=9000;
    public static void main(String[] args) throws Exception {
        //在windows中设置JAAS，也可以通过-D方式传入
        System.setProperty("java.security.krb5.conf", krb5Conf);
        System.setProperty("java.security.auth.login.config", kafkaJaasConf);
        /*获取flink流式计算执行环境*/
        final StreamExecutionEnvironment senv = StreamExecutionEnvironment.getExecutionEnvironment();
        /*从Socket端接收数据*/
        DataStream<String> dataSource = senv.socketTextStream(hostname, port, "\n");
        /*下面可以根据自己的需求进行自动的转换*/
        /*接收的数据，中间可经过复杂的处理，最后发送到kafka端*/
        dataSource.addSink(new FlinkKafkaProducer010<String>(topic, new CustomKeyedSerializationSchema(), getProducerProperties()));
        /*启动*/
        senv.execute("FlinkKafkaProducer");
    }
    public static Properties getProducerProperties(){
        Properties props = new Properties();
        props.put("bootstrap.servers", bootstrapServers);
        props.put("acks", "1");
        props.put("retries", 3);
        props.put("batch.size", 16384);
        props.put("linger.ms", 1);
        props.put("buffer.memory", 33554432);
        props.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, "org.apache.kafka.common.serialization.ByteArraySerializer");
        props.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, "org.apache.kafka.common.serialization.ByteArraySerializer");
        props.put("security.protocol", "SASL_PLAINTEXT");
        props.put("sasl.kerberos.service.name", "kafka");
        props.put("sasl.mechanism", "GSSAPI");
        return props;
    }
}

6.Flink连接kafka消费消息，代码实例：

package com.hadoop.ljs.flink.streaming;
import com.hadoop.ljs.flink.utils.KafkaCommonRecordSchema;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.common.serialization.SimpleStringSchema;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer010;
import org.apache.flink.streaming.connectors.kafka.internals.KafkaTopicPartition;
import org.apache.kafka.clients.consumer.ConsumerRecord;
import java.util.HashMap;
import java.util.Map;
import java.util.Properties;
/**
 * @author: Created By lujisen
 * @company ChinaUnicom Software JiNan
 * @date: 2020-02-29 09:31
 * @version: v1.0
 * @description: com.hadoop.ljs.flink.streaming
 */
public class FlinkKafkaKerberosConsumer {
    public static final String krb5Conf="D:\\kafkaSSL\\krb5.conf";
    public static final String kafkaJaasConf="D:\\kafkaSSL\\kafka_client_jaas.conf";
    public static final String topic="topic1";
    public static final String consumerGroup="test_topic1";
    public static final String bootstrapServer="salver31.hadoop.unicom:6667,salver32.hadoop.unicom:6667";
    public static void main(String[] args) throws Exception {
        //在windows中设置JAAS，也可以通过-D方式传入
        System.setProperty("java.security.krb5.conf", krb5Conf);
        System.setProperty("java.security.auth.login.config", kafkaJaasConf);

        final StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
        FlinkKafkaConsumer010<String> consumer010 = new FlinkKafkaConsumer010<String>(topic,new SimpleStringSchema(), getComsumerProperties());
        consumer010.setStartFromEarliest();
        //source从kafka
        DataStream<String> dataStream = env.addSource(consumer010);
        dataStream.print();
        try {
            env.execute();
        } catch (Exception ex) {
            ex.printStackTrace();
        }
    }
    private static Properties getComsumerProperties() {
        Properties props = new Properties();
        props.put("bootstrap.servers",bootstrapServer);
        props.put("group.id",consumerGroup);
        props.put("auto.offset.reset", "earliest");
        props.put("security.protocol", "SASL_PLAINTEXT");
        props.put("sasl.kerberos.service.name", "kafka");
        props.put("sasl.mechanism", "GSSAPI");
        return props;
    }
}
