利用Flume 汇入数据到HBase：Flume-hbase-sink 使用方法详解

BigData社区 2019-08-22

545

一.HbaseSinks的三种序列化模式使用说明

1.HBasesink--SimpleHbaseEventSerializer

如下是展示如何使用 HBasesink--SimpleHbaseEventSerializer：

agenttest.channels = memoryChannel-1
agenttest.sinks = hbaseSink-1
agenttest.sinks.hbaseSink-1.type = org.apache.flume.sink.hbase.HBaseSink
agenttest.sinks.hbaseSink-1.table = test_hbase_table  //HBase表名
agenttest.sinks.hbaseSink-1.columnFamily = familycolumn-1  //HBase表的列族名称
agenttest.sinks.hbaseSink-1.serializer= org.apache.flume.sink.hbase.SimpleHbaseEventSerializer
agenttest.sinks.hbaseSink-1.serializer.payloadColumn = columnname  //HBase表的列族下的某个列名称
agenttest.sinks.hbaseSink-1.channels = memoryChannel-1

注：当指定存入到HBase表的某个列族的指定列column时，不能写成：

agenttest.sinks.hbaseSink-1.columnName = columnname
或者：
agenttest.sinks.hbaseSink-1.column = columnname

2.HBasesink--RegexHbaseEventSerializer

如下是展示如何使用 HBasesink--RegexHbaseEventSerializer（使用正则匹配切割event，然后存入HBase表的多个列）：

agenttest.channels = memoryChannel-2
agenttest.sinks = hbaseSink-2
agenttest.sinks.hbaseSink-2.type = org.apache.flume.sink.hbase.HBaseSink
agenttest.sinks.hbaseSink-2.table = test_hbase_table
agenttest.sinks.hbaseSink-2.columnFamily = familycolumn-2
agenttest.sinks.hbaseSink-2.serializer= org.apache.flume.sink.hbase.RegexHbaseEventSerializer
// 比如我要对nginx日志做分割，然后按列存储HBase，正则匹配分成的列为: ([xxx] [yyy] [zzz] [nnn] ...) 这种格式, 所以用下面的正则：
agent.sinks.hbaseSink-2.serializer.regex = \\[(.*?)\\]\\ \\[(.*?)\\]\\ \\[(.*?)\\]\\ \\[(.*?)\\]
// 指定上面正则匹配到的数据对应的hbase的familycolumn-2 列族下的4个cloumn列名
agent.sinks.hbaseSink-2.serializer.colNames = column-1,column-2,column-3,column-4
#agent.sinks.hbaseSink-2.serializer.payloadColumn = test
agenttest.sinks.hbaseSink-2.channels = memoryChannel-2

3.AsyncHbaseSink--SimpleAsyncHbaseEventSerializer

如下是展示如何使用 AsyncHBaseSink-SimpleAsyncHbaseEventSerializer：

agenttest.channels = memoryChannel-3
agenttest.sinks = hbaseSink-3
agenttest.sinks.hbaseSink-3.type = org.apache.flume.sink.hbase.AsyncHBaseSink
agenttest.sinks.hbaseSink-3.table = test_hbase_table
agenttest.sinks.hbaseSink-3.columnFamily = familycolumn-3
agenttest.sinks.hbaseSink-3.serializer = org.apache.flume.sink.hbase.SimpleAsyncHbaseEventSerializer
agenttest.sinks.hbaseSink-3.serializer.payloadColumn = columnname  //HBase表的列族下的某个列名称
agenttest.sinks.hbaseSink-3.channels = memoryChannel-3

二.具体案例示例---利用flume+HBase构建大数据采集汇总系统

1.利用SimpleHbaseEventSerializer序列化模式

我们首先在HBase里面建立一个表mikeal-hbase-table，拥有familyclom1和familyclom2两个列族：

hbase(main):102:0> create 'mikeal-hbase-table','familyclom1','familyclom2'
0 row(s) in 1.2490 seconds
=> Hbase::Table - mikeal-hbase-table

然后写一个flume的配置文件test-flume-into-hbase.conf：

# 从文件读取实时消息，不做处理直接存储到Hbase
agent.sources = logfile-source
agent.channels = file-channel
agent.sinks = hbase-sink


# logfile-source配置
agent.sources.logfile-source.type = exec
agent.sources.logfile-source.command = tail -f data/flume-hbase-test/mkhbasetable/data/nginx.log
agent.sources.logfile-source.checkperiodic = 50
# 组合source和channel
agent.sources.logfile-source.channels = file-channel


# channel配置，使用本地file
agent.channels.file-channel.type = file
agent.channels.file-channel.checkpointDir = data/flume-hbase-test/checkpoint
agent.channels.file-channel.dataDirs = data/flume-hbase-test/data


# sink 配置为HBaseSink 和 SimpleHbaseEventSerializer
agent.sinks.hbase-sink.type = org.apache.flume.sink.hbase.HBaseSink
#HBase表名
agent.sinks.hbase-sink.table = mikeal-hbase-table
#HBase表的列族名称
agent.sinks.hbase-sink.columnFamily  = familyclom1
agent.sinks.hbase-sink.serializer = org.apache.flume.sink.hbase.SimpleHbaseEventSerializer
#HBase表的列族下的某个列名称
agent.sinks.hbase-sink.serializer.payloadColumn = cloumn-1
# 组合sink和channel
agent.sinks.hbase-sink.channel = file-channel

从配置文件可以看出，我们选择本地的/data/flume-hbase-test/mkhbasetable/data/nginx.log日志目录作为实时数据采集源，选择本地文件目录/data/flume-hbase-test/data作为channel，选择HBase为为sink（也就是数据流向写入HBase）。

注意：提交 flume-ng 任务的用户，比如flume用户，必须要有/data/flume-hbase-test/mkhbasetable/data/nginx.log 和/data/flume-hbase-test/data 目录与文件的读写权限；也必须要有HBase的读写权限。

启动Flume：

bin/flume-ng agent --name agent --conf etc/flume/conf/agent/ --conf-file etc/flume/conf/agent/test-flume-into-hbase.conf -Dflume.root.logger=DEBUG,console

在另外一个shell客户端，输入：

echo "nging-1" >> data/flume-hbase-test/mkhbasetable/data/nginx.log;
echo "nging-2" >> data/flume-hbase-test/mkhbasetable/data/nginx.log;

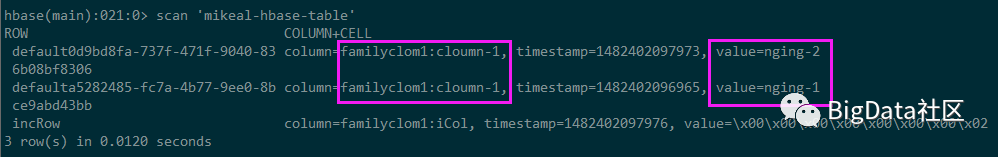

再查看mikeal-hbase-table表：

数据已经作为value插入到表里面。

2.利用SimpleAsyncHbaseEventSerializer序列化模式

为了示例清晰，先把mikeal-hbase-table表数据清空：

truncate 'mikeal-hbase-table'

然后写一个flume的配置文件test-flume-into-hbase-2.conf：

# 从文件读取实时消息，不做处理直接存储到Hbase
agent.sources = logfile-source
agent.channels = file-channel
agent.sinks = hbase-sink# logfile-source配置
agent.sources.logfile-source.type = exec
agent.sources.logfile-source.command = tail -f data/flume-hbase-test/mkhbasetable/data/nginx.log
agent.sources.logfile-source.checkperiodic = 50


# channel配置，使用本地file
agent.channels.file-channel.type = file
agent.channels.file-channel.checkpointDir = data/flume-hbase-test/checkpoint
agent.channels.file-channel.dataDirs = data/flume-hbase-test/data


# sink 配置为 Hbase
agent.sinks.hbase-sink.type = org.apache.flume.sink.hbase.AsyncHBaseSink
agent.sinks.hbase-sink.table = mikeal-hbase-table
agent.sinks.hbase-sink.columnFamily  = familyclom1
agent.sinks.hbase-sink.serializer = org.apache.flume.sink.hbase.SimpleAsyncHbaseEventSerializer
agent.sinks.hbase-sink.serializer.payloadColumn = cloumn-1


# 组合source、sink和channel
agent.sources.logfile-source.channels = file-channel
agent.sinks.hbase-sink.channel = file-channel

启动Flume

bin/flume-ng agent --name agent --conf etc/flume/conf/agent/ --conf-file etc/flume/conf/agent/test-flume-into-hbase-2.conf -Dflume.root.logger=DEBUG,console

在另外一个shell客户端，输入：

echo "nging-1" >> data/flume-hbase-test/mkhbasetable/data/nginx.log;
echo "nging-two" >> data/flume-hbase-test/mkhbasetable/data/nginx.log;
echo "nging-three" >> data/flume-hbase-test/mkhbasetable/data/nginx.log;

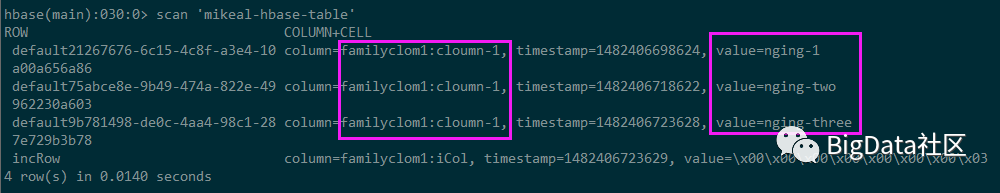

再查看mikeal-hbase-table表：

3.利用RegexHbaseEventSerializer序列化模式

RegexHbaseEventSerializer可以使用正则匹配切割event，然后存入HBase表的多个列。因此，本文简单展示如何使用RegexHbaseEventSerializer对event进行切割然后存存入HBase的多个列。

为了示例清晰，先把mikeal-hbase-table表数据清空：

truncate 'mikeal-hbase-table'

然后写一个flume的配置文件test-flume-into-hbase-3.conf：

# 从文件读取实时消息，不做处理直接存储到Hbase
agent.sources = logfile-source
agent.channels = file-channel
agent.sinks = hbase-sink


# logfile-source配置
agent.sources.logfile-source.type = exec
agent.sources.logfile-source.command = tail -f data/flume-hbase-test/mkhbasetable/data/nginx.log
agent.sources.logfile-source.checkperiodic = 50


# channel配置，使用本地file
agent.channels.file-channel.type = file
agent.channels.file-channel.checkpointDir = data/flume-hbase-test/checkpoint
agent.channels.file-channel.dataDirs = /data/flume-hbase-test/data


# sink 配置为 Hbase
agent.sinks.hbase-sink.type = org.apache.flume.sink.hbase.HBaseSink
agent.sinks.hbase-sink.table = mikeal-hbase-table
agent.sinks.hbase-sink.columnFamily  = familyclom1
agent.sinks.hbase-sink.serializer = org.apache.flume.sink.hbase.RegexHbaseEventSerializer
# 比如我要对nginx日志做分割，然后按列存储HBase，正则匹配分成的列为: ([xxx] [yyy] [zzz] [nnn] ...) 这种格式, 所以用下面的正则:
agent.sinks.hbase-sink.serializer.regex = \\[(.*?)\\]\\ \\[(.*?)\\]\\ \\[(.*?)\\]
agent.sinks.hbase-sink.serializer.colNames = time,url,number


# 组合source、sink和channel
agent.sources.logfile-source.channels = file-channel
agent.sinks.hbase-sink.channel = file-channel

启动Flume：

bin/flume-ng agent --name agent --conf /etc/flume/conf/agent/ --conf-file /etc/flume/conf/agent/test-flume-into-hbase-3.conf -Dflume.root.logger=DEBUG,console

在另外一个shell客户端，输入：

echo "[2016-12-22-19:59:59] [http://www.qq.com] [10]" >> /data/flume-hbase-test/mkhbasetable/data/nginx.log;
echo "[2016-12-22 20:00:12] [http://qzone.qq.com] [19]" >> /data/flume-hbase-test/mkhbasetable/data/nginx.log;

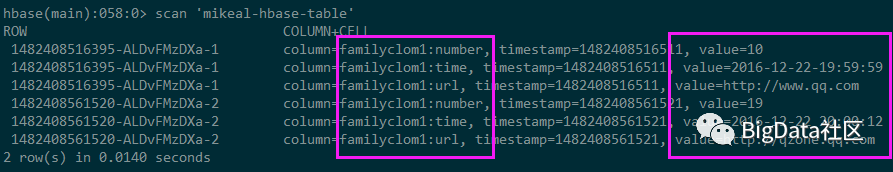

再查看mikeal-hbase-table表：
