在CDP集群启用Kerberos手册

大数据杂货铺 2021-09-18

1270

文档编写目的

本文档讲述如何在CDP集群启用及配置Kerberos，您将学习到以下知识：

如何安装及配置KDC服务
如何通过CDP启用Kerberos
如何登录Kerberos并访问Hadoop相关服务

文档内容

文档主要分为以下几步：

安装及配置KDC服务
CDP集群启用Kerberos
Kerberos使用

假设前提

这篇文档将重点介绍如何在CDP集群启用及配置Kerberos，并基于以下假设：

CDP集群运行正常
集群未启用Kerberos
MySQL 5.1.73

测试环境

以下是本次测试环境，但不是本操作手册的必需环境：

操作系统：CentOS7.9
CDP版本为7.1.7.0
CM版本为7.4.4
采用root用户进行操作

Kerberos协议

Kerberos协议主要用于计算机网络的身份鉴别(Authentication), 其特点是用户只需输入一次身份验证信息就可以凭借此验证获得的票据(ticket-granting ticket)访问多个服务，即SSO(Single Sign On)。由于在每个Client和Service之间建立了共享密钥，使得该协议具有相当的安全性。

KDC服务安装及配置

本文档中将KDC服务安装在Cloudera Manager Server所在服务器上（KDC服务可根据自己需要安装在其他服务器）

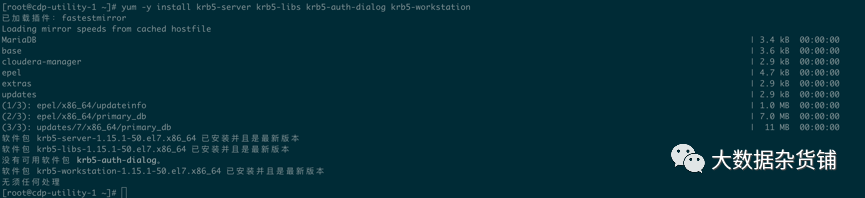

在Cloudera Manager服务器上安装KDC服务

[root@cdp-utility-1 ~]# yum -y install krb5-server krb5-libs krb5-auth-dialog krb5-workstation

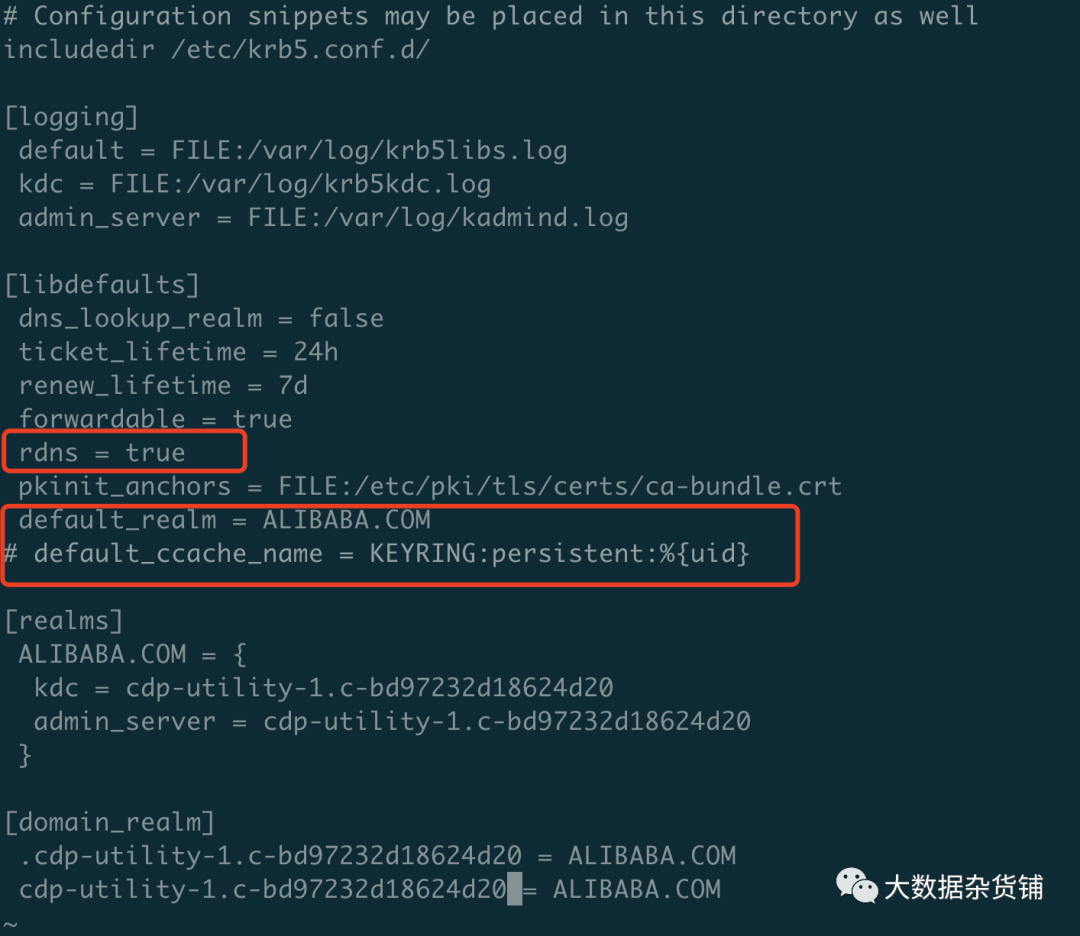

修改/etc/krb5.conf配置

[root@cdp-utility-1 ~]# vim etc/krb5.conf
# Configuration snippets may be placed in this directory as well
includedir etc/krb5.conf.d/




[logging]
default = FILE:/var/log/krb5libs.log
kdc = FILE:/var/log/krb5kdc.log
admin_server = FILE:/var/log/kadmind.log




[libdefaults]
dns_lookup_realm = false
ticket_lifetime = 24h
renew_lifetime = 7d
forwardable = true
rdns = true##特别注意，默认是false
pkinit_anchors = FILE:/etc/pki/tls/certs/ca-bundle.crt
default_realm = ALIBABA.COM
# default_ccache_name = KEYRING:persistent:%{uid}##特别注意，需要注释掉




[realms]
ALIBABA.COM = {
kdc = cdp-utility-1.c-bd97232d18624d20
admin_server = cdp-utility-1.c-bd97232d18624d20
}




[domain_realm]
. cdp-utility-1.c-bd97232d18624d20 = ALIBABA.COM
cdp-utility-1.c-bd97232d18624d20 = ALIBABA.COM

说明：

[logging]：表示server端的日志的打印位置
[libdefaults]：每种连接的默认配置，需要注意以下几个关键的小配置
default_realm = ALIBABA.COM 默认的realm，必须跟要配置的realm的名称一致。
udp_preference_limit = 1 禁止使用udp可以防止一个Hadoop中的错误
oticket_lifetime表明凭证生效的时限，一般为24小时。
orenew_lifetime表明凭证最长可以被延期的时限，一般为一个礼拜。当凭证过期之后，
对安全认证的服务的后续访问则会失败。
[realms]:列举使用的realm。
kdc：代表要kdc的位置。格式是机器:端口
admin_server:代表admin的位置。格式是机器:端口
default_domain：代表默认的域名
[appdefaults]:可以设定一些针对特定应用的配置，覆盖默认配置。

标红部分为需要修改的信息。

修改/var/kerberos/krb5kdc/kadm5.acl配置

[root@cdp-utility-1 ~]# vim var/kerberos/krb5kdc/kadm5.acl
 */admin@ALIBABA.COM    *

代表名称匹配*/admin@ALIBABA.COM 都认为是admin，权限是 *。代表全部权限。

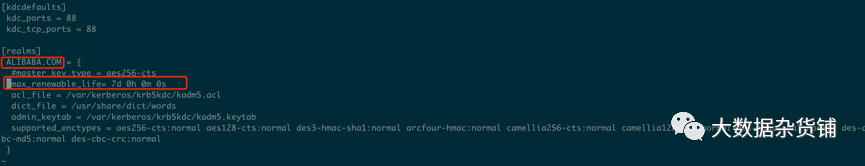

修改/var/kerberos/krb5kdc/kdc.conf配置

[root@cdp-utility-1 ~]# vim var/kerberos/krb5kdc/kdc.conf
[kdcdefaults]
 kdc_ports = 88
 kdc_tcp_ports = 88




[realms]
ALIBABA.COM= {
  #master_key_type = aes256-cts
  max_renewable_life= 7d 0h 0m 0s
  acl_file = var/kerberos/krb5kdc/kadm5.acl
  dict_file = usr/share/dict/words
  admin_keytab = var/kerberos/krb5kdc/kadm5.keytab
  supported_enctypes = aes256-cts:normal aes128-cts:normal des3-hmac-sha1:normal arcfour-hmac:normal des-hmac-sha1:n
ormal des-cbc-md5:normal des-cbc-crc:normal
 }

说明：

ALIBABA.COM:是设定的realms。名字随意。Kerberos可以支持多个realms，会增加复杂度。本文不探讨。大小写敏感，一般为了识别使用全部大写。这个realms跟机器的host没有大关系。
max_renewable_life = 7d 涉及到是否能进行ticket的renwe必须配置。
master_key_type:和supported_enctypes默认使用aes256-cts。由于，JAVA使用aes256-cts验证方式需要安装额外的jar包(jce-policy)。
acl_file:标注了admin的用户权限。文件格式是
Kerberos_principal permissions [target_principal] [restrictions]支持通配符等。
admin_keytab:KDC进行校验的keytab。后文会提及如何创建。

supported_enctypes:支持的校验方式。

标红部分为需要修改的配置。

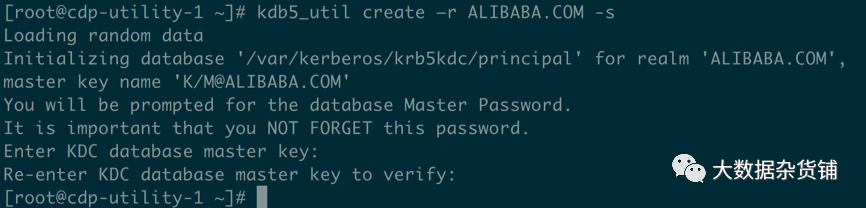

创建Kerberos数据库

[root@cdp-utility-1 ~]# kdb5_util create –r ALIBABA.COM -s
Loading random data
Initializing database '/var/kerberos/krb5kdc/principal' for realm 'ALIBABA.COM',
master key name 'K/M@ALIBABA.COM'
You will be prompted for the database Master Password.
It is important that you NOT FORGET this password.
Enter KDC database master key:
Re-enter KDC database master key to verify:
[root@cdp-utility-1 ~]#

此处需要输入Kerberos数据库的密码。

其中，[-s]表示生成stash file，并在其中存储master server key（krb5kdc）；还可以用[-r]来指定一个realm name —— 当krb5.conf中定义了多个realm时才是必要的。
# 保存路径为/var/kerberos/krb5kdc 如果需要重建数据库，将该目录下的principal相关的文件删除即可
在此过程中，我们会输入database的管理密码。这里设置的密码一定要记住，如果忘记了，就无法管理Kerberos server。

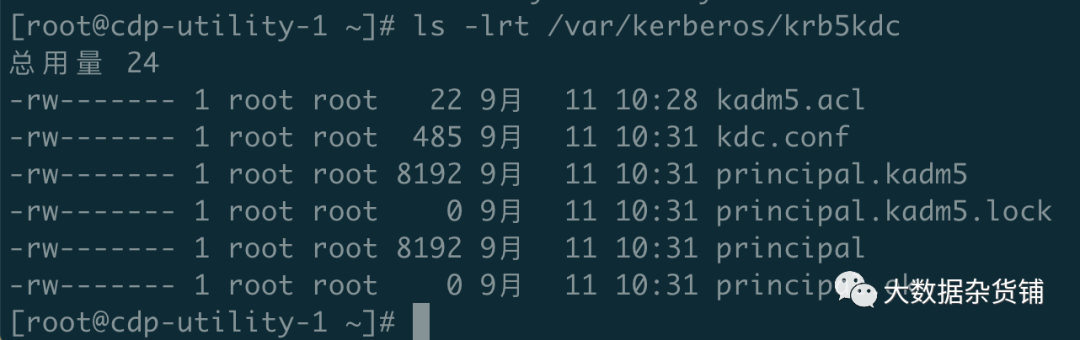

当Kerberos database创建好后，可以看到目录 var/kerberos/krb5kdc 下生成了几个文件：

kadm5.acl
kdc.conf
principal
principal.kadm5
principal.kadm5.lock
principal.ok

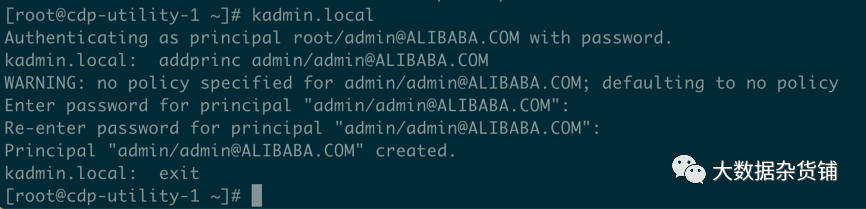

创建Kerberos的管理账号

[root@cdp-utility-1 ~]# kadmin.local
Authenticating as principal root/admin@ALIBABA.COM with password.
kadmin.local:  addprinc admin/admin@ALIBABA.COM
WARNING: no policy specified for admin/admin@ALIBABA.COM; defaulting to no policy
Enter password for principal "admin/admin@ALIBABA.COM":
Re-enter password for principal "admin/admin@ALIBABA.COM":
Principal "admin/admin@ALIBABA.COM" created.
kadmin.local:  exit
[root@cdp-utility-1 ~]#

标红部分为Kerberos管理员账号，需要输入管理员密码。

添加自服务并启动

将Kerberos服务添加到自启动服务，并启动krb5kdc和kadmin服务

[root@cdp-utility-1 cloudera-scm-server]# systemctl enable kadmin
Created symlink from etc/systemd/system/multi-user.target.wants/kadmin.service to usr/lib/systemd/system/kadmin.service.
[root@cdp-utility-1 cloudera-scm-server]# systemctl enable krb5kdc
[root@cdp-utility-1 cloudera-scm-server]# systemctl restart krb5kdc
[root@cdp-utility-1 cloudera-scm-server]# systemctl restart kadmin
[root@cdp-utility-1 cloudera-scm-server]#

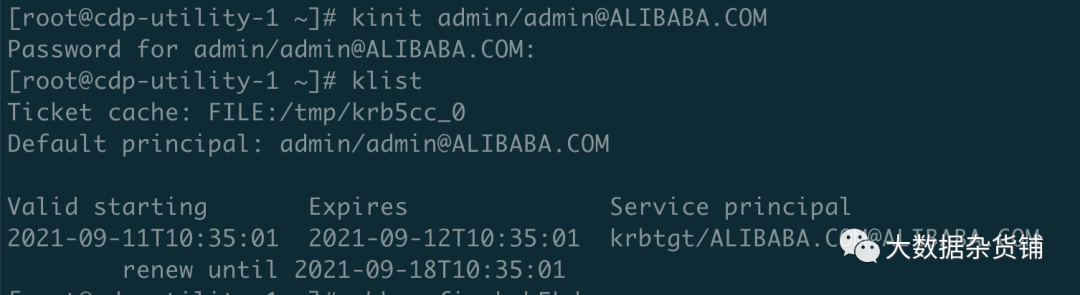

测试Kerberos的管理员账号

[root@cdp-utility-1 ~]# kinit admin/admin@ALIBABA.COM
Password for admin/admin@ALIBABA.COM:
[root@cdp-utility-1 ~]# klist
Ticket cache: FILE:/tmp/krb5cc_0
Default principal: admin/admin@ALIBABA.COM




Valid starting       Expires              Service principal
2021-09-11T10:35:01  2021-09-12T10:35:01  krbtgt/ALIBABA.COM@ALIBABA.COM
  renew until 2021-09-18T10:35:01
[root@cdp-utility-1 ~]#

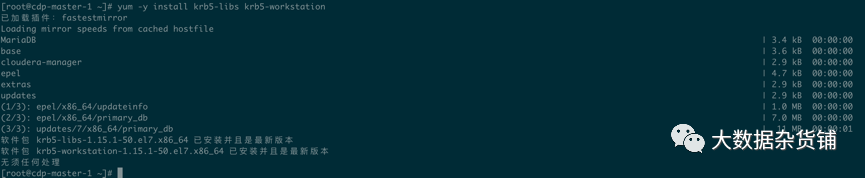

为集群安装所有Kerberos客户端，包括Cloudera Manager

[root@cdp-master-1 ~]# yum -y install krb5-libs krb5-workstation

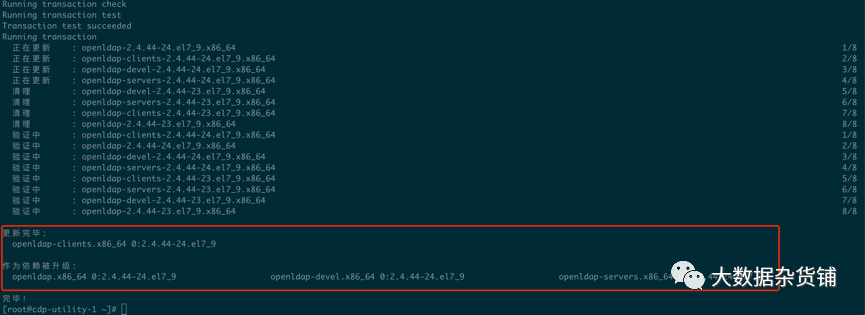

在Cloudera Manager Server服务器上安装额外的包

[root@cdp-utility-1 ~]# yum -y install openldap-clients

将KDC Server上的krb5.conf文件拷贝到所有Kerberos客户端

[root@cdp-utility-1 ~]# scp -r etc/krb5.conf 192.168.2.26:/etc/krb5.conf

此处使用脚本进行拷贝

[root@cdp-utility-1 ~]# for i in {26..29}; do scp -r etc/krb5.conf 192.168.2.$i:/etc/krb5.conf ; done
krb5.conf                                  100%  705     2.2MB/s   00:00
krb5.conf                                  100%  705     1.6MB/s   00:00
krb5.conf                                  100%  705     2.0MB/s   00:00
krb5.conf                                  100%  705     2.0MB/s   00:00
[root@cdp-utility-1 ~]#

CDP集群启用Kerberos

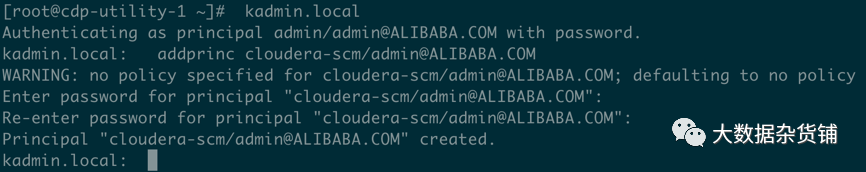

在KDC中给Cloudera Manager添加管理员账号

[root@cdp-utility-1 ~]#  kadmin.local
Authenticating as principal admin/admin@ALIBABA.COM with password.
kadmin.local:   addprinc cloudera-scm/admin@ALIBABA.COM
WARNING: no policy specified for cloudera-scm/admin@ALIBABA.COM; defaulting to no policy
Enter password for principal "cloudera-scm/admin@ALIBABA.COM":
Re-enter password for principal "cloudera-scm/admin@ALIBABA.COM":
Principal "cloudera-scm/admin@ALIBABA.COM" created.
kadmin.local:

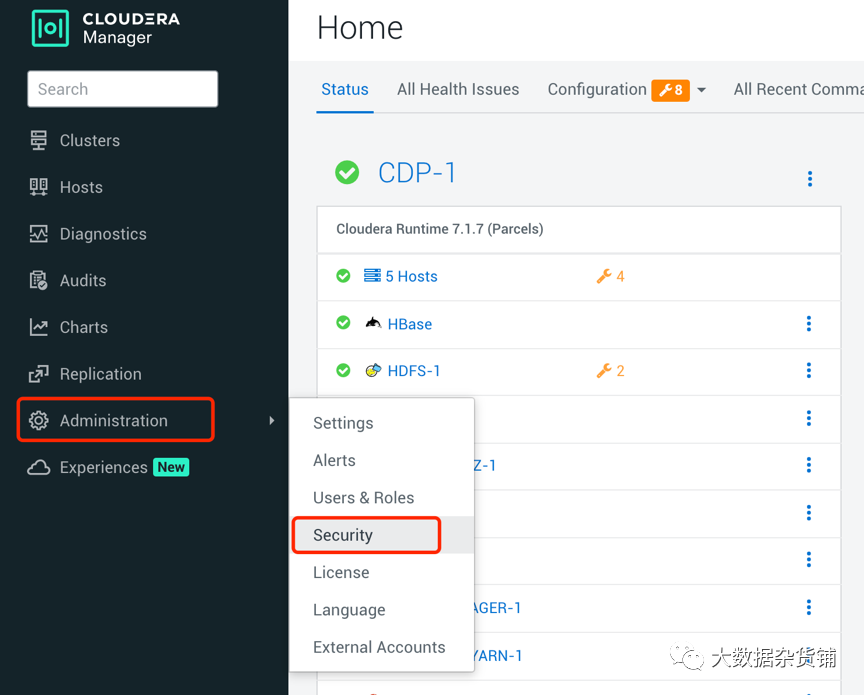

进入Cloudera Manager的“管理”-> “安全”界面

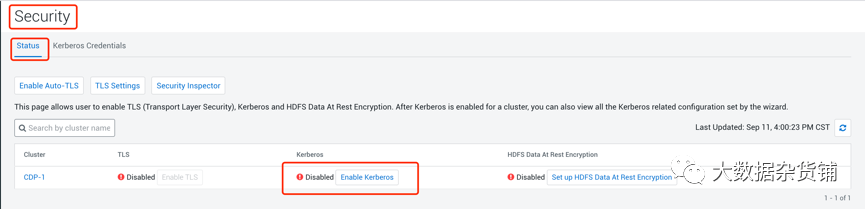

在安全页面进入Status页面，然后点击Enable Kerberos

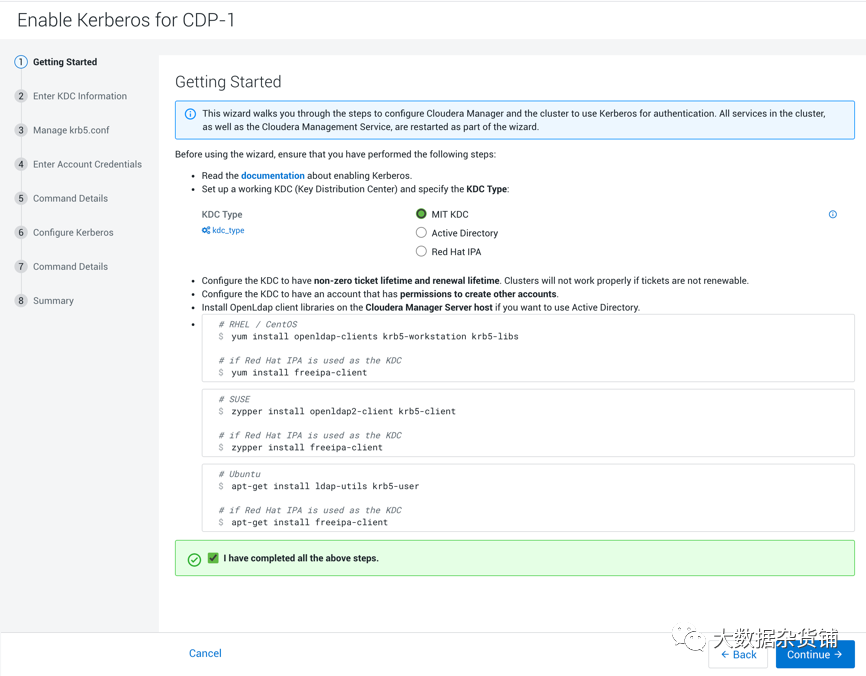

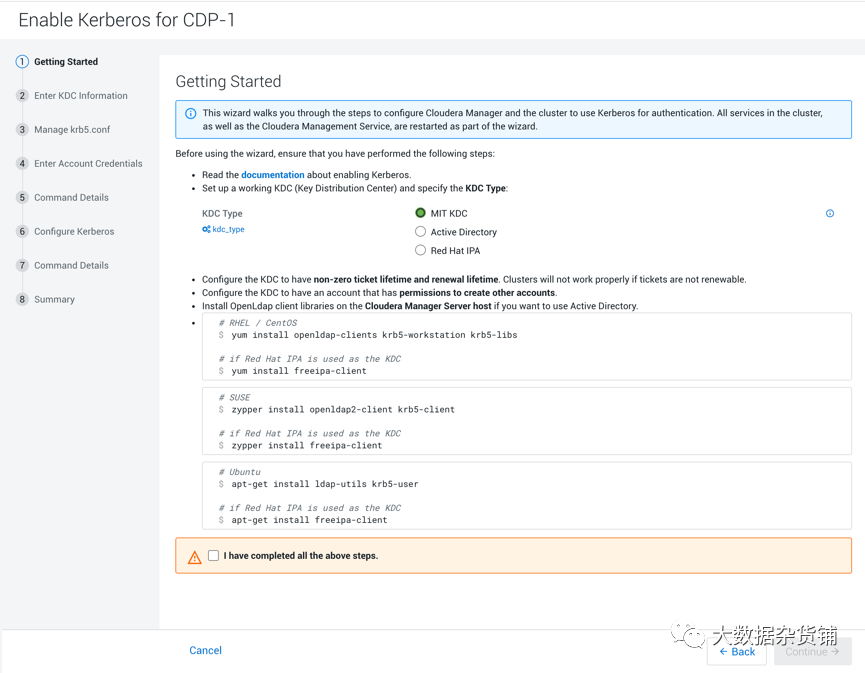

开始KDC配置

选择对应的KDC类型，我们这里使用的是MIT KDC，如果使用其他的KDC类型，请选择对应的类型。然后检查是否对应操作系统的客户端都已经安装完毕，如果没有部署客户端，请按照指示部署完客户端，再复选完成上述所有步骤。

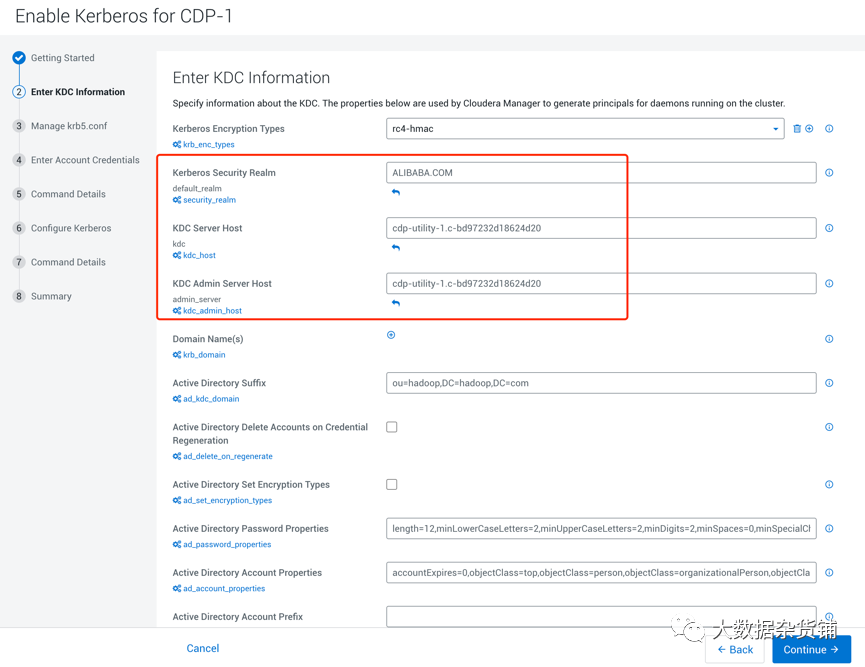

输入KDC信息

包括类型、KDC服务器、KDC Realm、加密类型以及待创建的Service Principal（hdfs，yarn,，hbase，hive等）的更新生命期等

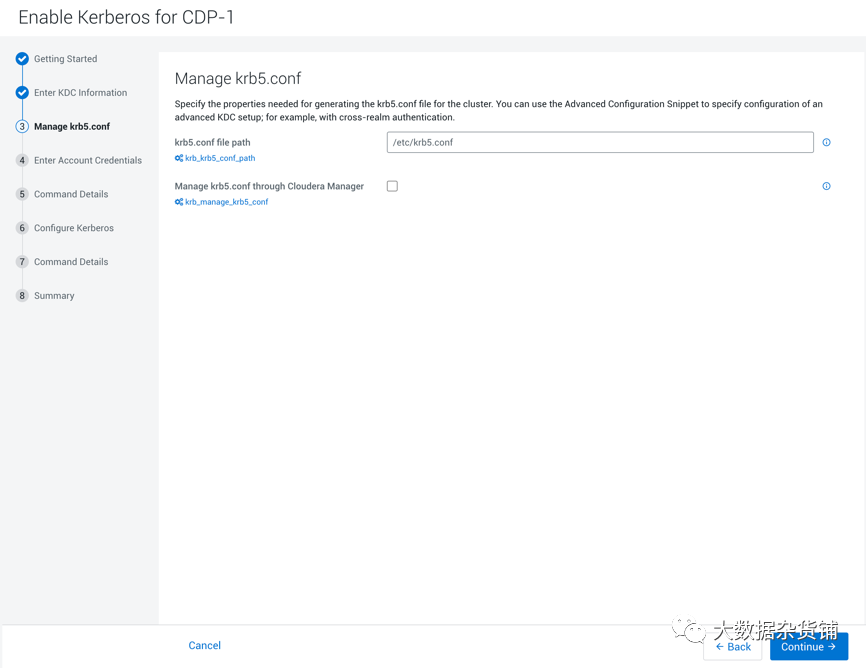

Krb5.conf受管方式

点击继续，进行krb5.conf文件的受管方式和文件路径，推荐不复选，不使用Cloudera Manager来管理krb5.conf文件

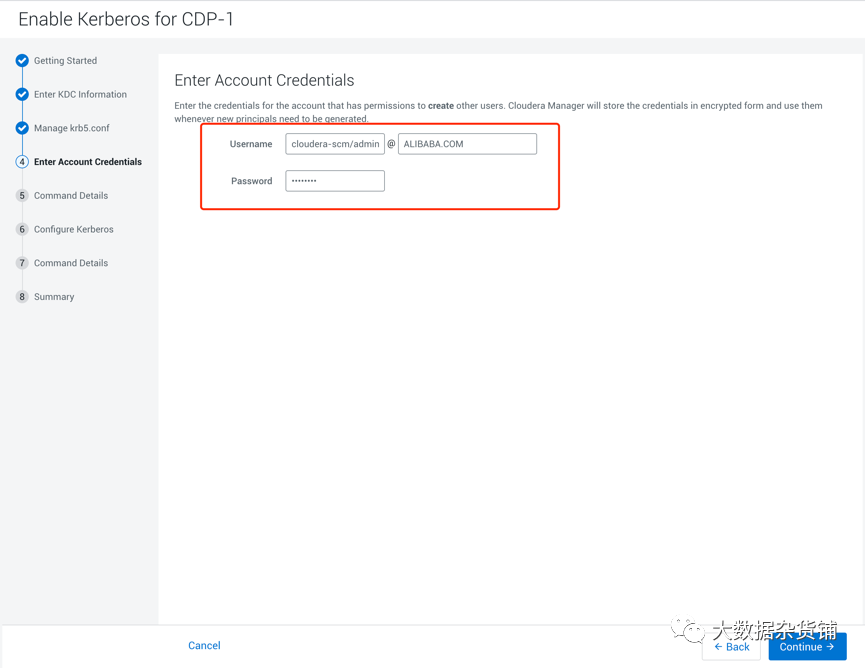

输入账号凭证

点击继续，进入到输入KDC账户凭证的页面，在页面中输入Cloudera Manager的KDC的管理员账号和密码信息

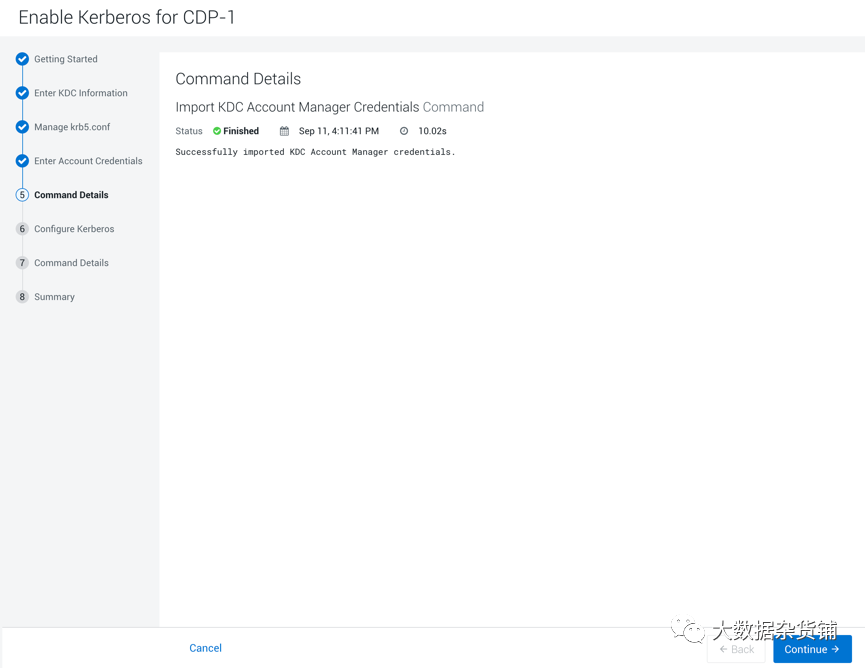

导入账户凭证

点击下一步，导入KDC的账户凭证并进行验证，如果没有问题，则点击继续，有问题的话则回到之前的步骤进行问题修复。

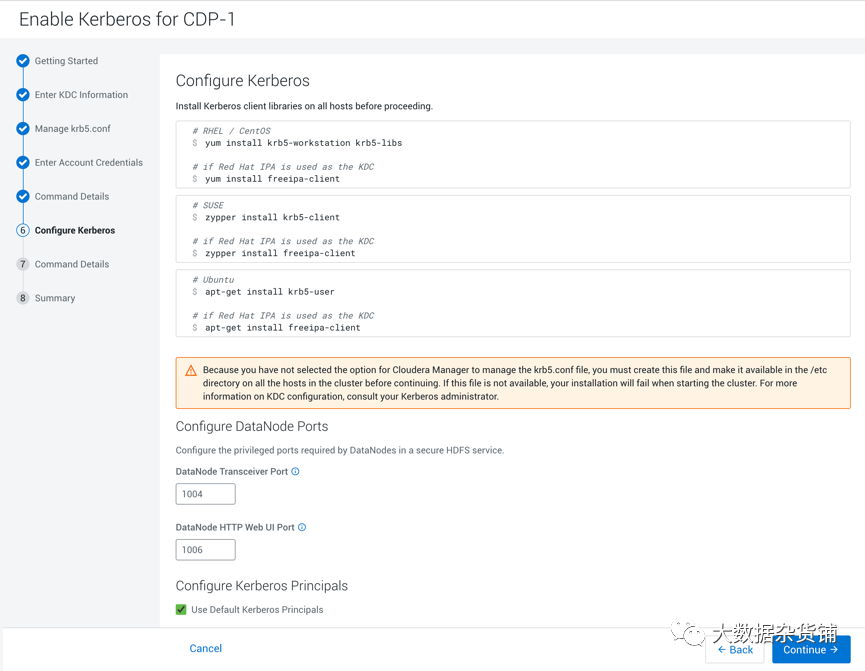

配置Kerberos

确认配置Kerberos客户端的信息和数据节点的端口号，以及启用Kerberos的Principal。正常保持默认即可，也可以根据自己需求进行调整。然后点击继续

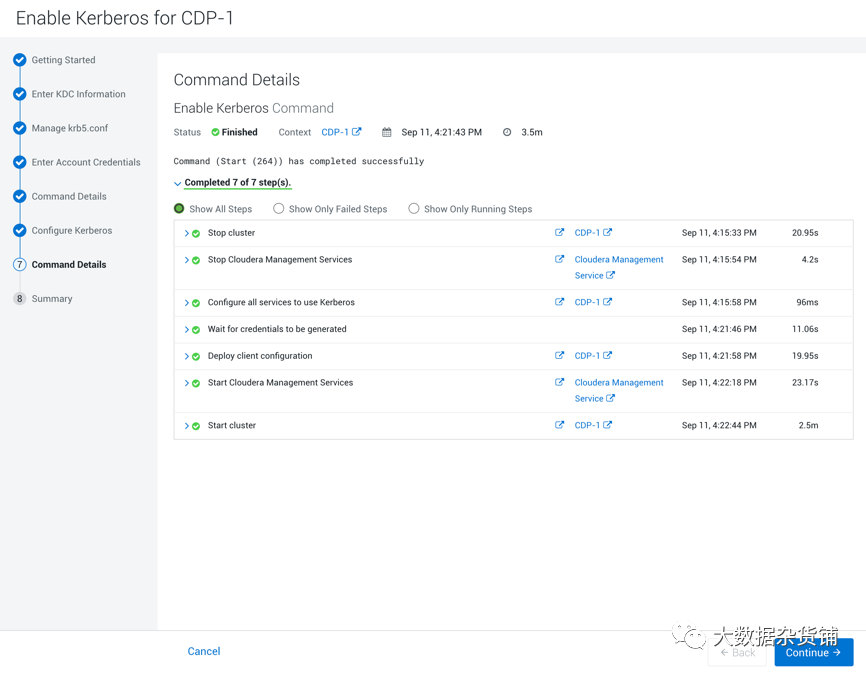

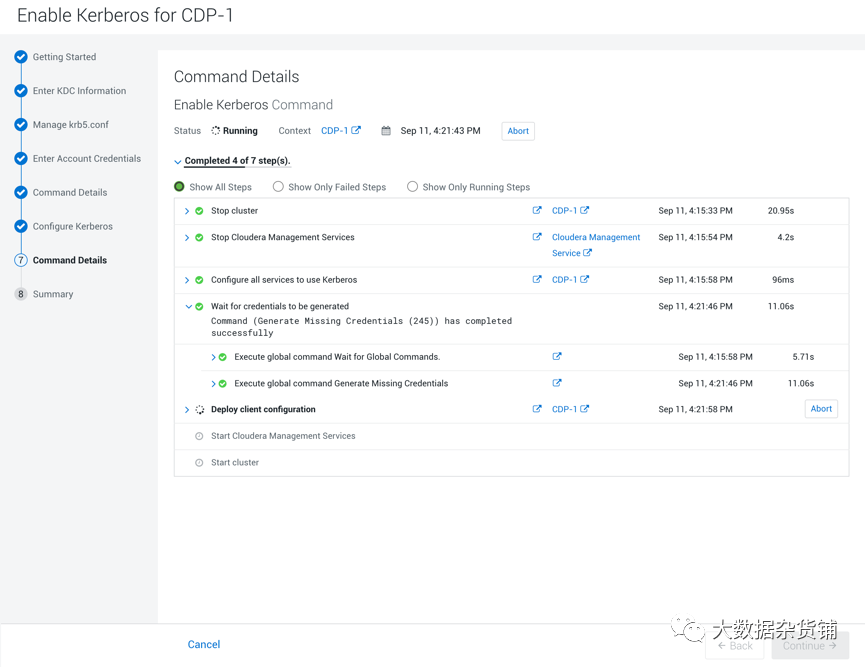

启用Kerberos的命令执行

系统会自动停止集群，配置所有服务启用Kerberos，生成凭据，部署客户端，并启用Cloudera Management服务和启动集群。

待所有命令执行完成后，点击继续

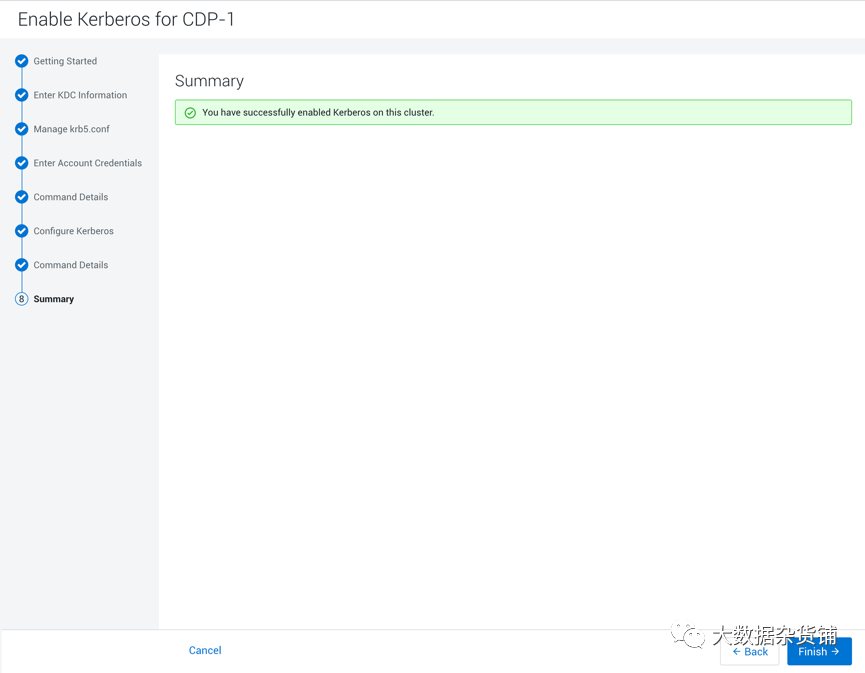

执行总结

进入到Kerberos启用的执行总结界面，可以看到已经成功为集群启用Kerberos。

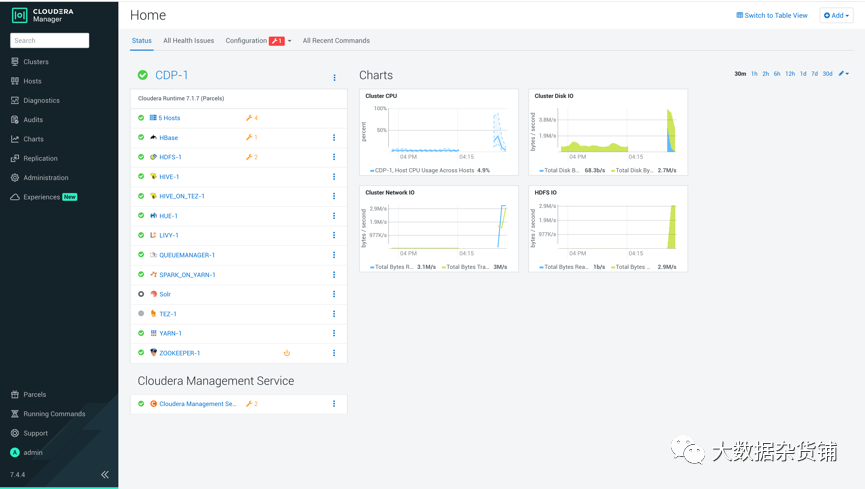

点击完成，进入到Cloudera Manager首页。

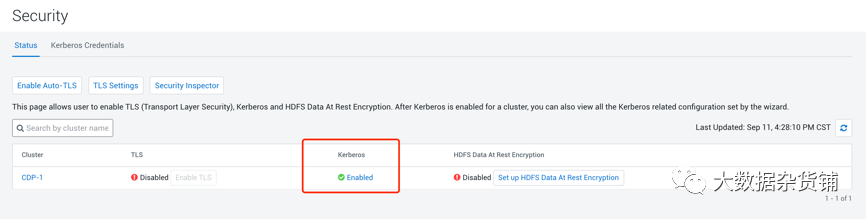

进入到管理→安全页面

可以看到Kerberos已经启用。

Kerberos使用

使用test用户运行MapReduce任务及操作Hive，需要在集群所有节点创建test用户。

所有节点创建test用户

在所有节点上执行下面的命令创建test用户

useradd -p `openssl passwd -1 -salt 'cloudera' cloudera` test

在hdfs中创建/user/test目录

使用hdfs用户在hdfs中创建/user/test目录，并将该目录的owner设置为test用户

使用hdfs的Principal认证KDC

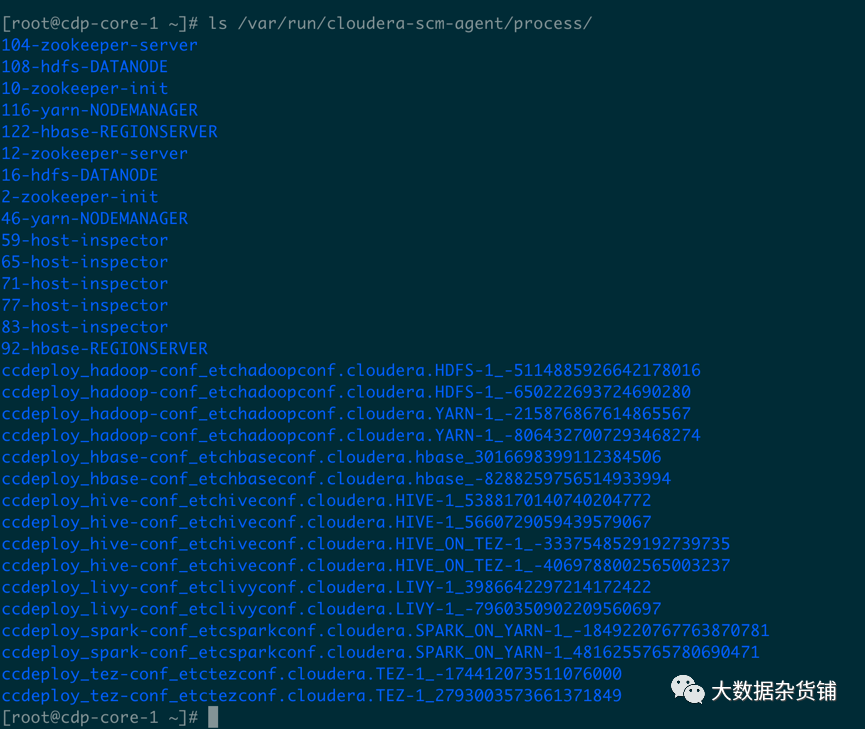

切换到有hdfs角色的机器，进入到/var/run/cloudera-scm-agent/process/目录，找到hdfs的最新目录

ls var/run/cloudera-scm-agent/process/

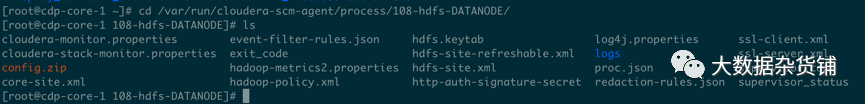

进入到hdfs的最新目录

cd var/run/cloudera-scm-agent/process/108-hdfs-DATANODE/

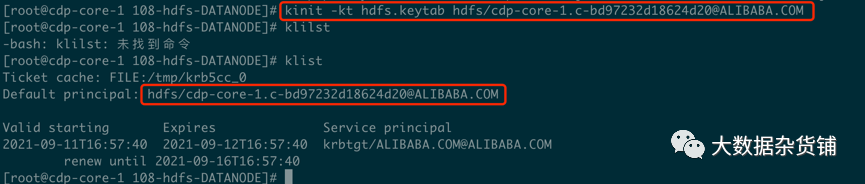

使用hdfs.keytab认证kdc

[root@cdp-core-1 108-hdfs-DATANODE]# kinit -kt hdfs.keytab hdfs/cdp-core-1.c-bd97232d18624d20@ALIBABA.COM
[root@cdp-core-1 108-hdfs-DATANODE]# klist
Ticket cache: FILE:/tmp/krb5cc_0
Default principal: hdfs/cdp-core-1.c-bd97232d18624d20@ALIBABA.COM




Valid starting       Expires              Service principal
2021-09-11T16:57:40  2021-09-12T16:57:40  krbtgt/ALIBABA.COM@ALIBABA.COM
renew until 2021-09-16T16:57:40
[root@cdp-core-1 108-hdfs-DATANODE]#

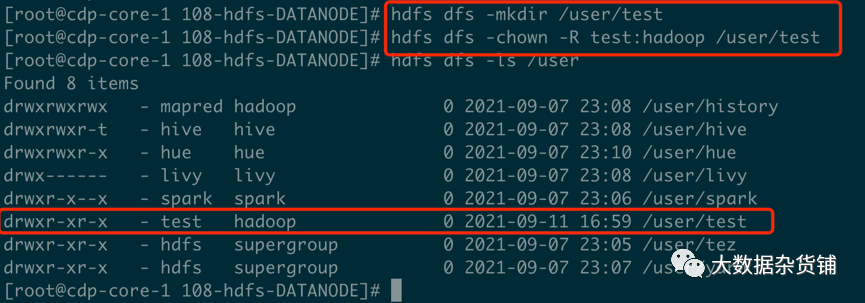

Hdfs创建/user/test目录

使用hdfs目录创建/user/test目录，并将owner修改为test

[root@cdp-core-1 108-hdfs-DATANODE]# hdfs dfs -mkdir /user/test
[root@cdp-core-1 108-hdfs-DATANODE]# hdfs dfs -chown -R test:hadoop /user/test
[root@cdp-core-1 108-hdfs-DATANODE]# hdfs dfs -ls /user
Found 8 items
drwxrwxrwx   - mapred hadoop              0 2021-09-07 23:08 /user/history
drwxrwxr-t   - hive   hive                0 2021-09-07 23:08 /user/hive
drwxrwxr-x   - hue    hue                 0 2021-09-07 23:10 /user/hue
drwx------   - livy   livy                0 2021-09-07 23:08 /user/livy
drwxr-x--x   - spark  spark               0 2021-09-07 23:06 /user/spark
drwxr-xr-x   - test   hadoop              0 2021-09-11 16:59 /user/test
drwxr-xr-x   - hdfs   supergroup          0 2021-09-07 23:05 /user/tez
drwxr-xr-x   - hdfs   supergroup          0 2021-09-07 23:07 /user/yarn
[root@cdp-core-1 108-hdfs-DATANODE]#

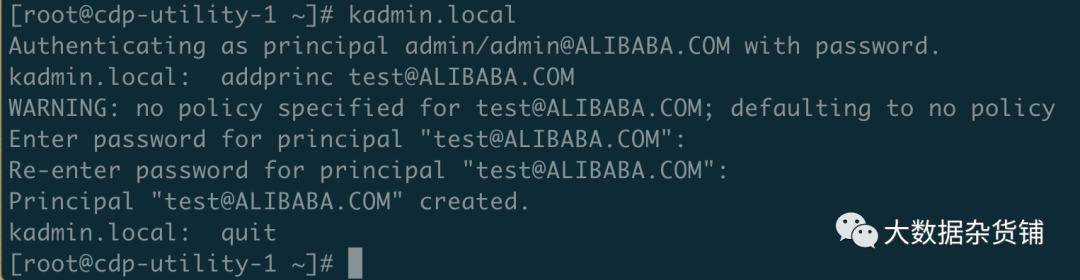

使用kadmin创建一个test的principal

[root@cdp-utility-1 ~]# kadmin.local
Authenticating as principal admin/admin@ALIBABA.COM with password.
kadmin.local:  addprinc test@ALIBABA.COM
WARNING: no policy specified for test@ALIBABA.COM; defaulting to no policy
Enter password for principal "test@ALIBABA.COM":
Re-enter password for principal "test@ALIBABA.COM":
Principal "test@ALIBABA.COM" created.
kadmin.local:  quit
[root@cdp-utility-1 ~]#

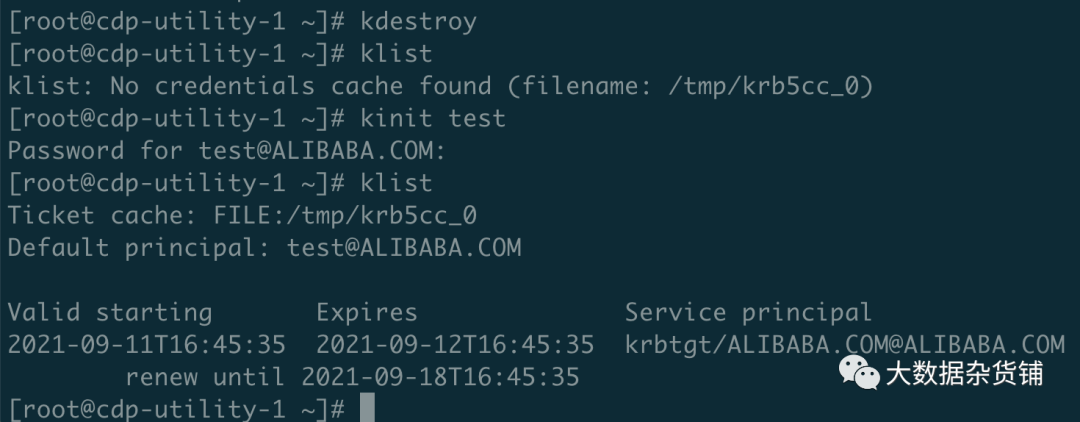

使用test用户登录Kerberos

[root@cdp-utility-1 ~]# kdestroy
[root@cdp-utility-1 ~]# klist
klist: No credentials cache found (filename: /tmp/krb5cc_0)
[root@cdp-utility-1 ~]# kinit test
Password for test@ALIBABA.COM:
[root@cdp-utility-1 ~]# klist
Ticket cache: FILE:/tmp/krb5cc_0
Default principal: test@ALIBABA.COM




Valid starting       Expires              Service principal
2021-09-11T16:45:35  2021-09-12T16:45:35  krbtgt/ALIBABA.COM@ALIBABA.COM
  renew until 2021-09-18T16:45:35
[root@cdp-utility-1 ~]#

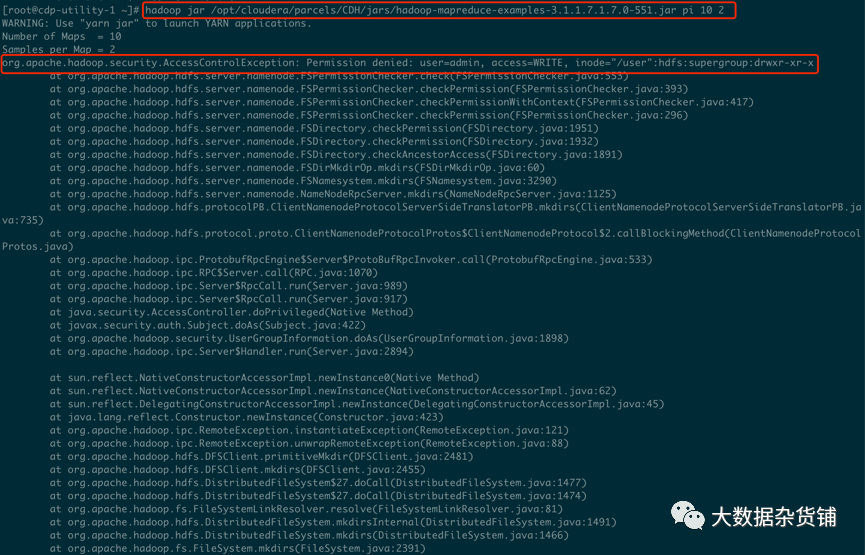

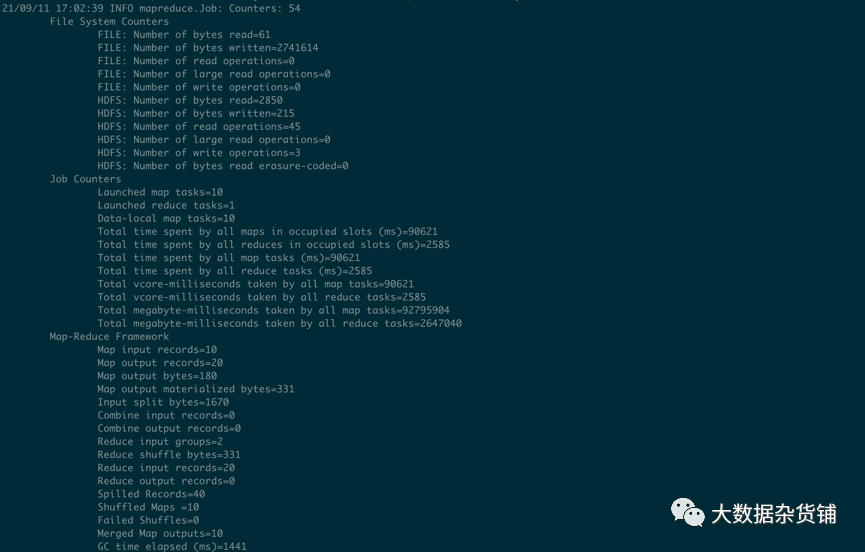

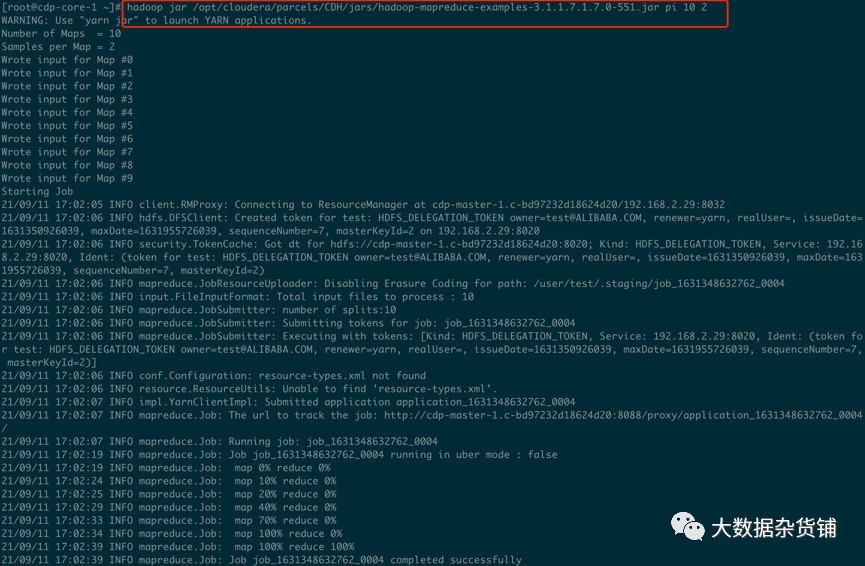

运行MapReduce作业

[root@cdp-core-1 ~]# hadoop jar /opt/cloudera/parcels/CDH/jars/hadoop-mapreduce-examples-3.1.1.7.1.7.0-551.jar pi 10 2
WARNING: Use "yarn jar" to launch YARN applications.
……
  Shuffle Errors
    BAD_ID=0
    CONNECTION=0
    IO_ERROR=0
    WRONG_LENGTH=0
    WRONG_MAP=0
    WRONG_REDUCE=0
  File Input Format Counters
    Bytes Read=1180
  File Output Format Counters
    Bytes Written=97
Job Finished in 33.783 seconds
Estimated value of Pi is 3.80000000000000000000
[root@cdp-core-1 ~]#

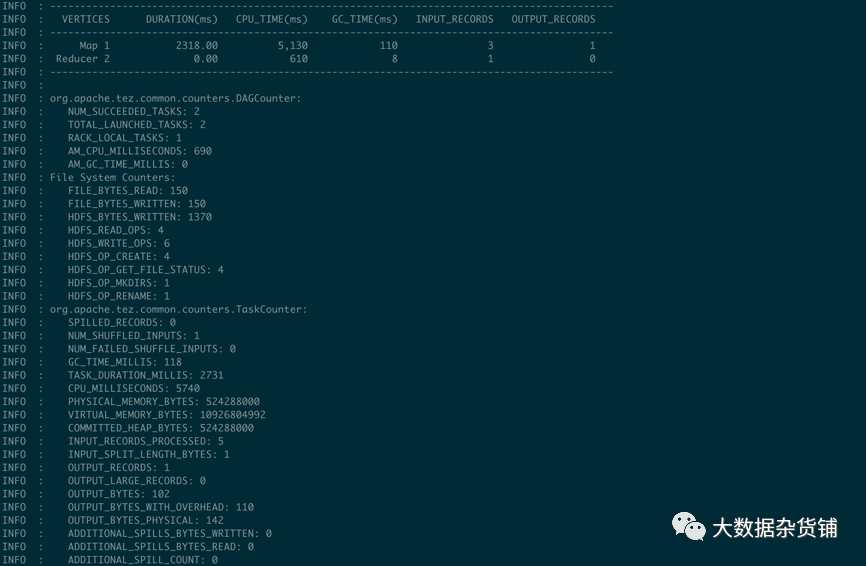

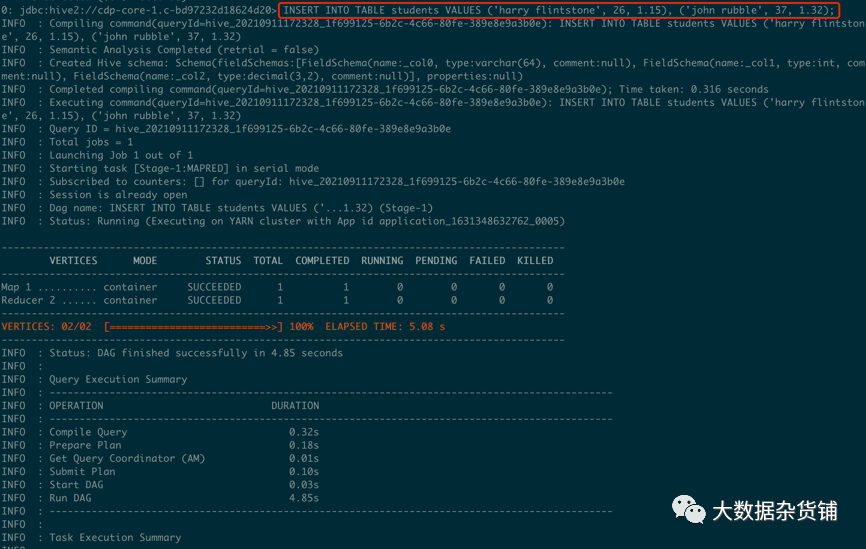

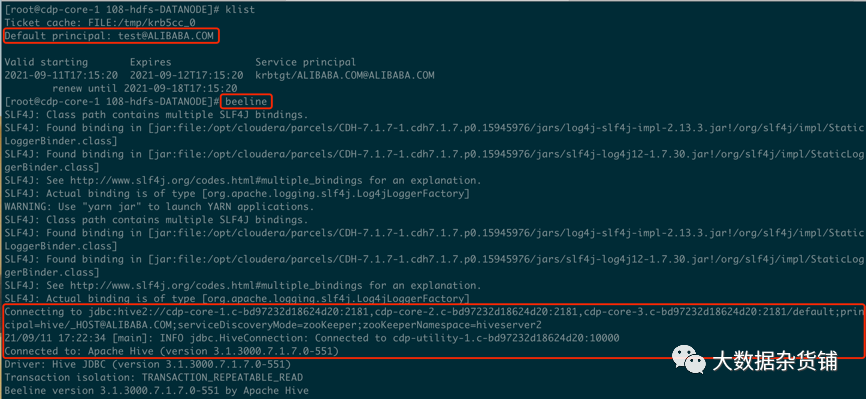

使用beeline连接hive进行测试

[root@cdp-core-1 108-hdfs-DATANODE]# klist
Ticket cache: FILE:/tmp/krb5cc_0
Default principal: test@ALIBABA.COM




Valid starting       Expires              Service principal
2021-09-11T17:15:20  2021-09-12T17:15:20  krbtgt/ALIBABA.COM@ALIBABA.COM
  renew until 2021-09-18T17:15:20
[root@cdp-core-1 108-hdfs-DATANODE]# beeline
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/opt/cloudera/parcels/CDH-7.1.7-1.cdh7.1.7.p0.15945976/jars/log4j-slf4j-impl-2.13.3.jar!/org/slf4j/impl/StaticLoggerBinder.class]
……
Connecting to jdbc:hive2://cdp-core-1.c-bd97232d18624d20:2181,cdp-core-2.c-bd97232d18624d20:2181,cdp-core-3.c-bd97232d18624d20:2181/default;principal=hive/_HOST@ALIBABA.COM;serviceDiscoveryMode=zooKeeper;zooKeeperNamespace=hiveserver2
21/09/11 17:22:34 [main]: INFO jdbc.HiveConnection: Connected to cdp-utility-1.c-bd97232d18624d20:10000
Connected to: Apache Hive (version 3.1.3000.7.1.7.0-551)
Driver: Hive JDBC (version 3.1.3000.7.1.7.0-551)
Transaction isolation: TRANSACTION_REPEATABLE_READ
Beeline version 3.1.3000.7.1.7.0-551 by Apache Hive

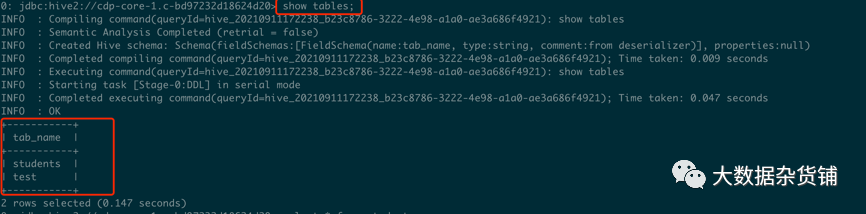

0: jdbc:hive2://cdp-core-1.c-bd97232d18624d20> show tables;
……
INFO  : Completed executing command(queryId=hive_20210911172238_b23c8786-3222-4e98-a1a0-ae3a686f4921); Time taken: 0.047 seconds
INFO  : OK
+-----------+
| tab_name  |
+-----------+
| students  |
| test      |
+-----------+
2 rows selected (0.147 seconds)

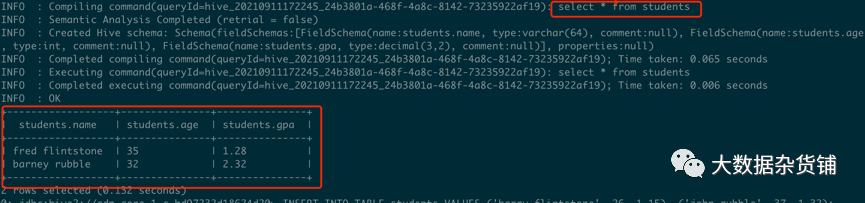

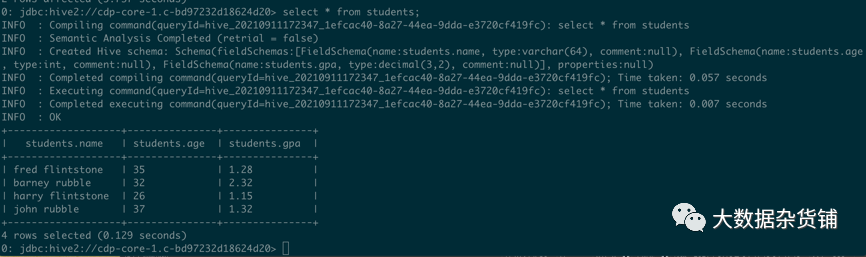

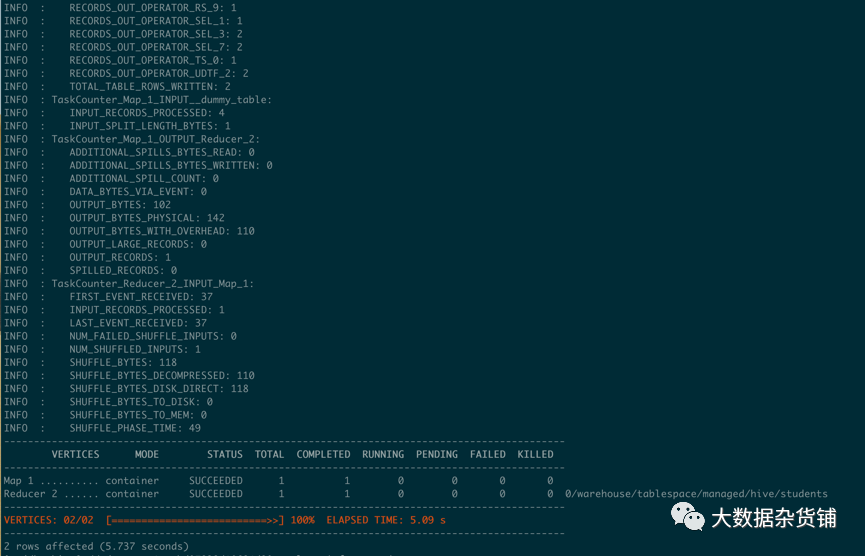

0: jdbc:hive2://cdp-core-1.c-bd97232d18624d20> select * from students;
……
INFO  : Completed executing command(queryId=hive_20210911172245_24b3801a-468f-4a8c-8142-73235922af19); Time taken: 0.006 seconds
INFO  : OK
+------------------+---------------+---------------+
|  students.name   | students.age  | students.gpa  |
+------------------+---------------+---------------+
| fred flintstone  | 35            | 1.28          |
| barney rubble    | 32            | 2.32          |
+------------------+---------------+---------------+
2 rows selected (0.132 seconds)

0: jdbc:hive2://cdp-core-1.c-bd97232d18624d20> INSERT INTO TABLE students VALUES ('harry flintstone', 26, 1.15), ('john rubble', 37, 1.32);
INFO  : Compiling command(queryId=hive_20210911172328_1f699125-6b2c-4c66-80fe-389e8e9a3b0e): INSERT INTO TABLE students VALUES ('harry flintstone', 26, 1.15), ('john rubble', 37, 1.32)
……
----------------------------------------------------------------------------------------------
        VERTICES      MODE        STATUS  TOTAL  COMPLETED  RUNNING  PENDING  FAILED  KILLED
----------------------------------------------------------------------------------------------
Map 1 .......... container     SUCCEEDED      1          1        0        0       0       0
Reducer 2 ...... container     SUCCEEDED      1          1        0        0       0       0  0/warehouse/tablespace/managed/hive/students
----------------------------------------------------------------------------------------------
VERTICES: 02/02  [==========================>>] 100%  ELAPSED TIME: 5.09 s
----------------------------------------------------------------------------------------------
2 rows affected (5.737 seconds

0: jdbc:hive2://cdp-core-1.c-bd97232d18624d20> select * from students;
INFO  : Compiling command(queryId=hive_20210911172347_1efcac40-8a27-44ea-9dda-e3720cf419fc): select * from students
……
INFO  : Completed executing command(queryId=hive_20210911172347_1efcac40-8a27-44ea-9dda-e3720cf419fc); Time taken: 0.007 seconds
INFO  : OK
+-------------------+---------------+---------------+
|   students.name   | students.age  | students.gpa  |
+-------------------+---------------+---------------+
| fred flintstone   | 35            | 1.28          |
| barney rubble     | 32            | 2.32          |
| harry flintstone  | 26            | 1.15          |
| john rubble       | 37            | 1.32          |
+-------------------+---------------+---------------+
4 rows selected (0.129 seconds)
0: jdbc:hive2://cdp-core-1.c-bd97232d18624d20>

常见问题

使用Kerberos用户身份运行MapReduce作业报错

[root@cdp-utility-1 ~]# hadoop jar /opt/cloudera/parcels/CDH/jars/hadoop-mapreduce-examples-3.1.1.7.1.7.0-551.jar pi 10 2
WARNING: Use "yarn jar" to launch YARN applications.
Number of Maps  = 10
Samples per Map = 2
org.apache.hadoop.security.AccessControlException: Permission denied: user=admin, access=WRITE, inode="/user":hdfs:supergroup:drwxr-xr-x
at org.apache.hadoop.hdfs.server.namenode.FSPermissionChecker.check(FSPermissionChecker.java:553)
at org.apache.hadoop.hdfs.server.namenode.FSPermissionChecker.checkPermission(FSPermissionChecker.java:393)
at org.apache.hadoop.hdfs.server.namenode.FSPermissionChecker.checkPermissionWithContext(FSPermissionChecker.java:417)
at org.apache.hadoop.hdfs.server.namenode.FSPermissionChecker.checkPermission(FSPermissionChecker.java:296)
at org.apache.hadoop.hdfs.server.namenode.FSDirectory.checkPermission(FSDirectory.java:1951)
at org.apache.hadoop.hdfs.server.namenode.FSDirectory.checkPermission(FSDirectory.java:1932)
at org.apache.hadoop.hdfs.server.namenode.FSDirectory.checkAncestorAccess(FSDirectory.java:1891)
at org.apache.hadoop.hdfs.server.namenode.FSDirMkdirOp.mkdirs(FSDirMkdirOp.java:60)
at org.apache.hadoop.hdfs.server.namenode.FSNamesystem.mkdirs(FSNamesystem.java:3290)
at org.apache.hadoop.hdfs.server.namenode.NameNodeRpcServer.mkdirs(NameNodeRpcServer.java:1125)
at org.apache.hadoop.hdfs.protocolPB.ClientNamenodeProtocolServerSideTranslatorPB.mkdirs(ClientNamenodeProtocolServerSideTranslatorPB.java:735)
at org.apache.hadoop.hdfs.protocol.proto.ClientNamenodeProtocolProtos$ClientNamenodeProtocol$2.callBlockingMethod(ClientNamenodeProtocolProtos.java)
at org.apache.hadoop.ipc.ProtobufRpcEngine$Server$ProtoBufRpcInvoker.call(ProtobufRpcEngine.java:533)
at org.apache.hadoop.ipc.RPC$Server.call(RPC.java:1070)
at org.apache.hadoop.ipc.Server$RpcCall.run(Server.java:989)
at org.apache.hadoop.ipc.Server$RpcCall.run(Server.java:917)
at java.security.AccessController.doPrivileged(Native Method)
at javax.security.auth.Subject.doAs(Subject.java:422)
at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1898)
at org.apache.hadoop.ipc.Server$Handler.run(Server.java:2894)




at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)
at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62)
at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)
at java.lang.reflect.Constructor.newInstance(Constructor.java:423)
at org.apache.hadoop.ipc.RemoteException.instantiateException(RemoteException.java:121)
at org.apache.hadoop.ipc.RemoteException.unwrapRemoteException(RemoteException.java:88)
at org.apache.hadoop.hdfs.DFSClient.primitiveMkdir(DFSClient.java:2481)
at org.apache.hadoop.hdfs.DFSClient.mkdirs(DFSClient.java:2455)
at org.apache.hadoop.hdfs.DistributedFileSystem$27.doCall(DistributedFileSystem.java:1477)
at org.apache.hadoop.hdfs.DistributedFileSystem$27.doCall(DistributedFileSystem.java:1474)
at org.apache.hadoop.fs.FileSystemLinkResolver.resolve(FileSystemLinkResolver.java:81)
at org.apache.hadoop.hdfs.DistributedFileSystem.mkdirsInternal(DistributedFileSystem.java:1491)
at org.apache.hadoop.hdfs.DistributedFileSystem.mkdirs(DistributedFileSystem.java:1466)
at org.apache.hadoop.fs.FileSystem.mkdirs(FileSystem.java:2391)
at org.apache.hadoop.examples.QuasiMonteCarlo.estimatePi(QuasiMonteCarlo.java:283)
at org.apache.hadoop.examples.QuasiMonteCarlo.run(QuasiMonteCarlo.java:360)
at org.apache.hadoop.util.ToolRunner.run(ToolRunner.java:76)
at org.apache.hadoop.examples.QuasiMonteCarlo.main(QuasiMonteCarlo.java:368)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.apache.hadoop.util.ProgramDriver$ProgramDescription.invoke(ProgramDriver.java:71)
at org.apache.hadoop.util.ProgramDriver.run(ProgramDriver.java:144)
at org.apache.hadoop.examples.ExampleDriver.main(ExampleDriver.java:74)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.apache.hadoop.util.RunJar.run(RunJar.java:318)
at org.apache.hadoop.util.RunJar.main(RunJar.java:232)
Caused by: org.apache.hadoop.ipc.RemoteException(org.apache.hadoop.security.AccessControlException): Permission denied: user=admin, access=WRITE, inode="/user":hdfs:supergroup:drwxr-xr-x

问题原因：KDC认证的用户没有hdfs的/user目录的权限

解决方法：使用hdfs用户在hdfs的/user下创建对应用户的目录，并将owner设置为该用户，参考4.2章节。

GSS initiate failed，找不到TGT

[root@cdswdemo-1 ~]# hdfs dfs -ls /
18/03/26 17:54:25 WARN security.UserGroupInformation: PriviledgedActionException as:root (auth:KERBEROS) cause:javax.security.sasl.SaslException: GSS initiate failed [Caused by GSSException: No valid credentials provided (Mechanism level: Failed to find any Kerberos tgt)]
18/03/26 17:54:25 WARN ipc.Client: Exception encountered while connecting to the server : javax.security.sasl.SaslException: GSS initiate failed [Caused by GSSException: No valid credentials provided (Mechanism level: Failed to find any Kerberos tgt)]
18/03/26 17:54:25 WARN security.UserGroupInformation: PriviledgedActionException as:root (auth:KERBEROS) cause:java.io.IOException: javax.security.sasl.SaslException: GSS initiate failed [Caused by GSSException: No valid credentials provided (Mechanism level: Failed to find any Kerberos tgt)]
ls: Failed on local exception: java.io.IOException: javax.security.sasl.SaslException: GSS initiate failed [Caused by GSSException: No valid credentials provided (Mechanism level: Failed to find any Kerberos tgt)]; Host Details : local host is: "cdswdemo-1.gce.cloudera.com/172.31.112.15"; destination host is: "cdswdemo-1.gce.cloudera.com":8020;
[root@cdswdemo-1 ~]

问题原因：Kerberos某个版本的bug

解决方案：如果配置都正确的话，也可以正常获取到TGT，则检查一下/etc/krb5.conf文件，注释掉下面这句，这是kerberos的某个版本的bug

# default_ccache_name = KEYRING:persistent:%{uid}

不建议客户使用该参数

KrbException: Server not found in Kerberos database (7) -LOOKING_UP_SERVER

Server不在kerberos数据库中

KrbException: Server not found in Kerberos database (7) - LOOKING_UP_SERVER
at sun.security.krb5.KrbTgsRep.<init>(KrbTgsRep.java:73)
at sun.security.krb5.KrbTgsReq.getReply(KrbTgsReq.java:192)
at sun.security.krb5.KrbTgsReq.sendAndGetCreds(KrbTgsReq.java:203)
at sun.security.krb5.internal.CredentialsUtil.serviceCreds(CredentialsUtil.java:309)
at sun.security.krb5.internal.CredentialsUtil.acquireServiceCreds(CredentialsUtil.java:115)
at sun.security.krb5.Credentials.acquireServiceCreds(Credentials.java:454)
at sun.security.jgss.krb5.Krb5Context.initSecContext(Krb5Context.java:641)
at sun.security.jgss.GSSContextImpl.initSecContext(GSSContextImpl.java:248)
at sun.security.jgss.GSSContextImpl.initSecContext(GSSContextImpl.java:179)
at com.sun.security.sasl.gsskerb.GssKrb5Client.evaluateChallenge(GssKrb5Client.java:193)
at org.apache.thrift.transport.TSaslClientTransport.handleSaslStartMessage(TSaslClientTransport.java:94)
at org.apache.thrift.transport.TSaslTransport.open(TSaslTransport.java:271)
at org.apache.thrift.transport.TSaslClientTransport.open(TSaslClientTransport.java:37)
at org.apache.hadoop.hive.thrift.client.TUGIAssumingTransport$1.run(TUGIAssumingTransport.java:52)
at org.apache.hadoop.hive.thrift.client.TUGIAssumingTransport$1.run(TUGIAssumingTransport.java:49)
at java.security.AccessController.doPrivileged(Native Method)
at javax.security.auth.Subject.doAs(Subject.java:415)
at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1917)
at org.apache.hadoop.hive.thrift.client.TUGIAssumingTransport.open(TUGIAssumingTransport.java:49)
at org.apache.hive.jdbc.HiveConnection.openTransport(HiveConnection.java:204)
at org.apache.hive.jdbc.HiveConnection.<init>(HiveConnection.java:169)
at org.apache.hive.jdbc.HiveDriver.connect(HiveDriver.java:105)
at java.sql.DriverManager.getConnection(DriverManager.java:571)
at java.sql.DriverManager.getConnection(DriverManager.java:187)
at org.apache.hive.beeline.DatabaseConnection.connect(DatabaseConnection.java:146)
at org.apache.hive.beeline.DatabaseConnection.getConnection(DatabaseConnection.java:211)
at org.apache.hive.beeline.Commands.connect(Commands.java:1526)
at org.apache.hive.beeline.Commands.connect(Commands.java:1421)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:57)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:606)
at org.apache.hive.beeline.ReflectiveCommandHandler.execute(ReflectiveCommandHandler.java:52)
at org.apache.hive.beeline.BeeLine.execCommandWithPrefix(BeeLine.java:1135)
at org.apache.hive.beeline.BeeLine.dispatch(BeeLine.java:1174)
at org.apache.hive.beeline.BeeLine.execute(BeeLine.java:1010)
at org.apache.hive.beeline.BeeLine.begin(BeeLine.java:922)
at org.apache.hive.beeline.BeeLine.mainWithInputRedirection(BeeLine.java:518)
at org.apache.hive.beeline.BeeLine.main(BeeLine.java:501)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:57)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:606)
at org.apache.hadoop.util.RunJar.run(RunJar.java:221)
at org.apache.hadoop.util.RunJar.main(RunJar.java:136)
Caused by: KrbException: Identifier doesn't match expected value (906)
at sun.security.krb5.internal.KDCRep.init(KDCRep.java:143)
at sun.security.krb5.internal.TGSRep.init(TGSRep.java:66)
at sun.security.krb5.internal.TGSRep.<init>(TGSRep.java:61)
at sun.security.krb5.KrbTgsRep.<init>(KrbTgsRep.java:55)
... 44 more

问题原因：连接使用的是IP地址，而不是hostname

解决方案：将连接修改成hostname

!connect jdbc:hive2://172.31.112.15:10000/;principal=hive/172.31.112.15@ALIBABA.COM

修改为：

!connect jdbc:hive2://172.31.112.15:10000/;principal=hive/cdswdemo-1.gce.cloudera.com@ALIBABA.COM

数据库

文章转载自大数据杂货铺，如果涉嫌侵权，请发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。
