StreamSets实时采集MySQL数据到HBase

大数据真有意思 2020-08-01

362

点击关注上方“知了小巷”，

设为“置顶或星标”，第一时间送达干货。

本地HBase环境

$ jps
4082 Jps
3556 NameNode
3813 QuorumPeerMain
3911 HMaster
3642 DataNode
3739 SecondaryNameNode
3999 HRegionServer

本地环境演示实例

mysql环境

$ docker ps
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS                        PORTS                               NAMES
09849f9303ae        1fdf3806e715        "/entrypoint.sh mysq…"   22 months ago       Up About a minute (healthy)   0.0.0.0:3306->3306/tcp, 33060/tcp   mysql

mysql版本：8.0.12

hbase环境版本：

Apache Hadoop：hadoop-3.1.1

Apache HBase：hbase-2.1.0

Apache Phoenix：apache-phoenix-5.0.0-HBase-2.0-bin

本地sdc环境

$ docker run --restart on-failure -p 18630:18630 -d --name streamsets-dc streamsets/datacollector
$ docker ps
CONTAINER ID        IMAGE                      COMMAND                  CREATED             STATUS                       PORTS                               NAMES
cd2d89509457        streamsets/datacollector   "/docker-entrypoint.…"   35 minutes ago      Up 35 minutes                0.0.0.0:18630->18630/tcp            streamsets-dc
09849f9303ae        1fdf3806e715               "/entrypoint.sh mysq…"   22 months ago       Up About an hour (healthy)   0.0.0.0:3306->3306/tcp, 33060/tcp   mysql

虽然docker很方便，但是在连接HBase时需要打通网络，由于本地HBase是localhost，访问有问题，所以放弃docker版sdc，改为本地解压版。

[zk: localhost:2181(CONNECTED) 4] get hbase/master
�master:16000 }��PBUF


  localhost�}�����.�}
cZxid = 0x1a725
ctime = Tue Jul 21 11:02:46 CST 2020
mZxid = 0x1a725
mtime = Tue Jul 21 11:02:46 CST 2020
pZxid = 0x1a725
cversion = 0
dataVersion = 0
aclVersion = 0
ephemeralOwner = 0x1000069b14e0000
dataLength = 57
numChildren = 0

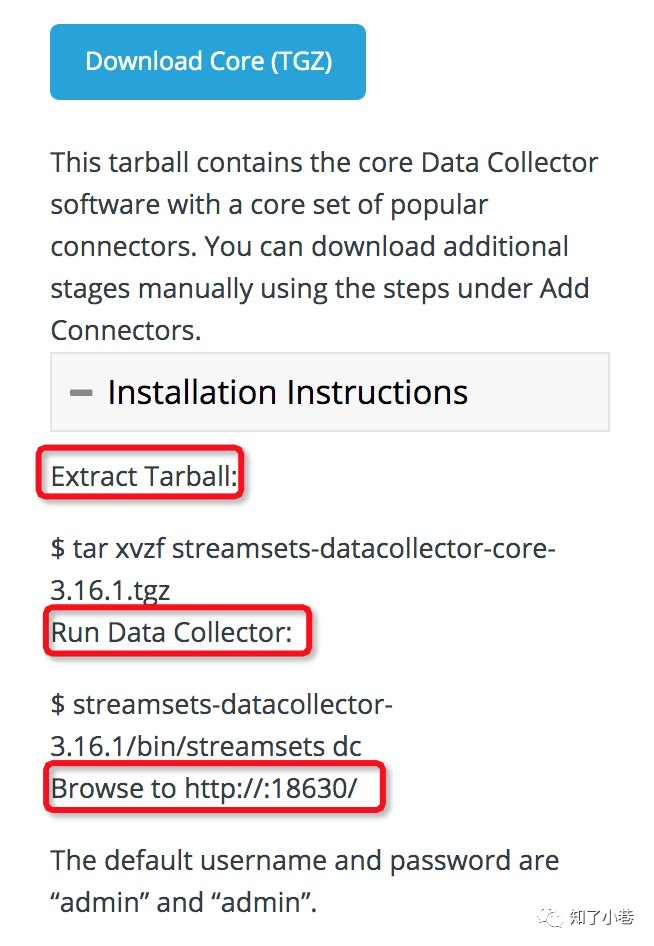

SDC本地解压版：

$ ./bin/streamsets dc
Java 1.8 detected; adding $SDC_JAVA8_OPTS of "-XX:+UseConcMarkSweepGC -XX:+UseParNewGC -Djdk.nio.maxCachedBufferSize=262144" to $SDC_JAVA_OPTS
Bypass activation because SDC contains only basic stage libraries.
Logging initialized @2901ms to org.eclipse.jetty.util.log.Slf4jLog
Running on URI : 'http://192.168.31.29:18630'

文档地址：

https://streamsets.com/documentation/datacollector/latest/help/datacollector/UserGuide/Getting_Started/GettingStarted_Title.html#concept_htw_ghg_jq

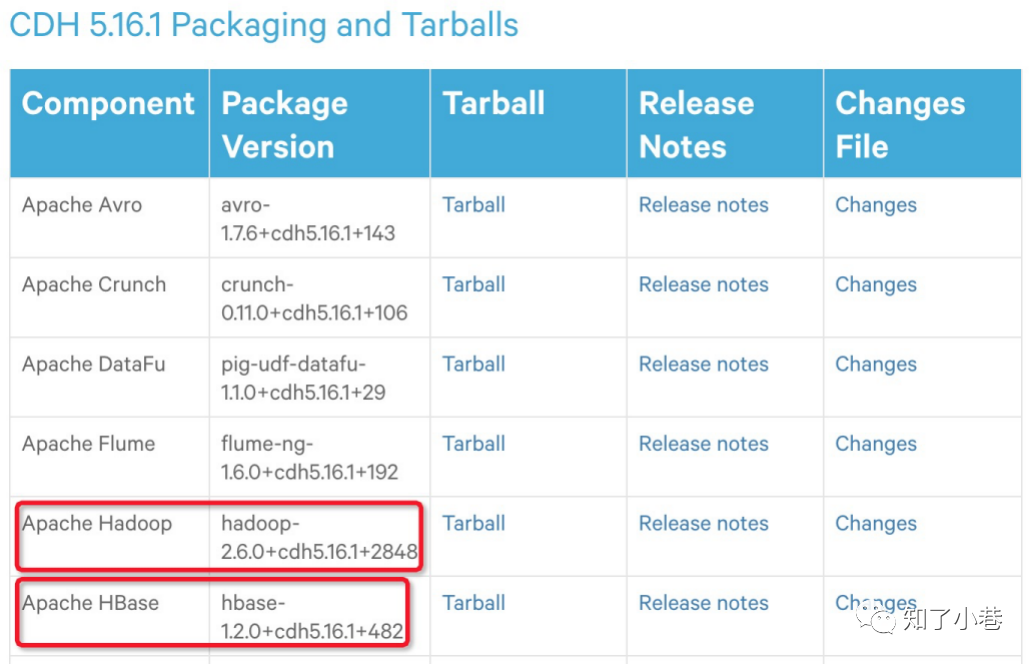

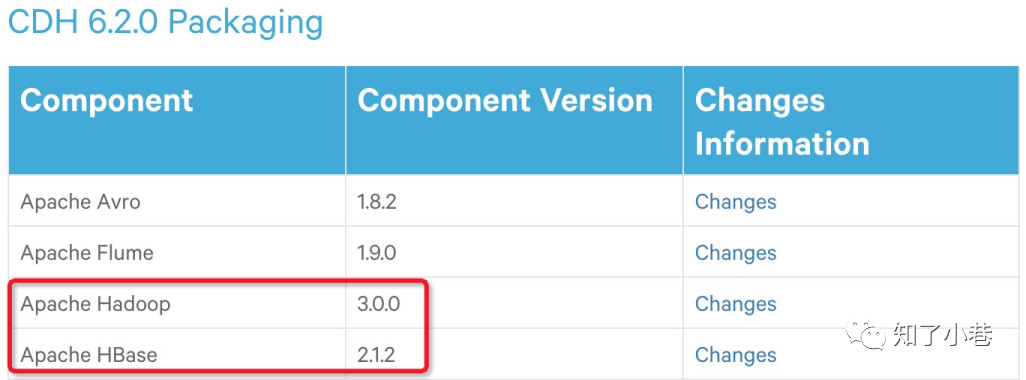

sdc支持的HBase版本下文测试环境演示实例中可以看到。

Phoenix与HBase服务的集成：

只需要将Phoenix包解压后的phoenix-5.0.0-HBase-2.0-server.jar和phoenix-core-5.0.0-HBase-2.0.jar两个jar包拷贝到hbase的lib目录下，修改hbase-site.xml，添加相关配置，重启hbase集群即可。

  <property>
    <name>phoenix.schema.isNamespaceMappingEnabled</name>
    <value>true</value>
  </property>
  <property>
    <name>phoenix.schema.mapSystemTablesToNamespace</name>
    <value>true</value>
  </property>

为了方便通过sqlline.py访问phoenix，将hbase-site.xml复制一份到phoenix的bin目录下。

$ ./bin/sqlline.py
Setting property: [incremental, false]
Setting property: [isolation, TRANSACTION_READ_COMMITTED]
issuing: !connect jdbc:phoenix: none none org.apache.phoenix.jdbc.PhoenixDriver
Connecting to jdbc:phoenix:
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/Users/shaozhipeng/Development/apache-phoenix-5.0.0-HBase-2.0-bin/phoenix-5.0.0-HBase-2.0-client.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/Users/shaozhipeng/Development/hadoop-3.1.1/share/hadoop/common/lib/slf4j-log4j12-1.7.25.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
20/07/20 16:28:09 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Connected to: Phoenix (version 5.0)
Driver: PhoenixEmbeddedDriver (version 5.0)
Autocommit status: true
Transaction isolation: TRANSACTION_READ_COMMITTED
Building list of tables and columns for tab-completion (set fastconnect to true to skip)...
133/133 (100%) Done
Done
sqlline version 1.2.0
0: jdbc:phoenix:> !tables
+------------+--------------+-------------+---------------+----------+------------+----------------------------+-----------------+--------------+-----------------+---------------+-+
| TABLE_CAT  | TABLE_SCHEM  | TABLE_NAME  |  TABLE_TYPE   | REMARKS  | TYPE_NAME  | SELF_REFERENCING_COL_NAME  | REF_GENERATION  | INDEX_STATE  | IMMUTABLE_ROWS  | SALT_BUCKETS  | |
+------------+--------------+-------------+---------------+----------+------------+----------------------------+-----------------+--------------+-----------------+---------------+-+
|            | SYSTEM       | CATALOG     | SYSTEM TABLE  |          |            |                            |                 |              | false           | null          | |
|            | SYSTEM       | FUNCTION    | SYSTEM TABLE  |          |            |                            |                 |              | false           | null          | |
|            | SYSTEM       | LOG         | SYSTEM TABLE  |          |            |                            |                 |              | true            | 32            | |
|            | SYSTEM       | SEQUENCE    | SYSTEM TABLE  |          |            |                            |                 |              | false           | null          | |
|            | SYSTEM       | STATS       | SYSTEM TABLE  |          |            |                            |                 |              | false           | null          | |
+------------+--------------+-------------+---------------+----------+------------+----------------------------+-----------------+--------------+-----------------+---------------+-+
0: jdbc:phoenix:>

MySQL创建表user

CREATE TABLE `user` (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT '主键',
  `user_name` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NOT NULL DEFAULT '' COMMENT '用户名',
  `update_time` datetime NOT NULL ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8 COLLATE=utf8_bin;

HBase创建命名空间和表

create_namespace 'ZLXX'
create 'ZLXX:USER', 'INFO'


hbase(main):001:0> create_namespace 'ZLXX'
Took 0.9431 seconds
hbase(main):002:0> create 'ZLXX:USER', 'INFO'
Created table ZLXX:USER
Took 1.4457 seconds
=> Hbase::Table - ZLXX:USER

Phoenix创建schema和表映射

create schema ZLXX;
create table ZLXX.USER (
    id varchar primary key,
    info.id varchar,
    info.user_name  varchar,
    info.update_time varchar
) column_encoded_bytes=0;


0: jdbc:phoenix:> !tables
+------------+--------------+-------------+---------------+----------+------------+----------------------------+-----------------+--------------+-----------------+---------+
| TABLE_CAT  | TABLE_SCHEM  | TABLE_NAME  |  TABLE_TYPE   | REMARKS  | TYPE_NAME  | SELF_REFERENCING_COL_NAME  | REF_GENERATION  | INDEX_STATE  | IMMUTABLE_ROWS  | SALT_BU |
+------------+--------------+-------------+---------------+----------+------------+----------------------------+-----------------+--------------+-----------------+---------+
|            | SYSTEM       | CATALOG     | SYSTEM TABLE  |          |            |                            |                 |              | false           | null    |
|            | SYSTEM       | FUNCTION    | SYSTEM TABLE  |          |            |                            |                 |              | false           | null    |
|            | SYSTEM       | LOG         | SYSTEM TABLE  |          |            |                            |                 |              | true            | 32      |
|            | SYSTEM       | SEQUENCE    | SYSTEM TABLE  |          |            |                            |                 |              | false           | null    |
|            | SYSTEM       | STATS       | SYSTEM TABLE  |          |            |                            |                 |              | false           | null    |
|            | ZLXX         | USER        | TABLE         |          |            |                            |                 |              | false           | null    |
+------------+--------------+-------------+---------------+----------+------------+----------------------------+-----------------+--------------+-----------------+---------+

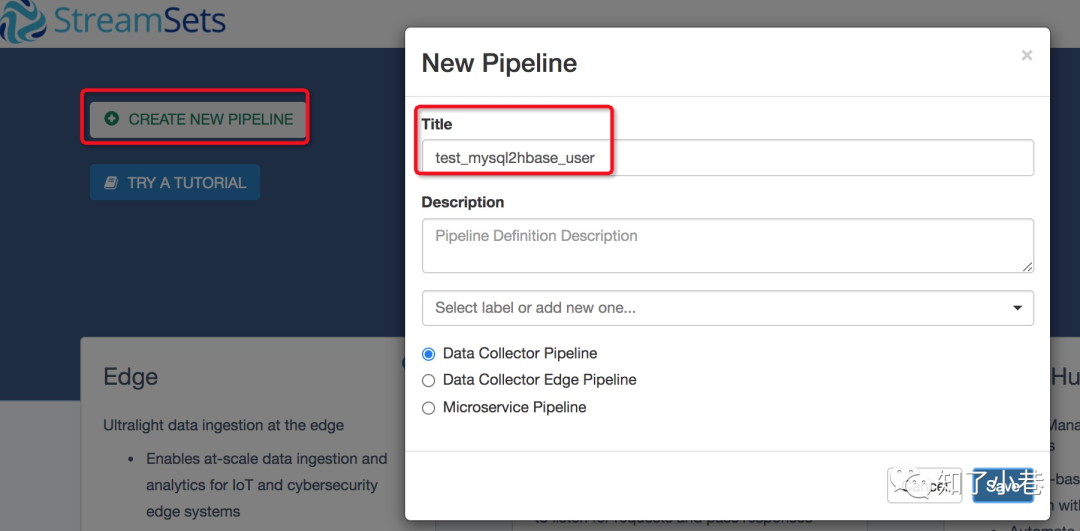

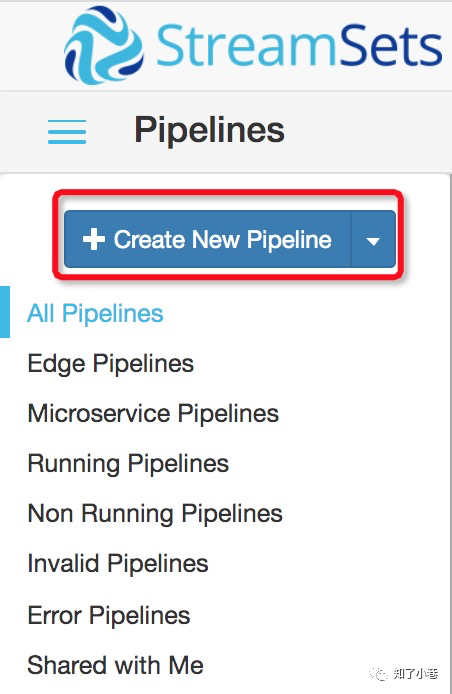

SDC创建pipeline流水线

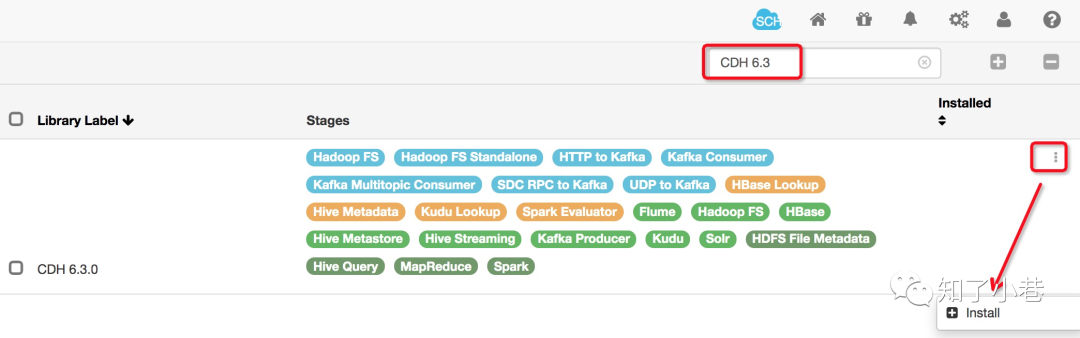

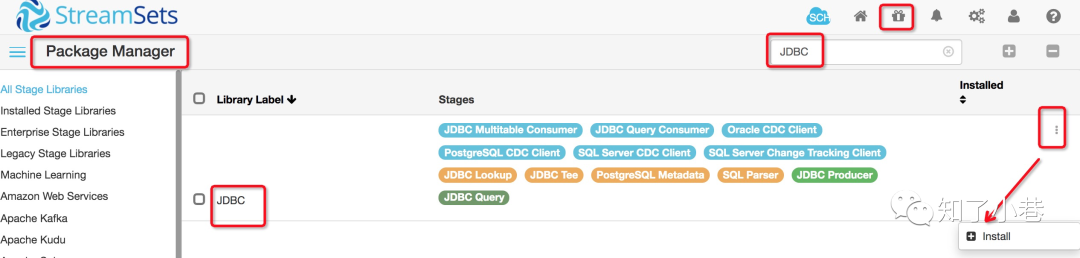

需要先安装JDBC和CDH的组件

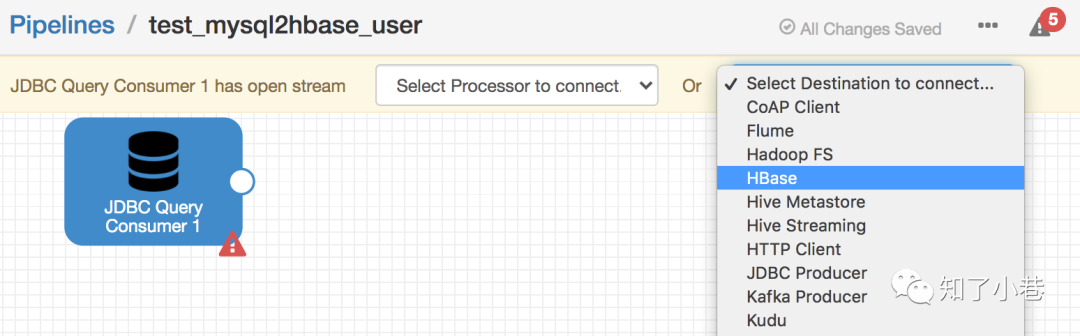

选择Origin：JDBC Query Consumer和Destination HBase

简单完整pipeline如图

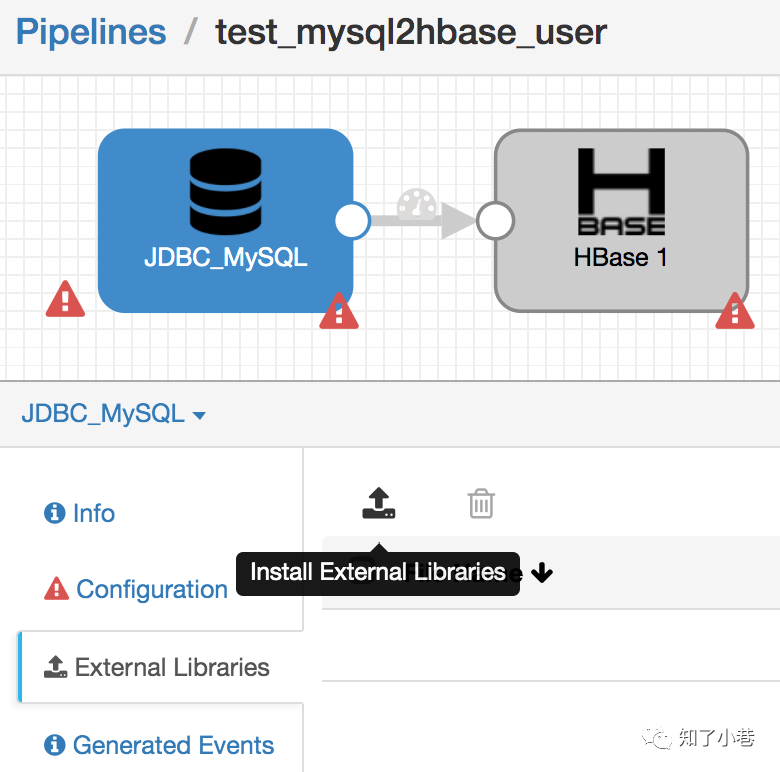

上图中，直接从UI管理界面上传SDC-MySQL JDBC驱动，根据提示重启SDC即可

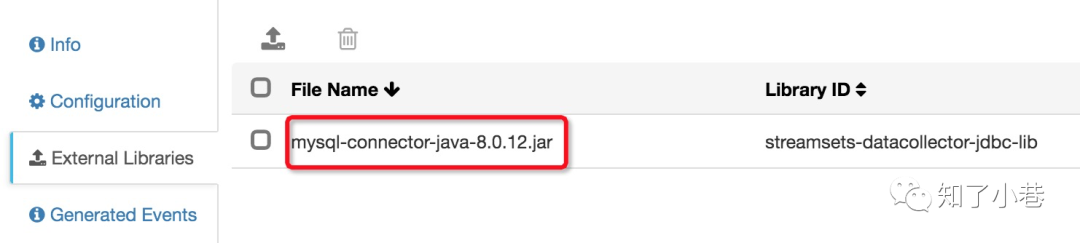

上传成功后，可以在列表里面看到

MySQL版本是8.0.12，需要注意jar包版本

https://repo1.maven.org/maven2/mysql/mysql-connector-java/8.0.12/mysql-connector-java-8.0.12.jar

主要的数据源配置和数据目标系统配置

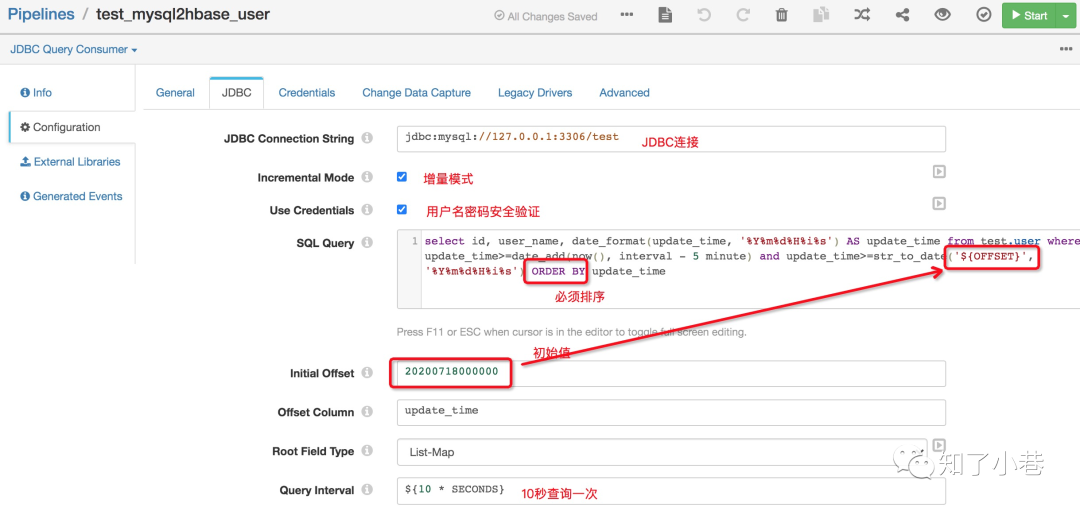

JDBC-MySQL：

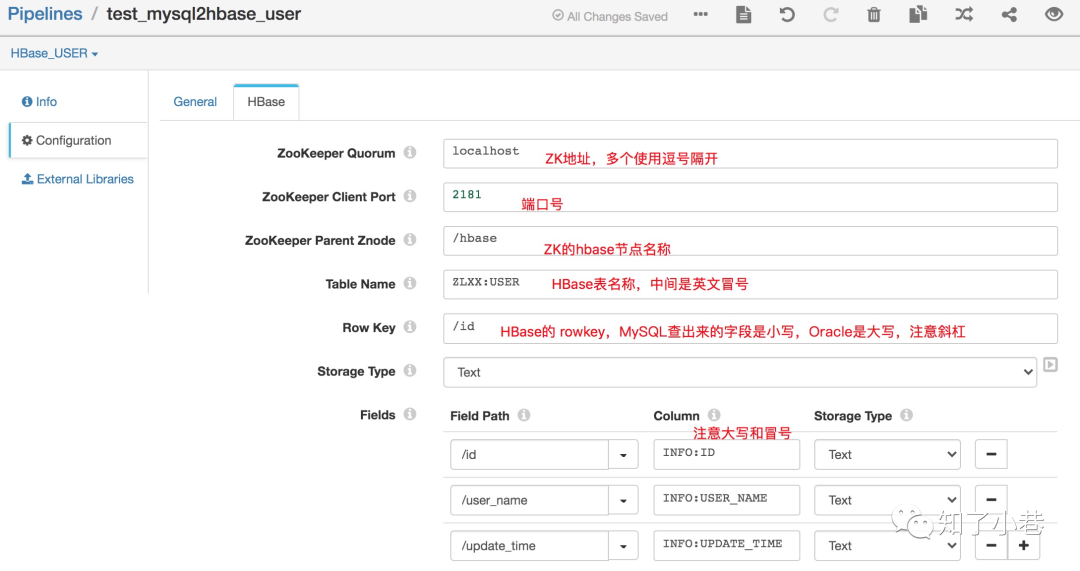

HBase-CDH6.3.0：

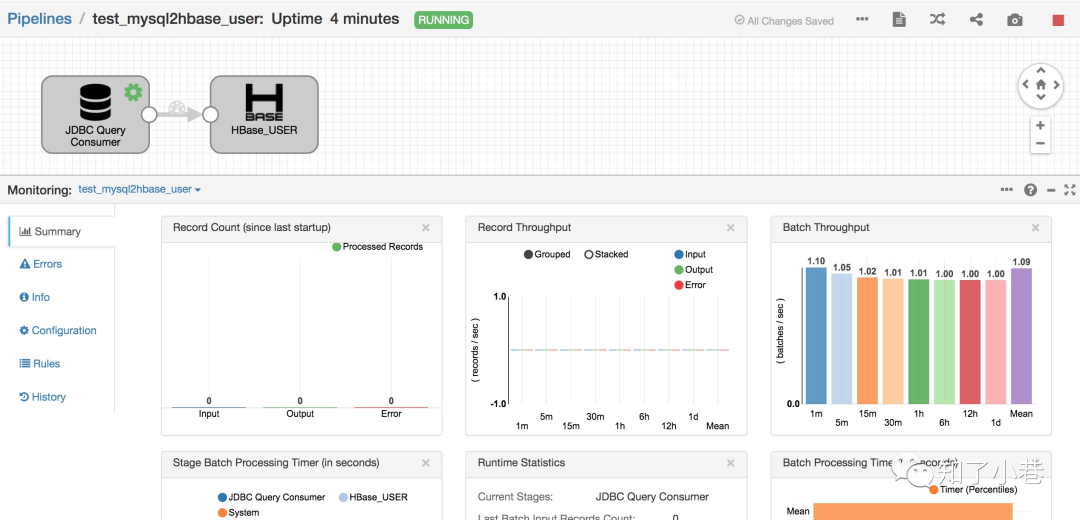

Validate成功之后，直接Start，运行后的界面：

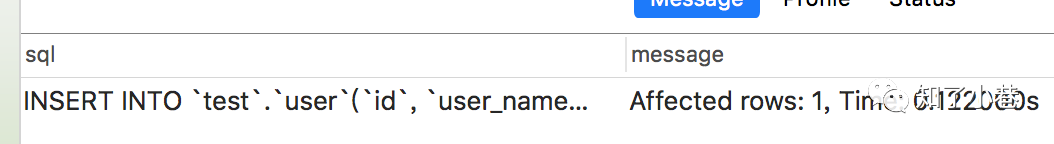

简单演示一下，往MySQL test.user表中插入和更新数据

INSERT INTO `test`.`user`(`id`, `user_name`, `update_time`) VALUES (2, 'ZLXX_INSERT', SYSDATE());

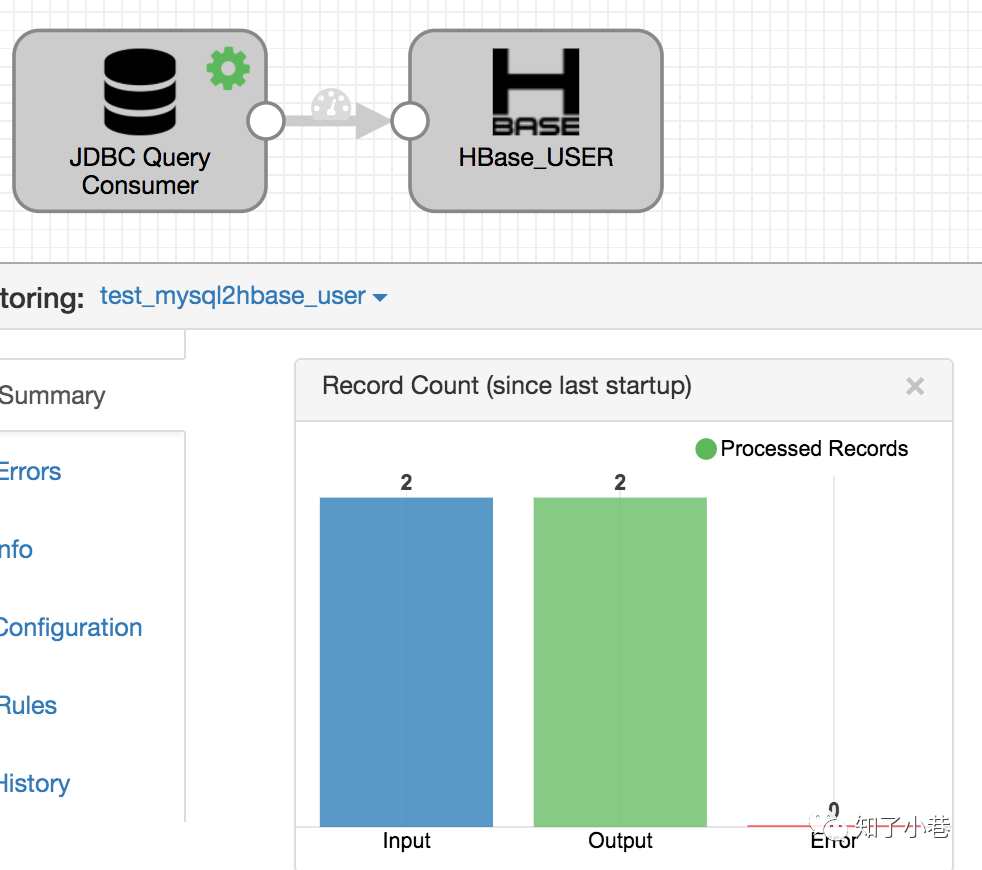

Record Count (since last startup)上面显示数量大于1是因为查询SQL里面的更新时间是大于等于OFFSET，而且每10秒扫描一次，因此会不断被扫描到，SQL里面加上了最近五分钟的限制，因此重复次数不会太多，如果是大于OFFSET，有可能会导致数据丢失。

hbase端的数据

hbase(main):004:0> scan 'ZLXX:USER', {LIMIT=>5}
ROW                                          COLUMN+CELL
 1                                           column=INFO:ID, timestamp=1595384382829, value=1
 1                                           column=INFO:UPDATE_TIME, timestamp=1595384382829, value=20180903190809
 1                                           column=INFO:USER_NAME, timestamp=1595384382829, value=\xE9\x82\xB5\xE5\xBF\x97\xE9\xB9\x8F
 1                                           column=INFO:_0, timestamp=1595384382829, value=
 2                                           column=INFO:ID, timestamp=1595388092263, value=2
 2                                           column=INFO:UPDATE_TIME, timestamp=1595388092263, value=20200722111640
 2                                           column=INFO:USER_NAME, timestamp=1595388092263, value=ZLXX_INSERT
2 row(s)
Took 0.0598 seconds

Phoenix端查询

0: jdbc:phoenix:> select * from zlxx.user limit 5;
+-----+-----+--------------+-----------------+
| ID  | ID  |  USER_NAME   |   UPDATE_TIME   |
+-----+-----+--------------+-----------------+
| 1   | 1   | 邵志鹏          | 20180903190809  |
| 2   | 2   | ZLXX_INSERT  | 20200722111640  |
+-----+-----+--------------+-----------------+
2 rows selected (0.134 seconds)

MySQL test.user更新操作

UPDATE `test`.`user` SET `user_name` = 'ZLXX_IN_UPDATE', `update_time` = SYSDATE() WHERE `id` = 2;

Phoenix和HBase查询

0: jdbc:phoenix:> select * from zlxx.user limit 5;
+-----+-----+-----------------+-----------------+
| ID  | ID  |    USER_NAME    |   UPDATE_TIME   |
+-----+-----+-----------------+-----------------+
| 1   | 1   | 邵志鹏             | 20180903190809  |
| 2   | 2   | ZLXX_IN_UPDATE  | 20200722113033  |
+-----+-----+-----------------+-----------------+
2 rows selected (0.128 seconds)

hbase(main):005:0> scan 'ZLXX:USER', {LIMIT=>5}
ROW                                          COLUMN+CELL
 1                                           column=INFO:ID, timestamp=1595384382829, value=1
 1                                           column=INFO:UPDATE_TIME, timestamp=1595384382829, value=20180903190809
 1                                           column=INFO:USER_NAME, timestamp=1595384382829, value=\xE9\x82\xB5\xE5\xBF\x97\xE9\xB9\x8F
 1                                           column=INFO:_0, timestamp=1595384382829, value=
 2                                           column=INFO:ID, timestamp=1595388662927, value=2
 2                                           column=INFO:UPDATE_TIME, timestamp=1595388662927, value=20200722113033
 2                                           column=INFO:USER_NAME, timestamp=1595388662927, value=ZLXX_IN_UPDATE
2 row(s)
Took 0.0761 seconds
