一、Docker网络bridge模型

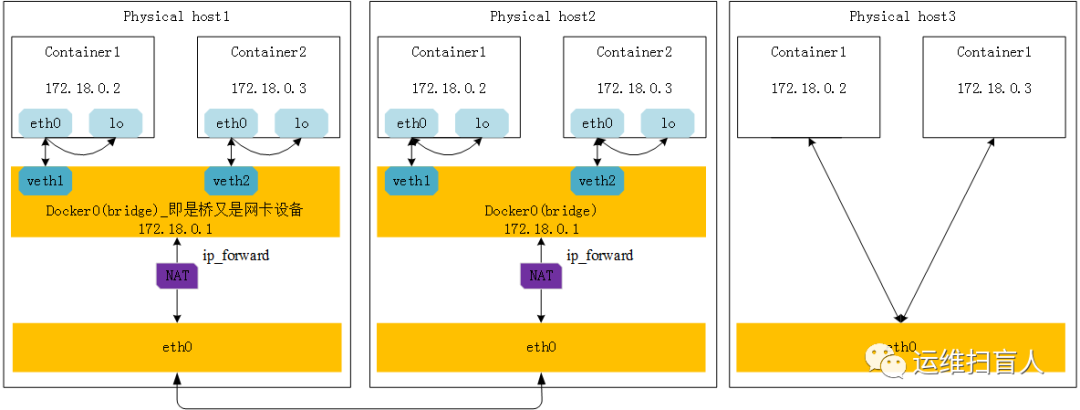

bridge网络模型：创建容器时会自动创建一对veth，一端在docker0桥上，一端在容器名称空间中，容器借助NAT规则来实现暴露容器服务或者容器访问外网；

host网络模型：容器与host共用网络名称空间，要求容器的IP地址与容器服务的端口号与host不能冲突。

1.1 bridge桥

bridge name  bridge id          STP   enabled   interfaces
docker0      8000.02423ff697d4  no              veth72f924e
                                                veth899f774

~]$ docker  network ls
NETWORK ID          NAME                DRIVER              SCOPE
bf78f07fecab        bridge              bridge              local
208d9a020e57        host                host                local
9cd732fd1232        none                null                local

~]$ docker  network inspect bf78f07fecab
[
    {
        "Name": "bridge",
        "Id": "bf78f07fecab039033608265bed6e1d53a10e037bb996c58d28d86f491bf5cc2",
        "Created": "2021-04-19T12:40:01.789430412+08:00",
        "Scope": "local",
        "Driver": "bridge",
        "EnableIPv6": false,
        "IPAM": {
            "Driver": "default",
            "Options": null,
            "Config": [
                {
                    "Subnet": "172.18.0.0/16",
                    "Gateway": "172.18.0.1"
                }
            ]
        },
        "Internal": false,
        "Attachable": false,
        "Ingress": false,
        "ConfigFrom": {
            "Network": ""
        },
        "ConfigOnly": false,
        "Containers": {
            "55e747767bf618a458533e601ebe11308a1ab2e86ec3450bc880ff671c751d6e": {
                "Name": "repository",
                "EndpointID": "44c5ede5faf9a9eaefb49d3a93eb855f82a8cfc1ebda93dd475612039e430081",
                "MacAddress": "02:42:ac:12:00:02",
                "IPv4Address": "172.18.0.2/16",
                "IPv6Address": ""
            },
            "ff858669f2ae3770ad10c2321da58116418a336ba49656a9a8b04fb3148b0999": {
                "Name": "nigelpoulton",
                "EndpointID": "e5efe22b548acf81c457dadc3754fde4737d64f2495e0c3fab02d4dbd62df33e",
                "MacAddress": "02:42:ac:12:00:03",
                "IPv4Address": "172.18.0.3/16",
                "IPv6Address": ""
            }
        },
        "Options": {
            "com.docker.network.bridge.default_bridge": "true",
            "com.docker.network.bridge.enable_icc": "true",
            "com.docker.network.bridge.enable_ip_masquerade": "true",
            "com.docker.network.bridge.host_binding_ipv4": "0.0.0.0",
            "com.docker.network.bridge.name": "docker0",
            "com.docker.network.driver.mtu": "1500"
        },
        "Labels": {}
    }
]

1.2 container veth

~]$ ip link show | grep veth
30: veth72f924e@if29: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP mode DEFAULT group default
42: veth899f774@if41: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP mode DEFAULT group default

[root@file_repository-172.17.61.200 ~]$ docker container exec 2a00f5084711  ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
41: eth0@if42: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue state UP
    link/ether 02:42:ac:12:00:04 brd ff:ff:ff:ff:ff:ff
    inet 172.18.0.4/16 brd 172.18.255.255 scope global eth0
       valid_lft forever preferred_lft forever
[root@file_repository-172.17.61.200 ~]$ docker container exec 55e747767bf6 ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
29: eth0@if30: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
    link/ether 02:42:ac:12:00:02 brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet 172.18.0.2/16 brd 172.18.255.255 scope global eth0
       valid_lft forever preferred_lft forever

[root@file_repository-172.17.61.200 ~]$ docker container exec 55e747767bf6 route  -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         172.18.0.1      0.0.0.0         UG    0      0        0 eth0
172.18.0.0      0.0.0.0         255.255.0.0     U     0      0        0 eth0
[root@file_repository-172.17.61.200 ~]$ docker container exec 2a00f5084711  route  -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         172.18.0.1      0.0.0.0         UG    0      0        0 eth0
172.18.0.0      0.0.0.0         255.255.0.0     U     0      0        0 eth0

可以看出容器的gateway均指向docker0桥。

二、同Host中Docker Container之间通信

~]$ docker container exec 2a00f5084711  ping 172.18.0.2

~]$ tcpdump  -i docker0 -nn
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on docker0, link-type EN10MB (Ethernet), capture size 262144 bytes
20:02:37.829256 IP 172.18.0.4 > 172.18.0.2: ICMP echo request, id 26880, seq 16, length 64
20:02:37.829358 IP 172.18.0.2 > 172.18.0.4: ICMP echo reply, id 26880, seq 16, length 64
20:02:38.829514 IP 172.18.0.4 > 172.18.0.2: ICMP echo request, id 26880, seq 17, length 64
20:02:38.829586 IP 172.18.0.2 > 172.18.0.4: ICMP echo reply, id 26880, seq 17, length 64

通过抓包分析同Host中的不通container通信通过二层的docker0即可实现，且是二层互通。

docker container exec 2a00f5084711  arp -a
? (172.18.0.2) at 02:42:ac:12:00:02 [ether]  on eth0
? (172.18.0.1) at 02:42:3f:f6:97:d4 [ether]  on eth0

三、外网与Docker Container之间通信

3.1 Docker Container访问外网

~]$ docker container exec 2a00f5084711  ping 114.114.114.114

[root@file_repository-172.17.61.200 ~]$ tcpdump  -i eth0 -nn -p icmp
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on eth0, link-type EN10MB (Ethernet), capture size 262144 bytes
20:06:13.851823 IP 10.1.120.200 > 114.114.114.114: ICMP echo request, id 29696, seq 44, length 64
20:06:13.879199 IP 114.114.114.114 > 10.1.120.200: ICMP echo reply, id 29696, seq 44, length 64
20:06:14.249643 IP 10.1.120.200 > 114.114.114.114: ICMP echo request, id 30976, seq 38, length 64
20:06:14.276981 IP 114.114.114.114 > 10.1.120.200: ICMP echo reply, id 30976, seq 38, length 64
20:06:14.852054 IP 10.1.120.200 > 114.114.114.114: ICMP echo request, id 29696, seq 45, length 64
20:06:14.879186 IP 114.114.114.114 > 10.1.120.200: ICMP echo reply, id 29696, seq 45, length 64
20:06:15.249888 IP 10.1.120.200 > 114.114.114.114: ICMP echo request, id 30976, seq 39, length 64
20:06:15.277086 IP 114.114.114.114 > 10.1.120.200: ICMP echo reply, id 30976, seq 39, length 64


[root@file_repository-172.17.61.200 ~]$ tcpdump  -i docker0 -nn
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on docker0, link-type EN10MB (Ethernet), capture size 262144 bytes
20:06:45.858726 IP 172.18.0.4 > 114.114.114.114: ICMP echo request, id 29696, seq 76, length 64
20:06:45.885721 IP 172.18.0.4 > 172.18.0.2: ICMP echo request, id 26880, seq 264, length 64
20:06:45.885771 IP 172.18.0.2 > 172.18.0.4: ICMP echo reply, id 26880, seq 264, length 64
20:06:45.885819 IP 114.114.114.114 > 172.18.0.4: ICMP echo reply, id 29696, seq 76, length 64
20:06:46.256739 IP 172.18.0.4 > 114.114.114.114: ICMP echo request, id 30976, seq 70, length 64
20:06:46.284265 IP 114.114.114.114 > 172.18.0.4: ICMP echo reply, id 30976, seq 70, length 64
20:06:46.858940 IP 172.18.0.4 > 114.114.114.114: ICMP echo request, id 29696, seq 77, length 64
20:06:46.885944 IP 172.18.0.4 > 172.18.0.2: ICMP echo request, id 26880, seq 265, length 64

通过抓包分析，在docker0抓包结果可看出源地址为172.18.0.4的容器地址，而在eth0的抓包结果看出源地址为eth0的地址，原因是container在访问外网时候进行SNAT。而SNAT中关键的一条规则如下，意思是来自任意网口且地址为172.18.0.0/16，流向非docker0的流量都转换为Host主机地址：

  ~]$ iptables -t nat -vnL POSTROUTING
Chain POSTROUTING (policy ACCEPT 319K packets, 26M bytes)
 pkts bytes target      prot opt in     out       source               destination
  232 14427 MASQUERADE  all  --  *      !docker0  172.18.0.0/16        0.0.0.0/0

3.2 外网访问Docker Container

containe的服务默认是不能被外网访问的，除非使用docker run -p暴露了端口，一旦将container端口暴露在Host上，外界流量就可经由DNAT规则到达container，而每一个暴露的端口在Host都有与之对应的docker-proxy进程。

~]$ iptables -t nat -vnL POSTROUTING
Chain POSTROUTING (policy ACCEPT 319K packets, 26M bytes)
 pkts bytes target     prot opt in     out     source               destination
    0     0 MASQUERADE  tcp  --  *      *       172.18.0.2           172.18.0.2           tcp dpt:8060
    0     0 MASQUERADE  tcp  --  *      *       172.18.0.2           172.18.0.2           tcp dpt:1443

~]$ ps -ef | grep proxy | grep -v grep
root       896  1683  0 Jul13 ?        00:00:09 usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 80 -container-ip 172.18.0.2 -container-port 8060
root       910  1683  0 Jul13 ?        00:00:08 usr/bin/docker-proxy -proto tcp -host-ip 0.0.0.0 -host-port 443 -container-ip 172.18.0.2 -container-port 1443
root      1322     1  0 Apr19 ?        00:00:00 usr/sbin/gssproxy -D
