OpenStack组件安装配置测试之：Ceilometer+Gnocchi

运维扫盲人 2021-06-11

8471

一、Controller节点配置gnocchi

1.1 创建database

root@controller-01:~# mysql
CREATE DATABASE gnocchi;
GRANT ALL PRIVILEGES ON gnocchi.* TO 'gnocchi'@'localhost' IDENTIFIED BY 'GNOCCHI_DBPASS';
GRANT ALL PRIVILEGES ON gnocchi.* TO 'gnocchi'@'%' IDENTIFIED BY 'GNOCCHI_DBPASS';

1.2 添加用户

openstack user create --domain default --password CEILOMETER ceilometer
openstack role add --project service --user ceilometer admin
openstack user create --domain default --password GNOCCHI gnocchi
openstack role add --project service --user gnocchi admin

1.3 创建service

openstack service create --name ceilometer   --description "Telemetry" metering
openstack service create --name gnocchi   --description "Metric Service" metric

1.4 创建endpoint

openstack endpoint create --region RegionOne   metric public http://controller:8041
openstack endpoint create --region RegionOne   metric internal http://controller:8041
openstack endpoint create --region RegionOne   metric admin http://controller:8041

1.5 安装配置redis服务

1.5.1 安装redis

 apt -y install redis

1.5.2 配置redis

root@controller-01:~# cat etc/redis/redis.conf | egrep -v "^$|^#"
bind 0.0.0.0 ::1
protected-mode no
port 6379
tcp-backlog 511
timeout 0
tcp-keepalive 300
daemonize yes
supervised no
pidfile var/run/redis/redis-server.pid
loglevel notice
logfile var/log/redis/redis-server.log
databases 16
always-show-logo yes
save 900 1
save 300 10
save 60 10000
stop-writes-on-bgsave-error yes
rdbcompression yes
rdbchecksum yes
dbfilename dump.rdb
dir var/lib/redis
slave-serve-stale-data yes
slave-read-only yes
repl-diskless-sync no
repl-diskless-sync-delay 5
repl-disable-tcp-nodelay no
slave-priority 100
lazyfree-lazy-eviction no
lazyfree-lazy-expire no
lazyfree-lazy-server-del no
slave-lazy-flush no
appendonly no
appendfilename "appendonly.aof"
appendfsync everysec
no-appendfsync-on-rewrite no
auto-aof-rewrite-percentage 100
auto-aof-rewrite-min-size 64mb
aof-load-truncated yes
aof-use-rdb-preamble no
lua-time-limit 5000
slowlog-log-slower-than 10000
slowlog-max-len 128
latency-monitor-threshold 0
notify-keyspace-events ""
hash-max-ziplist-entries 512
hash-max-ziplist-value 64
list-max-ziplist-size -2
list-compress-depth 0
set-max-intset-entries 512
zset-max-ziplist-entries 128
zset-max-ziplist-value 64
hll-sparse-max-bytes 3000
activerehashing yes
client-output-buffer-limit normal 0 0 0
client-output-buffer-limit slave 256mb 64mb 60
client-output-buffer-limit pubsub 32mb 8mb 60
hz 10
aof-rewrite-incremental-fsync yes

root@controller-01:~# redis-server etc/redis/redis.conf

1.6 安装uwsgi模块

root@controller-01:~# apt install  uwsgi-plugin-python3 uwsgi

TIPs：不安装uwsgi模块时，否者会报错；

root@controller-01:~# usr/bin/gnocchi-api
2021-03-08 02:22:17,727 [13171] INFO     gnocchi.service: Gnocchi version 4.3.2
2021-03-08 02:22:17,733 [13171] ERROR    gnocchi.cli.api: Unable to find `uwsgi'.
Be sure it is installed and in $PATH.

1.7 安装配置gnocchi服务

Gnocchi is responsible for storage and statistical analysis of Ceilometer data。

1.7.1 安装gnocchi服务

apt-get install gnocchi-api gnocchi-metricd python3-gnocchiclient
echo "export OS_AUTH_TYPE=password" >> root/admin-openrc
#否者报错
root@controller-01:~# gnocchi metric list
The request you have made requires authentication. (HTTP 401)

1.7.2 修改源码文件--optional（CentOS7.6需要修改）

[root@openstack-controller ~]# grep  "OS_AUTH_TYPE" /usr/lib/python2.7/site-packages/gnocchiclient/shell.py
            os.environ["OS_AUTH_TYPE"]= "password"
            #os.environ.set("OS_AUTH_TYPE", "password")
[root@openstack-controller ~]# gnocchi-upgrade
2021-01-22 15:03:39,365 [20889] INFO     gnocchi.service: Gnocchi version 4.3.4
2021-01-22 15:03:40,067 [20889] INFO     gnocchi.cli.manage: Upgrading indexer SQLAlchemyIndexer: mysql+pymysql://***:***@controller/gnocchi
2021-01-22 15:03:40,231 [20889] INFO     gnocchi.cli.manage: Upgrading storage FileStorage: var/lib/gnocchi
2021-01-22 15:03:40,242 [20889] INFO     gnocchi.cli.manage: Upgrading incoming storage FileStorage: /var/lib/gnocchi

1.7.3 配置gnocchi服务

root@controller-01:~# cat etc/gnocchi/gnocchi.conf | egrep -v "^$|^#"
[DEFAULT]
debug = true
verbose = true
log_dir = var/log/gnocchi
parallel_operations = 4
coordination_url = redis://controller:6379
[api]
auth_mode = keystone
host = controller
port = 8041
uwsgi_mode = http-socket
max_limit = 1000
[archive_policy]
default_aggregation_methods = mean,min,max,sum,std,count
[cors]
allowed_origin = http://controller:3000
[healthcheck]
[incoming]
[indexer]
url = mysql+pymysql://gnocchi:GNOCCHI_DBPASS@controller/gnocchi
[keystone_authtoken]
region_name = RegionOne
www_authenticate_uri = http://controller:5000
auth_url = http://controller:5000/v3
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = gnocchi
password = GNOCCHI
service_token_roles_required = true
auth_uri = http://controller:5000/v3
[metricd]
workers = 4
metric_processing_delay = 60
greedy = true
metric_reporting_delay = 120
metric_cleanup_delay = 300
[oslo_middleware]
[oslo_policy]
[statsd]
[storage]
coordination_url = redis://controller:6379
file_basepath = var/lib/gnocchi
driver = file

1.7.4 初始化gnocchi

root@controller-01:~# gnocchi-upgrade
2021-03-08 02:05:47,559 [10873] INFO     gnocchi.service: Gnocchi version 4.3.2
2021-03-08 02:05:48,019 [10873] INFO     gnocchi.cli.manage: Upgrading indexer SQLAlchemyIndexer: mysql+pymysql://gnocchi:GNOCCHI_DBPASS@controller/gnocchi
2021-03-08 02:05:48,137 [10873] INFO     gnocchi.cli.manage: Upgrading storage FileStorage: var/lib/gnocchi
2021-03-08 02:05:48,141 [10873] INFO     gnocchi.cli.manage: Upgrading incoming storage FileStorage: var/lib/gnocchi

1.7.5 启动gnocchi服务

TIPs：由于openstack stein版本的gnocchi组件存在bug，apt安装程序之后没有gnocchi.service文件，需要手动添加。

root@controller-01:~# cat lib/systemd/system/gnocchi-api.service
[Unit]
Description=Gnocchi API service
After=syslog.target network.target


[Service]
Type=simple
User=gnocchi
ExecStart=/usr/bin/gnocchi-api -- --log-file var/log/gnocchi/api.log
Restart=on-failure


[Install]
WantedBy=multi-user.target

systemctl restart gnocchi-api.service   gnocchi-metricd.service

二、安装ceilometer组件

2.1 安装配置ceilometer-agent-notification、ceilometer-agent-central组件

apt-get install ceilometer-agent-notification ceilometer-agent-central

root@controller-01:~#  cat  etc/ceilometer/ceilometer.conf | egrep -v "^#|^$"
[DEFAULT]
debug = true
auth_strategy = keystone
transport_url = rabbit://openstack:RABBIT_PASS@controller
pipeline_cfg_file = pipeline.yaml
[compute]
[coordination]
[event]
[hardware]
[ipmi]
[meter]
[notification]
store_events = true
messaging_urls = rabbit://openstack:RABBIT_PASS@controller
[oslo_concurrency]
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[polling]
cfg_file = polling.yaml
[publisher]
[publisher_notifier]
[rgw_admin_credentials]
[rgw_client]
[service_credentials]
auth_type = password
auth_url = http://controller:5000/v3
project_domain_id = default
user_domain_id = default
project_name = service
username = ceilometer
password = CEILOMETER
interface = internalURL
region_name = RegionOne
[service_types]
[vmware]
[xenapi]

2.2 在Gnocchi生成ceilometer资源

root@controller-01:~# chmod 777 var/log/gnocchi/gnocchi-api.log
root@controller-01:~# ceilometer-upgrade

2.3 启动ceilometer

service ceilometer-agent-central restart
service ceilometer-agent-notification restart

2.4 配置glance使用ceilometer服务（glance-api.conf）

[DEFAULT]
transport_url = rabbit://openstack:RABBIT_PASS@controller
[oslo_messaging_notifications]
driver = messagingv2

service glance-api restart

2.5 配置neutron使用ceilometer服务（neutron.conf）

[oslo_messaging_notifications]
driver = messagingv2

service neutron-server restart

三、Compute节点配置

3.1 安装配置ceilometer

3.1.1 安装ceilometer服务

apt-get install ceilometer-agent-compute

3.1.2 配置ceilometer服务

root@compute-01:~# cat etc/ceilometer/ceilometer.conf | egrep -v "^$|^#"
[DEFAULT]
transport_url = rabbit://openstack:RABBIT_PASS@controller
[compute]
[coordination]
[event]
[hardware]
[ipmi]
[meter]
[notification]
[oslo_concurrency]
[oslo_messaging_amqp]
[oslo_messaging_kafka]
[oslo_messaging_notifications]
[oslo_messaging_rabbit]
[polling]
[publisher]
[publisher_notifier]
[rgw_admin_credentials]
[rgw_client]
[service_credentials]
auth_type = password
auth_url = http://controller:5000/v3
project_domain_id = default
user_domain_id = default
project_name = service
username = ceilometer
password = CEILOMETER
interface = internalURL
region_name = RegionOne
[service_types]
[vmware]
[xenapi]

3.2 配置nova使用ceilometer

[DEFAULT]
instance_usage_audit = True
instance_usage_audit_period = hour


[notifications]
notify_on_state_change = vm_and_task_state


[oslo_messaging_notifications]
driver = messagingv2

3.3 启动服务

service ceilometer-agent-compute restart
service nova-compute restart

四、配置Hardware meter

https://ask.openstack.org/en/question/105993/how-to-enable-hardware-metrics-on-gnocchi/

4.1 controller与compute安装snmp

apt install snmp*

4.2 snmp配置文件

root@controller-01:~# cat  etc/snmp/snmpd.conf | egrep -v "^$|^#"


agentAddress udp:161,udp6:[::1]:161
view   systemonly  included   .1.3.6.1.4.1.2021.4
view   systemonly  included   .1.3.6.1.4.1.2021.11
view   systemonly  included   .1.3.6.1.2.1.2.2.1


rocommunity public  localhost
rocommunity public  default    -V systemonly
rocommunity6 public  default   -V systemonly
 com2sec   OS_net_sec 10.50.0.0/24 OS_community
 group     OS_Group   any             OS_net_sec
 view     OS_view     included       .1   80
 access   OS_Group   ""             any noauth 0 OS_view none none


 rouser   authOnlyUser


proc  mountd
                               # No more than 4 'ntalkd' processes - 0 is OK
proc  ntalkd    4
                               # At least one 'sendmail' process, but no more than 10
proc  sendmail 10 1


disk       /     10000
disk       /var  5%
includeAllDisks  10%


load   12 10 5


 trapsink     10.50.0.6 public


iquerySecName   internalUser
rouser          internalUser
defaultMonitors          yes
linkUpDownNotifications  yes


 extend    test1   /bin/echo  Hello, world!
 extend-sh test2   echo Hello, world! ; echo Hi there ; exit 35
 master          agentx

 root@controller-01:~# cat /etc/snmp/snmp.conf
# As the snmp packages come without MIB files due to license reasons, loading
# of MIBs is disabled by default. If you added the MIBs you can reenable
# loading them by commenting out the following line.
#mibs :

4.3 测试snmp

root@controller-01:~# snmpwalk -v 2c -c public 172.17.61.22 memTotalReal.0
UCD-SNMP-MIB::memTotalReal.0 = INTEGER: 8167644 kB
root@controller-01:~#  snmpwalk -v 2c -c public localhost .1.3.6.1.4.1.2021.4.3.0
UCD-SNMP-MIB::memTotalSwap.0 = INTEGER: 4194300 kB

4.4 pipeline.yaml

root@controller-01:~# cat  /etc/ceilometer/pipeline.yaml
---
sources:
    - name: meter_source
      meters:
          - "*"
      sinks:
          - meter_sink
    - name: cpu_source
      meters:
          - "cpu"
      sinks:
          - cpu_sink
          - cpu_delta_sink
    - name: disk_source
      meters:
          - "disk.read.bytes"
          - "disk.read.requests"
          - "disk.write.bytes"
          - "disk.write.requests"
          - "disk.device.read.bytes"
          - "disk.device.read.requests"
          - "disk.device.write.bytes"
          - "disk.device.write.requests"
      sinks:
          - disk_sink
    - name: network_source
      meters:
          - "network.incoming.bytes"
          - "network.incoming.packets"
          - "network.outgoing.bytes"
          - "network.outgoing.packets"
      sinks:
          - network_sink
    - name: snmp_hardware_host
      resources:
          - snmp://public@172.17.61.22
          - snmp://public@172.17.61.26
      meters:
          - "hardware.cpu.util"
          - "hardware.memory.used"
      sinks:
          - meter_snmp_host

sinks:
    - name: meter_sink
      transformers:
      publishers:
          - gnocchi://
    - name: meter_snmp_host
      transformers:
      publishers:
          - gnocchi://
    - name: cpu_sink
      transformers:
          - name: "rate_of_change"
            parameters:
                target:
                    name: "cpu_util"
                    unit: "%"
                    type: "gauge"
                    max: 100
                    scale: "100.0 / (10**9 * (resource_metadata.cpu_number or 1))"
      publishers:
          - gnocchi://
    - name: cpu_delta_sink
      transformers:
          - name: "delta"
            parameters:
                target:
                    name: "cpu.delta"
                growth_only: True
      publishers:
          - gnocchi://
    - name: disk_sink
      transformers:
          - name: "rate_of_change"
            parameters:
                source:
                    map_from:
                        name: "(disk\\.device|disk)\\.(read|write)\\.(bytes|requests)"
                        unit: "(B|request)"
                target:
                    map_to:
                        name: "\\1.\\2.\\3.rate"
                        unit: "\\1/s"
                    type: "gauge"
      publishers:
          - gnocchi://
    - name: network_sink
      transformers:
          - name: "rate_of_change"
            parameters:
                source:
                   map_from:
                       name: "network\\.(incoming|outgoing)\\.(bytes|packets)"
                       unit: "(B|packet)"
                target:
                    map_to:
                        name: "network.\\1.\\2.rate"
                        unit: "\\1/s"
                    type: "gauge"
      publishers:
          - gnocchi://

4.5 polling.yaml

root@controller-01:~# cat  /etc/ceilometer/polling.yaml
---
sources:
    - name: some_pollsters
      resources:
        - snmp://public@172.17.61.22
        - snmp://public@172.17.61.26
      interval: 300
      meters:
        - cpu
        - cpu_l3_cache
        - memory.usage
        - network.incoming.bytes
        - network.incoming.packets
        - network.outgoing.bytes
        - network.outgoing.packets
        - disk.device.read.bytes
        - disk.device.read.requests
        - disk.device.write.bytes
        - disk.device.write.requests
        - hardware.cpu.util
        - hardware.cpu.user
        - hardware.cpu.nice
        - hardware.cpu.system
        - hardware.cpu.idle
        - hardware.cpu.wait
        - hardware.cpu.kernel
        - hardware.cpu.interrupt
        - hardware.memory.used
        - hardware.memory.total
        - hardware.memory.buffer
        - hardware.memory.cached
        - hardware.memory.swap.avail
        - hardware.memory.swap.total
        - hardware.system_stats.io.outgoing.blocks
        - hardware.system_stats.io.incoming.blocks
        - hardware.network.ip.incoming.datagrams
        - hardware.network.ip.outgoing.datagrams

五、测试ceilometer（gnocchi-cli）

resource：资源大类，比如实例、hardware、network等等；
metric：某资源类中可以收集监控的度量；
measures：某个具体度量的取值；
pipeline.yaml：定义resource、metric以及输出数据到gnocchi或者其他；
polling.yaml：定义哪些resource、metric来轮询；

https://docs.openstack.org/ocata/cli-reference/gnocchi.html

5.1 查看gnocchi 状态

root@controller-01:~# gnocchi status
+-----------------------------------------------------+-------+
| Field                                               | Value |
+-----------------------------------------------------+-------+
| storage/number of metric having measures to process | 9     |
| storage/total number of measures to process         | 19    |
+-----------------------------------------------------+-------+

5.2 列出所有metric

root@controller-01:~# gnocchi metric list
+--------------------------------------+---------------------+--------------------------------------------+---------+--------------------------------------+
| id                                   | archive_policy/name | name                                       | unit    | resource_id                          |
+--------------------------------------+---------------------+--------------------------------------------+---------+--------------------------------------+
| 0bf17d5b-ffe7-4f0b-89a5-152da084f450 | ceilometer-low      | hardware.memory.used                       | KB      | 8fc85372-63c3-539f-ba7f-af092e3387ee |
| 0c092e5e-d979-4093-a055-437a12b77366 | ceilometer-low      | disk.root.size                             | GB      | e76f1e79-b056-4a39-9e03-5779c51f3593 |
| 1331becd-7efe-4909-b08d-73af449bb6fc | ceilometer-low      | vcpus                                      | vcpu    | e76f1e79-b056-4a39-9e03-5779c51f3593 |
| 1373fa33-c629-4d7f-a3c0-2218029bbd25 | ceilometer-low-rate | hardware.cpu.system                        | tick    | 8fc85372-63c3-539f-ba7f-af092e3387ee |
| 14d9d597-afb6-4b07-b9b5-4fd5a3cac2c7 | ceilometer-low      | volume.provider.capacity.total             | GB      | dbc19129-93e4-5eb5-b07b-96f0e3cf88a9 |
| 1b8955bc-a0e7-49ba-98b8-e4b1685f0939 | ceilometer-low      | volume.provider.pool.capacity.total        | GB      | d231bc8e-dd6d-5691-b02d-54b4f26f8030 |
| 204e957a-65f7-436f-94b0-407d83751c4a | ceilometer-low      | hardware.system_stats.io.incoming.blocks   | blocks  | 8fc85372-63c3-539f-ba7f-af092e3387ee |
| 215aaff7-0f15-4d50-87b2-3483d8bc3bad | ceilometer-low      | volume.provider.capacity.free              | GB      | dbc19129-93e4-5eb5-b07b-96f0e3cf88a9 |
| 25256da6-c761-471f-b41c-bb3560125461 | ceilometer-low      | volume.provider.capacity.virtual_free      | GB      | dbc19129-93e4-5eb5-b07b-96f0e3cf88a9 |
| 34659060-abc4-4555-8237-3769af593cdd | ceilometer-low      | hardware.memory.total                      | KB      | 8fc85372-63c3-539f-ba7f-af092e3387ee |
| 3eb1a853-8155-4dca-8680-f79d438df708 | ceilometer-low      | hardware.memory.swap.avail                 | KB      | 8fc85372-63c3-539f-ba7f-af092e3387ee |
| 40796e67-5724-4f64-b2cc-220f2d4c090e | ceilometer-low      | volume.provider.pool.capacity.free         | GB      | d231bc8e-dd6d-5691-b02d-54b4f26f8030 |
| 40aaf318-40b8-4b49-b96b-7083a350ed49 | ceilometer-low-rate | network.outgoing.bytes                     | B       | 7dec8750-64eb-5352-89cc-4c4e0e2979bd |
| 4d8161ac-8623-4644-b5da-8466b7147752 | ceilometer-low      | hardware.memory.swap.total                 | KB      | 8fc85372-63c3-539f-ba7f-af092e3387ee |
| 4df4e486-ec1b-479e-b2dc-1c019e235b63 | ceilometer-low-rate | network.outgoing.packets                   | packet  | 7dec8750-64eb-5352-89cc-4c4e0e2979bd |
| 54ab7884-1c0f-4b91-9a95-dbbecc6b3e95 | ceilometer-low      | volume.provider.capacity.allocated         | GB      | dbc19129-93e4-5eb5-b07b-96f0e3cf88a9 |
| 64a4fcec-502f-4943-a203-fb25d5c1c414 | ceilometer-low-rate | disk.device.write.bytes                    | B       | 7966c542-a7fd-5702-9dce-8916ec6309f6 |
| 6a8541b0-a364-490f-800f-56e7d61852ae | ceilometer-low      | volume.provider.pool.capacity.allocated    | GB      | d231bc8e-dd6d-5691-b02d-54b4f26f8030 |
| 6c24fdf3-e2fa-4637-a481-2ba350a1a50a | ceilometer-low      | volume.provider.pool.capacity.provisioned  | GB      | d231bc8e-dd6d-5691-b02d-54b4f26f8030 |
| 6daf7eda-3c2b-4683-9de4-4b151fe1f7a1 | ceilometer-low      | volume.provider.capacity.provisioned       | GB      | dbc19129-93e4-5eb5-b07b-96f0e3cf88a9 |
| 6f23ef0d-cb03-4f6b-89c7-281a99da4114 | ceilometer-low-rate | hardware.cpu.nice                          | tick    | 8fc85372-63c3-539f-ba7f-af092e3387ee |
| 72066fd8-f058-4640-906c-f45dcc452e7b | ceilometer-low-rate | cpu                                        | ns      | e76f1e79-b056-4a39-9e03-5779c51f3593 |
| 72de0514-8b0e-41da-b8de-5cbeeb4a655f | ceilometer-low-rate | hardware.cpu.kernel                        | tick    | 8fc85372-63c3-539f-ba7f-af092e3387ee |
| 749e3c56-3d12-4c51-a3ed-36af9bedf491 | ceilometer-low-rate | hardware.cpu.user                          | tick    | 8fc85372-63c3-539f-ba7f-af092e3387ee |
| 794cc9c7-4d7c-4b29-ac52-0838da279bbd | ceilometer-low-rate | hardware.cpu.interrupt                     | tick    | 8fc85372-63c3-539f-ba7f-af092e3387ee |
| 798e785f-3044-4e16-be6c-f7d4d547b16d | ceilometer-low-rate | disk.device.read.bytes                     | B       | 7966c542-a7fd-5702-9dce-8916ec6309f6 |
| 9d1c2fd5-9f99-4475-aa9b-5b6023dcfe5f | ceilometer-low      | volume.provider.pool.capacity.virtual_free | GB      | d231bc8e-dd6d-5691-b02d-54b4f26f8030 |
| b5209cb2-44c3-4ba2-bf0a-c41e1af59998 | ceilometer-low-rate | hardware.cpu.wait                          | tick    | 8fc85372-63c3-539f-ba7f-af092e3387ee |
| b85658b6-85a0-4dc5-b5d1-26354235805d | ceilometer-low-rate | hardware.cpu.idle                          | tick    | 8fc85372-63c3-539f-ba7f-af092e3387ee |
| c054167f-ac5e-421a-972d-e5b370a90964 | ceilometer-low      | memory                                     | MB      | e76f1e79-b056-4a39-9e03-5779c51f3593 |
| c9f79644-2d10-4c9b-aca8-80aa62423fc6 | ceilometer-low      | hardware.system_stats.io.outgoing.blocks   | blocks  | 8fc85372-63c3-539f-ba7f-af092e3387ee |
| cb18ac4e-1cce-4b5b-b75f-8c1643ddb4d7 | ceilometer-low-rate | network.incoming.packets                   | packet  | 7dec8750-64eb-5352-89cc-4c4e0e2979bd |
| cd7799c3-b0df-45ee-8b0e-7b8c1a3fc261 | ceilometer-low      | disk.ephemeral.size                        | GB      | e76f1e79-b056-4a39-9e03-5779c51f3593 |
| d0b594c9-24f7-4962-8d51-7befa14e1196 | ceilometer-low-rate | network.incoming.bytes                     | B       | 7dec8750-64eb-5352-89cc-4c4e0e2979bd |
| d6afffae-dd08-4a8f-bc22-c207a2b107c1 | ceilometer-low      | hardware.memory.cached                     | KB      | 8fc85372-63c3-539f-ba7f-af092e3387ee |
| db96ba20-7441-4216-8e01-61ca34026209 | ceilometer-low      | hardware.cpu.util                          | %       | 8fc85372-63c3-539f-ba7f-af092e3387ee |
| ea96bc38-872c-475e-ad5a-2db3a946a39b | ceilometer-low      | hardware.memory.buffer                     | KB      | 8fc85372-63c3-539f-ba7f-af092e3387ee |
| ec6644fc-247a-4bae-979c-e3bf55151b16 | ceilometer-low-rate | disk.device.read.requests                  | request | 7966c542-a7fd-5702-9dce-8916ec6309f6 |
| fd3c549a-52a5-4c13-b96c-c0fc69addcd7 | ceilometer-low-rate | disk.device.write.requests                 | request | 7966c542-a7fd-5702-9dce-8916ec6309f6 |
+--------------------------------------+---------------------+--------------------------------------------+---------+--------------------------------------+

5.3 列出所有resource

root@controller-01:~# gnocchi resource list
+--------------------------------------+----------------------------+----------------------------------+----------------------------------+-----------------------------------------------------------------------+----------------------------------+----------+----------------------------------+--------------+-------------------------------------------------------------------+
| id                                   | type                       | project_id                       | user_id                          | original_resource_id                                                  | started_at                       | ended_at | revision_start                   | revision_end | creator                                                           |
+--------------------------------------+----------------------------+----------------------------------+----------------------------------+-----------------------------------------------------------------------+----------------------------------+----------+----------------------------------+--------------+-------------------------------------------------------------------+
| e76f1e79-b056-4a39-9e03-5779c51f3593 | instance                   | ded04e0f8ea5491582278519ce380edc | 6b2cb6a662404f40b02fa00364b70017 | e76f1e79-b056-4a39-9e03-5779c51f3593                                  | 2021-03-08T08:59:37.923321+00:00 | None     | 2021-03-08T08:59:37.923349+00:00 | None         | e58c0df298594433aba87403d85e6926:f6faef563147458c8b96022029e33266 |
| 7dec8750-64eb-5352-89cc-4c4e0e2979bd | instance_network_interface | ded04e0f8ea5491582278519ce380edc | 6b2cb6a662404f40b02fa00364b70017 | instance-00000004-e76f1e79-b056-4a39-9e03-5779c51f3593-tap586a5fbc-86 | 2021-03-08T09:04:27.556562+00:00 | None     | 2021-03-08T09:04:27.556590+00:00 | None         | e58c0df298594433aba87403d85e6926:f6faef563147458c8b96022029e33266 |
| 7966c542-a7fd-5702-9dce-8916ec6309f6 | instance_disk              | ded04e0f8ea5491582278519ce380edc | 6b2cb6a662404f40b02fa00364b70017 | e76f1e79-b056-4a39-9e03-5779c51f3593-vda                              | 2021-03-08T09:04:27.595207+00:00 | None     | 2021-03-08T09:04:27.595237+00:00 | None         | e58c0df298594433aba87403d85e6926:f6faef563147458c8b96022029e33266 |
| 8fc85372-63c3-539f-ba7f-af092e3387ee | host                       | None                             | None                             | 172.17.61.22                                                          | 2021-03-08T13:16:14.308275+00:00 | None     | 2021-03-08T13:16:14.308304+00:00 | None         | e58c0df298594433aba87403d85e6926:f6faef563147458c8b96022029e33266 |
| dbc19129-93e4-5eb5-b07b-96f0e3cf88a9 | volume_provider            | None                             | None                             | blockstorage-01@lvm                                                   | 2021-03-09T04:50:09.594667+00:00 | None     | 2021-03-09T04:50:09.594695+00:00 | None         | e58c0df298594433aba87403d85e6926:f6faef563147458c8b96022029e33266 |
| d231bc8e-dd6d-5691-b02d-54b4f26f8030 | volume_provider_pool       | None                             | None                             | blockstorage-01@lvm#LVM                                               | 2021-03-09T04:50:09.596302+00:00 | None     | 2021-03-09T04:50:09.596341+00:00 | None         | e58c0df298594433aba87403d85e6926:f6faef563147458c8b96022029e33266 |
+--------------------------------------+----------------------------+----------------------------------+----------------------------------+-----------------------------------------------------------------------+----------------------------------+----------+----------------------------------+--------------+-------------------------------------------------------------------+

5.4 列出resource-type

root@controller-01:~# gnocchi resource-type list
+----------------------------+---------------------------------------------------------------------------------------+
| name                       | attributes                                                                            |
+----------------------------+---------------------------------------------------------------------------------------+
| ceph_account               |                                                                                       |
| generic                    |                                                                                       |
| host                       | - host_name: type: string , required: True , max_length: 255 , min_length: 0          |
| host_disk                  | - host_name: type: string , required: True , max_length: 255 , min_length: 0          |
|                            | - device_name: type: string , required: False , max_length: 255 , min_length: 0       |
| host_network_interface     | - host_name: type: string , required: True , max_length: 255 , min_length: 0          |
|                            | - device_name: type: string , required: False , max_length: 255 , min_length: 0       |
| identity                   |                                                                                       |
| image                      | - name: type: string , required: True , max_length: 255 , min_length: 0               |
|                            | - container_format: type: string , required: True , max_length: 255 , min_length: 0   |
|                            | - disk_format: type: string , required: True , max_length: 255 , min_length: 0        |
| instance                   | - flavor_id: type: string , required: True , max_length: 255 , min_length: 0          |
|                            | - image_ref: type: string , required: False , max_length: 255 , min_length: 0         |
|                            | - host: type: string , required: True , max_length: 255 , min_length: 0               |
|                            | - display_name: type: string , required: True , max_length: 255 , min_length: 0       |
|                            | - server_group: type: string , required: False , max_length: 255 , min_length: 0      |
|                            | - flavor_name: type: string , required: True , max_length: 255 , min_length: 0        |
|                            | - launched_at: type: datetime , required: False                                       |
|                            | - created_at: type: datetime , required: False                                        |
|                            | - deleted_at: type: datetime , required: False                                        |
| instance_disk              | - name: type: string , required: True , max_length: 255 , min_length: 0               |
|                            | - instance_id: type: uuid , required: True                                            |
| instance_network_interface | - name: type: string , required: True , max_length: 255 , min_length: 0               |
|                            | - instance_id: type: uuid , required: True                                            |
| ipmi                       |                                                                                       |
| ipmi_sensor                | - node: type: string , required: True , max_length: 255 , min_length: 0               |
| loadbalancer               |                                                                                       |
| manila_share               | - name: type: string , required: False , max_length: 255 , min_length: 0              |
|                            | - host: type: string , required: True , max_length: 255 , min_length: 0               |
|                            | - protocol: type: string , required: False , max_length: 255 , min_length: 0          |
|                            | - availability_zone: type: string , required: False , max_length: 255 , min_length: 0 |
|                            | - status: type: string , required: True , max_length: 255 , min_length: 0             |
| network                    |                                                                                       |
| nova_compute               | - host_name: type: string , required: True , max_length: 255 , min_length: 0          |
| port                       | - controller: type: string , required: True , max_length: 255 , min_length: 0         |
| stack                      |                                                                                       |
| swift_account              |                                                                                       |
| switch                     | - controller: type: string , required: True , max_length: 255 , min_length: 0         |
| switch_port                | - switch: type: string , required: True , max_length: 64 , min_length: 0              |
|                            | - port_number_on_switch: type: number , required: False , min: 0 , max: 4294967295    |
|                            | - neutron_port_id: type: string , required: False , max_length: 255 , min_length: 0   |
|                            | - controller: type: string , required: True , max_length: 255 , min_length: 0         |
| switch_table               | - switch: type: string , required: True , max_length: 64 , min_length: 0              |
|                            | - controller: type: string , required: True , max_length: 255 , min_length: 0         |
| volume                     | - display_name: type: string , required: False , max_length: 255 , min_length: 0      |
|                            | - volume_type: type: string , required: False , max_length: 255 , min_length: 0       |
|                            | - image_id: type: uuid , required: False                                              |
|                            | - instance_id: type: uuid , required: False                                           |
| volume_provider            |                                                                                       |
| volume_provider_pool       | - provider: type: string , required: True , max_length: 255 , min_length: 0           |
+----------------------------+---------------------------------------------------------------------------------------+

5.5 查看归档策略

root@controller-01:~# openstack metric archive-policy-rule list
+---------+---------------------+----------------+
| name    | archive_policy_name | metric_pattern |
+---------+---------------------+----------------+
| default | low                 | *              |
+---------+---------------------+----------------+

5.6 查看instance相关的resource

root@controller-01:~# openstack server list
+--------------------------------------+------+--------+--------------------------+---------------------+---------+
| ID                                   | Name | Status | Networks                 | Image               | Flavor  |
+--------------------------------------+------+--------+--------------------------+---------------------+---------+
| 1deb9c8d-ca85-44d8-aa4d-5df648cc87bd | vm-3 | ACTIVE | selfservice=10.10.10.14  | cirros-0.3.0-x86_64 | m1.nano |
| 6583b3b0-96fd-45fa-bd75-fa7b0ae389e3 | vm-1 | ACTIVE | selfservice=10.10.10.130 | cirros-0.3.0-x86_64 | m1.nano |
| 9532719c-cbbe-472c-a77d-edc7052b1541 | vm-2 | ACTIVE | selfservice=10.10.10.33  | cirros-0.3.0-x86_64 | m1.nano |
+--------------------------------------+------+--------+--------------------------+---------------------+---------+

root@controller-01:~# gnocchi resource list | grep 1deb9c8d-ca85-44d8-aa4d-5df648cc87bd
| 3e853cc3-8cc6-5fe8-99e6-9d79cbf8d8f5 | instance_network_interface | 15b1010426194e309cd8f3de6bf63e1a | 1d51703e805548d99cb35b0c3fb83a58 | instance-00000003-1deb9c8d-ca85-44d8-aa4d-5df648cc87bd-tapb974fcdc-dc | 2021-03-16T13:53:52.842660+00:00 | None     | 2021-03-16T13:53:52.843133+00:00 | None         | b6e6d99ddc9e4119b412c3a709b75ef9:d45795e7d1e54e0786ff9ef54ee0c226 |
| cd721f38-11c9-5ee0-b19a-35c87e311fb6 | instance_disk              | 15b1010426194e309cd8f3de6bf63e1a | 1d51703e805548d99cb35b0c3fb83a58 | 1deb9c8d-ca85-44d8-aa4d-5df648cc87bd-vda                              | 2021-03-16T13:53:53.889809+00:00 | None     | 2021-03-16T13:53:53.889838+00:00 | None         | b6e6d99ddc9e4119b412c3a709b75ef9:d45795e7d1e54e0786ff9ef54ee0c226 |
| 1deb9c8d-ca85-44d8-aa4d-5df648cc87bd | instance                   | 15b1010426194e309cd8f3de6bf63e1a | 1d51703e805548d99cb35b0c3fb83a58 | 1deb9c8d-ca85-44d8-aa4d-5df648cc87bd                                  | 2021-03-16T13:50:38.306724+00:00 | None     | 2021-03-16T14:00:42.055866+00:00 | None         | b6e6d99ddc9e4119b412c3a709b75ef9:d45795e7d1e54e0786ff9ef54ee0c226 |

root@controller-01:~# gnocchi resource list --type host
+--------------------------------------+------+------------+---------+----------------------+----------------------------------+----------+----------------------------------+--------------+-------------------------------------------------------------------+----------------------------+
| id                                   | type | project_id | user_id | original_resource_id | started_at                       | ended_at | revision_start                   | revision_end | creator                                                           | host_name                  |
+--------------------------------------+------+------------+---------+----------------------+----------------------------------+----------+----------------------------------+--------------+-------------------------------------------------------------------+----------------------------+
| 1a2adf48-6053-56c8-a072-267343026b09 | host | None       | None    | 172.17.61.22         | 2021-03-19T09:24:41.972881+00:00 | None     | 2021-03-19T09:24:41.972911+00:00 | None         | e6d0f62027aa4735983344073df086f0:f6faef563147458c8b96022029e33266 | snmp://public@172.17.61.22 |
+--------------------------------------+------+------------+---------+----------------------+----------------------------------+----------+----------------------------------+--------------+-------------------------------------------------------------------+----------------------------+

5.7 查看某一instance resource对应的所有metric

root@controller-01:~# gnocchi metric list | grep 1deb9c8d-ca85-44d8-aa4d-5df648cc87bd
| 2e2633ee-7b33-40a3-b42e-c02b40900df9 | ceilometer-low      | disk.ephemeral.size           | GB      | 1deb9c8d-ca85-44d8-aa4d-5df648cc87bd |
| 35d85f55-104a-429f-97d1-58cbf4770e6f | ceilometer-low      | memory                        | MB      | 1deb9c8d-ca85-44d8-aa4d-5df648cc87bd |
| 4e9d0c8d-8abd-4ddf-96b5-81011236068b | ceilometer-low      | disk.root.size                | GB      | 1deb9c8d-ca85-44d8-aa4d-5df648cc87bd |
| 52965e2b-a2ac-4f61-a987-e4c2dce8b5a8 | ceilometer-low      | vcpus                         | vcpu    | 1deb9c8d-ca85-44d8-aa4d-5df648cc87bd |
| 98be0dda-2bd3-4137-8255-cca16c052856 | ceilometer-low-rate | cpu                           | ns      | 1deb9c8d-ca85-44d8-aa4d-5df648cc87bd |
| b297e8d3-a4bb-4148-bd03-e74f666de375 | ceilometer-low      | compute.instance.booting.time | sec     | 1deb9c8d-ca85-44d8-aa4d-5df648cc87bd |

5.8 查看某一instance resource对应的某一metric的measures值

root@controller-01:~# gnocchi measures show 52965e2b-a2ac-4f61-a987-e4c2dce8b5a8
+---------------------------+-------------+-------+
| timestamp                 | granularity | value |
+---------------------------+-------------+-------+
| 2021-03-16T22:15:00+08:00 |       300.0 |   1.0 |
| 2021-03-16T22:20:00+08:00 |       300.0 |   1.0 |
| 2021-03-16T23:00:00+08:00 |       300.0 |   1.0 |
| 2021-03-17T00:00:00+08:00 |       300.0 |   1.0 |
| 2021-03-17T01:00:00+08:00 |       300.0 |   1.0 |
| 2021-03-17T02:00:00+08:00 |       300.0 |   1.0 |
| 2021-03-17T04:00:00+08:00 |       300.0 |   1.0 |
| 2021-03-17T05:00:00+08:00 |       300.0 |   1.0 |
| 2021-03-17T06:00:00+08:00 |       300.0 |   1.0 |
| 2021-03-17T07:00:00+08:00 |       300.0 |   1.0 |
+---------------------------+-------------+-------+
root@controller-01:~# gnocchi measures show 35d85f55-104a-429f-97d1-58cbf4770e6f
+---------------------------+-------------+-------+
| timestamp                 | granularity | value |
+---------------------------+-------------+-------+
| 2021-03-16T22:15:00+08:00 |       300.0 |  64.0 |
| 2021-03-16T22:20:00+08:00 |       300.0 |  64.0 |
| 2021-03-16T23:00:00+08:00 |       300.0 |  64.0 |
| 2021-03-17T00:00:00+08:00 |       300.0 |  64.0 |
| 2021-03-17T01:00:00+08:00 |       300.0 |  64.0 |
| 2021-03-17T02:00:00+08:00 |       300.0 |  64.0 |
| 2021-03-17T04:00:00+08:00 |       300.0 |  64.0 |
| 2021-03-17T05:00:00+08:00 |       300.0 |  64.0 |
| 2021-03-17T06:00:00+08:00 |       300.0 |  64.0 |
| 2021-03-17T07:00:00+08:00 |       300.0 |  64.0 |
+---------------------------+-------------+-------+

TIPs：必须在该日志路径下找到measures值时才正确,tail -f /var/log/gnocchi/metricd.log.

2021-03-16 22:17:54,509 [10492] INFO     gnocchi.cli.metricd: 26 measurements bundles across 26 metrics wait to be processed.

5.9 创建resource

root@controller-01:~# gnocchi resource create --type image --attribute disk_format:qcow2 -a container_format:bare -a name:cirros -n image:ceilometer-low -n image.size:ceilometer-low -n image.serve:ceilometer-low fd0bd450-d647-48d2-8498-88c9294c7501
+-----------------------+-------------------------------------------------------------------+
| Field                 | Value                                                             |
+-----------------------+-------------------------------------------------------------------+
| container_format      | bare                                                              |
| created_by_project_id | ded04e0f8ea5491582278519ce380edc                                  |
| created_by_user_id    | 6b2cb6a662404f40b02fa00364b70017                                  |
| creator               | 6b2cb6a662404f40b02fa00364b70017:ded04e0f8ea5491582278519ce380edc |
| disk_format           | qcow2                                                             |
| ended_at              | None                                                              |
| id                    | fd0bd450-d647-48d2-8498-88c9294c7501                              |
| metrics               | image.serve: 1b12afdc-b52c-4eed-a162-f8b82bb2fd01                 |
|                       | image.size: 0f500139-4262-40f6-b3b2-d94b8bdbda74                  |
|                       | image: 2ebd649f-3610-4469-97a8-3085bf4a049b                       |
| name                  | cirros                                                            |
| original_resource_id  | fd0bd450-d647-48d2-8498-88c9294c7501                              |
| project_id            | None                                                              |
| revision_end          | None                                                              |
| revision_start        | 2021-03-25T07:53:23.726143+00:00                                  |
| started_at            | 2021-03-25T07:53:23.726119+00:00                                  |
| type                  | image                                                             |
| user_id               | None                                                              |
+-----------------------+-------------------------------------------------------------------+

root@controller-01:~# gnocchi resource list --type image
+--------------------------------------+-------+------------+---------+--------------------------------------+----------------------------------+----------+----------------------------------+--------------+-------------------------------------------------------------------+--------+------------------+-------------+
| id                                   | type  | project_id | user_id | original_resource_id                 | started_at                       | ended_at | revision_start                   | revision_end | creator                                                           | name   | container_format | disk_format |
+--------------------------------------+-------+------------+---------+--------------------------------------+----------------------------------+----------+----------------------------------+--------------+-------------------------------------------------------------------+--------+------------------+-------------+
| fd0bd450-d647-48d2-8498-88c9294c7501 | image | None       | None    | fd0bd450-d647-48d2-8498-88c9294c7501 | 2021-03-25T07:53:23.726119+00:00 | None     | 2021-03-25T07:53:23.726143+00:00 | None         | 6b2cb6a662404f40b02fa00364b70017:ded04e0f8ea5491582278519ce380edc | cirros | bare             | qcow2       |
+--------------------------------------+-------+------------+---------+--------------------------------------+----------------------------------+----------+----------------------------------+--------------+-------------------------------------------------------------------+--------+------------------+-------------+

5.10 添加metric measures值

root@controller-01:~# gnocchi metric list | grep fd0bd450-d647-48d2-8498-88c9294c7501
| 0f500139-4262-40f6-b3b2-d94b8bdbda74 | ceilometer-low      | image.size                               | None    | fd0bd450-d647-48d2-8498-88c9294c7501 |
| 1b12afdc-b52c-4eed-a162-f8b82bb2fd01 | ceilometer-low      | image.serve                              | None    | fd0bd450-d647-48d2-8498-88c9294c7501 |
| 2ebd649f-3610-4469-97a8-3085bf4a049b | ceilometer-low      | image                                    | None    | fd0bd450-d647-48d2-8498-88c9294c7501 |

root@controller-01:~# gnocchi measures add --resource-id fd0bd450-d647-48d2-8498-88c9294c7501  --measure 2021-03-24T07:25:00+00:00@9761280 image.size
root@controller-01:~# gnocchi measures show 0f500139-4262-40f6-b3b2-d94b8bdbda74
+---------------------------+-------------+-----------+
| timestamp                 | granularity |     value |
+---------------------------+-------------+-----------+
| 2021-03-24T15:25:00+08:00 |       300.0 | 9761280.0 |
+---------------------------+-------------+-----------+

六、部署grafana-dashboard

6.1 grafana-dashboard站点

https://grafana.com/grafana/download?plcmt=footer

6.2 下载grafana deb程序包

sudo apt-get install -y adduser libfontconfig1
wget https://dl.grafana.com/oss/release/grafana_6.4.3_amd64.deb
sudo dpkg -i grafana_6.4.3_amd64.deb

6.3 启动程序

root@controller-01:~# /bin/systemctl daemon-reload
root@controller-01:~# /bin/systemctl enable grafana-server
root@controller-01:~# /bin/systemctl start grafana-server

6.4 安装gnocchi数据源插件

root@controller-01:~# grafana-cli plugins install gnocchixyz-gnocchi-datasource
installing gnocchixyz-gnocchi-datasource @ 1.7.0
from: https://grafana.com/api/plugins/gnocchixyz-gnocchi-datasource/versions/1.7.0/download
into: /var/lib/grafana/plugins


✔ Installed gnocchixyz-gnocchi-datasource successfully


Restart grafana after installing plugins . <service grafana-server restart>

[root@openstack-controller ~]# grafana-cli plugins install gnocchixyz-gnocchi-datasource
installing gnocchixyz-gnocchi-datasource @ 1.7.0
from: https://grafana.com/api/plugins/gnocchixyz-gnocchi-datasource/versions/1.7.0/download
into: /var/lib/grafana/plugins


✔ Installed gnocchixyz-gnocchi-datasource successfully


Restart grafana after installing plugins . <service grafana-server restart>

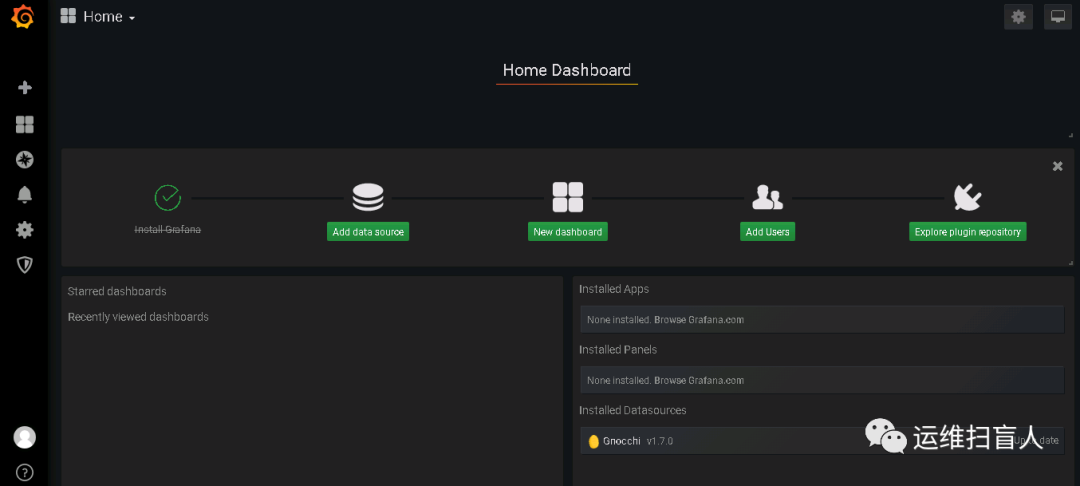

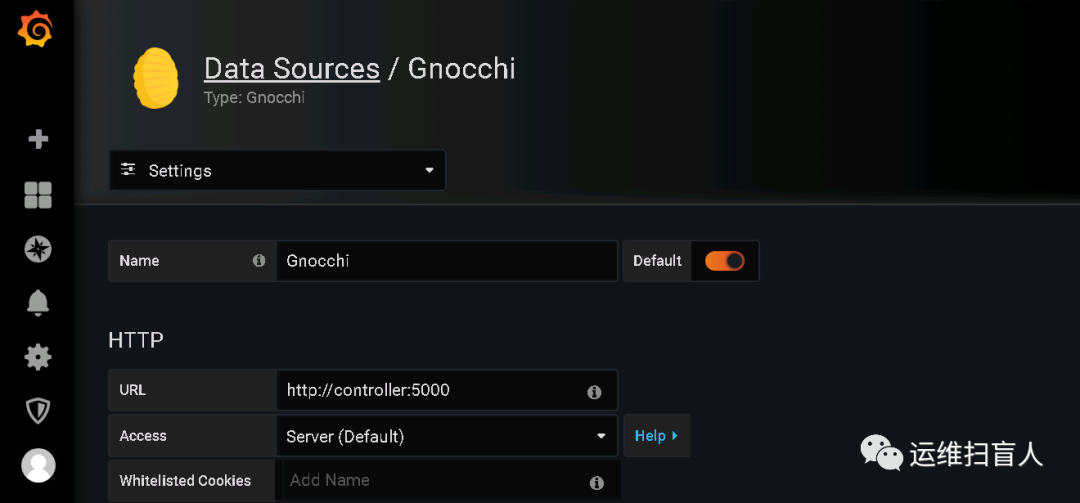

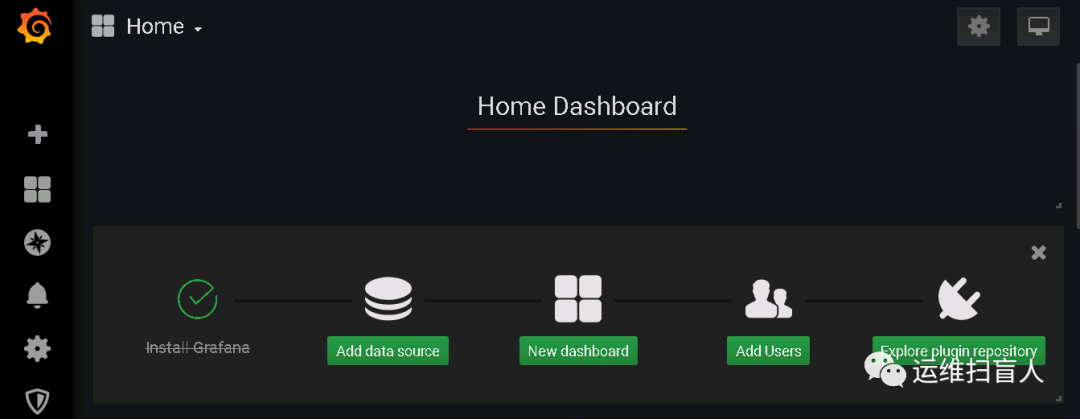

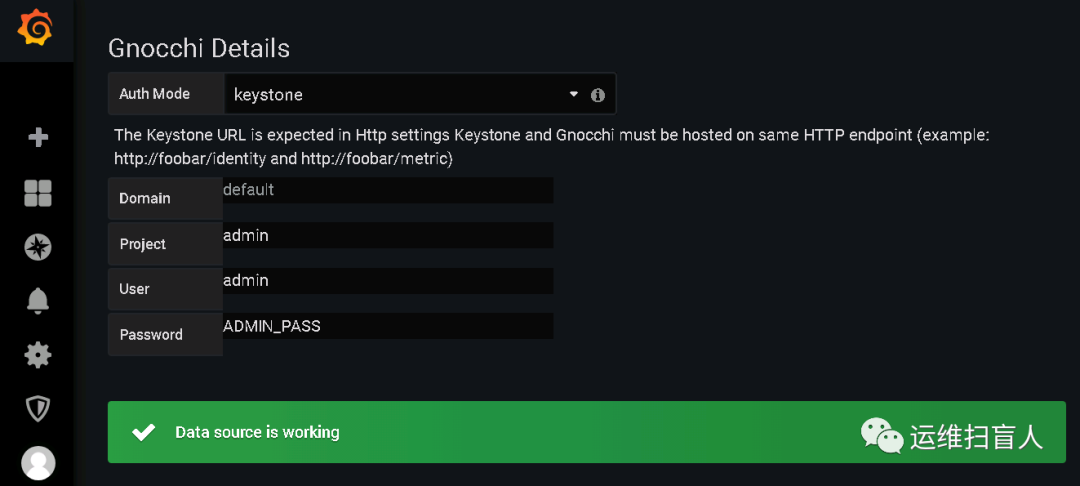

9.5 Dashboard添加数据源

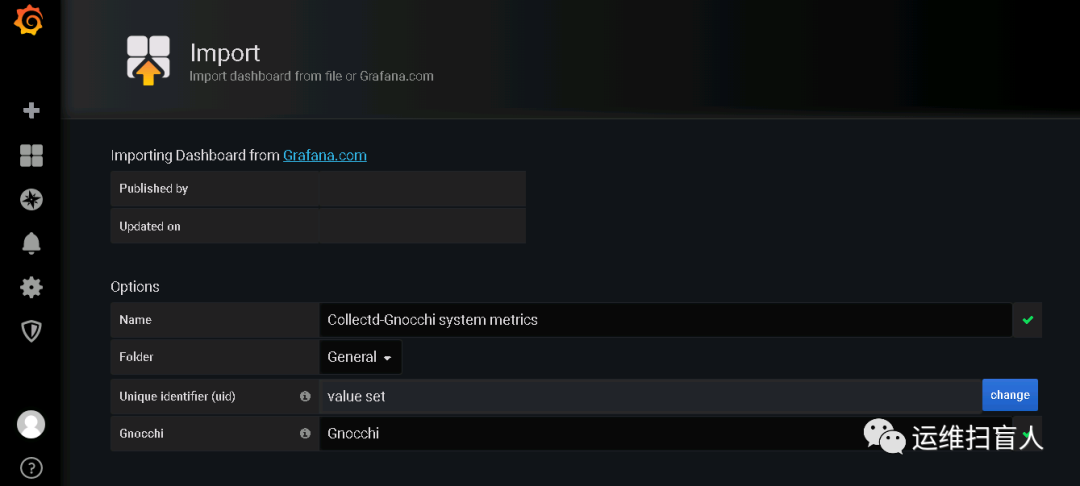

https://grafana.com/grafana/dashboards?dataSource=gnocchixyz-gnocchi-datasource

数据库

文章转载自运维扫盲人，如果涉嫌侵权，请发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。

OpenStack组件安装配置测试之：Ceilometer+Gnocchi

评论
