1、用户账户与用户组

1.1 User Account

一般指的独立于kubernetes之外的其他服务管理的用户账号，kubernetes不存在此类用户账号的对象；

1.2 Service Account

隶属于某个特定的namespace，用于让Pod内的容器进程访问其他服务时提供身份认证信息的账号；
每个Pod对象都只有一个服务账户，若创建时未明确指定则Serviceaccount的准入控制器会自动为其附加当前名称空间的默认服务账户；

[root@k8s-master-01 rbac]# kubectl get serviceaccount
NAME      SECRETS   AGE
default   1         83d
[root@k8s-master-01 rbac]# kubectl describe serviceaccount default
Name:                default
Namespace:           default
Labels:              <none>
Annotations:         <none>
Image pull secrets:  <none>
Mountable secrets:   default-token-2cbvl
Tokens:              default-token-2cbvl
Events:              <none>

[root@k8s-master-01 rbac]# kubectl get serviceaccounts --all-namespaces | grep default
configmap         default                              1         24d
default           default                              1         83d
dev               default                              1         78d
ingress-nginx     default                              1         71d
kube-node-lease   default                              1         83d
kube-public       default                              1         83d
kube-system       default                              1         83d
secret            default                              1         17d
statefulset       default                              1         10d
testing           default                              1         111m
tomcat-test       default                              1         71d

1.3 用户组

用户组只是用户账号的逻辑集合，kubernetes存在以下几个特殊的用户组：

system:unauthenticated：未能通过任何一个授权插件检验的账号；
system:authenticated：认证后的用户自动加入的组；
system:serviceaccounts：当前系统上的所有Service Account；
system:serviceaccounts:<namespace>：特定名称空间内的所有Service Account

API请求要么与Useraccount或Serviceaccount绑定要么视为匿名用户请求。

2、认证

2.1 kubernetes支持的认证方式

客户端证书
承载令牌
身份验证代理
HTTP Basic 认证

2.2 创建测试用户提供认证配置文件

生成私钥文件

[root@k8s-master-01 pki]# cd etc/kubernetes/pki/
[root@k8s-master-01 pki]# (umask 077; openssl genrsa -out kube-user1.key 2048)
Generating RSA private key, 2048 bit long modulus
.................+++++
.........+++++

创建证书签署请求

[root@k8s-master-01 pki]# openssl req -new -key kube-user1.key -out kube-user1.csr -subj "/CN=kube-user1/O=kubeusers"

使用kubeadmin生成的CA签署证书

[root@k8s-master-01 pki]# openssl x509 -req -in kube-user1.csr -CA ca.crt  -CAkey ca.key -CAcreateserial -out kube-user1.crt -days 3650
Signature ok
subject=/CN=kube-user1/O=kubeusers
Getting CA Private Key

验证证书信息

[root@k8s-master-01 pki]# openssl x509 -in kube-user1.crt -text -noout
Certificate:
    Data:
        Version: 1 (0x0)
        Serial Number:
            93:72:37:df:d0:81:49:b0
    Signature Algorithm: sha256WithRSAEncryption
        Issuer: CN=kubernetes
        Validity
            Not Before: Oct  5 02:18:51 2020 GMT
            Not After : Oct  3 02:18:51 2030 GMT
        Subject: CN=kube-user1, O=kubeusers
        Subject Public Key Info:
            Public Key Algorithm: rsaEncryption
                Public-Key: (2048 bit)
                Modulus:
                    00:f1:08:99:58:92:99:c1:41:1e:41:e9:15:26:68:
                    b9:2e:bf:b9:9f:2b:a4:78:a0:ac:bc:bd:a1:3e:83:
                    f3:48:f2:89:94:b2:e5:ca:09:76:0e:cf:5a:8e:10:
                    29:69:ce:35:83:8d:58:90:6d:e8:7f:6a:6a:b7:c9:
                    c1:b6:b1:1e:33:dd:ee:e2:ea:67:79:d5:4e:75:71:
                    d4:02:a2:0c:84:2c:54:b5:2d:80:22:1a:95:d6:39:
                    01:fa:4d:a8:bc:fb:86:24:80:36:ec:21:06:17:65:
                    3b:2e:89:8b:2f:f9:96:30:fa:9a:52:1d:09:aa:c2:
                    f7:c4:30:47:e3:81:7f:49:a2:33:df:8f:66:47:86:
                    60:99:1f:4b:fa:fb:aa:d1:16:1b:8c:76:ff:e6:3a:
                    26:f0:63:1b:d7:1c:5c:9f:89:5e:06:0a:06:86:fa:
                    21:f0:5f:00:50:93:08:12:3b:fd:37:25:69:de:dc:
                    50:0e:f4:d8:34:84:8f:a3:69:52:75:f9:42:e8:f7:
                    1e:a4:01:8f:24:e3:00:dd:9e:da:9a:03:22:8c:35:
                    49:b2:44:77:05:e3:32:fa:5f:5a:b1:c1:1d:be:a4:
                    bf:29:6b:85:90:7d:82:09:05:d5:a6:63:7e:ff:6f:
                    af:6e:83:71:d6:96:04:af:08:17:0f:fd:f6:9f:8a:
                    00:f7
                Exponent: 65537 (0x10001)
    Signature Algorithm: sha256WithRSAEncryption
         7b:64:19:1b:93:98:7a:b2:d5:aa:e6:28:0b:7b:6b:b9:a8:b4:
         a1:49:aa:07:5a:93:23:a1:33:7d:77:9c:54:67:d1:d0:c3:f9:
         2e:15:1a:0d:a8:bc:00:34:a5:44:48:a4:ee:15:88:7f:96:14:
         2f:9e:9b:bc:4a:22:30:88:3c:5c:1d:8f:7d:d8:a9:d4:ac:4b:
         5f:11:3e:f0:32:8b:f9:90:2e:c0:8a:bf:e8:94:b5:aa:1a:20:
         b8:c5:17:ba:e8:87:d5:4d:76:13:1a:3c:fb:20:86:fa:a2:97:
         58:1c:f5:f8:12:b4:67:73:d6:8d:20:59:b1:c9:52:b2:ad:67:
         6d:a3:95:16:e7:f8:3a:bc:f0:5a:e5:2f:ed:7e:6d:7f:d5:7a:
         fc:99:f2:da:c3:f5:ab:0d:74:bc:91:2c:d0:31:52:9e:b0:cf:
         94:36:cb:6d:1b:4d:e4:cb:45:c5:d4:17:0a:1f:be:c0:9c:14:
         82:86:9e:3d:0b:ae:4e:72:8c:32:ac:b4:20:f8:98:66:18:10:
         a7:b3:a5:a6:30:bd:62:93:f5:93:2f:c9:e7:fb:c9:16:0e:d3:
         23:fd:f3:e9:0a:a8:d3:4b:82:f9:8c:38:24:53:45:30:b7:d6:
         05:e3:ff:a9:ff:4f:f3:00:93:0e:55:1b:18:82:b3:d1:5d:02:
         c2:5b:b1:43

设定集群

[root@k8s-master-01 pki]# kubectl config set-cluster kubernetes --embed-certs=true --certificate-authority=/etc/kubernetes/pki/ca.crt --server="https://10.1.114.220:6443"
Cluster "kubernetes" set.

配置客户端证书及其密钥

[root@k8s-master-01 pki]# kubectl config set-credentials kube-user1 --embed-certs=true --client-certificate=/etc/kubernetes/pki/kube-user1.crt --client-key=/etc/kubernetes/pki/kube-user1.key
User "kube-user1" set.

设定context

[root@k8s-master-01 pki]# kubectl config set-context kube-user1@kubernetes --cluster=kubernetes --user=kube-user1
Context "kube-user1@kubernetes" created.

指定要使用的context

[root@k8s-master-01 pki]# kubectl config use-context kube-user1@kubernetes
Switched to context "kube-user1@kubernetes".

使用新用户测试

[root@k8s-master-01 pki]# kubectl get pods
Error from server (Forbidden): pods is forbidden: User "kube-user1" cannot list resource "pods" in API group "" in the namespace "default"

切换管理员账号

[root@k8s-master-01 pki]# kubectl config use-context kubernetes-admin@kubernetes

3、授权

kubernetes支持的授权插件一般有以下几种：

3.1 Node

3.2 ABAC

3.3 RBAC：Role-Based Access Control

通俗讲RBAC就是将权限的集合与用户的集合进行绑定，实现赋权的过程。

role/rolebindig

仅能作用于一个namespace；

[root@k8s-master-01 rbac]# kubectl create namespace testing
namespace/testing created
[root@k8s-master-01 rbac]# cat role.yaml
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: pods-reader
  namespace: testing
rules:
- apiGroups: [""]
  resources: ["pods", "pods/log"]
  verbs: ["get", "list", "watch"]
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: resources-reader
  namespace: testing
subjects:
- kind: User
  name: kube-user1
  apiGroup: rbac.authorization.k8s.io
roleRef:
  kind: Role
  name: pods-reader
  apiGroup: rbac.authorization.k8s.io
[root@k8s-master-01 rbac]# kubectl get role -n testing -o wide
NAME          CREATED AT
pods-reader   2020-10-05T06:46:55Z
[root@k8s-master-01 rbac]# kubectl get rolebinding -n testing -o wide
NAME               ROLE               AGE   USERS        GROUPS   SERVICEACCOUNTS
resources-reader   Role/pods-reader   95s   kube-user1

#kube-user1用户已经具有查看pod的权限
[root@k8s-master-01 rbac]# kubectl config use-context kube-user1@kubernetes
Switched to context "kube-user1@kubernetes".
[root@k8s-master-01 rbac]# kubectl get pods -n testing
No resources found in testing namespace.

cluster/clusterbinding

可以引用集群级别的资源；

[root@k8s-master-01 rbac]# kubectl get nodes
Error from server (Forbidden): nodes is forbidden: User "kube-user1" cannot list resource "nodes" in API group "" at the cluster scope
[root@k8s-master-01 rbac]# cat clusterrole.yaml
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: nodes-reader
rules:
- apiGroups: [""]
  resources: ["nodes"]
  verbs: ["get", "list"]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: cluster-resources-reader
subjects:
- kind: User
  name: kube-user1
  apiGroup: rbac.authorization.k8s.io
roleRef:
  kind: ClusterRole
  name: nodes-reader
  apiGroup: rbac.authorization.k8s.io
[root@k8s-master-01 rbac]# kubectl apply -f clusterrole.yaml
clusterrole.rbac.authorization.k8s.io/nodes-reader created
clusterrolebinding.rbac.authorization.k8s.io/cluster-resources-reader created

#kube-user1已经具有查看集群node的权限
[root@k8s-master-01 rbac]# kubectl config use-context kube-user1@kubernetes
Switched to context "kube-user1@kubernetes".
[root@k8s-master-01 rbac]# kubectl get nodes
NAME            STATUS   ROLES    AGE   VERSION
k8s-master-01   Ready    master   83d   v1.18.5
k8s-worker-01   Ready    <none>   83d   v1.18.5
k8s-worker-02   Ready    <none>   82d   v1.18.5

aggregation clusterrole

[root@k8s-master-01 rbac]# kubectl apply -f aggre-clusterrole.yaml
clusterrole.rbac.authorization.k8s.io/monitoring configured
clusterrole.rbac.authorization.k8s.io/monitoring-endpoints configured
[root@k8s-master-01 rbac]# cat aggre-clusterrole.yaml
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: monitoring
aggregationRule:
  clusterRoleSelectors:
  - matchLabels:
      rabc.example.com/aggregate-to-monitoring: "true"
rules: []
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: monitoring-endpoints
  labels:
    rabc.example.com/aggregate-to-monitoring: "true"
rules:
- apiGroups: [""]
  resources: ["services", "endpoints", "pods"]
  verbs: ["get", "list", "watch"]

#clusterrole资源对象monitoring拥有了monitoring-endpoints的全部rules
[root@k8s-master-01 rbac]# kubectl get clusterrole monitoring -o yaml
aggregationRule:
  clusterRoleSelectors:
  - matchLabels:
      rabc.example.com/aggregate-to-monitoring: "true"
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |
      {"aggregationRule":{"clusterRoleSelectors":[{"matchLabels":{"rabc.example.com/aggregate-to-monitoring":"true"}}]},"apiVersion":"rbac.authorization.k8s.io/v1","kind":"ClusterRole","metadata":{"annotations":{},"name":"monitoring"},"rules":[]}
  creationTimestamp: "2020-10-05T07:39:33Z"
  managedFields:
  - apiVersion: rbac.authorization.k8s.io/v1
    fieldsType: FieldsV1
    fieldsV1:
      f:rules: {}
    manager: kube-controller-manager
    operation: Update
    time: "2020-10-05T07:42:49Z"
  - apiVersion: rbac.authorization.k8s.io/v1
    fieldsType: FieldsV1
    fieldsV1:
      f:aggregationRule:
        .: {}
        f:clusterRoleSelectors: {}
      f:metadata:
        f:annotations:
          .: {}
          f:kubectl.kubernetes.io/last-applied-configuration: {}
    manager: kubectl
    operation: Update
    time: "2020-10-05T07:42:49Z"
  name: monitoring
  resourceVersion: "12036320"
  selfLink: apis/rbac.authorization.k8s.io/v1/clusterroles/monitoring
  uid: 4f77c2e9-5727-411d-8253-05f7a63a3a3e
rules:
- apiGroups:
  - ""
  resources:
  - services
  - endpoints
  - pods
  verbs:
  - get
  - list
  - watch

系统默认的非资源型URL

[root@k8s-master-01 rbac]# kubectl get clusterrole system:discovery -o yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
  creationTimestamp: "2020-07-14T04:25:43Z"
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
  managedFields:
  - apiVersion: rbac.authorization.k8s.io/v1
    fieldsType: FieldsV1
    fieldsV1:
      f:metadata:
        f:annotations:
          .: {}
          f:rbac.authorization.kubernetes.io/autoupdate: {}
        f:labels:
          .: {}
          f:kubernetes.io/bootstrapping: {}
      f:rules: {}
    manager: kube-apiserver
    operation: Update
    time: "2020-07-14T04:25:43Z"
  name: system:discovery
  resourceVersion: "46"
  selfLink: apis/rbac.authorization.k8s.io/v1/clusterroles/system%3Adiscovery
  uid: 9480a67d-b94f-4257-9276-e55f58617310
rules:
- nonResourceURLs:
  - api
  - api/*
  - apis
  - apis/*
  - healthz
  - livez
  - openapi
  - openapi/*
  - readyz
  - version
  - version/
  verbs:
  - get
[root@k8s-master-01 rbac]# kubectl get clusterrolebindings system:discovery -o yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
  creationTimestamp: "2020-07-14T04:25:43Z"
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
  managedFields:
  - apiVersion: rbac.authorization.k8s.io/v1
    fieldsType: FieldsV1
    fieldsV1:
      f:metadata:
        f:annotations:
          .: {}
          f:rbac.authorization.kubernetes.io/autoupdate: {}
        f:labels:
          .: {}
          f:kubernetes.io/bootstrapping: {}
      f:roleRef:
        f:apiGroup: {}
        f:kind: {}
        f:name: {}
      f:subjects: {}
    manager: kube-apiserver
    operation: Update
    time: "2020-07-14T04:25:43Z"
  name: system:discovery
  resourceVersion: "102"
  selfLink: apis/rbac.authorization.k8s.io/v1/clusterrolebindings/system%3Adiscovery
  uid: 49d8f4fd-6930-4ca7-ab03-df4b33fbdf27
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:discovery
subjects:
- apiGroup: rbac.authorization.k8s.io
  kind: Group
  name: system:authenticated

系统内建的集群级别的资源对象nodes

[root@k8s-master-01 rbac]# kubectl get clusterrole kubeadm:get-nodes  -o yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  creationTimestamp: "2020-07-14T04:25:44Z"
  managedFields:
  - apiVersion: rbac.authorization.k8s.io/v1
    fieldsType: FieldsV1
    fieldsV1:
      f:rules: {}
    manager: kubeadm
    operation: Update
    time: "2020-07-14T04:25:44Z"
  name: kubeadm:get-nodes
  resourceVersion: "182"
  selfLink: apis/rbac.authorization.k8s.io/v1/clusterroles/kubeadm%3Aget-nodes
  uid: b0e1f474-a072-478f-b1e7-dd82591069c5
rules:
- apiGroups:
  - ""
  resources:
  - nodes
  verbs:
  - get


  [root@k8s-master-01 rbac]# kubectl get clusterrolebindings kubeadm:get-nodes  -o yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  creationTimestamp: "2020-07-14T04:25:44Z"
  managedFields:
  - apiVersion: rbac.authorization.k8s.io/v1
    fieldsType: FieldsV1
    fieldsV1:
      f:roleRef:
        f:apiGroup: {}
        f:kind: {}
        f:name: {}
      f:subjects: {}
    manager: kubeadm
    operation: Update
    time: "2020-07-14T04:25:44Z"
  name: kubeadm:get-nodes
  resourceVersion: "183"
  selfLink: apis/rbac.authorization.k8s.io/v1/clusterrolebindings/kubeadm%3Aget-nodes
  uid: 489840d6-cfca-452a-960e-270bb4f3ff94
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kubeadm:get-nodes
subjects:
- apiGroup: rbac.authorization.k8s.io
  kind: Group
  name: system:bootstrappers:kubeadm:default-node-token

面向对象的内建clusterrole

[root@k8s-master-01 rbac]# kubectl get clusterrole cluster-admin  -o yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
  creationTimestamp: "2020-07-14T04:25:43Z"
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
  managedFields:
  - apiVersion: rbac.authorization.k8s.io/v1
    fieldsType: FieldsV1
    fieldsV1:
      f:metadata:
        f:annotations:
          .: {}
          f:rbac.authorization.kubernetes.io/autoupdate: {}
        f:labels:
          .: {}
          f:kubernetes.io/bootstrapping: {}
      f:rules: {}
    manager: kube-apiserver
    operation: Update
    time: "2020-07-14T04:25:43Z"
  name: cluster-admin
  resourceVersion: "45"
  selfLink: /apis/rbac.authorization.k8s.io/v1/clusterroles/cluster-admin
  uid: af890173-db09-4929-8226-7bcc19cf50a1
rules:
- apiGroups:
  - '*'
  resources:
  - '*'
  verbs:
  - '*'
- nonResourceURLs:
  - '*'
  verbs:
  - '*'
[root@k8s-master-01 rbac]# kubectl get clusterrolebindings cluster-admin  -o yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
  creationTimestamp: "2020-07-14T04:25:43Z"
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
  managedFields:
  - apiVersion: rbac.authorization.k8s.io/v1
    fieldsType: FieldsV1
    fieldsV1:
      f:metadata:
        f:annotations:
          .: {}
          f:rbac.authorization.kubernetes.io/autoupdate: {}
        f:labels:
          .: {}
          f:kubernetes.io/bootstrapping: {}
      f:roleRef:
        f:apiGroup: {}
        f:kind: {}
        f:name: {}
      f:subjects: {}
    manager: kube-apiserver
    operation: Update
    time: "2020-07-14T04:25:43Z"
  name: cluster-admin
  resourceVersion: "101"
  selfLink: /apis/rbac.authorization.k8s.io/v1/clusterrolebindings/cluster-admin
  uid: 0ef1a0b2-bb66-4002-ba72-65b0d13014f7
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- apiGroup: rbac.authorization.k8s.io
  kind: Group
  name: system:masters

4、准入插件

alwaysadmin
alwaysdeny
alwayspullimages

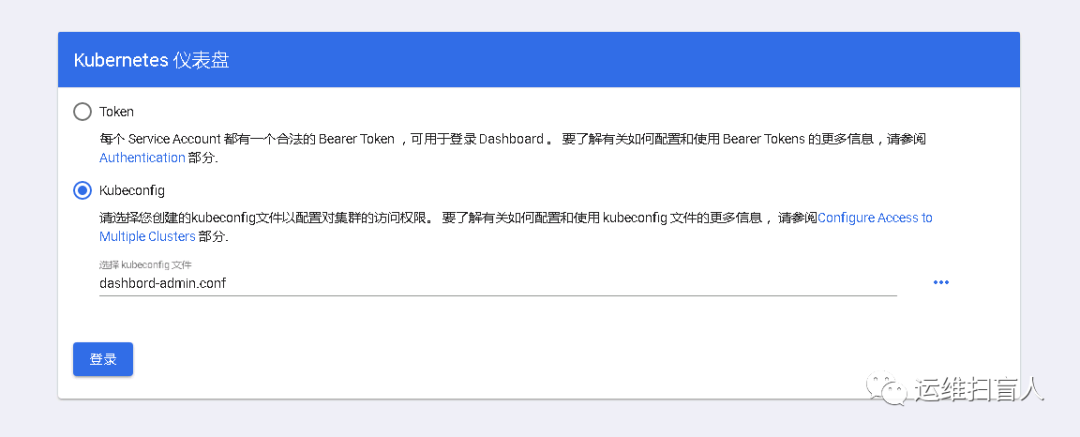

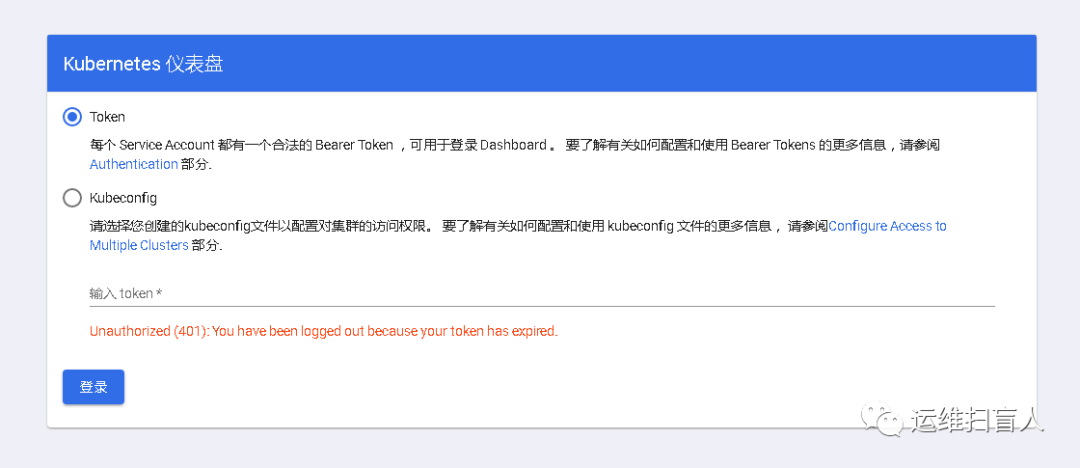

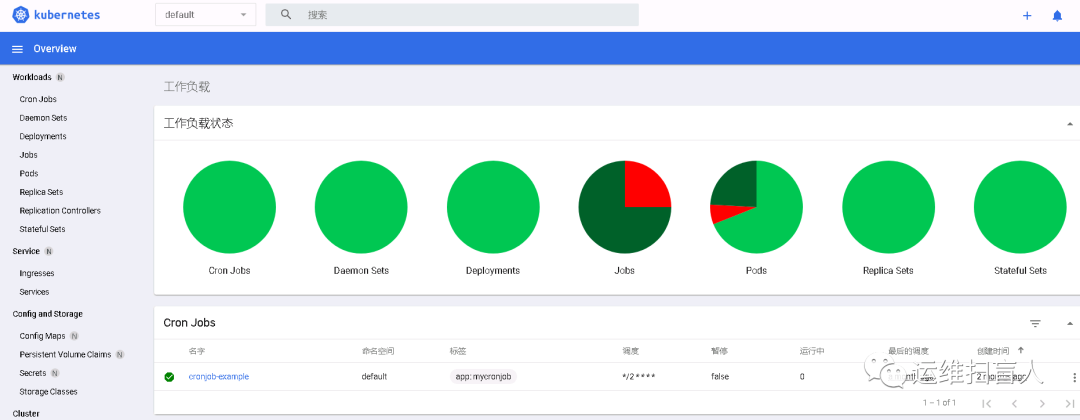

5、Kubernetes Dashboard

5.1 部署HTTPS通信的Dashboard

为secret生成私钥和证书

[root@k8s-master-01 dashboard]# (umask 077; openssl genrsa -out dashboard.key 2048)
Generating RSA private key, 2048 bit long modulus
....................+++++
.................+++++
e is 65537 (0x10001)
[root@k8s-master-01 dashboard]# openssl req -new -key dashboard.key  -out dashboard.csr -subj "/O=iLinux/CN=dashboard"
[root@k8s-master-01 dashboard]# openssl x509 -req -in dashboard.csr -CA etc/kubernetes/pki/ca.crt -CAkey etc/kubernetes/pki/ca.key -CAcreateserial -out dashboard.crt -days 3650
Signature ok
subject=/O=iLinux/CN=dashboard
Getting CA Private Key
[root@k8s-master-01 dashboard]# kubectl create secret generic kubernetes-dashbaord-certs -n kube-system --from-file=dashboard.crt=./dashboard.crt --from-file=dashboard.key=./dashboard.key -n kube-system
secret/kubernetes-dashbaord-certs created
[root@k8s-master-01 dashboard]# kubectl get secret kubernetes-dashbaord-certs -n kube-system
NAME                         TYPE     DATA   AGE
kubernetes-dashbaord-certs   Opaque   2      101s

创建dashboard的Pod资源对象

# Copyright 2017 The Kubernetes Authors.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.


apiVersion: v1
kind: Namespace
metadata:
  name: kubernetes-dashboard


---


apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard


---


kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 443
      targetPort: 8443
  selector:
    k8s-app: kubernetes-dashboard


---


apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-certs
  namespace: kubernetes-dashboard
type: Opaque


---


apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-csrf
  namespace: kubernetes-dashboard
type: Opaque
data:
  csrf: ""


---


apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-key-holder
  namespace: kubernetes-dashboard
type: Opaque


---


kind: ConfigMap
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-settings
  namespace: kubernetes-dashboard


---


kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
rules:
  # Allow Dashboard to get, update and delete Dashboard exclusive secrets.
  - apiGroups: [""]
    resources: ["secrets"]
    resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"]
    verbs: ["get", "update", "delete"]
    # Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.
  - apiGroups: [""]
    resources: ["configmaps"]
    resourceNames: ["kubernetes-dashboard-settings"]
    verbs: ["get", "update"]
    # Allow Dashboard to get metrics.
  - apiGroups: [""]
    resources: ["services"]
    resourceNames: ["heapster", "dashboard-metrics-scraper"]
    verbs: ["proxy"]
  - apiGroups: [""]
    resources: ["services/proxy"]
    resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"]
    verbs: ["get"]


---


kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
rules:
  # Allow Metrics Scraper to get metrics from the Metrics server
  - apiGroups: ["metrics.k8s.io"]
    resources: ["pods", "nodes"]
    verbs: ["get", "list", "watch"]


---


apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard


---


apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard


---


kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: kubernetes-dashboard
  template:
    metadata:
      labels:
        k8s-app: kubernetes-dashboard
    spec:
      containers:
        - name: kubernetes-dashboard
          image: kubernetesui/dashboard:v2.0.4
          imagePullPolicy: Always
          ports:
            - containerPort: 8443
              protocol: TCP
          args:
            - --auto-generate-certificates
            - --namespace=kubernetes-dashboard
            # Uncomment the following line to manually specify Kubernetes API server Host
            # If not specified, Dashboard will attempt to auto discover the API server and connect
            # to it. Uncomment only if the default does not work.
            # - --apiserver-host=http://my-address:port
          volumeMounts:
            - name: kubernetes-dashboard-certs
              mountPath: /certs
              # Create on-disk volume to store exec logs
            - mountPath: /tmp
              name: tmp-volume
          livenessProbe:
            httpGet:
              scheme: HTTPS
              path: /
              port: 8443
            initialDelaySeconds: 30
            timeoutSeconds: 30
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      volumes:
        - name: kubernetes-dashboard-certs
          secret:
            secretName: kubernetes-dashboard-certs
        - name: tmp-volume
          emptyDir: {}
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule


---


kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 8000
      targetPort: 8000
  selector:
    k8s-app: dashboard-metrics-scraper


---


kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: dashboard-metrics-scraper
  template:
    metadata:
      labels:
        k8s-app: dashboard-metrics-scraper
      annotations:
        seccomp.security.alpha.kubernetes.io/pod: 'runtime/default'
    spec:
      containers:
        - name: dashboard-metrics-scraper
          image: kubernetesui/metrics-scraper:v1.0.4
          ports:
            - containerPort: 8000
              protocol: TCP
          livenessProbe:
            httpGet:
              scheme: HTTP
              path: /
              port: 8000
            initialDelaySeconds: 30
            timeoutSeconds: 30
          volumeMounts:
          - mountPath: /tmp
            name: tmp-volume
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule
      volumes:
        - name: tmp-volume
          emptyDir: {}

[root@k8s-master-01 dashboard]# kubectl get svc -n  kubernetes-dashboard
NAME                        TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
dashboard-metrics-scraper   ClusterIP   10.111.26.34    <none>        8000/TCP   4m28s
kubernetes-dashboard        ClusterIP   10.103.244.15   <none>        443/TCP    4m28s

注意：1.7版本及之后默认创建的dashboard仅能通过kubectl proxy创建的代理于本机上进行访问，且默认创建的svc为ClusterIP类型的；

[root@k8s-master-01 dashboard]# kubectl proxy
Starting to serve on 127.0.0.1:8001

http://localhost:8001/api/v1/namespaces/kubernetes-dashboard/services/https:kubernetes-dashboard:/proxy/

修改默认svc为NodePort

[root@k8s-master-01 dashboard]# kubectl patch svc kubernetes-dashboard -p '{"spec":{"type":"NodePort"}}' -n kubernetes-dashboard
service/kubernetes-dashboard patched
[root@k8s-master-01 dashboard]# kubectl get svc -n kubeenetes-dashboard
No resources found in kubeenetes-dashboard namespace.
[root@k8s-master-01 dashboard]# kubectl get svc -n kubernetes-dashboard
NAME                        TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)         AGE
dashboard-metrics-scraper   ClusterIP   10.111.90.36    <none>        8000/TCP        20m
kubernetes-dashboard        NodePort    10.100.82.108   <none>        443:32276/TCP   20m

https://172.17.61.220:32276

5.2 配置token认证

创建用于管理kubernetes的ServiceAccount

[root@k8s-master-01 dashboard]#  kubectl create serviceaccount dashboard-admin -n kube-system

将新建的ServiceAccount与系统内建的cluster-admin集群角色进行绑定

[root@k8s-master-01 dashboard]# kubectl create clusterrolebinding dashboard-damin --clusterrole=cluster-admin --serviceaccount=kube-system:dashboard-admin

获取ServiceAccount的token信息

[root@k8s-master-01 dashboard]# kubectl get secret -n kube-system | grep admin
dashboard-admin-token-8k5qn                      kubernetes.io/service-account-token   3      18m
[root@k8s-master-01 dashboard]# kubectl describe secrets dashboard-admin-token-8k5qn -n kube-system
Name:         dashboard-admin-token-8k5qn
Namespace:    kube-system
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: dashboard-admin
              kubernetes.io/service-account.uid: c1d7031d-855d-4d0b-9902-d5d963c13fdf


Type:  kubernetes.io/service-account-token


Data
====
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6ImlSdmZUVVFtV3F1d0tialJldE9XUnhJYXRQYnhGVUhYOVhoQ0UxQXJGVGcifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJkYXNoYm9hcmQtYWRtaW4tdG9rZW4tOGs1cW4iLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGFzaGJvYXJkLWFkbWluIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiYzFkNzAzMWQtODU1ZC00ZDBiLTk5MDItZDVkOTYzYzEzZmRmIiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmUtc3lzdGVtOmRhc2hib2FyZC1hZG1pbiJ9.elQ7kbNfKvcGibqBMzCecRM_3UL8eaGEz7Lx88YJOnBsZkHtM895rXqrWse7Fq1rUTb-8Rh6rnv7oLBvM-OboVRjRgnFLhPf-XTVrYyK4uzvdFjucjKrrzCb-iMAwKM-9BpAUfSkvBoVeJ8l5p8WKYEW5S1Gt1n_QLUggywLqGOCCujvWldUYp5FbowErhfflW-r1qMSCoEnVkWGNe6iXxHsnjRA2pNeT9qcrRSdUiKy5khi2otKfCn2mwZhayqfqE5FY3M3cJTGb54Yvv3HUVBBf5D35cKjgGlknke3yEscwy1y_c_c1OpPoAWGR7ZIYFKmxGQ4yUsg49QjqPOKzg
ca.crt:     1025 byt

https://172.17.61.220:32276

5.3 配置kubeconfig

使用secret token登录用户多有不便，建议使用kubeconfig登录，kubeconfig为认证信息载体保存了证书及其私钥，配置过程与kube-user1用户的配置类似；

获取token

[root@k8s-master-01 pki]# DASH_TOCKEN=$(kubectl  get  secret  dashboard-admin-token-8k5qn -n kube-system -o jsonpath={.data.token} |base64 -d)

设置kubeconfig中的一个集群条目

[root@k8s-master-01 pki]# kubectl config set-cluster kubernetes --embed-certs=true --certificate-authority=/etc/kubernetes/pki/ca.crt --server="https://10.1.114.220:6443"
Cluster "kubernetes" set.

设置kubeconfig中的一个用户条目

[root@k8s-master-01 pki]# kubectl config set-credentials kube-user1 --token=$DASH_TOCKEN --kubeconfig=/usr/local/src/dashbord-admin.conf
User "kube-user1" set.

设置kubeconfig中的一个上下文条目

[root@k8s-master-01 pki]# kubectl config set-context kube-user1@kubernetes --cluster=kubernetes --user=kube-user1 --kubeconfig=/usr/local/src/dashbord-admin.conf
Context "kube-user1@kubernetes" created.

设置kubeconfig中的当前上下文

[root@k8s-master-01 pki]# kubectl config use-context kube-user1@kubernetes --kubeconfig=/usr/local/src/dashbord-admin.conf
Switched to context "kube-user1@kubernetes".

[root@k8s-master-01 src]# ll /usr/local/src/dashbord-admin.conf
-rw------- 1 root root 4810 Oct 10 17:10 /usr/local/src/dashbord-admin.conf

6、准入控制机制

经由认证授权插件分别完成身份认证和授权检查之后，准入控制器将拦截那些创建、删除、和更新相关的操作以强制实现控制器中定义的功能；

6.1 LimitRange与LimitRange准入控制器

LimitRange用于为每个容器指定最小和最大资源用量限制，支持限制容器、Pod和PersistentVolumeClaim；

[root@k8s-master-01 rbac]# cat limitrange.yaml
apiVersion: v1
kind: LimitRange
metadata:
  name: cpu-limit-range
spec:
  limits:
  - default:
      cpu: 1000m
    defaultRequest:
      cpu: 1000m
    min:
      cpu: 500m
    max:
      cpu: 2000m
    maxLimitRequestRatio:
      cpu: 4
    type: Container
[root@k8s-master-01 rbac]# kubectl get limitrange
NAME              CREATED AT
cpu-limit-range   2020-10-15T11:17:00Z

[root@k8s-master-01 rbac]# kubectl run limit-pod1 --image=ikubernetes/myapp:v1 --restart=Never
pod/limit-pod1 created
[root@k8s-master-01 rbac]# kubectl describe pod  limit-pod1
Containers:
  limit-pod1:
    Container ID:   docker://274bdec0ba91feb1939fc769c89c1d06b566a789a0565b4a490b353cd1562280
    Image:          ikubernetes/myapp:v1
    Image ID:       docker-pullable://ikubernetes/myapp@sha256:9c3dc30b5219788b2b8a4b065f548b922a34479577befb54b03330999d30d513
    Port:           <none>
    Host Port:      <none>
    State:          Running
      Started:      Thu, 15 Oct 2020 19:19:40 +0800
    Ready:          True
    Restart Count:  0
    Limits:
      cpu:  1
    Requests:
      cpu:        1
    Environment:  <none>
    Mounts:
      /var/run/secrets/kubernetes.io/serviceaccount from default-token-2cbvl (ro)

验证：在default名称空间创建的Pod对象满足默认CPU值1；

[root@k8s-master-01 rbac]# kubectl run limit-pod2 --image=ikubernetes/myapp:v1 --restart=Never  --requests="cpu=400m"
Error from server (Forbidden): pods "limit-pod2" is forbidden: minimum cpu usage per Container is 500m, but request is 400m
[root@k8s-master-01 rbac]# kubectl run limit-pod3 --image=ikubernetes/myapp:v1 --restart=Never  --requests="cpu=3000m"
The Pod "limit-pod3" is invalid: spec.containers[0].resources.requests: Invalid value: "3": must be less than or equal to cpu limit

验证：当Podcast对象设定的CPU值大于或者小于LimitRange限定的值时会报错；

6.2 ResourceQuota与ResourceQuota准入控制器

ResourceQuota属于名称空间级别资源，ResourceQuota准入控制器将跟踪名称空间中创建资源的情况，确保不超相应的资源限制；
需要注意的是在namespace中启用了CPU和内存等系统资源的配额之后，用户在创建Podcast对象时必须指定资源需求或资源限制；
资源配额只对那些在ResourceQuota创建之后生成的对象有效，对已经存在的对象不会产生任何限制；

[root@k8s-master-01 rbac]# kubectl create  namespace test
namespace/test created
[root@k8s-master-01 rbac]# cat resourcequota.yaml
apiVersion: v1
kind: ResourceQuota
metadata:
  name: quota-example
  namespace: test
spec:
  hard:
    pods: 5
    requests.cpu: 1
    requests.memory: 1Gi
    limits.cpu: 2
    limits.memory: 2Gi
    count/deployments.apps: 1
    count/deployments.extensions: 1
    persistentvolumeclaims: 2
[root@k8s-master-01 rbac]# kubectl apply -f resourcequota.yaml  -n test
resourcequota/quota-example configured
[root@k8s-master-01 rbac]# kubectl describe quota quota-example -n test
Name:                         quota-example
Namespace:                    test
Resource                      Used  Hard
--------                      ----  ----
count/deployments.apps        0     1
count/deployments.extensions  0     1
limits.cpu                    0     2
limits.memory                 0     2Gi
persistentvolumeclaims        0     2
pods                          0     5
requests.cpu                  0     1
requests.memory               0     1Gi
#为了直观了解ResourceQuota的特性，本例子中新创建了一个namespace；

[root@k8s-master-01 rbac]# kubectl run myapp-deploy --image=ikubernetes/myapp:v1 --replicas=1 --namespace=test --requests="cpu=200m,memory=256Mi" --limits="cpu=500m,memory=256Mi"
Flag --replicas has been deprecated, has no effect and will be removed in the future.
pod/myapp-deploy created
[root@k8s-master-01 rbac]# kubectl describe quota quota-example -n test
Name:                         quota-example
Namespace:                    test
Resource                      Used   Hard
--------                      ----   ----
count/deployments.apps        0      1
count/deployments.extensions  0      1
limits.cpu                    500m   2
limits.memory                 256Mi  2Gi
persistentvolumeclaims        0      2
pods                          1      5
requests.cpu                  200m   1
requests.memory               256Mi  1Gi
#通过在test名称空间创建deployment后查看配额信息，发现可用资源已经相应减小；

6.3 PodSecurityPolicy与PodSecurityPolicy准入控制器

PodSecurityPolicy(PSP)是集群级别的资源，用于控制用户在配置Pod资源时可以使用的特权类属性；
默认情况下，PSP处于未开启状态，原因是在为创建任何PSP对象时启用此准入控制器将阻止创建任何Podcast对象；
启用PSP准入控制器后若要部署任何Podcast对象，则相关的User Account和Service Account必须获得相应的安全策略权限；
即便启用了PSP准入控制器，PSP也不会生效，而必须由相应的授权插件（如RBAC）将PSP的use操作授权给相应的Role或者ClusterRole，而后与User Account或者Service Account完成绑定；

（A）创建特权PSP

[root@k8s-master-01 rbac]# cat podsecuritypolicy-privileged.yaml
apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
  name: privileged
  annotations:
    sccomp.security.alpha.kubernetes.io/allowedProfileNames: '*'
spec:
  privileged: true
  allowPrivilegeEscalation: true
  allowedCapabilities:
  - '*'
  volumes:
  - '*'
  hostNetwork: true
  hostPorts:
  - min: 0
    max: 65535
  hostIPC: true
  hostPID: true
  runAsUser:
    rule: 'RunAsAny'
  seLinux:
    rule: 'RunAsAny'
  supplementalGroups:
    rule: 'RunAsAny'
  fsGroup:
    rule: 'RunAsAny'

（B）创建非特权的PSP

[root@k8s-master-01 rbac]# cat podsecuritypolicy-restricted.yaml
apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
  name: restricted
  annotations:
    sccomp.security.alpha.kubernetes.io/allowedProfileNames: 'docker/default'
    sccomp.security.beta.kubernetes.io/allowedProfileNames: 'runtime/default'
    sccomp.security.alpha.kubernetes.io/allowedProfileNames: 'docker/default'
    sccomp.security.beta.kubernetes.io/allowedProfileNames: 'runtime/default'
spec:
  privileged: false
  allowPrivilegeEscalation: false
  requiredDropCapabilities:
    - ALL
  volumes:
  - 'configMap'
  - 'emptyDir'
  - 'projected'
  - 'secret'
  - 'downwardAPI'
  hostNetwork: false
  hostIPC: false
  hostPID: false
  runAsUser:
    rule: 'MustRunAsNonRoot'
  seLinux:
    rule: 'RunAsAny'
  supplementalGroups:
    rule: 'RunAsAny'
    ranges:
      - min: 1
        max: 65535
  fsGroup:
    rule: 'MustRunAs'
    ranges:
      - min: 1
        max: 65535
  readOnlyRootFilesystem: false
#restricted禁止了大部分权限；

（C）创建两类ClusterRole使其具有相应PSP的use权限

[root@k8s-master-01 rbac]# cat psp-podsecurity-clusterrole.yaml
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: psp.restricted
rules:
- apiGroups: ["policy"]
  resources: ["podsecuritypolicies"]
  verbs: ["use"]
  resourceNames:
  - restricted
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: psp.privileged
rules:
- apiGroups: ["policy"]
  resources: ["podsecuritypolicies"]
  verbs: ["use"]
  resourceNames:
  - privileged

（D）将ClusterRole与User Account完成绑定

[root@k8s-master-01 rbac]# cat psp-podsecurity-clusterrolebinding.yaml
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: privileged-psp-user
roleRef:
  kind: ClusterRole
  name: psp.privileged
  apiGroup: rbac.authorization.k8s.io
subjects:
- kind: Group
  name: system:masters
  apiGroup: rbac.authorization.k8s.io
- kind: Group
  name: system:node
  apiGroup: rbac.authorization.k8s.io
- kind: Group
  name: system:serviceaccounts:kube-system
  apiGroup: rbac.authorization.k8s.io
#privileged与system:node、system:serviceaccounts:kube-system绑定；
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: restricted-psp-user
roleRef:
  kind: ClusterRole
  name: psp.restricted
  apiGroup: rbac.authorization.k8s.io
subjects:
- kind: Group
  name: system:authenticated
  apiGroup: rbac.authorization.k8s.io
#retricted与system:authorizzation绑定；

（E）测试

使用kube-user1授权testing名称空间的get、list、create权限；

[root@k8s-master-01 rbac]# kubectl get podsecuritypolicy
NAME                       PRIV    CAPS        SELINUX    RUNASUSER          FSGROUP     SUPGROUP   READONLYROOTFS   VOLUMES
privileged                 true    *           RunAsAny   RunAsAny           RunAsAny    RunAsAny   false            *
restricted                 false               RunAsAny   MustRunAsNonRoot   MustRunAs   RunAsAny   false            configMap,emptyDir,projected,secret,downwardAPI

[root@k8s-master-01 rbac]# cat role.yaml
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: pods-reader
  namespace: testing
rules:
- apiGroups: [""]
  resources: ["pods", "pods/log"]
  verbs: ["get", "list", "watch","create"]
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: resources-reader
  namespace: testing
subjects:
- kind: User
  name: kube-user1
  apiGroup: rbac.authorization.k8s.io
roleRef:
  kind: Role
  name: pods-reader
  apiGroup: rbac.authorization.k8s.io
[root@k8s-master-01 rbac]# kubectl config use-context kube-user1@kubernetes
[root@k8s-master-01 rbac]# kubectl apply -f podsecurity-pod-test.yaml
Error from server (Forbidden): error when creating "podsecurity-pod-test.yaml": pods "pod-with-securitycontext" is forbidden: unable to validate against any pod security policy: [spec.containers[0].securityContext.privileged: Invalid value: true: Privileged containers are not allowed]
#切换context后创建Pod发现提示securitycontext.privileged is not allowed;

数据库

文章转载自运维扫盲人，如果涉嫌侵权，请发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。

kubernetes配置之十：认证、授权、准入

评论
