kubernetes配置之五：service&&ingress

运维扫盲人 2020-07-30

356

第一部分 Service发布Pod容器服务

一、service

1.1 service与kube-proxy的关系

service对象就是工作节点上的一组iptables或者ipvs规则，用于将到达service对象IP地址上的流量调度至endpoints指向的IP或者端口上；
每个工作节点上的kube-proxy通过API server持续监控各service及其关联Pod对象的变化，将其变化实时表现在iptables或者ipvs上。

1.2 service代理模型

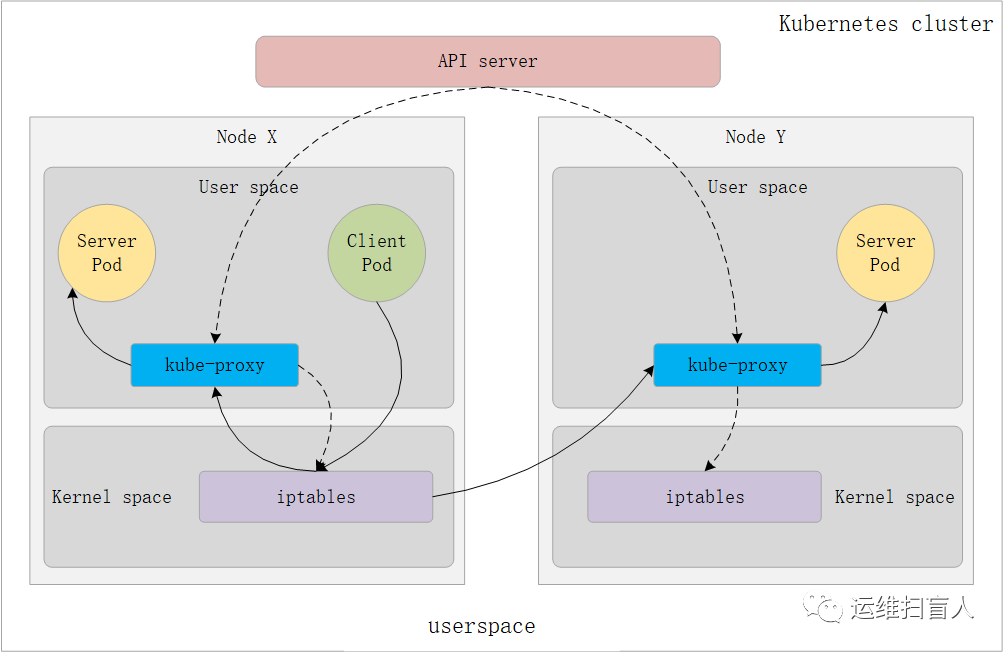

1.2.1 userspace代理模型

client请求流量到达某node的内核空间，内核将流量转发至当前node节点用户空间的kube-proxy，kube-proxy将根据iptables规则转发至对应的Server Pod；
userspace模式需要将client的请求流量在内核空间与用户空间来回转发两次；
userspace模式中，kube-proxy每次转发流量至对应的Pod时都会检测Pod的健康性，缺点是效率低。

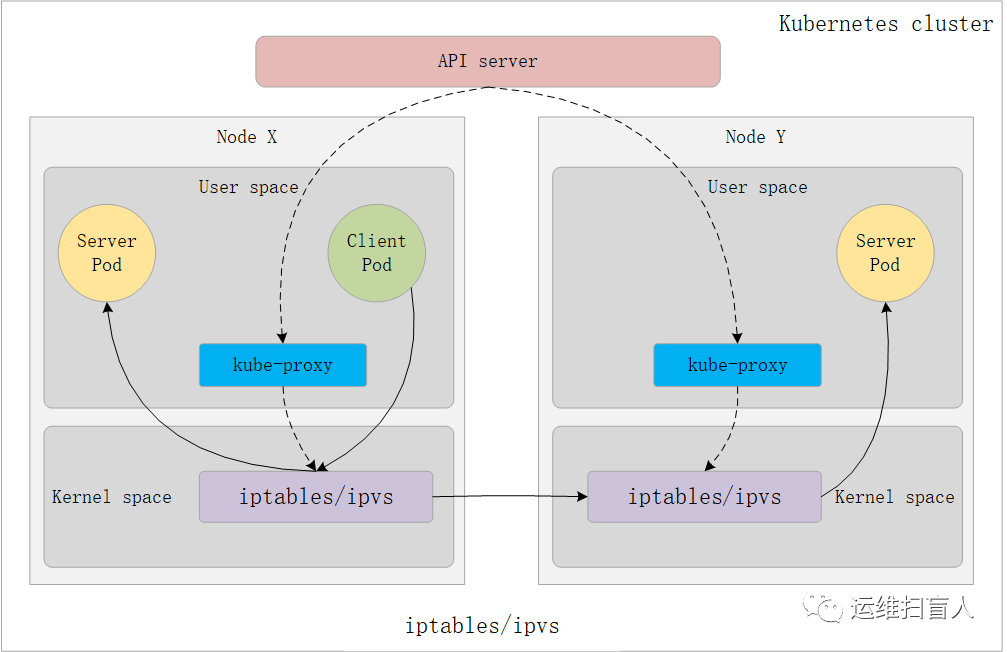

1.2.2 iptables&&ipvs代理模型

当前k8s版本将iptables设为默认模式；
当client 的请求流量到达某个Node的内核空间后直接根据kube-proxy生成的iptables或者ipvs规则转发至对应的Server Pod，而无须转发至用户空间的kube-proxy；
ipvs所支持的调度算法比iptables更丰富。

1.3 Endpoint

k8s集群中创建一个service，就会生成一个同名的endpoint对象，endpoint就是service关联的pod的ip地址和端口的集合；
service由一组后端pod组成，这些后端的pod通过service endpoint暴露出来，如果有一个新的pod被创建出来，且pod的标签名称(label:pod)与service里面的标签（label selector 的label）一致会自动加入到service的endpoints 里面，如果pod对象终止后，pod 会自动从edponts 中移除。
service不仅可以代理Pod还可以代理任意其他的后端服务，但是必须定义同名的service和endpoints来实现；

[root@k8s-master-01 service]# kubectl get endpoints
NAME                  ENDPOINTS                                                         AGE
kubernetes            10.1.114.220:6443                                                 14d
myapp-svc-clusterip   10.244.1.14:80,10.244.1.15:80,10.244.3.6:80                       19h
myapp-svc-headless    10.244.1.14:80,10.244.1.15:80,10.244.3.6:80                       19h
myapp-svc-nodeport    10.244.1.14:80,10.244.1.15:80,10.244.3.6:80                       19h

1.4 Service类型

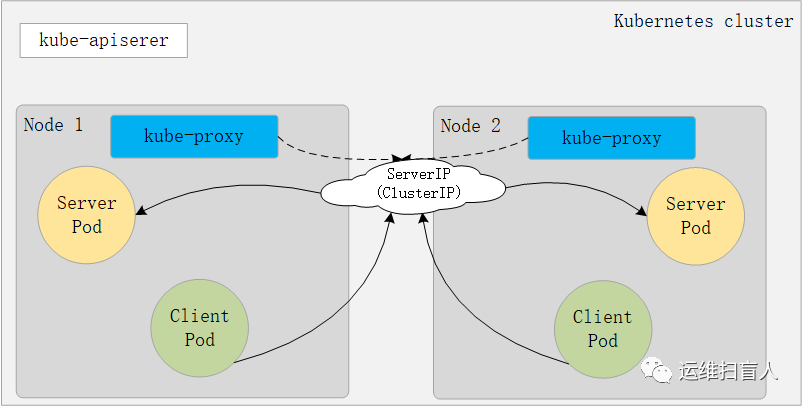

1.4.1 ClusterIP

ClusterIP为一个虚拟IP，该模式只能用于在集群内部通信；
ClusterIP为service的默认代理类型；

[root@k8s-master-01 service]# cat myapp-svc.yaml
kind: Service
apiVersion: v1
metadata:
  name: myapp-svc-clusterip
spec:
  type: ClusterIP
  selector:
    app: myapp
  ports:
  - protocol: TCP
    port: 80
    targetPort: 80
  #基于客户端IP设置会话粘性
  sessionAffinity: ClientIP
  sessionAffinityConfig:
    clientIP:
      #会话保持长
      timeoutSeconds: 20800
[root@k8s-master-01 service]# kubectl apply -f myapp-svc.yaml
service/myapp-svc-clusterip created
[root@k8s-master-01 service]# kubectl get -f myapp-svc.yaml
NAME                  TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)   AGE
myapp-svc-clusterip   ClusterIP   10.110.45.75   <none>        80/TCP    82s

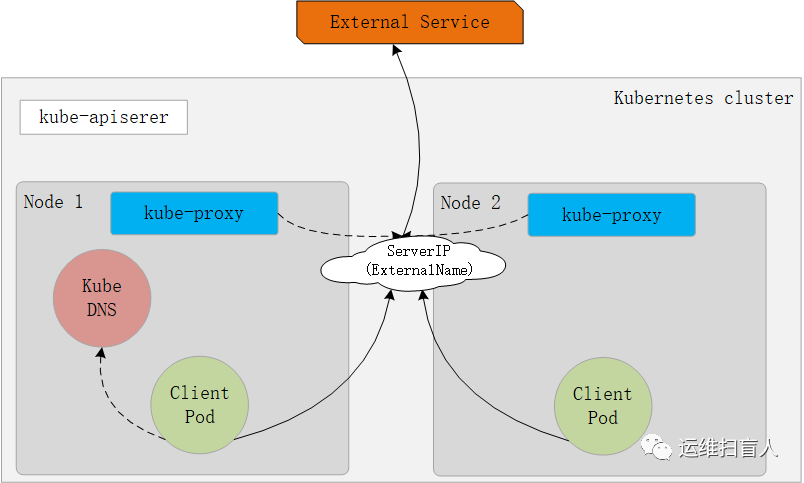

1.4.2 External

用于kubernetes集群访问外部service，该外部service需要被coreDNS解析到；

[root@k8s-master-01 service]# cat myapp-svc
[root@k8s-master-01 service]# cat myapp-svc-external.yaml
kind: Service
apiVersion: v1
metadata:
  name: myapp-svc-external
spec:
  type: ExternalName
 # externalName: redis.ilinux.io
  externalName: k8s-master-02
  selector: {}
  ports:
  - protocol: TCP
    port: 6379
    targetPort: 6379
    nodePort: 0
[root@k8s-master-01 service]# kubectl apply -f myapp-svc-external.yaml
service/myapp-svc-external created
[root@k8s-master-01 service]# kubectl get -f myapp-svc-external.yaml
NAME                 TYPE           CLUSTER-IP   EXTERNAL-IP     PORT(S)    AGE
myapp-svc-external   ExternalName   <none>       k8s-master-02   6379/TCP   11s

1.4.3 NodePort

用于将service暴露在node节点的指定端口上（NodePort）；
只支持端口暴露服务，不支持域名；
NodePort：3000~32767

[root@k8s-master-01 service]# cat myapp-svc-nodeport.yaml
kind: Service
apiVersion: v1
metadata:
  name: myapp-svc-nodeport
spec:
  type: NodePort
  selector:
    app: myapp
  ports:
  - protocol: TCP
    port: 80
    targetPort: 80
    nodePort: 32223
[root@k8s-master-01 service]# kubectl apply -f myapp-svc-nodeport.yaml
service/myapp-svc-nodeport created
[root@k8s-master-01 service]# kubectl get -f myapp-svc-nodeport.yaml
NAME                 TYPE       CLUSTER-IP     EXTERNAL-IP   PORT(S)        AGE
myapp-svc-nodeport   NodePort   10.106.42.85   <none>        80:32223/TCP   11s

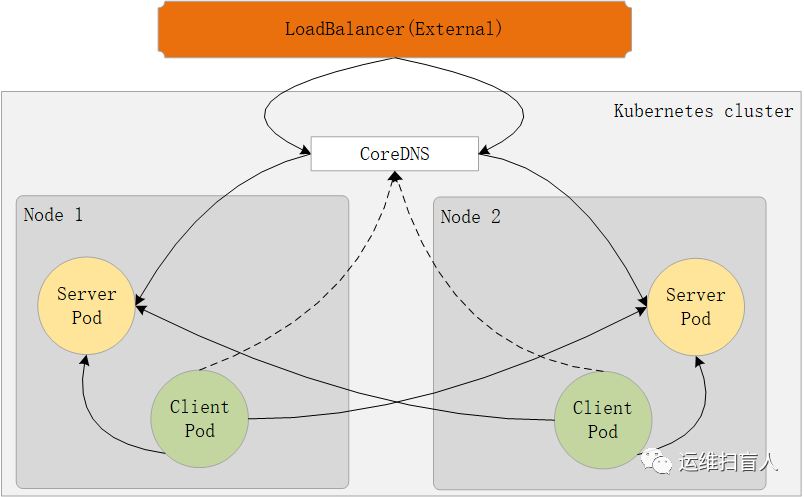

1.4.4 Headless

配置时clusterIP需要明确指定为None；
用于将每个Pod直接暴露给外部；

[root@k8s-master-01 service]# cat myapp-svc-headless.yaml
kind: Service
apiVersion: v1
metadata:
  name: myapp-svc-headless
spec:
  clusterIP: None
  selector:
    app: myapp
  ports:
  - protocol: TCP
    port: 80
    targetPort: 80
    name: httpport
[root@k8s-master-01 service]# kubectl apply -f myapp-svc-headless.yaml
service/myapp-svc-headless created
[root@k8s-master-01 service]# kubectl get -f myapp-svc-headless.yaml
NAME                 TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)   AGE
myapp-svc-headless   ClusterIP   None         <none>        80/TCP    6s

二、服务发现

2.1 服务发现和ClusterDNS

kubernetes系统上用于名称解析和服务发现的clusterDNS是集群的核心组件之一；
集群中的各个Pod会自动配置ClusterDNS为其名称解析服务器；
创建service时，ClusterDNS会自动创建资源记录用于名称解析和服务注册；
每个service对象都会包含如下两个资源记录：
SVCNAME.NAMESPACE.CLUSTER_DOMAIN
SVCNAME.NAMESPACE.svc.CLUSTER_DOMAIN
kubernetes1.11版本后，CoreDNS取代kubeDNS成为默认的DNS附件；

[root@k8s-master-01 ~]# kubectl get svc -n kube-system -o wide
NAME       TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)                  AGE   SELECTOR
kube-dns   ClusterIP   10.96.0.10   <none>        53/UDP,53/TCP,9153/TCP   14d   k8s-app=kube-dns


#创建一个临时Client Pod做测试
[root@k8s-master-01 service]# kubectl run cirros --rm -it --image=cirros -- sh
If you don't see a command prompt, try pressing enter.
/ # cat etc/resolv.conf
nameserver 10.96.0.10
search default.svc.cluster.local svc.cluster.local cluster.local localdomain
/ # ping myapp-svc-nodeport.default
PING myapp-svc-nodeport.default (10.106.42.85): 56 data bytes

第二部分 Ingress发布Service服务

一、ingress-nginx控制器部署

ingress控制器不会随着集群部署而自动部署，需要手动创建；
ingress发布服务的方式有多种，例如nginx、keepalived等等；

1.1 在每个worker上下载需要的image

docker pull registry.cn-qingdao.aliyuncs.com/kubernetes_xingej/defaultbackend-amd64:1.5
docker pull registry.cn-qingdao.aliyuncs.com/kubernetes_xingej/nginx-ingress-controller:0.20.0

1.2 下载ingress-nginx.ymal资源申明文件

wget  https://raw.githubusercontent.com/kubernetes/ingress-nginx/nginx-0.20.0/deploy/mandatory.yaml

1.3 修改清单文件

sed -i 's#k8s.gcr.io/defaultbackend-amd64#registry.cn-qingdao.aliyuncs.com/kubernetes_xingej/defaultbackend-amd64#g' mandatory.yaml
sed -i 's#quay.io/kubernetes-ingress-controller/nginx-ingress-controller#registry.cn-qingdao.aliyuncs.com/kubernetes_xingej/nginx-ingress-controller#g' mandatory.yaml
grep image mandatory.yaml

注意：不修改镜像源地址会报错，导致ingress-nginx部署失败。

1.4 nginx-ingress.yaml文件

[root@k8s-master-01 sucess]# cat mandatory.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: ingress-nginx


---


apiVersion: apps/v1
kind: Deployment
metadata:
  name: default-http-backend
  labels:
    app.kubernetes.io/name: default-http-backend
    app.kubernetes.io/part-of: ingress-nginx
  namespace: ingress-nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app.kubernetes.io/name: default-http-backend
      app.kubernetes.io/part-of: ingress-nginx
  template:
    metadata:
      labels:
        app.kubernetes.io/name: default-http-backend
        app.kubernetes.io/part-of: ingress-nginx
    spec:
      terminationGracePeriodSeconds: 60
      containers:
        - name: default-http-backend
          # Any image is permissible as long as:
          # 1. It serves a 404 page at
          # 2. It serves 200 on a healthz endpoint
          image: registry.cn-qingdao.aliyuncs.com/kubernetes_xingej/defaultbackend-amd64:1.5
          livenessProbe:
            httpGet:
              path: /healthz
              port: 8080
              scheme: HTTP
            initialDelaySeconds: 30
            timeoutSeconds: 5
          ports:
            - containerPort: 8080
          resources:
            limits:
              cpu: 10m
              memory: 20Mi
            requests:
              cpu: 10m
              memory: 20Mi


---
apiVersion: v1
kind: Service
metadata:
  name: default-http-backend
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: default-http-backend
    app.kubernetes.io/part-of: ingress-nginx
spec:
  ports:
    - port: 80
      targetPort: 8080
  selector:
    app.kubernetes.io/name: default-http-backend
    app.kubernetes.io/part-of: ingress-nginx


---


kind: ConfigMap
apiVersion: v1
metadata:
  name: nginx-configuration
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx


---


kind: ConfigMap
apiVersion: v1
metadata:
  name: tcp-services
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx


---


kind: ConfigMap
apiVersion: v1
metadata:
  name: udp-services
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx


---


apiVersion: v1
kind: ServiceAccount
metadata:
  name: nginx-ingress-serviceaccount
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx


---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRole
metadata:
  name: nginx-ingress-clusterrole
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
rules:
  - apiGroups:
      - ""
    resources:
      - configmaps
      - endpoints
      - nodes
      - pods
      - secrets
    verbs:
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - nodes
    verbs:
      - get
  - apiGroups:
      - ""
    resources:
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - "extensions"
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - events
    verbs:
      - create
      - patch
  - apiGroups:
      - "extensions"
    resources:
      - ingresses/status
    verbs:
      - update


---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: Role
metadata:
  name: nginx-ingress-role
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
rules:
  - apiGroups:
      - ""
    resources:
      - configmaps
      - pods
      - secrets
      - namespaces
    verbs:
      - get
  - apiGroups:
      - ""
    resources:
      - configmaps
    resourceNames:
      # Defaults to "<election-id>-<ingress-class>"
      # Here: "<ingress-controller-leader>-<nginx>"
      # This has to be adapted if you change either parameter
      # when launching the nginx-ingress-controller.
      - "ingress-controller-leader-nginx"
    verbs:
      - get
      - update
  - apiGroups:
      - ""
    resources:
      - configmaps
    verbs:
      - create
  - apiGroups:
      - ""
    resources:
      - endpoints
    verbs:
      - get


---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: RoleBinding
metadata:
  name: nginx-ingress-role-nisa-binding
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: nginx-ingress-role
subjects:
  - kind: ServiceAccount
    name: nginx-ingress-serviceaccount
    namespace: ingress-nginx


---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
  name: nginx-ingress-clusterrole-nisa-binding
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: nginx-ingress-clusterrole
subjects:
  - kind: ServiceAccount
    name: nginx-ingress-serviceaccount
    namespace: ingress-nginx


---


apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-ingress-controller
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app.kubernetes.io/name: ingress-nginx
      app.kubernetes.io/part-of: ingress-nginx
  template:
    metadata:
      labels:
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
      annotations:
        prometheus.io/port: "10254"
        prometheus.io/scrape: "true"
    spec:
      serviceAccountName: nginx-ingress-serviceaccount
      containers:
        - name: nginx-ingress-controller
          image: registry.cn-qingdao.aliyuncs.com/kubernetes_xingej/nginx-ingress-controller:0.20.0
          args:
            - /nginx-ingress-controller
            - --default-backend-service=$(POD_NAMESPACE)/default-http-backend
            - --configmap=$(POD_NAMESPACE)/nginx-configuration
            - --tcp-services-configmap=$(POD_NAMESPACE)/tcp-services
            - --udp-services-configmap=$(POD_NAMESPACE)/udp-services
            - --publish-service=$(POD_NAMESPACE)/ingress-nginx
            - --annotations-prefix=nginx.ingress.kubernetes.io
          securityContext:
            capabilities:
              drop:
                - ALL
              add:
                - NET_BIND_SERVICE
            # www-data -> 33
            runAsUser: 33
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
          ports:
            - name: http
              containerPort: 80
            - name: https
              containerPort: 443
          livenessProbe:
            failureThreshold: 3
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          readinessProbe:
            failureThreshold: 3
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1

1.5 应用并查看创建的ingress-nginx资源

[root@k8s-master-01 sucess]# kubectl get -f mandatory.yaml
NAME                      STATUS   AGE
namespace/ingress-nginx   Active   2d18h


NAME                                   READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/default-http-backend   1/1     1            1           2d18h


NAME                           TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)   AGE
service/default-http-backend   ClusterIP   10.106.145.204   <none>        80/TCP    2d18h


NAME                            DATA   AGE
configmap/nginx-configuration   0      2d18h
configmap/tcp-services          0      2d18h
configmap/udp-services          0      2d18h


NAME                                          SECRETS   AGE
serviceaccount/nginx-ingress-serviceaccount   1         2d18h


NAME                                                              CREATED AT
clusterrole.rbac.authorization.k8s.io/nginx-ingress-clusterrole   2020-07-25T10:34:45Z


NAME                                                CREATED AT
role.rbac.authorization.k8s.io/nginx-ingress-role   2020-07-25T10:34:45Z


NAME                                                                    ROLE                      AGE
rolebinding.rbac.authorization.k8s.io/nginx-ingress-role-nisa-binding   Role/nginx-ingress-role   2d18h


NAME                                                                                  ROLE                                    AGE
clusterrolebinding.rbac.authorization.k8s.io/nginx-ingress-clusterrole-nisa-binding   ClusterRole/nginx-ingress-clusterrole   2d18h


NAME                                       READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/nginx-ingress-controller   1/1     1            1           2d18h
[root@k8s-master-01 sucess]# kubectl get svc -n ingress-nginx
NAME                   TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                      AGE
default-http-backend   ClusterIP   10.106.145.204   <none>        80/TCP                       2d18h
[root@k8s-master-01 sucess]# kubectl get deployment -n ingress-nginx
NAME                       READY   UP-TO-DATE   AVAILABLE   AGE
default-http-backend       1/1     1            1           2d18h
nginx-ingress-controller   1/1     1            1           2d18h

二、使用service的NodePort类型对外暴露ingress-nginx

2.1 ingress-nginx暴露为NodePort

[root@k8s-master-01 sucess]# cat ingress-nginx-svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: ingress-nginx
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
spec:
  type: NodePort
  ports:
    - name: http
      port: 80
      targetPort: 80
      protocol: TCP
      nodePort: 32080  #http
    - name: https
      port: 443
      targetPort: 443
      protocol: TCP
      nodePort: 32443  #https
  selector:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx

2.2 定义并查看ingress-nginx的svc资源

[root@k8s-master-01 sucess]# kubectl get svc -n ingress-nginx
NAME                   TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                      AGE
ingress-nginx          NodePort    10.96.250.67     <none>        80:32080/TCP,443:32443/TCP   2d17h

三、tomcat测试示例

3.1 定义deployment与service

[root@k8s-master-01 ingress-tomcat]# cat svc-tomcat.yaml
apiVersion: v1
kind: Service
metadata:
  name: tomcat-svc
  namespace: tomcat-test
spec:
  selector:
    app: tomcat
    release: canary
  ports:
  - name: http
    port: 80
    targetPort: 8080
  - name: ajp
    port: 8009
    targetPort: 8009


---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: tomcat-deploy
  namespace: tomcat-test
spec:
  replicas: 3
  selector:
    matchLabels:
      app: tomcat
      release: canary
  template:
    metadata:
      labels:
        app: tomcat
        release: canary
    spec:
      containers:
      - name: tomcat
        image: tomcat:7-alpine
        ports:
        - name: httpd
          containerPort: 8080
        - name: ajp
          containerPort: 8009

3.2 定义ingress暴露规则(http)

[root@k8s-master-01 ingress-tomcat]# cat ingress-tomcat.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: tomcat-tomcat
  namespace: tomcat-test
  annotations:
    kubernets.io/ingress.class: "nginx"
spec:
  rules:
  - host: tomcat.ilinux.io
    http:
      paths:
      - path:
        backend:
          serviceName: tomcat-svc
          servicePort: 80

3.2.1 应用资源清单文件

kubectl apply -f svc-tomcat.yaml
kubectl apply -f ingress-tomcat.yaml


[root@k8s-master-01 ingress-tomcat]# kubectl get svc -n tomcat-test
NAME         TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)           AGE
tomcat-svc   ClusterIP   10.103.136.32   <none>        80/TCP,8009/TCP   2d15h


[root@k8s-master-01 ingress-tomcat]# kubectl get ingress -n tomcat-test
NAME            CLASS    HOSTS              ADDRESS   PORTS   AGE
tomcat-tomcat   <none>   tomcat.ilinux.io             80      56s


#svc会根据deployment的label selector选择对用的pod
[root@k8s-master-01 ingress-tomcat]# kubectl get endpoints -n tomcat-test -o wide
NAME         ENDPOINTS                                                         AGE
tomcat-svc   10.244.1.220:8080,10.244.3.29:8080,10.244.3.30:8080 + 3 more...   3d13h


[root@k8s-master-01 ingress-tomcat]# kubectl get pods -n tomcat-test -o wide
NAME                                 READY   STATUS    RESTARTS   AGE     IP             NODE            NOMINATED NODE   READINESS GATES
tomcat-deploy-f59fd664-9m2tr         1/1     Running   0          3d13h   10.244.1.220   k8s-worker-01   <none>           <none>
tomcat-deploy-f59fd664-jb4nk         1/1     Running   1          3d13h   10.244.3.29    k8s-worker-02   <none>           <none>
tomcat-deploy-f59fd664-vp9xx         1/1     Running   0          3d13h   10.244.3.30    k8s-worker-02   <none>           <none>

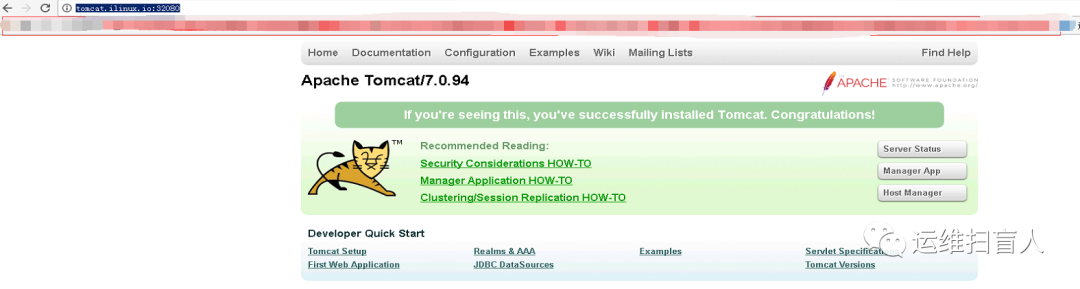

3.2.2 测试页面

http://tomcat.ilinux.io:32080/

3.3 定义ingress的暴露规则（https）

#生成证书文件
openssl genrsa -out tls.key 2048
openssl req -new -x509 -key tls.key -out tls.crt -subj /C=CN/ST=Beijing/L=Beijing/O=DevOps/CN=tomcat.magedu.com
kubectl create secret tls tomcat-ingress-secret --cert=tls.crt --key=tls.key

3.3.1 定义secret资源

[root@k8s-master-01 https-ingress]# cat ingress-tomcat-tls.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: ingress-tomcat-tls
  namespace: default
  annotations:
    kubernets.io/ingress.class: "nginx"
spec:
  tls:
  - hosts:
    - tomcat.magedu.com        #与secret证书的域名需要保持一致
    secretName: tomcat-ingress-secret   #secret证书的名称
  rules:
  - host: tomcat.magedu.com
    http:
      paths:
      - path:
        backend:
          serviceName: tomcat
          servicePort: 8080
[root@k8s-master-01 https-ingress]# kubectl get secret -n tomcat-test
NAME                  TYPE                                  DATA   AGE
default-token-qkbk9   kubernetes.io/service-account-token   3      2d18h

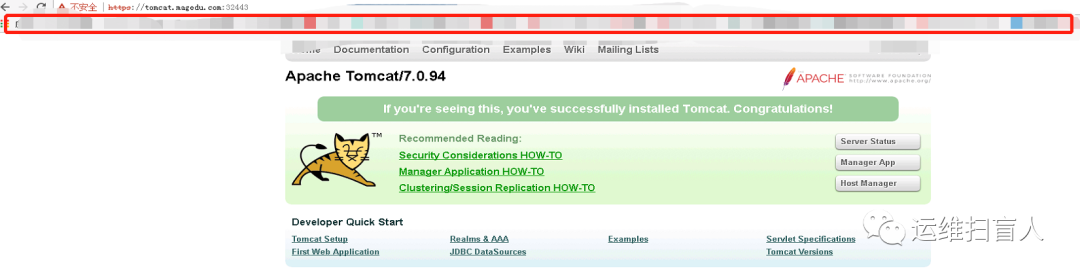

3.3.2 测试页面

https://tomcat.magedu.com:32443/

3.4 查看ingress资源

[root@k8s-master-01 ingress-tomcat]# kubectl get ingress -n tomcat-test
NAME                 CLASS    HOSTS               ADDRESS   PORTS     AGE
ingress-tomcat-tls   <none>   tomcat.magedu.com             80, 443   53m
tomcat-tomcat        <none>   tomcat.ilinux.io              80        70m
NAME                 CLASS    HOSTS               ADDRESS   PORTS     AGE
ingress-tomcat-tls   <none>   tomcat.magedu.com             80, 443   53m
tomcat-tomcat        <none>   tomcat.ilinux.io              80        70m
[root@k8s-master-01 ingress-tomcat]# kubectl describe ingress tomcat-tomcat
Name:             tomcat-tomcat
Namespace:        default
Address:
Default backend:  default-http-backend:80 (<error: endpoints "default-http-backend" not found>)
Rules:
  Host        Path  Backends
  ----        ----  --------
  magedu.com
                 tomcat:8080 (10.244.1.219:8080,10.244.3.23:8080,10.244.3.24:8080)
Annotations:  kubernets.io/ingress.class: nginx
Events:       <none>

数据库

文章转载自运维扫盲人，如果涉嫌侵权，请发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。

kubernetes配置之五：service&&ingress

评论
