概述

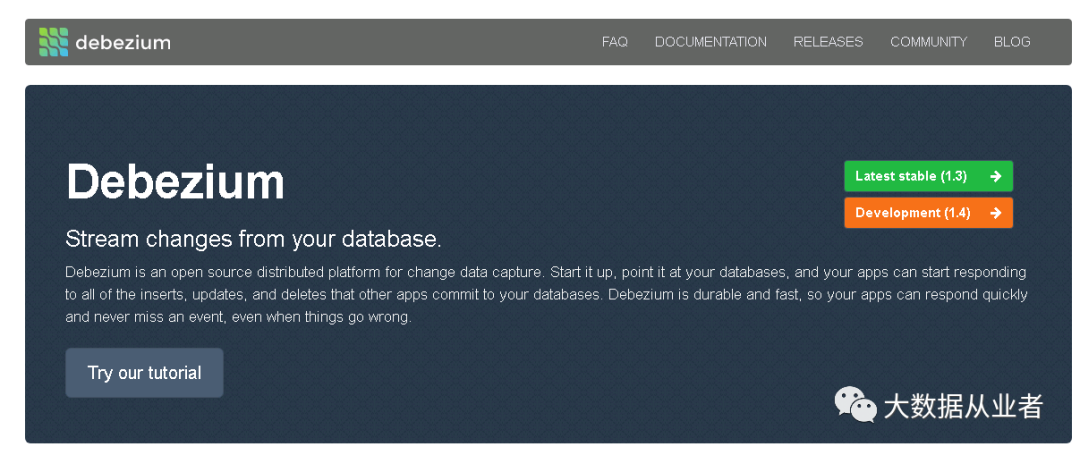

Flink CDC Connectors是一个用于从不同数据库用CDC整合changes信息的source connectors集合，实现基于Debezium引擎，能够完全利用Debezium的能力。Debezium详见官网:https://debezium.io/

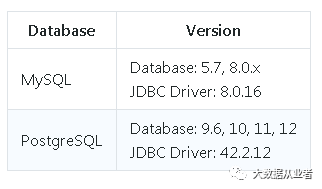

支持的(已测试的)数据库信息

功能特性

1. 支持以exactly-once语义读取数据库snapshot和binlogs

2. 对于DataStream API，用户可以在一个job中消费多库多表changes信息，无需额外部署Debezium和Kafka

3. 对于Table/SQL API，用户可以使用SQL DDL创建表消费单表changes信息

项目地址

github: https://github.com/ververica/flink-cdc-connectors

案例说明

1). 无论是使用DataStream API、Table/SQL API、SQLClient，均需要添加如下依赖

        <dependency>
            <groupId>com.alibaba.ververica</groupId>
            <artifactId>flink-connector-mysql-cdc</artifactId>
            <version>1.1.0</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba.ververica</groupId>
            <artifactId> flink-connector-postgres-cdc</artifactId>
            <version>1.1.0</version>
        </dependency>

2). 前置条件：需要提前安装mysql和postgresql，注意使用上面提到的版本

案例实战

1). mysql创建库表、插入数据

mysql> CREATE DATABASE db_felixzh_cdc;
 Query OK, 1 row affected (0.00 sec)


 mysql> CREATE TABLE tb_products_cdc( id INT PRIMARY KEY AUTO_INCREMENT, name VARCHAR(64), description VARCHAR(128) );
 Query OK, 0 rows affected (0.01 sec)


 mysql> INSERT INTO tb_products_cdc VALUES  (DEFAULT, 'zhangsan', 'aaa'), (DEFAULT, 'lisi', 'bbb'), (DEFAULT, 'wangwu', 'ccc');
 Query OK, 3 rows affected (0.01 sec)
 Records: 3  Duplicates: 0  Warnings: 0

2). mysql cdc代码main方法：

public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
        env.setRestartStrategy(RestartStrategies.noRestart());
        StreamTableEnvironment tableEnv = StreamTableEnvironment.create(env);


        String sourceDDL =
                "CREATE TABLE mysql_binlog (\n" +
                        " id INT NOT NULL,\n" +
                        " name STRING,\n" +
                        " description STRING\n" +
                        ") WITH (\n" +
                        " 'connector' = 'mysql-cdc',\n" +
                        " 'hostname' = 'felixzh',\n" +
                        " 'port' = '3306',\n" +
                        " 'username' = 'root',\n" +
                        " 'password' = 'passwd',\n" +
                        " 'database-name' = 'db_felixzh_cdc',\n" +
                        " 'table-name' = 'tb_products_cdc'\n" +
                        ")";


        String sinkDDL =
                "CREATE TABLE tb_sink (\n" +
                        " id INT,\n" +
                        " name STRING,\n" +
                        " description STRING\n" +
                        ") WITH (\n" +
                        " 'connector' = 'print'\n" +
                        ")";


        String transformSQL =
                "INSERT INTO tb_sink " +
                        "SELECT * " +
                        "FROM mysql_binlog ";


        tableEnv.executeSql(sourceDDL).print();
        tableEnv.executeSql(sinkDDL).print();
        tableEnv.executeSql(transformSQL).print();
    }

3). 完整源码github地址：

https://github.com/felixzh2020/felixzh-learning-flink/blob/master/format/src/main/java/com/felixzh/learning/flink/format/debezium_json/MySqlCDC2Print.java

4). IDE(idea)运行MySqlCDC2Print结果

+--------+
 | result |
 +--------+
 |     OK |
 +--------+
 1 row in set
 +--------+
 | result |
 +--------+
 0 row in set
 14:50:02,488 WARN  org.apache.flink.runtime.webmonitor.WebMonitorUtils           - Log file environment variable 'log.file' is not set.
 14:50:02,495 WARN  org.apache.flink.runtime.webmonitor.WebMonitorUtils           - JobManager log files are unavailable in the web dashboard. Log file location not found in environment variable 'log.file' or configuration key 'web.log.path'.
 +------------------------------------------+
 | default_catalog.default_database.tb_sink |
 +------------------------------------------+
 |                                       -1 |
 +------------------------------------------+
 1 row in set
 14:50:04,432 WARN  org.apache.flink.runtime.taskmanager.TaskManagerLocation      - No hostname could be resolved for the IP address 127.0.0.1, using IP address as host name. Local input split assignment (such as for HDFS files) may be impacted.
 14:50:04,688 WARN  org.apache.flink.metrics.MetricGroup                          - The operator name Sink: Sink(table=[default_catalog.default_database.tb_sink], fields=[id, name, description]) exceeded the 80 characters length limit and was truncated.
 14:50:04,711 WARN  org.apache.flink.metrics.MetricGroup                          - The operator name Source: TableSourceScan(table=[[default_catalog, default_database, mysql_binlog]], fields=[id, name, description]) exceeded the 80 characters length limit and was truncated.
 +I(1,zhangsan,aaa)
 +I(2,wangwu,bbb)
 +I(3,wangwu,ccc)
 +I(5,lisi,ddd)

5). postgresql创建库表，插入数据

postgres=# CREATE DATABASE db_felixzh_cdc;
CREATE DATABASE
postgres=# \c db_felixzh_cdc;
SSL connection (protocol: TLSv1.2, cipher: ECDHE-RSA-AES256-GCM-SHA384, bits: 256, compression: off)
You are now connected to database "db_felixzh_cdc" as user "postgres".
db_felixzh_cdc=# CREATE TABLE tb_products_cdc (id INT NOT NULL PRIMARY KEY, name VARCHAR(255),description VARCHAR(512));
CREATE TABLE


db_felixzh_cdc=# INSERT INTO tb_products_cdc VALUES (1,'scooter','Small 2-wheel scooter');
INSERT 0 1

6). postgressql cdc代码main方法：

public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
        env.setRestartStrategy(RestartStrategies.noRestart());
        StreamTableEnvironment tableEnv = StreamTableEnvironment.create(env);


        String sourceDDL =
                "CREATE TABLE postgresql_log (\n" +
                        " id INT NOT NULL,\n" +
                        " name STRING,\n" +
                        " description STRING\n" +
                        ") WITH (\n" +
                        " 'connector' = 'postgres-cdc',\n" +
                        " 'hostname' = 'felixzh',\n" +
                        " 'port' = '5432',\n" +
                        " 'username' = 'postgres',\n" +
                        " 'password' = 'passwd',\n" +
                        " 'database-name' = 'db_felixzh_cdc',\n" +
                        " 'schema-name' = 'db_felixzh_cdc',\n" +
                        " 'table-name' = 'tb_products_cdc'\n" +
                        ")";


        String sinkDDL =
                "CREATE TABLE tb_sink (\n" +
                        " id INT,\n" +
                        " name STRING,\n" +
                        " description STRING\n" +
                        ") WITH (\n" +
                        " 'connector' = 'print'\n" +
                        ")";


        String transformSQL =
                "INSERT INTO tb_sink " +
                        "SELECT * " +
                        "FROM postgresql_log ";


        tableEnv.executeSql(sourceDDL).print();
        tableEnv.executeSql(sinkDDL).print();
        tableEnv.executeSql(transformSQL).print();
    }

7). 完整源码github地址：

https://github.com/felixzh2020/felixzh-learning-flink/blob/master/format/src/main/java/com/felixzh/learning/flink/format/debezium_json/PostgreSQLCDC2Print.java

8). IDE(idea)运行PostgreSQLCDC2Print结果

由于我本地postgresql版本太低，PostgreSQLCDC2Print运行有异常，不过功能应该是ok的。
