让我们一起了解下，备份数据需要重视什么？
1.数据库版本
说明：由于版本差异，可能会造成在使用诸如mysql,mysqldump 异常。切记命令使用路径匹配备份所属实例的basedir，防止备份或还原异常。一定程度决定了备份数据的有效性。
2.备份用户所需必要权限。
说明：
(1.对于DB级用户权限粒度和规范需要做好。一般划分为：应用账号，管理员账号，备份账号，复制账号。每种账号对应权限需严格界定。防止篡权，带来审计难度和生产事故。
(2.备份账号一般需 select,create,alter,show view,show trigger,lock权限
3.备份方式
说明：
(1.物理备份 如使用“大名鼎鼎的”innobackup
(2.逻辑备份 mysqldump,mydumper, (升级版mysqldump)mysqlpump
(3.备份方式影响线上用户体验。例如锁时长，并发性能。
4.备份策略：
说明：全量备份，增量备份。决定了备份和恢复时长。
5.备份数据量
说明：备份数据的大小影响备份耗时和恢复时长。也在一定程度上决定备份方式。
6.备份粒度：
说明：基于实例级，数据库级还是表级备份。备份粒度决定了备份数据的完整性和恢复时长。
7.备份内容
说明：包括库表数据，binlog 文件
恢复数据需要重视如下几点：
1.先认识如下两个概念 RTO和RPO
RTO (Recovery Time Objective，复原时间目标)是数据中心可容许服务中断的时长
RPO (Recovery Point Objective，复原点目标）是指从系统/生产数据恢复到何种程度。
这两种目标决定了数据的可靠性和可用性。如上介绍的备份方式，策略，粒度，内容等均影响这两个指标。
作者仅抛砖引玉，展示一种备份和还原数据的自动化脚本。（读者可完善如上提及的备份重视事项）
我们开始一段测试过程：
环境说明：
192.128.220.128:3306 MySQL-5.7.26 主库
192.168.220.129:3306 MySQL-5.7.26 恢复数据实例
# 128 现有数据
root@localhost:mysql 5.7.26-log 10:37:45> select * from jiale.test01;
+----+----------+------+
| id | name | age |
+----+----------+------+
| 1 | t1 | 30 |
| 2 | t2 | 40 |
| 3 | t3 | 33 |
| 4 | houhao | 30 |
| 5 | zhuqiang | 30 |
+----+----------+------+
5 rows in set (0.00 sec)

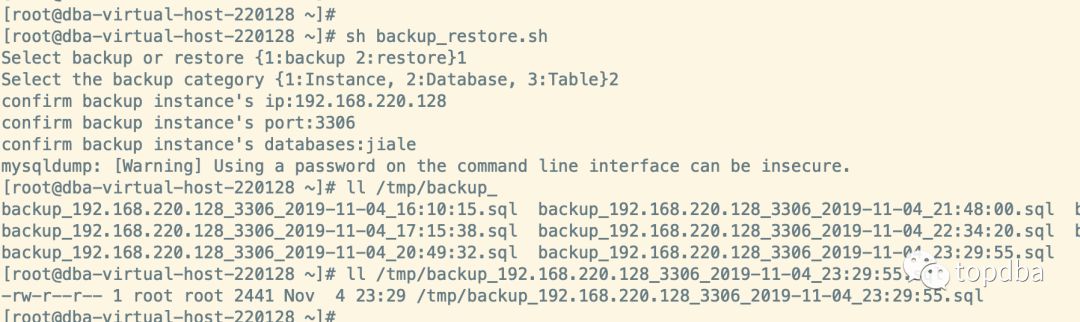

# 利用脚本备份库表数据

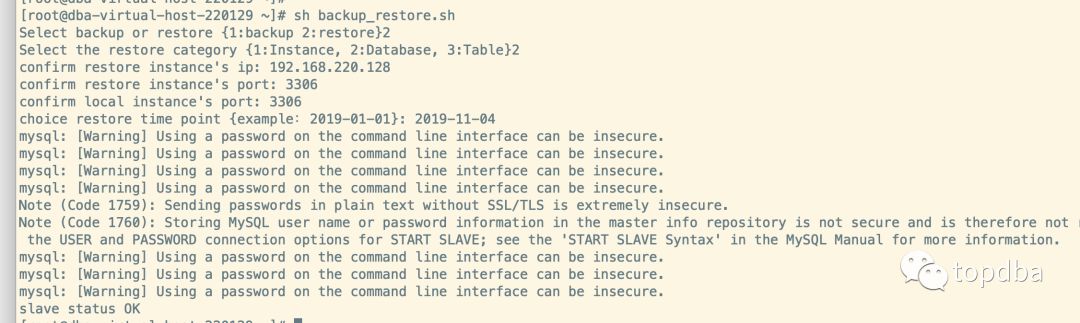

# 129 实例上还原数据
root@localhost:mysql 5.7.26-log 10:37:50> select * from jiale.test01;
+----+----------+------+
| id | name | age |
+----+----------+------+
| 1 | t1 | 30 |
| 2 | t2 | 40 |
| 3 | t3 | 33 |
| 4 | houhao | 30 |
| 5 | zhuqiang | 30 |
+----+----------+------+
5 rows in set (0.00 sec)
#128 新增一条数据
root@localhost:jiale 5.7.26-log 10:37:47> insert into test01 (name,age) values ('chenlei','29');
Query OK, 1 row affected (0.00 sec)
#129 查看复制状态和数据完整性
root@localhost:mysql 5.7.26-log 10:42:56> select * from jiale.test01;
+----+----------+------+
| id | name | age |
+----+----------+------+
| 1 | t1 | 30 |
| 2 | t2 | 40 |
| 3 | t3 | 33 |
| 4 | houhao | 30 |
| 5 | zhuqiang | 30 |
| 6 | chenlei | 29 |
+----+----------+------+
6 rows in set (0.00 sec)
root@localhost:mysql 5.7.26-log 11:30:02> show slave status\G
*************************** 1. row ***************************
Slave_IO_State: Waiting for master to send event
Master_Host: 192.168.220.128
Master_User: replic
Master_Port: 3306
Connect_Retry: 60
Master_Log_File: mysql-bin.000001
Read_Master_Log_Pos: 402
Relay_Log_File: mysql-relay-bin.000002
Relay_Log_Pos: 607
Relay_Master_Log_File: mysql-bin.000001
Slave_IO_Running: Yes
Slave_SQL_Running: Yes
Replicate_Do_DB:
Replicate_Ignore_DB:
Replicate_Do_Table:
Replicate_Ignore_Table:
Replicate_Wild_Do_Table:
Replicate_Wild_Ignore_Table:
Last_Errno: 0
Last_Error:
Skip_Counter: 0
Exec_Master_Log_Pos: 402
Relay_Log_Space: 806
Until_Condition: None
Until_Log_File:
Until_Log_Pos: 0
Master_SSL_Allowed: No
Master_SSL_CA_File:
Master_SSL_CA_Path:
Master_SSL_Cert:
Master_SSL_Cipher:
Master_SSL_Key:
Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
Last_IO_Errno: 0
Last_IO_Error:
Last_SQL_Errno: 0
Last_SQL_Error:
Replicate_Ignore_Server_Ids:
Master_Server_Id: 128
Master_UUID: 806af1e2-feb2-11e9-9b92-525400bdf400
Master_Info_File: mysql.slave_master_info
SQL_Delay: 0
SQL_Remaining_Delay: NULL
Slave_SQL_Running_State: Slave has read all relay log; waiting for more updates
Master_Retry_Count: 86400
Master_Bind:
Last_IO_Error_Timestamp:
Last_SQL_Error_Timestamp:
Master_SSL_Crl:
Master_SSL_Crlpath:
Retrieved_Gtid_Set: 806af1e2-feb2-11e9-9b92-525400bdf400:1
Executed_Gtid_Set: 63dbac8c-feb4-11e9-87d3-52540005ae6e:1-7,
806af1e2-feb2-11e9-9b92-525400bdf400:1
Auto_Position: 1
Replicate_Rewrite_DB:
Channel_Name:
Master_TLS_Version:
1 row in set (0.00 sec)
代码如下：
#!/bin/bash
##################################
# File Name:backup_restore.sh
# Author:zhangjiale
# Version:V1.0
# Description:backup or restore operation
#备份
function backup(){
read -p "Select the backup category {1:Instance, 2:Database, 3:Table}" BACKUP_LEVEL
function instance_level_backup(){
pass
}
function schema_level_backup(){
read -p "confirm backup instance's ip:" IP
read -p "confirm backup instance's port:" PORT
read -p "confirm backup instance's databases:" DB
export BACKUP_IP=$IP
export BACKUP_PORT=$PORT
export BACKUP_DATABASES=$DB
export BASEDIR=`ps -ef|grep -w $BACKUP_PORT|grep basedir |awk '{print $10}' |awk -F '=' '{print $2}'`
export MYSQLDUMP="${BASEDIR}/bin/mysqldump"
export global MYSQL="${BASEDIR}/bin/mysql"
export SOCKET=`ps -ef|grep -w $BACKUP_PORT|grep basedir |awk '{print $(NF-1)}' |awk -F '=' '{print $2}'`
# 这边还需要判断是否开启gtid_mode
$MYSQLDUMP -uroot -proot -S $SOCKET --set-gtid-purged=OFF --single-transaction --master-data=2 --triggers --routines --events --add-drop-database -B $BACKUP_DATABASES >/tmp/backup_${BACKUP_IP}_${BACKUP_PORT}_`date "+%F_%H:%M:%S"`.sql
}
function table_level_backup(){
pass
}
if [[ "$BACKUP_LEVEL" == "1" ]];then
instance_level_backup
elif [[ "$BACKUP_LEVEL" == "2" ]]; then
schema_level_backup
elif [[ "$BACKUP_LEVEL" == "3" ]]; then
table_level_backup
fi
}
# 还原
function restore()
{
# 确认还原是基于实例级，库级，还是表级。
read -p "Select the restore category {1:Instance, 2:Database, 3:Table}" RESTORE_LEVEL
function instance_level_restore(){
pass
}
function schema_level_restore(){
read -p "confirm restore instance's ip: " RESTOREIP
read -p "confirm restore instance's port: " RESTOREPORT
read -p "confirm local instance's port: " LOCALPORT
read -p "choice restore time point {example：2019-01-01}: " RESTORETIME
export BASEDIR=`ps -ef|grep -w $LOCALPORT|grep basedir |awk '{print $10}' |awk -F '=' '{print $2}'`
export MYSQL="${BASEDIR}/bin/mysql"
export PATCH_NAME="${RESTOREIP}_${RESTOREPORT}_${RESTORETIME}"
export RESTORE_FILE=$(find tmp -name "backup_$PATCH_NAME*.sql")
# 重置从库binlog，并导入备份数据
$MYSQL --defaults-file=/data/mysqldata/mysql3306/my.cnf.3306 -uroot -proot -S data/mysqldata/mysql3306/sock/mysql.sock -e "reset master;stop slave;"
$MYSQL --defaults-file=/data/mysqldata/mysql3306/my.cnf.3306 -uroot -proot -S data/mysqldata/mysql3306/sock/mysql.sock < $RESTORE_FILE
# 确认备份文件和位置
MASTER_BINLOG_FILE=`head -100 $RESTORE_FILE |grep -i 'change master' |awk -F "MASTER_LOG_FILE=" '{print $2}' |awk '{print $1}' |sed s'/.$//'`
MASTER_LOG_POS=`head -100 $RESTORE_FILE |grep -i 'change master' |awk -F "MASTER_LOG_FILE=" '{print $2}'|awk -F '=' '{print $2}'|sed s'/.$//'`
# 判断gtid模式是否开启
function create_replication_relation(){
export GTID_MODE=`$MYSQL -uroot -proot -S data/mysqldata/mysql3306/sock/mysql.sock -e "show variables like 'gtid_mode'" |sed '1d' |awk '{print $2}'`
if [[ $GTID_MODE == "ON" ]];then
$MYSQL -uroot -proot -S data/mysqldata/mysql3306/sock/mysql.sock -e "CHANGE MASTER TO MASTER_HOST='$RESTOREIP',MASTER_USER='replic',MASTER_PASSWORD='replic@hot',master_auto_position=1;"
else
$MYSQL -uroot -proot -S data/mysqldata/mysql3306/sock/mysql.sock -e "CHANGE MASTER TO MASTER_HOST='$RESTOREIP',MASTER_USER='replic',master_port="$RESTOREPORT",MASTER_PASSWORD='replic@hot',MASTER_LOG_FILE='$MASTER_BINLOG_FILE',MASTER_LOG_POS=$MASTER_LOG_POS;"
fi
# 开启复制，并确认复制状态是否正常
$MYSQL -uroot -proot -S data/mysqldata/mysql3306/sock/mysql.sock -e "start slave;"
SLAVE_IO_STATUS=`$MYSQL -uroot -proot -S data/mysqldata/mysql3306/sock/mysql.sock -e "show slave status\G;" |grep -w "Slave_IO_Running"|awk -F ":" '{print $2}'|awk '{gsub(/^\s+|\s+$/, "");print}'`
SLAVE_SQL_STATUS=`$MYSQL -uroot -proot -S data/mysqldata/mysql3306/sock/mysql.sock -e "show slave status\G;" |grep -w "Slave_SQL_Running"|awk -F ":" '{print $2}'|awk '{gsub(/^\s+|\s+$/, "");print}'`
[[ $SLAVE_IO_STATUS == "Yes" ]] && [[ $SLAVE_SQL_STATUS == "Yes" ]] && echo "slave status OK " || echo "slave status Error"
}
create_replication_relation
}
function table_level_restore(){
pass
}
if [[ "$RESTORE_LEVEL" == "1" ]];then
instance_level_restore
elif [[ "$RESTORE_LEVEL" == "2" ]]; then
schema_level_restore
elif [[ "$RESTORE_LEVEL" == "3" ]]; then
table_level_backup
fi
}
read -p "Select backup or restore {1:backup 2:restore}" OPERATE_TYPE
if [[ "$OPERATE_TYPE" == "1" ]];then
backup
elif [[ "$OPERATE_TYPE" == "2" ]];then
restore
fi
看完代码的你，是不是有所启发？欢迎各位一起探讨此议题和代码内容。
