SQL优化案例2-IN和EXISTS子查询作为驱动表优化

在NL连接方式中，用小表或小的结果集作业驱动表，是提高SQL执行效率的重要因素之一，下面我们看一下让in/exists子查询作为驱动表优化的案例。

select  rowid rid
   from its_car_pass7 v
  where 1 = 1
    and pass_datetime >=
        to_date('2013-07-06 :17:46:04', 'yyyy-mm-dd hh24:mi:ss')
    and pass_datetime <=
        to_date('2013-07-06 :18:46:06', 'yyyy-mm-dd hh24:mi:ss')
    and v.pass_device_unid in
        (select unid
           from its_base_device
          where dev_bay_unid in ('01685EFE4658C19D59C4DDAAEDD37393')
            and dev_type = '1'
            and dev_chk_flag = '1'
            and dev_delete_flag = 'N')
  order by v.pass_datetime asc

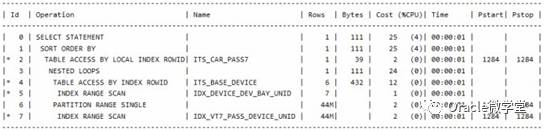

Execution Plan


Predicate Information (identified byoperation id):
---------------------------------------------------

   5 -access("PASS_DATETIME">=TO_DATE(' 2013-07-06 17:46:04','syyyy-mm-dd hh24:mi:ss') AND
              "PASS_DATETIME"<=TO_DATE(' 2013-07-06 18:46:06','syyyy-mm-dd hh24:mi:ss'))
       filter("PASS_DATETIME">=TO_DATE('2013-07-06 17:46:04', 'syyyy-mm-dd hh24:mi:ss') AND
              "PASS_DATETIME"<=TO_DATE(' 2013-07-06 18:46:06','syyyy-mm-dd hh24:mi:ss'))
   6 -access("V"."PASS_DEVICE_UNID"="UNID")
   7 -filter("DEV_BAY_UNID"='01685EFE4658C19D59C4DDAAEDD37393' AND"DEV_TYPE"='1' AND
              "DEV_DELETE_FLAG"='N' AND"DEV_CHK_FLAG"='1')
Statistics
----------------------------------------------------------
          1  recursivecalls
          0  db block gets
     110973  consistent gets
          0  physical reads
          0  redo size
      47861  bytes sent via SQL*Net to client
       1656  bytes received via SQL*Net from client
        105  SQL*Net roundtripsto/from client
          1  sorts (memory)
          0  sorts (disk)
       1560  rows processed

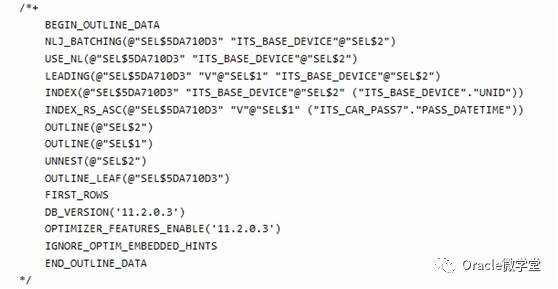

查看outline部分信息

SELECT * FROM TABLE(DBMS_XPLAN.DISPLAY(NULL, NULL, 'ADVANCED -PROJECTION'));

 OutlineData
-------------

select     rowid rid

   from its_car_pass7 v
  where 1 = 1
    and pass_datetime >=
        to_date('2013-07-06 :17:46:04', 'yyyy-mm-dd hh24:mi:ss')
    and pass_datetime <=
        to_date('2013-07-06 :18:46:06', 'yyyy-mm-dd hh24:mi:ss')
    and v.pass_device_unid in
        (select unid
           from its_base_device
          where dev_bay_unid in ('01685EFE4658C19D59C4DDAAEDD37393')
            and dev_type = '1'
            and dev_chk_flag = '1'
            and dev_delete_flag = 'N')
  order by v.pass_datetime asc

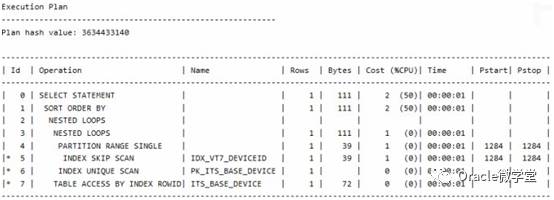

优化后执行计划信息

Statistics
----------------------------------------------------------
         1  recursivecalls
         0  db blockgets
   18645  consistent gets
      130  physical reads
        0  redo size
    47861  bytes sent via SQL*Net to client
     1657  bytes received via SQL*Net from client
      105  SQL*Net roundtripsto/from client
        1  sorts (memory)
        0  sorts (disk)
     1560  rows processed

优化效果还是不错的，逻辑读有原有的 110973 变为：18645
