【CDH实战】CM6.3.1&CDH6.3.2大数据集群搭建详解

知否Tech 2020-10-12

1353

本篇简单介绍下CDH6.3+集群搭建过程，环境准备可参加HDP版本，基本一致。

【大数据搭建HDP3.x】Ambari2.7.4+HDP3.1.4离线搭建教程（上）

1、介质下载

‍

#下载cm及cdh的yum源
nohup wget -c -r -np -nc -L -p https://archive.cloudera.com/cm6/6.3.1/redhat7/ 2>&1 >cm6.log &s
nohup wget -c -r -np -nc -L -p https://archive.cloudera.com/cdh6/6.3.2/redhat7/ 2>&1 >cdh6.log &s
nohup wget -c -r -np -nc -L -p https://archive.cloudera.com/cdh6/6.3.2/parcels/CDH-6.3.2-1.cdh6.3.2.p0.1605554-el7.parcel  2>&1 >parcels.log &s
nohup wget -c -r -np -nc -L -p https://archive.cloudera.com/cdh6/6.3.2/parcels/CDH-6.3.2-1.cdh6.3.2.p0.1605554-el7.parcel.sha1  2>&1 >parcels.log &s
nohup wget -c -r -np -nc -L -p https://archive.cloudera.com/cdh6/6.3.2/parcels/CDH-6.3.2-1.cdh6.3.2.p0.1605554-el7.parcel.sha256  2>&1 >parcels.log &s
nohup wget -c -r -np -nc -L -p https://archive.cloudera.com/cdh6/6.3.2/parcels/manifest.json 2>&1 >parcels.log &s

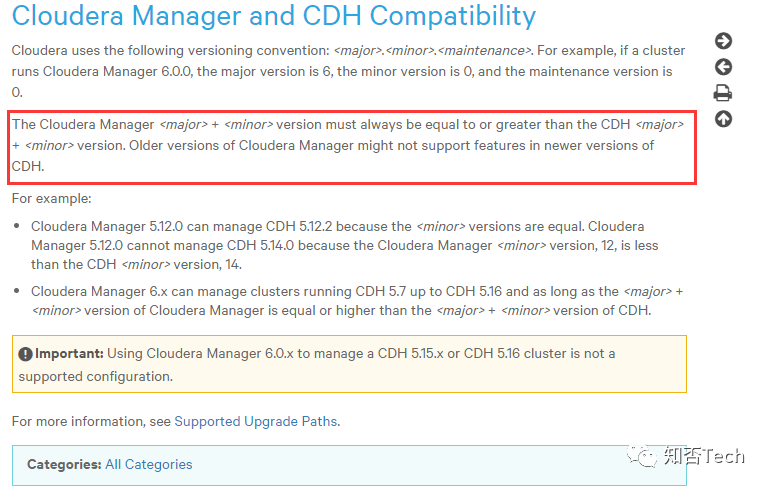

CM & CDH 对应版本依据

2、搭建集群节点

#搭建节点
10.172.54.58 dn58.hadoop54.unicom dn58
10.172.54.59 dn59.hadoop54.unicom dn59
10.172.54.60 dn60.hadoop54.unicom dn60
10.172.54.61 dn61.hadoop54.unicom dn61

3、配置httpyum源，repo文件如下：

#注意：url中需要拷贝下目录，不要有操作系统的版本号目录，如redhat7

[root@dn58 6.3.1]# more etc/yum.repos.d/cm.repo
[cloudera-manager]
name=Cloudera Manager 6.3.1
baseurl=http://10.172.54.58/yumdir/archive.cloudera.com/cm6/6.3.1/yum/
gpgkey=http://10.172.54.58/yumdir/archive.cloudera.com/cm6/6.3.1/yum/RPM-GPG-KEY-cloudera
gpgcheck=1
enabled=1
autorefresh=0
type=rpm-md


[root@dn58 6.3.1]# more etc/yum.repos.d/cdh.repo
[cloudera-CDH]
name=CDH  6.3.2
baseurl=http://10.172.54.58/yumdir/archive.cloudera.com/cdh6/6.3.2/yum/
gpgkey=http://10.172.54.58/yumdir/archive.cloudera.com/cdh6/6.3.2/yum/RPM-GPG-KEY-cloudera
gpgcheck=1
enabled=1
autorefresh=0
type=rpm-md

4、安装CM

#安装CM
sudo yum install cloudera-manager-daemons cloudera-manager-agent cloudera-manager-server

5、安装数据库及配置

安装数据库，mariadb安装忽略，注意版本兼容性

MariaDB10.1

#创建数据库、用户并赋权
MariaDB [(none)]> GRANT ALL PRIVILEGES ON *.* TO 'root'@'%' IDENTIFIED BY 'Admin@2020' WITH GRANT OPTION;
Query OK, 0 rows affected (0.00 sec)


MariaDB [(none)]> flush privileges;
Query OK, 0 rows affected (0.00 sec)


MariaDB [(none)]> create user 'scm'@'%' identified by 'scm_2020';
Query OK, 0 rows affected (0.00 sec)


MariaDB [(none)]> CREATE DATABASE scm DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
Query OK, 1 row affected (0.00 sec)


MariaDB [(none)]> GRANT ALL ON scm.* TO 'scm'@'%' IDENTIFIED BY 'scm_2020';
Query OK, 0 rows affected (0.00 sec)




#初始化数据库连接
注意：使用rds5.6及mariadb10.2及以上版本时启动server报错，数据库版本兼容性问题，具体rds是可以通过设置参数现使用mariadb10.1版本无问题,当前具体版本号为mariadb-10.1.46-linux-systemd-x86_64.tar.gz。
rds错误：
ERROR main:com.cloudera.enterprise.dbutil.SqlFileRunner: Exception while executing ddl scripts.
java.sql.SQLException: When @@GLOBAL.ENFORCE_GTID_CONSISTENCY = 1, the statements CREATE TEMPORARY TABLE and DROP TEMPORARY TABLE can be executed in a non-transactional context only, and require that AUTOCOMMIT = 1.
解决方案：
可配置GLOBAL.ENFORCE_GTID_CONSISTENCY = 0尝试。
#本机使用本地数据库，如使用远程数据库， 参考/opt/cloudera/cm/schema/scm_prepare_database.sh mysql -h 10.172.54.38 -P 3323 --scm-host dn58.hadoop54.unicom scm scm
[root@dn58 mysql]# opt/cloudera/cm/schema/scm_prepare_database.sh mysql scm scm
Enter SCM password:
JAVA_HOME=/usr/local/java/jdk1.8.0_141
Verifying that we can write to etc/cloudera-scm-server
Creating SCM configuration file in etc/cloudera-scm-server
Executing:  usr/local/java/jdk1.8.0_141/bin/java -cp usr/share/java/mysql-connector-java.jar:/usr/share/java/oracle-connector-java.jar:/usr/share/java/postgresql-connector-java.jar:/opt/cloudera/cm/schema/../lib/* com.cloudera.enterprise.dbutil.DbCommandExecutor etc/cloudera-scm-server/db.properties com.cloudera.cmf.db.
[                          main] DbCommandExecutor              INFO  Successfully connected to database.
All done, your SCM database is configured correctly!

6、启动CM

[cuadmin@dn58 mysql]$sudo systemctl start cloudera-scm-server

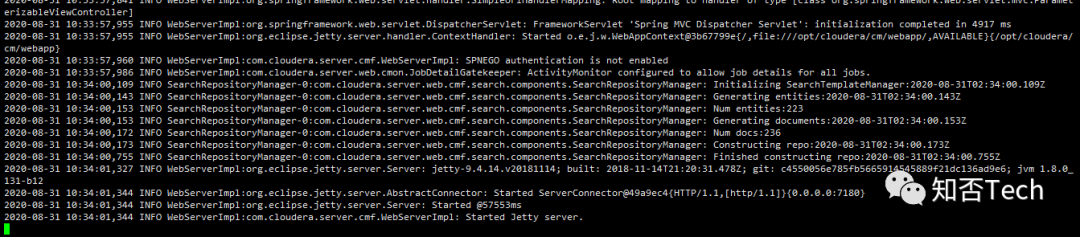

#查看日志

[cuadmin@dn58 mysql]$sudo tail -f var/log/cloudera-scm-server/cloudera-scm-server.log
当日志出现：INFO WebServerImpl:com.cloudera.server.cmf.WebServerImpl: Started Jetty server.，表示CM Console已准备好。

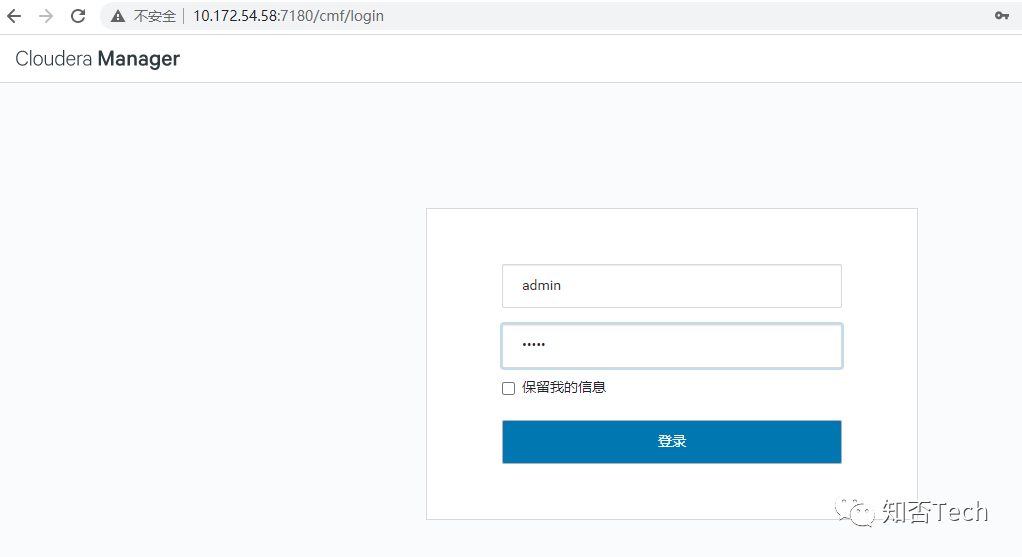

7、登录CM

#登录CM
http://10.172.54.58:7180/cmf/login
admin/admin

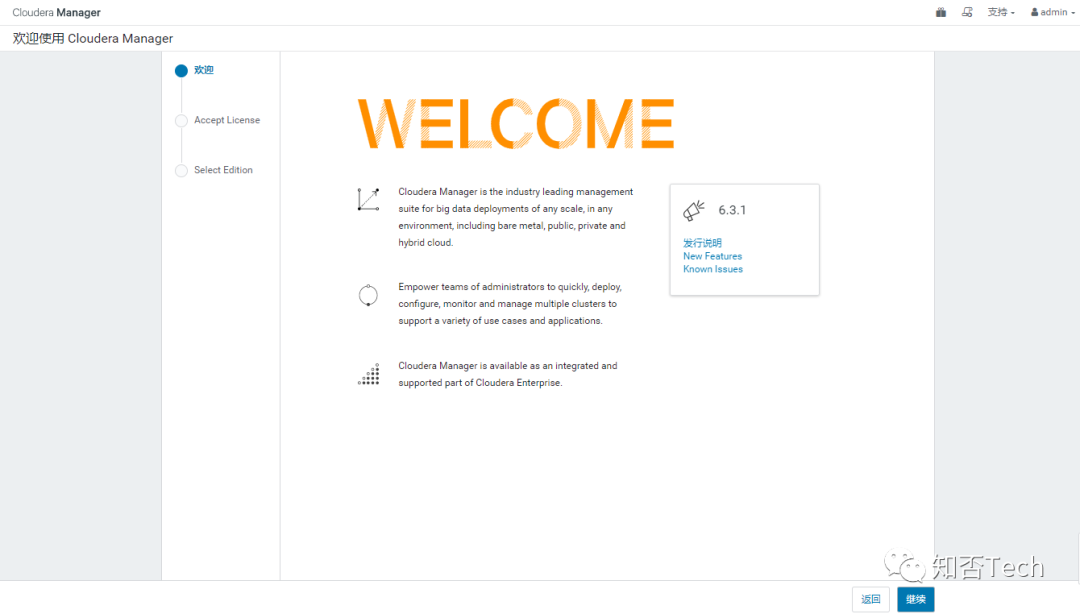

welcome~

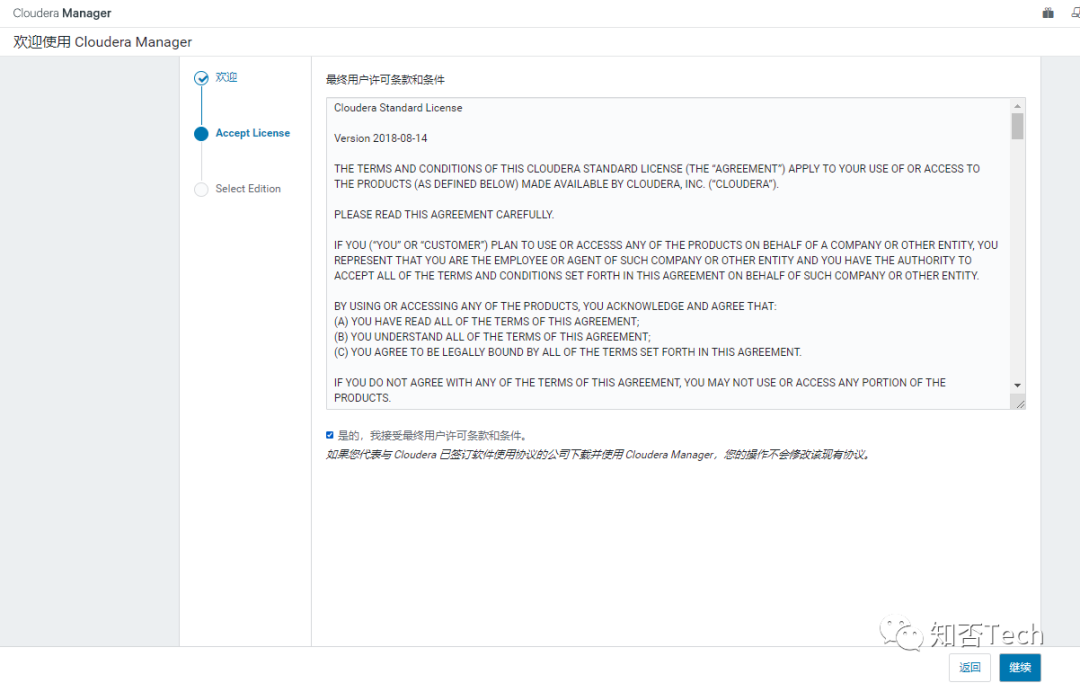

8、条款许可

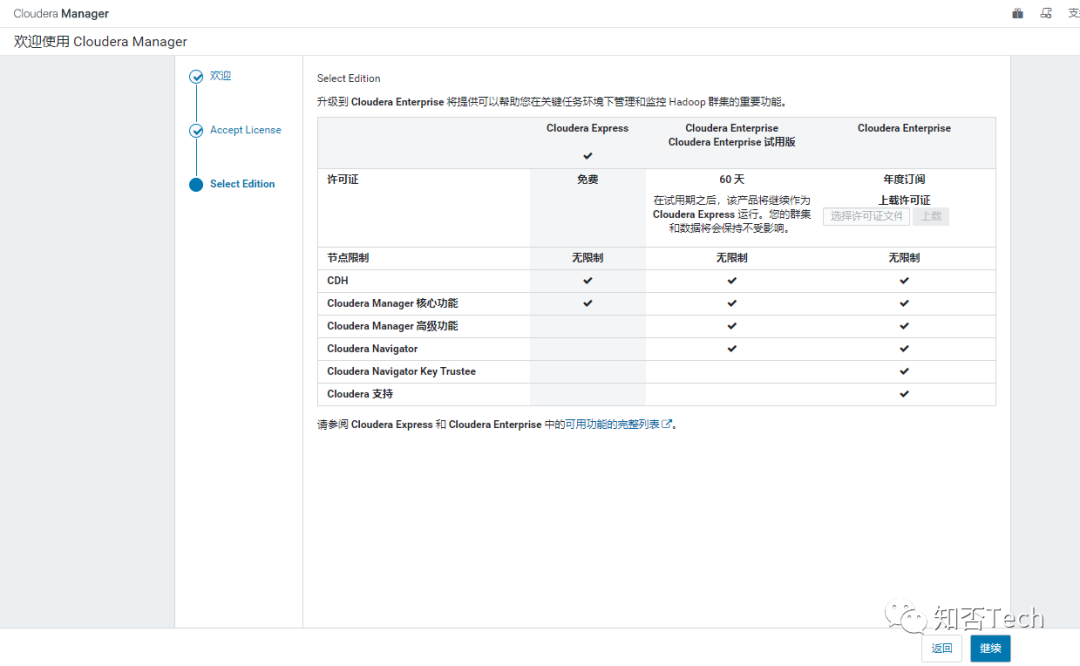

9、选择版本，选择社区免费版，如已购买企业版可上传许可证。

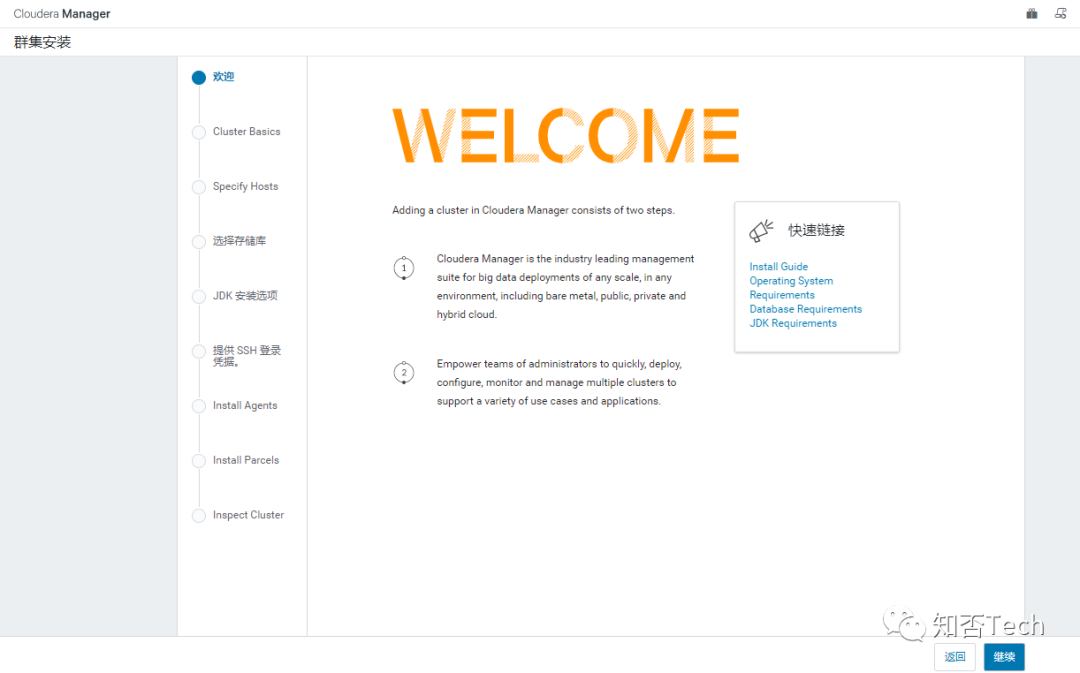

10、集群安装

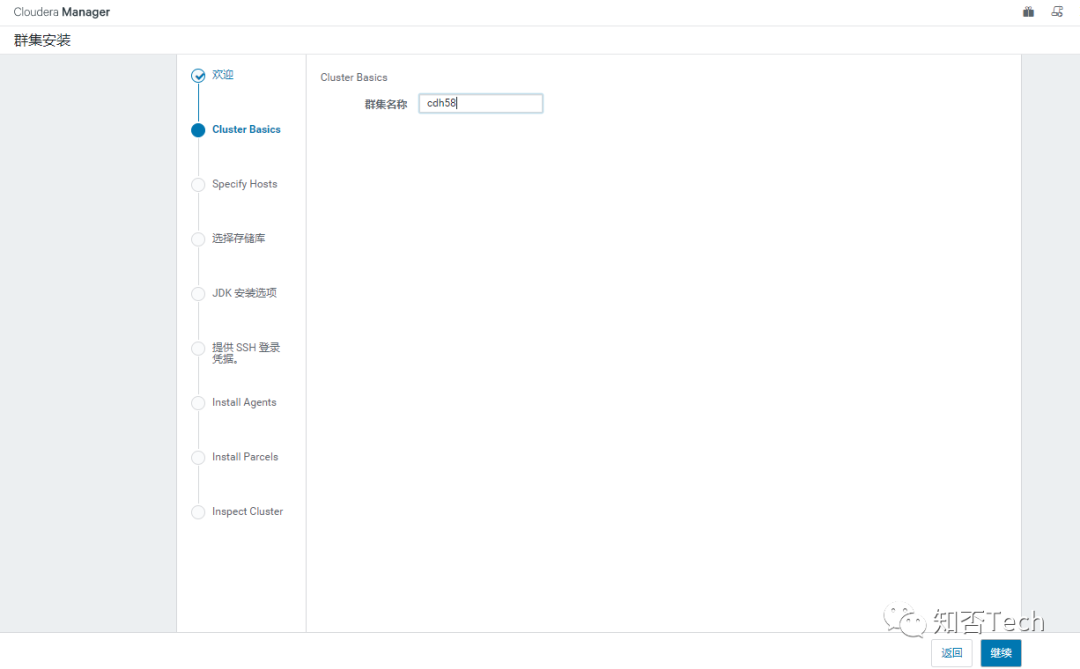

集群名称

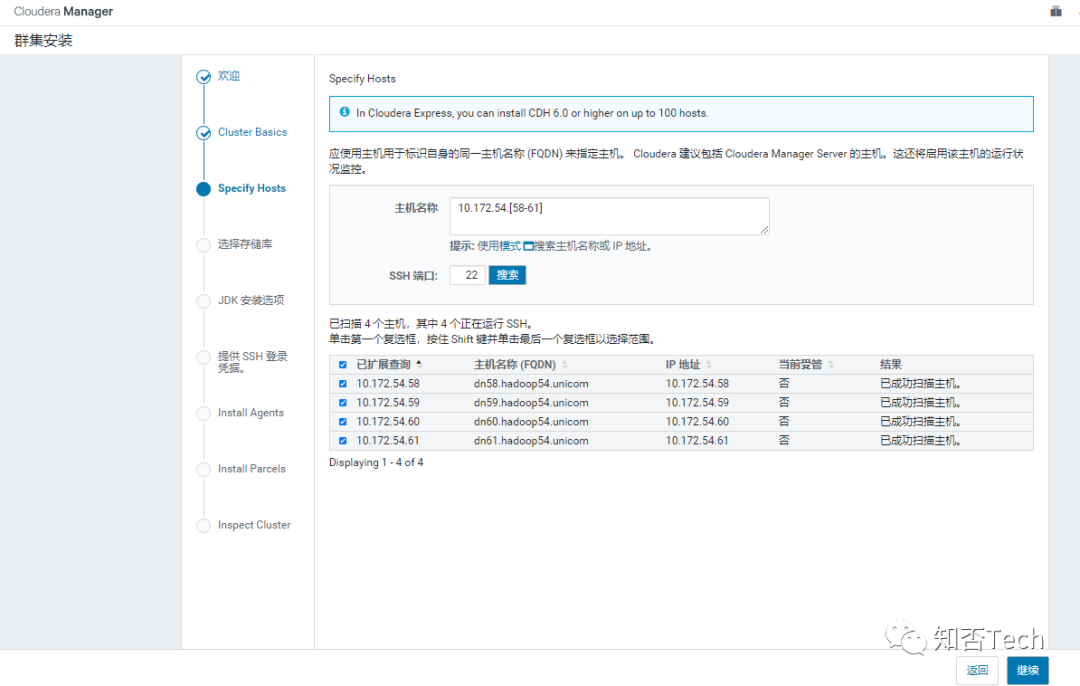

扫描 hosts 地址使用 FQDN 来标识，填写之后进行扫描

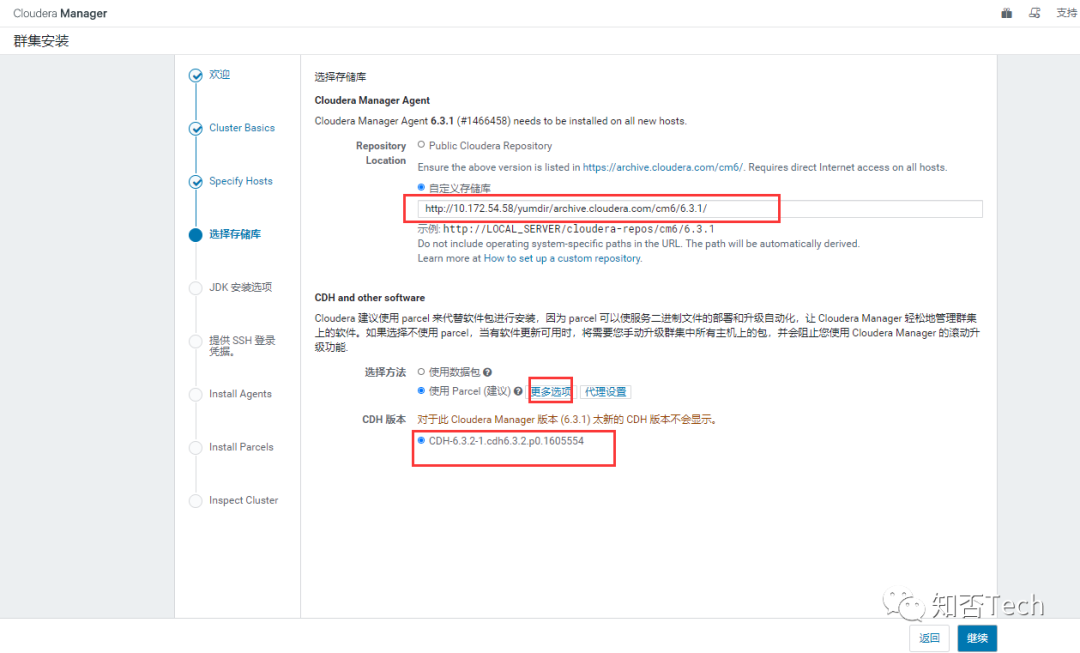

11、选择存储库

1.cm agent：选择本地库，注意url中不要存在操作系统的目录，原下载目录需调整，将Redhat7目录结构移除。
http://10.172.54.58/yumdir/archive.cloudera.com/cm6/6.3.1/


wget https://archive.cloudera.com/cm6/6.3.1/allkeys.asc


[root@dn58 6.3.1]# cp home/cuadmin/allkeys.asc var/www/html/yumdir/archive.cloudera.com/cm6/6.3.1/

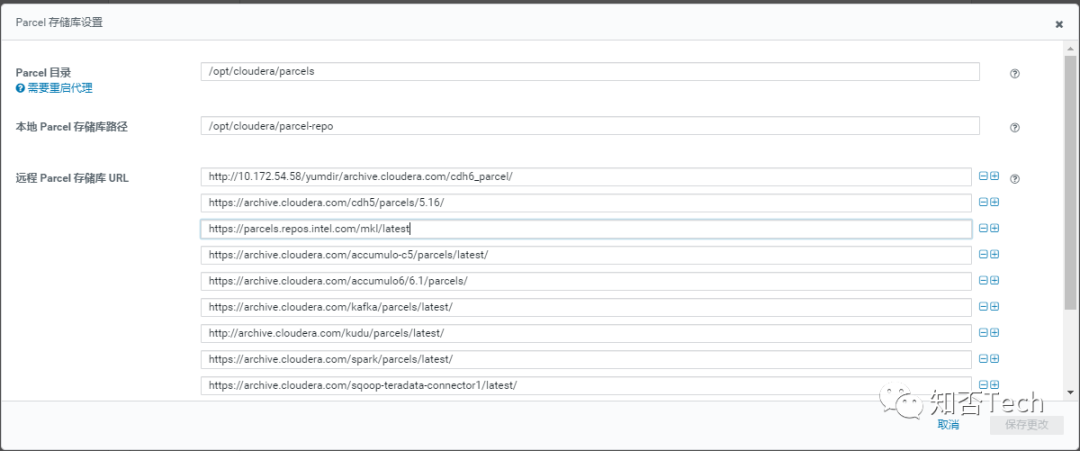

2.cdh及其他软件：使用Parcel建议，配置，介质参见第一步。
更多选择
https://archive.cloudera.com/cdh5/parcels/5.16/

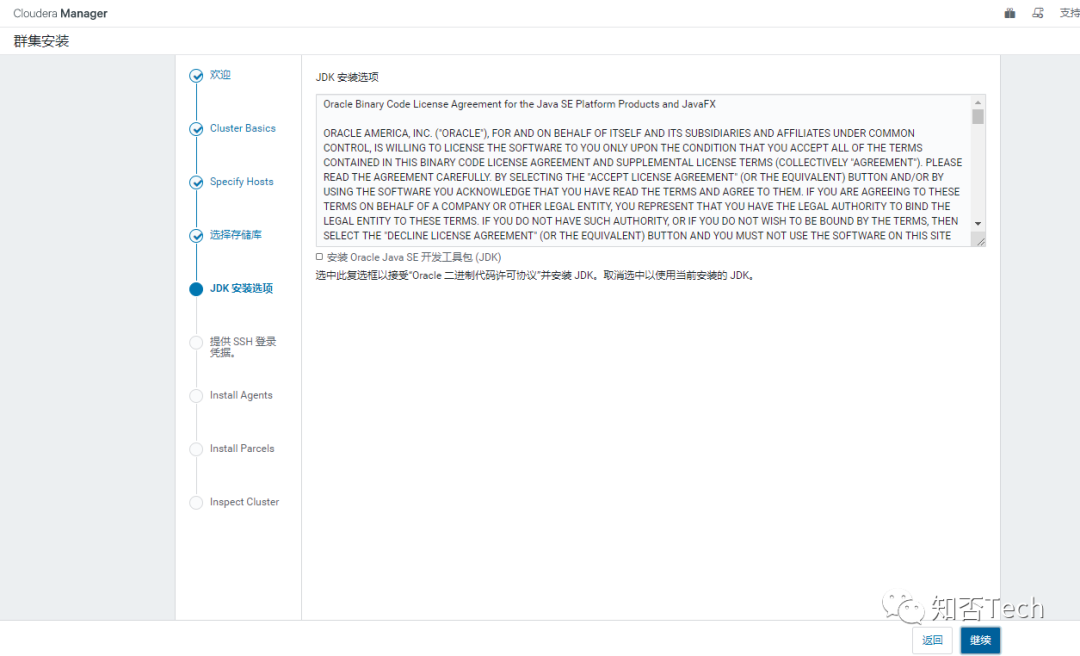

12、jdk选项

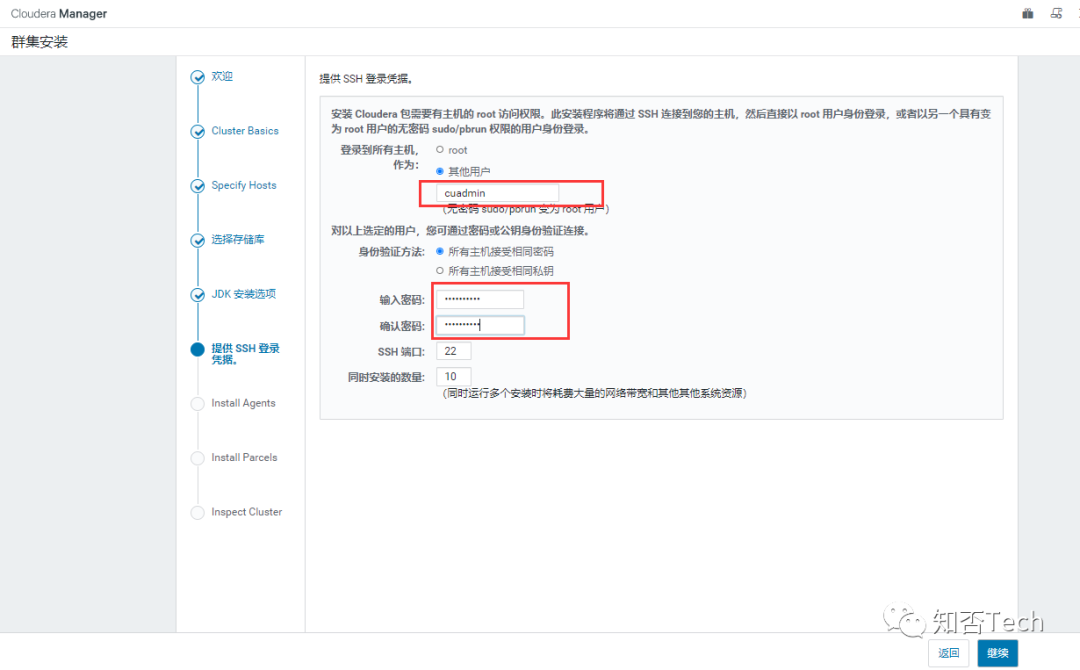

13、填写ssh登录凭证，后期使用此权限进行集群组件分发安装

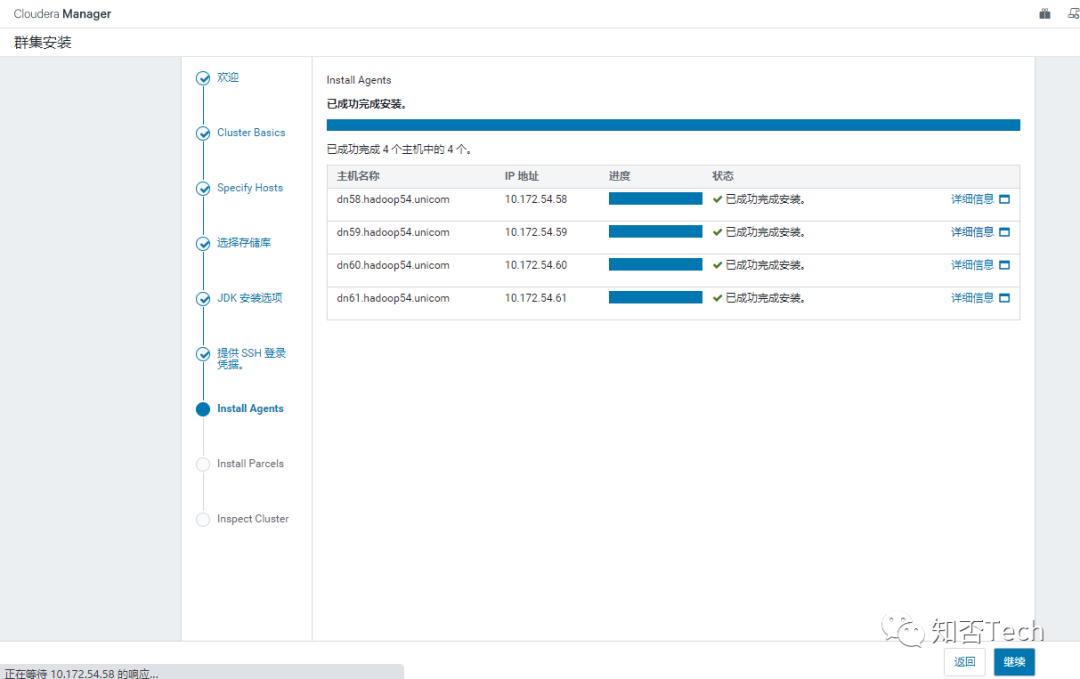

14、agent安装

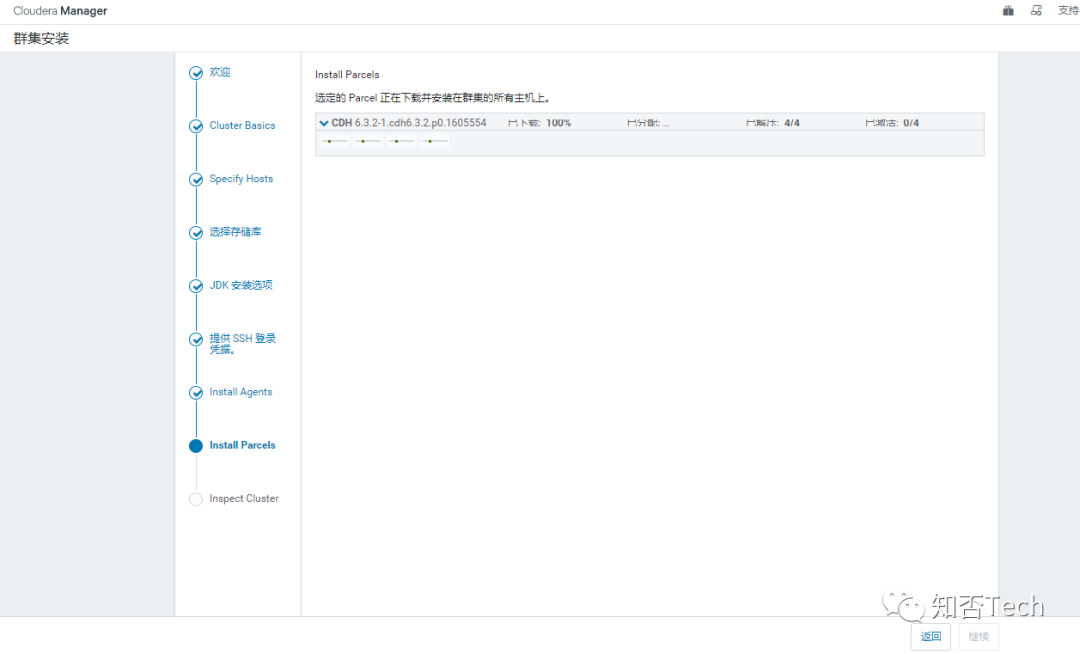

15、安装parcels

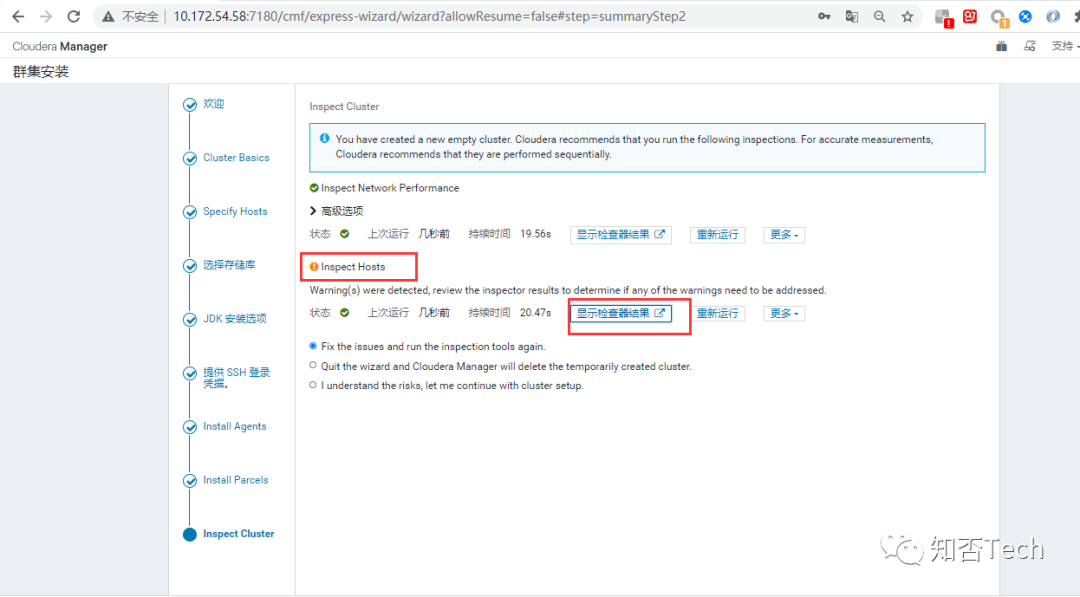

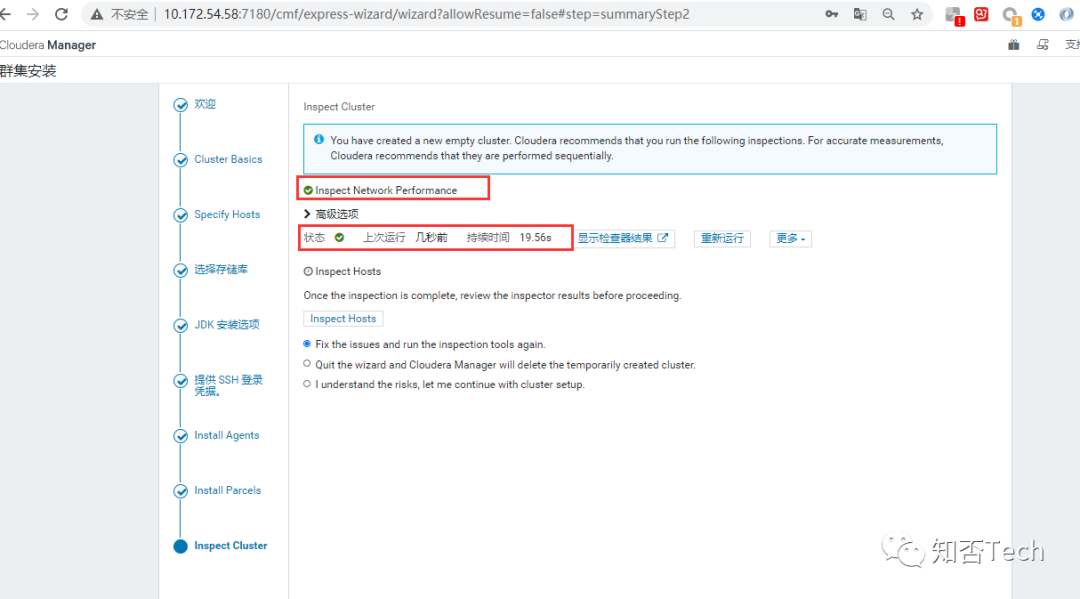

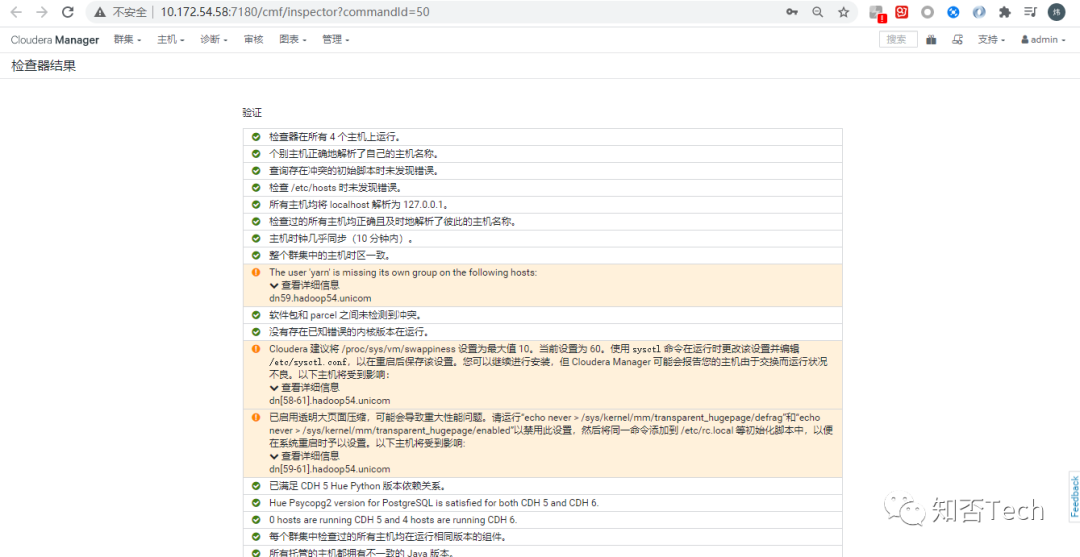

16、验证网络状态

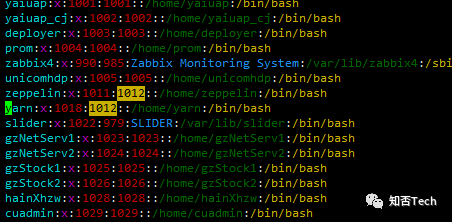

由于本次机器是由原hdp集群退服后手动清理的，部分hdp数据残余需要处理，这里cm给出了具体的问题及应对方案。处理下即可。

#解决方法

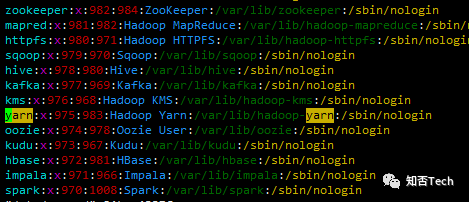

useradd -G hadoop,yarn -d var/lib/hadoop-yarn -s sbin/nologin yarn

#临时生效：
sysctl -w vm.swappiness=10


echo never > sys/kernel/mm/transparent_hugepage/defrag
echo never > sys/kernel/mm/transparent_hugepage/enabled
#永久生效
echo "vm.swappiness=10" >> etc/sysctl.conf
echo "echo never > sys/kernel/mm/transparent_hugepage/defrag" >> etc/rc.local
echo "echo never > sys/kernel/mm/transparent_hugepage/enabled" >> etc/rc.local

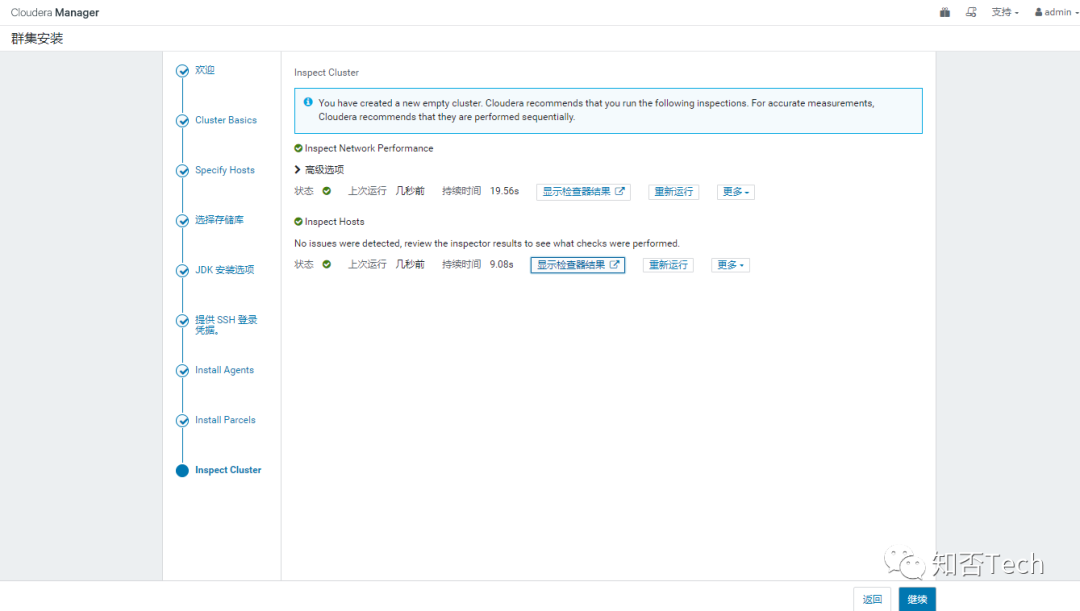

验证无误；

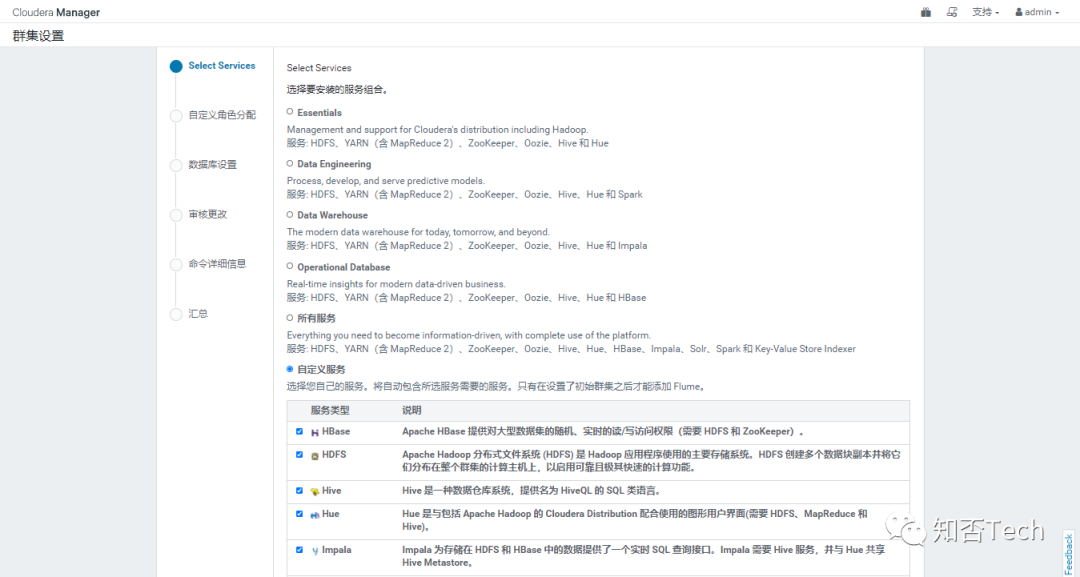

17、选择安装组件，此处可多选组件安装，也选择逐个组件进行安装（如首次安装简易后者，避免多组件安装出现较多问题。）当然，出现问题无法回退的话，也可以通过卸载CM&CDH进行环境初始化。

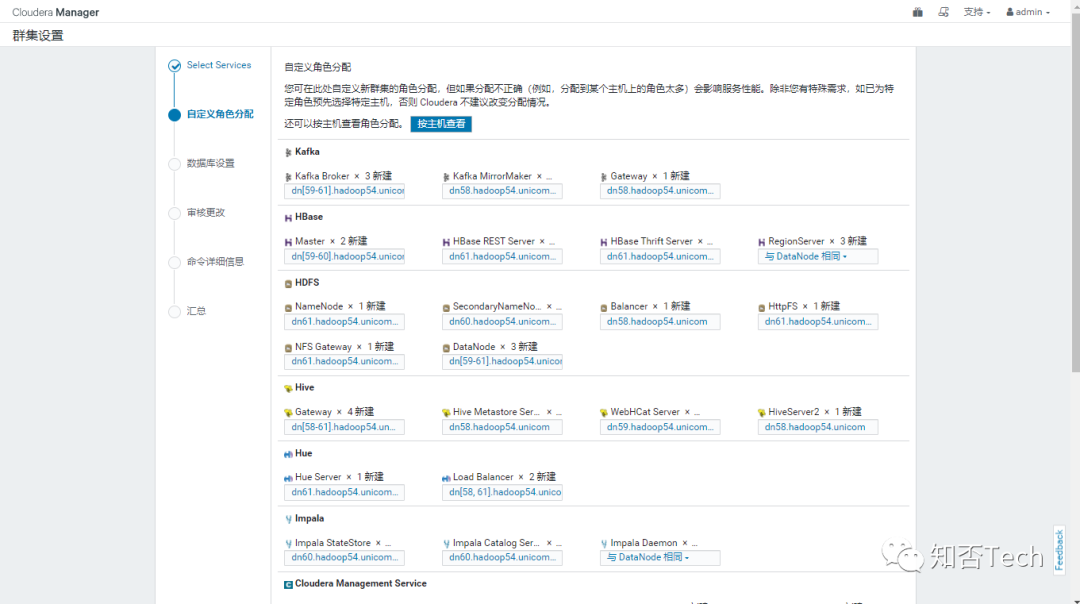

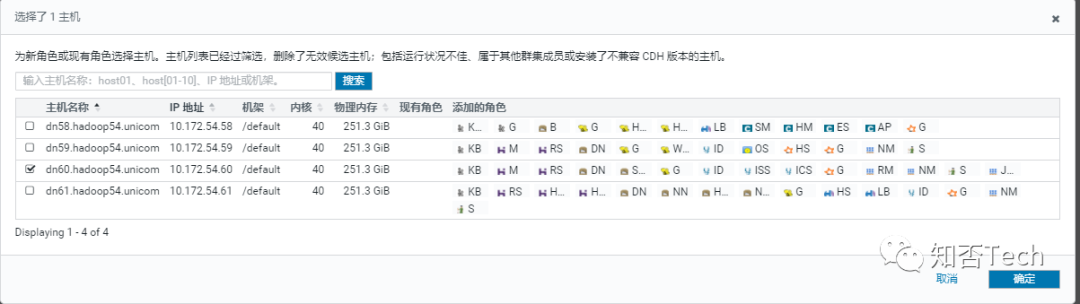

18、选择各组件中server节点的分配

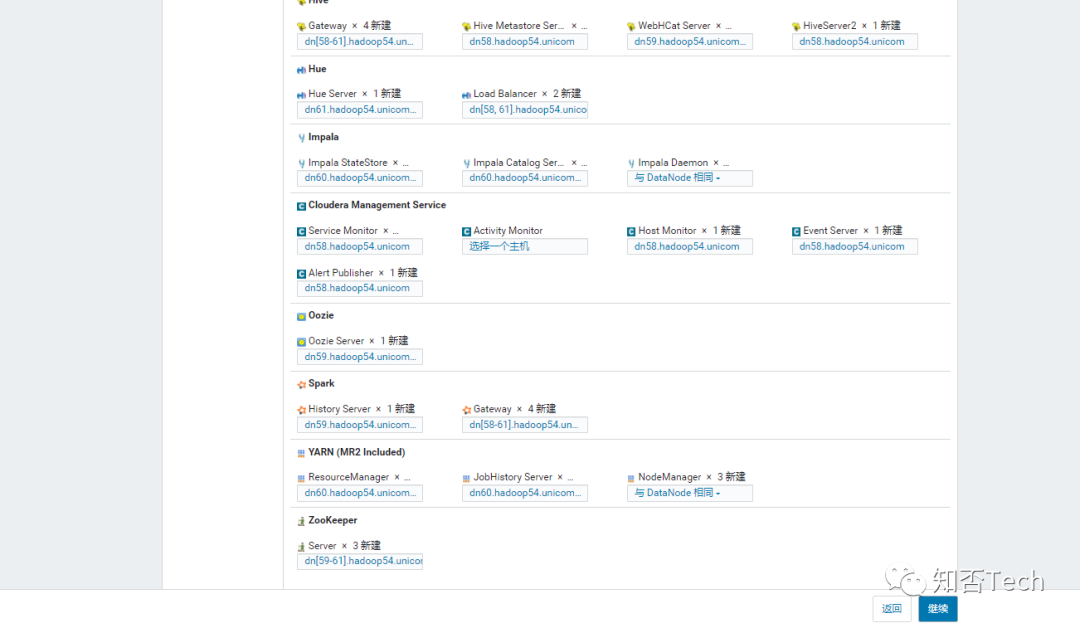

19、确认角色分配

20、涉及相应组件的元数据库需要创建及赋权

MariaDB [(none)]> CREATE DATABASE hive  DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
Query OK, 1 row affected (0.00 sec)


MariaDB [(none)]> create user 'hive'@'%' identified by 'hive_2020';
Query OK, 0 rows affected (0.00 sec)


MariaDB [(none)]> GRANT ALL ON hive.* TO 'hive'@'%' IDENTIFIED BY 'hive_2020';
Query OK, 0 rows affected (0.00 sec)




MariaDB [(none)]> CREATE DATABASE am  DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
Query OK, 1 row affected (0.00 sec)


MariaDB [(none)]> create user 'am'@'%' identified by 'am_2020';
Query OK, 0 rows affected (0.00 sec)


MariaDB [(none)]> GRANT ALL ON am.* TO 'am'@'%' IDENTIFIED BY 'am_2020';
Query OK, 0 rows affected (0.00 sec)






MariaDB [(none)]> CREATE DATABASE oozie  DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
Query OK, 1 row affected (0.00 sec)


MariaDB [(none)]> create user 'oozie'@'%' identified by 'oozie_2020';
Query OK, 0 rows affected (0.00 sec)


MariaDB [(none)]> GRANT ALL ON oozie.* TO 'oozie'@'%' IDENTIFIED BY 'oozie_2020';
Query OK, 0 rows affected (0.00 sec)








MariaDB [(none)]> CREATE DATABASE hue  DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
Query OK, 1 row affected (0.00 sec)


MariaDB [(none)]> create user 'hue'@'%' identified by 'hue_2020';
Query OK, 0 rows affected (0.00 sec)


MariaDB [(none)]> GRANT ALL ON hue.* TO 'hue'@'%' IDENTIFIED BY 'hue_2020';
Query OK, 0 rows affected (0.00 sec)




#类似ranger，元数据权限管理


MariaDB [(none)]> CREATE DATABASE sentry  DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
Query OK, 1 row affected (0.00 sec)


MariaDB [(none)]> create user 'sentry'@'%' identified by 'sentry_2020';
Query OK, 0 rows affected (0.00 sec)


MariaDB [(none)]> GRANT ALL ON sentry.* TO 'sentry'@'%' IDENTIFIED BY 'sentry_2020';
Query OK, 0 rows affected (0.00 sec)

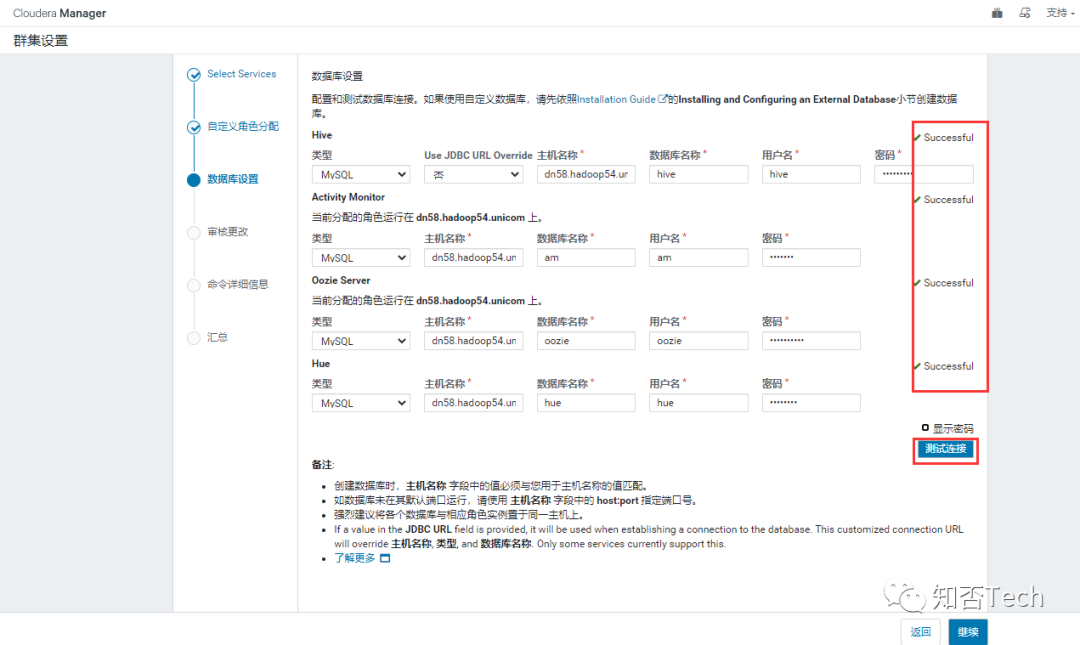

20、配置元数据库及验证jdbc连接测试

CMS


[root@dn58 parcels]# mkdir -p /var/lib/cloudera-host-monitor
[root@dn58 parcels]# mkdir -p /var/lib/cloudera-service-monitor
[root@dn58 parcels]# chown -R cloudera-scm:cloudera-scm /var/lib/cloudera-host-monitor
[root@dn58 parcels]# chown -R cloudera-scm:cloudera-scm /var/lib/cloudera-service-monitor

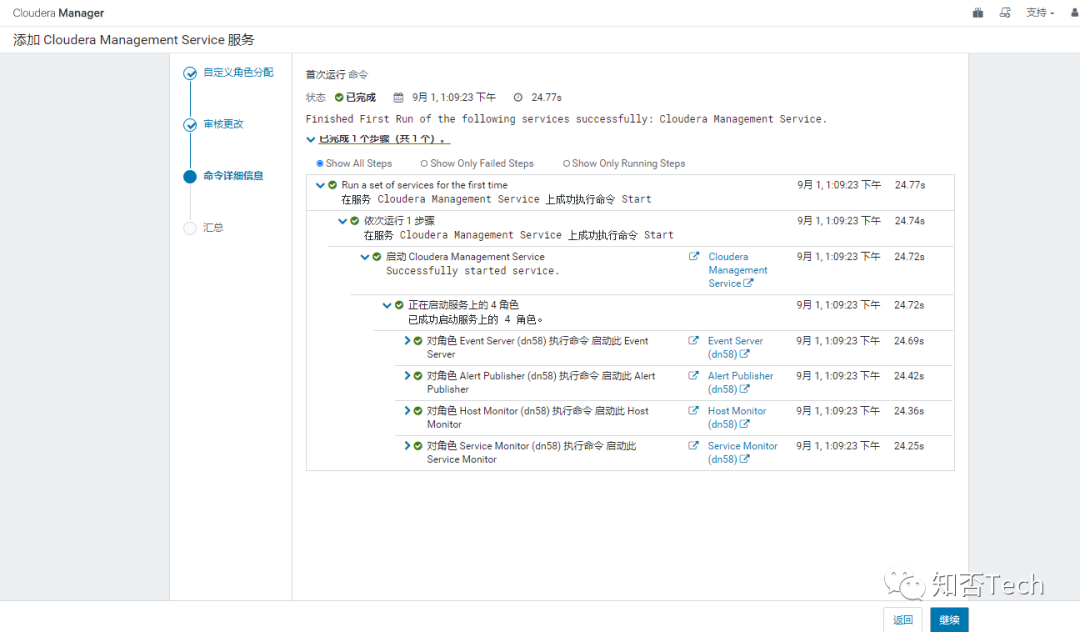

21、添加CMS，用于运维CDH的服务组件

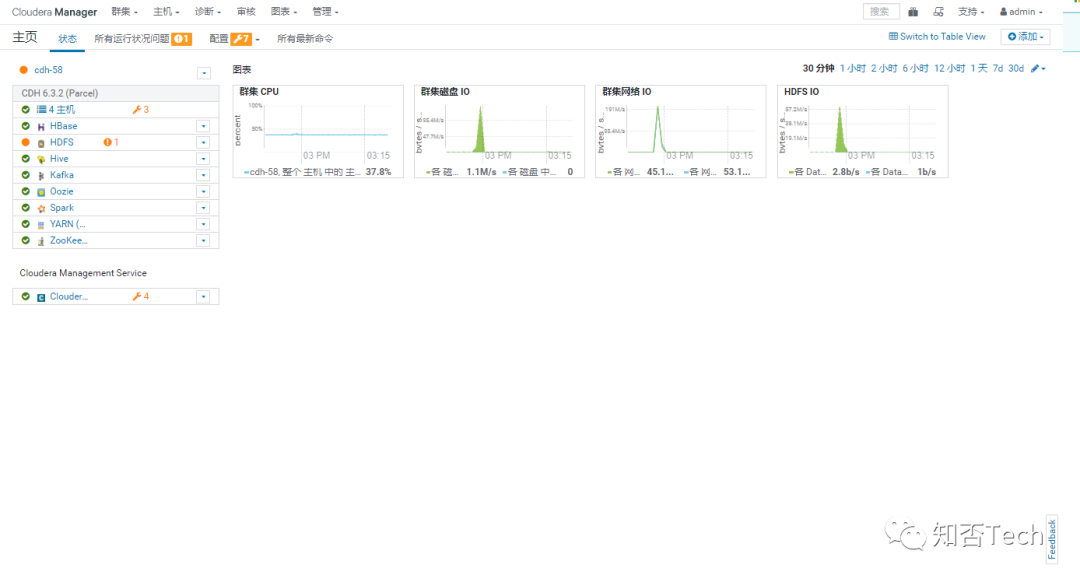

安装完毕界面

参考：

https://docs.cloudera.com/documentation/enterprise/6/latest/topics/installation.html
