消息中间件是每个做后台同学必须要掌握的一类框架，这主要取决于其广泛应用于互联网项目。消息中间件在这些系统中扮演着很重要的角色，它们的主要作用是消息异步，系统解耦，高并发削峰，分布式事务等等。目前主要的消息中间件有rabbitMQ、kafka、rocketMQ、ActiveMQ等，本系列文章总结的是kafka，也算是当前市面上比较流行的消息中间件，后续的文章会从kafka的生产者、消费者、broker等来总结。除了在实际应用中，消息中间件是一个常用的框架，在面试中，消息中间件也是必问内容。由于个人能力有限，文中难免有理解不到位的地方，还请留言指导，在此谢过。本系列文章kafka版本使用最新的2.8.0。

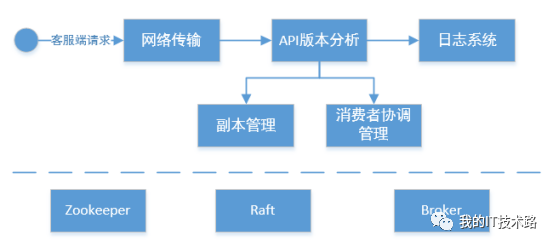

Broker概述

在之前的文章中，我们介绍了kafka的生产者、消费者相关源码，从本文开始我们主要描述kafka broker相关的原理和源码。Broker主要实现的功能有消息存储，集群控制，消费者管理，请求处理等一系列功能。其中消息存储是在log包中；集群控制是在controller包中；消费者分配在coordinator包中；底层的网络通信层在network包中；2.8版本还使用了自写的raft协议替换zookeeper，所以zk包和raft包都是分别和zk通信和raft节点通信的包；API包中是不同版本的API信息，这些都是broker源码中重要的内容。如下图是各个模块的工作关联，后续会针对每个模块详细说明。

Broker的启动

下面我们先下载2.8.0的kafka版本到本地。因为2.8.0存在两种启动方式：zookeeper和raft。我们先看下zookeeper的启动方式。

Zookeeper模式：

1）修改zookeeper配置（zookeeper.properties），启动好zookeeper。

#配置zk的日志地址（这个日志包括持久化的日志）
dataDir=G:\\learn\\kafka_2.12-2.8.0\\kafka_2.12-2.8.0\\log\\zookeeper
# zk的通信端口
clientPort=2181
# 客服端最大连接数 0代表不限制
maxClientCnxns=0

2）修改broker的配置（server.properties）启动kafka。

# The id of the broker.
broker.id=0
# The address the socket server listens on.
listeners=PLAINTEXT://localhost:9092
# The number of threads that the server uses for receiving requests from the network and sending responses to the network
num.network.threads=3
# The number of threads that the server uses for processing requests, which may include disk I/O
num.io.threads=8
# The send buffer (SO_SNDBUF) used by the socket server
socket.send.buffer.bytes=102400
# The receive buffer (SO_RCVBUF) used by the socket server
socket.receive.buffer.bytes=102400
# The maximum size of a request that the socket server will accept (protection against OOM)
socket.request.max.bytes=104857600
# A comma separated list of directories under which to store log files
log.dirs=G:\\learn\\kafka_2.12-2.8.0\\kafka_2.12-2.8.0\\log\\kafka-logs
# The default number of log partitions per topic.
num.partitions=1
# The number of threads per data directory to be used for log recovery at startup and flushing at shutdown.
num.recovery.threads.per.data.dir=1
# The replication factor for the group metadata internal topics "__consumer_offsets" and "__transaction_state"
offsets.topic.replication.factor=1
transaction.state.log.replication.factor=1
transaction.state.log.min.isr=1
# The minimum age of a log file to be eligible for deletion due to age
log.retention.hours=168
# The maximum size of a log segment file. When this size is reached a new log segment will be created.
log.segment.bytes=1073741824
# The interval at which log segments are checked to see if they can be deleted according
# to the retention policies
log.retention.check.interval.ms=300000
#zk
zookeeper.connect=localhost:2181
zookeeper.connection.timeout.ms=18000
# Group Coordinator Settings
group.initial.rebalance.delay.ms=0

Raft模式启动：

1）生成集群id

bin/kafka-storage.sh random-uuid 、

--返回集群id：Hfc5JlmbTWKqLOhfJSCVwS

2）格式化目录

bin/kafka-storage.sh format -t Hfc5JlmbTWKqLOhfJSCVwS -c config/kraft/server.properties

3）启动kafka：

bin/kafka-server-start.sh config/kraft/server.properties

如果是多节点安装，确保每个节点使用的集群ID是相同的，Kraft的server配置基本和上面server的配置类似（2.8.0的raft协议还处于测试阶段，暂时不推荐在生产上使用）。

Broker的初始化

Broker的启动分为两种模式：zk模式或者raft模式，在初始化的时候通过process.roles配置进行判断。如果存在该配置的话就是raft模式，否则就是zk模式。Kafka的Broker使用的是Scala语言编写的，在一定程度上和java语言有点不同，下面我们看下整个的初始化过程。

def main(args: Array[String]): Unit = {
//...
//获取配置
      val serverProps = getPropsFromArgs(args)
  //初始化broker对象
      val server = buildServer(serverProps)
  //启动服务
  server.startup()
  //...
  }
 private def buildServer(props: Properties): Server = {
    val config = KafkaConfig.fromProps(props, false)
//zk的方式启动
    if (config.requiresZookeeper) {
      new KafkaServer(
        config,
        Time.SYSTEM,
        threadNamePrefix = None,
        enableForwarding = false
      )
    } else {
//raft方式启动
      new KafkaRaftServer(
        config,
        Time.SYSTEM,
        threadNamePrefix = None
      )
    }
  }

从上面的代码可以看到核心的启动在kafkaServer类和KafkaRaftServer类，这两个分别代表zk模式和raft模式启动。

KafkaServer 启动过程分析

启动过程主要是因为要初始化很多东西，比如上面提到的日志管理，协调者，集群控制器，监控，网络通信，zk连接等等。这些都会在一开始服务启动的时候初始化，网络处理会开始处理相关请求。

override def startup(): Unit = {
    try {
      //...
  //cas判断是否可以启动
      val canStartup = isStartingUp.compareAndSet(false, true)
      if (canStartup) {
 //设置状态
        brokerState.set(BrokerState.STARTING)
//初始化zk连接，并监听
        initZkClient(time)
        configRepository = new ZkConfigRepository(new AdminZkClient(zkClient))
        _featureChangeListener = new FinalizedFeatureChangeListener(featureCache, _zkClient)
        if (config.isFeatureVersioningSupported) {
          _featureChangeListener.initOrThrow(config.zkConnectionTimeoutMs)
        }
//创建集群id
        _clusterId = getOrGenerateClusterId(zkClient)

        /* 加载元数据，从关闭中恢复的时候使用 */
        val (preloadedBrokerMetadataCheckpoint, initialOfflineDirs) =
          BrokerMetadataCheckpoint.getBrokerMetadataAndOfflineDirs(config.logDirs, ignoreMissing = true)
  //...
        /* 创建 brokerId */
        config.brokerId = getOrGenerateBrokerId(preloadedBrokerMetadataCheckpoint)
        //从zk中动态获取配置
        config.dynamicConfig.initialize(zkClient)

        /* 启动 定时调度，kafka内部的各种定时机制 */
        kafkaScheduler = new KafkaScheduler(config.backgroundThreads)
        kafkaScheduler.startup()

        /* 监控服务 */
        kafkaYammerMetrics = KafkaYammerMetrics.INSTANCE
        //...
        logDirFailureChannel = new LogDirFailureChannel(config.logDirs.size)

        /*启动日志管理服务 */
        logManager = LogManager(config, initialOfflineDirs,
          new ZkConfigRepository(new AdminZkClient(zkClient)),
          kafkaScheduler, time, brokerTopicStats, logDirFailureChannel, config.usesTopicId)
        brokerState.set(BrokerState.RECOVERY)
        logManager.startup(zkClient.getAllTopicsInCluster())




//创建socket服务并启动
        metadataCache = MetadataCache.zkMetadataCache(config.brokerId)
        tokenCache = new DelegationTokenCache(ScramMechanism.mechanismNames)
        credentialProvider = new CredentialProvider(ScramMechanism.mechanismNames, tokenCache)

        if (enableForwarding) {
          this.forwardingManager = Some(ForwardingManager(
            config,
            metadataCache,
            time,
            metrics,
            threadNamePrefix
          ))
          forwardingManager.foreach(_.start())
        }

        val apiVersionManager = ApiVersionManager(
          ListenerType.ZK_BROKER,
          config,
          forwardingManager,
          brokerFeatures,
          featureCache
        )
        socketServer = new SocketServer(config, metrics, time, credentialProvider, apiVersionManager)
        socketServer.startup(startProcessingRequests = false)

        /* 启动副本管理器 */
        alterIsrManager = if (config.interBrokerProtocolVersion.isAlterIsrSupported) {
          AlterIsrManager(
            config = config,
            metadataCache = metadataCache,
            scheduler = kafkaScheduler,
            time = time,
            metrics = metrics,
            threadNamePrefix = threadNamePrefix,
            brokerEpochSupplier = () => kafkaController.brokerEpoch,
            config.brokerId
          )
        } else {
          AlterIsrManager(kafkaScheduler, time, zkClient)
        }
        alterIsrManager.start()

        replicaManager = createReplicaManager(isShuttingDown)
        replicaManager.startup()
//注册到zK上
        val brokerInfo = createBrokerInfo
        val brokerEpoch = zkClient.registerBroker(brokerInfo)

        // 检查zk上是否存在broker信息
        checkpointBrokerMetadata(ZkMetaProperties(clusterId, config.brokerId))

        /* 启动 token 管理器 */
        tokenManager = new DelegationTokenManager(config, tokenCache, time , zkClient)
        tokenManager.startup()

        /* 启动 kafka 集群控制器 */
        kafkaController = new KafkaController(config, zkClient, time, metrics, brokerInfo, brokerEpoch, tokenManager, brokerFeatures, featureCache, threadNamePrefix)
        kafkaController.startup()

        adminManager = new ZkAdminManager(config, metrics, metadataCache, zkClient)

        /* 启动 消费者集群协调者 */
        groupCoordinator = GroupCoordinator(config, replicaManager, Time.SYSTEM, metrics)
        groupCoordinator.startup(() => zkClient.getTopicPartitionCount(Topic.GROUP_METADATA_TOPIC_NAME).getOrElse(config.offsetsTopicPartitions))

        /* start transaction coordinator, with a separate background thread scheduler for transaction expiration and log loading */
        // Hardcode Time.SYSTEM for now as some Streams tests fail otherwise, it would be good to fix the underlying issue
        transactionCoordinator = TransactionCoordinator(config, replicaManager, new KafkaScheduler(threads = 1, threadNamePrefix = "transaction-log-manager-"),
          () => new ProducerIdManager(config.brokerId, zkClient), metrics, metadataCache, Time.SYSTEM)
        transactionCoordinator.startup(
          () => zkClient.getTopicPartitionCount(Topic.TRANSACTION_STATE_TOPIC_NAME).getOrElse(config.transactionTopicPartitions))

        /* 启动自动创建topic管理器 */
        this.autoTopicCreationManager = AutoTopicCreationManager(
          config,
          metadataCache,
          time,
          metrics,
          threadNamePrefix,
          Some(adminManager),
          Some(kafkaController),
          groupCoordinator,
          transactionCoordinator,
          enableForwarding
        )
        autoTopicCreationManager.start()

        /* 认证服务.*/
        authorizer = config.authorizer
        authorizer.foreach(_.configure(config.originals))
        val authorizerFutures: Map[Endpoint, CompletableFuture[Void]] = authorizer match {
          case Some(authZ) =>
            authZ.start(brokerInfo.broker.toServerInfo(clusterId, config)).asScala.map { case (ep, cs) =>
              ep -> cs.toCompletableFuture
            }
          case None =>
            brokerInfo.broker.endPoints.map { ep =>
              ep.toJava -> CompletableFuture.completedFuture[Void](null)
            }.toMap
        }




        val fetchManager = new FetchManager(Time.SYSTEM,
          new FetchSessionCache(config.maxIncrementalFetchSessionCacheSlots,
            KafkaServer.MIN_INCREMENTAL_FETCH_SESSION_EVICTION_MS))

        /* 启动 处理请求服务 */
        val zkSupport = ZkSupport(adminManager, kafkaController, zkClient, forwardingManager, metadataCache)
        dataPlaneRequestProcessor = new KafkaApis(socketServer.dataPlaneRequestChannel, zkSupport, replicaManager, groupCoordinator, transactionCoordinator,
          autoTopicCreationManager, config.brokerId, config, configRepository, metadataCache, metrics, authorizer, quotaManagers,
          fetchManager, brokerTopicStats, clusterId, time, tokenManager, apiVersionManager)

        dataPlaneRequestHandlerPool = new KafkaRequestHandlerPool(config.brokerId, socketServer.dataPlaneRequestChannel, dataPlaneRequestProcessor, time,
          config.numIoThreads, s"${SocketServer.DataPlaneMetricPrefix}RequestHandlerAvgIdlePercent", SocketServer.DataPlaneThreadPrefix)

        socketServer.controlPlaneRequestChannelOpt.foreach { controlPlaneRequestChannel =>
          controlPlaneRequestProcessor = new KafkaApis(controlPlaneRequestChannel, zkSupport, replicaManager, groupCoordinator, transactionCoordinator,
            autoTopicCreationManager, config.brokerId, config, configRepository, metadataCache, metrics, authorizer, quotaManagers,
            fetchManager, brokerTopicStats, clusterId, time, tokenManager, apiVersionManager)

          controlPlaneRequestHandlerPool = new KafkaRequestHandlerPool(config.brokerId, socketServer.controlPlaneRequestChannelOpt.get, controlPlaneRequestProcessor, time,
            1, s"${SocketServer.ControlPlaneMetricPrefix}RequestHandlerAvgIdlePercent", SocketServer.ControlPlaneThreadPrefix)
        }

        Mx4jLoader.maybeLoad()

        /* 添加配置 */
        config.dynamicConfig.addReconfigurables(this)
        dynamicConfigHandlers = Map[String, ConfigHandler](ConfigType.Topic -> new TopicConfigHandler(logManager, config, quotaManagers, kafkaController),
                                                           ConfigType.Client -> new ClientIdConfigHandler(quotaManagers),
                                                           ConfigType.User -> new UserConfigHandler(quotaManagers, credentialProvider),
                                                           ConfigType.Broker -> new BrokerConfigHandler(config, quotaManagers),
                                                           ConfigType.Ip -> new IpConfigHandler(socketServer.connectionQuotas))

        // * 启动动态配置管理服务，并监听zk */
        dynamicConfigManager = new DynamicConfigManager(zkClient, dynamicConfigHandlers)
        dynamicConfigManager.startup()
//socket开始处理请求
        socketServer.startProcessingRequests(authorizerFutures)
//设置启动成功后的状态
        brokerState.set(BrokerState.RUNNING)
        shutdownLatch = new CountDownLatch(1)
        startupComplete.set(true)
        isStartingUp.set(false)
        AppInfoParser.registerAppInfo(Server.MetricsPrefix, config.brokerId.toString, metrics, time.milliseconds())
        info("started")
      }
    }
    catch {
      //...失败抛出异常
    }
  }

KafkaRaftServer的启动过程分析

Raft的启动和zk的启动上有部分类似，核心的区别在于zk模式是初始化zk的客服端，并且开启监听数据等。而raft模式是构建kafka-raft集群，并将元数据放入raft中，所以raft启动方式是要启动raft连接客服端替换zk的客服端。

override def startup(): Unit = {
    Mx4jLoader.maybeLoad()
//启动raft管理器
    raftManager.startup()
//协调者启动
    controller.foreach(_.startup())
//broker启动
    broker.foreach(_.startup())
    AppInfoParser.registerAppInfo(Server.MetricsPrefix, config.brokerId.toString, metrics, time.milliseconds())
    info(KafkaBroker.STARTED_MESSAGE)
  }
 def startup(): Unit = {
// raft启动就是启动处理线程和channel
//...
    netChannel.start()
    raftIoThread.start()
  }
def startup(): Unit = {
    if (!maybeChangeStatus(SHUTDOWN, STARTING)) return
    try {
      //...
      val authorizerFutures: Map[Endpoint, CompletableFuture[Void]] = authorizer match {
        case Some(authZ) =>
          // It would be nice to remove some of the broker-specific assumptions from
          // AuthorizerServerInfo, such as the assumption that there is an inter-broker
          // listener, or that ID is named brokerId.
          val controllerAuthorizerInfo = ServerInfo(
            new ClusterResource(clusterId), config.nodeId, javaListeners, javaListeners.get(0))
          authZ.start(controllerAuthorizerInfo).asScala.map { case (ep, cs) =>
            ep -> cs.toCompletableFuture
          }.toMap
        case None =>
          javaListeners.asScala.map {
            ep => ep -> CompletableFuture.completedFuture[Void](null)
          }.toMap
      }
//启动APImanager
      val apiVersionManager = new SimpleApiVersionManager(ListenerType.CONTROLLER)

      tokenCache = new DelegationTokenCache(ScramMechanism.mechanismNames)
      credentialProvider = new CredentialProvider(ScramMechanism.mechanismNames, tokenCache)
      socketServer = new SocketServer(config,
        metrics,
        time,
        credentialProvider,
        apiVersionManager)
      socketServer.startup(startProcessingRequests = false, controlPlaneListener = None, config.controllerListeners)
      socketServerFirstBoundPortFuture.complete(socketServer.boundPort(
        config.controllerListeners.head.listenerName))

      val configDefs = Map(ConfigResource.Type.BROKER -> KafkaConfig.configDef,
        ConfigResource.Type.TOPIC -> LogConfig.configDefCopy).asJava
      val threadNamePrefixAsString = threadNamePrefix.getOrElse("")
  //创建controller
      controller = new QuorumController.Builder(config.nodeId).
        setTime(time).
        setThreadNamePrefix(threadNamePrefixAsString).
        setConfigDefs(configDefs).
        setLogManager(metaLogManager).
        setDefaultReplicationFactor(config.defaultReplicationFactor.toShort).
        setDefaultNumPartitions(config.numPartitions.intValue()).
        setSessionTimeoutNs(TimeUnit.NANOSECONDS.convert(config.brokerSessionTimeoutMs.longValue(),
          TimeUnit.MILLISECONDS)).
        setMetrics(new QuorumControllerMetrics(KafkaYammerMetrics.defaultRegistry())).
        build()


      quotaManagers = QuotaFactory.instantiate(config, metrics, time, threadNamePrefix.getOrElse(""))
      val controllerNodes =
        RaftConfig.quorumVoterStringsToNodes(controllerQuorumVotersFuture.get()).asScala
      controllerApis = new ControllerApis(socketServer.dataPlaneRequestChannel,
        authorizer,
        quotaManagers,
        time,
        supportedFeatures,
        controller,
        raftManager,
        config,
        metaProperties,
        controllerNodes.toSeq,
        apiVersionManager)
      controllerApisHandlerPool = new KafkaRequestHandlerPool(config.nodeId,
        socketServer.dataPlaneRequestChannel,
        controllerApis,
        time,
        config.numIoThreads,
        s"${SocketServer.DataPlaneMetricPrefix}RequestHandlerAvgIdlePercent",
        SocketServer.DataPlaneThreadPrefix)
//启动处理请求
      socketServer.startProcessingRequests(authorizerFutures)
    } catch {
      //...
  //异常处理
    }
  }

Broker的启动和kafkaServer的启动基本类似，这里不一一赘述。

Broker的核心属性

Broker的属性相对来说，就比较多了，在实际开发过程中，我们可能需要关注的以下几个重点配置，这些设置可能有更大的概率会对集群稳定性产生影响。

Server.properties文件下：

broker.id：这个是保证不同节点在集群中唯一的标识，一般从0开始往上加，0，1，2...

listeners：这个是文本传输的方式，常用的是不加密的PLAINTEXT，也支持SSL等加密方式传输。

log.dirs: 日志路径，这个是存储消息文件的公共路径地址

num.partitions：每个topic默认的创建分区数，后续可以线上手动扩充分区数

zookeeper.connect：zk的连接地址

Kraft的server.properties文件：

process.roles：启动进程的角色，一般是启动broker,controller两者

node.id：扮演角色的节点id，这个和broker.id功能类似

controller.quorum.voters：controller选名的列表，为非空

listeners：这个是文本传输的方式，常用的是不加密的PLAINTEXT，也支持SSL等加密方式传输。

log.dirs: 日志路径，这个是存储消息文件的公共路径地址

num.partitions：每个topic默认的创建分区数，后续可以线上手动扩充分区数

更多其他的属性，可以参考官方文档（公众号不允许添加其他的链接，这里就暂时不给地址了）。

本文主要介绍了Broker的初始化流程和几个重要的参数，2.8版本之后，kafka实现了自己的分布式一致性协议框架--kraft，其本身是基于raft协议实现的。后续版本应该也会重点完善Kraft的功能，保证kafka可以摆脱zookeeper的限制。

本文的内容就这么多，如果你觉得对你的学习和面试有些帮助，帮忙点个赞或者转发一下哈，谢谢。

大数据

文章转载自我的IT技术路，如果涉嫌侵权，请发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。

kafka broker -- broker 的初始化过程

评论
