OrientDB之图解Web后台使用（一）

左羊公社 2020-02-24

324

每日金句

人啊，根据重新振作的方法，大概可以分为两种：一种是看着比自己卑微的东西，找寻垫底的借以自慰；另一种是看着比自己伟大的东西，狠狠地踢醒毫无气度的自己。（by 银魂）

今天左羊带领大家以王者模拟战（MockWarfare）为例，讲解如何使用OrientDB的Web后台！

思路讲解：大家大部分因该都玩过王者荣耀中的王者模拟战，玩过因该都知道他是有英雄，阵营，职业，天赋组成的，也就是说他们之间或多或少都有关联性，今天左羊就带领大家使用OrientDB图数据库的Web后台绘出它们之间的关系图谱。好了，废话少说，走起！

类/关系梳理（示例关系梳理）V 顶点
person（英雄）
Occupation（职业）
camp（阵营）


E 边缘：ascription（归属），job(职业)

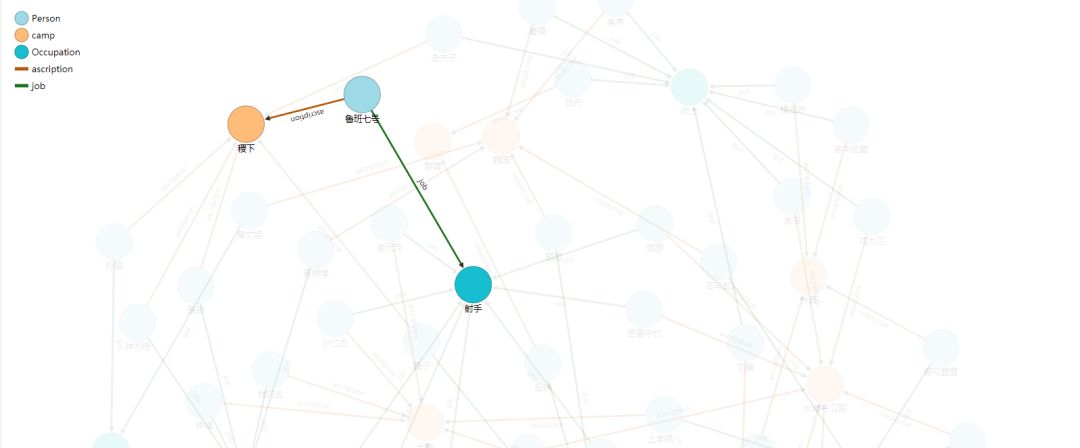

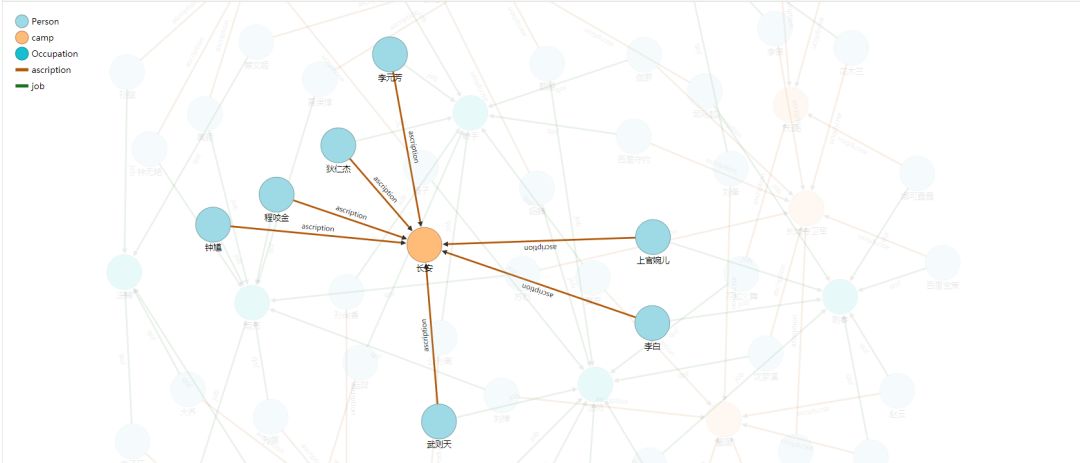

英雄是由也阵营和职业两种羁绊，今天我们以此为例绘出英雄归属什么阵营从事什么职业的关系图谱。

创建数据库

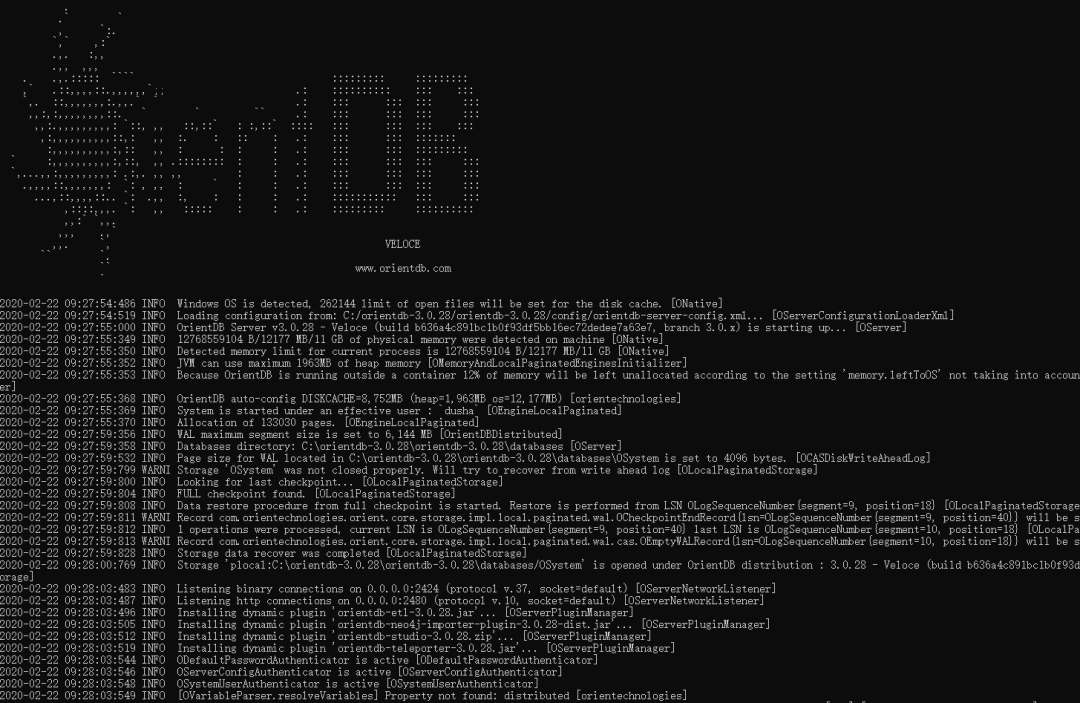

首先我们启动OrientDB服务

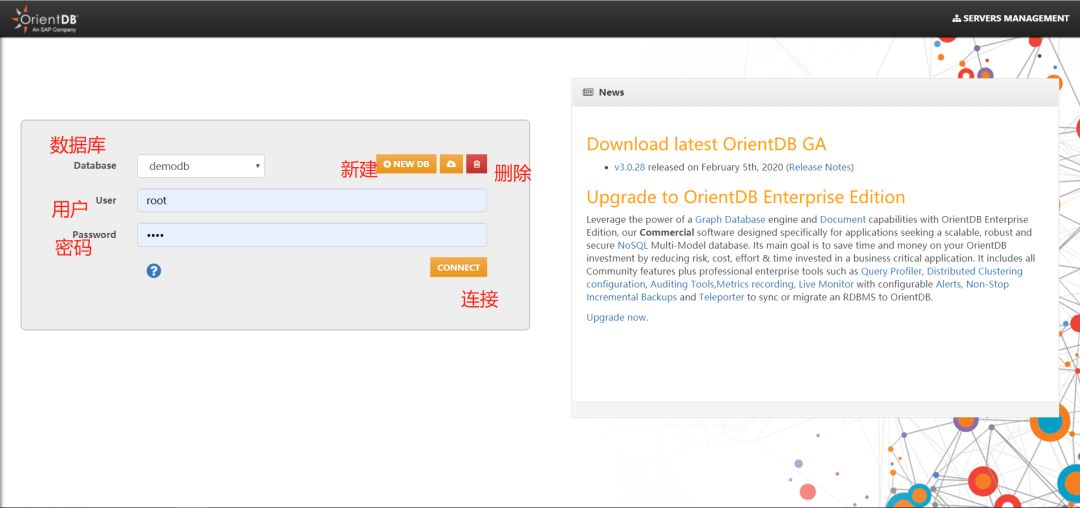

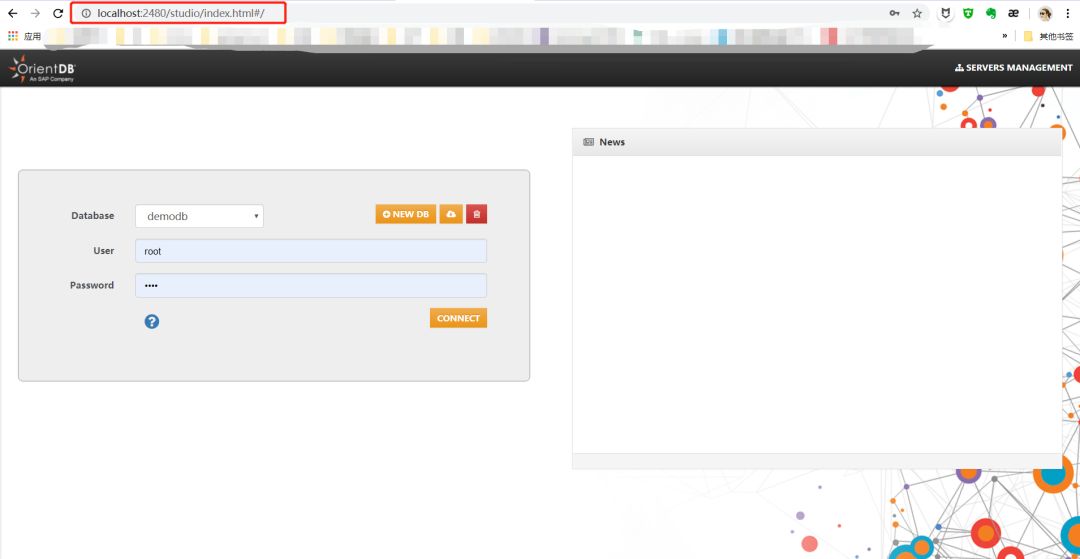

当我们启动完服务后，可以去浏览器索引框输入 localhost:2480进入WEB后台登录页

在这个页面我们可以看到如下内容

Database 数据库 我们可以在选项后面的下拉框中选取想要登录的数据库
User ，用户 默认root,当然你也可以自己指定一个，这个我们日后再说
password 密码 在你第一次执行server.sh或.bat时会提示你创建的密码
connect 连接
NEW DB 创建新的数据库
那个垃圾桶图标是删除当前显示的数据库
那个云图标左羊还没搞明白，大概是从某处获取数据库吧

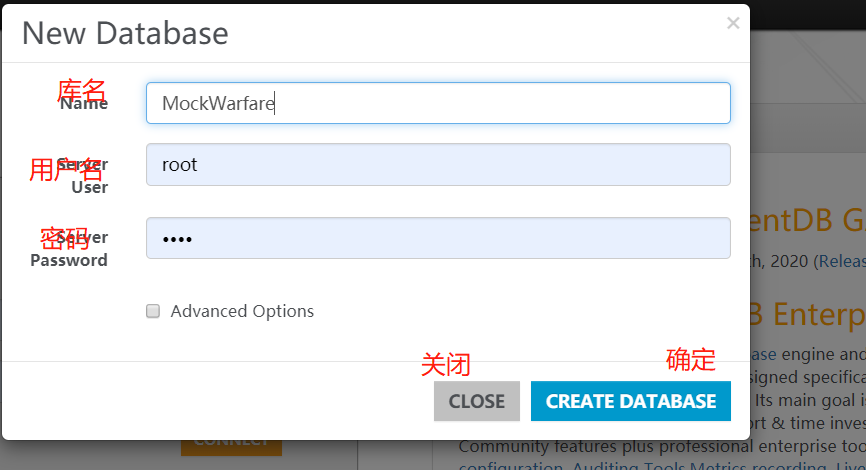

让我们创建一个名为MockWarfare的数据库吧！

点击新建

点击确认后我们会直接点转到如下界面

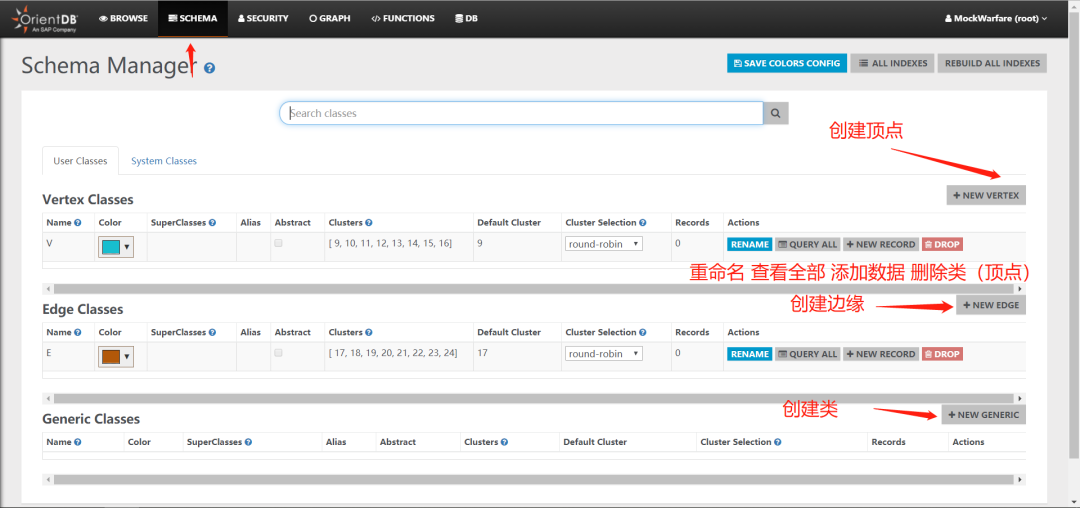

创建实体类（大致相当于NavCat的建表）

V 顶点
person（英雄）
Occupation（职业）
camp（阵营）
E 边缘：，ascription（归属），job(职业)

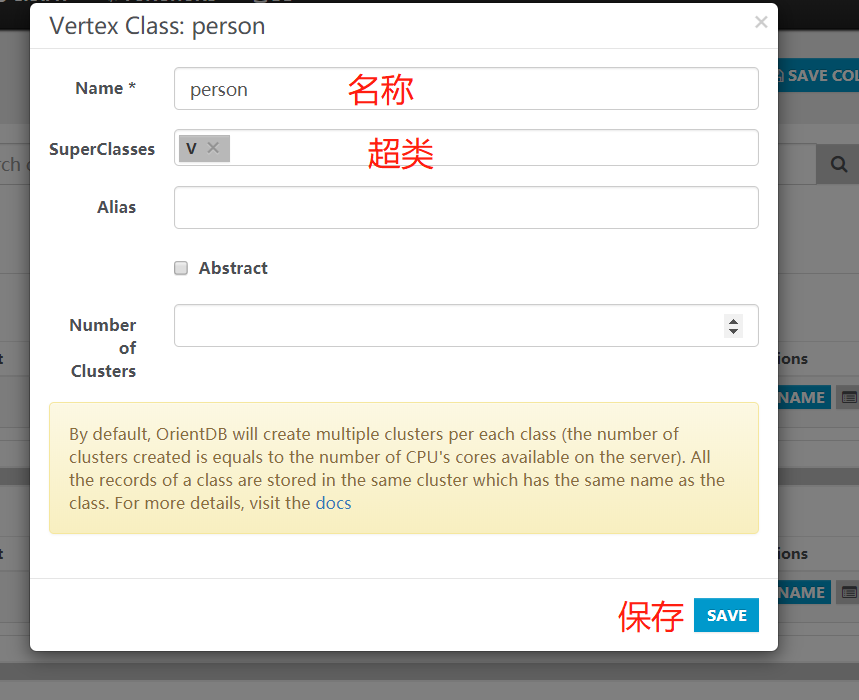

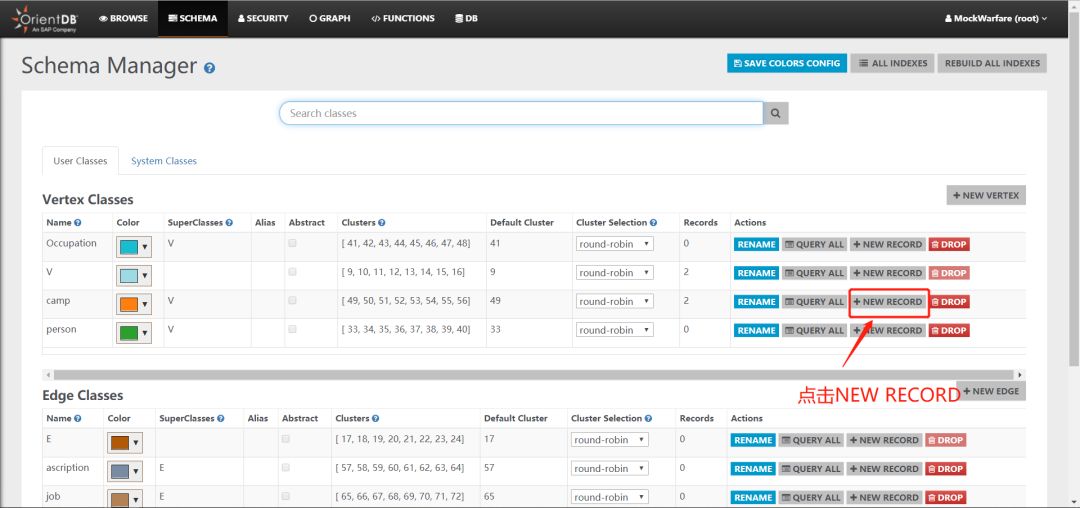

双击NEW VERTEX或NEW EDGE

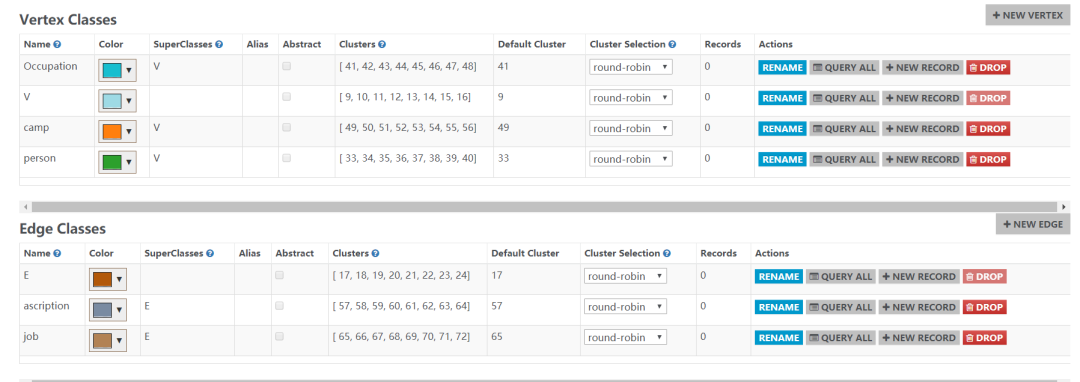

输入name,点击save。接下来我们把所有的顶点和边创建出来。

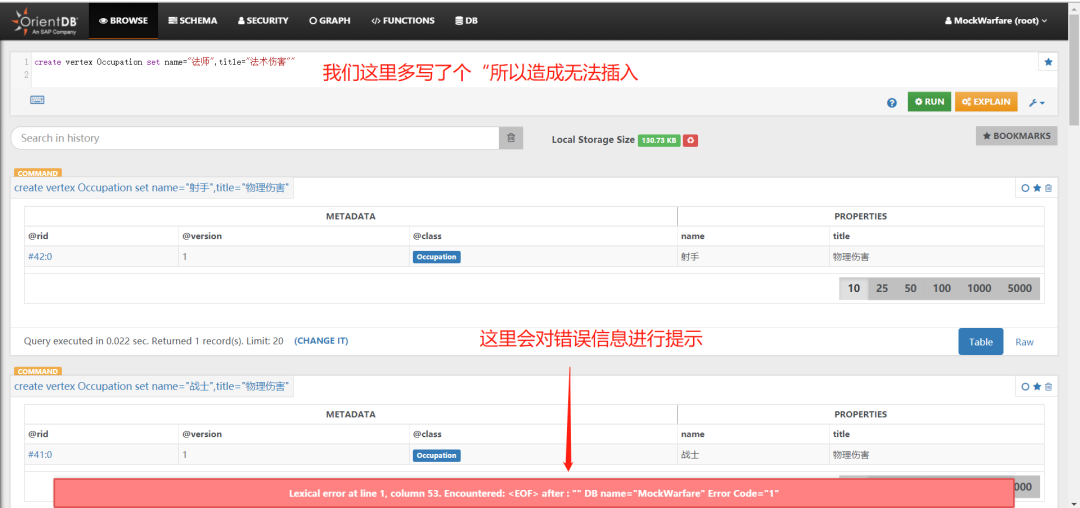

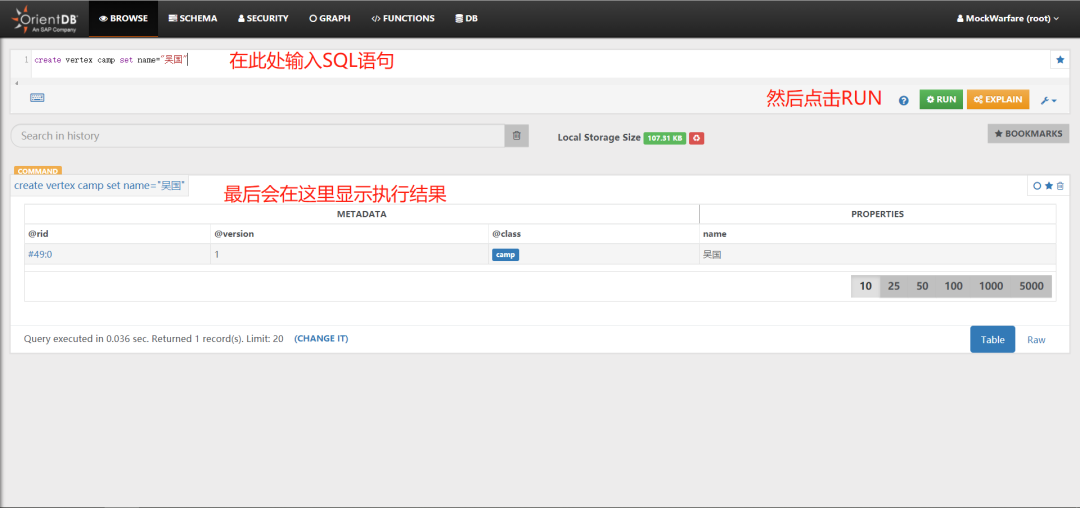

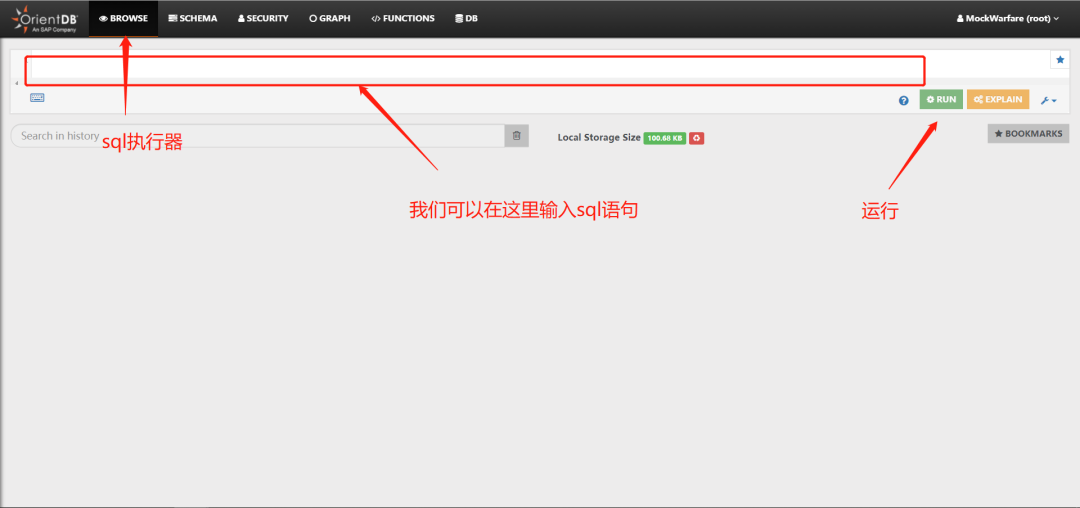

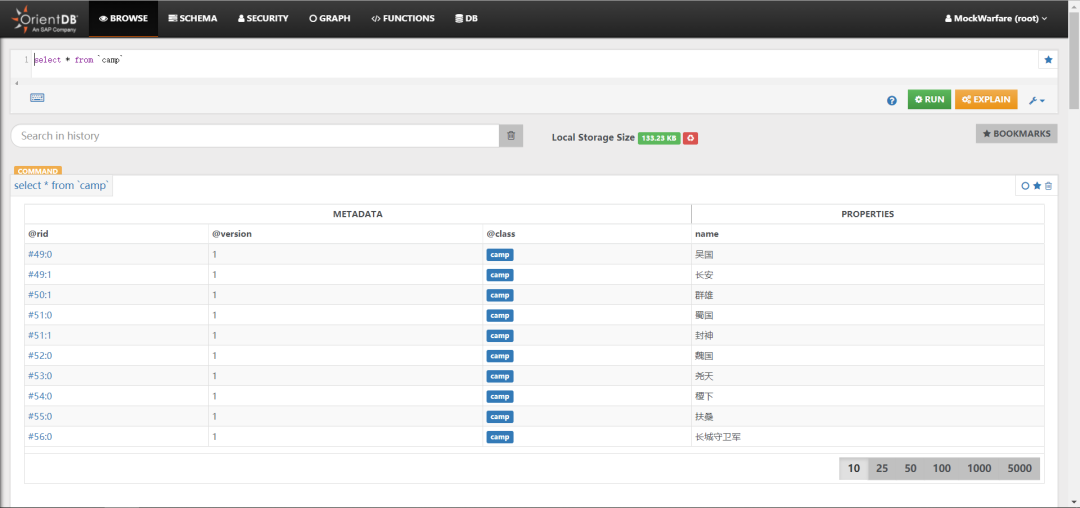

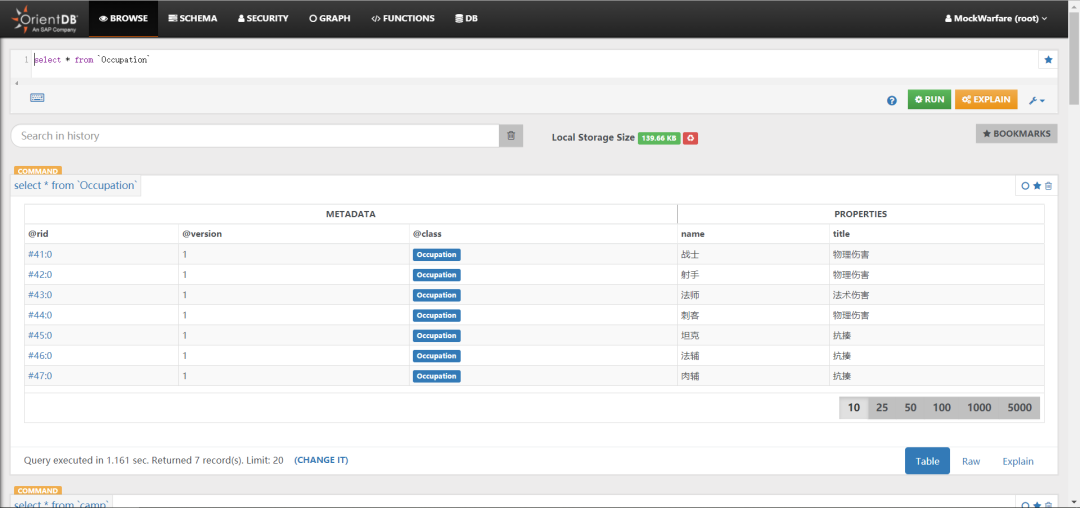

接下我们使用它内置的SQL执行器插入数据

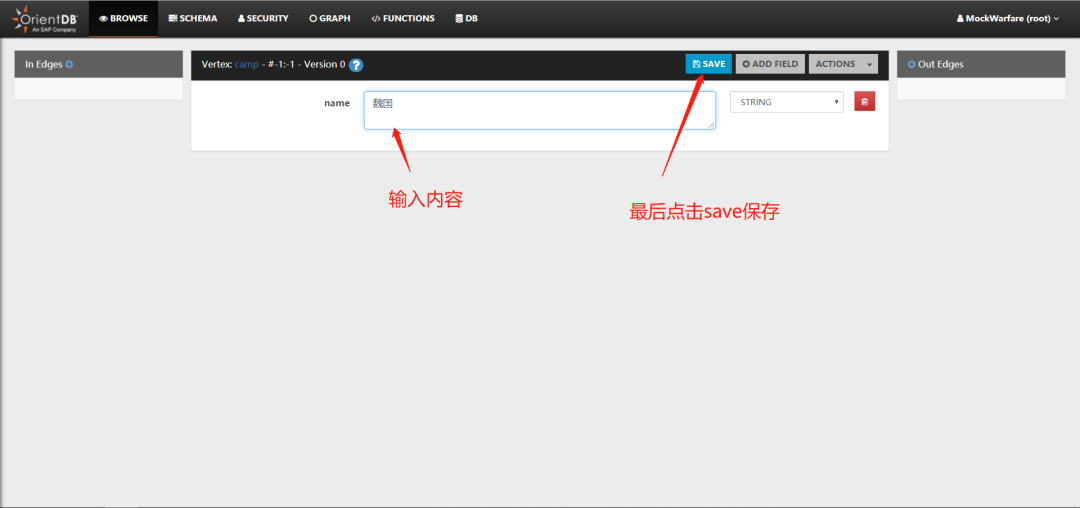

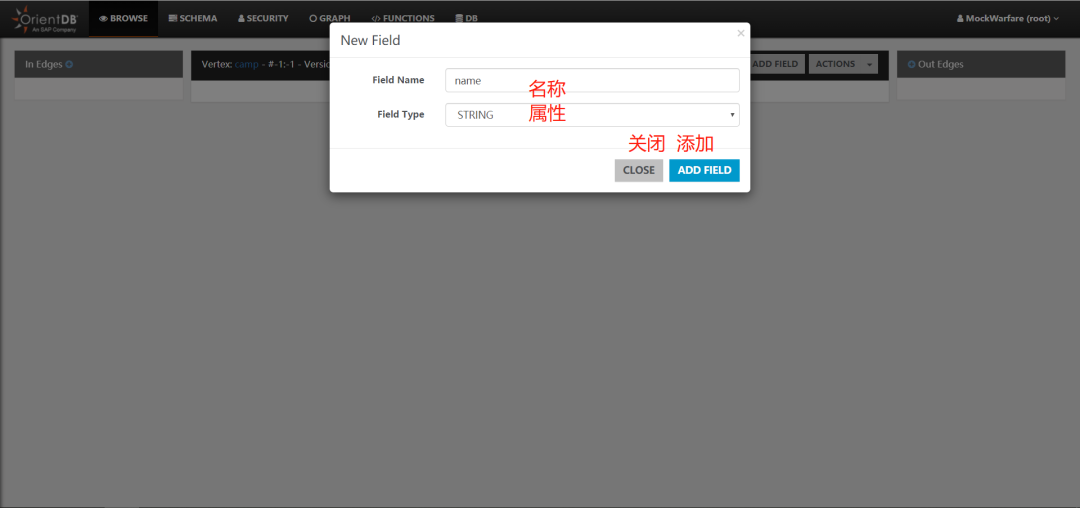

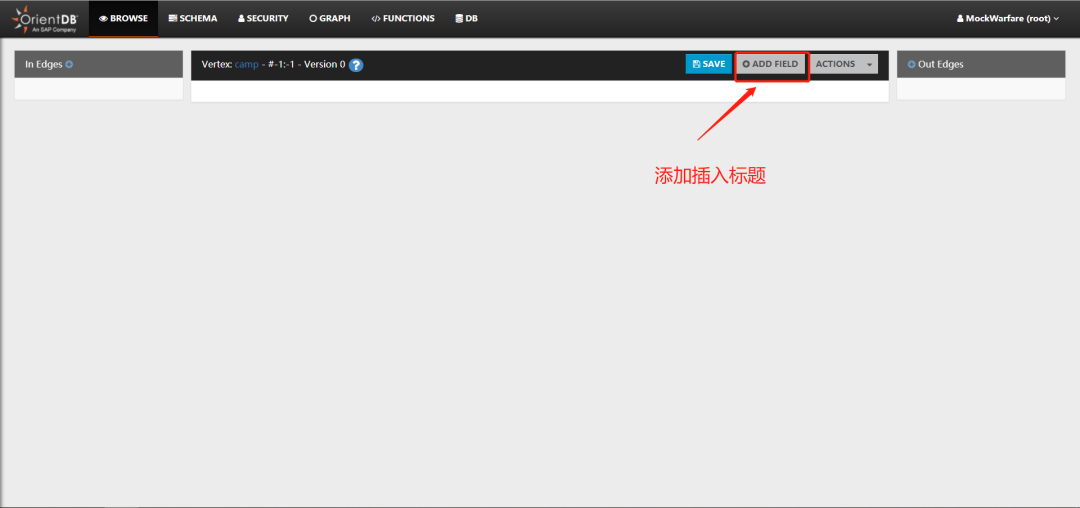

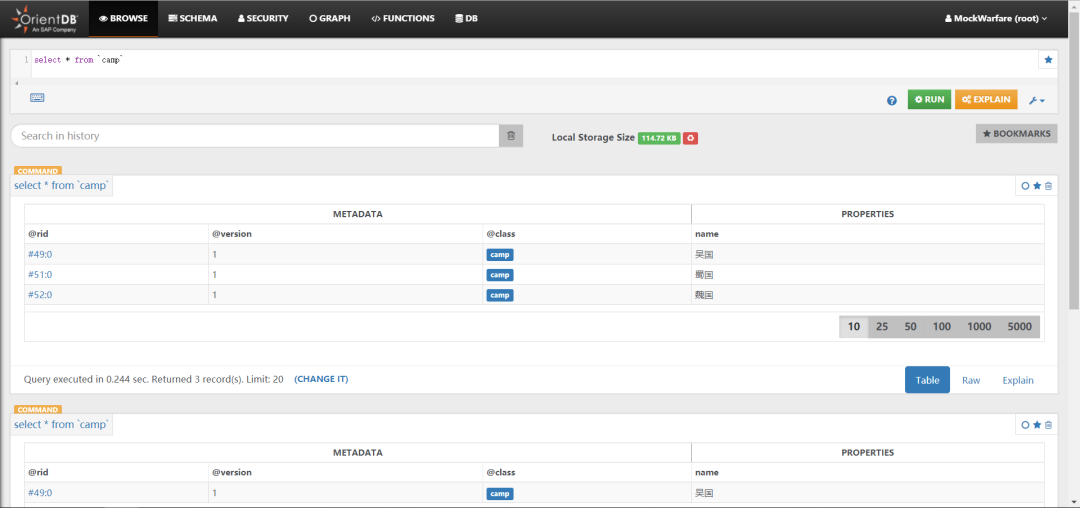

然后我们在通过点击方式添加数据

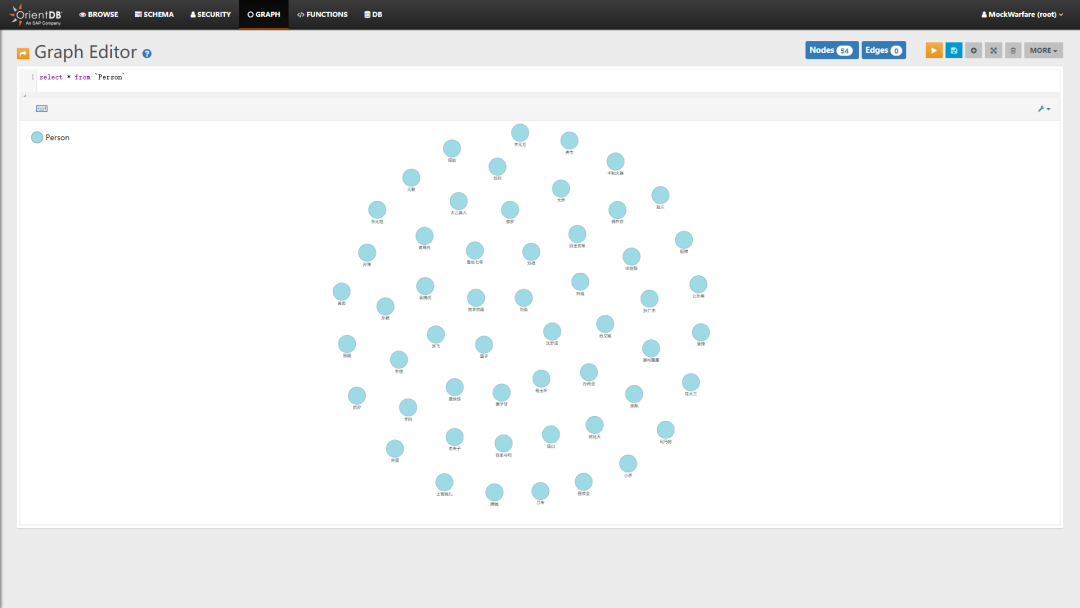

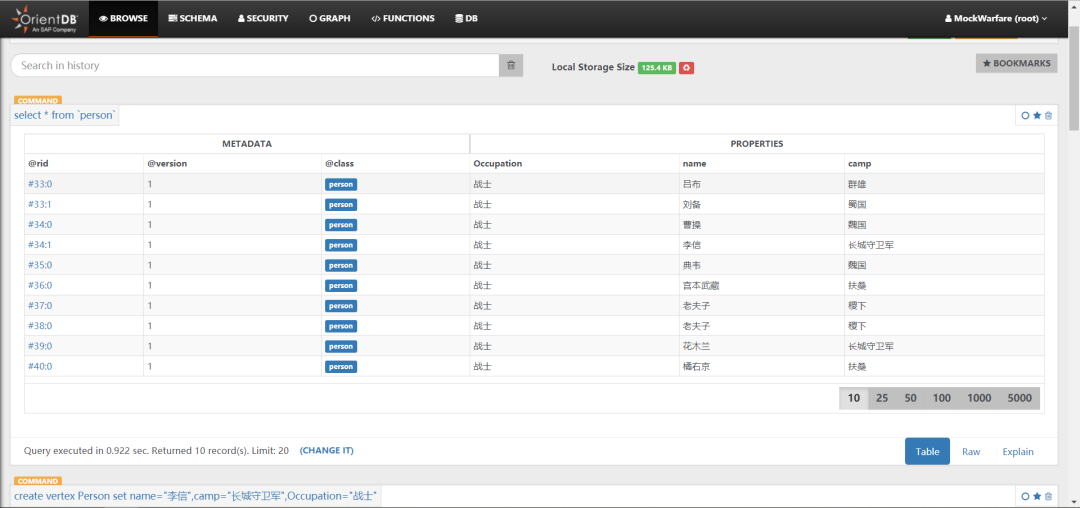

接下我们将所有的顶点插入进去

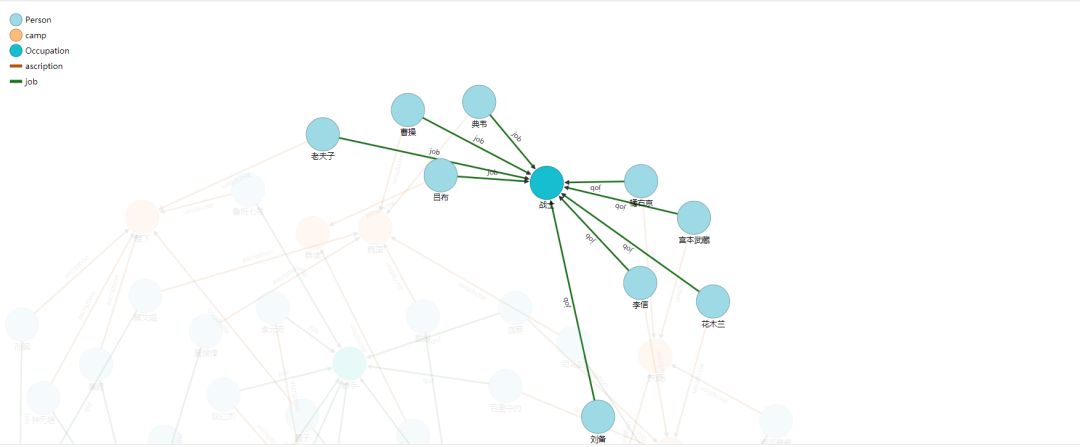

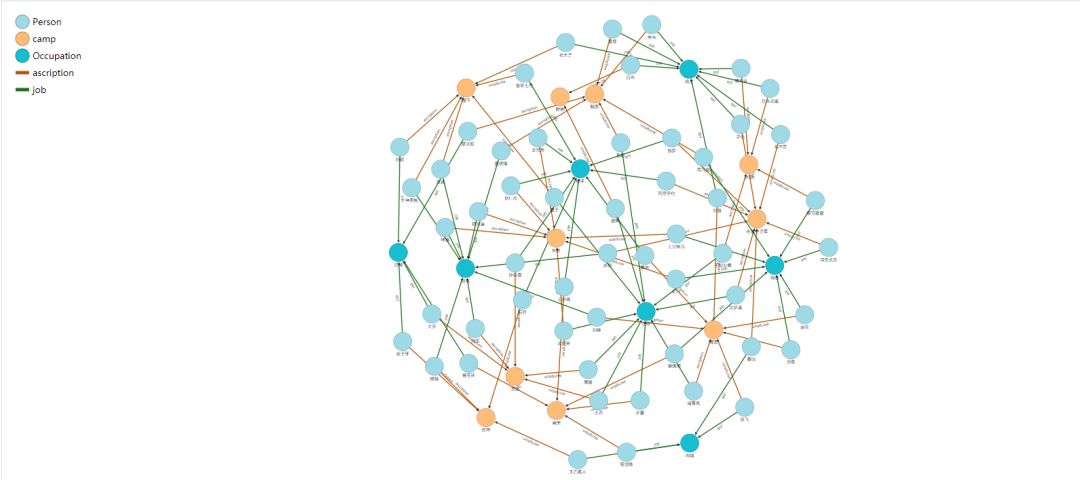

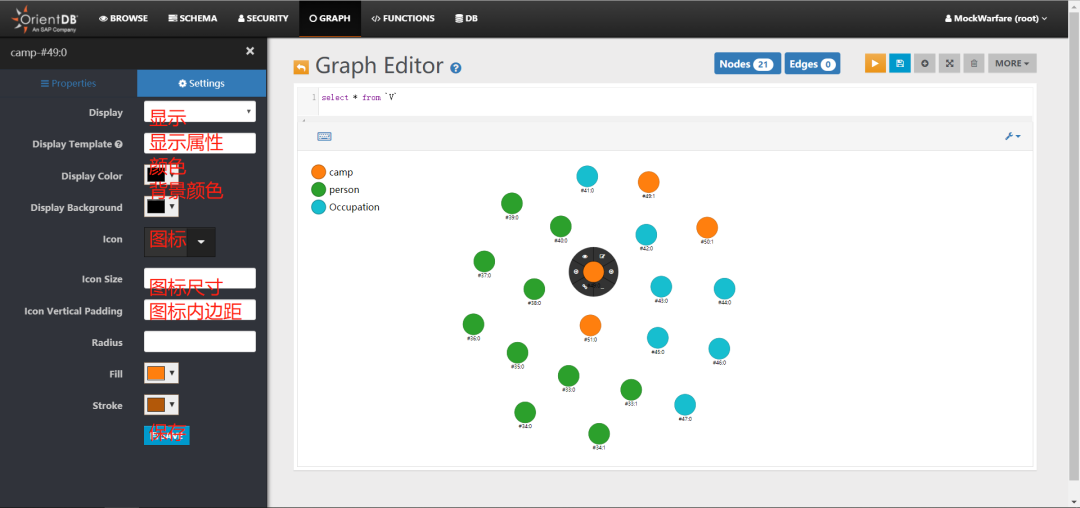

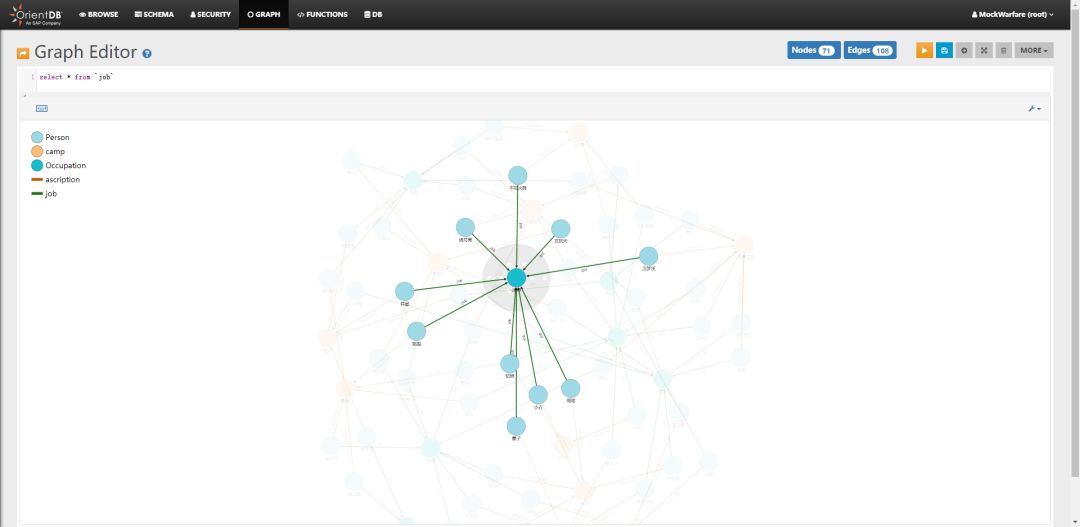

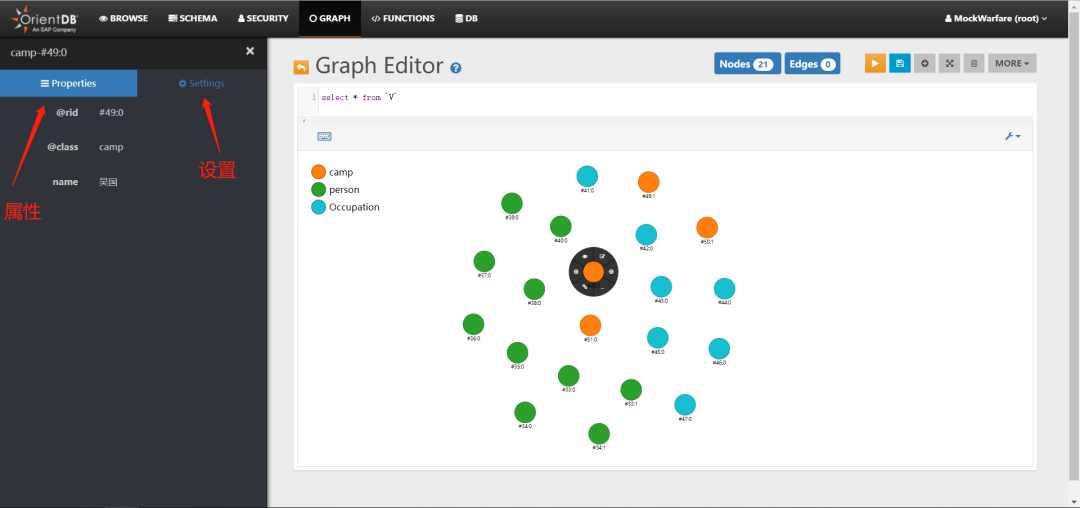

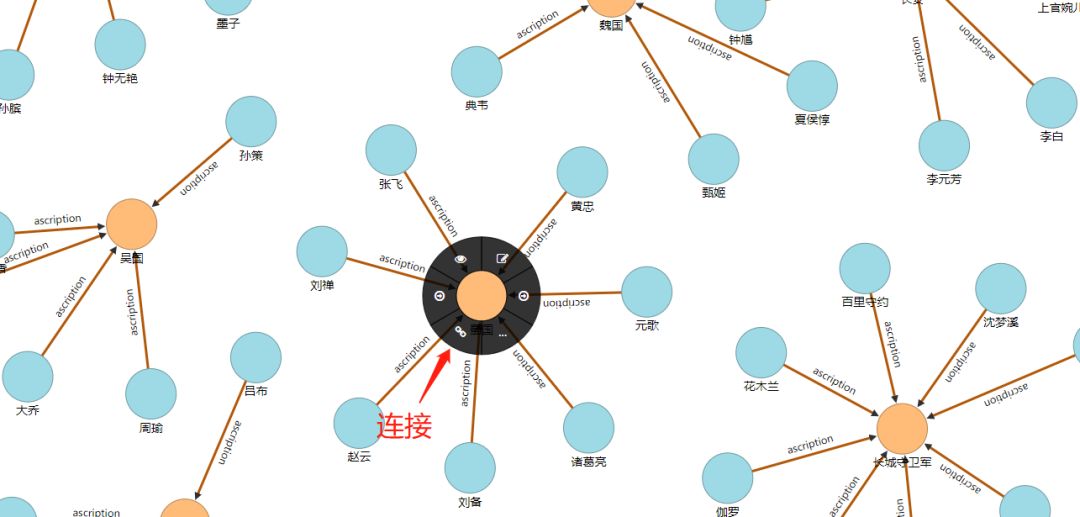

接下我们使用图形编辑器进行边缘关系的绘制

以下是本文涉及到的全部SQL语句

创建数据库
create database remote：localhost/MockWarfare root root
连接数据库
connect remote：localhost/MockWarfare root root
创建实体类
create class Person extends V
create class Occupation extends V
create class camp extends V
create class ascription extends E
create class job extends E
创建Vertex
阵营实体
create vertex camp set name="吴国"
create vertex camp set name="蜀国"
create vertex camp set name="魏国"
create vertex camp set name="尧天"
create vertex camp set name="稷下"
create vertex camp set name="扶桑"
create vertex camp set name="长城守卫军"
create vertex camp set name="长安"
create vertex camp set name="群雄"
create vertex camp set name="封神"
职业实体
create vertex Occupation set name="战士",title="物理伤害"
create vertex Occupation set name="射手",title="物理伤害"
create vertex Occupation set name="法师",title="法术伤害"
create vertex Occupation set name="刺客",title="物理伤害"
create vertex Occupation set name="坦克",title="抗揍"
create vertex Occupation set name="法辅",title="抗揍"
create vertex Occupation set name="肉辅",title="抗揍"
英雄实体
create vertex Person set name="吕布",camp="群雄",Occupation="战士"
create vertex Person set name="曹操",camp="魏国",Occupation="战士"
create vertex Person set name="典韦",camp="魏国",Occupation="战士"
create vertex Person set name="宫本武藏",camp="扶桑",Occupation="战士"
create vertex Person set name="老夫子",camp="稷下",Occupation="战士"
create vertex Person set name="花木兰",camp="长城守卫军",Occupation="战士"
create vertex Person set name="橘右京",camp="扶桑",Occupation="战士"
create vertex Person set name="刘备",camp="蜀国",Occupation="战士"
create vertex Person set name="李信",camp="长城守卫军",Occupation="战士"
create vertex Person set name="孙尚香",camp="吴国",Occupation="射手"
create vertex Person set name="狄仁杰",camp="长安",Occupation="射手"
create vertex Person set name="李元芳",camp="长安",Occupation="射手"
create vertex Person set name="黄忠",camp="蜀国",Occupation="射手"
create vertex Person set name="百里守约",camp="长城守卫军",Occupation="射手"
create vertex Person set name="公孙离",camp="尧天",Occupation="射手"
create vertex Person set name="伽罗",camp="长城守卫军",Occupation="射手"
create vertex Person set name="鲁班七号",camp="稷下",Occupation="射手"
create vertex Person set name="后羿",camp="封神",Occupation="射手"
create vertex Person set name="小乔",camp="吴国",Occupation="法师"
create vertex Person set name="墨子",camp="稷下",Occupation="法师"
create vertex Person set name="周瑜",camp="吴国",Occupation="法师"
create vertex Person set name="甄姬",camp="魏国",Occupation="法师"
create vertex Person set name="武则天",camp="长安",Occupation="法师"
create vertex Person set name="貂蝉",camp="群雄",Occupation="法师"
create vertex Person set name="不知火舞",camp="扶桑",Occupation="法师"
create vertex Person set name="诸葛亮",camp="蜀国",Occupation="法师"
create vertex Person set name="弈星",camp="尧天",Occupation="法师"
create vertex Person set name="沈梦溪",camp="长城守卫军",Occupation="法师"
create vertex Person set name="赵云",camp="蜀国",Occupation="刺客"
create vertex Person set name="元歌",camp="蜀国",Occupation="刺客"
create vertex Person set name="李白",camp="长安",Occupation="刺客"
create vertex Person set name="司马懿",camp="魏国",Occupation="刺客"
create vertex Person set name="娜可露露",camp="扶桑",Occupation="刺客"
create vertex Person set name="百里玄策",camp="长城守卫军",Occupation="刺客"
create vertex Person set name="裴擒虎",camp="尧天",Occupation="刺客"
create vertex Person set name="上官婉儿",camp="长安",Occupation="刺客"
create vertex Person set name="廉颇",camp="稷下",Occupation="坦克"
create vertex Person set name="刘禅",camp="蜀国",Occupation="坦克"
create vertex Person set name="钟无艳",camp="稷下",Occupation="坦克"
create vertex Person set name="夏侯惇",camp="魏国",Occupation="坦克"
create vertex Person set name="程咬金",camp="长安",Occupation="坦克"
create vertex Person set name="钟馗",camp="长安",Occupation="坦克"
create vertex Person set name="苏烈",camp="长城守卫军",Occupation="坦克"
create vertex Person set name="孙策",camp="吴国",Occupation="坦克"
create vertex Person set name="嫦娥",camp="封神",Occupation="坦克"
create vertex Person set name="蔡文姬",camp="魏国",Occupation="法辅"
create vertex Person set name="大乔",camp="吴国",Occupation="法辅"
create vertex Person set name="孙膑",camp="稷下",Occupation="法辅"
create vertex Person set name="姜子牙",camp="封神",Occupation="法辅"
create vertex Person set name="杨玉环",camp="尧天",Occupation="法辅"
create vertex Person set name="明世隐",camp="尧天",Occupation="肉辅"
create vertex Person set name="太乙真人",camp="封神",Occupation="肉辅"
create vertex Person set name="张飞",camp="蜀国",Occupation="肉辅"
create vertex Person set name="盾山",camp="长城守卫军",Occupation="肉辅"
创建Edge
归属关系实体
ascription（归属）
create edge ascription from(select from Person where name="吕布") to(select from camp where name="群雄")
create edge ascription from(select from Person where name="曹操") to(select from camp where name="魏国")
create edge ascription from(select from Person where name="典韦") to(select from camp where name="魏国")
create edge ascription from(select from Person where name="宫本武藏") to(select from camp where name="扶桑")
create edge ascription from(select from Person where name="老夫子") to(select from camp where name="稷下")
create edge ascription from(select from Person where name="花木兰") to(select from camp where name="长城守卫军")
create edge ascription from(select from Person where name="橘右京") to(select from camp where name="扶桑")
create edge ascription from(select from Person where name="刘备") to(select from camp where name="蜀国")
create edge ascription from(select from Person where name="李信") to(select from camp where name="长城守卫军")
create edge ascription from(select from Person where name="孙尚香") to(select from camp where name="吴国")
create edge ascription from(select from Person where name="狄仁杰") to(select from camp where name="长安")
create edge ascription from(select from Person where name="李元芳") to(select from camp where name="长安")
create edge ascription from(select from Person where name="黄忠") to(select from camp where name="蜀国")
create edge ascription from(select from Person where name="百里守约") to(select from camp where name="长城守卫军")
create edge ascription from(select from Person where name="公孙离") to(select from camp where name="尧天")
create edge ascription from(select from Person where name="伽罗") to(select from camp where name="长城守卫军")
create edge ascription from(select from Person where name="鲁班七号") to(select from camp where name="稷下")
create edge ascription from(select from Person where name="后羿") to(select from camp where name="封神")
create edge ascription from(select from Person where name="小乔") to(select from camp where name="吴国")
create edge ascription from(select from Person where name="墨子") to(select from camp where name="稷下")
create edge ascription from(select from Person where name="周瑜") to(select from camp where name="吴国")
create edge ascription from(select from Person where name="甄姬") to(select from camp where name="魏国")
create edge ascription from(select from Person where name="武则天") to(select from camp where name="长安")
create edge ascription from(select from Person where name="貂蝉") to(select from camp where name="群雄")
create edge ascription from(select from Person where name="不知火舞") to(select from camp where name="扶桑")
create edge ascription from(select from Person where name="诸葛亮") to(select from camp where name="蜀国")
create edge ascription from(select from Person where name="弈星") to(select from camp where name="尧天")
create edge ascription from(select from Person where name="沈梦溪") to(select from camp where name="长城守卫军")
create edge ascription from(select from Person where name="赵云") to(select from camp where name="蜀国")
create edge ascription from(select from Person where name="元歌") to(select from camp where name="蜀国")
create edge ascription from(select from Person where name="李白") to(select from camp where name="长安")
create edge ascription from(select from Person where name="司马懿") to(select from camp where name="魏国")
create edge ascription from(select from Person where name="娜可露露") to(select from camp where name="扶桑")
create edge ascription from(select from Person where name="百里玄策") to(select from camp where name="长城守卫军")
create edge ascription from(select from Person where name="裴擒虎") to(select from camp where name="尧天")
create edge ascription from(select from Person where name="上官婉儿") to(select from camp where name="长安")
create edge ascription from(select from Person where name="廉颇") to(select from camp where name="稷下")
create edge ascription from(select from Person where name="刘禅") to(select from camp where name="蜀国")
create edge ascription from(select from Person where name="钟无艳") to(select from camp where name="稷下")
create edge ascription from(select from Person where name="夏侯惇") to(select from camp where name="魏国")
create edge ascription from(select from Person where name="程咬金") to(select from camp where name="长安")
create edge ascription from(select from Person where name="钟馗") to(select from camp where name="长安")
create edge ascription from(select from Person where name="苏烈") to(select from camp where name="长城守卫军")
create edge ascription from(select from Person where name="孙策") to(select from camp where name="吴国")
create edge ascription from(select from Person where name="嫦娥") to(select from camp where name="封神")
create edge ascription from(select from Person where name="蔡文姬") to(select from camp where name="魏国")
create edge ascription from(select from Person where name="大乔") to(select from camp where name="吴国")
create edge ascription from(select from Person where name="孙膑") to(select from camp where name="稷下")
create edge ascription from(select from Person where name="姜子牙") to(select from camp where name="封神")
create edge ascription from(select from Person where name="杨玉环") to(select from camp where name="尧天")
create edge ascription from(select from Person where name="明世隐") to(select from camp where name="尧天")
create edge ascription from(select from Person where name="太乙真人") to(select from camp where name="封神")
create edge ascription from(select from Person where name="张飞") to(select from camp where name="蜀国")
create edge ascription from(select from Person where name="盾山") to(select from camp where name="长城守卫军")
职业关系
job(工作)
create edge job from(select from Person where name="吕布") to(select from Occupation where name="战士")
create edge job from(select from Person where name="曹操") to(select from Occupation where name="战士")
create edge job from(select from Person where name="典韦") to(select from Occupation where name="战士")
create edge job from(select from Person where name="宫本武藏") to(select from Occupation where name="战士")
create edge job from(select from Person where name="老夫子") to(select from Occupation where name="战士")
create edge job from(select from Person where name="花木兰") to(select from Occupation where name="战士")
create edge job from(select from Person where name="橘右京") to(select from Occupation where name="战士")
create edge job from(select from Person where name="刘备") to(select from Occupation where name="战士")
create edge job from(select from Person where name="李信") to(select from Occupation where name="战士")
create edge job from(select from Person where name="孙尚香") to(select from Occupation where name="射手")
create edge job from(select from Person where name="狄仁杰") to(select from Occupation where name="射手")
create edge job from(select from Person where name="李元芳") to(select from Occupation where name="射手")
create edge job from(select from Person where name="黄忠") to(select from Occupation where name="射手")
create edge job from(select from Person where name="百里守约") to(select from Occupation where name="射手")
create edge job from(select from Person where name="公孙离") to(select from Occupation where name="射手")
create edge job from(select from Person where name="伽罗") to(select from Occupation where name="射手")
create edge job from(select from Person where name="鲁班七号") to(select from Occupation where name="射手")
create edge job from(select from Person where name="后羿") to(select from Occupation where name="射手")
create edge job from(select from Person where name="小乔") to(select from Occupation where name="法师")
create edge job from(select from Person where name="墨子") to(select from Occupation where name="法师")
create edge job from(select from Person where name="周瑜") to(select from Occupation where name="法师")
create edge job from(select from Person where name="甄姬") to(select from Occupation where name="法师")
create edge job from(select from Person where name="武则天") to(select from Occupation where name="法师")
create edge job from(select from Person where name="貂蝉") to(select from Occupation where name="法师")
create edge job from(select from Person where name="不知火舞") to(select from Occupation where name="法师")
create edge job from(select from Person where name="诸葛亮") to(select from Occupation where name="法师")
create edge job from(select from Person where name="弈星") to(select from Occupation where name="法师")
create edge job from(select from Person where name="沈梦溪") to(select from Occupation where name="法师")
create edge job from(select from Person where name="赵云") to(select from Occupation where name="刺客")
create edge job from(select from Person where name="元歌") to(select from Occupation where name="刺客")
create edge job from(select from Person where name="李白") to(select from Occupation where name="刺客")
create edge job from(select from Person where name="司马懿") to(select from Occupation where name="刺客")
create edge job from(select from Person where name="娜可露露") to(select from Occupation where name="刺客")
create edge job from(select from Person where name="百里玄策") to(select from Occupation where name="刺客")
create edge job from(select from Person where name="裴擒虎") to(select from Occupation where name="刺客")
create edge job from(select from Person where name="上官婉儿") to(select from Occupation where name="刺客")
create edge job from(select from Person where name="廉颇") to(select from Occupation where name="坦克")
create edge job from(select from Person where name="刘禅") to(select from Occupation where name="坦克")
create edge job from(select from Person where name="钟无艳") to(select from Occupation where name="坦克")
create edge job from(select from Person where name="夏侯惇") to(select from Occupation where name="坦克")
create edge job from(select from Person where name="程咬金") to(select from Occupation where name="坦克")
create edge job from(select from Person where name="钟馗") to(select from Occupation where name="坦克")
create edge job from(select from Person where name="苏烈") to(select from Occupation where name="坦克")
create edge job from(select from Person where name="孙策") to(select from Occupation where name="坦克")
create edge job from(select from Person where name="嫦娥") to(select from Occupation where name="坦克")
create edge job from(select from Person where name="蔡文姬") to(select from Occupation where name="法辅")
create edge job from(select from Person where name="大乔") to(select from Occupation where name="法辅")
create edge job from(select from Person where name="孙膑") to(select from Occupation where name="法辅")
create edge job from(select from Person where name="姜子牙") to(select from Occupation where name="法辅")
create edge job from(select from Person where name="杨玉环") to(select from Occupation where name="法辅")
create edge job from(select from Person where name="明世隐") to(select from Occupation where name="肉辅")
create edge job from(select from Person where name="太乙真人") to(select from Occupation where name="肉辅")
create edge job from(select from Person where name="张飞") to(select from Occupation where name="肉辅")
create edge job from(select from Person where name="盾山") to(select from Occupation where name="肉辅")
