官方博文 | 为Zabbix Agent 2 开发插件

type Exporter interface {
    Export(key string, params []string, context ContextProvider) (result interface{}, err error)
}

func (b *Base) SetCapacity(capacity int)

Plugins..Capacity=1

type Watcher interface {
    Watch(requests []*Request, context ContextProvider)
}

type Collector interface {
    Collect() error
    Period() int
}

type Runner interface {
    Start()
    Stop()
}

type Configurator interface {


    Configure(globalOptions *GlobalOptions, privateOptions interface{})


    Validate(privateOptions interface{}) error


}

package packageName
import "zabbix.com/pkg/plugin"
type Plugin struct {
    plugin.Base
}
var impl Plugin
func (p *Plugin) Export(key string, params []string, ctx plugin.ContextProvider) (res interface{}, err error) {
    // Write your code here
    return
}
func init() {
    plugin.RegisterMetrics(&impl, "PluginName", "key", "Description.")
}

$ git clone https://git.zabbix.com/scm/zbx/zabbix.git --depth 1 zabbix-agent2
$ cd zabbix-agent2
# You can work in the master branch but I recommend creating a separate branch based on one of the stable branches
$ git checkout -b feature/myplugin release/4.4

package weather
import  "zabbix.com/pkg/plugin"

type Plugin struct {
    plugin.Base
}
var impl Plugin

func (p *Plugin) Export(key string, params []string, ctx plugin.ContextProvider) (result interface{}, err error) {
    if len(params) != 1 {
        return nil, errors.New("Wrong parameters.")
    }


    // https://github.com/chubin/wttr.in
    res, err := p.httpClient.Get(fmt.Sprintf("https://wttr.in/~%s?format=%%t", params[0]))
    if err != nil {
        return nil, err
    }


    temp, err := ioutil.ReadAll(res.Body)
    _ = res.Body.Close()
    if err != nil {
        return nil, err
    }


    return string(temp)[0 : len(temp)-4], nil
}

// impl refers to the plugin implementation
// name is the name of our plugin
// params are metrics and their descriptions (key1, descr1, key2, descr2, keyN, descrN...)
func RegisterMetrics(impl Accessor, name string, params ...string)

func init() {
  plugin.RegisterMetrics(&impl, "Weather", "weather.temp", "Returns Celsius temperature.")
}

package plugins
import (
  _ "zabbix.com/plugins/kernel"
  _ "zabbix.com/plugins/log"
// ...
  _ "zabbix.com/plugins/weather"
)

$ cd <zabbix-source>
$ ./bootstrap.sh; ./configure --enable-agent2 --enable-static; make

$ <zabbix-source>/src/go/bin/zabbix_agent2 -t weather.temp[moscow]
+1

$ go run <zabbix-source>/src/go/cmd/zabbix_agent2/zabbix_agent2.go

type PluginOptions struct {
     Timeout is the maximum time for waiting when a request has to be done. Default value equals the global timeout.
    Timeout int `conf:"optional,range=1:30"`
}

type Plugin struct {
    plugin.Base
    options PluginOptions
    httpClient http.Client
}

func (p *Plugin) Configure(global *plugin.GlobalOptions, privateOptions interface{}) {
    if err := conf.Unmarshal(privateOptions, &p.options); err != nil {
        p.Errf("cannot unmarshal configuration options: %s", err)
    }


     Set default value
    if p.options.Timeout == 0 {
        p.options.Timeout = global.Timeout
    }


    p.httpClient = http.Client{Timeout: time.Duration(p.options.Timeout) * time.Second}
}


func (p *Plugin) Validate(privateOptions interface{}) error {
     Nothing to validate
    return nil
}

res, err := p.httpClient.Get(fmt.Sprintf("https://wttr.in/~%s?format=%%t", params[0]))
if err != nil {
    if err.(*url.Error).Timeout() {
        return nil, errors.New("Request timeout.")
    }
    return nil, err
}

func (p *Plugin) Validate(privateOptions interface{}) error {
    var opts PluginOptions
    return conf.Unmarshal(privateOptions, &opts)
}

type timeSample struct {
    DnsLookup         float64 `json:"dnsLookup"`
    Connect           float64 `json:"connect"`
    TlsHandshake      float64 `json:"tlsHandshake"`
    FirstResponseByte float64 `json:"firstResponseByte"`
    Rtt               float64 `json:"rtt"`
}
func (p *Plugin) measureTime(url string) (timeSample, error) {
    var (
        sample                            timeSample
        start, connect, dns, tlsHandshake time.Time
    )


    req, _ := http.NewRequest("GET", url, nil)


    trace := &httptrace.ClientTrace{
        DNSStart: func(_ httptrace.DNSStartInfo) {
            dns = time.Now()
        },
        DNSDone: func(_ httptrace.DNSDoneInfo) {
            sample.DnsLookup = float64(time.Since(dns)  time.Millisecond)
        },


        ConnectStart: func(_, _ string) {
            connect = time.Now()
        },
        ConnectDone: func(net, addr string, err error) {
            if err != nil {
                p.Errf("unable to connect to host %s: %s", addr, err.Error())
            }
            sample.Connect = float64(time.Since(connect) / time.Millisecond)
        },


        GotFirstResponseByte: func() {
            sample.FirstResponseByte = float64(time.Since(start) / time.Millisecond)
        },


        TLSHandshakeStart: func() {
            tlsHandshake = time.Now()
        },
        TLSHandshakeDone: func(_ tls.ConnectionState, _ error) {
            sample.TlsHandshake = float64(time.Since(tlsHandshake) / time.Millisecond)
        },
    }
    ctx, cancel := context.WithTimeout(req.Context(), time.Duration(p.options.Timeout)*time.Second)
    defer cancel()
    req = req.WithContext(httptrace.WithClientTrace(ctx, trace))


    start = time.Now()
    if _, err := http.DefaultTransport.RoundTrip(req); err != nil {
        return timeSample{}, err
    }
    sample.Rtt = float64(time.Since(start) / time.Millisecond)


    return sample, nil
}

type Plugin struct {
    plugin.Base
    urls map[string]*urlUnit
    sync.Mutex
    options Options
}


type urlUnit struct {
    url      string
    history  *gcircularqueue.CircularQueue
    accessed time.Time // last access time
    modified time.Time // data collect time
}

func (p *Plugin) Start() {
    p.urls = make(map[string]*urlUnit)
}


func (p *Plugin) Stop() {
    p.urls = nil
}

func (p *Plugin) Collect() (err error) {
    now := time.Now()
    p.Lock()
    for key, url := range p.urls {
        if now.Sub(url.accessed) > maxInactivityPeriod {
            p.Debugf("removed expired url %s", url.url)
            delete(p.urls, key)
            continue
        }
        res, err := p.measureTime(url.url)
        if err != nil {
            p.Errf(err.Error())
            continue
        }
        url.history.Push(res)
        if url.history.IsFull() {
            _ = url.history.Shift()
        }
        url.modified = now
    }
    p.Unlock()


    return
}


func (p *Plugin) Period() int {
    return p.options.Interval
}

func (p *Plugin) Export(key string, params []string, ctx plugin.ContextProvider) (result interface{}, err error) {
    if len(params) != 1 {
        return nil, errors.New("Wrong parameters.")
    }


    url, err := parseURL(params[0])
    if err != nil {
        return nil, err
    }


    switch key {
    case keyHttpTraceStats:
        if _, ok := p.urls[url]; !ok {
            p.urls[url] = &urlUnit{
                url:     url,
                history: gcircularqueue.NewCircularQueue(maxHistory),
            }
        }
        p.Lock()
        defer p.Unlock()
        p.urls[url].accessed = time.Now()
        if p.urls[url].history.Len() < minStatRange {
            // no data gathered yet
            return
        }


        data := prepareData(p.urls[url].history.Elements())


        jsonRes, err := json.Marshal(stat{
            // Median: timeSample{...},
            // P75:    timeSample{...},
            // P95:    timeSample{...},
            P99: timeSample{
                DnsLookup:         percentile(data[metricDnsLookup], p99),
                Connect:           percentile(data[metricConnect], p99),
                TlsHandshake:      percentile(data[metricTlsHandshake], p99),
                FirstResponseByte: percentile(data[metricFirstResponseByte], p99),
                Rtt:               percentile(data[metricRtt], p99),
            },
        })
        if err != nil {
            p.Errf(err.Error())
            return nil, errors.New("Cannot marshal JSON.")
        }
        value := string(jsonRes)
        return plugin.Result{
            Value: &value,
            Ts:    p.urls[url].modified,
        }, nil


    default:
        return nil, plugin.UnsupportedMetricError
    }
}

$ zabbix_get -s zabbix.local -k "httptrace.stats[yoursite.com]"
{
    "median": {
        "dnsLookup": 13,
        "connect": 28,
        "tlsHandshake": 56,
        "firstResponseByte": 126.5,
        "rtt": 126.5
    },
    "p75": {
        "dnsLookup": 20,
        "connect": 31,
        "tlsHandshake": 60,
        "firstResponseByte": 138.5,
        "rtt": 138.5
    },
    "p95": {
        "dnsLookup": 22.5,
        "connect": 35,
        "tlsHandshake": 78.5,
        "firstResponseByte": 159.5,
        "rtt": 159.5
    },
    "p99": {
        "dnsLookup": 50,
        "connect": 51.5,
        "tlsHandshake": 125.5,
        "firstResponseByte": 266.5,
        "rtt": 266.5
    }
}

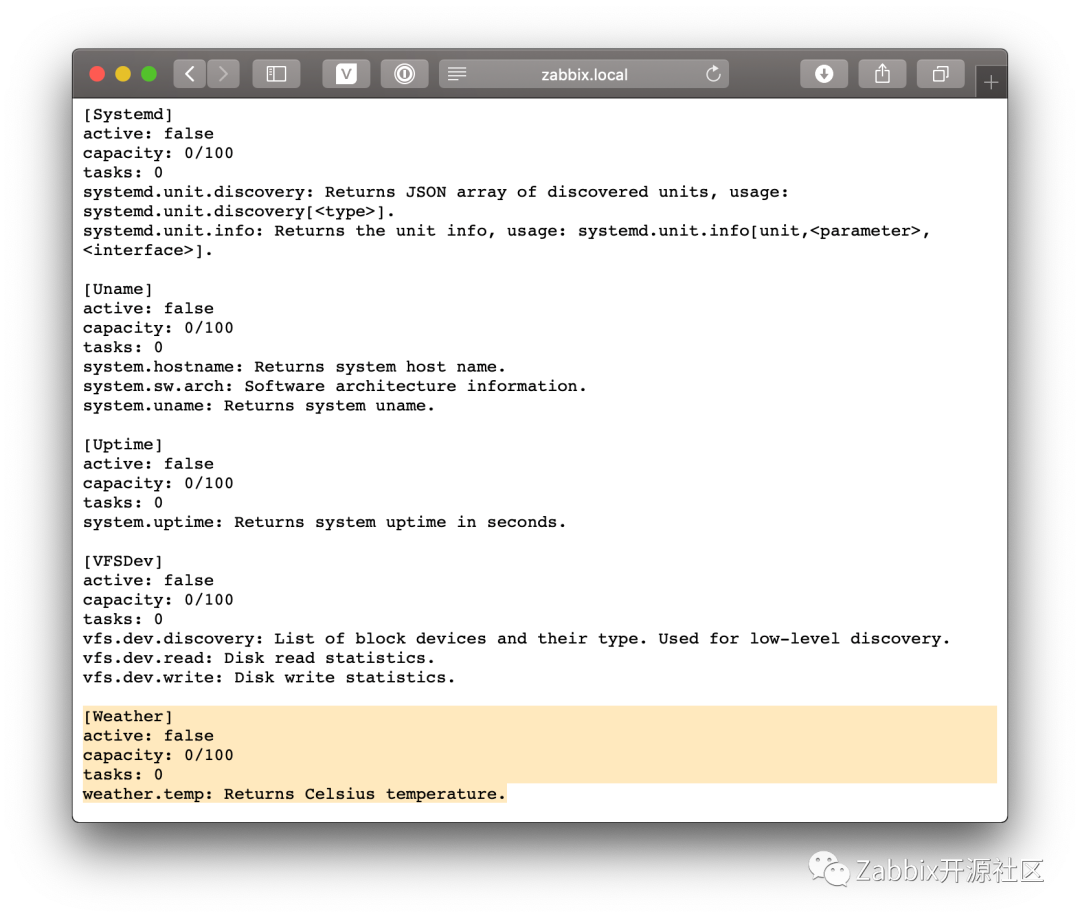

$ zabbix_agent2 -R metrics
...
[Weather]
active: true
capacity: 0/100
tasks: 0
weather.temp: Returns Celsius temperature.
...
