Pg_Pathman的一个小案例

开源软件联盟PostgreSQL分会 2020-02-05

2037

作者：杨向博

平安科技DBA，开源PostgreSQL爱好者。三年数据库运维经验，目前主要负责平安云数据库运维。对SQL优化和源代码分析存在浓厚兴趣。

一、Pathman简介

由于以前PostgreSQL社区版本的分区表功能比较弱，需要通过继承和初始化或RULE来实现分区表的功能，查询和更新涉及约束的检查，插入则涉及转换或规则重构，导致分区功能性能较弱差。Postgrespro公司开发了pg_pathman插件，适用于9.5及之后的版本，与传统方式不同的是，pg_pathman将分区的定义放置在一张元数据表中，表的信息会缓存在内存中，同时使用HOOK来实现关系的替换，所以效率非常高。

二、问题背景

1.版本信息：

Postgresql版本：9.6.6

Pg_Pathman版本：1.4

2.问题现象：

一测试库查询报错如下：

postgres=#select * from qsump_pacloud_oscginfo_activity_detail_info_day where id=10;
ERROR:  constraint
"pathman_qsump_pacloud_oscginfo_activity_detail_info_day_10_check"of
partition "qsump_pacloud_oscginfo_activity_detail_info_day_10"does not exist
HINT:  pg_pathman will be disabled to allow you toresolve this issue

三、问题分析

1.这个报错从字面解释来看，是分区表的约束不存在。查询pg_constraint表，发现通过报错中的约束名可以查到相关信息

postgres=#select conname,contype,convalidated from pg_constraint where
conname='pathman_qsump_pacloud_oscginfo_activity_detail_info_day_10_check';
-[ RECORD 1]+---------------------------------------------------------
conname      |
pathman_qsump_pacloud_oscginfo_activity_detail_info_day_10_chec
contype      |c
convalidated | t

2.可以发现查询结果的conname和报错中的相比，末尾的check缺少了字母k。为什么会出现这样的情况？这个只能在源代码中寻找答案

3.报错函数如下：

get_partition_constraint_expr(Oid partition)
{
    Oid         conid;          * constraint Oid */
    char      *conname;        * constraint name */
    HeapTuple   con_tuple;
    Datum       conbin_datum;
    bool        conbin_isnull;
    Expr      *expr;           * expression tree for constraint */
    conname =build_check_constraint_name_relid_internal(partition);
    conid =get_relation_constraint_oid(partition, conname, true);
    if (!OidIsValid(conid))
    {
        DisablePathman(); * disable pg_pathman since config is broken */
        ereport(ERROR,
                (errmsg("constraint \"%s\" ofpartition \"%s\" does not exist",
                        conname,get_rel_name_or_relid(partition)),
                 errhint(INIT_ERROR_HINT)));
    }
…
}

显然是OidIsValid(conid)函数返回了false，才进入报错分支

OidIsValid函数定义为：#define OidIsValid(objectId) ((bool) ((objectId) !=InvalidOid))，因此推断conid=InvalidOid

4.而conid是函数get_relation_constraint_oid(partition,conname, true)的返回值，其中conname是build_check_constraint_name_relid_internal(partition)的返回值，需要分析这两个函数逻辑以及变量的值

首先分析conname:

char *
build_check_constraint_name_relid_internal(Oid relid)
{
    AssertArg(OidIsValid(relid));
return build_check_constraint_name_relname_internal(get_rel_name(relid));
}


/*
 * Generatecheck constraint name for a partition.
 * NOTE: thisfunction does not perform sanity checks at all.
 */
char *
build_check_constraint_name_relname_internal(const char *relname)
{
    return psprintf("pathman_%s_check", relname);
}

可以看到conname是在build_check_constraint_name_relname_internal函数中拼接的，%s传递的是表名，从报错来看，拼接的conname为：

"pathman_qsump_pacloud_oscginfo_activity_detail_info_day_10_check"

接着看conid:

Oid
get_relation_constraint_oid(Oid relid, const char *conname, bool missing_ok)
{
    Relation    pg_constraint;
    HeapTuple   tuple;
    SysScanDescscan;
    ScanKeyDataskey[1];
    Oid         conOid= InvalidOid;


    /*
     * Fetch the constraint tuple frompg_constraint.  There may be more than
     * one match, because constraints are notrequired to have unique names;
     * if so, error out.
     */
    pg_constraint = heap_open(ConstraintRelationId, AccessShareLock);


    ScanKeyInit(&skey[0],
                Anum_pg_constraint_conrelid,
                BTEqualStrategyNumber,F_OIDEQ,
                ObjectIdGetDatum(relid));


    scan =systable_beginscan(pg_constraint, ConstraintRelidIndexId, true,
                              NULL, 1, skey);


    while(HeapTupleIsValid(tuple = systable_getnext(scan)))
    {
        Form_pg_constraint con =(Form_pg_constraint) GETSTRUCT(tuple);


        if (strcmp(NameStr(con->conname), conname)== 0)
        {
            if(OidIsValid(conOid))
                ereport(ERROR,
                        (errcode(ERRCODE_DUPLICATE_OBJECT),
                 errmsg("table \"%s\" hasmultiple constraints named \"%s\"",
                        get_rel_name(relid),conname)));
            conOid= HeapTupleGetOid(tuple);
        }
    }


    systable_endscan(scan);


    /* If nosuch constraint exists, complain */
    if(!OidIsValid(conOid) && !missing_ok)
        ereport(ERROR,
                (errcode(ERRCODE_UNDEFINED_OBJECT),
                 errmsg("constraint \"%s\" fortable \"%s\" does not exist",
                        conname,get_rel_name(relid))));


    heap_close(pg_constraint,AccessShareLock);


    return conOid;
}

从上面的代码可以看到，conoid的初值为InvalidOid，然后从pg_constraint系统表里获取到的conname和上一步传入的conname不一致，最终conoid没有经过赋值，函数返回了InvalidOid，因此最后导致了报错。刚才已经发现pg_constraint中查询到的conname为：

pathman_qsump_pacloud_oscginfo_activity_detail_info_day_10_chec确实如此，pg_constraint中存储的conname是个错误值，导致报错发生。

5.看似是conname在pg_constraint中被“截断了”，也就是说，应该是该conname超过了表pg_constraint定义的最大长度。

NameData   conname;       /* name of this constraint */

typedef struct nameData
{
    char        data[NAMEDATALEN];
} NameData;
typedef NameData *Name;

#define NAMEDATALEN 64

postgres=# select
char_length('pathman_qsump_pacloud_oscginfo_activity_detail_info_day_10_chec');
 char_length
-------------
          63
(1 row)

可以看到conname的最大长度为64，而pathman_qsump_pacloud_oscginfo_activity_detail_info_day_10_chec的长度为63，再加结束符‘\0’,刚好是64。

6.初步的代码走读，证明了是约束名conname长度超过字段最大长度了，导致存储的约束名不完整，在查询校验约束时报错了。后边的GDB调试也证实了确实是这样，见文章最后。

四、解决方案

1.方案讨论

1）约束名过长是由于表名太长，可以压缩一下表名，将某些地方缩写。这个方案看起来最简单快捷，但是开发兄弟不一定认可接受，可能对于整个应用来说并不是修改一个表名那么简单

站在应用的角度，可以认为是数据库给定的字段长度不够，那么就得考虑是否可以从数据库自身去修改：

2）修改字段最大长度，从64调整为128，但是NAMEDATALEN这个宏，涉及到所有的表、函数、触发器等对象的名称，牵一发则动全身，这个方案风险大，不可行。

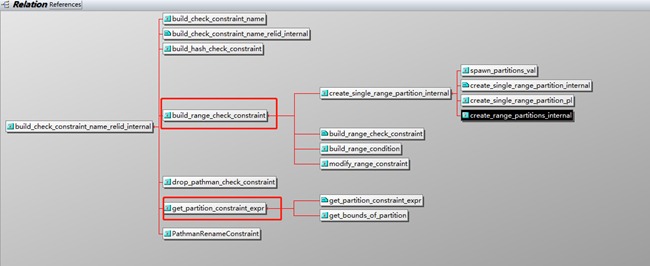

3）继续走读代码，发现约束名是在创建分区表的同时创建的，也是通过调用build_check_constraint_name_relname_internal函数，拼接为pathman_%s_check，%s为表名。不难发现仅pathman和check合起来就占了12个字符长度，为了保证可读性check保持不变，可以将pathman缩写为pm，这样能够节省出5个字符长度，那么以现在的表名长度，可以容纳99万个分区表，足够了。

2.方案实施

经过讨论，考虑到改动数据库的风险较大，最终还是选择了压缩表名，把几个单词全拼做了简写，并重建了分区。

3. 其他测试

作为dba，数据库侧的修改，我们还是要自己玩一玩的，验证下其余两个方案

方案2）修改后查询成功，未出现报错。篇幅有限这里不讨论细节

方案3）如下：

修改代码

/*
 * Generatecheck constraint name for a partition.
 * NOTE: thisfunction does not perform sanity checks at all.
 */
char *
build_check_constraint_name_relname_internal(constchar *relname)
{
        /*Modified Begin pathman to pm */
        returnpsprintf("pm_%s_check",relname);
        /* End2020-01-10 */
}

编译

cd $pg_pathmansrcdir

Make && make install

登录数据库执行 drop extensionpg_pathman ;

重启数据库并create extensionpg_pathman ;

创建分区表，插入数据，查询成功未报错

postgres=# createtable qsump_pacloud_oscginfo_activity_detail_info_day(id int
primarykey,add_time timestamp without time zone not null);
CREATE TABLE
postgres=# select
create_range_partitions('qsump_pacloud_oscginfo_activity_detail_info_day'::REG
CLASS,
postgres(#                         'add_time',
postgres(#                         '2020-01-01 00:00:00'::timestampwithout
time zone  ,
postgres(#                          interval  '7 days'     ,
postgres(#                         9,
postgres(#                         true  );
 create_range_partitions
-------------------------
                      9
(1 row)

postgres=# insertinto qsump_pacloud_oscginfo_activity_detail_info_day values
(10,'2020-03-1200:00:00'::timestamp without time zone);
INSERT 0 1
postgres=# select* from qsump_pacloud_oscginfo_activity_detail_info_day where
id=10;
 id |      add_time
----+---------------------
 10 |2020-03-12 00:00:00
(1 row)

postgres=# \d+qsump_pacloud_oscginfo_activity_detail_info_day_10
            Table "public.qsump_pacloud_oscginfo_activity_detail_info_day_10"
  Column  |           Type             | Modifiers |Storage | Stats target | Description
----------+-----------------------------+-----------+---------+--------------+-------------
 id       | integer                     | not null  | plain  |              |
 add_time |timestamp without time zone | not null  |plain   |              |
Indexes:
   "qsump_pacloud_oscginfo_activity_detail_info_day_10_pkey"PRIMARY KEY,
   btree (id)
Check constraints:
    "pm_qsump_pacloud_oscginfo_activity_detail_info_day_10_check"CHECK
    (add_time >= '2020-03-04 00:00:00'::timestamp without time zone ANDadd_time <
    '2020-03-11 00:00:00'::timestamp without time zone)
Inherits:qsump_pacloud_oscginfo_activity_detail_info_day

postgres=#select char_length('pm_qsump_pacloud_oscginfo_activity_detail_info_day_10_check');
 char_length
-------------
          59
(1 row)

postgres=#

五、GDB调试

Session1:

建立一个连接，查询pid

[postgres@postgres_zabbix~]$ psql
psql (9.6.6)
Type"help" for help.
postgres=#select pg_backend_pid();
 pg_backend_pid
----------------
           4240

Session2:

gdb调试session

[postgres@postgres_zabbix~]$ gdb
GNU gdb (GDB)Red Hat Enterprise Linux 7.6.1-114.el7
Copyright (C)2013 Free Software Foundation, Inc.
License GPLv3+:GNU GPL version 3 or later <http://gnu.org/licenses/gpl.html>
This is freesoftware: you are free to change and redistribute it.
There is NOWARRANTY, to the extent permitted by law. Type "show copying"
and "showwarranty" for details.
This GDB wasconfigured as "x86_64-redhat-linux-gnu".
For bugreporting instructions, please see:
<http://www.gnu.org/software/gdb/bugs/>.
(gdb) attach 4240                                         attachsession 1
Attaching toprocess 4240
Reading symbolsfrom /home/postgres/postgresql-9.6.6/pg9debug/bin/postgres...done.
Reading symbolsfrom /lib64/librt.so.1...(no debugging symbols found)...done.
Loaded symbolsfor /lib64/librt.so.1
Reading symbolsfrom /lib64/libdl.so.2...(no debugging symbols found)...done.
Loaded symbols for/lib64/libdl.so.2
Reading symbolsfrom /lib64/libm.so.6...(no debugging symbols found)...done.
Loaded symbolsfor /lib64/libm.so.6
Reading symbolsfrom /lib64/libc.so.6...(no debugging symbols found)...done.
Loaded symbolsfor /lib64/libc.so.6
Reading symbolsfrom /lib64/libpthread.so.0...(no debugging symbols found)...done.
[Threaddebugging using libthread_db enabled]
Using hostlibthread_db library "/lib64/libthread_db.so.1".
Loaded symbolsfor /lib64/libpthread.so.0
Reading symbolsfrom /lib64/ld-linux-x86-64.so.2...(no debugging symbols found)...done.
Loaded symbolsfor /lib64/ld-linux-x86-64.so.2
Reading symbolsfrom /home/postgres/postgresql-9.6.6/pg9debug/lib/pg_pathman.so...done.
Loaded symbolsfor /home/postgres/postgresql-9.6.6/pg9debug/lib/pg_pathman.so
Reading symbolsfrom /lib64/libnss_files.so.2...(no debugging symbols found)...done.
Loaded symbolsfor /lib64/libnss_files.so.2
0x00007f995cd6a5e3in __epoll_wait_nocancel () from /lib64/libc.so.6
Missing separatedebuginfos, use: debuginfo-install glibc-2.17-260.el7_6.6.x86_64
(gdb) b get_partition_constraint_expr                          //设置断点
Breakpoint 1 at0x7f99562fc3f0: file src/relation_info.c, line 1283.
(gdb) b get_relation_constraint_oid                            //设置断点
Breakpoint 2 at0x544991: file pg_constraint.c, line 771.

Session2:

postgres=#  select* from qsump_pacloud_oscginfo_activity_detail_info_day
where id=10;                                                  //执行查询

Session1:

(gdb) n                                                       //开始调试
//省略了一些过程，从第一个分区表开始
Breakpoint 1,get_partition_constraint_expr (partition=16589) at
src/relation_info.c:1283
1283            conname =build_check_constraint_name_relid_internal(partition);
(gdb)
1284            conid =get_relation_constraint_oid(partition, conname, true);
(gdb)
Breakpoint 2, get_relation_constraint_oid(relid=16589,
    conname=0x13997e8
    "pathman_qsump_pacloud_oscginfo_activity_detail_info_day_1_check",
    missing_ok=1 '\001') at pg_constraint.c:771                //传入拼接的conname
771             Oid                     conOid = InvalidOid;
(gdb)
778             pg_constraint =heap_open(ConstraintRelationId, AccessShareLock);
(gdb)
780             ScanKeyInit(&skey[0],
(gdb)
785             scan =systable_beginscan(pg_constraint, ConstraintRelidIndexId, true,
(gdb)
788             while (HeapTupleIsValid(tuple =systable_getnext(scan)))
(gdb)
790                     Form_pg_constraint con =(Form_pg_constraint)
GETSTRUCT(tuple);             //获取pg_constraint中的数据
(gdb)
(gdb) n
792                     if(strcmp(NameStr(con->conname), conname) == 0)
(gdb) p *con
$2 = {conname ={data =
"pathman_qsump_pacloud_oscginfo_activity_detail_info_day_1_check"},
connamespace = 2200, contype = 99 'c', condeferrable = 0 '\000', condeferred =
0 '\000', convalidated = 1'\001', conrelid = 16589, contypid = 0, conindid = 0,
  confrelid = 0, confupdtype = 32 ' ',confdeltype = 32 ' ', confmatchtype = 32
  ' ', conislocal = 1 '\001', coninhcount= 0,
  connoinherit = 0 '\000'} //pg_constraint中的conname和查询时拼接的一致

(gdb) n
794                             if(OidIsValid(conOid))
(gdb) n
799                             conOid =HeapTupleGetOid(tuple);
(gdb)
788             while (HeapTupleIsValid(tuple =systable_getnext(scan)))
(gdb)
790                     Form_pg_constraint con =(Form_pg_constraint)
GETSTRUCT(tuple);
(gdb)
792                     if(strcmp(NameStr(con->conname), conname) == 0)
(gdb)
788             while (HeapTupleIsValid(tuple =systable_getnext(scan)))
(gdb)
803             systable_endscan(scan);
(gdb)
806             if (!OidIsValid(conOid) &&!missing_ok)
(gdb)
812             heap_close(pg_constraint,AccessShareLock);
(gdb)
814             return conOid;
(gdb) p conOid
$5 = 16788                                      //返回的conoid为16788
//省略一些过程，直接看报错的这个分区表
(gdb)
Breakpoint 1,get_partition_constraint_expr (partition=16643) at
src/relation_info.c:1283
1283            conname =build_check_constraint_name_relid_internal(partition);
(gdb)
1284            conid =get_relation_constraint_oid(partition, conname, true);
(gdb)

Breakpoint 2, get_relation_constraint_oid(relid=16643,
    conname=0x13997e8
    "pathman_qsump_pacloud_oscginfo_activity_detail_info_day_10_check",
    missing_ok=1 '\001') at pg_constraint.c:771                //传入拼接的conname
771             Oid                     conOid = InvalidOid;
(gdb)
778             pg_constraint =heap_open(ConstraintRelationId, AccessShareLock);
(gdb)
780             ScanKeyInit(&skey[0],
(gdb)
785             scan =systable_beginscan(pg_constraint, ConstraintRelidIndexId, true,
(gdb)
788             while (HeapTupleIsValid(tuple =systable_getnext(scan)))
(gdb)
790                     Form_pg_constraint con =(Form_pg_constraint)
GETSTRUCT(tuple);                                 //读取pg_constraint的数据
(gdb)
792                     if(strcmp(NameStr(con->conname), conname) == 0)
(gdb) p *con
$4 = {conname ={data =
"pathman_qsump_pacloud_oscginfo_activity_detail_info_day_10_chec"},
connamespace = 2200, contype = 99 'c', condeferrable = 0 '\000', condeferred =
0 '\000', convalidated = 1'\001', conrelid = 16643, contypid = 0, conindid = 0,
  confrelid = 0, confupdtype = 32 ' ',confdeltype = 32 ' ', confmatchtype = 32
  ' ',  conislocal = 1 '\001',coninhcount = 0,
  connoinherit = 0 '\000'}//pg_constraint中读取的conname和查询时拼接的不同
(gdb) n
788             while (HeapTupleIsValid(tuple =systable_getnext(scan)))
(gdb)
790                     Form_pg_constraint con =(Form_pg_constraint)
GETSTRUCT(tuple);
(gdb)
792                     if(strcmp(NameStr(con->conname), conname) == 0)
(gdb)
788             while (HeapTupleIsValid(tuple =systable_getnext(scan)))
(gdb)
803             systable_endscan(scan);
(gdb)
806             if (!OidIsValid(conOid) &&!missing_ok)
(gdb)
812             heap_close(pg_constraint,AccessShareLock);
(gdb)
814             return conOid;
(gdb) p conOid
$5 = 0                                     //因此返回的conoid为0即InvalidOid
(gdb) n
815     }
(gdb)

Session2:

ERROR:  constraint
"pathman_qsump_pacloud_oscginfo_activity_detail_info_day_10_check"of partition
"qsump_pacloud_oscginfo_activity_detail_info_day_10" does not exist
HINT:  pg_pathman will be disabled to allow you toresolve this issue
postgres=#

这时session2已经报错了，以上gdb过程，证实了之前的代码分析。

I Love PG

关于我们

中国开源软件推进联盟PostgreSQL分会（简称：PG分会）于2017年成立，由国内多家PG生态企业所共同发起，业务上接受工信部产业发展研究院指导。PG分会致力于构建PG产业生态，推动PG产学研用发展。

欢迎投稿

做你的舞台，show出自己的才华。

投稿邮箱：partner@postgresqlchina.com

——愿能安放你不羁的灵魂

技术文章精彩回顾

PostgreSQL学习的九层宝塔

PostgreSQL职业发展与学习攻略

搞懂PostgreSQL数据库透明数据加密之加密算法介绍
