近两天公众号一个好友问了我一个问题：
如何通过UpdateRecord处理器把一个科学计数法的数值，转换成日期输出。

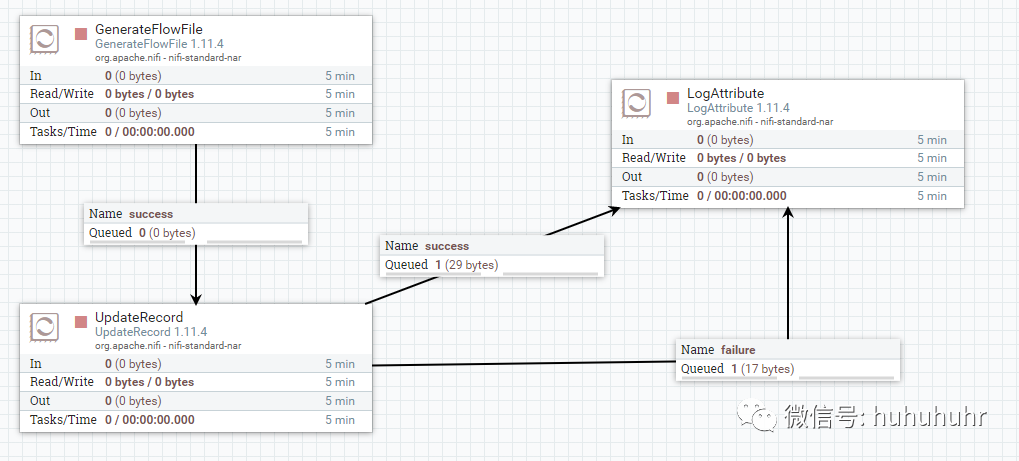

第一步：我用GenerateFlowFile构造了一个科学数据
{"a":1.60502E+12}

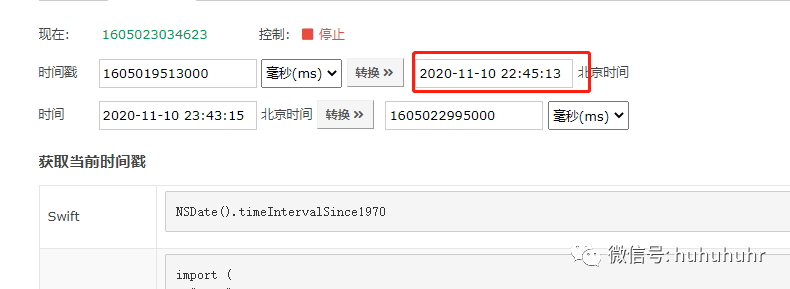

1.60502E+12对应的毫秒数是1605019513000，1605019513000对应着日期是2020/11/10 22:45:13

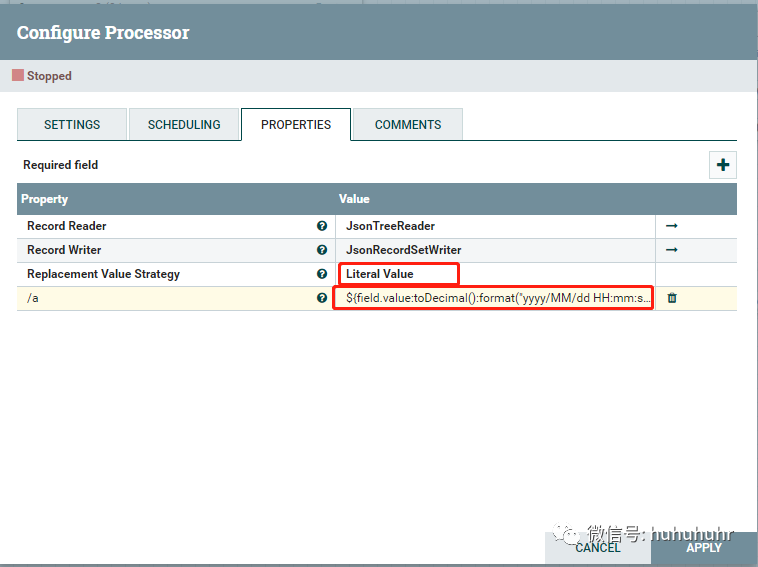

第二步：用UpdateRecord做了一个数据转换
wirter的schema为
{"type": "record","name":"at","fields" : [{"name": "a", "type": "string"}]}

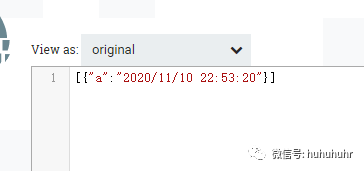

数据处理结果为：
备注：需要特别注意这个schema，因为一开始a是数值，通过reader会生成一个内置的schema，如果writer不自己实现schema，默认会使用inner schema，而后来a字段变成了string，所以会报错，只能通过自己实现schema重新构造数据结构。
nifi表达式语言我写的表达式是
${field.value:toDecimal():format("yyyy/MM/dd HH:mm:ss"):toString()}
遗留问题：虽然勉强实现了从科学数值到日期的转换，但是两者时间差了8分钟左右，后续再研究，下面记录学习UpdateRecord一些知识点
官网介绍
Updates the contents of a FlowFile that contains Record-oriented data (i.e., data that can be read via a RecordReader and written by a RecordWriter). This Processor requires that at least one user-defined Property be added. The name of the Property should indicate a RecordPath that determines the field that should be updated. The value of the Property is either a replacement value (optionally making use of the Expression Language) or is itself a RecordPath that extracts a value from the Record. Whether the Property value is determined to be a RecordPath or a literal value depends on the configuration of the <Replacement Value Strategy> Property.
个人解读
更新flwofile的content内容，通过配置多个自定义属性来做到动态更新。
动态属性的key用Xpath表达式，value可以支持NIFI的表达式语言。
配置详情
| Record Reader | 配置继承于RecordReaderFactory的controller service用于读取Flwofile的content数据 GrokReader AvroReader见附录一SyslogReader ScriptedReader Syslog5424Reader XMLReader ParquetReader JsonTreeReader见附录三 JsonPathReader CSVReader |
| Record Writer | 配置继承于RecordSetWriterFactory的controller service用于写出Flwofile的content数据 AvroRecordSetWriter见附录二 ScriptedRecordSetWriterCSVRecordSetWriter FreeFormTextRecordSetWriter JsonRecordSetWriter见附录四 ParquetRecordSetWriter XMLRecordSetWriter |
| Replacement Value Strategy |
替换值策略 |
原始数据
[{"id": 17,"name": "John","child": {"id": "1"},"siblingIds": [4, 8],"siblings": [{ "name": "Jeremy", "id": 4 },{ "name": "Julia", "id": 8 }]},{"id": 98,"name": "Jane","child": {"id": 2},"gender": "F","siblingIds": [],"siblings": []}]
实战一：Replace with Literal
| Property Name | Property Value |
| Replacement Value Strategy | Literal Value |
| /name | Jeremy |
| /gender | M |
[{"id": 17,"name": "Jeremy","child": {"id": "1"},"gender": "M","siblingIds": [4, 8],"siblings": [{ "name": "Jeremy", "id": 4 },{ "name": "Julia", "id": 8 }]},{"id": 98,"name": "Jeremy","child": {"id": 2},"gender": "M","siblingIds": [],"siblings": []}]
备注：第一个记录没有gender，则会添加一个
实战二：Replace with RecordPath
| Property Name | Property Value |
| Replacement Value Strategy | Record Path Value |
| /name | /siblings[0]/name |
[{"id": 17,"name": "Jeremy","child": {"id": "1"},"siblingIds": [4, 8],"siblings": [{ "name": "Jeremy", "id": 4 },{ "name": "Julia", "id": 8 }]},{"id": 98,"name": null,"child": {"id": 2},"gender": "F","siblingIds": [],"siblings": []}]
实战三：Replace with Relative RecordPath
| Property Name | Property Value |
| Replacement Value Strategy | Record Path Value |
| /siblings[*]/name | ../id |
[{"id": 17,"name": "John","child": {"id": "1"},"siblingIds": [4, 8],"siblings": [{ "name": "4", "id": 4 },{ "name": "8", "id": 8 }]},{"id": 98,"name": "Jane","child": {"id": 2},"gender": "F","siblingIds": [],"siblings": []}]
备注：..当前层级的父节点
实战四：Replace Multiple Values
| Property Name | Property Value |
| Replacement Value Strategy | Literal Value |
| //id | ${replacement.id} |
备注：从属性拿值。假如Flowfile的replacement.id是91
[{"id": 91,"name": "John","child": {"id": "91"},"siblingIds": [4, 8],"siblings": [{ "name": "Jeremy", "id": 91 },{ "name": "Julia", "id": 91 }]},{"id": 91,"name": "Jane","child": {"id": 91},"gender": "F","siblingIds": [],"siblings": []}]
实战五：Use Expression Language to Modify Value
| Property Name | Property Value |
| Replacement Value Strategy | Literal Value |
| //name | ${field.value:toUpper()} |
[{"id": 17,"name": "JOHN","child": {"id": "1"},"siblingIds": [4, 8],"siblings": [{ "name": "JEREMY", "id": 4 },{ "name": "JULIA", "id": 8 }]},{"id": 98,"name": "JANE","child": {"id": 2},"gender": "F","siblingIds": [],"siblings": []}]
备注：//代表所有路径，${field.value}代表当前路径的值
