ExecuteScrip-Groovy

NIFI实战 2020-07-13

988

属性	描述
Script Engine	可选脚本语言 groovy,clojure,ecmascript,lua,python,ruby
Script File	脚本文件路径
Script Body	脚本
Module Directory	脚本用到的包；例如用到的fastjosn包，包fastjson的jar包放到这个路径就可以了

备注：Script File和Script Body不能全填，也不能全不填，Script Body不支持动态获取，Script File支持从变量中获取，均不支持从flowfile里边获取。

下面我们开始学习如果写一个ExecuteScrip能执行的groovy脚本

直接可用变量	用处
session	create()、putAttribute()、transfer()、read()、write().
context	用于检索处理器属性、关系、控制器服务和StateManager； StateManager用法 getState，setState，replace，clear
log	log.info('Hello world!') log.info('{} {} {}', ['Hello',1,true] as Object[])
REL_SUCCESS	路由到success连接
REL_FAILURE	路由到failure连接
Dynamic Properties	静态的；动态的带EL表达式的；control service的唯一标识；

从上游队列获取flowfile

//单个获取
flowFile = session.get()
if(!flowFile) return

// 获取多个
flowFileList = session.get(100)
if(!flowFileList.isEmpty()) {
   flowFileList.each { flowFile ->
       // Process each FlowFile here
   }
}

从flowfile中读数据

import org.apache.commons.io.IOUtils
import java.nio.charset.StandardCharsets
flowFile = session.get()
if(!flowFile)return
def text = ''
// Cast a closure with an inputStream parameter to InputStreamCallback
session.read(flowFile, {inputStream ->
  text = IOUtils.toString(inputStream, StandardCharsets.UTF_8)
  // Do something with text here
} as InputStreamCallback)

创建新的flowfile

flowFile = session.create()
// Additional processing here

flowFile = session.get()
if(!flowFile) return
newFlowFile = session.create(flowFile)
// Additional processing here

获取属性

flowFile = session.get()
if(!flowFile) return
myAttr = flowFile.getAttribute('filename')

// 遍历所有属性
flowFile = session.get()
if(!flowFile) return
flowFile.getAttributes().each { key,value ->
  // Do something with the key/value pair
}

写入flowfile属性

flowFile = session.get()
if(!flowFile) return
flowFile = session.putAttribute(flowFile, 'myAttr', 'myValue')

attrMap = ['myAttr1': '1', 'myAttr2': Integer.toString(2)]
flowFile = session.get()
if(!flowFile) return
flowFile = session.putAllAttributes(flowFile, attrMap)

写入flowfile数据

import org.apache.commons.io.IOUtils
import java.nio.charset.StandardCharsets


flowFile = session.get()
if(!flowFile) return
def text = 'Hello world!'
// Cast a closure with an outputStream parameter to OutputStreamCallback
flowFile = session.write(flowFile, {outputStream ->
  outputStream.write(text.getBytes(StandardCharsets.UTF_8))
} as OutputStreamCallback)

给下游分发flowfile

flowFile = session.get()
if(!flowFile) return
// Processing occurs here
if(errorOccurred) {
  session.transfer(flowFile, REL_FAILURE)
}
else {
  session.transfer(flowFile, REL_SUCCESS)
}

打日志

log.info('Hello world!')
log.info('Found these things: {} {} {}', ['Hello',1,true] as Object[])

Reading and writing to/from a flow file

import org.apache.commons.io.IOUtils
import java.nio.charset.StandardCharsets


flowFile = session.get()
if(!flowFile) return
def text = 'Hello world!'
// Cast a closure with an inputStream and outputStream parameter to StreamCallback
flowFile = session.write(flowFile, {inputStream, outputStream ->
  text = IOUtils.toString(inputStream, StandardCharsets.UTF_8)
  outputStream.write(text.reverse().getBytes(StandardCharsets.UTF_8))
} as StreamCallback)
session.transfer(flowFile, REL_SUCCESS)

异常捕获

flowFile = session.get()
if(!flowFile) return
try {
  // Something that might throw an exception here


  // Last operation is transfer to success (failures handled in the catch block)
  session.transfer(flowFile, REL_SUCCESS)
} catch(e) {
  log.error('Something went wrong', e)
  session.transfer(flowFile, REL_FAILURE)
}

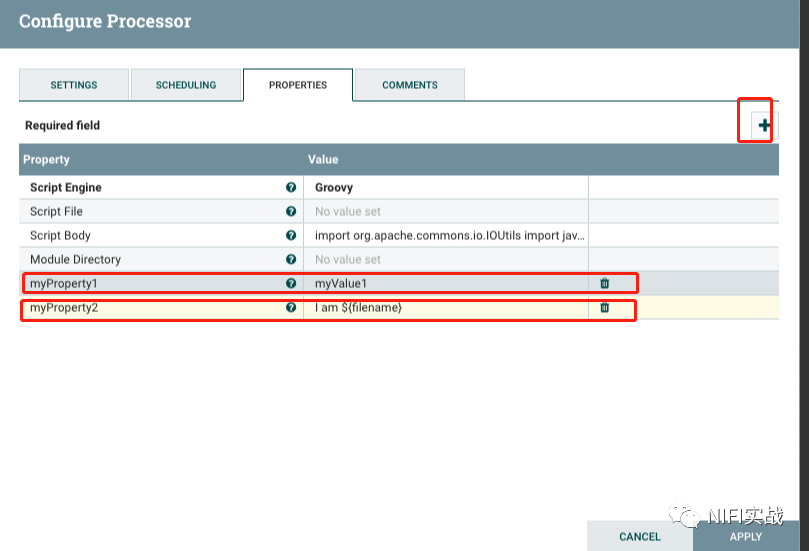

使用动态添加的属性

// 获取动态添加的静态变量
def myValue1 = myProperty1.value

// 获取动态添加的el表达式动态变量
def myValue2 = myProperty2.evaluateAttributeExpressions(flowFile).value

使用状态管理

import org.apache.nifi.components.state.Scope
// 读
def oldMap = context.stateManager.getState(Scope.LOCAL).toMap()

import org.apache.nifi.components.state.Scope
def stateManager = context.stateManager
def stateMap = stateManager.getState(Scope.CLUSTER)
def newMap = ['myKey1': 'myValue1']
if (stateMap.version == -1) {
// 覆盖
  stateManager.setState(newMap, Scope.CLUSTER);
} else {
// merger
  stateManager.replace(stateMap, newMap, Scope.CLUSTER);
}

// 清理
import org.apache.nifi.components.state.Scope
context.stateManager.clear(Scope.LOCAL)

使用Controller Services

import org.apache.nifi.distributed.cache.client.DistributedMapCacheClient
import org.apache.nifi.distributed.cache.client.Serializer
import org.apache.nifi.distributed.cache.client.Deserializer
import java.nio.charset.StandardCharsets


def StringSerializer = {value, out -> out.write(value.getBytes(StandardCharsets.UTF_8))} as Serializer<String>
def StringDeserializer = { bytes -> new String(bytes) } as Deserializer<String>
// clientServiceId为动态属性，clientServiceId的值是service实际唯一标识
def myDistClient = clientServiceId.asControllerService(DistributedMapCacheClient)
def result = myDistClient.get('a', StringSerializer, StringDeserializer)
log.info("Result = $result")

引入第三方包

Groovy脚本引擎（至少用于ExecuteScript中）不支持其他Groovy脚本的导入，打包成jar再用
Module Directory设置，jar包或者目录，用逗号隔开；如果设置的是目录，会加载所有包；配合import肯定能用；

实战演练

功能是给数据做一个数据转换功能，把{"a": 1,"b":{"bytes":"aaaaa"}}json下的bytes加密后给原来字段b

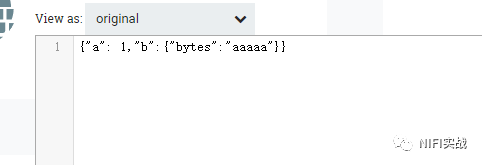

{"a": 1,"b":{"bytes":"aaaaa"}}

目标数据

{"a":1,"b":"YWFhYWE="}

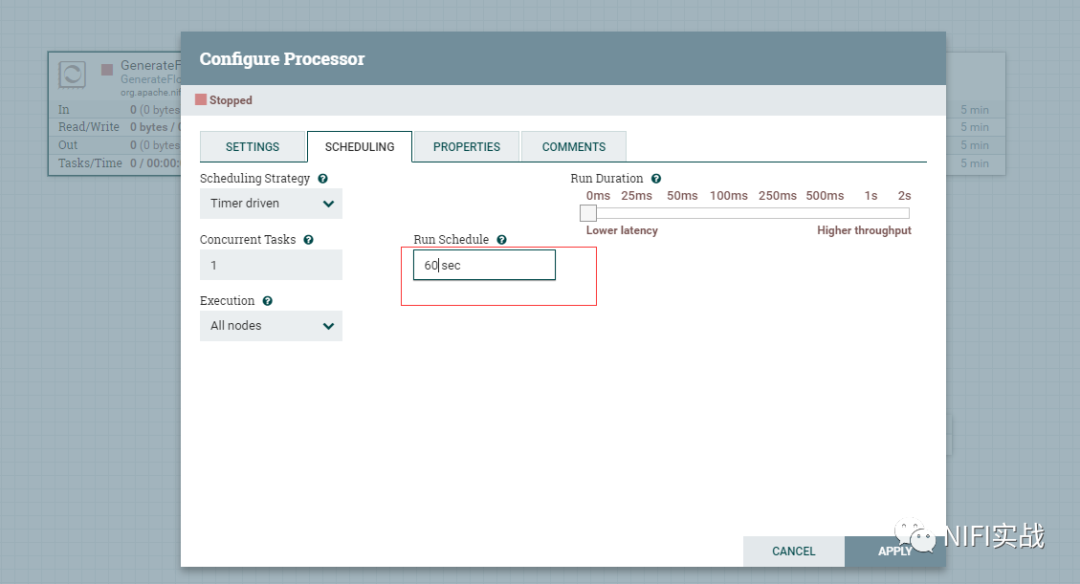

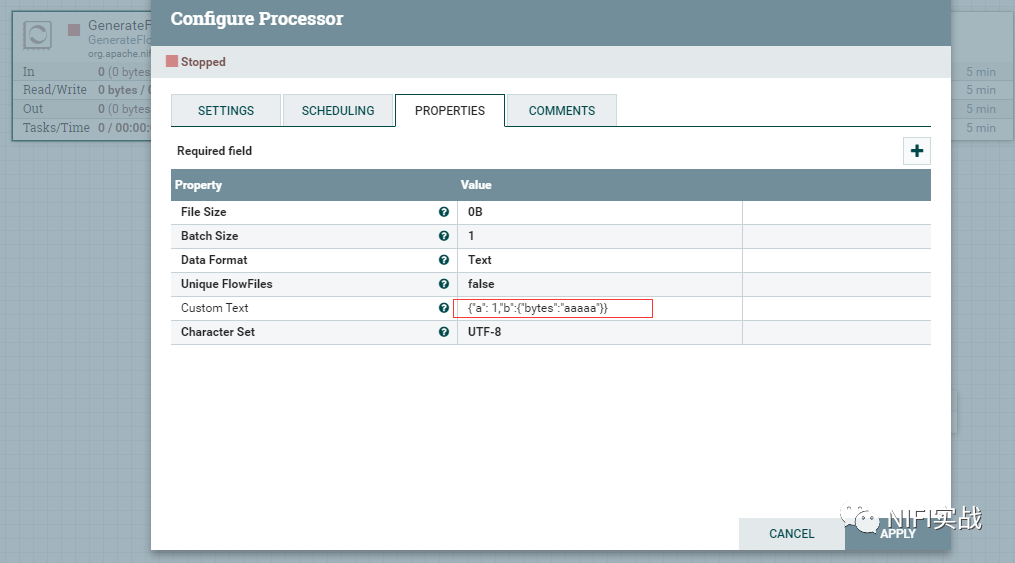

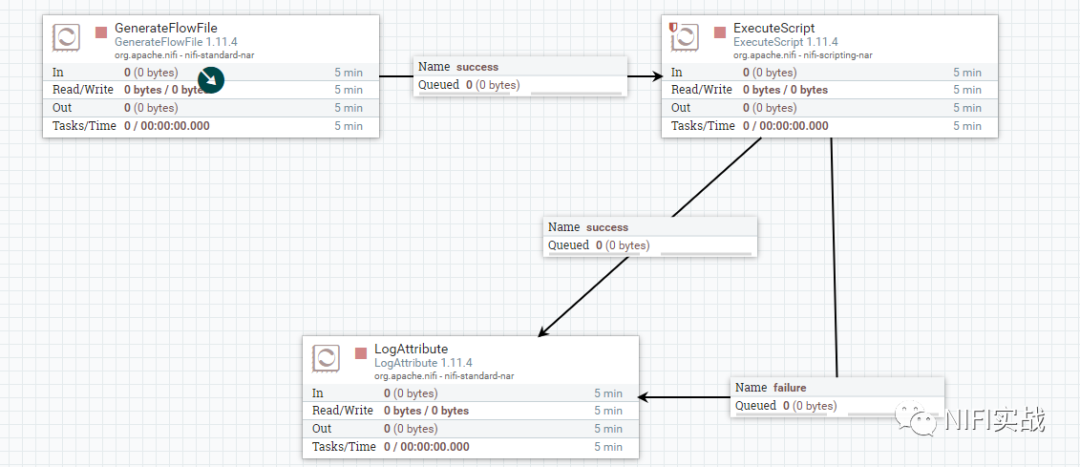

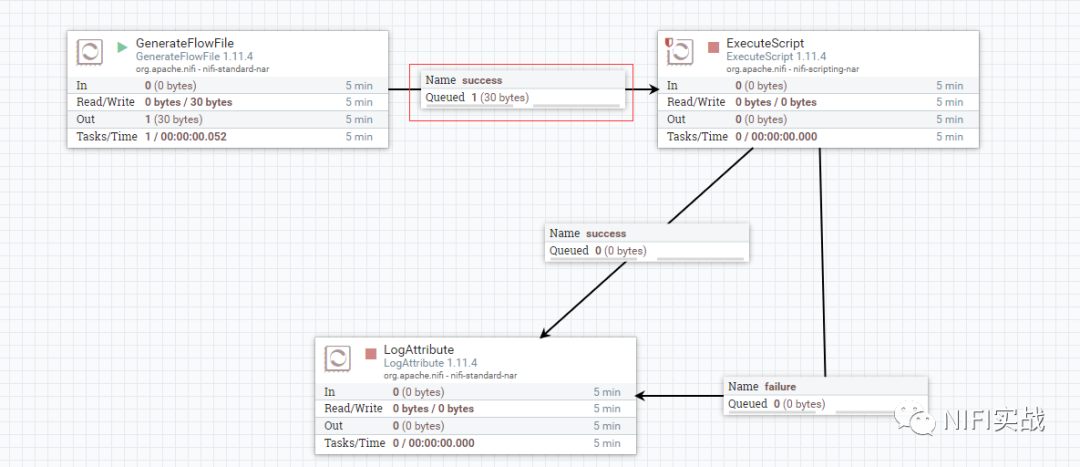

第一步GenerateFlowFile

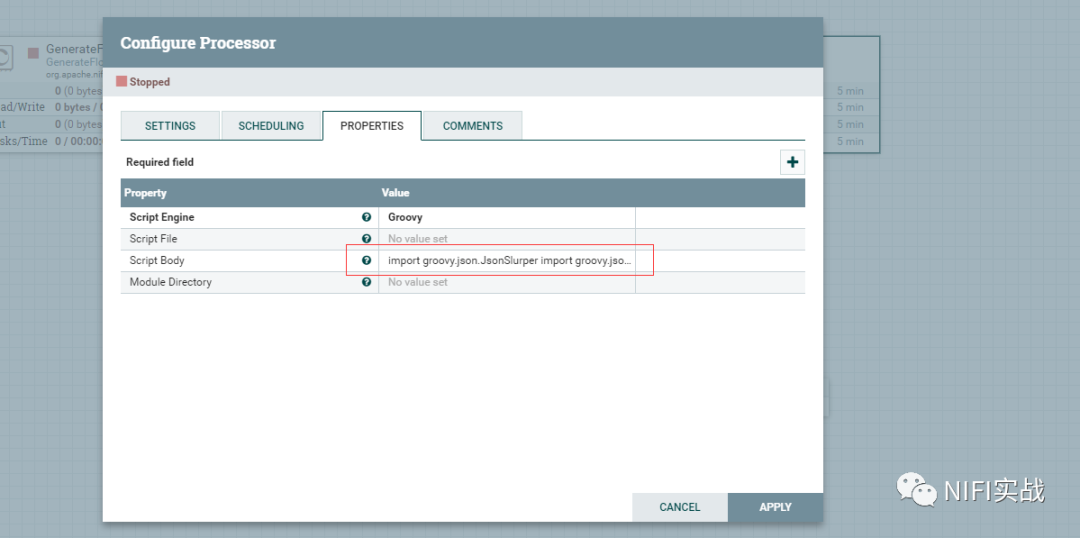

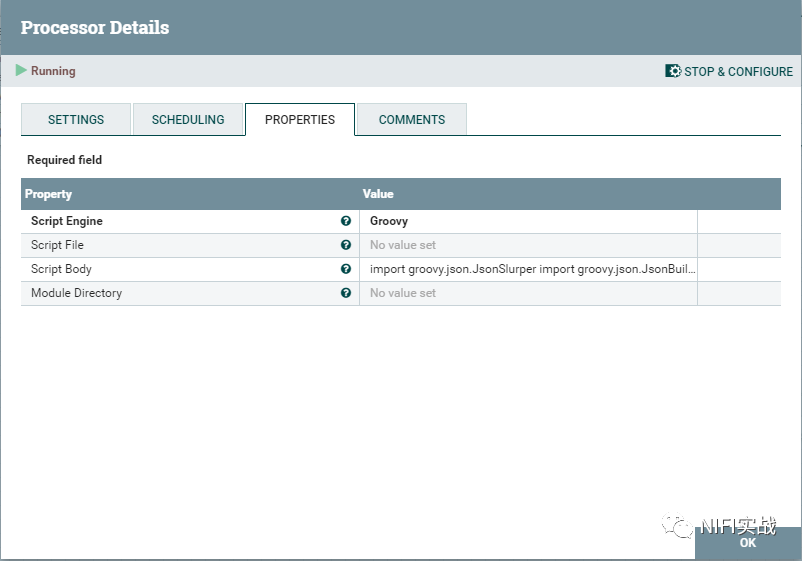

第二步脚本ExecuteScript

import groovy.json.JsonSlurper
import groovy.json.JsonBuilder


def ff = session.get()
if(!ff)return
ff = session.write(ff, {rawIn, rawOut->
       rawIn.withReader("UTF-8"){reader->
           rawOut.withWriter("UTF-8"){writer->
               //parse reader into Map
               def json = new JsonSlurper().parse(reader)
               //todo
         def bytes = json.b.bytes
               json.b =bytes.getBytes().encodeBase64().toString()
               //write changed object to writer
               new JsonBuilder(json).writeTo(writer)
           }
       }
} as StreamCallback)
session.transfer(ff, REL_SUCCESS)

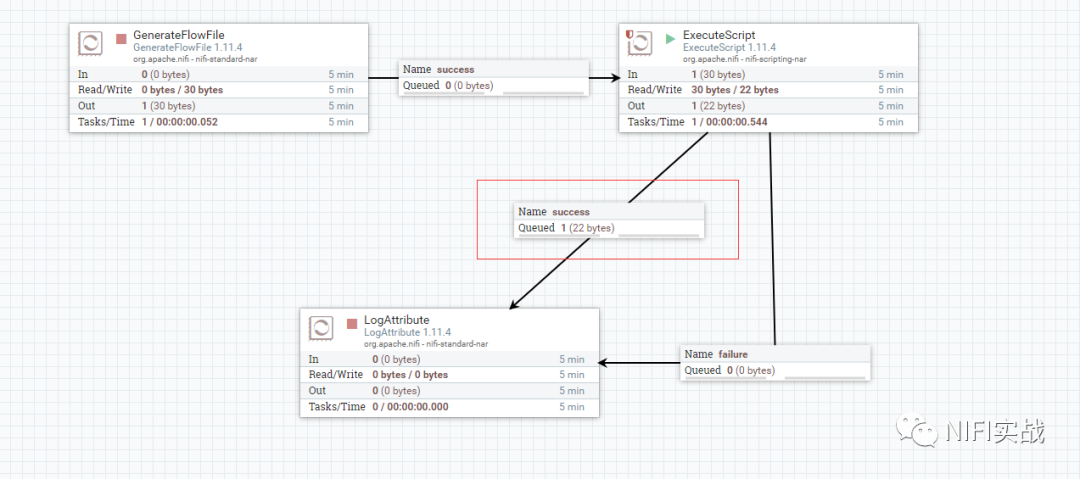

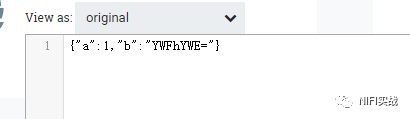

后面查看执行结果

总结

nifi流程配合着groovy脚本处理数据，可以使得我们流程更加灵活
