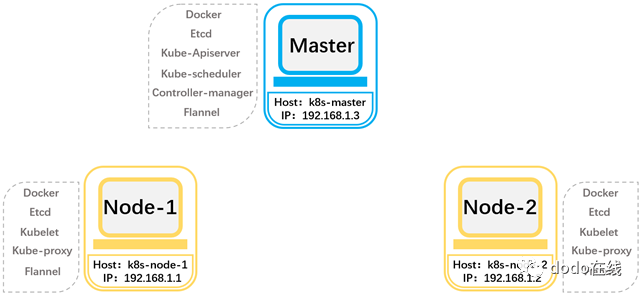

一、部署flannel网络

（一）在Etcd中网络设置

1、在Etcd中网络设置

[root@k8s-master ~]# etcdctl--ca-file=/usr/local/kubernetes/ssl/ca.pem --cert-file=/usr/local/kubernetes/ssl/etcd.pem--key-file=/usr/local/kubernetes/ssl/etcd-key.pem  --endpoints="https://192.168.1.1:2379,https://192.168.1.2:2379,https://192.168.1.3:2379"  set /coreos.com/network/config '{"Network": "10.244.0.0/16", "Backend":{"Type": "vxlan"}}'

2、修改Flannel类型

[root@k8s-master ~]# etcdctl--ca-file=/usr/local/kubernetes/ssl/ca.pem --cert-file=/usr/local/kubernetes/ssl/etcd.pem--key-file=/usr/local/kubernetes/ssl/etcd-key.pem --endpoints="https://192.168.1.1:2379,https://192.168.1.2:2379,https://192.168.1.3:2379"  set /coreos.com/network/config '{"Network": "10.244.0.0/16", "Backend":{"Type": " host-gw"}}'

3、查看网络设置

[root@k8s-master ~]# etcdctl--ca-file=/usr/local/kubernetes/ssl/ca.pem --cert-file=/usr/local/kubernetes/ssl/etcd.pem--key-file=/usr/local/kubernetes/ssl/etcd-key.pem  --endpoints="https://192.168.1.1:2379,https://192.168.1.2:2379,https://192.168.1.3:2379"  get /coreos.com/network/config '{"Network": "10.244.0.0/16", "Backend":{"Type": "vxlan"}}'

（二）部署flannel

1、下载flannel

[root@k8s-master ~]# wget https://github.com/coreos/flannel/releases/download/v0.11.0/flannel-v0.11.0-linux-amd64.tar.gz

[root@k8s-master ~]# mkdir /usr/src/flannel
[root@k8s-master ~]# tar -zxvfflannel-v0.11.0-linux-amd64.tar.gz -C /usr/src/flannel/
[root@k8s-master ~]# cd/usr/src/flannel/
[root@k8s-master flannel]# cp flanneldmk-docker-opts.sh /usr/local/kubernetes/bin/

2、创建flannel配置文件

[root@k8s-master ~]# vim/usr/local/kubernetes/conf/flanneld
添加：
FLANNEL_OPTIONS="--etcd-endpoints=https://192.168.1.1:2379,https://192.168.1.2:2379,https://192.168.1.3:2379\
       -etcd-cafile=/usr/local/kubernetes/ssl/ca.pem \
        -etcd-certfile=/usr/local/kubernetes/ssl/etcd.pem\
       -etcd-keyfile=/usr/local/kubernetes/ssl/etcd-key.pem \
        -etcd-prefix=/coreos.com/network"


[root@k8s-master ~]# scp/usr/local/kubernetes/conf/flanneld 192.168.1.1:/usr/local/kubernetes/conf/
[root@k8s-master ~]# scp/usr/local/kubernetes/conf/flanneld 192.168.1.2:/usr/local/kubernetes/conf/

3、创建flannel服务配置文件

[root@k8s-master ~]# vim/usr/lib/systemd/system/flanneld.service
添加：
[Unit]
Description=Flanneld overlay address etcd agent
After=network-online.target network.target
Before=docker.service

[Service]
Type=notify
EnvironmentFile=-/usr/local/kubernetes/conf/flanneld
ExecStart=/usr/local/kubernetes/bin/flanneld--ip-masq $FLANNEL_OPTIONS
ExecStartPost=/usr/local/kubernetes/bin/mk-docker-opts.sh-k DOCKER_NETWORK_OPTIONS -d /run/flannel/subnet.env
Restart=on-failure

[Install]
WantedBy=multi-user.target

[root@k8s-master ~]# scp/usr/lib/systemd/system/flanneld.service 192.168.1.1:/usr/lib/systemd/system/
[root@k8s-master ~]# scp/usr/lib/systemd/system/flanneld.service 192.168.1.2:/usr/lib/systemd/system/

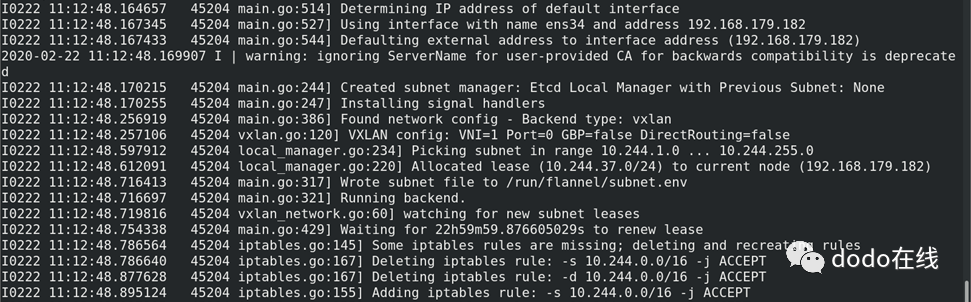

4、预启动flannel

[root@k8s-master ~]# flanneld-etcd-cafile=/usr/local/kubernetes/ssl/ca.pem -etcd-certfile=/usr/local/kubernetes/ssl/etcd.pem -etcd-keyfile=/usr/local/kubernetes/ssl/etcd-key.pem -etcd-endpoints="https://192.168.1.1:2379,https://192.168.1.2:2379,https://192.168.1.3:2379"-etcd-prefix=/coreos.com/network

5、启动flannel服务

[root@k8s-master ~]# systemctl enableflanneld
[root@k8s-master ~]# systemctl startflanneld

6、查看flannel服务状态

[root@k8s-master ~]# systemctl status flanneld

[root@k8s-master ~]# netstat -anpt |grep flanneld

7、验证flannel网络

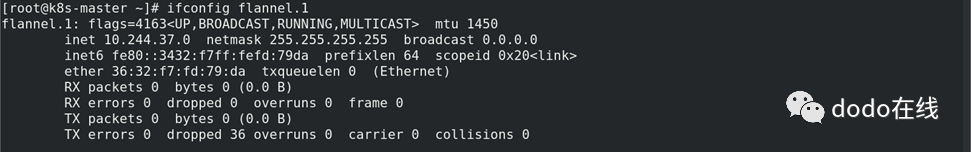

（1）Master节点：

[root@k8s-master ~]# ip a
[root@k8s-master ~]# ifconfig flannel.1

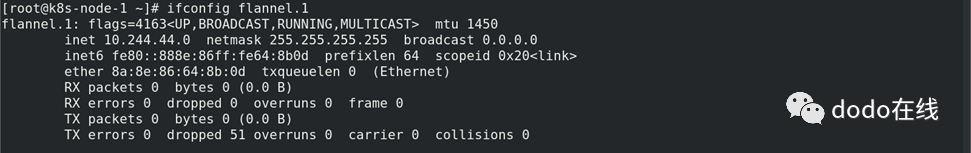

（2）Node-1节点：

[root@k8s-node-1 ~]# ip a
[root@k8s-node-1 ~]# ifconfig flannel.1

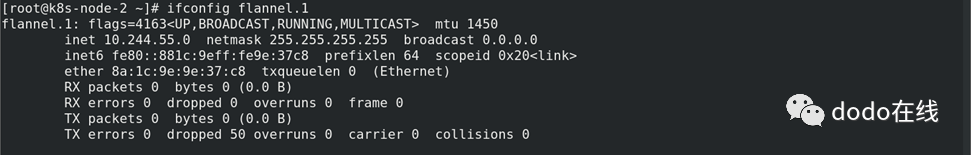

（3）Node-2节点：

[root@k8s-node-2 ~]# ip a
[root@k8s-node-2 ~]# ifconfig flannel.1

二、配置docker

1、配置docker服务使flannel应用到容器

[root@k8s-master ~]# vim/usr/lib/systemd/system/docker.service
修改：
#ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock
EnvironmentFile=/run/flannel/subnet.env
ExecStart=/usr/bin/dockerd -H fd://--containerd=/run/containerd/containerd.sock $DOCKER_NETWORK_OPTIONS
ExecReload=/bin/kill -s HUP $MAINPID
TimeoutSec=0
RestartSec=2

[root@k8s-master ~]# scp/usr/lib/systemd/system/docker.service 192.168.1.1:/usr/lib/systemd/system/
[root@k8s-master ~]# scp/usr/lib/systemd/system/docker.service 192.168.1.2:/usr/lib/systemd/system/

2、重启Docker

[root@k8s-master ~]# systemctldaemon-reload
[root@k8s-master ~]# systemctl restartdocker.service

3、验证：

（1）在k8s-master上：

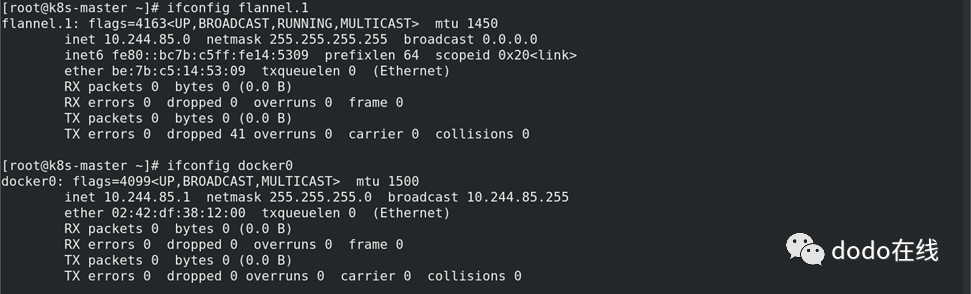

[root@k8s-master ~]# ifconfig flannel.1
[root@k8s-master ~]# ifconfig docker0

（2）在k8s-node-1上：

[root@k8s-node-1 ~]#ifconfig flannel.1
[root@k8s-node-1 ~]#ifconfig docker0

（3）在k8s-node-2上：

[root@k8s-node-2 ~]#ifconfig flannel.1
[root@k8s-node-2 ~]#ifconfig docker0

（4）连通性测试

[root@k8s-master ~]# ping 10.244.15.1
[root@k8s-master ~]# ping 10.244.34
