使用 libcurl 进行上传、下载图片

林元皓 2021-09-16
1451

前言

本来想对 libcurl 封装,使用协程来处理 http 的异步操作。

因此项目引入了 libcurl 和 libgo ,但是实现的时候,由于 libcurl 在域名解析的时候,出了问题导致,使用协程不成功,后来又用线程封装的。

由于没使用上协程,我读了一下 curl 的源码,想了解的话,可以看看 《curl 源码解析》文章。

curl 在解析 nds 的时候启用了线程,感觉在协程和线程切换时存在的问题。

协程只是想处理异步请求,因为请求只是一去一回,如果每次拿线程搞感觉浪费... 对于下载的话使用协程则意义不大了!

但第一战战败... 想法没和代码匹配上,后续在读一下 libgo 的源码,看不看能不能使用协程来处理异步问题。

这里还是用线程实现的。

环境搭建

需要引入的三方库,libcurl 、libgo 和 jsoncpp。

VS2017 搭建比较简单,不单独出文章了。

libcurl 版本:curl-7.75.0libgo 版本:v3.0jsoncpp 版本:jsoncpp-1.8.3

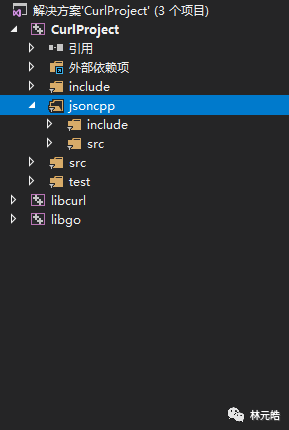

看一下工程设置:


将 libcurl 和 libgo 以三方库的形式添加到工程中,嫌麻烦而把 jsoncpp 直接将代码添加到了 CurlProject 项目中。

将 jsoncpp 的头文件和库文件拷贝到 CurlProject 的代码中,但会编译不过,需要在 writer.h 头文件开头部分添加代码:

#if defined(GNUC)
#pragma GCC diagnostic push
#pragma GCC diagnostic ignored “-Wdeprecated-declarations
#elif defined(_MSC_VER)
#pragma warning(disable : 4996)
#endif

功能需求

先说一下功能需求,通过 HTTTP,使用 libcurl 进行上传、下载图片流程:

读取本地图片,使用 http post 请求,将 图片发送到 服务器。服务器 url 地址 :http://xxxx.xxxx.cn/H5/UnityApi/doUpload上传文件参数名:img_file发送成功后,响应:{"code":100,"url":"http://xxxx.xxxx.cn/xxxx/xxx/xx.jpg"} (json形式)然后通过返回链接,使用 curl 下载图片

这里要感谢小白同学,为我搭建的 http 服务器,从而完成了对编写的代码的调试和测试。

设计与类图

设计类结构:



HttpHelper 类:http 辅助类;记录全局的 http 请求和下载 list、请求和下载线程入口、生成 http 请求 handle 等。RequestHelper 类:请求类实现,对 libcurl 的封装,是 HttpRequest 的内部类;HttpRequest 类:对请求类进行同步异步的封装。DownloadHelper 类:下载类实现,对 libcurl 的封装,是 HttpDownloader 的内部类;HttpDownloader 类:对下载类进行同步异步的封装。ImageRequestCallback 类:业务层类,处理图片请求回调。ImageDownCallback 类:业务层类,处理图片下载回调。

需要提及的是,在下载类中,封装了线程池下载。

和单位的不同,单位使用的单线程处理,支持断点续传,就是将读取已下载文件位置,然后继续下载。

这里,通过不同的文件大小判断,进行文件分割,然后将各个分割部分交给多线程处理,更为复杂一些。

代码实现

通用代码

目录管理类:windows 下使用

DirectoryManager.h

/*******************************************************************************************
vic.MINg 2019- 07-06
VS中定位当前工程项目的根目录
只在window下使用
********************************************************************************************/


#pragma once


#include <windows.h>
#include <string>
using namespace std;




class DirectoryManager
{
public:
static string GetRootDirectory();


static string GetExeDirectory();


private:
//构造函数
DirectoryManager() {};


//获取当前项目根目录
static void loadRootDir();


//获取exe文件目录
static void loadExeDir();


//静态数组
static char rootPath[MAX_PATH]; //根目录
static char exePath[MAX_PATH]; //执行文件目录


};

DirectoryManager.cpp

/*******************************************************************************************
vic.MINg 2019- 07-06
********************************************************************************************/


#include "../include/DirectoryManager.h"




//类的静态数组 初始化
char DirectoryManager::rootPath[MAX_PATH] = "";
char DirectoryManager::exePath[MAX_PATH] = "";




string DirectoryManager::GetRootDirectory()
{
loadRootDir();
string root = rootPath;
/*
for (char &c : root)
{
if (c == '\\')
c = '\/';
}*/
for (auto iter = root.begin(); iter != root.end(); iter++)
{
if (*iter == '\\')
*iter = '\/';
}
return root;
}


string DirectoryManager::GetExeDirectory()
{
loadExeDir();
string exe = exePath;
exe = exe.substr(0, exe.find_last_of('\\')+1);
/*
for (char &c : exe)
{
if (c == '\\')
c = '\/';
}*/
for (auto iter = exe.begin(); iter != exe.end(); iter++)
{
if (*iter == '\\')
*iter = '\/';
}
return exe;
}


//获取当前项目根目录
void DirectoryManager::loadRootDir()
{
GetCurrentDirectory(MAX_PATH, rootPath);
}


//获取exe文件目录
void DirectoryManager::loadExeDir()
{
GetModuleFileName(NULL, exePath, MAX_PATH);
}

任务池模型

TaskPool.h

/**
* 任务池模型,TaskPool.h
*/


#pragma once


#include <thread>
#include <mutex>
#include <condition_variable>
#include <list>
#include <vector>
#include <memory>
#include <iostream>


class Task
{
public:
virtual void doIt()
{
std::cout << "handle a task..." << std::endl;
}


virtual ~Task()
{
//为了看到一个task的销毁,这里刻意补上其析构函数
std::cout << "a task destructed..." << std::endl;
}
};


class TaskPool final
{
friend class HttpDownloader;
public:
TaskPool();
~TaskPool();
TaskPool(const TaskPool& rhs) = delete;
TaskPool& operator=(const TaskPool& rhs) = delete;


public:
void init(int threadNum = 4);
void stop();


void addTask(Task* task);
void removeAllTasks();
void runTaskPool() { m_bRunning = true; }
bool isEmptyTask() { return m_taskList.empty(); }


private:
void threadFunc();


private:
std::list<std::shared_ptr<Task>> m_taskList;
std::mutex m_mutexList;
std::condition_variable m_cv;
bool m_bRunning;
std::vector<std::shared_ptr<std::thread>> m_threads;




std::condition_variable m_finish_cv;
std::mutex m_finish_mutex;
};

TaskPool.cpp

#include "../include/TaskPool.h"


TaskPool::TaskPool() : m_bRunning(false)
{


}


TaskPool::~TaskPool()
{
removeAllTasks();
}


void TaskPool::init(int threadNum/* = 5*/)
{
if (threadNum <= 0)
threadNum = 5;


m_bRunning = true;


for (int i = 0; i < threadNum; ++i)
{
std::shared_ptr<std::thread> spThread;
spThread.reset(new std::thread(std::bind(&TaskPool::threadFunc, this)));
m_threads.push_back(spThread);
}
}


void TaskPool::threadFunc()
{
std::shared_ptr<Task> spTask;
while (true)
{
std::unique_lock<std::mutex> guard(m_mutexList);
while (m_taskList.empty())
{
if (!m_bRunning)
break;


//如果获得了互斥锁,但是条件不合适的话,pthread_cond_wait会释放锁,不往下执行。
//当发生变化后,条件合适,pthread_cond_wait将直接获得锁。
m_cv.wait(guard);
}


if (!m_bRunning)
break;


spTask = m_taskList.front();
m_taskList.pop_front();


if (spTask == NULL)
continue;


spTask->doIt();
spTask.reset();


m_finish_cv.notify_one(); // 线程下载完毕 通知完成
}


std::cout << "exit thread, threadID: " << std::this_thread::get_id() << std::endl;
}


void TaskPool::stop()
{
m_bRunning = false;
m_cv.notify_all();


//等待所有线程退出
for (auto& iter : m_threads)
{
if (iter->joinable())
iter->join();
}
}


void TaskPool::addTask(Task* task)
{
std::shared_ptr<Task> spTask;
spTask.reset(task);


{
std::lock_guard<std::mutex> guard(m_mutexList);
//m_taskList.push_back(std::make_shared<Task>(task));
m_taskList.push_back(spTask);
std::cout << "add a Task." << std::endl;
}


m_cv.notify_one();
}


void TaskPool::removeAllTasks()
{
{
std::lock_guard<std::mutex> guard(m_mutexList);
for (auto& iter : m_taskList)
{
iter.reset();
}
m_taskList.clear();
}
}

Http 封装代码

原子锁:

HttpLock.h

/*************************************************
vic.MINg 2021/03/30
原子锁
************************************************/


#pragma once


#include <atomic>
#include <memory>


// 原子锁
class HttpLock
{
public:
HttpLock():m_flag_(false) { }


void Lock()
{
bool expect = false;
while (!m_flag_.compare_exchange_weak(expect, true))
{
expect = false; // 这里一定要将 expect 复原,执行失败时 expect 结果是未定的
}
}


void UnLock()
{
m_flag_.store(false);
}


private:
std::atomic<bool> m_flag_;
};




class DoHttpLock
{
public:
DoHttpLock(std::shared_ptr<HttpLock> & lock)
: m_lock(lock)
{
m_lock->Lock();
}


~DoHttpLock()
{
m_lock->UnLock();
}


private:
std::shared_ptr<HttpLock> m_lock;
};

HTTP 辅助类

HttpHelper.h

/*************************************************
vic.MINg 2021/03/30
HTTP 辅助类
************************************************/


#pragma once


#include <curl/curl.h>
#include <libgo.h>
#include <atomic>
#include <memory>
#include <list>


#include "HttpLock.h"
#include "HttpRequest.h"
#include "HttpDownloader.h"


class HttpHelper {
protected:
HttpHelper();


public:
~HttpHelper();


static HttpHelper& Instance() // 这里 Instance 只负责原子叠加
{
static HttpHelper the_single_instance;
s_id++;
return the_single_instance;
}


static void set_share_handle(CURL* curl_handle); // 如果 总是访问 同一个服务器 ,有必要设置 DNS共享


static void RequestCoroutine(void* param); // HTTP请求 协程
static void RequestThread(void* param); // HTTP请求 线程
static size_t RetriveHeaderFunction(char *buffer, size_t size, size_t nitems, void *userdata); // 检索 头 函数
static size_t RetriveContentFunction(char *ptr, size_t size, size_t nmemb, void *userdata); // 检索 内容 函数


static void DownloadCoroutine(void* param); // 下载 协程
static void DownloadThread(void* param); // 下载 线程
static size_t write_callback(char *ptr, size_t size, size_t nmemb, void *userdata);
static int progress_callback(void *clientp, curl_off_t dltotal, curl_off_t dlnow, curl_off_t ultotal, curl_off_t ulnow);




static std::list< std::shared_ptr<HttpRequest::RequestHelper> > s_async_requests;
static std::list< std::shared_ptr<HttpDownloader::DownloadHelper> > s_async_downloads;


static std::atomic<int> s_id; // 原子计数
static std::shared_ptr<HttpLock> s_request_lock;
static std::shared_ptr<HttpLock> s_download_lock;
static CURLSH* s_share_handle;


static std::condition_variable s_request_cv;
static std::condition_variable s_download_cv;
};

HttpHelper.cpp

#include "../include/HttpHelper.h"


#include <thread>




std::list< std::shared_ptr<HttpRequest::RequestHelper> > HttpHelper::s_async_requests;
std::list< std::shared_ptr<HttpDownloader::DownloadHelper> > HttpHelper::s_async_downloads;
std::atomic<int> HttpHelper::s_id{0};
std::shared_ptr<HttpLock> HttpHelper::s_request_lock(new HttpLock);
std::shared_ptr<HttpLock> HttpHelper::s_download_lock(new HttpLock);
CURLSH* HttpHelper::s_share_handle = nullptr;


std::condition_variable HttpHelper::s_request_cv;
std::condition_variable HttpHelper::s_download_cv;


HttpHelper::HttpHelper()
{
curl_global_init(CURL_GLOBAL_DEFAULT);


s_share_handle = curl_share_init();
curl_share_setopt(s_share_handle, CURLSHOPT_SHARE, CURL_LOCK_DATA_DNS);
}


HttpHelper::~HttpHelper()
{
curl_share_cleanup(s_share_handle);
curl_global_cleanup();


s_async_requests.clear();
s_async_downloads.clear();
}


void HttpHelper::set_share_handle(CURL* curl_handle)
{
curl_easy_setopt(curl_handle, CURLOPT_SHARE, s_share_handle);
curl_easy_setopt(curl_handle, CURLOPT_DNS_CACHE_TIMEOUT, 60 * 5);
}


void HttpHelper::RequestCoroutine(void* param)
{
co_sleep(10);


std::shared_ptr<HttpRequest::RequestHelper>* request = reinterpret_cast<std::shared_ptr<HttpRequest::RequestHelper>*>(param);


if (request)
{
(*request)->Perform();
co_yield; // 请求以后 可以交给其他 协程处理
//if ((*request)->SelfClose())
{
// DoHttpLock http_lock(s_request_lock);
// HttpHelper::s_async_requests.remove(*request);
}
}
}


void HttpHelper::RequestThread(void* param)
{
std::shared_ptr<HttpRequest::RequestHelper>* request = reinterpret_cast<std::shared_ptr<HttpRequest::RequestHelper>*>(param);


if (request)
{
(*request)->Perform();
std::unique_lock < std::mutex > uniqlock((*request)->m_mutex);
s_request_cv.wait(uniqlock, [request] { // 这里的判断条件为lambda表达式,判断请求是否关闭,未关闭返回false,否则返回true
if ((*request)->SelfClose()) // 调用wait函数
return true;
return false;
});


// std::this_thread::sleep_for(std::chrono::milliseconds(100));
DoHttpLock http_lock(s_request_lock);
HttpHelper::s_async_requests.remove(*request);
uniqlock.unlock();
}
}




size_t HttpHelper::RetriveHeaderFunction(char *buffer, size_t size, size_t nitems, void *userdata)
{
std::string* receive_header = reinterpret_cast<std::string*>(userdata);
if (receive_header && buffer)
{
receive_header->append(reinterpret_cast<const char*>(buffer), size * nitems);
}


return nitems * size;
}


size_t HttpHelper::RetriveContentFunction(char *ptr, size_t size, size_t nmemb, void *userdata)
{
std::string* receive_content = reinterpret_cast<std::string*>(userdata);
if (receive_content && ptr)
{
receive_content->append(reinterpret_cast<const char*>(ptr), size * nmemb);
}


return nmemb * size;
}


void HttpHelper::DownloadCoroutine(void* param)
{
co_sleep(10);
std::shared_ptr<HttpDownloader::DownloadHelper>* request = reinterpret_cast<std::shared_ptr<HttpDownloader::DownloadHelper>*>(param);


if (request)
{
(*request)->Perform();
co_yield;
if ((*request)->SelfClose())
{
DoHttpLock http_lock(s_download_lock);
HttpHelper::s_async_downloads.remove(*request);
}
}
}


void HttpHelper::DownloadThread(void* param)
{
std::shared_ptr<HttpDownloader::DownloadHelper>* request = reinterpret_cast<std::shared_ptr<HttpDownloader::DownloadHelper>*>(param);


if (request)
{
(*request)->Perform();
std::unique_lock < std::mutex > uniqlock((*request)->m_mutex);
s_download_cv.wait(uniqlock, [request] { // 这里的判断条件为lambda表达式,判断请求是否关闭,未关闭返回false,否则返回true
if ((*request)->SelfClose()) // 调用wait函数
return true;
return false;
});


//std::this_thread::sleep_for(std::chrono::milliseconds(100));
DoHttpLock http_lock(s_download_lock);
HttpHelper::s_async_downloads.remove(*request);
uniqlock.unlock();
}
}


size_t HttpHelper::write_callback(char *ptr, size_t size, size_t nmemb, void *userdata)
{
HttpDownloader::DownloadHelper::ThreadChunk* thread_chunk = reinterpret_cast<HttpDownloader::DownloadHelper::ThreadChunk*>(userdata);


if (thread_chunk->_download->m_is_cancel)
{
return 0;
}


DoHttpLock http_lock(thread_chunk->_download->m_httplock);
size_t written = 0;
int real_size = size * nmemb;
if (thread_chunk->_endidx > 0)
{
if (thread_chunk->_startidx <= thread_chunk->_endidx)
{
if (thread_chunk->_startidx + real_size > thread_chunk->_endidx)
{
real_size = thread_chunk->_endidx - thread_chunk->_startidx + 1;
}
}
}


int seek_error = fseek(thread_chunk->_fp, thread_chunk->_startidx, SEEK_SET);
if (seek_error != 0)
{
perror("fseek");
}
else
{
written = fwrite(ptr, 1, real_size, thread_chunk->_fp);
}
thread_chunk->_download->m_downloaded_size += written;
thread_chunk->_startidx += written;


return written;
}


int HttpHelper::progress_callback(void *clientp, curl_off_t dltotal, curl_off_t dlnow, curl_off_t ultotal, curl_off_t ulnow)
{
HttpDownloader::DownloadHelper::ThreadChunk* thread_chunk = reinterpret_cast<HttpDownloader::DownloadHelper::ThreadChunk*>(clientp);


DoHttpLock http_lock(thread_chunk->_download->m_httplock);


double total_size = thread_chunk->_download->m_total_size;
double downloaded_size = thread_chunk->_download->m_downloaded_size;
void* userdata = thread_chunk->_download->m_userdata;
int callback_result = thread_chunk->_download->m_download_callback(total_size, downloaded_size, userdata);


return callback_result;
}

HTTP 客户端请求

HttpRequest.h

/*************************************************
vic.MINg 2021/03/30
http 客户端请求 curl 实现
************************************************/


#pragma once


#include <string>
#include <functional>
#include <memory>
#include <map>
#include <curl/curl.h>
#include <mutex>


class HttpRequest
{
public:
typedef enum {
REQUEST_SYNC, // 同步
REQUEST_ASYNC, // 异步
}RequestType;


typedef enum {
REQUEST_OK,
REQUEST_INVALID_OPT,
REQUEST_PERFORM_ERROR,
REQUEST_OPENFILE_ERROR,
REQUEST_INIT_ERROR,
}RequestResult;


//int id, bool success, const std::string& data
typedef std::function<void(int, bool, const std::string&)> ResultCallback;


friend class HttpHelper;


HttpRequest();
~HttpRequest() = default;




int SetRetryTimes(int retry_times = s_kRetryCount);
int SetRequestId(int id);
int SetRequestTimeout(long time_out = 0);
int SetRequestUrl(const std::string& url);


int SetMovedUrl(bool get_moved_url); // 重定向 url (true 表示 重定向)
int SetPostData(const std::string& message);
int SetPostData(const void* data, unsigned int size);
int SetPostFile(const std::string& flag_name, const std::string& file_path); // post 上传文件


int SetRequestHeader(const std::map<std::string, std::string>& headers); // 请求头信息
int SetRequestHeader(const std::string& header);
int SetRequestProxy(const std::string& proxy, long proxy_port); // 代理




int SetResultCallback(ResultCallback rc);


void* PerformRequest(RequestType request_type);
static void Close(void* request_handle);


static bool GetHttpCode(void* request_handle, long* http_code);
static bool GetReceiveHeader(void* request_handle, std::string* header);
static bool GetReceiveContent(void* request_handle, std::string* receive);
static bool GetErrorString(void* request_handle, std::string* error_string);


protected:
class RequestHelper {
public:
RequestHelper();
~RequestHelper();


friend class HttpRequest;
friend class HttpHelper;


int SetRetryTimes(int retry_times) { m_retry_times = retry_times; return REQUEST_OK; }


int SetRequestTimeout(long time_out = 0);
int SetRequestUrl(const std::string& url);
int SetMovedUrl(bool get_moved_url);
int SetPostData(const void* data, unsigned int size);
int SetPostFile(const std::string& flag_name, const std::string& file_path);
int SetRequestHeader(const std::string& header);
int SetRequestProxy(const std::string& proxy, long proxy_port);


int SetResultCallback(ResultCallback rc);


int Perform();


long GetHttpCode() { return m_http_code; }
bool GetHeader(std::string* header);
bool GetContent(std::string* receive);
bool GetErrorString(std::string* error_string);


bool SelfClose(void) { return m_close_self; }


protected:
void ReqeustResultDefault(int id, bool success, const std::string& data);


private:
CURL* m_curl_handle;
curl_slist* m_http_headers;
curl_httppost* m_file_post; // 上传文件 指针 执行后需要 清理


int m_retry_times;
int m_id;
bool m_close_self;
bool m_is_running;
long m_http_code;


std::string m_receive_content;
std::string m_receive_header;
std::string m_error_string;
char* m_post_data;


std::mutex m_mutex; // 互斥锁 ,通知条件变量 使用


ResultCallback m_result_callback;
};


private:
std::shared_ptr<RequestHelper> m_request_handle;
static const int s_kRetryCount = 3; // 重试次数
};

RequestHelper.cpp

#include "../include/HttpRequest.h"
#include "../include/HttpHelper.h"


HttpRequest::RequestHelper::RequestHelper()
: m_curl_handle(nullptr)
, m_http_headers(nullptr)
, m_close_self(false)
, m_is_running(false)
, m_retry_times(HttpRequest::s_kRetryCount)
, m_http_code(0)
, m_post_data(nullptr)
, m_file_post(nullptr)
{
m_result_callback = std::bind(&RequestHelper::ReqeustResultDefault, this, std::placeholders::_1, std::placeholders::_2, std::placeholders::_3);
m_id = HttpHelper::s_id;
m_curl_handle = curl_easy_init();
HttpHelper::set_share_handle(m_curl_handle);
}


HttpRequest::RequestHelper::~RequestHelper()
{
if (m_curl_handle)
{
curl_easy_cleanup(m_curl_handle);
}
if (m_http_headers)
{
curl_slist_free_all(reinterpret_cast<curl_slist*>(m_http_headers));
}
if (m_post_data)
{
delete m_post_data;
m_post_data = nullptr;
}
}


int HttpRequest::RequestHelper::SetRequestTimeout(long time_out)
{
if (m_curl_handle)
{
return curl_easy_setopt(m_curl_handle, CURLOPT_TIMEOUT, 0);
}
return CURLE_FAILED_INIT;
}


int HttpRequest::RequestHelper::SetRequestUrl(const std::string& url)
{
if (m_curl_handle)
{
if (url.substr(0, 5) == "https") // 处理加密得 HTTPS 协议
{
curl_easy_setopt(m_curl_handle, CURLOPT_SSL_VERIFYPEER, 0L);
curl_easy_setopt(m_curl_handle, CURLOPT_SSL_VERIFYHOST, 0L);
}


curl_easy_setopt(m_curl_handle, CURLOPT_VERBOSE, 1L); //打开终端打印
return curl_easy_setopt(m_curl_handle, CURLOPT_URL, url.c_str());
}


return CURLE_FAILED_INIT;
}


int HttpRequest::RequestHelper::SetMovedUrl(bool get_moved_url)
{
if (m_curl_handle)
{
if (get_moved_url) // 是否重定向
{
curl_easy_setopt(m_curl_handle, CURLOPT_MAXREDIRS, 5);
return curl_easy_setopt(m_curl_handle, CURLOPT_FOLLOWLOCATION, 1L);
}
else
{
return curl_easy_setopt(m_curl_handle, CURLOPT_FOLLOWLOCATION, 0L);
}
}


return CURLE_FAILED_INIT;
}


int HttpRequest::RequestHelper::SetPostData(const void* data, unsigned int size)
{
if (m_curl_handle /*&& data && size > 0*/)
{
CURLcode curl_code = curl_easy_setopt(m_curl_handle, CURLOPT_POST, 1); // 设置 post 请求
if (curl_code == CURLE_OK)
{
if (m_post_data)
{
delete m_post_data;
m_post_data = nullptr;
}


if (size == 0)
{
curl_code = curl_easy_setopt(m_curl_handle, CURLOPT_POSTFIELDS, "");
}
else
{
m_post_data = new char[size];
memcpy(m_post_data, data, size);
curl_code = curl_easy_setopt(m_curl_handle, CURLOPT_POSTFIELDS, m_post_data);
}
}


if (curl_code == CURLE_OK)
{
curl_code = curl_easy_setopt(m_curl_handle, CURLOPT_POSTFIELDSIZE, size);
}


return curl_code;
}


return CURLE_FAILED_INIT;
}


int HttpRequest::RequestHelper::SetPostFile(const std::string& flag_name, const std::string& file_path)
{
if (m_curl_handle /*&& data && size > 0*/)
{
CURLcode curl_code = curl_easy_setopt(m_curl_handle, CURLOPT_CUSTOMREQUEST, "POST");
struct curl_httppost *FormPost = 0;
struct curl_httppost *LastPost = 0;


CURLFORMcode form_code = curl_formadd(&FormPost, &LastPost,
CURLFORM_COPYNAME, flag_name.c_str(),
CURLFORM_FILE, file_path.c_str(),
CURLFORM_END);
if (form_code != CURL_FORMADD_OK)
return CURLE_HTTP_POST_ERROR;


curl_code = curl_easy_setopt(m_curl_handle, CURLOPT_HTTPPOST, FormPost);
m_file_post = FormPost;
return curl_code;
}


return CURLE_FAILED_INIT;
}


int HttpRequest::RequestHelper::SetRequestHeader(const std::string& header)
{
if (m_curl_handle && header.empty() == false)
{
m_http_headers = curl_slist_append(reinterpret_cast<curl_slist*>(m_http_headers), header.c_str());


return m_http_headers ? CURLE_OK : CURLE_FAILED_INIT;
}


return CURLE_FAILED_INIT;
}


int HttpRequest::RequestHelper::SetRequestProxy(const std::string& proxy, long proxy_port)
{
//CURLOPT_PROXY
if (m_curl_handle)
{
CURLcode curl_code = curl_easy_setopt(m_curl_handle, CURLOPT_PROXYPORT, proxy_port);


curl_code = curl_easy_setopt(m_curl_handle, CURLOPT_PROXY, proxy.c_str());


return curl_code;
}


return CURLE_FAILED_INIT;
}


int HttpRequest::RequestHelper::SetResultCallback(ResultCallback rc)
{
m_result_callback = rc;


return CURLE_OK;
}


void HttpRequest::RequestHelper::ReqeustResultDefault(int id, bool success, const std::string& data)
{
//default request callback do nothing
}


int HttpRequest::RequestHelper::Perform()
{
if (m_curl_handle)
{
CURLcode curl_code;
if (m_http_headers)
{
curl_code = curl_easy_setopt(m_curl_handle, CURLOPT_HTTPHEADER, reinterpret_cast<curl_slist*>(m_http_headers));
if (curl_code != CURLE_OK)
{
return curl_code;
}
}


m_is_running = true;
m_receive_header.clear();
m_receive_content.clear();


//set force http redirect
SetMovedUrl(true);


curl_code = curl_easy_setopt(m_curl_handle, CURLOPT_HEADERFUNCTION, HttpHelper::RetriveHeaderFunction);
curl_code = curl_easy_setopt(m_curl_handle, CURLOPT_HEADERDATA, &m_receive_header);


curl_code = curl_easy_setopt(m_curl_handle, CURLOPT_WRITEFUNCTION, HttpHelper::RetriveContentFunction);
curl_code = curl_easy_setopt(m_curl_handle, CURLOPT_WRITEDATA, &m_receive_content);


curl_code = curl_easy_setopt(m_curl_handle, CURLOPT_NOPROGRESS, 1);
// 在多线程场景下应该设置CURLOPT_NOSIGNAL选项,因为在解析DNS出现超时的时候将会发生“糟糕”的情况。
curl_code = curl_easy_setopt(m_curl_handle, CURLOPT_NOSIGNAL, 1);
curl_code = curl_easy_setopt(m_curl_handle, CURLOPT_CONNECTTIMEOUT_MS, 0);


curl_code = curl_easy_perform(m_curl_handle);
if (curl_code == CURLE_OPERATION_TIMEDOUT)
{
int retry_count = m_retry_times;
while (retry_count > 0)
{
curl_code = curl_easy_perform(m_curl_handle);
if (curl_code != CURLE_OPERATION_TIMEDOUT) break;
retry_count--;
}
}


curl_easy_getinfo(m_curl_handle, CURLINFO_RESPONSE_CODE, &m_http_code);
if (curl_code == CURLE_OK && m_http_code == 200)
{
m_result_callback(m_id, true, m_receive_content);
}
else
{
const char* err_string = curl_easy_strerror(curl_code);
m_error_string = err_string;
curl_code = CURLE_HTTP_POST_ERROR;
m_result_callback(m_id, false, m_error_string);
}


m_is_running = false;


if (m_http_headers)
{
curl_slist_free_all(reinterpret_cast<curl_slist*>(m_http_headers));
m_http_headers = nullptr;
}


if (m_file_post)
{
curl_formfree(m_file_post);
m_file_post = nullptr;
}


return curl_code;
}


return CURLE_FAILED_INIT;
}


bool HttpRequest::RequestHelper::GetHeader(std::string* header)
{
if (m_receive_header.empty()) return false;
else if (header) *header = m_receive_header;


return true;
}


bool HttpRequest::RequestHelper::GetContent(std::string* receive)
{
if (m_receive_content.empty()) return false;
else if (receive) *receive = m_receive_content;


return true;
}


bool HttpRequest::RequestHelper::GetErrorString(std::string* error_string)
{
if (m_error_string.empty()) return false;
else if (error_string) *error_string = m_error_string;


return true;
}

HttpRequest.cpp

#include "../include/HttpRequest.h"
#include "../include/HttpHelper.h"


#include <libgo.h>


HttpRequest::HttpRequest() : m_request_handle(new HttpRequest::RequestHelper)
{
HttpHelper::Instance();
}


int HttpRequest::SetRetryTimes(int retry_times)
{
if (m_request_handle)
{
m_request_handle->SetRetryTimes(retry_times);
return REQUEST_OK;
}


return REQUEST_INIT_ERROR;
}


int HttpRequest::SetRequestId(int id)
{
if (m_request_handle)
{
m_request_handle->m_id = id;
return REQUEST_OK;
}


return REQUEST_INIT_ERROR;
}


int HttpRequest::SetRequestTimeout(long time_out)
{
if (m_request_handle)
{
if (m_request_handle->SetRequestTimeout(time_out) == CURLE_OK)
{
return REQUEST_OK;
}
else
{
return REQUEST_INVALID_OPT;
}
}


return REQUEST_INIT_ERROR;
}


int HttpRequest::SetRequestUrl(const std::string& url)
{
if (m_request_handle)
{
if (m_request_handle->SetRequestUrl(url) == CURLE_OK)
{
return REQUEST_OK;
}
else
{
return REQUEST_INVALID_OPT;
}
}


return REQUEST_INIT_ERROR;
}


int HttpRequest::SetMovedUrl(bool get_moved_url)
{
if (m_request_handle)
{
if (m_request_handle->SetMovedUrl(get_moved_url) == CURLE_OK)
{
return REQUEST_OK;
}
else
{
return REQUEST_INVALID_OPT;
}
}


return REQUEST_INIT_ERROR;
}


int HttpRequest::SetPostData(const std::string& message)
{
return SetPostData(message.c_str(), message.size());
}


int HttpRequest::SetPostData(const void* data, unsigned int size)
{
if (m_request_handle)
{
if (m_request_handle->SetPostData(data, size) == CURLE_OK)
{
return REQUEST_OK;
}
else
{
return REQUEST_INVALID_OPT;
}
}
return REQUEST_INIT_ERROR;
}


int HttpRequest::SetPostFile(const std::string& flag_name, const std::string& file_path)
{
if (m_request_handle)
{
if (m_request_handle->SetPostFile(flag_name, file_path) == CURLE_OK)
{
return REQUEST_OK;
}
else
{
return REQUEST_INVALID_OPT;
}
}
return REQUEST_INIT_ERROR;
}


int HttpRequest::SetRequestHeader(const std::map<std::string, std::string>& headers)
{
if (m_request_handle)
{
for (auto it = headers.begin(); it != headers.end(); ++it)
{
std::string header = it->first;
header += ": ";
header += it->second;
if (m_request_handle->SetRequestHeader(header) != CURLE_OK)
{
return REQUEST_INVALID_OPT;
}
}
return REQUEST_OK;
}


return REQUEST_INIT_ERROR;
}


int HttpRequest::SetRequestHeader(const std::string& header)
{
if (m_request_handle)
{
if (m_request_handle->SetRequestHeader(header) == CURLE_OK)
{
return REQUEST_OK;
}
else
{
return REQUEST_INVALID_OPT;
}
}
return REQUEST_INIT_ERROR;
}


int HttpRequest::SetRequestProxy(const std::string& proxy, long proxy_port)
{
if (m_request_handle)
{
if (m_request_handle->SetRequestProxy(proxy, proxy_port) == CURLE_OK)
{
return REQUEST_OK;
}
else
{
return REQUEST_INVALID_OPT;
}
}


return REQUEST_INIT_ERROR;
}


int HttpRequest::SetResultCallback(ResultCallback rc)
{
if (m_request_handle)
{
m_request_handle->SetResultCallback(rc);
return REQUEST_OK;
}


return REQUEST_INIT_ERROR;
}


void HttpRequest::Close(void* request_handle)
{
std::shared_ptr<RequestHelper>* request = (reinterpret_cast<std::shared_ptr<RequestHelper> *>(request_handle));
if (request == nullptr)
{
return;
}
bool basync = false;


DoHttpLock http_lock(HttpHelper::s_request_lock);
for (auto it = HttpHelper::s_async_requests.begin(); it != HttpHelper::s_async_requests.end(); ++it)
{
if ((*request) == *it)
{
std::unique_lock < std::mutex > uniqlock((*request)->m_mutex);
//HttpHelper::s_async_requests.remove(*request);
(*request)->m_close_self = true;
basync = true;
HttpHelper::s_request_cv.notify_one();
break;
}
}


if (basync == false)
{
//request->reset();
}
}




void* HttpRequest::PerformRequest(RequestType request_type)
{
if (m_request_handle)
{
if (m_request_handle->m_is_running)
{
return nullptr;
}


if (request_type == REQUEST_SYNC)
{
m_request_handle->Perform();


return &m_request_handle;
}
else if (request_type == REQUEST_ASYNC)
{
DoHttpLock http_lock(HttpHelper::s_request_lock);


HttpHelper::s_async_requests.push_back(m_request_handle);
std::shared_ptr<RequestHelper>& request = HttpHelper::s_async_requests.back();


// 协程调用
// go co_scheduler(HttpHelper::s_coroutine_scheduler) [&request] {
// HttpHelper::RequestCoroutine((void*)&request);
// };


std::thread request_thread(HttpHelper::RequestThread, (void*)&request);
request_thread.detach();


return &request;
}


return nullptr;
}


return nullptr;
}


bool HttpRequest::GetHttpCode(void* request_handle, long* http_code)
{
std::shared_ptr<RequestHelper>* request = reinterpret_cast<std::shared_ptr<RequestHelper>*>(request_handle);
std::unique_lock < std::mutex > uniqlock((*request)->m_mutex);
if (request && http_code)
{
*http_code = (*request)->GetHttpCode();
return true;
}


return false;
}


bool HttpRequest::GetReceiveHeader(void* request_handle, std::string* header)
{
std::shared_ptr<RequestHelper>* request = reinterpret_cast<std::shared_ptr<RequestHelper>*>(request_handle);
std::unique_lock < std::mutex > uniqlock((*request)->m_mutex);
if (request)
{
return (*request)->GetHeader(header);
}


return false;
}


bool HttpRequest::GetReceiveContent(void* request_handle, std::string* receive)
{
std::shared_ptr<RequestHelper>* request = reinterpret_cast<std::shared_ptr<RequestHelper>*>(request_handle);
std::unique_lock < std::mutex > uniqlock((*request)->m_mutex);
if (request)
{
return (*request)->GetContent(receive);
}


return false;
}


bool HttpRequest::GetErrorString(void* request_handle, std::string* error_string)
{
std::shared_ptr<RequestHelper>* request = reinterpret_cast<std::shared_ptr<RequestHelper>*>(request_handle);
std::unique_lock < std::mutex > uniqlock((*request)->m_mutex);
if (request)
{
return (*request)->GetErrorString(error_string);
}


return false;
}


/////////////////////////////////////////////////////////////////////////////////////////////////////////




下载任务

DownloadTask.h

/*************************************************
vic.MINg 2021/04/01
下载任务
************************************************/


#include "TaskPool.h"
#include "HttpDownloader.h"


class DownloadTask : public Task
{
public:
DownloadTask(void* param);
virtual ~DownloadTask() = default;


virtual void doIt();


protected:
private:
HttpDownloader::DownloadHelper::ThreadChunk* m_thread_chunk = nullptr;
};

DownloadTask.cpp

#include "../include/DownloadTask.h"
#include "../include/HttpRequest.h"


DownloadTask::DownloadTask(void* param)
{
m_thread_chunk = reinterpret_cast<HttpDownloader::DownloadHelper::ThreadChunk*>(param);
}


void DownloadTask::doIt()
{
int down_code = HttpRequest::REQUEST_PERFORM_ERROR;
if (m_thread_chunk != nullptr)
{
down_code = m_thread_chunk->_download->DoDownload(m_thread_chunk);
}


}

HTTP 客户端下载

/*************************************************
vic.MINg 2021/03/31
http 客户端下载 curl 实现
************************************************/


#pragma once


#include <string>
#include <functional>
#include <memory>


#include "../include/HttpLock.h"
#include "../include/TaskPool.h"


class HttpDownloader
{
public:
typedef enum {
DOWN_SYNC,
DOWN_ASYNC,
}DownType;


//double total_size, double downloaded_size, void* userdata
typedef std::function<int(double, double, void*)> ProgressCallback;
//int id, bool success, const std::string& data
typedef std::function<void(int, bool, const std::string&)> ResultCallback;


friend class HttpHelper;
friend class DownloadTask;


HttpDownloader();
~HttpDownloader() = default;


std::string GetFiePath(void) {
return m_request_handle->m_file_path;
}


int SetRequestProxy(const std::string& proxy, long proxy_port);
int SetRetryTimes(int retry_times = s_kRetryCount);
int SetTimeout(long time_out = 0);
int SetDownloadUrl(const std::string& url);
int SetUserData(void* userdata);
int SetRequestId(int id);
int SetProgressCallback(ProgressCallback pc);
int SetResultCallback(ResultCallback rc);


int DownloadFile(const std::string& file_name, int thread_count = 4);
void* StartDownload(DownType down_type);


static bool CancelDownload(void* handle);
static void Close(void* handle);


static bool GetHttpCode(void* handle, long* http_code);
static bool GetReceiveHeader(void* handle, std::string* header);
static bool GetErrorString(void* handle, std::string* error_string);
static void* GetUserData(void* handle);


protected:


class DownloadHelper {
public:
typedef struct tThreadChunk
{
FILE* _fp;
long _startidx;
long _endidx;


DownloadHelper* _download;
}ThreadChunk;


DownloadHelper();
~DownloadHelper();


friend class HttpDownloader;
friend class HttpHelper;
friend class DownloadTask;
friend ThreadChunk;


void SetRetryTimes(int retry_times) { m_retry_times = retry_times; }
void SetRequestId(int id) { m_id = id; }
int SetTimeout(long time_out = 0);
int SetRequestUrl(const std::string& url);
int SetRequestProxy(const std::string& proxy, long proxy_port);


void SetUserData(void *userdata) { m_userdata = userdata; }
int SetProgressCallback(ProgressCallback pc);
int SetResultCallback(ResultCallback rc);
int SetDownloadFile(const std::string& file_name);
int SetDownloadThreadCount(int thread_count);


int Perform();


int GetHttpCode() { return m_http_code; }
bool GetHeader(std::string* header);
bool GetErrorString(std::string* error_string);
bool SelfClose(void) { return m_close_self; }
void* GetUserData(void) { return m_userdata; }


protected:
int DownloadDefaultCallback(double total_size, double downloaded_size, void* userdata);
void ResultDefaultCallback(int id, bool success, const std::string& data);
double GetDownloadFileSize();
int DoDownload(ThreadChunk* thread_chunk);
int SplitDownloadCount(double down_size);
void Reset(void);


private:
int m_retry_times;
int m_thread_count;
int m_id;
long m_time_out;


std::string m_file_path;
std::string m_url;
std::string m_http_proxy;
std::string m_receive_header;
std::string m_error_string;


bool m_close_self;
bool m_multi_download;
bool m_download_fail;
bool m_is_running;
bool m_is_cancel;
void* m_userdata;
long m_http_code;
long m_proxy_port;
double m_total_size;
double m_downloaded_size;


std::mutex m_mutex; // 互斥锁 ,通知条件变量 使用


TaskPool m_threadPool_downloader; // 下载线程池
std::shared_ptr<HttpLock> m_httplock;
ProgressCallback m_download_callback;
ResultCallback m_result_callback;
};


private:
std::shared_ptr<DownloadHelper> m_request_handle;


static const int s_kRetryCount = 3;
static const int s_kThreadCount = 4;
};

DownloadHelper.cpp

#include "../include/HttpDownloader.h"
#include "../include/HttpHelper.h"
#include "../include/DownloadTask.h"


#include <stdio.h>
#include <regex>
#include <sstream>


HttpDownloader::DownloadHelper::DownloadHelper()
: m_close_self(false)
, m_retry_times(HttpDownloader::s_kRetryCount)
, m_thread_count(HttpDownloader::s_kThreadCount)
, m_http_code(0)
, m_time_out(0)
, m_proxy_port(0)
, m_total_size(0.0)
, m_downloaded_size(0.0)
, m_multi_download(false)
, m_download_fail(true)
, m_is_running(false)
, m_httplock(new HttpLock)
, m_userdata(NULL)
{
m_download_callback = std::bind(&DownloadHelper::DownloadDefaultCallback, this,
std::placeholders::_1, std::placeholders::_2, std::placeholders::_3);
m_result_callback = std::bind(&DownloadHelper::ResultDefaultCallback, this,
std::placeholders::_1, std::placeholders::_2, std::placeholders::_3);
m_id = HttpHelper::s_id;


}


HttpDownloader::DownloadHelper::~DownloadHelper()
{


}


int HttpDownloader::DownloadHelper::SetTimeout(long time_out /* = 0 */)
{
m_time_out = time_out;


return CURLE_OK;
}


int HttpDownloader::DownloadHelper::SetRequestUrl(const std::string& url)
{
m_url = url;


return CURLE_OK;
}


int HttpDownloader::DownloadHelper::SetRequestProxy(const std::string& proxy, long proxy_port)
{
m_http_proxy = proxy;
m_proxy_port = proxy_port;


return CURLE_OK;
}


int HttpDownloader::DownloadHelper::SetProgressCallback(ProgressCallback pc)
{
m_download_callback = pc;


return CURLE_OK;
}


int HttpDownloader::DownloadHelper::SetResultCallback(ResultCallback rc)
{
m_result_callback = rc;


return CURLE_OK;
}


int HttpDownloader::DownloadHelper::SetDownloadFile(const std::string& file_name)
{
m_file_path = file_name;


return CURLE_OK;
}


int HttpDownloader::DownloadHelper::SetDownloadThreadCount(int thread_count)
{
m_thread_count = thread_count;


return CURLE_OK;
}


int HttpDownloader::DownloadHelper::Perform()
{
m_total_size = GetDownloadFileSize();
if (m_total_size < 0)
{
return HttpRequest::REQUEST_PERFORM_ERROR;
}


std::string out_file_name = m_file_path;
std::string src_file_name = out_file_name;
out_file_name += ".tmp";


FILE *fp = nullptr;
remove(out_file_name.c_str());
remove(src_file_name.c_str());
fp = fopen(out_file_name.c_str(), "wb");
if (!fp)
{
return HttpRequest::REQUEST_OPENFILE_ERROR;
}


int down_code = HttpRequest::REQUEST_PERFORM_ERROR;
int thread_count = SplitDownloadCount(m_total_size);
thread_count = 3;
m_thread_count = thread_count > m_thread_count ? m_thread_count : thread_count;
//文件大小有分开下载的必要并且服务器支持多线程下载时,启用多线程下载
if (m_multi_download && m_thread_count > 1)
{
long gap = static_cast<long>(m_total_size) / m_thread_count;


m_threadPool_downloader.init(m_thread_count); // m_thread_count 个线程


for (int i = 0; i < m_thread_count; i++)
{
ThreadChunk* thread_chunk = new ThreadChunk;
thread_chunk->_fp = fp;
thread_chunk->_download = this;


if (i < m_thread_count - 1)
{
thread_chunk->_startidx = i * gap;
thread_chunk->_endidx = thread_chunk->_startidx + gap - 1;
}
else
{
thread_chunk->_startidx = i * gap;
thread_chunk->_endidx = -1;
}


// 下载块任务 添加到线程池中
DownloadTask* pTask = new DownloadTask((void*)thread_chunk);
m_threadPool_downloader.addTask(pTask);
}


std::unique_lock < std::mutex > uniqlock(m_threadPool_downloader.m_finish_mutex);
//m_threadPool_downloader.runTaskPool();
m_threadPool_downloader.m_finish_cv.wait(uniqlock, [this] {
if (m_threadPool_downloader.isEmptyTask())
return true;
return false;
});
std::this_thread::sleep_for(std::chrono::milliseconds(50));
m_threadPool_downloader.removeAllTasks();
m_threadPool_downloader.stop();
}
else
{
ThreadChunk* thread_chunk = new ThreadChunk;
thread_chunk->_fp = fp;
thread_chunk->_download = this;
thread_chunk->_startidx = 0;
thread_chunk->_endidx = 0;
down_code = DoDownload(thread_chunk);
std::this_thread::sleep_for(std::chrono::milliseconds(50));
}


fclose(fp);


if (m_download_fail == false)
{
rename(out_file_name.c_str(), src_file_name.c_str()); // 下载完成 重命名文件名
}
else
{
remove(out_file_name.c_str()); // 删除 临时文件
}


m_result_callback(m_id, m_download_fail ? false : true, m_error_string);


m_is_running = false;


return down_code;
}


bool HttpDownloader::DownloadHelper::GetHeader(std::string* header)
{
if (m_receive_header.empty()) return false;
else if (header) *header = m_receive_header;


return true;
}


bool HttpDownloader::DownloadHelper::GetErrorString(std::string* error_string)
{
if (m_error_string.empty()) return false;
else if (error_string) *error_string = m_error_string;


return true;
}


int HttpDownloader::DownloadHelper::DownloadDefaultCallback(double total_size, double downloaded_size, void* userdata)
{
return 0;
}


void HttpDownloader::DownloadHelper::ResultDefaultCallback(int id, bool success, const std::string& data)
{
}


double HttpDownloader::DownloadHelper::GetDownloadFileSize()
{
if (m_url.empty())
{
return -1.0;
}
else
{
double down_file_length = -1.0;
CURL *handle = curl_easy_init();
HttpHelper::set_share_handle(handle);


if (handle)
{
curl_easy_setopt(handle, CURLOPT_URL, m_url.c_str());
curl_easy_setopt(handle, CURLOPT_HEADER, 1);
curl_easy_setopt(handle, CURLOPT_NOBODY, 1);
curl_easy_setopt(handle, CURLOPT_FOLLOWLOCATION, 1);
curl_easy_setopt(handle, CURLOPT_MAXREDIRS, 5);
curl_easy_setopt(handle, CURLOPT_HEADERFUNCTION, HttpHelper::RetriveHeaderFunction);
curl_easy_setopt(handle, CURLOPT_HEADERDATA, &m_receive_header);
curl_easy_setopt(handle, CURLOPT_WRITEFUNCTION, HttpHelper::RetriveContentFunction);
curl_easy_setopt(handle, CURLOPT_WRITEDATA, NULL);
curl_easy_setopt(handle, CURLOPT_RANGE, "2-");


CURLcode curl_code = curl_easy_perform(handle);


if (curl_code == CURLE_OPERATION_TIMEDOUT)
{
int retry_count = m_retry_times;
while (retry_count > 0)
{
curl_code = curl_easy_perform(handle);
if (curl_code != CURLE_OPERATION_TIMEDOUT) break;
retry_count--;
}
}


curl_easy_getinfo(handle, CURLINFO_RESPONSE_CODE, &m_http_code);


if (curl_code == CURLE_OK)
{
curl_easy_getinfo(handle, CURLINFO_CONTENT_LENGTH_DOWNLOAD, &down_file_length);


//匹配"Content-Range: bytes 2-1449/26620" 则证明支持多线程下载
std::regex pattern("CONTENT-RANGE\\s*:\\s*\\w+\\s*(\\d+)-(\\d*)/(\\d+)", std::regex::icase);
m_multi_download = std::regex_search(m_receive_header, pattern);
}
else
{
const char* err_string = curl_easy_strerror(curl_code);
m_error_string = err_string;
m_result_callback(m_id, false, m_error_string);
}


curl_easy_cleanup(handle);
}


return down_file_length;
}
}


int HttpDownloader::DownloadHelper::DoDownload(ThreadChunk* thread_chunk)
{
CURL* curl_handle = curl_easy_init();
HttpHelper::set_share_handle(curl_handle);


if (thread_chunk->_download->m_url.substr(0, 5) == "https")
{
curl_easy_setopt(curl_handle, CURLOPT_SSL_VERIFYPEER, 0L);
curl_easy_setopt(curl_handle, CURLOPT_SSL_VERIFYHOST, 0L);
}


curl_easy_setopt(curl_handle, CURLOPT_URL, thread_chunk->_download->m_url.c_str());


const char* user_agent = ("Mozilla/5.0 (Windows NT 5.1; rv:5.0) Gecko/20100101 Firefox/5.0");
// const char* user_agent = ("Mozilla/5.0 (X11; Ubuntu; Linux i686; rv:28.0) Gecko/20100101 Firefox/28.0");
curl_easy_setopt(curl_handle, CURLOPT_USERAGENT, user_agent);


curl_easy_setopt(curl_handle, CURLOPT_MAXREDIRS, 5L);
curl_easy_setopt(curl_handle, CURLOPT_FOLLOWLOCATION, 1L);


curl_easy_setopt(curl_handle, CURLOPT_NOSIGNAL, 1L);
curl_easy_setopt(curl_handle, CURLOPT_POST, 0L);


curl_easy_setopt(curl_handle, CURLOPT_CONNECTTIMEOUT_MS, 0L);
curl_easy_setopt(curl_handle, CURLOPT_TIMEOUT, thread_chunk->_download->m_time_out); //0 means block always


curl_easy_setopt(curl_handle, CURLOPT_WRITEFUNCTION, HttpHelper::write_callback);
curl_easy_setopt(curl_handle, CURLOPT_WRITEDATA, thread_chunk);
curl_easy_setopt(curl_handle, CURLOPT_HEADERFUNCTION, HttpHelper::RetriveHeaderFunction);
curl_easy_setopt(curl_handle, CURLOPT_HEADERDATA, NULL);


curl_easy_setopt(curl_handle, CURLOPT_NOPROGRESS, 0L);
curl_easy_setopt(curl_handle, CURLOPT_PROGRESSFUNCTION, HttpHelper::progress_callback);
curl_easy_setopt(curl_handle, CURLOPT_PROGRESSDATA, thread_chunk);


curl_easy_setopt(curl_handle, CURLOPT_LOW_SPEED_LIMIT, 1L);
curl_easy_setopt(curl_handle, CURLOPT_LOW_SPEED_TIME, 5L);


if (thread_chunk->_endidx != 0)
{
std::string down_range;
std::ostringstream ostr;
if (thread_chunk->_endidx > 0)
{
ostr << thread_chunk->_startidx << "-" << thread_chunk->_endidx;
}
else
{
ostr << thread_chunk->_startidx << "-";
}


down_range = ostr.str();
curl_easy_setopt(curl_handle, CURLOPT_RANGE, down_range.c_str());
}


CURLcode curl_code = curl_easy_perform(curl_handle);
if (curl_code == CURLE_OPERATION_TIMEDOUT)
{
int retry_count = m_retry_times;
while (retry_count > 0)
{
curl_code = curl_easy_perform(curl_handle);
if (curl_code != CURLE_OPERATION_TIMEDOUT) break;
retry_count--;
}
}


long http_code;
curl_easy_getinfo(curl_handle, CURLINFO_RESPONSE_CODE, &http_code);
if (curl_code == CURLE_OK && (http_code >= 200 && http_code <= 300))
{
m_http_code = http_code;
thread_chunk->_download->m_download_fail = false;
}
else
{
const char* err_string = curl_easy_strerror(curl_code);
m_error_string = err_string;
thread_chunk->_download->m_download_fail = true;
m_http_code = http_code;
}


curl_easy_cleanup(curl_handle);


delete thread_chunk;


return curl_code;
}


int HttpDownloader::DownloadHelper::SplitDownloadCount(double down_size)
{
const double size_2mb = 2.0 * 1024 * 1024;
const double size_10mb = 10.0 * 1024 * 1024;
const double size_50mb = 50.0 * 1024 * 1024;


if (down_size <= size_2mb)
{
return 1;
}
else if (down_size > size_2mb && down_size <= size_10mb)
{
return static_cast<int>(down_size / (size_2mb));
}
else if (down_size > size_10mb && down_size <= size_50mb)
{
return HttpDownloader::s_kThreadCount + 1;
}
else
{
int down_count = static_cast<int>(down_size / size_10mb);
return down_count > 10 ? 10 : down_count;
}


return 1;
}


void HttpDownloader::DownloadHelper::Reset()
{
if (m_is_running)
{
return;
}


m_close_self = false;
m_multi_download = false;
m_download_fail = true;
m_is_running = false;
m_is_cancel = false;
m_http_code = 0;
m_total_size = 0.0;
m_downloaded_size = 0.0;


m_receive_header = "";
m_error_string = "";
}

HttpDownloader.cpp

#include "../include/HttpDownloader.h"
#include "../include/HttpHelper.h"


#include <libgo.h>


HttpDownloader::HttpDownloader()
:m_request_handle(new HttpDownloader::DownloadHelper)
{
HttpHelper::Instance();
}


int HttpDownloader::SetRequestProxy(const std::string& proxy, long proxy_port)
{
if (m_request_handle)
{
if (m_request_handle->SetRequestProxy(proxy, proxy_port) == CURLE_OK)
{
return 0;
}
else
{
return HttpRequest::REQUEST_INVALID_OPT;
}
}


return HttpRequest::REQUEST_INIT_ERROR;
}


int HttpDownloader::SetRetryTimes(int retry_times /* = s_kRetryCount */)
{
if (m_request_handle)
{
m_request_handle->SetRetryTimes(retry_times);
return HttpRequest::REQUEST_OK;
}


return HttpRequest::REQUEST_INIT_ERROR;
}


int HttpDownloader::SetTimeout(long time_out /* = 0 */)
{
if (m_request_handle)
{
if (m_request_handle->SetTimeout(time_out) == CURLE_OK)
{
return HttpRequest::REQUEST_OK;
}
else
{
return HttpRequest::REQUEST_INVALID_OPT;
}
}


return HttpRequest::REQUEST_INIT_ERROR;
}


int HttpDownloader::SetDownloadUrl(const std::string& url)
{
if (m_request_handle)
{
if (m_request_handle->SetRequestUrl(url) == CURLE_OK)
{
return HttpRequest::REQUEST_OK;
}
else
{
return HttpRequest::REQUEST_INVALID_OPT;
}
}


return HttpRequest::REQUEST_INIT_ERROR;
}


int HttpDownloader::SetUserData(void* userdata)
{
if (m_request_handle)
{
m_request_handle->SetUserData(userdata);


return HttpRequest::REQUEST_OK;
}
return HttpRequest::REQUEST_INIT_ERROR;
}


int HttpDownloader::SetRequestId(int id)
{
if (m_request_handle)
{
m_request_handle->SetRequestId(id);
return HttpRequest::REQUEST_OK;
}


return HttpRequest::REQUEST_INIT_ERROR;
}


int HttpDownloader::SetProgressCallback(ProgressCallback pc)
{
if (m_request_handle)
{
m_request_handle->SetProgressCallback(pc);


return HttpRequest::REQUEST_OK;
}


return HttpRequest::REQUEST_INIT_ERROR;
}


int HttpDownloader::SetResultCallback(ResultCallback rc)
{
if (m_request_handle)
{
m_request_handle->SetResultCallback(rc);


return HttpRequest::REQUEST_OK;
}


return HttpRequest::REQUEST_INIT_ERROR;
}


int HttpDownloader::DownloadFile(const std::string& file_name, int thread_count /* = 5 */)
{
if (m_request_handle)
{
m_request_handle->SetDownloadFile(file_name);
m_request_handle->SetDownloadThreadCount(thread_count);
}


return HttpRequest::REQUEST_INIT_ERROR;
}


void* HttpDownloader::StartDownload(DownType down_type)
{
if (m_request_handle)
{
if (m_request_handle->m_is_running)
{
return nullptr;
}


m_request_handle->Reset();


if (down_type == DOWN_SYNC)
{
m_request_handle->Perform();


return &m_request_handle;
}
else if (down_type == DOWN_ASYNC)
{
DoHttpLock http_lock(HttpHelper::s_download_lock);
HttpHelper::s_async_downloads.push_back(m_request_handle);
std::shared_ptr<DownloadHelper>& request = HttpHelper::s_async_downloads.back();


// 协程调用
//go co_scheduler(HttpHelper::s_coroutine_scheduler) [request] {
// HttpHelper::DownloadCoroutine((void*)&request);
//};


std::thread download_thread(HttpHelper::DownloadThread, (void*)&request);
download_thread.detach();


return &request;
}


return nullptr;
}


return nullptr;
}


void HttpDownloader::Close(void* handle)
{
std::shared_ptr<DownloadHelper>* request = (reinterpret_cast<std::shared_ptr<DownloadHelper> *>(handle));
if ( request == nullptr)
{
return;
}


bool basync = false;


DoHttpLock http_lock(HttpHelper::s_download_lock);
for (auto it = HttpHelper::s_async_downloads.begin(); it != HttpHelper::s_async_downloads.end(); ++it)
{
if ((*request) == *it)
{
std::unique_lock < std::mutex > uniqlock((*request)->m_mutex);
//HttpHelper::s_async_downloads.remove(*request);
(*request)->m_close_self = true;
basync = true;
HttpHelper::s_download_cv.notify_one();
break;
}
}


if (basync == false)
{
//(*request)->m_is_cancel = true;
//request->reset();
}
}


bool HttpDownloader::CancelDownload(void* handle)
{
std::shared_ptr<DownloadHelper>* request = (reinterpret_cast<std::shared_ptr<DownloadHelper> *>(handle));
if (request == nullptr)
{
return false;
}


(*request)->m_is_cancel = true;


return true;
}


bool HttpDownloader::GetHttpCode(void* handle, long* http_code)
{
std::shared_ptr<DownloadHelper>* request = reinterpret_cast<std::shared_ptr<DownloadHelper>*>(handle);
if (request && http_code)
{
*http_code = (*request)->GetHttpCode();
return true;
}


return false;
}


bool HttpDownloader::GetErrorString(void* handle, std::string* error_string)
{
std::shared_ptr<DownloadHelper>* request = reinterpret_cast<std::shared_ptr<DownloadHelper>*>(handle);
if (request)
{
return (*request)->GetErrorString(error_string);
}


return false;
}


bool HttpDownloader::GetReceiveHeader(void* handle, std::string* header)
{
std::shared_ptr<DownloadHelper>* request = reinterpret_cast<std::shared_ptr<DownloadHelper>*>(handle);
if (request)
{
return (*request)->GetHeader(header);
}


return false;
}


void* HttpDownloader::GetUserData(void* handle)
{


std::shared_ptr<DownloadHelper>* request = reinterpret_cast<std::shared_ptr<DownloadHelper>*>(handle);
if (request)
{
return (*request)->GetUserData();
}


return nullptr;
}


//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

业务代码

HttpImageFlow.h

/*************************************************
vic.MINg 2021/04/01
HTTP 图片 流程
************************************************/


/**************************************************************************************************************
/* HTTP 图片 流程
/* 读取本地图片,使用 http post 请求,将 图片发送到 服务器,
/* 服务器 url 地址 :http://xxxx.xxxx.cn/H5/UnityApi/doUpload
/* 上传文件参数名:img_file
/* 发送成功后,响应:{"code":100,"url":"http://xxxx.xxxx.cn/xxxx/xxx/xx.jpg"} (json形式)
/* 然后通过返回链接,使用 curl 下载图片
**************************************************************************************************************/


#include "HttpDownloader.h"
#include "HttpRequest.h"


#define URL_UPLOAD_IMAGE "http://xxxx.xxxx.cn/H5/UnityApi/doUpload" // 上传文件URL


#define UPLOAD_IMAGE_FOLDER "upload_img/" // 上传图片 文件夹
#define DOWNLOAD_IMAGE_FOLDER "download_img/" // 下载图片 文件夹
#define POST_FLAG_NAME "img_file"


class ImageDownCallback
{
public:
ImageDownCallback(std::shared_ptr<HttpDownloader> downloader)
:m_down_finished(false), m_download_helper(nullptr),
m_request_handle(downloader) {}


virtual ~ImageDownCallback()
{
m_download_helper = nullptr;
}


void DownResultCallback(int id, bool success, const std::string& data);
int DownProgressCallback(double total_size, double downloaded_size, void* userdata);


bool IsDownFinished(void) { return m_down_finished; }


void* m_download_helper;
private:
bool m_down_finished;
std::shared_ptr<HttpDownloader> m_request_handle;
};




class ImageRequestCallback
{
public:
ImageRequestCallback(std::shared_ptr<HttpRequest> request)
:m_request_finished(false), m_request_helper(nullptr),
m_request_handle(request) {}
virtual ~ImageRequestCallback()
{
m_request_helper = nullptr;
}


void RequestResultCallback(int id, bool success, const std::string& data);
bool IsRequestFinish(void) { return m_request_finished; }


void* m_request_helper;
private:
bool m_request_finished;
std::shared_ptr<HttpRequest> m_request_handle;
};




////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////




void HttpImageFlow(std::string image);


// 封装函数 post 请求 上传服务器
void ImageUploadFlow(const std::string& upload_url, const std::string& img_name);
// 封装函数 下载 图片
void ImageDownFlow(const std::string& download_url);


////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////


// Malloc_FileToBuffer 和 Free_FileToBuffer 必须 配套使用,封装 Free_FileToBuffer 就是为了防止内存泄漏
// 一次将整个文件读入内存 申请内存Buffer
int Malloc_FileToBuffer(const std::string& file_path, char* &buffer, long& size);
// 释放读取文件时申请的Buffer
void Free_FileToBuffer(char* buffer);


// 把字符串的 strsrc 替换成 strdst
void string_replace(std::string &strBig, const std::string &strsrc, const std::string &strdst);
// 获取路径或URL的文件名(包括后缀,如 C:\Test\abc.xyz --> abc.xyz)
std::string GetPathOrURLShortName(std::string strFullName);




int Post_Data_By_LibCurl(const char *file_path, const char *filename);

HttpImageFlow.cpp

#include "../include/HttpImageFlow.h"
#include "../include/HttpDownloader.h"


#ifdef _WIN32
#include "../include/DirectoryManager.h"
#endif


#include "jsoncpp/json.h"


#include <libgo.h>
#include <iostream>
#include <fstream>


void ImageDownCallback::DownResultCallback(int id, bool success, const std::string& data)
{
printf(data.c_str());


if (success)
{
}


// 下载完成后 关闭请求
HttpDownloader::Close(&m_request_handle);
m_down_finished = true;
}


int ImageDownCallback::DownProgressCallback(double total_size, double downloaded_size, void* userdata)
{
long tmp = static_cast<long>(downloaded_size / total_size * 100);
// if (m_request_handle)
// printf("%s down progress %d \n", m_request_handle->GetFiePath().c_str() ,tmp)
//printf("down progress %d \n", tmp);
return 0;
}


void ImageRequestCallback::RequestResultCallback(int id, bool success, const std::string& data)
{
printf(data.c_str());


if (success && m_request_finished == false)
{
if (m_request_handle && m_request_helper)
{
long http_code;
if (m_request_handle->GetHttpCode(m_request_helper, &http_code))
std::cout << "http code: " << http_code << std::endl;


std::string header;
if (m_request_handle->GetReceiveHeader(m_request_helper, &header))
{
std::cout << header << std::endl;
}
std::string content;
if (m_request_handle->GetReceiveContent(m_request_helper, &content))
{
// Json 解析
Json::Reader reader;
Json::Value value;
if (reader.parse(content, value))
{
int code = value["code"].asInt();
if (code == 100)
{
std::string download_url = value["url"].asString();
//download_url = "http://xxxx.xxxx.cn/Data/UploadFiles/unity_video/2021-04-08/606eaf3a80f58.jpg";
// 图片下载流程
ImageDownFlow(download_url);
}
}
}
}
}


HttpRequest::Close(m_request_helper);
m_request_finished = true;
}


//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////


void string_replace(std::string &strBig, const std::string &strsrc, const std::string &strdst)
{
std::string::size_type pos = 0;
std::string::size_type srclen = strsrc.size();
std::string::size_type dstlen = strdst.size();


while ((pos = strBig.find(strsrc, pos)) != std::string::npos)
{
strBig.replace(pos, srclen, strdst);
pos += dstlen;
}
}




std::string GetPathOrURLShortName(std::string strFullName)
{
if (strFullName.empty())
{
return "";
}


string_replace(strFullName, "/", "\\");
std::string::size_type iPos = strFullName.find_last_of('\\') + 1;


return strFullName.substr(iPos, strFullName.length() - iPos);
}


void ImageDownFlow(const std::string& download_url)
{
std::shared_ptr<HttpDownloader> image_downloader = std::make_shared<HttpDownloader>();
std::shared_ptr<ImageDownCallback> imagedown_callback = std::make_shared<ImageDownCallback>(image_downloader);


image_downloader->SetDownloadUrl(download_url.c_str());
image_downloader->SetProgressCallback(std::bind(&ImageDownCallback::DownProgressCallback, imagedown_callback.get(), std::placeholders::_1, std::placeholders::_2, std::placeholders::_3));
image_downloader->SetResultCallback(std::bind(&ImageDownCallback::DownResultCallback, imagedown_callback.get(), std::placeholders::_1, std::placeholders::_2, std::placeholders::_3));
#ifdef _WIN32
std::string down_filepath = DirectoryManager::GetExeDirectory() + DOWNLOAD_IMAGE_FOLDER + GetPathOrURLShortName(download_url);
#else
std::string down_filepath = DOWNLOAD_IMAGE_FOLDER + GetPathOrURLShortName(download_url);
#endif
image_downloader->DownloadFile(down_filepath);
imagedown_callback->m_download_helper = image_downloader->StartDownload(HttpDownloader::DOWN_ASYNC);


}


void ImageUploadFlow(const std::string& upload_url, const std::string& img_name)
{
std::shared_ptr<HttpRequest> image_request = std::make_shared<HttpRequest>();
std::shared_ptr<ImageRequestCallback> imageupload_callback = std::make_shared<ImageRequestCallback>(image_request);


long image_size = 0;
char* image_buffer = nullptr;
#ifdef _WIN32
std::string image_filepath = DirectoryManager::GetExeDirectory() + UPLOAD_IMAGE_FOLDER + img_name;
#else
std::string image_filepath = UPLOAD_IMAGE_FOLDER + img_name;
#endif


//printf(image_filepath.c_str());
//if (Malloc_FileToBuffer(image_filepath, image_buffer, image_size) == 0)
{
image_request->SetRequestUrl(upload_url);
image_request->SetResultCallback(std::bind(&ImageRequestCallback::RequestResultCallback, imageupload_callback.get(), std::placeholders::_1, std::placeholders::_2, std::placeholders::_3));
//image_request->SetRequestHeader("Content-Type: application/octet-stream");
image_request->SetPostFile(POST_FLAG_NAME, image_filepath);
imageupload_callback->m_request_helper = image_request->PerformRequest(HttpRequest::REQUEST_ASYNC);


//Free_FileToBuffer(image_buffer);
while (imageupload_callback->IsRequestFinish() == false)
{
co_sleep(100);
co_yield;
}


co_sleep(200);
std::cout << "ImageUploadFlow RequestFinish ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~" << std::endl;
}
}


int Malloc_FileToBuffer(const std::string& file_path, char* &buffer, long& size)
{
/* 若要一个byte不漏地读入整个文件,只能采用二进制方式打开 */
FILE * pFile = fopen(file_path.c_str(), "rb");
if (pFile == NULL) return -1;


/* 获取文件大小 */
fseek(pFile, 0, SEEK_END);
size = ftell(pFile);
rewind(pFile);


/* 分配内存存储整个文件 */
buffer = (char*)malloc(sizeof(char)*size);
if (buffer == NULL) return -2;


/* 将文件拷贝到buffer中 */
size_t result = fread(buffer, 1, size, pFile);
if (result != size) return -3;


/* 结束演示,关闭文件并释放内存 */
fclose(pFile);
return 0;
}


void Free_FileToBuffer(char* buffer)
{
if (buffer) { free(buffer); buffer = nullptr; }
}


void HttpImageFlow(std::string image)
{
ImageUploadFlow(URL_UPLOAD_IMAGE, image);
}


/////////////////////////////////////////////////////////////////////////////////////////////////////
size_t write_callback(void *buffer, size_t size, size_t nmemb, FILE *file) {
//size_t r_size = fwrite(buffer, size, nmemb, file);
return 0;
}


int Post_Data_By_LibCurl(const char *file_path, const char *filename)
{
char url[256] = { 0 };


struct curl_httppost *FormPost = 0;


struct curl_httppost *LastPost = 0;


sprintf(url, URL_UPLOAD_IMAGE);


CURL *CurlHandle = curl_easy_init();


curl_easy_setopt(CurlHandle, CURLOPT_CUSTOMREQUEST, "POST");


curl_easy_setopt(CurlHandle, CURLOPT_URL, url);


curl_easy_setopt(CurlHandle, CURLOPT_VERBOSE, 1L);//打开终端打印


curl_easy_setopt(CurlHandle, CURLOPT_WRITEFUNCTION, write_callback);//设置回调函数


curl_easy_setopt(CurlHandle, CURLOPT_WRITEDATA, NULL);//设置回调函数的参数,获取反馈信息


curl_formadd(&FormPost, &LastPost, CURLFORM_COPYNAME, "img_file", CURLFORM_FILE, file_path, CURLFORM_END);


curl_easy_setopt(CurlHandle, CURLOPT_HTTPPOST, FormPost);


CURLcode nRet = curl_easy_perform(CurlHandle);


if (nRet == CURLE_OK) {
printf("perform successful\n");
}
else
{
printf("perform failed\n");
}


curl_formfree(FormPost);


curl_easy_cleanup(CurlHandle);
return nRet;
}

测试代码

#include "../include/HttpImageFlow.h"
#include <iostream>
#include <libgo.h>


#include <Winsock2.h>
#pragma comment(lib, "ws2_32.lib")




int main(int argc, char** argv)
{
//std::string path = "D:/Back/CoolWorm/C_LearnFoerver/C00_Programme/Vs2017/CurlProject/x64/Debug/upload_img/assassin.jpg";
//std::string name = "assassin.jpg";
//Post_Data_By_LibCurl(path.c_str(), name.c_str());


co::Scheduler* sched = co::Scheduler::Create();


// 启动2个线程执行新创建的调度器
std::thread thr([sched] { sched->Start(2); });
thr.detach();


go co_scheduler(sched) [] {
// HttpImageFlow("assassin.jpg");


for (int i = 0; i < 10; i++)
{
HttpImageFlow("assassin.jpg");
HttpImageFlow("magician.jpg");
HttpImageFlow("soldier.jpg");
}


};


// 测试
// 在新创建的调度器上创建一个协程
go co_scheduler(sched) [] {
printf("run in the scheduler.\n");
};
getchar();


sched->Stop();
return 0;
}



文章转载自林元皓,如果涉嫌侵权,请发送邮件至:contact@modb.pro进行举报,并提供相关证据,一经查实,墨天轮将立刻删除相关内容。

评论
