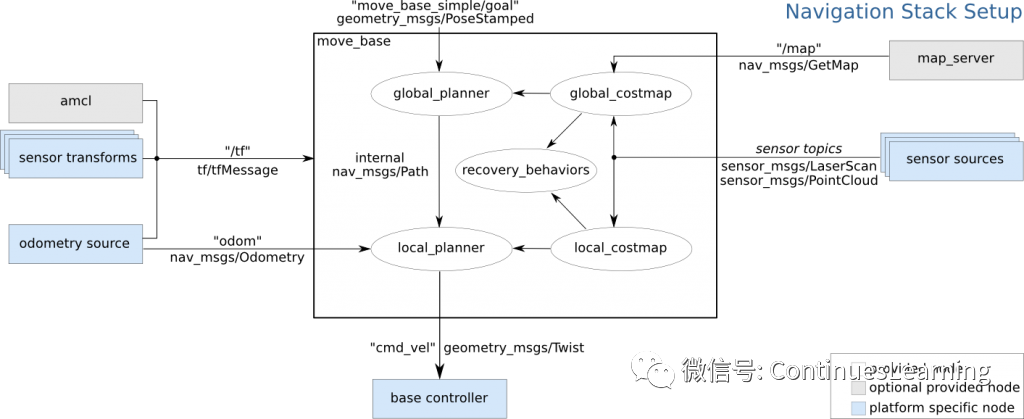

  MoveBase::MoveBase(tf2_ros::Buffer& tf) :
    tf_(tf),
    as_(NULL),
    planner_costmap_ros_(NULL), controller_costmap_ros_(NULL),
    bgp_loader_("nav_core", "nav_core::BaseGlobalPlanner"),
    blp_loader_("nav_core", "nav_core::BaseLocalPlanner"),
    recovery_loader_("nav_core", "nav_core::RecoveryBehavior"),
    planner_plan_(NULL), latest_plan_(NULL), controller_plan_(NULL),
    runPlanner_(false), setup_(false), p_freq_change_(false), c_freq_change_(false), new_global_plan_(false) {

    as_ = new MoveBaseActionServer(ros::NodeHandle(), "move_base", boost::bind(&MoveBase::executeCb, this, _1), false);

    ros::NodeHandle private_nh("~");
    ros::NodeHandle nh;

    recovery_trigger_ = PLANNING_R;

    //get some parameters that will be global to the move base node
    std::string global_planner, local_planner;
    private_nh.param("base_global_planner", global_planner, std::string("navfn/NavfnROS"));
    private_nh.param("base_local_planner", local_planner, std::string("base_local_planner/TrajectoryPlannerROS"));
    private_nh.param("global_costmap/robot_base_frame", robot_base_frame_, std::string("base_link"));
    private_nh.param("global_costmap/global_frame", global_frame_, std::string("map"));
    private_nh.param("planner_frequency", planner_frequency_, 0.0);
    private_nh.param("controller_frequency", controller_frequency_, 20.0);
    private_nh.param("planner_patience", planner_patience_, 5.0);
    private_nh.param("controller_patience", controller_patience_, 15.0);
    private_nh.param("max_planning_retries", max_planning_retries_, -1);  // disabled by default

    private_nh.param("oscillation_timeout", oscillation_timeout_, 0.0);
    private_nh.param("oscillation_distance", oscillation_distance_, 0.5);

    //set up plan triple buffer
    planner_plan_ = new std::vector<geometry_msgs::PoseStamped>();
    latest_plan_ = new std::vector<geometry_msgs::PoseStamped>();
    controller_plan_ = new std::vector<geometry_msgs::PoseStamped>();

    //set up the planner's thread
    planner_thread_ = new boost::thread(boost::bind(&MoveBase::planThread, this));

    //for commanding the base
    vel_pub_ = nh.advertise<geometry_msgs::Twist>("cmd_vel", 1);
//current_goal_pub_发布当前的goal
    current_goal_pub_ = private_nh.advertise<geometry_msgs::PoseStamped>("current_goal", 0 );

    ros::NodeHandle action_nh("move_base");
    action_goal_pub_ = action_nh.advertise<move_base_msgs::MoveBaseActionGoal>("goal", 1);

//提供一个goal的回调机制来支持比如rviz动态设置目标goal。
    //we'll provide a mechanism for some people to send goals as PoseStamped messages over a topic
    //they won't get any useful information back about its status, but this is useful for tools
    //like nav_view and rviz
    ros::NodeHandle simple_nh("move_base_simple");
//goal_sub_订阅goal后可以开始规划。
    goal_sub_ = simple_nh.subscribe<geometry_msgs::PoseStamped>("goal", 1, boost::bind(&MoveBase::goalCB, this, _1));

//局部规划器会使用inscribed_radius和circumscribed_radius来检查是否碰到障碍物。
    //we'll assume the radius of the robot to be consistent with what's specified for the costmaps
    private_nh.param("local_costmap/inscribed_radius", inscribed_radius_, 0.325);
    private_nh.param("local_costmap/circumscribed_radius", circumscribed_radius_, 0.46);
    private_nh.param("clearing_radius", clearing_radius_, circumscribed_radius_);
    private_nh.param("conservative_reset_dist", conservative_reset_dist_, 3.0);

    private_nh.param("shutdown_costmaps", shutdown_costmaps_, false);
    private_nh.param("clearing_rotation_allowed", clearing_rotation_allowed_, true);
    private_nh.param("recovery_behavior_enabled", recovery_behavior_enabled_, true);

//初始化全局规划器代价地图planner_costmap_ros_
    //create the ros wrapper for the planner's costmap... and initializer a pointer we'll use with the underlying map
    planner_costmap_ros_ = new costmap_2d::Costmap2DROS("global_costmap", tf_);
    planner_costmap_ros_->pause();

    //initialize the global planner
    try {
      planner_ = bgp_loader_.createInstance(global_planner);
      planner_->initialize(bgp_loader_.getName(global_planner), planner_costmap_ros_);
    } catch (const pluginlib::PluginlibException& ex) {
      ROS_FATAL("Failed to create the %s planner, are you sure it is properly registered and that the containing library is built? Exception: %s", global_planner.c_str(), ex.what());
      exit(1);
    }

//初始化局部规划器代价地图controller_costmap_ros_
    //create the ros wrapper for the controller's costmap... and initializer a pointer we'll use with the underlying map
    controller_costmap_ros_ = new costmap_2d::Costmap2DROS("local_costmap", tf_);
    controller_costmap_ros_->pause();

    //create a local planner
    try {
      tc_ = blp_loader_.createInstance(local_planner);
      ROS_INFO("Created local_planner %s", local_planner.c_str());
      tc_->initialize(blp_loader_.getName(local_planner), &tf_, controller_costmap_ros_);
    } catch (const pluginlib::PluginlibException& ex) {
      ROS_FATAL("Failed to create the %s planner, are you sure it is properly registered and that the containing library is built? Exception: %s", local_planner.c_str(), ex.what());
      exit(1);
    }

//让代价地图开始接受传感器的数据以更新地图
    // Start actively updating costmaps based on sensor data
    planner_costmap_ros_->start();
    controller_costmap_ros_->start();

//发布全局规划服务
    //advertise a service for getting a plan
    make_plan_srv_ = private_nh.advertiseService("make_plan", &MoveBase::planService, this);

    //advertise a service for clearing the costmaps
    clear_costmaps_srv_ = private_nh.advertiseService("clear_costmaps", &MoveBase::clearCostmapsService, this);

    //if we shutdown our costmaps when we're deactivated... we'll do that now
    if(shutdown_costmaps_){
      ROS_DEBUG_NAMED("move_base","Stopping costmaps initially");
      planner_costmap_ros_->stop();
      controller_costmap_ros_->stop();
    }

//加载默认错误恢复行为
    //load any user specified recovery behaviors, and if that fails load the defaults
    if(!loadRecoveryBehaviors(private_nh)){
      loadDefaultRecoveryBehaviors();
    }

    //initially, we'll need to make a plan
    state_ = PLANNING;

    //we'll start executing recovery behaviors at the beginning of our list
    recovery_index_ = 0;

    //we're all set up now so we can start the action server
    as_->start();

//开启Move_base的参数动态配置
    dsrv_ = new dynamic_reconfigure::Server<move_base::MoveBaseConfig>(ros::NodeHandle("~"));
    dynamic_reconfigure::Server<move_base::MoveBaseConfig>::CallbackType cb = boost::bind(&MoveBase::reconfigureCB, this, _1, _2);
    dsrv_->setCallback(cb);
  }

  void MoveBase::executeCb(const move_base_msgs::MoveBaseGoalConstPtr& move_base_goal)
  {
    if(!isQuaternionValid(move_base_goal->target_pose.pose.orientation)){
      as_->setAborted(move_base_msgs::MoveBaseResult(), "Aborting on goal because it was sent with an invalid quaternion");
      return;
    }

    geometry_msgs::PoseStamped goal = goalToGlobalFrame(move_base_goal->target_pose);

    publishZeroVelocity();
    //we have a goal so start the planner
    boost::unique_lock<boost::recursive_mutex> lock(planner_mutex_);
    planner_goal_ = goal;
    runPlanner_ = true;
    planner_cond_.notify_one();
    lock.unlock();

    current_goal_pub_.publish(goal);
    std::vector<geometry_msgs::PoseStamped> global_plan;

    ros::Rate r(controller_frequency_);
    if(shutdown_costmaps_){
      ROS_DEBUG_NAMED("move_base","Starting up costmaps that were shut down previously");
      planner_costmap_ros_->start();
      controller_costmap_ros_->start();
    }

    //we want to make sure that we reset the last time we had a valid plan and control
    last_valid_control_ = ros::Time::now();
    last_valid_plan_ = ros::Time::now();
    last_oscillation_reset_ = ros::Time::now();
    planning_retries_ = 0;

    ros::NodeHandle n;
    while(n.ok())
    {
      if(c_freq_change_)
      {
        ROS_INFO("Setting controller frequency to %.2f", controller_frequency_);
        r = ros::Rate(controller_frequency_);
        c_freq_change_ = false;
      }

      if(as_->isPreemptRequested()){
        if(as_->isNewGoalAvailable()){
          //if we're active and a new goal is available, we'll accept it, but we won't shut anything down
          move_base_msgs::MoveBaseGoal new_goal = *as_->acceptNewGoal();

          if(!isQuaternionValid(new_goal.target_pose.pose.orientation)){
            as_->setAborted(move_base_msgs::MoveBaseResult(), "Aborting on goal because it was sent with an invalid quaternion");
            return;
          }

          goal = goalToGlobalFrame(new_goal.target_pose);

          //we'll make sure that we reset our state for the next execution cycle
          recovery_index_ = 0;
          state_ = PLANNING;

          //we have a new goal so make sure the planner is awake
          lock.lock();
          planner_goal_ = goal;
          runPlanner_ = true;
          planner_cond_.notify_one();
          lock.unlock();

//发布当前的目标goal，其它订阅的节点就可以更新其对应的机制。
          //publish the goal point to the visualizer
          ROS_DEBUG_NAMED("move_base","move_base has received a goal of x: %.2f, y: %.2f", goal.pose.position.x, goal.pose.position.y);
          current_goal_pub_.publish(goal);

          //make sure to reset our timeouts and counters
          last_valid_control_ = ros::Time::now();
          last_valid_plan_ = ros::Time::now();
          last_oscillation_reset_ = ros::Time::now();
          planning_retries_ = 0;
        }
        else {
          //if we've been preempted explicitly we need to shut things down
          resetState();

          //notify the ActionServer that we've successfully preempted
          ROS_DEBUG_NAMED("move_base","Move base preempting the current goal");
          as_->setPreempted();

          //we'll actually return from execute after preempting
          return;
        }
      }

      //we also want to check if we've changed global frames because we need to transform our goal pose
      if(goal.header.frame_id != planner_costmap_ros_->getGlobalFrameID()){
        goal = goalToGlobalFrame(goal);

        //we want to go back to the planning state for the next execution cycle
        recovery_index_ = 0;
        state_ = PLANNING;

        //we have a new goal so make sure the planner is awake
        lock.lock();
        planner_goal_ = goal;
//设置runPlanner_为true，线程可以开始全局规划。
        runPlanner_ = true;
        planner_cond_.notify_one();
        lock.unlock();

        //publish the goal point to the visualizer
        ROS_DEBUG_NAMED("move_base","The global frame for move_base has changed, new frame: %s, new goal position x: %.2f, y: %.2f", goal.header.frame_id.c_str(), goal.pose.position.x, goal.pose.position.y);
        current_goal_pub_.publish(goal);

        //make sure to reset our timeouts and counters
        last_valid_control_ = ros::Time::now();
        last_valid_plan_ = ros::Time::now();
        last_oscillation_reset_ = ros::Time::now();
        planning_retries_ = 0;
      }

      //for timing that gives real time even in simulation
      ros::WallTime start = ros::WallTime::now();

      //the real work on pursuing a goal is done here
      bool done = executeCycle(goal, global_plan);

      //if we're done, then we'll return from execute
      if(done)
        return;

      //check if execution of the goal has completed in some way

      ros::WallDuration t_diff = ros::WallTime::now() - start;
      ROS_DEBUG_NAMED("move_base","Full control cycle time: %.9f\n", t_diff.toSec());

      r.sleep();
      //make sure to sleep for the remainder of our cycle time
      if(r.cycleTime() > ros::Duration(1 / controller_frequency_) && state_ == CONTROLLING)
        ROS_WARN("Control loop missed its desired rate of %.4fHz... the loop actually took %.4f seconds", controller_frequency_, r.cycleTime().toSec());
    }

    //wake up the planner thread so that it can exit cleanly
    lock.lock();
    runPlanner_ = true;
    planner_cond_.notify_one();
    lock.unlock();

    //if the node is killed then we'll abort and return
    as_->setAborted(move_base_msgs::MoveBaseResult(), "Aborting on the goal because the node has been killed");
    return;
  }

  void MoveBase::planThread(){
    ROS_DEBUG_NAMED("move_base_plan_thread","Starting planner thread...");
    ros::NodeHandle n;
    ros::Timer timer;
    bool wait_for_wake = false;
    boost::unique_lock<boost::recursive_mutex> lock(planner_mutex_);
    while(n.ok()){
//参数runPlanner_为true，表示可以开始全局规划，否则继续循环。
      //check if we should run the planner (the mutex is locked)
      while(wait_for_wake || !runPlanner_){
        //if we should not be running the planner then suspend this thread
        ROS_DEBUG_NAMED("move_base_plan_thread","Planner thread is suspending");
        planner_cond_.wait(lock);
        wait_for_wake = false;
      }
      ros::Time start_time = ros::Time::now();

      //time to plan! get a copy of the goal and unlock the mutex
      geometry_msgs::PoseStamped temp_goal = planner_goal_;
      lock.unlock();
      ROS_DEBUG_NAMED("move_base_plan_thread","Planning...");

//调用makePlan进行全局规划
      //run planner
      planner_plan_->clear();
      bool gotPlan = n.ok() && makePlan(temp_goal, *planner_plan_);

      if(gotPlan){
        ROS_DEBUG_NAMED("move_base_plan_thread","Got Plan with %zu points!", planner_plan_->size());
        //pointer swap the plans under mutex (the controller will pull from latest_plan_)
        std::vector<geometry_msgs::PoseStamped>* temp_plan = planner_plan_;

//planner_plan_是上一次的plan，latest_plan_是这一次的plan
        lock.lock();
        planner_plan_ = latest_plan_;
        latest_plan_ = temp_plan;
        last_valid_plan_ = ros::Time::now();
        planning_retries_ = 0;
        new_global_plan_ = true;

        ROS_DEBUG_NAMED("move_base_plan_thread","Generated a plan from the base_global_planner");

//开始启动局部规划器state_ = CONTROLLING
        //make sure we only start the controller if we still haven't reached the goal
        if(runPlanner_)
          state_ = CONTROLLING;
        if(planner_frequency_ <= 0)
          runPlanner_ = false;
        lock.unlock();
      }
      //if we didn't get a plan and we are in the planning state (the robot isn't moving)
      else if(state_==PLANNING){
        ROS_DEBUG_NAMED("move_base_plan_thread","No Plan...");
        ros::Time attempt_end = last_valid_plan_ + ros::Duration(planner_patience_);

        //check if we've tried to make a plan for over our time limit or our maximum number of retries
        //issue #496: we stop planning when one of the conditions is true, but if max_planning_retries_
        //is negative (the default), it is just ignored and we have the same behavior as ever
        lock.lock();
        planning_retries_++;
        if(runPlanner_ &&
           (ros::Time::now() > attempt_end || planning_retries_ > uint32_t(max_planning_retries_))){
          //we'll move into our obstacle clearing mode
          state_ = CLEARING;
          runPlanner_ = false;  // proper solution for issue #523
          publishZeroVelocity();
          recovery_trigger_ = PLANNING_R;
        }

        lock.unlock();
      }

      //take the mutex for the next iteration
      lock.lock();

      //setup sleep interface if needed
      if(planner_frequency_ > 0){
        ros::Duration sleep_time = (start_time + ros::Duration(1.0/planner_frequency_)) - ros::Time::now();
        if (sleep_time > ros::Duration(0.0)){
          wait_for_wake = true;
          timer = n.createTimer(sleep_time, &MoveBase::wakePlanner, this);
        }
      }
    }
  }

  bool MoveBase::executeCycle(geometry_msgs::PoseStamped& goal, std::vector<geometry_msgs::PoseStamped>& global_plan){
    boost::recursive_mutex::scoped_lock ecl(configuration_mutex_);
    //we need to be able to publish velocity commands
    geometry_msgs::Twist cmd_vel;

    //update feedback to correspond to our curent position
    geometry_msgs::PoseStamped global_pose;
    getRobotPose(global_pose, planner_costmap_ros_);
    const geometry_msgs::PoseStamped& current_position = global_pose;

    //push the feedback out
    move_base_msgs::MoveBaseFeedback feedback;
    feedback.base_position = current_position;
    as_->publishFeedback(feedback);

    //check to see if we've moved far enough to reset our oscillation timeout
    if(distance(current_position, oscillation_pose_) >= oscillation_distance_)
    {
      last_oscillation_reset_ = ros::Time::now();
      oscillation_pose_ = current_position;

      //if our last recovery was caused by oscillation, we want to reset the recovery index
      if(recovery_trigger_ == OSCILLATION_R)
        recovery_index_ = 0;
    }

    //check that the observation buffers for the costmap are current, we don't want to drive blind
    if(!controller_costmap_ros_->isCurrent()){
      ROS_WARN("[%s]:Sensor data is out of date, we're not going to allow commanding of the base for safety",ros::this_node::getName().c_str());
      publishZeroVelocity();
      return false;
    }

    //if we have a new plan then grab it and give it to the controller
    if(new_global_plan_){
      //make sure to set the new plan flag to false
      new_global_plan_ = false;

      ROS_DEBUG_NAMED("move_base","Got a new plan...swap pointers");

      //do a pointer swap under mutex
      std::vector<geometry_msgs::PoseStamped>* temp_plan = controller_plan_;

      boost::unique_lock<boost::recursive_mutex> lock(planner_mutex_);
      controller_plan_ = latest_plan_;
      latest_plan_ = temp_plan;
      lock.unlock();
      ROS_DEBUG_NAMED("move_base","pointers swapped!");

      if(!tc_->setPlan(*controller_plan_)){
        //ABORT and SHUTDOWN COSTMAPS
        ROS_ERROR("Failed to pass global plan to the controller, aborting.");
        resetState();

        //disable the planner thread
        lock.lock();
        runPlanner_ = false;
        lock.unlock();

        as_->setAborted(move_base_msgs::MoveBaseResult(), "Failed to pass global plan to the controller.");
        return true;
      }

      //make sure to reset recovery_index_ since we were able to find a valid plan
      if(recovery_trigger_ == PLANNING_R)
        recovery_index_ = 0;
    }

    //the move_base state machine, handles the control logic for navigation
    switch(state_){
      //if we are in a planning state, then we'll attempt to make a plan
      case PLANNING:
        {
          boost::recursive_mutex::scoped_lock lock(planner_mutex_);
          runPlanner_ = true;
          planner_cond_.notify_one();
        }
        ROS_DEBUG_NAMED("move_base","Waiting for plan, in the planning state.");
        break;

      //if we're controlling, we'll attempt to find valid velocity commands
      case CONTROLLING:
        ROS_DEBUG_NAMED("move_base","In controlling state.");

        //check to see if we've reached our goal
        if(tc_->isGoalReached()){
          ROS_DEBUG_NAMED("move_base","Goal reached!");
          resetState();

          //disable the planner thread
          boost::unique_lock<boost::recursive_mutex> lock(planner_mutex_);
          runPlanner_ = false;
          lock.unlock();

          as_->setSucceeded(move_base_msgs::MoveBaseResult(), "Goal reached.");
          return true;
        }

        //check for an oscillation condition
        if(oscillation_timeout_ > 0.0 &&
            last_oscillation_reset_ + ros::Duration(oscillation_timeout_) < ros::Time::now())
        {
          publishZeroVelocity();
          state_ = CLEARING;
          recovery_trigger_ = OSCILLATION_R;
        }

        {
         boost::unique_lock<costmap_2d::Costmap2D::mutex_t> lock(*(controller_costmap_ros_->getCostmap()->getMutex()));

//调用computeVelocityCommands进行局部规划
        if(tc_->computeVelocityCommands(cmd_vel)){
          ROS_DEBUG_NAMED( "move_base", "Got a valid command from the local planner: %.3lf, %.3lf, %.3lf",
                           cmd_vel.linear.x, cmd_vel.linear.y, cmd_vel.angular.z );
          last_valid_control_ = ros::Time::now();
          //make sure that we send the velocity command to the base
          vel_pub_.publish(cmd_vel);
          if(recovery_trigger_ == CONTROLLING_R)
            recovery_index_ = 0;
        }
        else {
          ROS_DEBUG_NAMED("move_base", "The local planner could not find a valid plan.");
          ros::Time attempt_end = last_valid_control_ + ros::Duration(controller_patience_);

          //check if we've tried to find a valid control for longer than our time limit
          if(ros::Time::now() > attempt_end){
            //we'll move into our obstacle clearing mode
            publishZeroVelocity();
            state_ = CLEARING;
            recovery_trigger_ = CONTROLLING_R;
          }
          else{
            //otherwise, if we can't find a valid control, we'll go back to planning
            last_valid_plan_ = ros::Time::now();
            planning_retries_ = 0;
            state_ = PLANNING;
            publishZeroVelocity();

            //enable the planner thread in case it isn't running on a clock
            boost::unique_lock<boost::recursive_mutex> lock(planner_mutex_);
            runPlanner_ = true;
            planner_cond_.notify_one();
            lock.unlock();
          }
        }
        }

        break;

      //we'll try to clear out space with any user-provided recovery behaviors
      case CLEARING:
        ROS_DEBUG_NAMED("move_base","In clearing/recovery state");
        //we'll invoke whatever recovery behavior we're currently on if they're enabled
        if(recovery_behavior_enabled_ && recovery_index_ < recovery_behaviors_.size()){
          ROS_DEBUG_NAMED("move_base_recovery","Executing behavior %u of %zu", recovery_index_, recovery_behaviors_.size());
          recovery_behaviors_[recovery_index_]->runBehavior();

          //we at least want to give the robot some time to stop oscillating after executing the behavior
          last_oscillation_reset_ = ros::Time::now();

          //we'll check if the recovery behavior actually worked
          ROS_DEBUG_NAMED("move_base_recovery","Going back to planning state");
          last_valid_plan_ = ros::Time::now();
          planning_retries_ = 0;
          state_ = PLANNING;

          //update the index of the next recovery behavior that we'll try
          recovery_index_++;
        }
        else{
          ROS_DEBUG_NAMED("move_base_recovery","All recovery behaviors have failed, locking the planner and disabling it.");
          //disable the planner thread
          boost::unique_lock<boost::recursive_mutex> lock(planner_mutex_);
          runPlanner_ = false;
          lock.unlock();

          ROS_DEBUG_NAMED("move_base_recovery","Something should abort after this.");

          if(recovery_trigger_ == CONTROLLING_R){
            ROS_ERROR("Aborting because a valid control could not be found. Even after executing all recovery behaviors");
            as_->setAborted(move_base_msgs::MoveBaseResult(), "Failed to find a valid control. Even after executing recovery behaviors.");
          }
          else if(recovery_trigger_ == PLANNING_R){
            ROS_ERROR("Aborting because a valid plan could not be found. Even after executing all recovery behaviors");
            as_->setAborted(move_base_msgs::MoveBaseResult(), "Failed to find a valid plan. Even after executing recovery behaviors.");
          }
          else if(recovery_trigger_ == OSCILLATION_R){
            ROS_ERROR("Aborting because the robot appears to be oscillating over and over. Even after executing all recovery behaviors");
            as_->setAborted(move_base_msgs::MoveBaseResult(), "Robot is oscillating. Even after executing recovery behaviors.");
          }
          resetState();
          return true;
        }
        break;
      default:
        ROS_ERROR("This case should never be reached, something is wrong, aborting");
        resetState();
        //disable the planner thread
        boost::unique_lock<boost::recursive_mutex> lock(planner_mutex_);
        runPlanner_ = false;
        lock.unlock();
        as_->setAborted(move_base_msgs::MoveBaseResult(), "Reached a case that should not be hit in move_base. This is a bug, please report it.");
        return true;
    }

    //we aren't done yet
    return false;
  }
