OceanBase 4.x改装：另一种全链路追踪的尝试

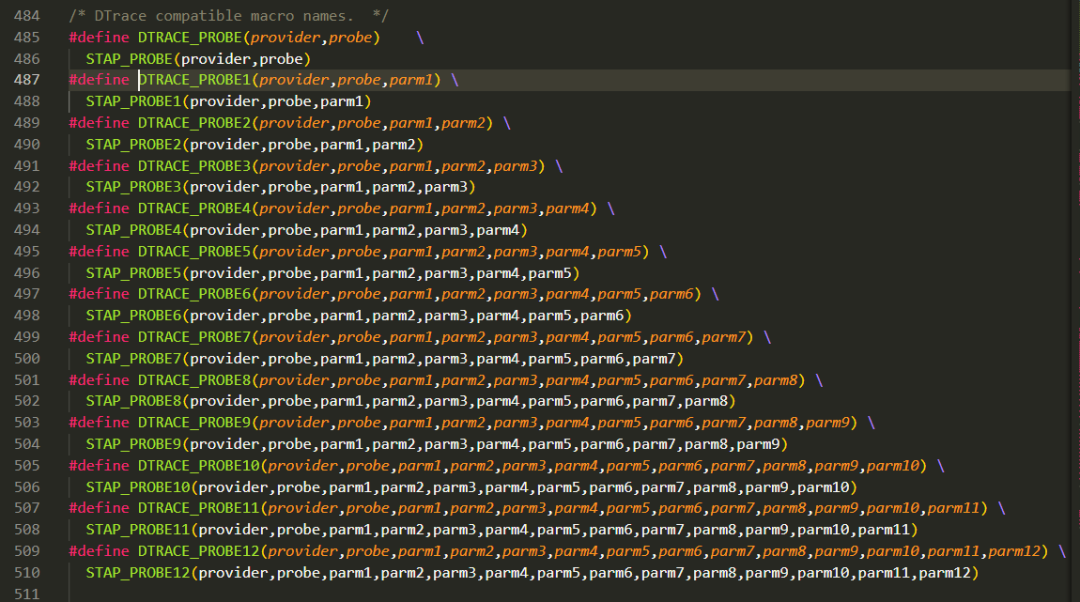

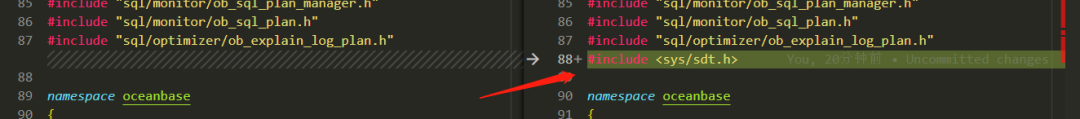

#include <sys/sdt.h>

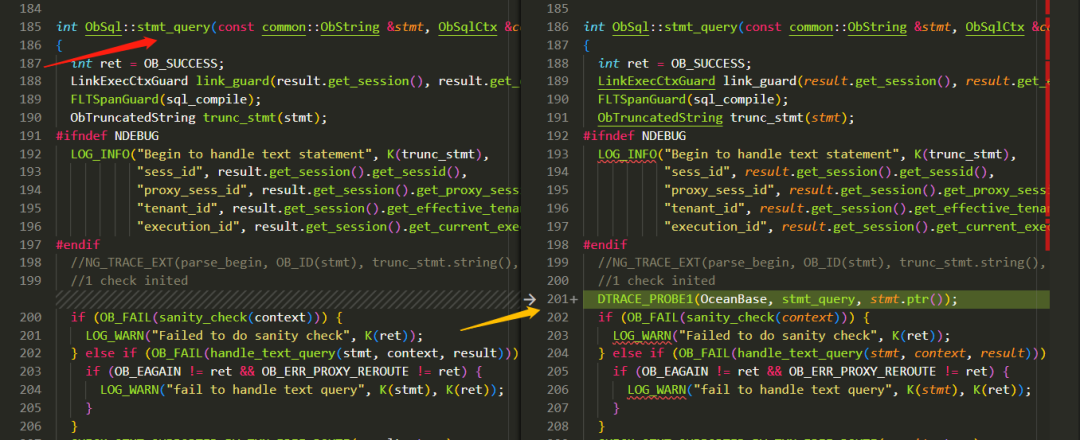

int main() {    DTRACE_PROBE(MyProvider, myprobe);    return 0;}

mkdir -p /home/frank/data/clogmkdir -p /home/frank/data/slog/servermkdir -p /home/frank/data/sstable
./observer -r 127.0.0.1:2882:2881 -p 2881 -P 2882 -z zone1 -n obcluster -c 1 -d /home/frank/data -i lo -l INFO -o ob_trx_idle_timeout=120,__min_full_resource_pool_memory=2147483648,enable_syslog_recycle=True,enable_syslog_wf=True,max_syslog_file_count=4,memory_limit=6G,datafile_size=20G,log_disk_size=24G,system_memory=1G,cpu_count=16 -l ERROR
obclient -h 127.0.0.1 -P 2881 -uroot

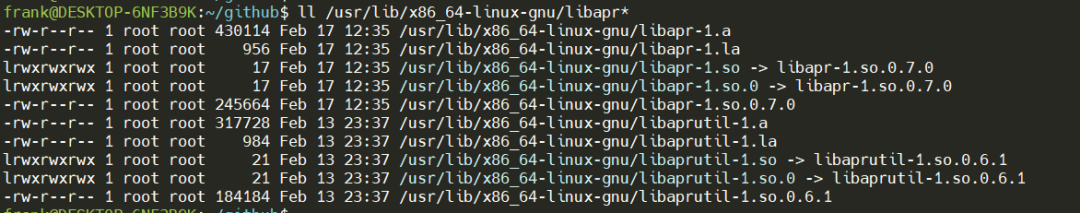

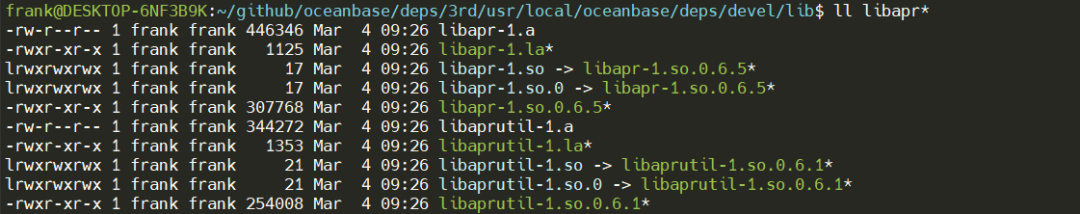

Consolidate compiler generated dependencies of target obcdc_staticConsolidate compiler generated dependencies of target obcdc[ 97%] Built target obcdc_static[ 97%] Linking CXX executable observer[ 97%] Linking CXX shared library libobcdc.sold.lld: error: undefined symbol: pthread_mutexattr_setrobust_np>>> referenced by proc_mutex.c>>>               proc_mutex.o:(proc_mutex_pthread_create) in archive ../../../deps/3rd/usr/local/oceanbase/deps/devel/lib/libapr-1.a>>> did you mean: pthread_mutexattr_setrobust_np@GLIBC_2.4>>> defined in: /lib/x86_64-linux-gnu/libc.so.6
ld.lld: error: undefined symbol: pthread_mutex_consistent_np>>> referenced by proc_mutex.c>>>               proc_mutex.o:(proc_mutex_pthread_acquire) in archive ../../../deps/3rd/usr/local/oceanbase/deps/devel/lib/libapr-1.a>>> referenced by proc_mutex.c>>>               proc_mutex.o:(proc_mutex_pthread_tryacquire) in archive ../../../deps/3rd/usr/local/oceanbase/deps/devel/lib/libapr-1.a>>> did you mean: pthread_mutex_consistent_np@GLIBC_2.4>>> defined in: /lib/x86_64-linux-gnu/libc.so.6
ld.lld: error: undefined symbol: sys_siglist>>> referenced by signals.c>>>               signals.o:(apr_signal_description_get) in archive ../../../deps/3rd/usr/local/oceanbase/deps/devel/lib/libapr-1.a
ld.lld: error: undefined symbol: pthread_yield>>> referenced by thread.c>>>               thread.o:(apr_thread_yield) in archive ../../../deps/3rd/usr/local/oceanbase/deps/devel/lib/libapr-1.aclang-11: error: linker command failed with exit code 1 (use -v to see invocation)make[2]: *** [src/observer/CMakeFiles/observer.dir/build.make:154: src/observer/observer] Error 1make[1]: *** [CMakeFiles/Makefile2:10163: src/observer/CMakeFiles/observer.dir/all] Error 2make[1]: *** Waiting for unfinished jobs....[ 97%] Built target obcdcmake: *** [Makefile:166: all] Error 2

# 编译内核apt-get install flex bison libssl-dev libelf-dev dwarvesgit clone https://github.com/microsoft/WSL2-Linux-Kernel.gitcd WSL2-Linux-KernelKERNEL_VERSION=$(uname -r | cut -d '-' -f 1)git checkout linux-msft-wsl-$KERNEL_VERSION
cp Microsoft/config-wsl .configmake oldconfig && make preparemake scriptsmake modulessudo make modules_install
sudo mv /lib/modules/$KERNEL_VERSION-microsoft-standard-WSL2+/ /lib/modules/$KERNEL_VERSION-microsoft-standard-WSL2

CONFIG_BPF=yCONFIG_BPF_SYSCALL=y# [optional, for tc filters]CONFIG_NET_CLS_BPF=m# [optional, for tc actions]CONFIG_NET_ACT_BPF=mCONFIG_BPF_JIT=y# [for Linux kernel versions 4.1 through 4.6]CONFIG_HAVE_BPF_JIT=y# [for Linux kernel versions 4.7 and later]CONFIG_HAVE_EBPF_JIT=y# [optional, for kprobes]CONFIG_BPF_EVENTS=y# Need kernel headers through /sys/kernel/kheaders.tar.xzCONFIG_IKHEADERS=y

sudo apt install liblzma-devsudo apt install libclang-14-devgit clone https://github.com/iovisor/bcc.gitmkdir bcc/build; cd bcc/buildcmake ..makesudo make install
cmake -DPYTHON_CMD=python3 .. # build python3 bindingpushd src/python/makesudo make installpopd

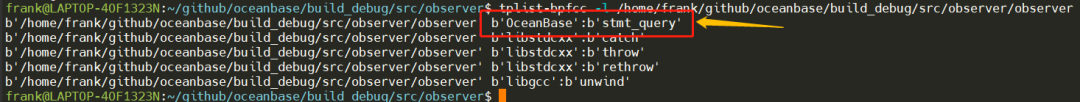

$ tplist-bpfcc -l /home/frank/github/oceanbase/build_debug/src/observer/observer# 注意：要使用绝对路径

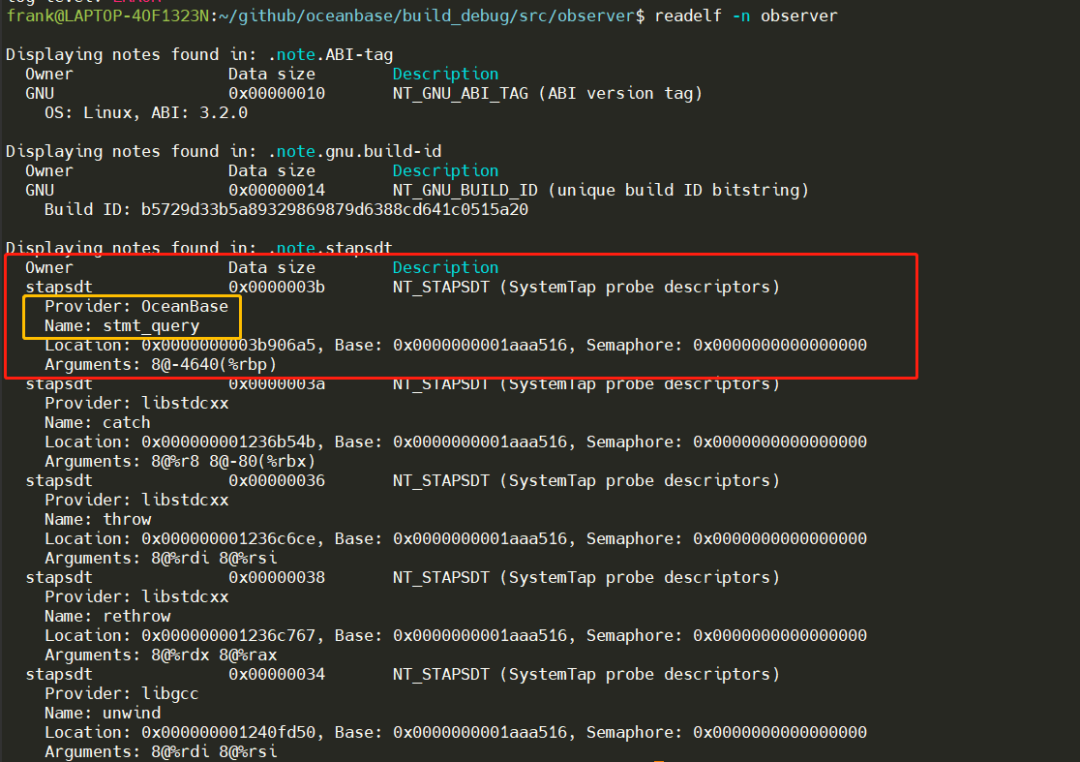

$ readelf -n observer

#!/usr/bin/python
from __future__ import print_functionfrom bcc import BPF, USDTfrom bcc.utils import printbimport sys
if len(sys.argv) < 2:    print("USAGE: OceanBase_latency PID")    exit()pid = sys.argv[1]debug = 0
# load BPF programbpf_text = """#include <uapi/linux/ptrace.h>int do_trace(struct pt_regs *ctx) {    uint64_t addr;    char query[128];    bpf_usdt_readarg(1, ctx, &addr);    bpf_probe_read_user(&query, sizeof(query), (void *)addr);    bpf_trace_printk("%s\\n", query);    return 0;};"""
# enable USDT probe from given PIDu = USDT(pid=int(pid))u.enable_probe(probe="stmt_query", fn_name="do_trace")if debug:    print(u.get_text())    print(bpf_text)
# initialize BPFb = BPF(text=bpf_text, usdt_contexts=[u])

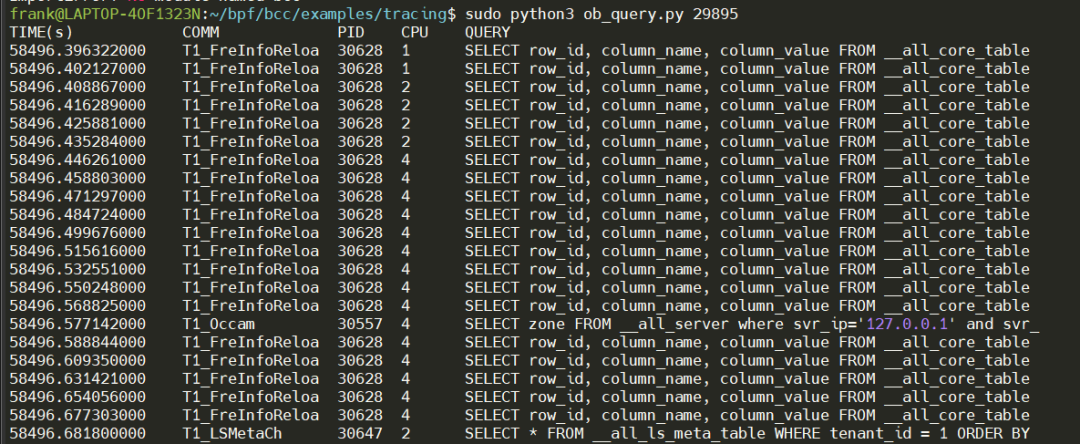

# headerprint("%-18s %-16s %-6s %-6s %s" % ("TIME(s)", "COMM", "PID", "CPU", "QUERY"))
# format outputwhile 1:    try:        (task, pid, cpu, flags, ts, msg) = b.trace_fields()    except ValueError:        print("value error")        continue    except KeyboardInterrupt:        exit()    printb(b"%-18.9f %-16s %-6d %-6d %s" % (ts, task, pid, cpu, msg))
