1.mysqldump
#使用 mysqldump 将 mysql的表结构和数据同步到 OceanBase 的MySQL 租户中
- 源库MySQL：
#1.创建测试数据[root@te ~]# mysql -uroot -p111111 --socket=/data/mysql_mha/mysql.sock #我这里是percona的数据库 mysql: [Warning] Using a password on the command line interface can be insecure. Welcome to the MySQL monitor. Commands end with ; or \g. Your MySQL connection id is 3 Server version: 5.7.32-35-47-log Percona XtraDB Cluster binary (GPL) 5.7.32-rel35-47, Revision 2055835, wsrep_31.47 Copyright (c) 2009-2020 Percona LLC and/or its affiliates Copyright (c) 2000, 2020, Oracle and/or its affiliates. All rights reserved. Oracle is a registered trademark of Oracle Corporation and/or its affiliates. Other names may be trademarks of their respective owners. Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. root@db 12:00: [(none)]>show databases; +--------------------+ | Database | +--------------------+ | information_schema | | mysql | | performance_schema | | sys | +--------------------+ 4 rows in set (0.00 sec) root@db 12:01: [(none)]>create database test; #创建一个测试库 Query OK, 1 row affected (0.00 sec) root@db 12:02: [(none)]>use test; Database changed root@db 12:02: [test]>create table t1 (id int primary key ,name varchar(20)); #创建一个表 Query OK, 0 rows affected (0.02 sec) root@db 12:04: [test]>insert into t1 values(1,'张三'),(2,'李四'),(3,'皮卡丘'); #插入几条数据 Query OK, 3 rows affected (0.01 sec) Records: 3 Duplicates: 0 Warnings: 0 root@db 12:04: [test]>select * from t1; +----+-----------+ | id | name | +----+-----------+ | 1 | 张三 | | 2 | 李四 | | 3 | 皮卡丘 | +----+-----------+ 3 rows in set (0.00 sec)
#2.使用mysqldump导出表mysqldump -uroot -p111111 --socket=/data/mysql_mha/mysql.sock --set-gtid-purged=OFF test t1 > /tmp/test_t1.sql #导出test库的t1表
- 目标库oceanbase
#1.拷贝数据因为我这是两台机器，所以拷贝数据到ob的机器的/tmp目录[root@obcp ~]# ll /tmp/test_t1.sql -rw-r--r-- 1 admin admin 2903 9月 2 12:14 /tmp/test_t1.sql#2.登陆oceanbase指定租户、指定数据库额，我这把库关了要重新启动（记得要在oceanbase目录启动）[admin@obcp oceanbase]$ cd ~[admin@obcp oceanbase]$ ./bin/observer ./bin/observer[admin@obcp ~]$ ps -ef|grep obs #启动成功了 admin 20824 1 99 12:18 ? 00:02:31 ./bin/observer[admin@obcp ~]$ obclient -h127.0.0.1 -uroot@obmysql -P2881 -A -c my_ob -pEnter password: Welcome to the OceanBase. Commands end with ; or \g. Your OceanBase connection id is 3221487619 Server version: OceanBase_CE 4.0.0.0 (r100000272022110114-6af7f9ae79cd0ecbafd4b1b88e2886ccdba0c3be) (Built Nov 1 2022 14:57:18) Copyright (c) 2000, 2018, OceanBase and/or its affiliates. All rights reserved. Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. root@db 12:22: [my_ob]>#导入sql语句root@db 12:22: [my_ob]>source /tmp/test_t1.sql Query OK, 0 rows affected (0.004 sec) ERROR 1064 (42000): You have an error in your SQL syntax; check the manual that corresponds to your OceanBase version for the right syntax to use near '--' at line 11 row in set (0.002 sec) Query OK, 0 rows affected (0.001 sec) Query OK, 0 rows affected (0.001 sec) Query OK, 0 rows affected (0.001 sec) Query OK, 0 rows affected (0.001 sec) Query OK, 0 rows affected (0.001 sec) ERROR 1064 (42000): You have an error in your SQL syntax; check the manual that corresponds to your OceanBase version for the right syntax to use near '--' at line 1 Query OK, 0 rows affected (0.000 sec) ERROR 1064 (42000): You have an error in your SQL syntax; check the manual that corresponds to your OceanBase version for the right syntax to use near '--' at line 1 Query OK, 0 rows affected, 1 warning (0.047 sec) Query OK, 0 rows affected (0.001 sec)....##中间是有些报错的，其实是没有影响的（如果出现其他的内容需要确认），检查数据文件后发现是一些注释，ob没有识别##类似如下这种-- Host: localhost Database: test -- ------------------------------------------------------ -- Server version 5.7.32-35-47-log-- -- Table structure for table `t1` -- #3.检查表数据root@db 12:23: [my_ob]>select * from t1; +----+-----------+ | id | name | +----+-----------+ | 1 | 张三 | | 2 | 李四 | | 3 | 皮卡丘 | +----+-----------+ 3 rows in set (0.010 sec)ok，表数据都是存在的，下面对比下两张表的建表语句
#4.建表语句

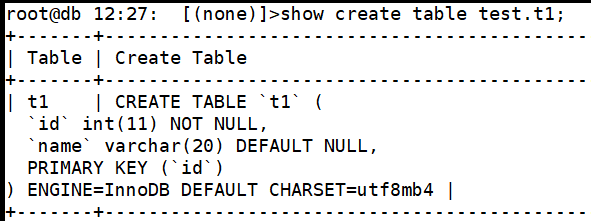

第一张图片是mysql的建表语句，第二张图片是oceanbase的建表语句；此时可以看出，oceanabse已经将其转化为自己语法的表了综上所看，使用mysqldump导出导入数据成功！
2.DataX
datax下载地址：https://datax-opensource.oss-cn-hangzhou.aliyuncs.com/202308/datax.tar.gz
#总计1.5G大小，是github上的地址
下面是一个开源的web界面工具，官方视频里面的，喜欢的可以试试。
2.1.上传DataX
[admin@obcp ~]$ cd ~; tar -xvf datax.tar.gz
[admin@obcp ~]$ ll
总用量 1612164
drwxrwxr-x 9 admin admin 90 9月 2 13:57 datax
-rw-r--r-- 1 admin admin 1650855042 9月 2 13:56 datax.tar.gz
drwxr-xr-x 8 admin admin 97 9月 1 15:45 obproxy-4.0.0
drwxr-xr-x 10 admin admin 100 9月 1 12:44 oceanbase
这块就不写了，自行安排即可2.2.构造数据
[root@te ~]# mysql -uroot -p111111 -h192.168.61.144 -A -c test
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor. Commands end with ; or \g.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
root@db 14:21: [test]>create table t2( #创建迁移表
-> id int primary key,
-> name varchar(20),
-> sex varchar(2),
-> age int,
-> birth_date date,
-> id_code varchar(18)) ;
Query OK, 0 rows affected (0.01 sec)
root@db 14:25: [test]>insert into t2 values (1,'张三','男',18,'2000-01-01',131011200001010286);
Query OK, 1 row affected (0.00 sec)
root@db 14:25: [test]>insert into t2 values (2,'张三丰','男',99,'1924-09-09',131011192409090287);
Query OK, 1 row affected (0.01 sec)
root@db 14:27: [test]>insert into t2 values (3,'张三疯了','男',88,'1934-06-24',131011193409090288);
Query OK, 1 row affected (0.00 sec)
root@db 14:27: [test]>insert into t2 values (4,'张三疯了吧','男',55,'1964-06-24',131011196409090289);
Query OK, 1 row affected (0.02 sec)
root@db 14:27: [test]>select * from t2;
+----+-----------------+------+------+------------+--------------------+
| id | name | sex | age | birth_date | id_code |
+----+-----------------+------+------+------------+--------------------+
| 1 | 张三 | 男 | 18 | 2000-01-01 | 131011200001010286 |
| 2 | 张三丰 | 男 | 99 | 1924-09-09 | 131011192409090287 |
| 3 | 张三疯了 | 男 | 88 | 1934-06-24 | 131011193409090288 |
| 4 | 张三疯了吧 | 男 | 55 | 1964-06-24 | 131011196409090289 |
+----+-----------------+------+------+------------+--------------------+
4 rows in set (0.00 sec)
2.3.修改配置文件
[admin@obcp ~]$ cd datax/job/
[admin@obcp job]$ ll
总用量 4
-rw-r--r-- 1 admin admin 1583 8月 21 17:07 job.json #只有一个job
[admin@obcp job]$ cp job.json mysql_oc.json #复制一份
[admin@obcp job]$ vim mysql_oc.json #接下来重头戏，修改配置文件
{
"job":{
"setting":{
"speed":{
"channel":4 ####4个并行度
},
"errorLimit":{ ####控制脏数据到多少条，或者说百分比到多少，同步就停止了（脏数据：不符合约束的数据）
"record":0,
"percentage":0.02
}
},
"content":[
{
"reader":{
"name":"mysqlreader", ####reader插件名字
"parameter":{
"username":"root", ####源库用户、密码
"password":"111111",
"column":[ ####源库要同步的列，若源库目标库表结构一样，列都一致，则直接写*即可
"*"
],
"connection":[
{
"table":[ ####要同步的表
"t2"
],
"jdbcUrl":[ ####jdbc连接
"jdbc:mysql://192.168.61.144:3306/test?useUnicode=true&characterEncoding=utf8"
]
}
]
}
},
"writer":{
"name":"oceanbasev10writer", ####writer插件名字
"parameter":{
"obWriteMode":"insert", ####数据导入的方式，有三种insert、replace、update（参考MySQL语法）
"column":[ ####同上
"*"
],
"preSql":[
"truncate table t2" ##预先执行的sql，可不写
],
"connection":[
{
"jdbcUrl":"||_dsc_ob10_dsc_||obdemo:obmysql||_dsc_ob10_dsc_||jdbc:oceanbase://127.0.0.1:2883/my_ob?useLocalSessionState=true&allowBatch=true&allowMultiQueries=true&reweiteBatchedStatements=true",
"table":[ ####jdbc+导入的表
"t2"
]
}
],
"username":"root",
"password":"rootPWD123",
"writerThreadCount":10, ####10个并发
"batchSize":1000, ####1000行提交一次
"memstoreThreshold":"0.9"
}
}
}
]
}
}
上述配置文件中的注释在使用时要去掉、2.4.jdk及java_home
算了，还是写上吧，方便后期再看

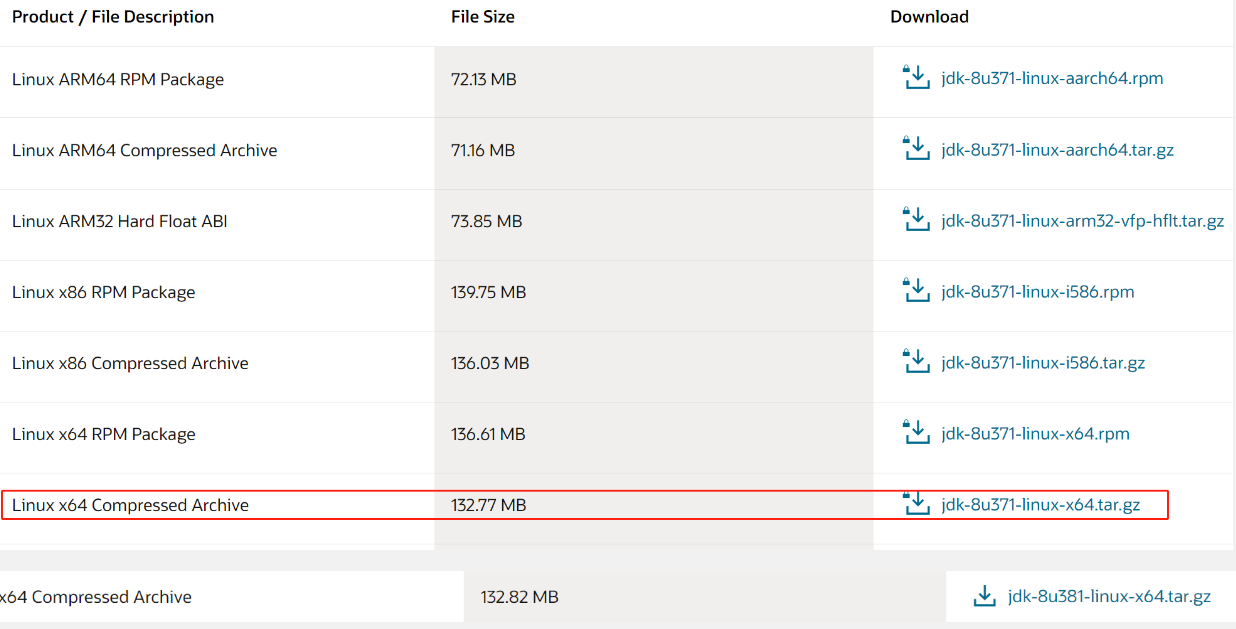

jdk下载地址：https://www.oracle.com/java/technologies/downloads/#java8
官方建议是1.8以上
觉得慢的可以换这个地址：https://repo.huaweicloud.com/java/jdk/
[admin@obcp ~]# tar -zxvf jdk-8u181-linux-x64.tar.gz
[admin@obcp ~]# ll
总用量 181296
drwxr-xr-x 7 10 143 245 7月 7 2018 jdk1.8.0_181
-rw-r--r-- 1 root root 185646832 9月 2 15:54 jdk-8u181-linux-x64.tar.gz
drwxr-xr-x 2 root root 257 9月 1 10:48 rpm
[root@obcp ~]# vim /etc/profile
export JAVA_HOME=/home/admin/jdk1.8.0_181
export PATH=$JAVA_HOME/bin:$PATH
export CLASSPATH=.:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
[root@obcp ~]# source /etc/profile
[root@obcp ~]# java -version
java version "1.8.0_181"
Java(TM) SE Runtime Environment (build 1.8.0_181-b13)
Java HotSpot(TM) 64-Bit Server VM (build 25.181-b13, mixed mode)
##这样就可以了
2.5.迁移源表结构到oceanbase
mysqldump -uroot -p111111 -h192.168.61.144 --set-gtid-purged=OFF test t2 -d > /tmp/test_obj.sql #导出test库的t2表结构
传输到oceanbase服务器执行
root@db 16:13: [my_ob]>source /tmp/test_obj.sql
Query OK, 0 rows affected (0.006 sec)
ERROR 1064 (42000): You have an error in your SQL syntax; check the manual that corresponds to your OceanBase version for the right syntax to use near '--' at line 1
Query OK, 0 rows affected (0.002 sec)
root@db 16:15: [my_ob]>show create table t2;
+-------+-------------------------------------------------------------------------------------------------
| Table | Create Table |
+-------+--------------------------------------------------------------------------------------------------
`name` varchar(20) DEFAULT NULL,
`sex` varchar(2) DEFAULT NULL,
`age` int(11) DEFAULT NULL,
`birth_date` date DEFAULT NULL,
`id_code` varchar(18) DEFAULT NULL,
PRIMARY KEY (`id`)
) DEFAULT CHARSET = utf8mb4 ROW_FORMAT = DYNAMIC COMPRESSION = 'zstd_1.3.8' REPLICA_NUM = 1 BLOCK_SIZE = 16384 USE_BLOOM_FILTER = FALSE TABLET_SIZE = 134217728 PCTFREE = 0 |
+-------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------2.6.启动datax
[admin@obcp datax]$ cd bin/
[admin@obcp bin]$ ll
总用量 40
-rw-r--r-- 1 admin admin 9339 8月 21 17:07 datax.py
-rw-r--r-- 1 admin admin 6906 8月 21 17:07 dxprof.py
-rw-r--r-- 1 admin admin 17024 8月 21 17:07 perftrace.py
[admin@obcp bin]$ chmod +x * #加执行权限
###下面要注意，装jdk的路径要保证admin用户可以有权访问，否则会报错
[admin@obcp datax]$ bin/datax.py job/mysql_oc.json
DataX (DATAX-OPENSOURCE-3.0), From Alibaba !
Copyright (C) 2010-2017, Alibaba Group. All Rights Reserved.
经DataX智能分析,该任务最可能的错误原因是:
com.alibaba.datax.common.exception.DataXException: Code:[DBUtilErrorCode-03], Description:[您缺失了必须填写的参数值.]. - 您提供配置文件有误，[jdbcUrl]是必填参数，不允许为空或者留白 .
######报错了#####
#仔细检查了下jdbcUrl，，写成全小写了
################
改完再次运行，又报错了，oceanbase的机器没有mysql环境，重新配置了个mysql
（用2881登陆obdemo集群报错了，改到2883端口了）
#终于不报错了
2023-09-02 17:27:14.952 [0-0-0-writer] INFO ConcurrentTableWriterTask - start 2 insert task.
2023-09-02 17:27:14.980 [0-0-0-writer] INFO ConcurrentTableWriterTask - start 3 insert task.
2023-09-02 17:27:15.027 [0-0-0-writer] INFO ConcurrentTableWriterTask - start 4 insert task.
2023-09-02 17:27:15.104 [0-0-0-writer] INFO ConcurrentTableWriterTask - start 5 insert task.
2023-09-02 17:27:15.177 [0-0-0-writer] INFO ConcurrentTableWriterTask - start 6 insert task.
2023-09-02 17:27:15.212 [0-0-0-writer] INFO ConcurrentTableWriterTask - start 7 insert task.
2023-09-02 17:27:15.235 [0-0-0-writer] INFO ConcurrentTableWriterTask - start 8 insert task.
2023-09-02 17:27:15.268 [0-0-0-writer] INFO ConcurrentTableWriterTask - start 9 insert task.
2023-09-02 17:27:15.317 [0-0-0-writer] INFO ConcurrentTableWriterTask - start 10 insert task.
2023-09-02 17:27:15.441 [0-0-0-writer] INFO DBUtil - this is ob1_0 jdbc url.
2023-09-02 17:27:15.442 [0-0-0-writer] INFO DBUtil - this is ob1_0 jdbc url. user=obdemo:sys:root :url=jdbc:oceanbase://127.0.0.1:2883/my_ob?useLocalSessionState=true&allowBatch=true&allowMultiQuerie
s=true&reweiteBatchedStatements=true&yearIsDateType=false&zeroDateTimeBehavior=convertToNull&tinyInt1isBit=false&rewriteBatchedStatements=true
2023-09-02 17:27:15.506 [0-0-0-writer] INFO ColumnMetaCache - fetch columnMeta of table t2 success
2023-09-02 17:27:15.599 [0-0-0-writer] INFO CommonRdbmsWriter$Task - isMemstoreFull=false
2023-09-02 17:27:15.599 [0-0-0-writer] INFO ConcurrentTableWriterTask - ConcurrentTableWriter has put all task in queue, queueSize = 0, total = 1, finished = 1
2023-09-02 17:27:15.679 [taskGroup-0] INFO TaskGroupContainer - taskGroup[0] taskId[0] is successed, used[920]ms
2023-09-02 17:27:15.680 [taskGroup-0] INFO TaskGroupContainer - taskGroup[0] completed it's tasks.
2023-09-02 17:27:24.722 [job-0] INFO StandAloneJobContainerCommunicator - Total 4 records, 134 bytes | Speed 13B/s, 0 records/s | Error 0 records, 0 bytes |
All Task WaitWriterTime 0.001s | All Task WaitReaderTime 0.000s | Percentage 100.00%
2023-09-02 17:27:24.722 [job-0] INFO AbstractScheduler - Scheduler accomplished all tasks.
2023-09-02 17:27:24.794 [job-0] INFO JobContainer - DataX Writer.Job [oceanbasev10writer] do post work.
2023-09-02 17:27:24.795 [job-0] INFO JobContainer - DataX Reader.Job [mysqlreader] do post work.
2023-09-02 17:27:24.795 [job-0] INFO JobContainer - DataX jobId [0] completed successfully.
2023-09-02 17:27:24.796 [job-0] INFO HookInvoker - No hook invoked, because base dir not exists or is a file: /home/admin/datax/hook
2023-09-02 17:27:24.799 [job-0] INFO JobContainer -
[total cpu info] =>
averageCpu | maxDeltaCpu | minDeltaCpu
-1.00% | -1.00% | -1.00%
[total gc info] =>
NAME | totalGCCount | maxDeltaGCCount | minDeltaGCCount | totalGCTime | maxDeltaGCTime | minDeltaGCTime
PS MarkSweep | 1 | 1 | 1 | 0.263s | 0.263s | 0.263s
PS Scavenge | 1 | 1 | 1 | 0.296s | 0.296s | 0.296s
2023-09-02 17:27:24.799 [job-0] INFO JobContainer - PerfTrace not enable!
2023-09-02 17:27:24.799 [job-0] INFO StandAloneJobContainerCommunicator - Total 4 records, 134 bytes | Speed 13B/s, 0 records/s | Error 0 records, 0 bytes |
All Task WaitWriterTime 0.001s | All Task WaitReaderTime 0.000s | Percentage 100.00%
2023-09-02 17:27:24.801 [job-0] INFO JobContainer -
任务启动时刻 : 2023-09-02 17:27:10
任务结束时刻 : 2023-09-02 17:27:24
任务总计耗时 : 14s
任务平均流量 : 13B/s
记录写入速度 : 0rec/s
读出记录总数 : 4
读写失败总数 : 0ok，看样子导入成功了，部分报错无影响哈
2.7.检查数据
root@db 17:26: [(none)]>select * from my_ob.t2;
+----+-----------------+------+------+------------+--------------------+
| id | name | sex | age | birth_date | id_code |
+----+-----------------+------+------+------------+--------------------+
| 1 | 张三 | 男 | 18 | 2000-01-01 | 131011200001010286 |
| 2 | 张三丰 | 男 | 99 | 1924-09-09 | 131011192409090287 |
| 3 | 张三疯了 | 男 | 88 | 1934-06-24 | 131011193409090288 |
| 4 | 张三疯了吧 | 男 | 55 | 1964-06-24 | 131011196409090289 |
+----+-----------------+------+------+------------+--------------------+
4 rows in set (0.044 sec)
ok，使用datax进行简单的离线数据迁移完成了，后续的canal 和 导出csv等等后边再继续搞了，第一次操作这个，还是很多预想不到的问题，虽然不是大问题，但是一卡一卡的也难受呀，哈哈，搞一次出来就好了
电脑内存还是太小了，跑多了会卡，，先搞到这吧！
