Mogdb兼容性

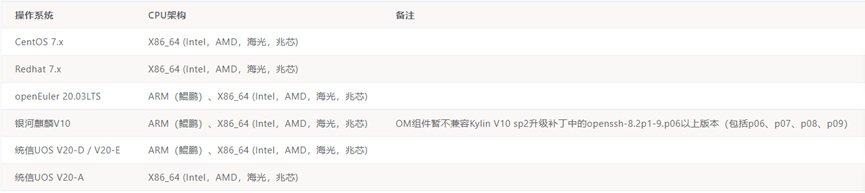

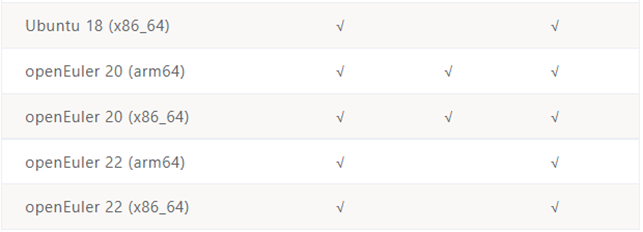

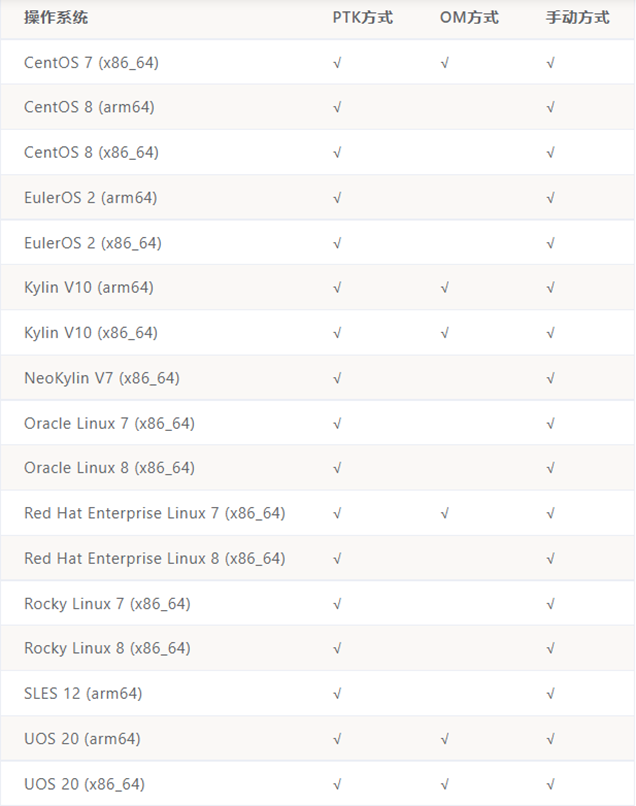

支持以下操作系统及CPU架构组合：
Mogdb环境要求
2.1硬件环境要求

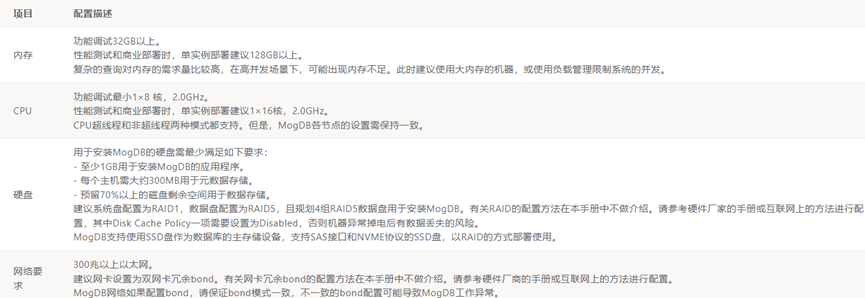

下表列出了MogDB服务器应具备的最低硬件要求。在实际产品中，硬件配置的规划需考虑数据规模及所期望的数据库响应速度。请根据实际情况进行规划。

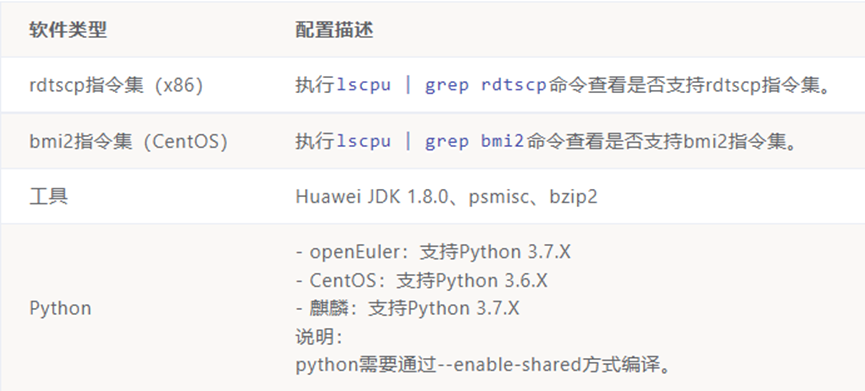

2.2软件环境要求

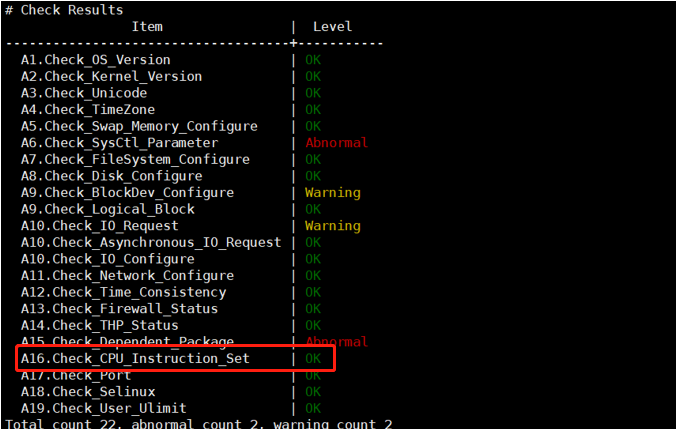

如果OS检查时，出现Check_CPU_Instruction_Set为Abnormal，则需要关注cpu指令集
2.3操作系统要求

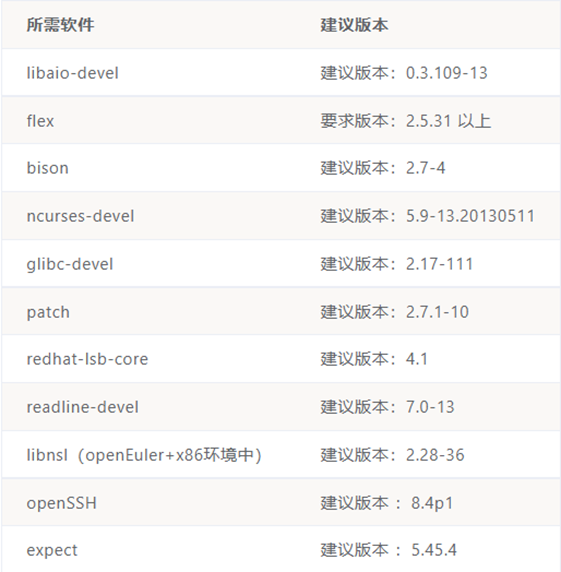

2.4 软件依赖要求
mogdb安装准备
关闭防火墙和禁用selinux
[root@localhost1 ~]# systemctl status firewalld
firewalld.service - firewalld - dynamic firewall daemon
Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)
Active: inactive (dead)
Docs: man:firewalld(1)
[root@localhost1 ~]# cat /etc/selinux/config |grep SELINUX
# SELINUX= can take one of these three values:
SELINUX=disabled
# SELINUXTYPE= can take one of these three values:
SELINUXTYPE=targeted
检查字符集和时区
[root@localhost2 ~]# echo $LANG
en_US.UTF-8
[root@localhost1 ~]# date
Tue Jul 4 15:51:08 CST 2023
关闭transparent hugepage
[root@localhost1 zcloud]# cat /sys/kernel/mm/transparent_hugepage/enabled
always madvise [never]
ptk安装
上传ptk包到/zcloud目录下
[root@localhost1 zcloud]# tar xf ptk_linux_arm64.tar.gz
[root@localhost1 zcloud]# ls -l
total 226116
drwx------ 2 root root 16384 Jun 9 16:15 lost+found
-rw-r--r-- 1 root root 134460837 Jul 4 16:08 MogDB-3.0.4-openEuler-arm64.tar.gz
-rwxr-xr-x 1 501 games 54788096 Jun 28 18:39 ptk
-rw-r--r-- 1 root root 19272900 Jul 4 16:08 ptk_linux_arm64.tar.gz
-rw-r--r-- 1 501 games 237 Nov 29 2022 README.md
Python版本检查
[root@localhost1 Python-3.6.5]# python3 -V
Python 3.7.9
配置文件修改
生成密码的加密串
[root@localhost1 zcloud]# /zcloud/ptk encrypt Mogdb#123
Mogdb#123: pTk6MmU2OGU1MDI8QzxAPj0/Q1F1U25uSUVBOFlrdHV0Tzl6clNqa1Rxd2FwVWstU0VOclpCQnRIQ0RjVE0=
修改config.yaml文件
[root@localhost1 soft]# cat config.yaml
global:
cluster_name: mogdb_cluster1
user: omm
group: omm
base_dir: /zcloud/mogdb/mogdb0704
db_servers:
- host: xx.xxx.xxx.xxx --需要安装mogdb的主机
db_port: 26000
role: primary
ssh_option:
port: 22
user: root
password:
- host: xx.xxx.xxx.xxx --需要安装mogdb的主机
db_port: 26000
role: standby
ssh_option:
port: 22
user: root
password:
验证环境

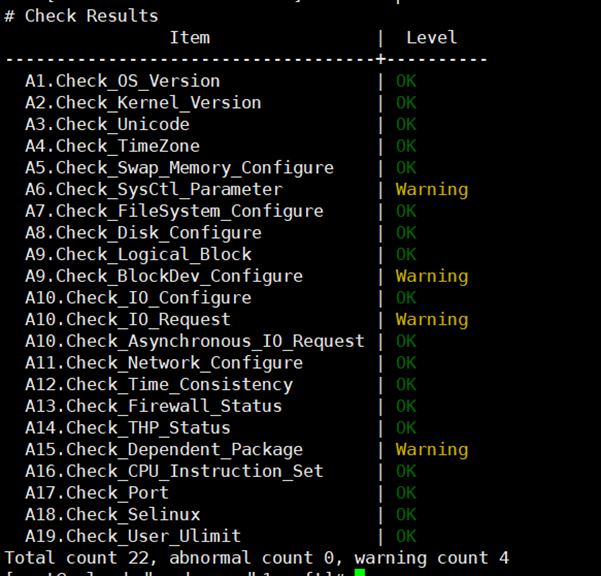

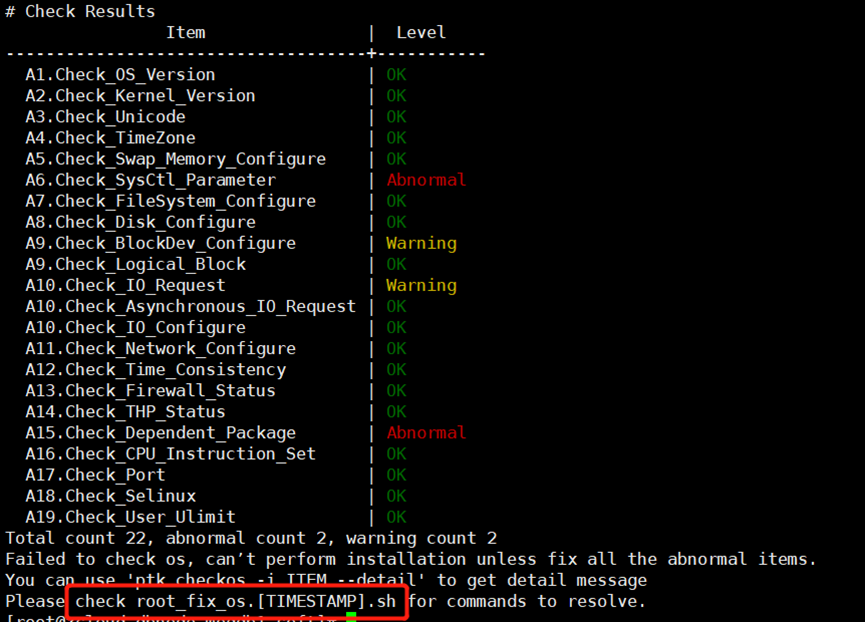

[root@localhost1 soft]# /zcloud/ptk checkos -f config.yaml
并会在当前目录下生成一个root_fix_os.2023.0704.215812.sh文件，执行该脚本，修复问题。该脚本在两个节点上都要运行
安装mogdb

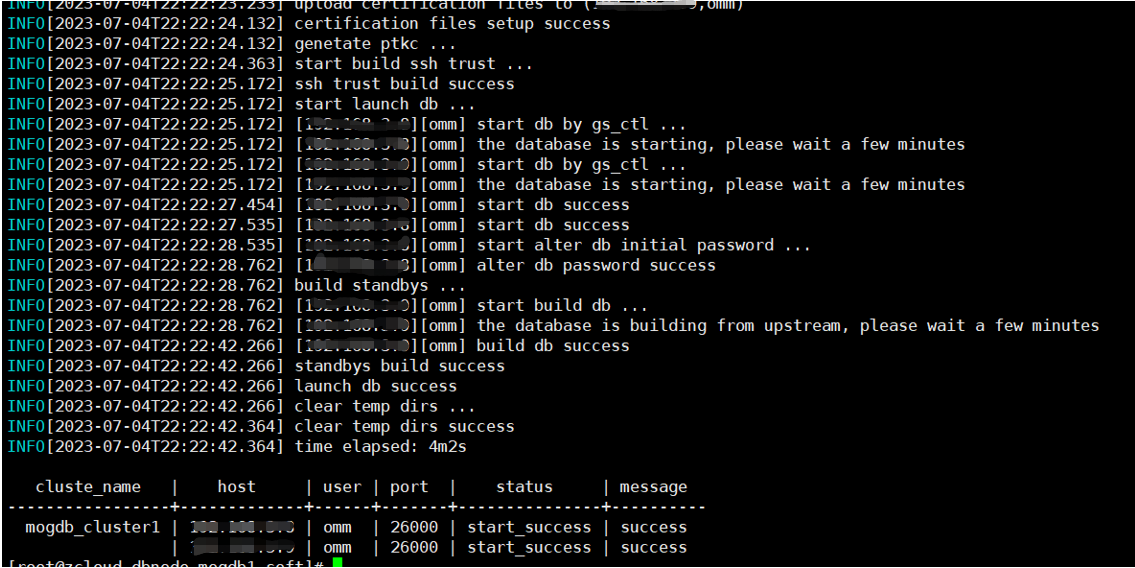

[root@localhost1 soft]# /zcloud/ptk install -f config.yaml --pkg ./MogDB-3.0.4-openEuler-arm64.tar.gz

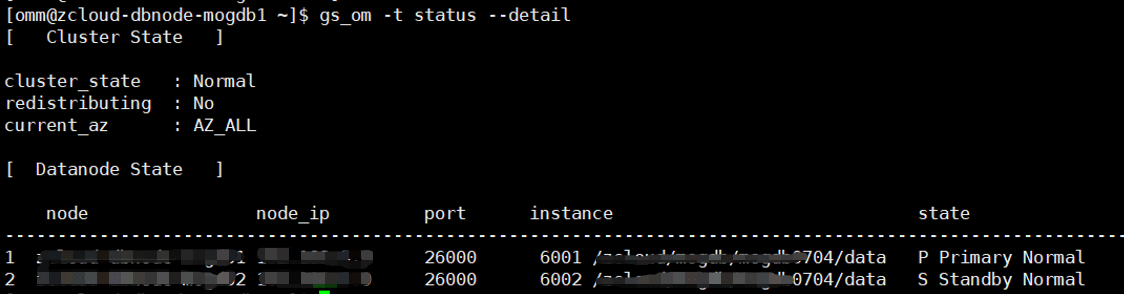

查看主备状态
[omm@localhost1 ~]$ gs_om -t status --detail
mogha安装
mogha安装前检查
gsql和pg_ctl免密执行
[omm@localhost1 ~]$ gsql
gsql ((MogDB 3.0.4 build cc068866) compiled at 2023-03-03 18:35:11 commit 0 last mr )
Non-SSL connection (SSL connection is recommended when requiring high-security)
Type "help" for help.
MogDB-# \q
[omm@zcloud-dbnode-mogdb1 ~]$ gs_ctl -D $PGDATA query
[2023-07-05 14:25:06.552][229973][][gs_ctl]: gs_ctl query ,datadir is /**/**/mogdb0704/data
HA state:
local_role : Primary
static_connections : 1
db_state : Normal
detail_information : Normal
Senders info:
sender_pid : 53045
local_role : Primary
peer_role : Standby
peer_state : Normal
state : Streaming
sender_sent_location : 0/6AB1000
sender_write_location : 0/6AB1000
sender_flush_location : 0/6AB1000
sender_replay_location : 0/6AB1000
receiver_received_location : 0/6AB1000
receiver_write_location : 0/6AB1000
receiver_flush_location : 0/6AB1000
receiver_replay_location : 0/6AB1000
sync_percent : 100%
sync_state : Sync
sync_priority : 1
sync_most_available : On
channel : xxx.xxxx.xxx.xxx:26001-->xxx.xxxx.xxx.xxx:56504
Receiver info:
数据库安装用户omm有sudo权限
在/etc/sudoers添加（两个节点都要执行）
omm ALL=(ALL) NOPASSWD: ALL
安装mogha
上传mogha-2.4.11-CentOS-x86_64.tar.gz，并解压，两个节点都要运行

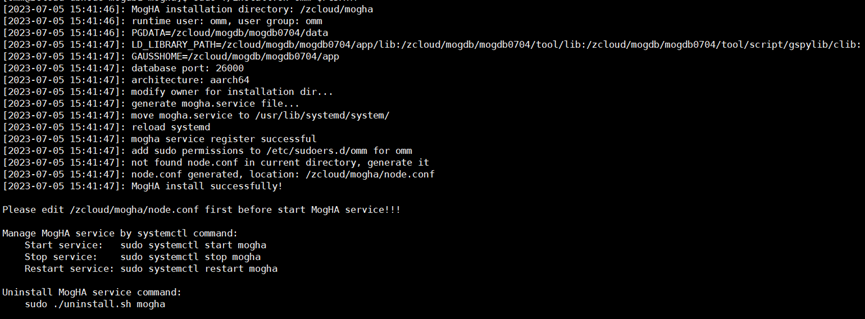

[omm@localhost1 mogha]$ sudo ./install.sh omm $PGDATA

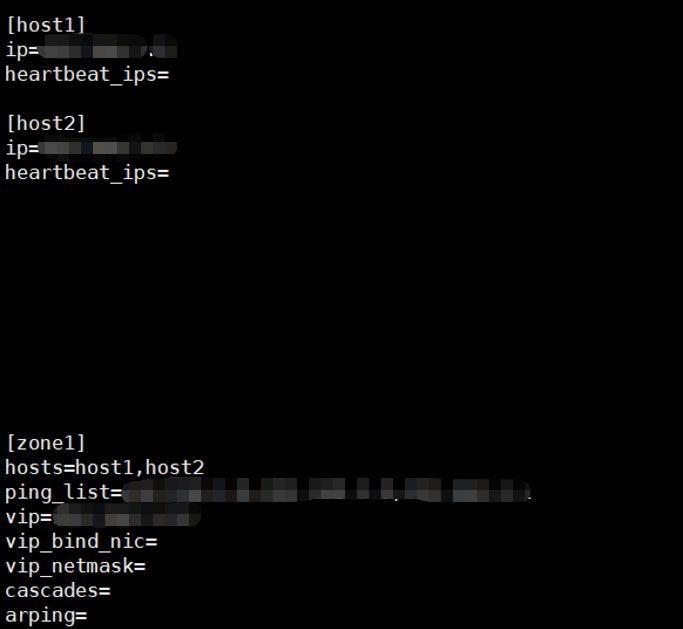

修改node.conf文件

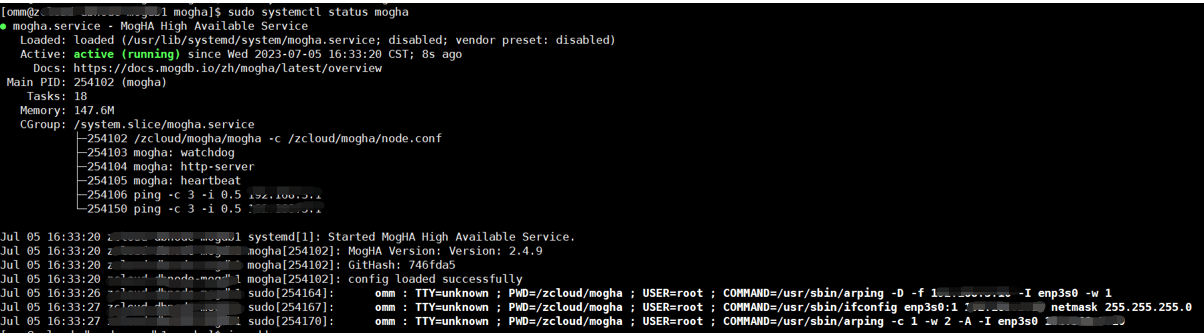

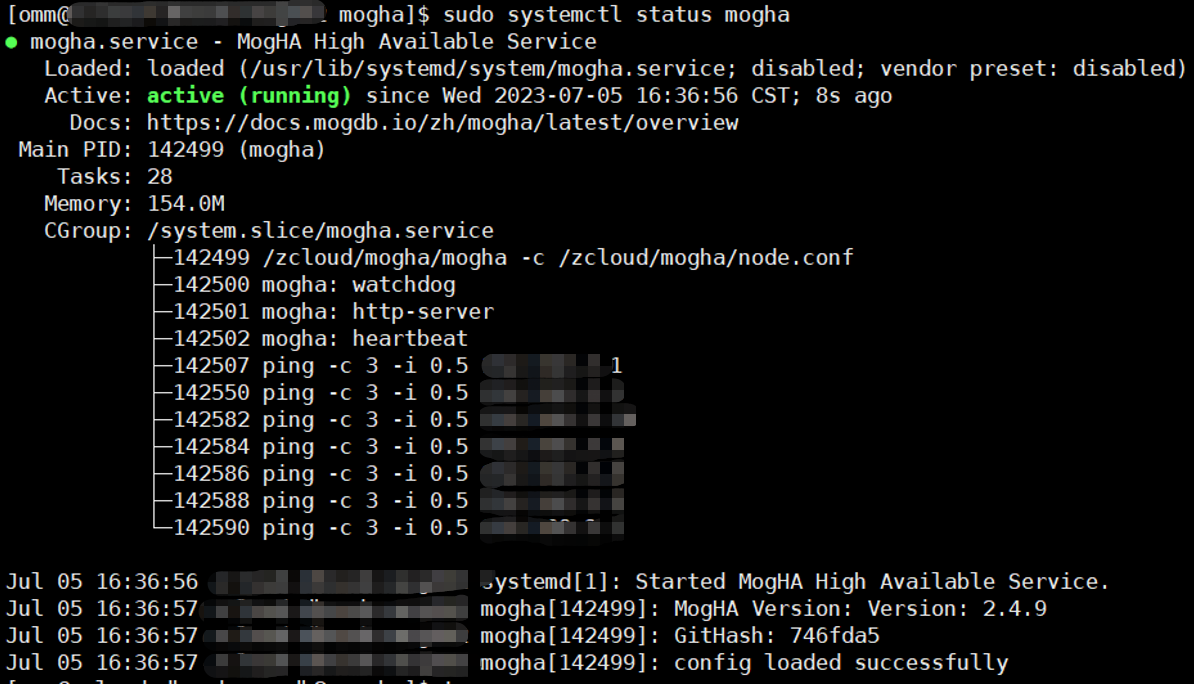

启动mogha服务
[omm@localhost1 mogha]$ sudo systemctl start mogha
备用节点启动mogha
设置开机自启动
[omm@localhost1 mogha]$ sudo systemctl enable mogha
[omm@localhost2 mogha]$ sudo systemctl enable mogha
高可用切换

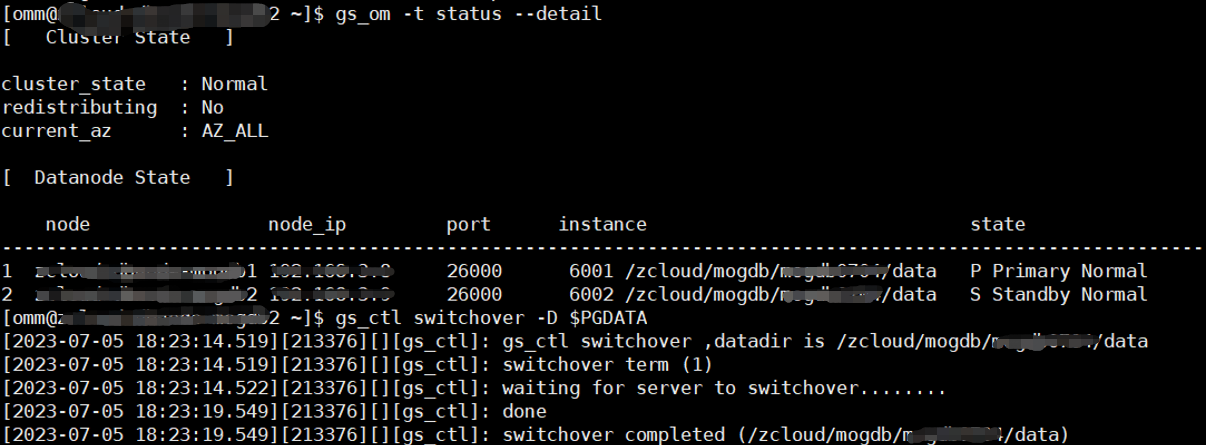

在备库上执行，先查看备库的状态，在执行gs_ctl switchover -D $PGDATA

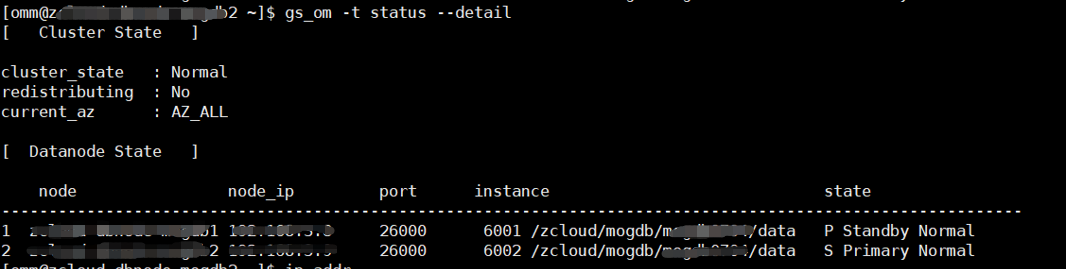

同时vip也漂移到新的primary。
