基于ARM的OceanBase4.2双节点安装

软硬件环境

前提条件

oceanbase-all-in-one-4.2.1.0-100120231013145059.el7.aarch64.tar.gz安装介质一个，

在两个节点进行解压，并执行./bin/install.sh

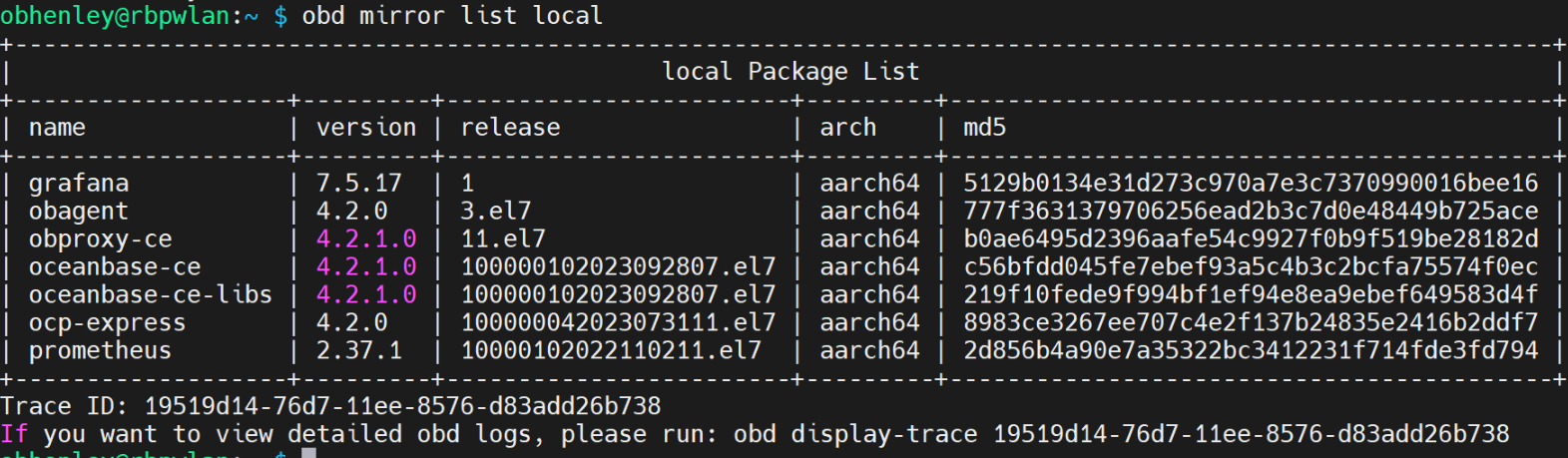

确定两边都有OBD环境与离线安装的介质 ，运行 obd mirror list local

准备好调整集群配置文件ob.yaml

## Only need to configure when remote login is required
user:
   username: obhenley
   password: Gxxx@xxxx
#   key_file: your ssh-key file path if need
#   port: your ssh port, default 22
#   timeout: ssh connection timeout (second), default 30
oceanbase-ce:
  servers:
    - name: z1
      # Please don't use hostname, only IP can be supported
      ip: 192.168.10.12
    - name: z2
      ip: 192.168.10.19
  global:
    # Please set devname as the network adaptor's name whose ip is  in the setting of severs.
    # if set severs as "127.0.0.1", please set devname as "lo"
    # if current ip is 192.168.1.10, and the ip's network adaptor's name is "eth0", please use "eth0"
    devname: eth0
    cluster_id: 1
    # please set memory limit to a suitable value which is matching resource.
    memory_limit: 6G
    system_memory: 1G
    stack_size: 512K
    cpu_count: 16
    cache_wash_threshold: 1G
    __min_full_resource_pool_memory: 268435456
    workers_per_cpu_quota: 10
    schema_history_expire_time: 1d
    # The value of net_thread_count had better be same as cpu's core number.
    net_thread_count: 4
    major_freeze_duty_time: Disable
    minor_freeze_times: 10
    enable_separate_sys_clog: 0
    enable_merge_by_turn: FALSE
    datafile_disk_percentage: 20
    syslog_level: INFO
    enable_syslog_recycle: true
    max_syslog_file_count: 4
    # observer cluster name, consistent with obproxy's cluster_name
    appname: ob_cluster
    root_password: 123456
    proxyro_password: 123456
  z1:
    mysql_port: 2881
    rpc_port: 2882
    home_path: /home/obhenley/observer
    zone: zone1
  z2:
    mysql_port: 2881
    rpc_port: 2882
    home_path: /home/obhenley/observer
    zone: zone2
obproxy:
  servers:
    - 192.168.10.12
  global:
    listen_port: 2883
    prometheus_listen_port: 2884
    home_path: /home/obhenley/obproxy
    # oceanbase root server list
    # format: ip:mysql_port,ip:mysql_port
    rs_list: 192.168.10.12:2881;192.168.10.19:2881
    enable_cluster_checkout: false
    # observer cluster name, consistent with oceanbase-ce's appname
    cluster_name: ob_cluster
    obproxy_sys_password: 123456
    observer_sys_password: 123456

安装执行

正式配置集群，运行以下命令obd cluster deploy ob-cluster -c ./ob.yaml

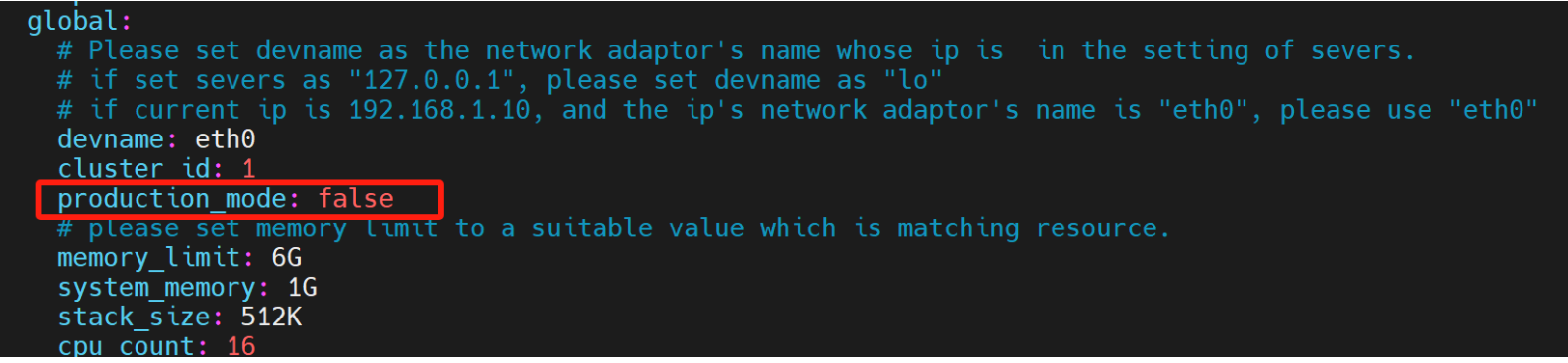

过程中可能会提示when production_mode is True,你可以选择把production_mode 变成false

obd cluster edit-config ob-cluster

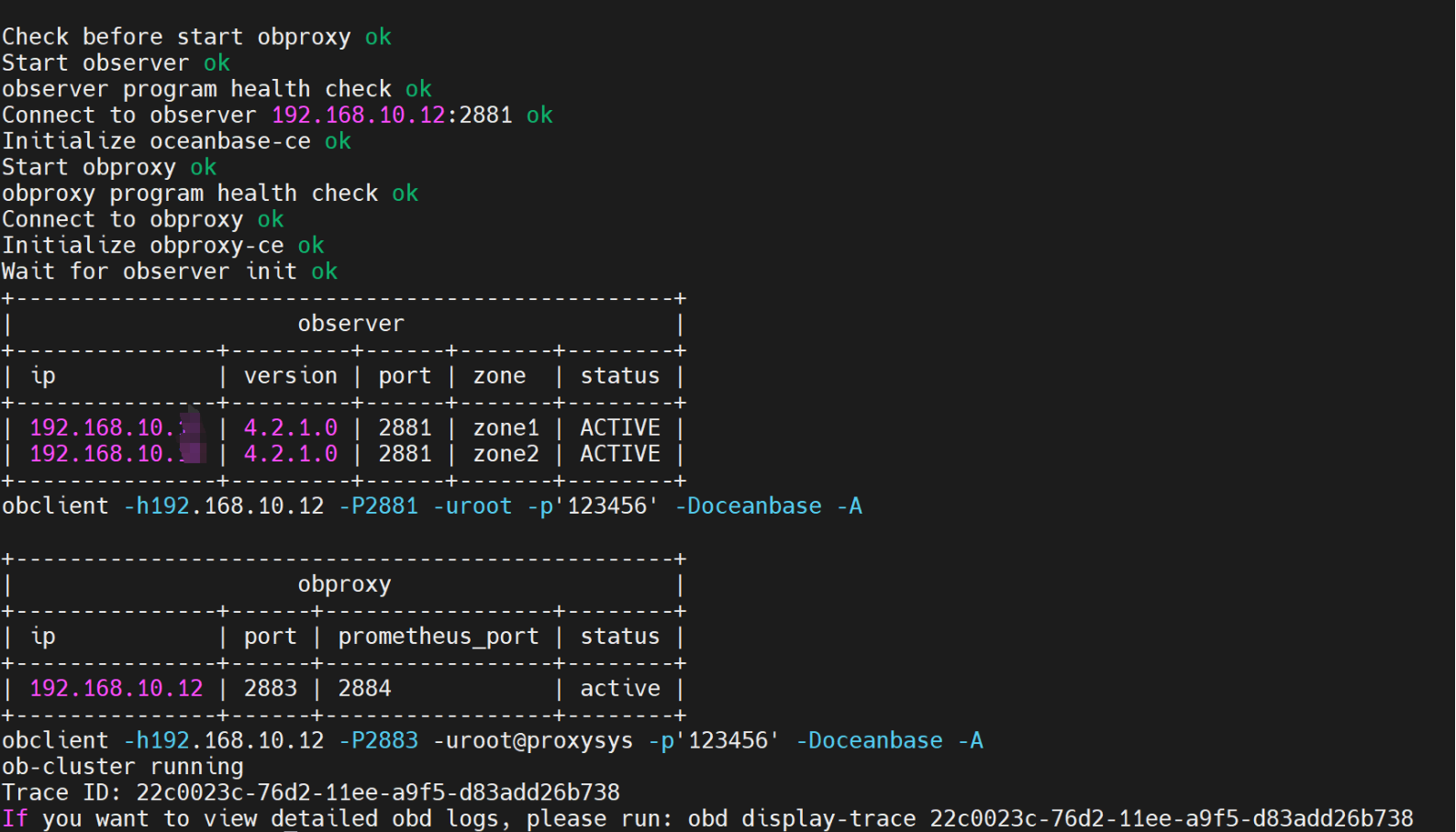

启动集群服务obd cluster start ob-cluster

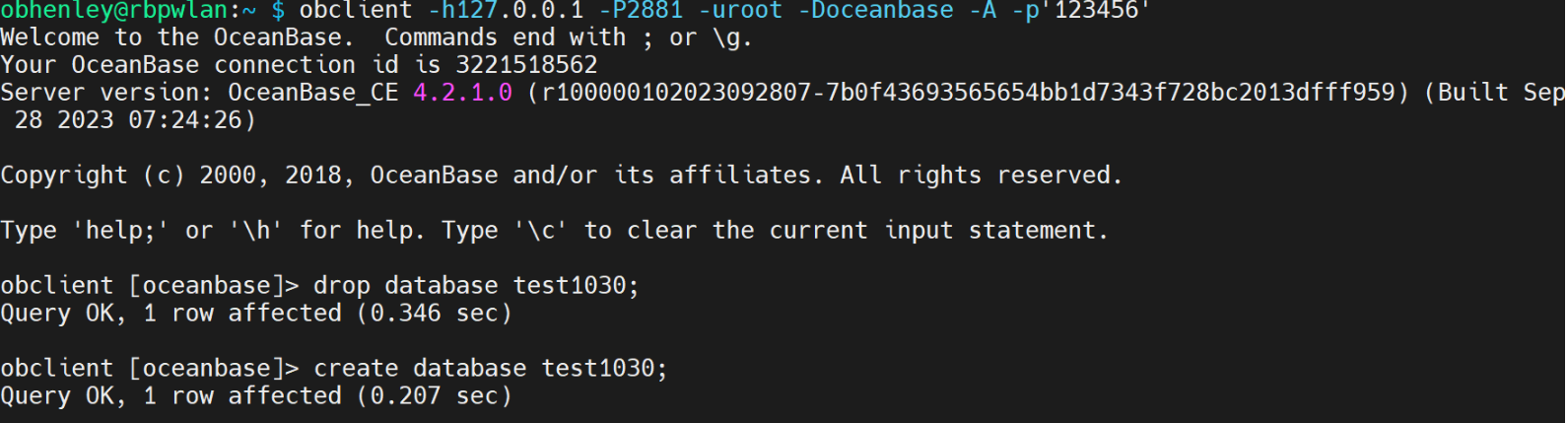

进往集群服务obclient -h127.0.0.1 -P2881 -uroot -Doceanbase -A -p'123456'

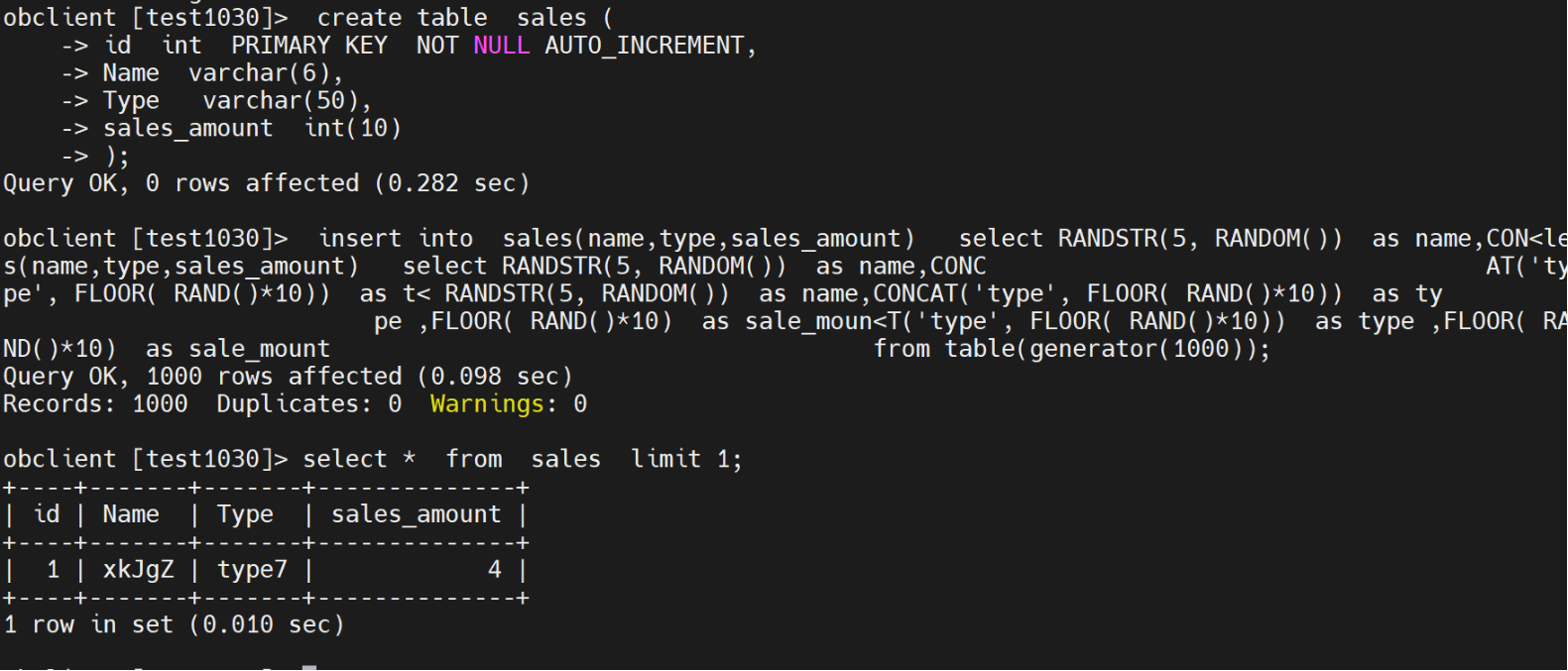

基于ARM的OceanBase双节点安装成功！！
