@SpringBootApplication 之 @EnableAutoConfiguration

TechStyle 2021-06-24

1296

原理

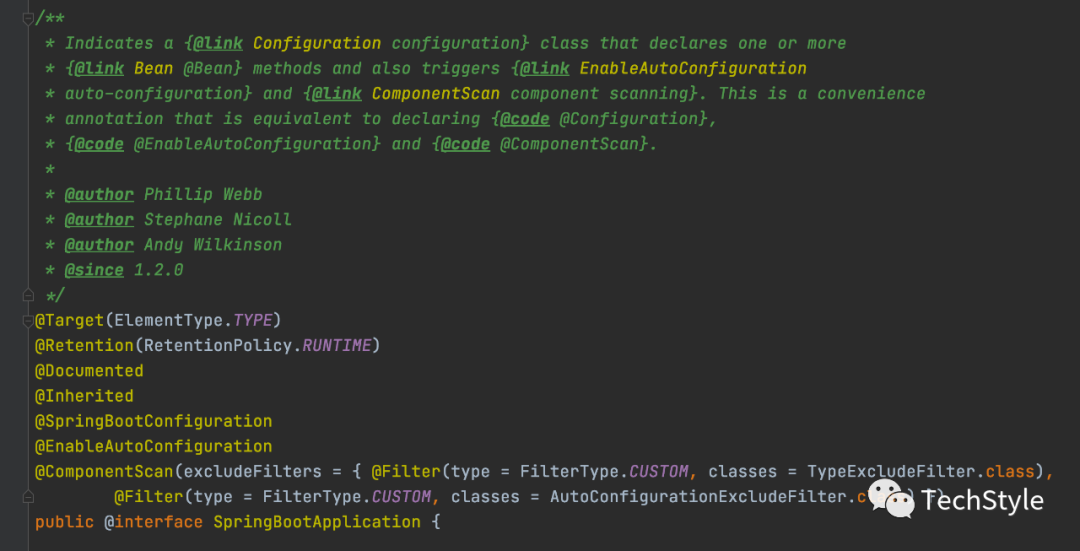

@SpringBootApplication 是一个复合注解，包括

@SpringBootConfiguration
@EnableAutoConfiguration
@ComponentScan

这3个注解的作用就是把项目工程中定义的Bean 注入到 Spring IoC 容器中。

@EnableAutoConfiguration 源码

Note:

@Import 作用就是将指定的类实例注入到Spring IoC 容器中

@Import 分析

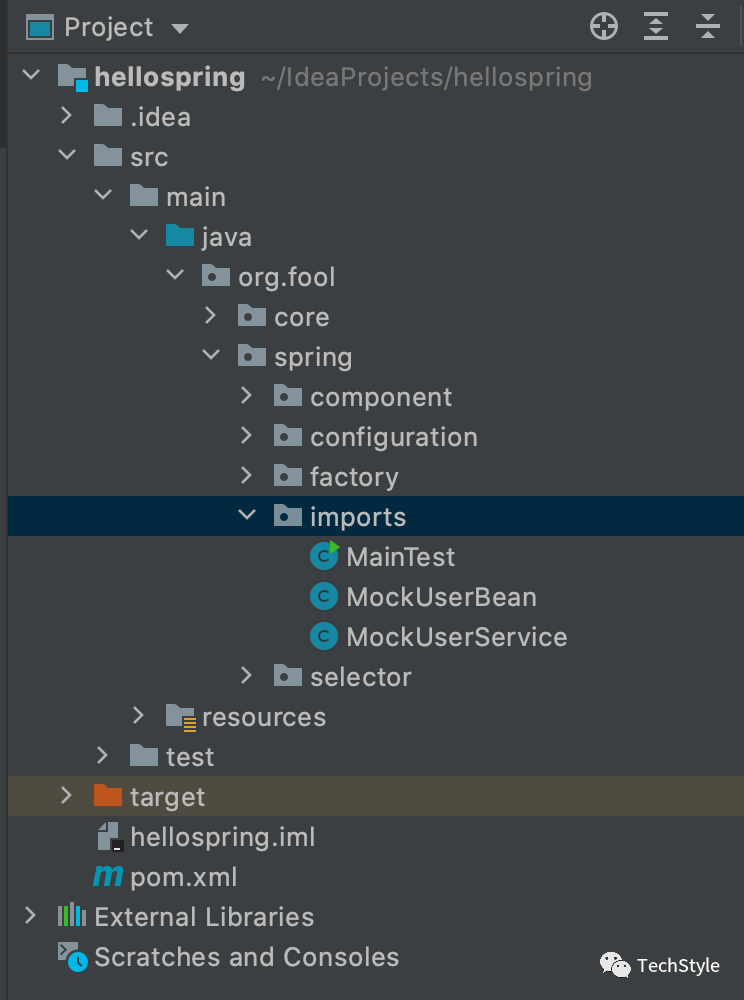

Project Directory

Maven Dependency

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>


    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.12.RELEASE</version>
        <relativePath/>
    </parent>


    <groupId>org.fool</groupId>
    <artifactId>hellospring</artifactId>
    <version>1.0-SNAPSHOT</version>


    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>


    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
    </dependencies>


    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>


</project>

SRC

MockUserBean.java

package org.fool.spring.imports;


public class MockUserBean {


}

MockUserService.java

package org.fool.spring.imports;


import org.springframework.context.annotation.Import;
import org.springframework.stereotype.Component;


@Component
@Import({MockUserBean.class})
public class MockUserService {


}

Note:

@Import({MockUserBean.class})

MainTest.java

package org.fool.spring.imports;


import org.springframework.context.ApplicationContext;
import org.springframework.context.annotation.AnnotationConfigApplicationContext;


public class MainTest {
    public static void main(String[] args) {
        ApplicationContext context = new AnnotationConfigApplicationContext(MockUserService.class);
        MockUserBean mockUserBean = context.getBean(MockUserBean.class);
        MockUserService mockUserService = context.getBean(MockUserService.class);
        System.out.println(mockUserBean);
        System.out.println(mockUserService);
    }
}

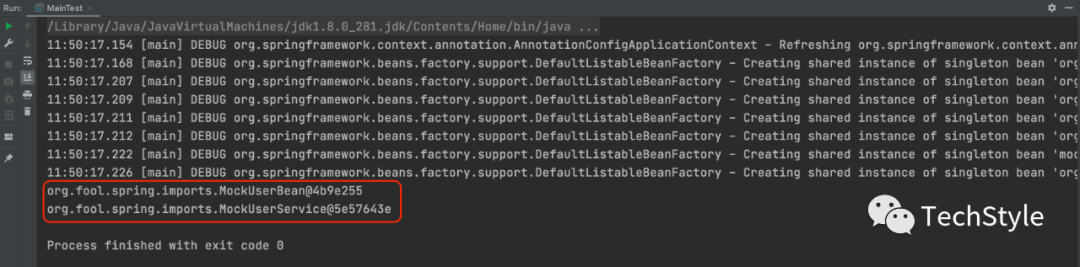

Run

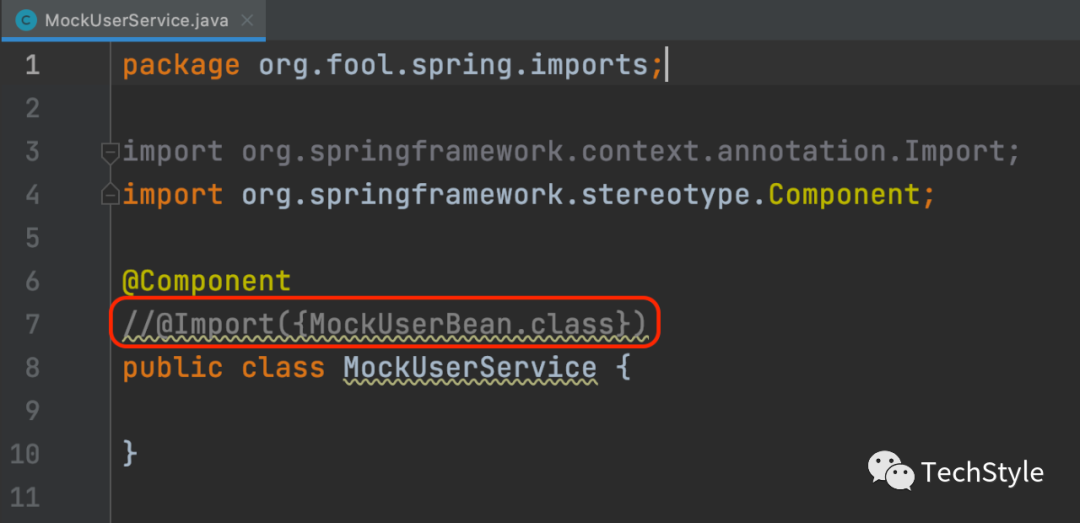

反之，如果将@Import 注释掉

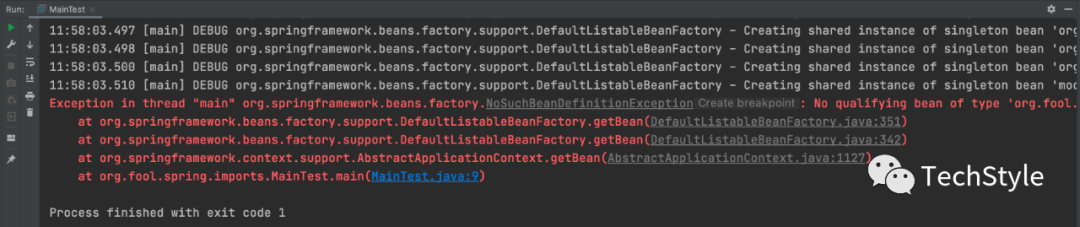

再次运行MainTest.java，会抛出异常

Exception in thread "main" org.springframework.beans.factory.NoSuchBeanDefinitionException: No qualifying bean of type 'org.fool.spring.imports.MockUserBean' available
    at org.springframework.beans.factory.support.DefaultListableBeanFactory.getBean(DefaultListableBeanFactory.java:351)
    at org.springframework.beans.factory.support.DefaultListableBeanFactory.getBean(DefaultListableBeanFactory.java:342)
    at org.springframework.context.support.AbstractApplicationContext.getBean(AbstractApplicationContext.java:1127)
    at org.fool.spring.imports.MainTest.main(MainTest.java:9)

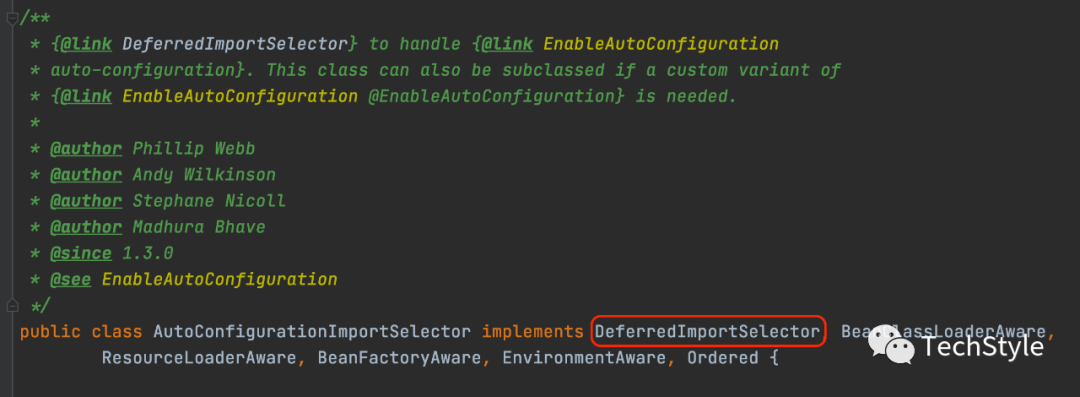

AutoConfigurationImportSelector 分析

Note: 重点关注 DeferredImportSelector

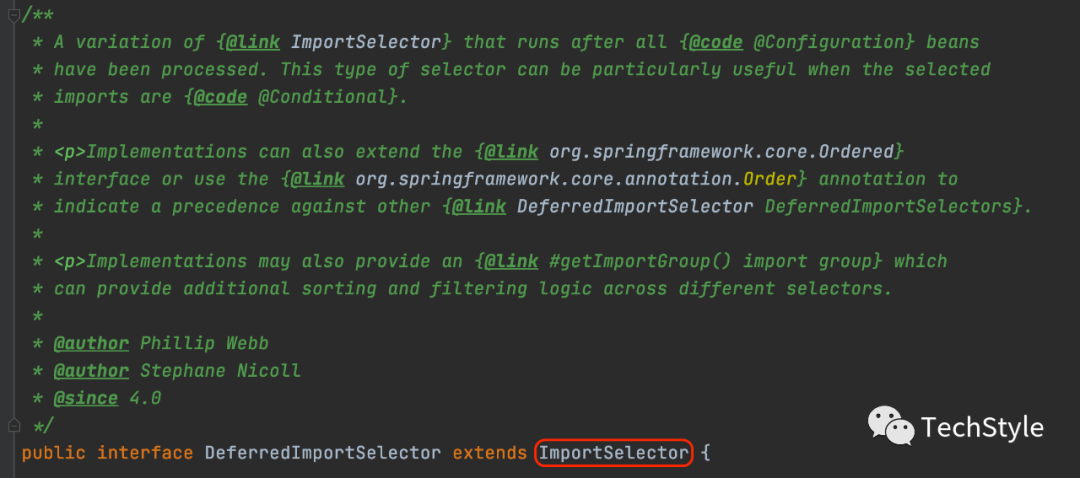

Note: 可以看到DeferredImportSelector 继承了 ImportSelector 接口

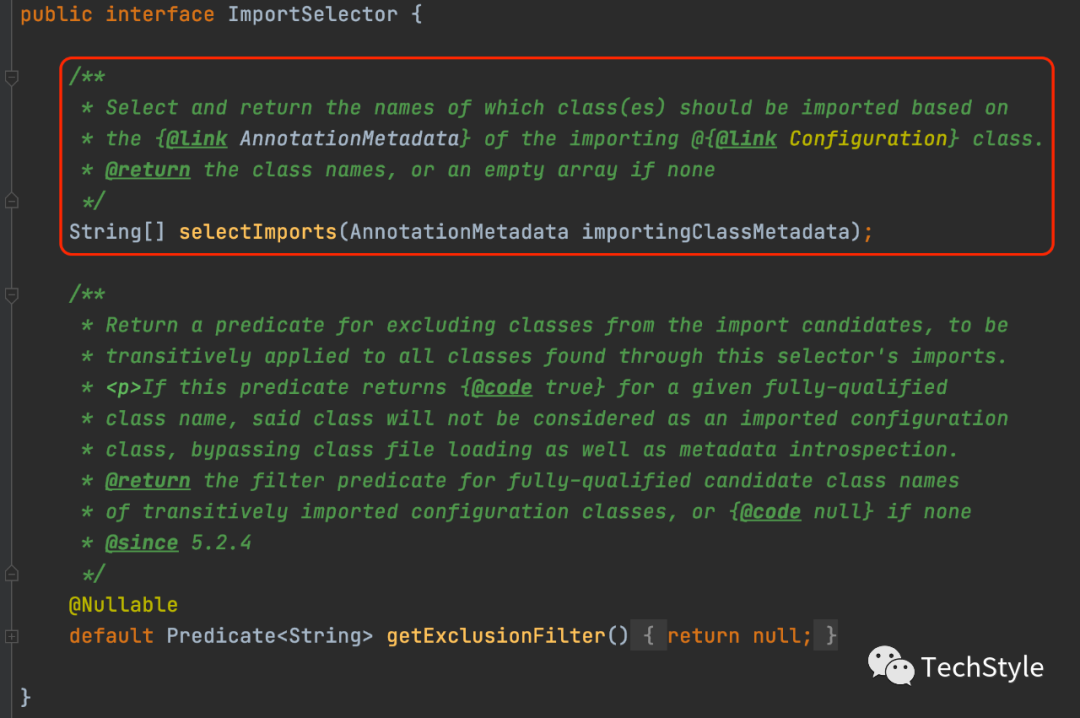

Note: ImportSelector 接口定义了一个selectImports 方法，英文注释写的很明白，选择哪些classes 需要被注册到Spring IoC 容器中，一般会和 @Import 注解一起使用。

自定义实现类似 @EnableAutoConfiguration 的注解

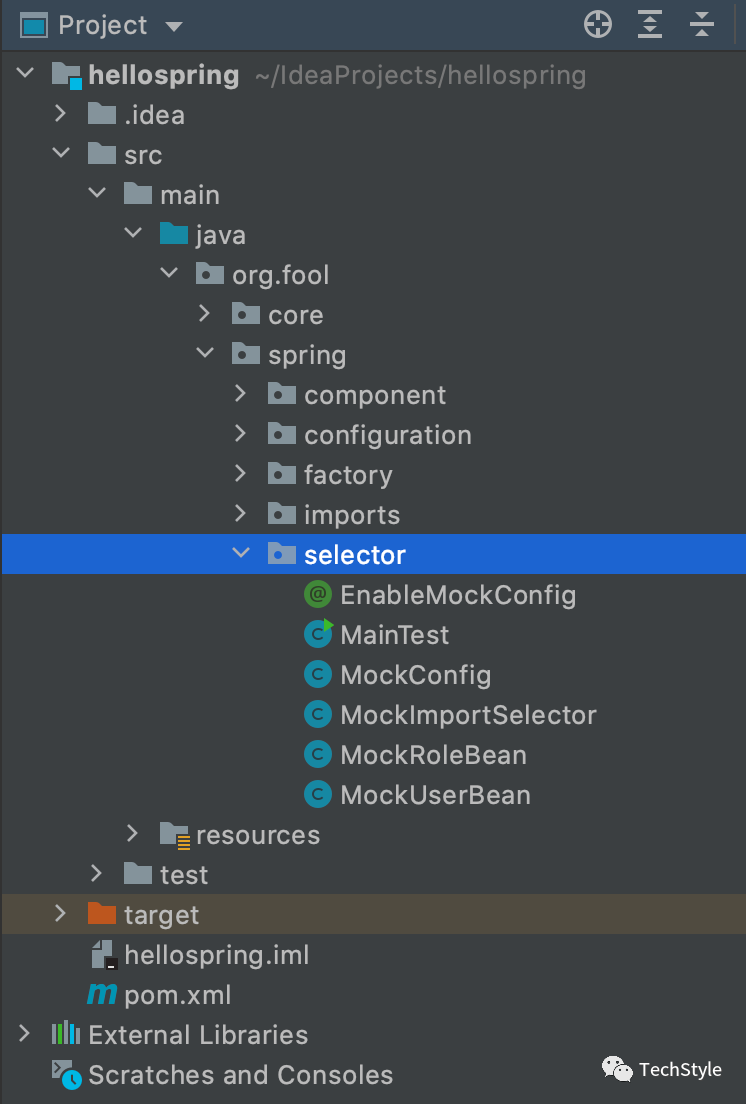

Project Directory

SRC

MockRoleBean.java

package org.fool.spring.selector;


public class MockRoleBean {
}

MockUserBean.java

package org.fool.spring.selector;


public class MockUserBean {
}

MockImportSelector.java

package org.fool.spring.selector;


import org.springframework.context.annotation.ImportSelector;
import org.springframework.core.type.AnnotationMetadata;


public class MockImportSelector implements ImportSelector {
    @Override
    public String[] selectImports(AnnotationMetadata annotationMetadata) {
        return new String[]{"org.fool.spring.selector.MockUserBean", "org.fool.spring.selector.MockRoleBean"};
    }
}

Note: MockImportSelector.java 实现了 ImportSelector 接口

EnableMockConfig.java

package org.fool.spring.selector;


import org.springframework.context.annotation.Import;


import java.lang.annotation.Documented;
import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;


@Retention(RetentionPolicy.RUNTIME)
@Documented
@Target(ElementType.TYPE)
@Import(MockImportSelector.class)
public @interface EnableMockConfig {
}

Note：@Import 注解和 MockImportSelector 一起使用

MockConfig.java

package org.fool.spring.selector;


@EnableMockConfig
public class MockConfig {
}

Note：MockConfig 使用了 @EnableMockConfig 注解

MainTest.java

package org.fool.spring.selector;


import org.springframework.context.ApplicationContext;
import org.springframework.context.annotation.AnnotationConfigApplicationContext;


public class MainTest {
    public static void main(String[] args) {
        ApplicationContext context = new AnnotationConfigApplicationContext(MockConfig.class);
        MockUserBean mockUserBean = context.getBean(MockUserBean.class);
        MockRoleBean mockRoleBean = context.getBean(MockRoleBean.class);
        System.out.println(mockUserBean);
        System.out.println(mockRoleBean);
    }
}

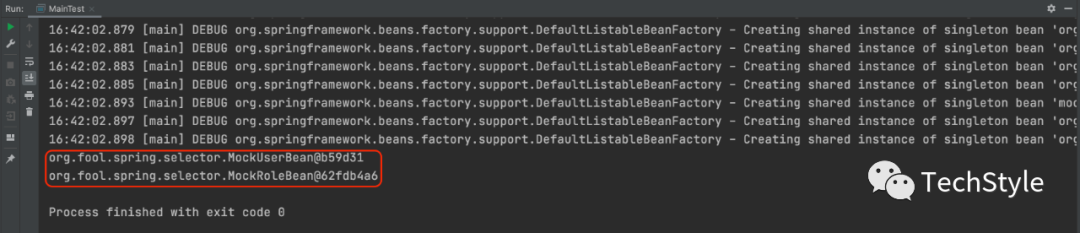

Run

深度剖析 @EnableAutoConfiguration

Debug 运行 Application.java

@SpringBootApplication
public class Application {
    public static void main(String[] args) {
        SpringApplication.run(Application.class, args);
    }
}

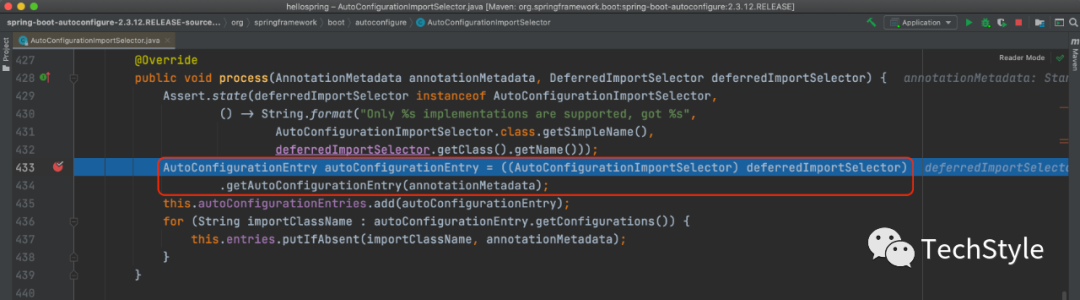

Debug Step1：选择要注册到Spring IoC 容器的classes

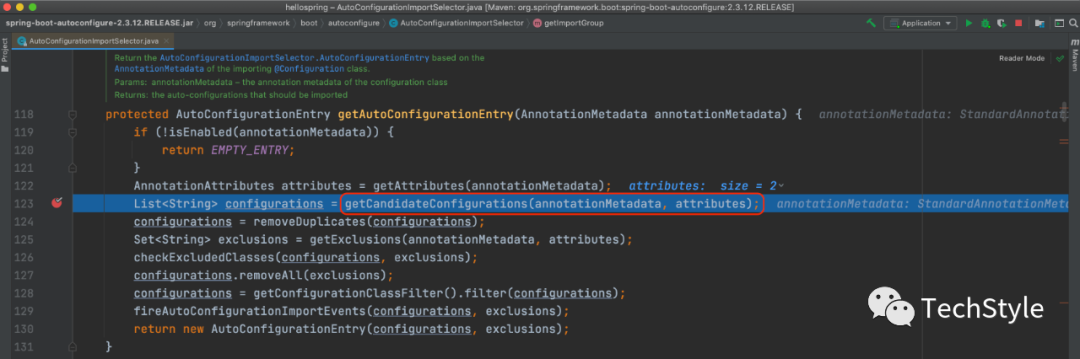

Debug Step2：

Debug Step3：

Debug Step4：

Debug Step5：

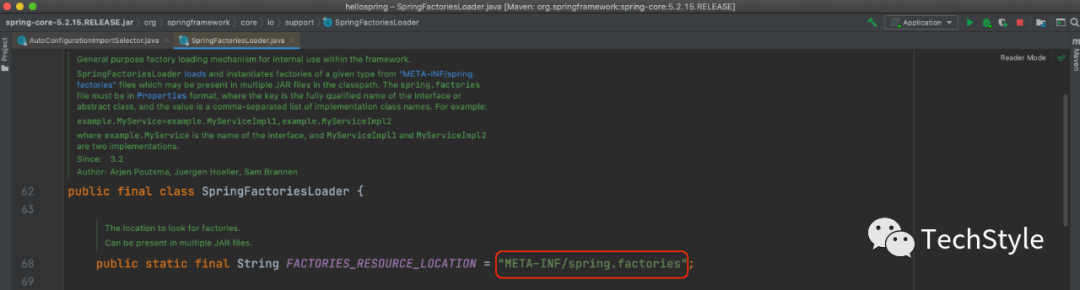

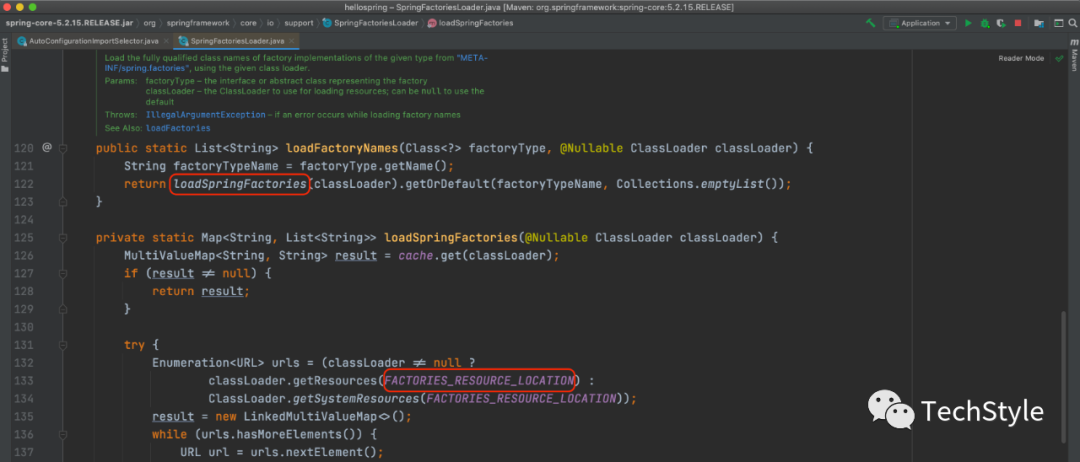

Debug Step6：spring.factories 是SpringBoot 的解耦扩展机制，这种机制实际上是仿照了Java SPI 扩展机制来实现的

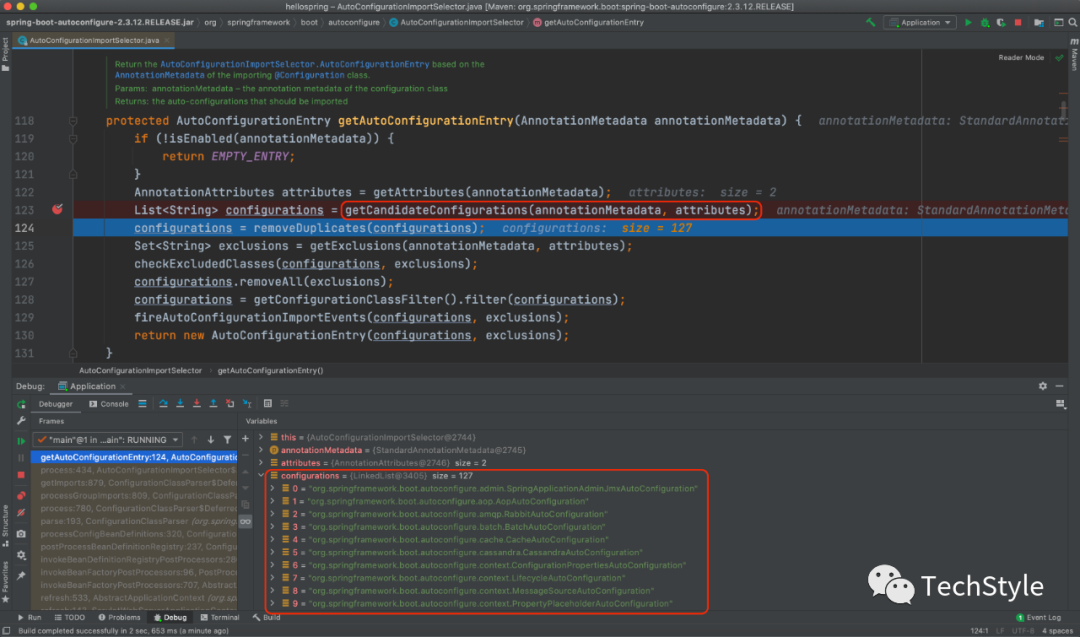

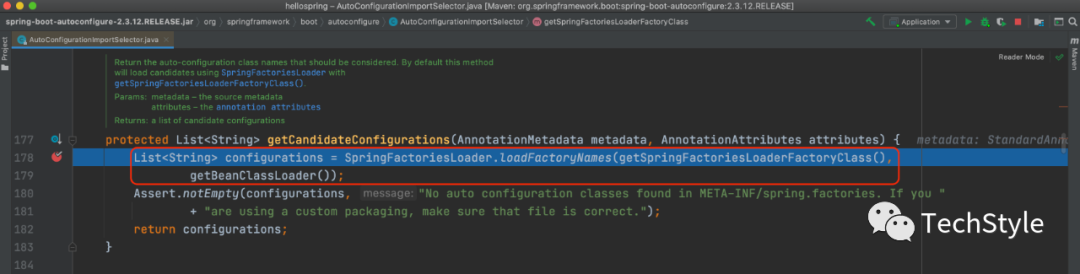

Debug Step7：执行完getCandidateConfigurations 方法后，可以看到在spring.factories 中的需要被装载到Spring IoC 容器中的127个classes

自定义实现 spring.factories

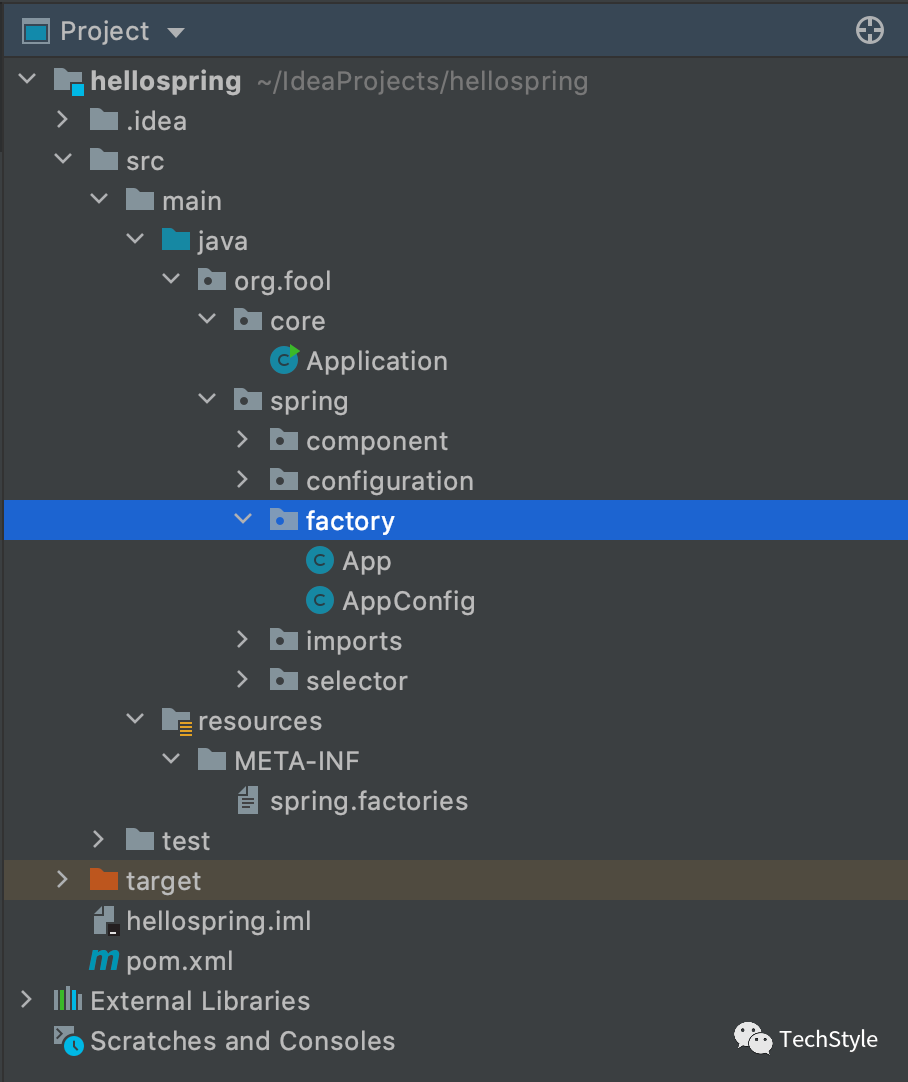

Project Directory

spring.factories

org.springframework.boot.autoconfigure.EnableAutoConfiguration=org.fool.spring.factory.AppConfig

SRC

App.java

package org.fool.spring.factory;


public class App {
    public String info() {
        return "app desc";
    }
}

AppConfig.java

package org.fool.spring.factory;


import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;


@Configuration
public class AppConfig {
    @Bean
    public App app() {
        return new App();
    }
}

Application.java

package org.fool.core;


import org.fool.spring.factory.App;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.ConfigurableApplicationContext;


@SpringBootApplication
public class Application {
    public static void main(String[] args) {
        ConfigurableApplicationContext context = SpringApplication.run(Application.class, args);
        App app = context.getBean(App.class);
        System.out.println(app.info());
    }
}

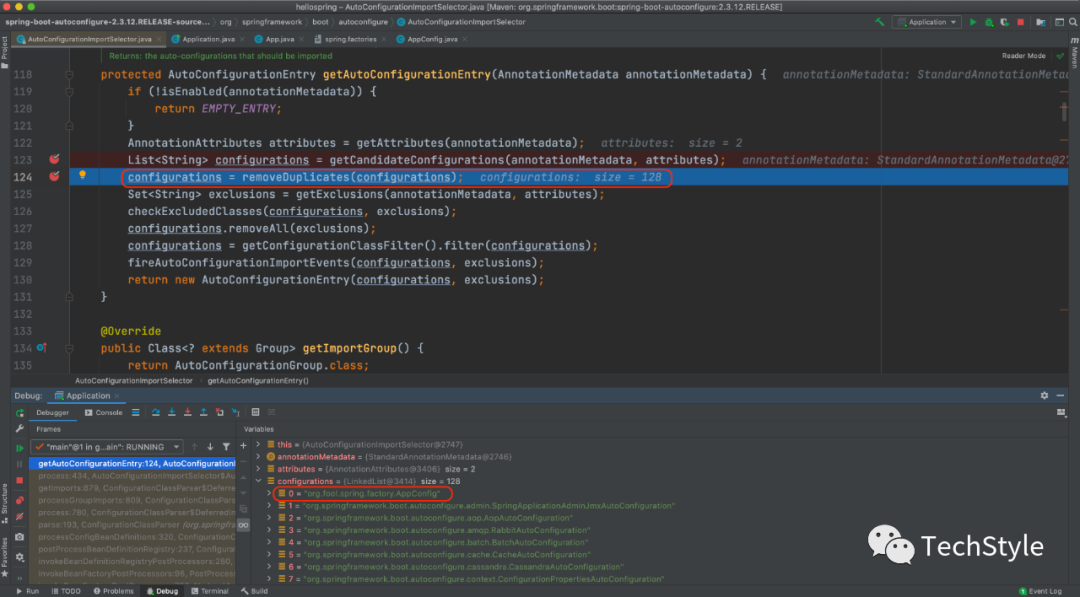

Debug Run

Note：自定义的AppConfig 已经被装载到Spring IoC 容器中

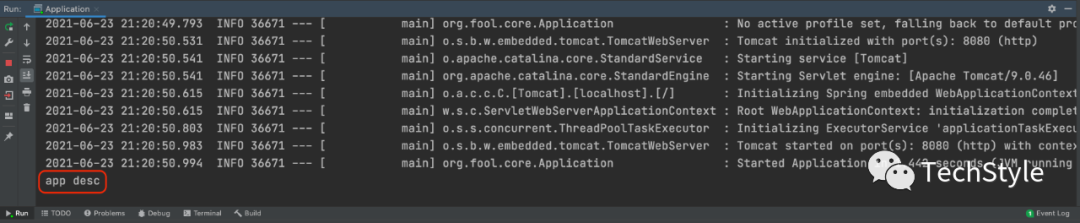

查看最后的启动结果

Note：

AppConfig.java 是在 org.fool.spring.factory 包下，而标注了@SpringBootApplication 注解的 Application.java 是在 org.fool.core 包下，两个类属于不同包。

所以，如果SpringBoot 装载不在标注了@SpringBootApplication 注解的启动类所在包及其子包目录的classes，需要在 META-INF/spring.factories 自定义注册，否则抛异常。

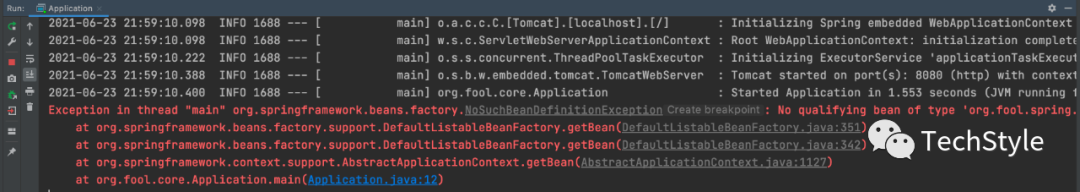

Exception in thread "main" org.springframework.beans.factory.NoSuchBeanDefinitionException: No qualifying bean of type 'org.fool.spring.factory.App' available
    at org.springframework.beans.factory.support.DefaultListableBeanFactory.getBean(DefaultListableBeanFactory.java:351)
    at org.springframework.beans.factory.support.DefaultListableBeanFactory.getBean(DefaultListableBeanFactory.java:342)
    at org.springframework.context.support.AbstractApplicationContext.getBean(AbstractApplicationContext.java:1127)
    at org.fool.core.Application.main(Application.java:12)

反之，如果AppConfig.java 和标注了@SpringBootApplication 注解的 Application.java 是在同一个包目录或者在其子包目录，是不需要在 META-INF/spring.factories 自定义注册的。
