Spring Boot 集成 TkMyBatis

TechStyle 2021-03-18

1108

Project Directory

Maven Dependency

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>


    <groupId>org.fool</groupId>
    <artifactId>springboot-demo</artifactId>
    <version>1.0-SNAPSHOT</version>


    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.9.RELEASE</version>
        <relativePath/>
    </parent>


    <properties>
        <pagehelper-spring-boot-starter.version>1.2.13</pagehelper-spring-boot-starter.version>
        <mybatis-spring-boot-starter.version>2.1.4</mybatis-spring-boot-starter.version>
        <mapper-spring-boot-starter.version>2.1.5</mapper-spring-boot-starter.version>
        <mapper.version>4.1.5</mapper.version>
        <druid-spring-boot-starter.version>1.1.24</druid-spring-boot-starter.version>
    </properties>


    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>


        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>


        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>


        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>


        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper-spring-boot-starter</artifactId>
            <version>${pagehelper-spring-boot-starter.version}</version>
        </dependency>


        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>${mybatis-spring-boot-starter.version}</version>
        </dependency>


        <dependency>
            <groupId>tk.mybatis</groupId>
            <artifactId>mapper-spring-boot-starter</artifactId>
            <version>${mapper-spring-boot-starter.version}</version>
        </dependency>


        <dependency>
            <groupId>tk.mybatis</groupId>
            <artifactId>mapper</artifactId>
            <version>${mapper.version}</version>
        </dependency>


        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>${druid-spring-boot-starter.version}</version>
        </dependency>
    </dependencies>


    <build>
        <finalName>${artifactId}</finalName>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
            <plugin>
                <groupId>org.mybatis.generator</groupId>
                <artifactId>mybatis-generator-maven-plugin</artifactId>
                <version>1.3.7</version>
                <configuration>
                    <configurationFile>sql/generatorConfig.xml</configurationFile>
                    <verbose>true</verbose>
                    <overwrite>true</overwrite>
                </configuration>
                <dependencies>
                    <dependency>
                        <groupId>mysql</groupId>
                        <artifactId>mysql-connector-java</artifactId>
                        <version>5.1.49</version>
                    </dependency>
                    <dependency>
                        <groupId>tk.mybatis</groupId>
                        <artifactId>mapper</artifactId>
                        <version>4.1.5</version>
                    </dependency>
                </dependencies>
            </plugin>
        </plugins>
    </build>
</project>

application.properties

server.port=8080


spring.http.encoding.force=true
spring.http.encoding.charset=UTF-8
spring.http.encoding.enabled=true


mybatis.type-aliases-package=org.fool.springboot.model
mybatis.mapper-locations=classpath:mapper/**/*.xml


spring.datasource.url=jdbc:mysql://localhost:3306/test?characterEncoding=utf8&zeroDateTimeBehavior=convertToNull&useLegacyDatetimeCode=false&useSSL=false
spring.datasource.username=root
spring.datasource.password=123456
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.type=com.alibaba.druid.pool.DruidDataSource
spring.datasource.druid.initial-size=5
spring.datasource.druid.max-active=50
spring.datasource.druid.min-idle=5
spring.datasource.druid.max-wait=60000
spring.datasource.druid.min-evictable-idle-time-millis=300000
spring.datasource.druid.validation-query=SELECT 1 FROM DUAL
spring.datasource.druid.test-while-idle=true
spring.datasource.druid.test-on-borrow=false
spring.datasource.druid.test-on-return=false
spring.datasource.druid.filters=stat,wall
spring.datasource.druid.connection-properties=druid.stat.mergeSql=true;druid.stat.slowSqlMillis=500
spring.datasource.druid.use-global-data-source-stat=true

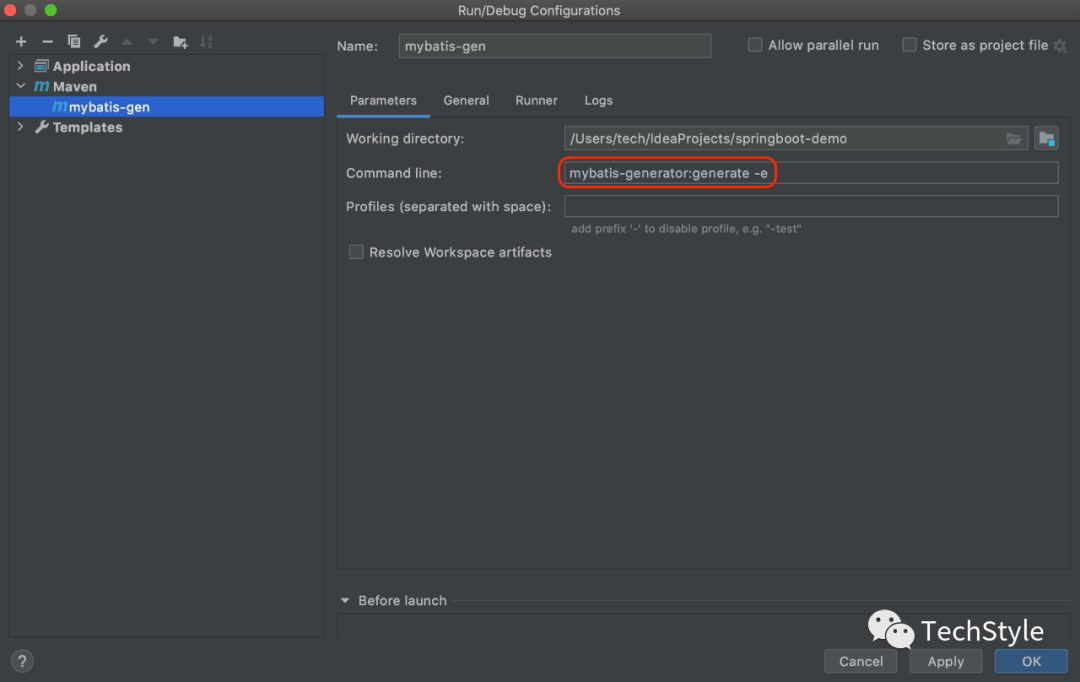

配置 MyBatis Generator

schema.sql

CREATE TABLE `tb_schedule` (
  `id` bigint(20) unsigned NOT NULL AUTO_INCREMENT,
  `schedule_name` varchar(100) NOT NULL,
  `schedule_desc` varchar(100) NOT NULL,
  `create_by` varchar(30) NOT NULL,
  `update_by` varchar(30) NOT NULL,
  `create_time` datetime(3) NOT NULL DEFAULT CURRENT_TIMESTAMP(3),
  `update_time` datetime(3) NOT NULL DEFAULT CURRENT_TIMESTAMP(3) ON UPDATE CURRENT_TIMESTAMP(3),
  PRIMARY KEY (`id`)
);


INSERT INTO tb_schedule(id, schedule_name, schedule_desc, create_by, update_by, create_time, update_time)
VALUES(1, 'schedule1', 'schedule desc1', 'admin', 'admin', '2021-03-18 05:49:20.680000000', '2021-03-18 05:49:20.680000000');
INSERT INTO tb_schedule(id, schedule_name, schedule_desc, create_by, update_by, create_time, update_time)
VALUES(2, 'schedule2', 'schedule desc2', 'admin', 'admin', '2021-03-18 05:49:20.680000000', '2021-03-18 05:49:20.680000000');
INSERT INTO tb_schedule(id, schedule_name, schedule_desc, create_by, update_by, create_time, update_time)
VALUES(3, 'schedule3', 'schedule desc3', 'admin', 'admin', '2021-03-18 05:49:20.680000000', '2021-03-18 05:49:20.680000000');
INSERT INTO tb_schedule(id, schedule_name, schedule_desc, create_by, update_by, create_time, update_time)
VALUES(4, 'schedule4', 'schedule desc4', 'admin', 'admin', '2021-03-18 05:49:20.680000000', '2021-03-18 05:49:20.680000000');
INSERT INTO tb_schedule(id, schedule_name, schedule_desc, create_by, update_by, create_time, update_time)
VALUES(5, 'schedule5', 'schedule desc5', 'admin', 'admin', '2021-03-18 05:49:20.680000000', '2021-03-18 05:49:20.680000000');
INSERT INTO tb_schedule(id, schedule_name, schedule_desc, create_by, update_by, create_time, update_time)
VALUES(6, 'schedule6', 'schedule desc6', 'admin', 'admin', '2021-03-18 05:49:20.680000000', '2021-03-18 05:49:20.680000000');
INSERT INTO tb_schedule(id, schedule_name, schedule_desc, create_by, update_by, create_time, update_time)
VALUES(7, 'schedule7', 'schedule desc7', 'admin', 'admin', '2021-03-18 05:49:20.680000000', '2021-03-18 05:49:20.680000000');
INSERT INTO tb_schedule(id, schedule_name, schedule_desc, create_by, update_by, create_time, update_time)
VALUES(8, 'schedule8', 'schedule desc8', 'admin', 'admin', '2021-03-18 05:49:20.680000000', '2021-03-18 05:49:20.680000000');
INSERT INTO tb_schedule(id, schedule_name, schedule_desc, create_by, update_by, create_time, update_time)
VALUES(9, 'schedule9', 'schedule desc9', 'admin', 'admin', '2021-03-18 05:49:20.680000000', '2021-03-18 05:49:20.680000000');
INSERT INTO tb_schedule(id, schedule_name, schedule_desc, create_by, update_by, create_time, update_time)
VALUES(10, 'schedule10', 'schedule desc10', 'admin', 'admin', '2021-03-18 05:49:20.680000000', '2021-03-18 05:49:20.680000000');

generatorConfig.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE generatorConfiguration
        PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>
    <classPathEntry
            location="/Users/${user.name}/.m2/repository/mysql/mysql-connector-java/5.1.49/mysql-connector-java-5.1.49.jar"/>


    <context id="mysql" targetRuntime="MyBatis3">


        <plugin type="org.mybatis.generator.plugins.ToStringPlugin"/>
        <plugin type="org.mybatis.generator.plugins.UnmergeableXmlMappersPlugin"/>
        <plugin type="tk.mybatis.mapper.generator.MapperPlugin">
            <property name="mappers" value="tk.mybatis.mapper.common.Mapper"/>
            <property name="caseSensitive" value="true"/>
        </plugin>


        <commentGenerator>
            <property name="suppressAllComments" value="true"/>
        </commentGenerator>


        <jdbcConnection
                driverClass="com.mysql.jdbc.Driver"
                connectionURL="jdbc:mysql://localhost:3306/test?characterEncoding=utf8&amp;zeroDateTimeBehavior=convertToNull&amp;useLegacyDatetimeCode=false&amp;serverTimezone=Asia/Shanghai"
                userId="root"
                password="123456">
        </jdbcConnection>


        <javaModelGenerator targetPackage="org.fool.springboot.model" targetProject="src/main/java">
            <property name="enableSubPackages" value="true"/>
            <property name="trimStrings" value="true"/>
        </javaModelGenerator>


        <sqlMapGenerator targetPackage="mapper" targetProject="src/main/resources">
            <property name="enableSubPackages" value="true"/>
        </sqlMapGenerator>


        <javaClientGenerator targetPackage="org.fool.springboot.dao.mapper" targetProject="src/main/java"
                             type="XMLMAPPER">
            <property name="enableSubPackages" value="true"/>
        </javaClientGenerator>


        <table tableName="tb_schedule" domainObjectName="Schedule"
               enableCountByExample="false" enableUpdateByExample="false"
               enableDeleteByExample="false" enableSelectByExample="false"
               selectByExampleQueryId="false">
        </table>
    </context>
</generatorConfiguration>
