Go的Gin框架整合Swagger

HorizonLight 2020-07-22
199

最近在研究Go的Gin框架,本文简单记录怎么整合Swagger。


版本信息:

gin v1.6.3

swag v1.6.7


创建一个Go工程!

首先下载安装Gin以及Swagger依赖包:

go get -u github.com/gin-gonic/gin
go get -u github.com/swaggo/swag/cmd/swa


若报以下错:

go get github.com/gin-gonic/gin: module github.com/gin-gonic/gin: Get "https://proxy.golang.org/github.com/gin-gonic/gin/@v/list": dial tcp 172.217.160.113:443:
connectex: A connection attempt failed because the connected party did not properly respond after a period of time,
or established connection failed because connected host has failed to respond.


则是国内无法访问到Go官方网站https://golang.org/

可替换成国内七牛云的镜像(前提是环境参数set GO111MODULE=on,不然需先执行go env -w GO111MODULE=on):

go env -w GOPROXY=https://goproxy.cn,direct


之后再次下载就成功了


可通过输入命令查看swagger是否下载安装成功:

swag -version


然后在main.go平级下执行命令生成swagger的docs文件夹:

swag init


这里是简单的一个demo:

main.go文件:

package main


import (
"github.com/gin-gonic/gin"
"github.com/swaggo/gin-swagger"
"github.com/swaggo/gin-swagger/swaggerFiles"
"net/http"
_ "gin-demo/docs" // 执行swag init生成的docs文件夹路径 _引包表示只执行init函数
)


func main() {


router := gin.Default() // 函数返回的是一个Engine指针,Engine代表的是整个框架的一个实例,查看源码可发现实际就是调用New()方法创建实例,并且为实例添加了Logger和Recovery中间件.


// 调用Engine的GET方法(其他请求方式POST PUT DELETE等) 第一个参数为相对路径,第二个参数为多个handle
router.GET("/test", Test)


// swagger访问地址 http://localhost:8080/swagger/index.html
url := ginSwagger.URL("http://localhost:8080/swagger/doc.json") // The url pointing to API definition
// 添加swagger的路由 不然报错404 page not found
router.GET("/swagger/*any", ginSwagger.WrapHandler(swaggerFiles.Handler, url))


//v1组路由 把Print和Hello方法添加到同一组路由,即访问时需要在前面加上/api/v1
v1 := router.Group("/api/v1")
{
v1.GET("/print", Print)
v1.GET("/hello", Hello)
}


// 不指定ip地址和端口时,默认是监听并在 0.0.0.0:8080 上启动服务,另外的写法还有Run(":8080")、Run("0.0.0.0:8080")、Run("localhost:8080")都是指定http://localhost:8080或者http://127.0.0.1:8080/
router.Run()
}


// @Summary 打印测试功能
// @title Swagger Example API
// @version 0.0.1
// @description This is a sample server Petstore server.
// @BasePath /api/v1
// @Host 127.0.0.1:8080
// @Produce json
// @Param name query string true "Name"
// @Success 200 {string} json "{"code":200,"data":"name","msg":"ok"}"
// @Router /print [get]
func Print(c *gin.Context) {
var (
name string
)
name = c.Query("name")
c.JSON(http.StatusOK, gin.H{
"code": http.StatusOK,
"msg": "success",
"data": name,
})
}


// @Summary Hello接口
// @Description Hello接口
// @Tags 用户信息
// @Success 200 {string} json "{"message":"success"}"
// @Router /hello [get]
func Hello(c *gin.Context) {
// 当响应码为200时,返回JSON格式数据
c.JSON(http.StatusOK, gin.H {
"message": "success",
})
}


// @Summary 测试接口
// @Description 描述信息
// @Success 200 {string} string "ok"
// @Router /test [get]
func Test(c *gin.Context) {
c.JSON(200, "ok")
}

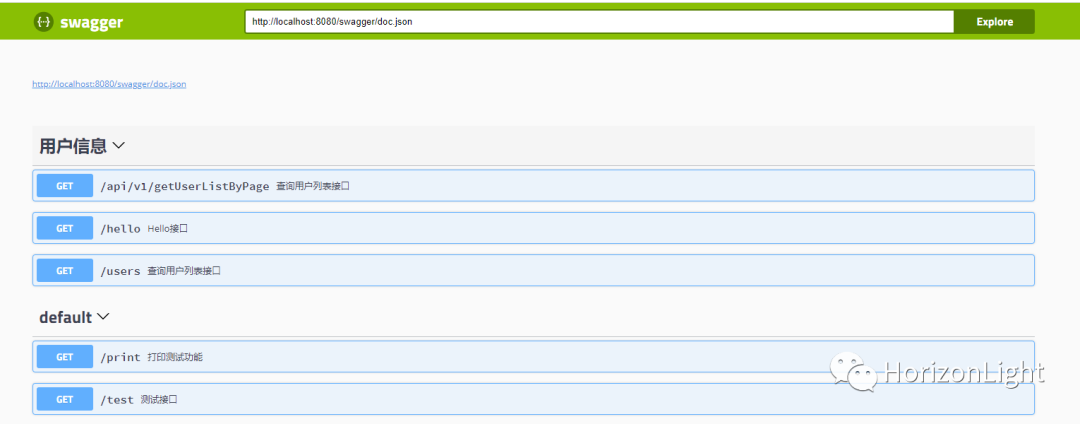

最后需要再次执行swag init,然后访问http://localhost:8080/swagger/index.html


注意事项:

1.假如func方法头标注的swagger注释不正确,在执行swag init会报错,自行根据报错信息去修改;

2.访问swagger控制台报错  404 page not found,是因为没有添加swagger路由router.GET("/swagger/*any",ginSwagger.WrapHandler(swaggerFiles.Handler, url));

3.访问swagger控制台报错Failed to load spec,是因为没有import引入执行swag init生成的swagger的docs文件夹;


附上Swagger的注解:

// @Summary 接口概要说明
// @Description 接口详细描述信息
// @Tags 用户信息 //swagger API分类标签, 同一个tag为一组
// @accept json  //浏览器可处理数据类型,浏览器默认发 Accept: */*
// @Produce json //设置返回数据的类型和编码
// @Param id path int true "ID" //url参数:(name;参数类型[query(?id=),path(/123)];数据类型;required;参数描述)
// @Param name query string false "name"
// @Success 200 {object} Res {"code":200,"data":null,"msg":""} //成功返回的数据结构, 最后是示例
// @Failure 400 {object} Res {"code":200,"data":null,"msg":""}
// @Router /test/{id} [get]    //路由信息,一定要写上


Go使用Swagger的方式与Java会有区别:Go的Gin框架通过在方法上添加 // 类似注释的方式声明;而Java的Spring框架则通过在类上或者方法上添加注解声明,比如@ApiParam!
