简介：

相比于行存，TiFlash 根据强 Schema 按列式存储结构化数据，借助 ClickHouse 的向量化计算引擎，带来读取和计算双重性能优势。

相较于普通列存，TiFlash 则具有实时更新、分布式自动扩展、SI（Snapshot Isolation）隔离级别读取等优势。

TiFlash 对 OLAP 查询加速

1.1 OLAP 类的查询通常具有以下几个特点

每次查询读取大量的行，但是仅需要少量的列；
宽表，即每个表包含着大量的列；
查询通过一张或多张小表关联一张大表，并对大表上的列做聚合。

1.2 TiFlash 列存引擎针对这类查询有较好的优化效果

1) I/O 优化

每次查询可以只读取需要的列，减少了 I/O 资源的使用；
同列数据类型相同，相较于行存可以获得更高的压缩比；
整体的 I/O 减少，令内存的使用更加高效。

2) CPU 优化

列式存储可以很方便地按批处理字段，充分利用 CPU Cache 取得更好的局部性；
利用向量化处理指令并行处理部分计算。

实验过程

2.1 创建tidb cloud账号

2.2 创建tidb 集群

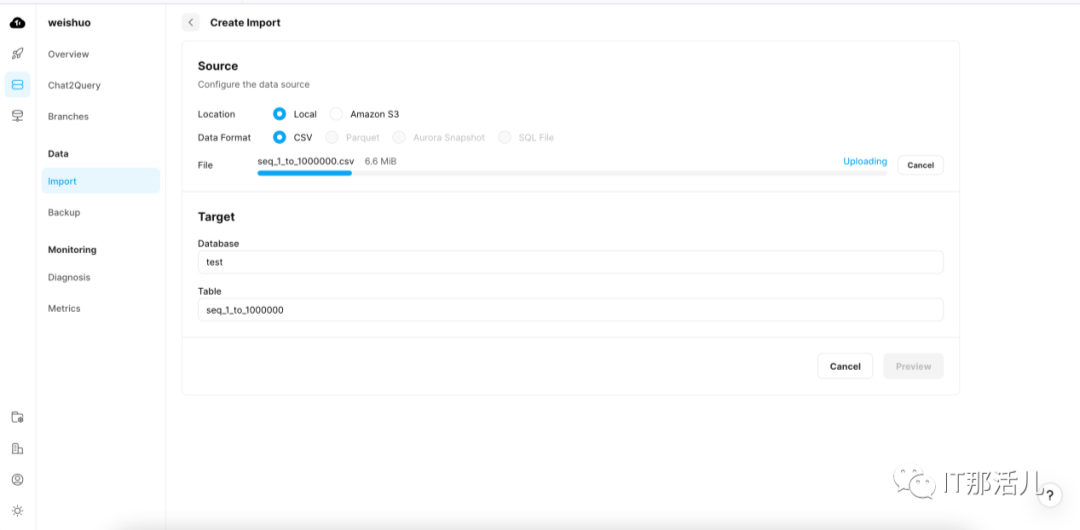

2.3 通过tidb cloud import导入1000条和100万条基础测试数据

2.4 创建客户、订单、产品表，插入测试数据

mysql> CREATE TABLE customers (
    ->     id INT AUTO_INCREMENT PRIMARY KEY,
    ->     name VARCHAR(100),
    ->     email VARCHAR(100),
    ->     created_at DATETIME
    -> ) ;
Query OK, 0 rows affected (0.71 sec)
mysql> CREATE TABLE orders (
    ->     id INT AUTO_INCREMENT PRIMARY KEY,
    ->     customer_id INT,
    ->     product_id INT,
    ->     quantity INT,
    ->     price DECIMAL(10, 2),
    ->     timestamp DATETIME
    -> ) ;
Query OK, 0 rows affected (0.46 sec)

mysql> CREATE TABLE products (
    ->     id INT AUTO_INCREMENT PRIMARY KEY,
    ->     name VARCHAR(100),
    ->     category VARCHAR(100),
    ->     price DECIMAL(10, 2)
    -> ) ;
Query OK, 0 rows affected (0.56 sec)
-- 顾客表插入100万行数据
mysql> INSERT INTO customers (name, email, created_at)
    -> SELECT
    -> CONCAT('Customer', seq),
    ->     CONCAT('customer', seq, '@example.com'),
    ->     NOW()
    -> FROM
    -> (SELECT seq FROM seq_1_to_1000000) s;
Query OK, 1000000 rows affected (11.96 sec)
Records: 1000000  Duplicates: 0  Warnings: 0
-- 产品表插入1000行数据
mysql> INSERT INTO products (name, category, price)
    -> SELECT
    -> CONCAT('Product', seq),
    ->     CONCAT('Category', FLOOR(RAND()*(10-1+1))+1),
    ->     ROUND(RAND()*(1000-1+1), 2)
    -> FROM
    -> (SELECT seq FROM seq_1_to_1000) s;
Query OK, 1000 rows affected (0.91 sec)
Records: 1000  Duplicates: 0  Warnings: 0
mysql>

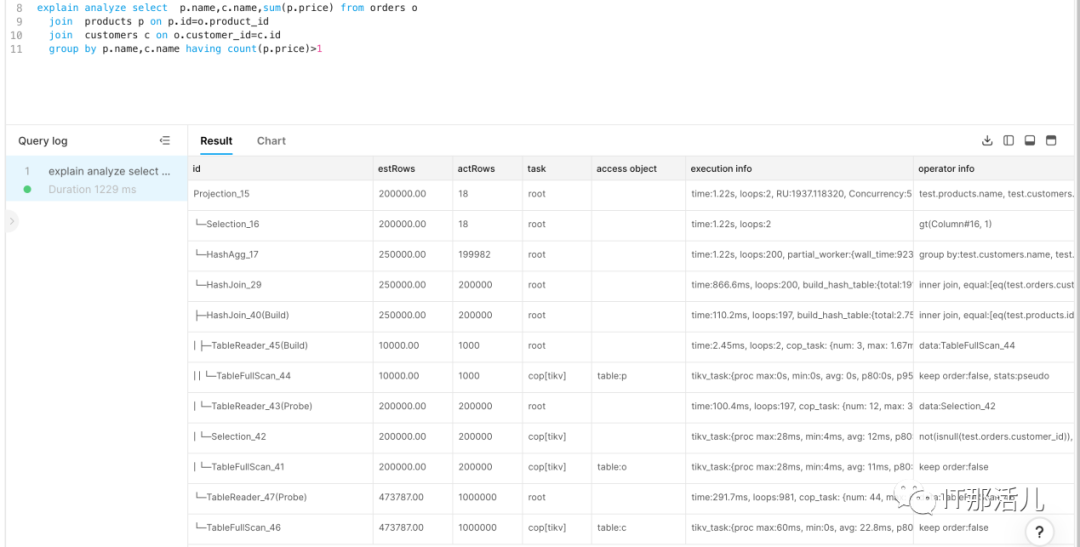

2.5 通过上图可以看出数据已入库并且按照行存储，并执行关联，求和操作，耗时1229ms

2.6 构建TIFLASH 副本

mysql> ALTER TABLE test.customers SET TIFLASH REPLICA 1;
Query OK, 0 rows affected, 1 warning (0.87 sec)
mysql> ALTER TABLE test.orders SET TIFLASH REPLICA 1;
Query OK, 0 rows affected, 1 warning (1.65 sec)
mysql> ALTER TABLE test.products SET TIFLASH REPLICA 1;
Query OK, 0 rows affected, 1 warning (0.85 sec)

查看表同步进度：

mysql> SELECT * FROM information_schema.tiflash_replica WHERE TABLE_SCHEMA = 'test' and TABLE_NAME = 'customers';
+--------------+------------+----------+---------------+-----------------+-----------+----------+
| TABLE_SCHEMA | TABLE_NAME | TABLE_ID | REPLICA_COUNT | LOCATION_LABELS | AVAILABLE | PROGRESS |
+--------------+------------+----------+---------------+-----------------+-----------+----------+
| test | customers | 123 |             2 | |         0 | 0 |
+--------------+------------+----------+---------------+-----------------+-----------+----------+
1 row in set (0.64 sec)
mysql> SELECT * FROM information_schema.tiflash_replica WHERE TABLE_SCHEMA = 'test' and TABLE_NAME = 'orders';
+--------------+------------+----------+---------------+-----------------+-----------+----------+
| TABLE_SCHEMA | TABLE_NAME | TABLE_ID | REPLICA_COUNT | LOCATION_LABELS | AVAILABLE | PROGRESS |
+--------------+------------+----------+---------------+-----------------+-----------+----------+
| test | orders | 134 |             2 | |         0 | 0 |
+--------------+------------+----------+---------------+-----------------+-----------+----------+
1 row in set (0.49 sec)
mysql> SELECT * FROM information_schema.tiflash_replica WHERE TABLE_SCHEMA = 'test' and TABLE_NAME = 'products';
+--------------+------------+----------+---------------+-----------------+-----------+----------+
| TABLE_SCHEMA | TABLE_NAME | TABLE_ID | REPLICA_COUNT | LOCATION_LABELS | AVAILABLE | PROGRESS |
+--------------+------------+----------+---------------+-----------------+-----------+----------+
| test | products | 128 |             2 | |         0 | 0 |
+--------------+------------+----------+---------------+-----------------+-----------+----------+
1 row in set (0.52 sec)

AVAILABLE 字段表示该表的 TiFlash 副本是否可用。1 代表可用，0 代表不可用。副本状态变为可用之后就不再改变，如果通过 DDL 命令修改副本数则会重新计算同步进度。

PROGRESS 字段代表同步进度，在 0.0~1.0 之间，1 代表至少 1 个副本已经完成同步。刚才查询lineitem表副本不可用，再次查询已经可用。

mysql> SELECT * FROM information_schema.tiflash_replica WHERE TABLE_SCHEMA = 'test' and TABLE_NAME = 'customers';
+--------------+------------+----------+---------------+-----------------+-----------+----------+
| TABLE_SCHEMA | TABLE_NAME | TABLE_ID | REPLICA_COUNT | LOCATION_LABELS | AVAILABLE | PROGRESS |
+--------------+------------+----------+---------------+-----------------+-----------+----------+
| test | customers | 123 |             2 | |         1 | 1 |
+--------------+------------+----------+---------------+-----------------+-----------+----------+
1 row in set (1.94 sec)
mysql> SELECT * FROM information_schema.tiflash_replica WHERE TABLE_SCHEMA = 'test' and TABLE_NAME = 'products';
+--------------+------------+----------+---------------+-----------------+-----------+----------+
| TABLE_SCHEMA | TABLE_NAME | TABLE_ID | REPLICA_COUNT | LOCATION_LABELS | AVAILABLE | PROGRESS |
+--------------+------------+----------+---------------+-----------------+-----------+----------+
| test | products | 128 |             2 | |         1 | 1 |
+--------------+------------+----------+---------------+-----------------+-----------+----------+
1 row in set (0.77 sec)

mysql> SELECT * FROM information_schema.tiflash_replica WHERE TABLE_SCHEMA = 'test' and TABLE_NAME = 'orders';
+--------------+------------+----------+---------------+-----------------+-----------+----------+
| TABLE_SCHEMA | TABLE_NAME | TABLE_ID | REPLICA_COUNT | LOCATION_LABELS | AVAILABLE | PROGRESS |
+--------------+------------+----------+---------------+-----------------+-----------+----------+
| test | orders | 134 |             2 | |         1 | 1 |
+--------------+------------+----------+---------------+-----------------+-----------+----------+
1 row in set (0.66 sec)
