问题描述：rhel配置ACFS集群文件系统时，asm cluster file systems和volume选项卡为灰色.

OS：rhel 7.9 64位

数据库：oracle 11.2.0.4

节点1 192.168.133.191 rac1

节点2 192.168.133.192 rac2



1、异常重现

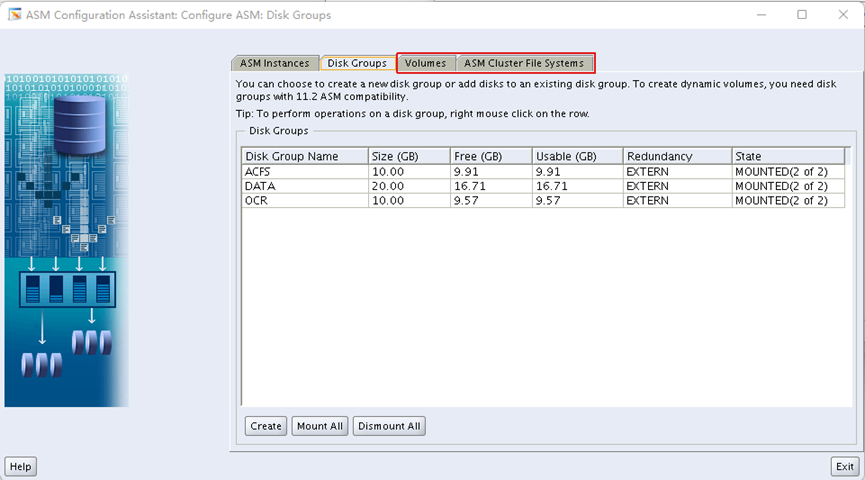

在rhel7.9 64位系统上安装oracle 11.2.0.4 rac后，发现acfs和advm无法使用，如下ASMCA图形界面的acfs和volume选项卡为灰色.

2、解决过程

ASMCMD> volcreate -G acfs -s 5G ogg

ORA-15032: not all alterations performed

ORA-15477: cannot communicate with the volume driver (DBD ERROR: OCIStmtExecute)

[grid@rac1 ~]$ sqlplus / as sysasm



SQL*Plus: Release 11.2.0.4.0 Production on Sun Jan 7 17:35:01 2024



Copyright (c) 1982, 2013, Oracle.  All rights reserved.

Connected to:

Oracle Database 11g Enterprise Edition Release 11.2.0.4.0 - 64bit Production

With the Real Application Clusters and Automatic Storage Management options



SQL> alter diskgroup acfs add volume ogg size 5g;

alter diskgroup acfs add volume ogg size 5g

*

ERROR at line 1:

ORA-15032: not all alterations performed

ORA-15477: cannot communicate with the volume driver

[root@rac1 bin]# lsmod | grep oracle

oracleasm              59173  1

[root@rac1 bin]# ./acfsroot install

ACFS-9459: ADVM/ACFS is not supported on this OS version: 'unknown'

[root@rac1 bin]# ./acfsload start -s

ACFS-9459: ADVM/ACFS is not supported on this OS version: 'unknown'

[root@rac1 bin]# uname -a

Linux rac1 3.10.0-1160.el7.x86_64 #1 SMP Tue Aug 18 14:50:17 EDT 2020 x86_64 x86_64 x86_64 GNU/Linux



说明：如上所示，均无法开启ACFS.



3、异常原因

未安装相应PSU导致，此处安装p31718723_112040_Linux-x86-64.zip补丁包解决该异常.

安装完PSU后，补丁信息如下：

[grid@rac1 ~]$ opatch lspatches

29509309;ACFS Patch Set Update : 11.2.0.4.190716 (29509309)

31537677;Database Patch Set Update : 11.2.0.4.201020 (31537677)

29938455;OCW Patch Set Update : 11.2.0.4.191015 (29938455)



OPatch succeeded.

[grid@rac1 ~]$ su - oracle

Password:

Last login: Sun Jan  7 21:15:47 CST 2024

[oracle@rac1 ~]$ opatch lspatches

31537677;Database Patch Set Update : 11.2.0.4.201020 (31537677)

29938455;OCW Patch Set Update : 11.2.0.4.191015 (29938455)



OPatch succeeded.



4、结果验证

参考网址：https://www.cnblogs.com/jyzhao/archive/2019/01/23/10307047.html
