原作者：杨明翰

一、现象

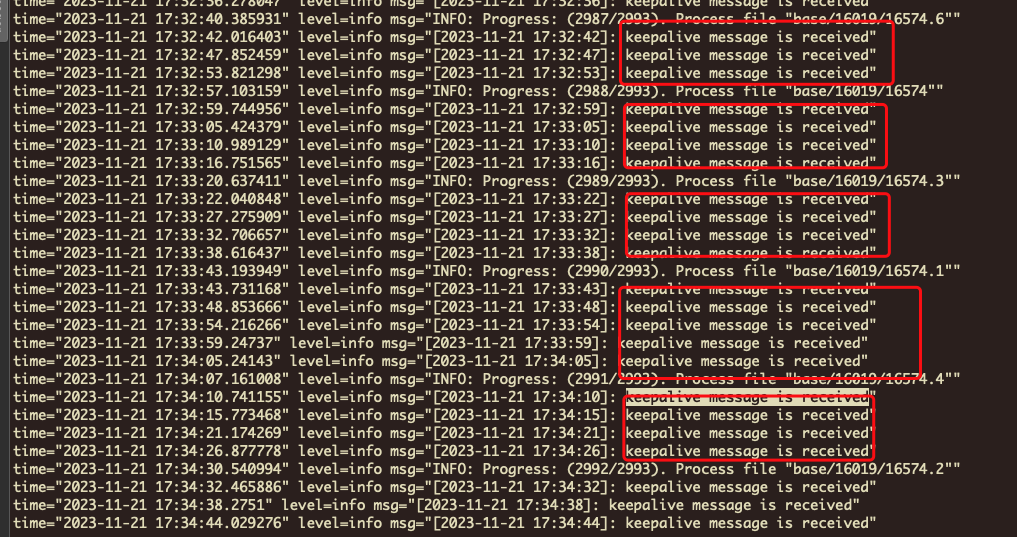

MogDB在使用brm执行全量备份时，日志中持续打印“keepalive message is received”，该信息代表什么含义，是否在备份中出现了什么问题？这经常造成客户或一线人员的困惑。试着分析一下

二、分析

brm是MogDB提供的备份恢复工具，支持全量、增量和wal日志备份，使用brm可以方便的实现指定备份集、LSN和时间点的恢复。brm在做全量备份时不会影响数据库的正常运行，备份过程和pg_basebackup类似，会使用复制协议获取wal日志的增量。

gs_basebackup使用ReceiveXlogStream函数从指定位置开始获取wal的增量，在接受wal的过程中如果使用了复制槽，该函数会反馈当前flush的位置，以便主库可以安全的清理过期wal。

如果主库没有新的wal产生，ReceiveXlogStream会一直阻塞在reading上。但如果主库或链路异常，一直等待是有问题的。ReceiveXlogStream会调用checkForReceiveTimeout做超时判断，如果超过standby_message_timeout/2 没有接收到新消息，就会主动发一个消息给主库ping一下是否正常，如果超过standby_message_timeout没有消息则报错退出。standby_message_timeout默认10秒。

/*
 * @@GaussDB@@
 * Brief        : check for receive timeout
 * Description    :
 *         Check if configured timeout has reached without receiving anything from server. If yes then assume that
 * connection broken. If timeout has not reached but half of timeout has reached without receiving anything, then send a
 * message to server along with request for an immediate reply.
 */
static bool checkForReceiveTimeout(PGconn* conn)
{
    /*
     * Check if time since last receive from master has reached the
     * configured limit.
     */
    if (standby_message_timeout > 0) {
        TimestampTz nowtime = localGetCurrentTimestamp();

        /*
         * We didn't receive anything new, for half of receiver
         * replication timeout. Ping the server.
         */
        if (localTimestampDifferenceExceeds(last_recv_timestamp, nowtime, (standby_message_timeout / 2))) {
            if (ping_sent == false) {
                if (sendReplyToSender(conn, nowtime, true) == false) {
                    return false;
                }
                ping_sent = true;
                last_recv_timestamp = nowtime;
            } else {
                pg_log(PG_PRINT, _("\nterminating XLogStream receiver due to timeout\n"));
                return false;
            }
        }
    }

    return true;
}

checkForReceiveTimeout函数调用sendReplyToSender函数给主库发送消息，且参数replyRequested=true

/*
 * @@GaussDB@@
 * Brief        : Send reply to Sender task.
 * Description    :
 *         replyRequested is used to decide whether any immediate reply is expected
 *         from sender
 * Notes        :
 */
static bool sendReplyToSender(PGconn* conn, TimestampTz nowtime, bool replyRequested)
{
    /* Time to send feedback! */
    char replybuf[sizeof(StandbyReplyMessage) + 1];
    StandbyReplyMessage* replymsg = (StandbyReplyMessage*)(replybuf + 1);

    replymsg->receive = InvalidXLogRecPtr;
    replymsg->write = InvalidXLogRecPtr;
    if (reportFlushPosition)
        replymsg->flush = lastFlushPosition;
    else
        replymsg->flush = InvalidXLogRecPtr;
    replymsg->apply = InvalidXLogRecPtr;
    replymsg->sendTime = nowtime;
    replymsg->replyRequested = replyRequested;
    replymsg->peer_role = STANDBY_MODE;
    replymsg->peer_state = BUILDING_STATE;
    replybuf[0] = 'r';

    if (PQputCopyData(conn, replybuf, sizeof(replybuf)) <= 0 || PQflush(conn)) {
        pg_log(PG_PRINT, _("%s: could not send feedback packet: %s"), progname, PQerrorMessage(conn));
        return false;
    }

    return true;
}

可以看到replybuf[0] 设置为 ‘r’ 后 会调用ProcessStandbyReplyMessage函数

switch (msgtype) {
        case 'r':
            ProcessStandbyReplyMessage();
            break;

        case 'h':
            ProcessStandbyHSFeedbackMessage();
            break;

        case 's':
            ProcessStandbySwitchRequestMessage();
            break;

        case 'A':
            ProcessStandbyFileTimeMessage();
            break;

        case 'a':
            ProcessArchiveFeedbackMessage();
            break;

        case 'S':
            ProcessHadrSwitchoverMessage();
            break;

        case 'R':
            ProcessHadrReplyMessage();
            break;

        default:
            ereport(COMMERROR,
                    (errcode(ERRCODE_PROTOCOL_VIOLATION), errmsg("unexpected message type \"%d\"", msgtype)));
            proc_exit(0);
    }

因为reply.replyRequested = true,主库会发送一条keepalive message to standby，requestReply=false，并设置消息类型t_thrd.walsender_cxt.output_xlog_message[0] = 'k';

  /* send a reply if the standby requested one */
    if (reply.replyRequested) {
        WalSndKeepalive(false);
    }

gs_basebackup在收到主库发送的keepalive message消息后，如果消息内容合法，会在stream中跳过这个消息，并输出日志“keepalive message is received\n”

 if (copybuf[0] == 'k') {
            /*
             * keepalive message, sent in 9.2 and newer. We just ignore
             * this message completely, but need to skip past it in the
             * stream.
             */
            if (r != STREAMING_KEEPALIVE_SIZE) {
                pg_log(PG_WARNING, _(" keepalive message is incorrect size: %d\n"), r);
                goto error;
            }
            fprintf(stderr, "%100s", "");
            fprintf(stderr, "\r");
            pg_log(PG_PRINT, _(" keepalive message is received\n"));
            /* copy the received buffer to keepalive */
            ret = memcpy_s(&keepalive, sizeof(PrimaryKeepaliveMessage), copybuf + 1, sizeof(PrimaryKeepaliveMessage));
            securec_check(ret, "\0", "\0");

以上，brm备份日志中持续打印“keepalive message is received”，是备份过程中获取wal增量时的正确行为。由于主库没有新增wal推送，brm为了确定链接状态是否正常，和主库间进行心跳通信的信息输出，日志打印间隔大于等于5秒。无需过分关注。
