百亿美金的设计，深度剖析 GitLab 的 Postgres 数据库 schema

原文 https://shekhargulati.com/2022/07/08/my-notes-on-gitlabs-postgres-schema-design/

这篇文章写于 2022 年，前一年 GitLab 刚好完成 IPO。目前 GitLab 市值超过 100 亿美金，它的所有收入都来源于同名产品 GitLab，而这篇文章就是全面分析 GitLab 这个产品的数据库 schema。

我花了一些时间研究 GitLab 的 Postgres schema。GitLab 是 Github 的一个替代品。你可以自部署 GitLab，因为它是一个开源的 DevOps 平台。

我之所以要了解 Gitlab 这样的大项目的 schema，是为了与我正在设计的 schema 进行比较，并从他们的 schema 定义中学到一些最佳实践。我确实从中受益良多。

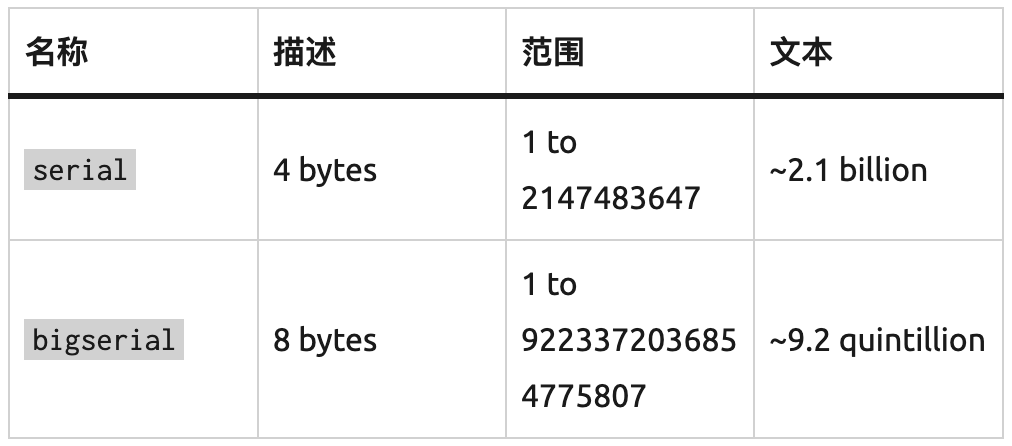

create table exp_bs(id serial primary key, n bigint not null)

insert into exp_bs(n) select g.n from generate_series(1,10000000) as g(n)

alter table exp_bs alter column id TYPE bigint;


ALTER TABLE
Time: 10845.062 ms (00:10.845)

alter sequence exp_bs_id_seq as bigint;


ALTER SEQUENCE
Time: 4.505 ms

CREATE SEQUENCE audit_events_id_seq
    START WITH 1
    INCREMENT BY 1
    NO MINVALUE
    NO MAXVALUE
    CACHE 1;

CREATE TABLE issues (
    id integer NOT NULL,
    title character varying,
    project_id integer,
    iid integer,
     ……)

https://gitlab.com/shekhargulati123/sg/-/issues/1
https://gitlab.com/shekhargulati123/sg2/-/issues/1

CREATE UNIQUE INDEX index_issues_on_project_id_and_iid ON public.issues USING btree (project_id, iid);

CREATE TABLE audit_events (
    id bigint NOT NULL,
    author_id integer NOT NULL,
    entity_id integer NOT NULL,
    entity_type character varying NOT NULL,
    details text,
    ip_address inet,
    author_name text,
    entity_path text,
    target_details text,
    created_at timestamp without time zone NOT NULL,
    target_type text,
    target_id bigint,
    CONSTRAINT check_492aaa021d CHECK ((char_length(entity_path) <= 5500)),
    CONSTRAINT check_83ff8406e2 CHECK ((char_length(author_name) <= 255)),
    CONSTRAINT check_97a8c868e7 CHECK ((char_length(target_type) <= 255)),
    CONSTRAINT check_d493ec90b5 CHECK ((char_length(target_details) <= 5500))
)
PARTITION BY RANGE (created_at);

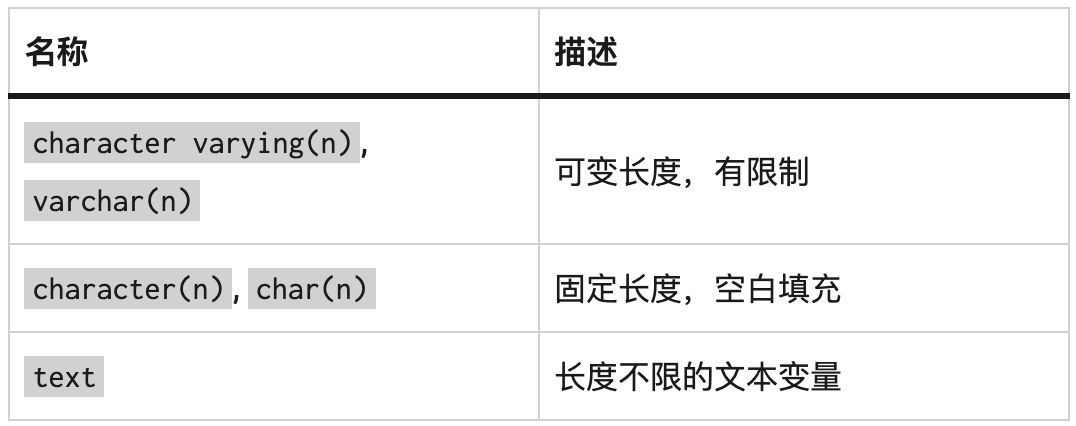

create table cv_exp (id bigint primary key, s varchar(200) default gen_random_uuid() not null);
create index sidx on cv_exp (s);

insert into cv_exp(id) select g.n from generate_series(1,10000000) as g(n);

alter table cv_exp alter column s type varchar(300);


ALTER TABLE
Time: 37.460 ms

alter table cv_exp alter column s type varchar(100);


ALTER TABLE
Time: 35886.638 ms (00:35.887)

create table text_exp (id bigint primary key, s text default gen_random_uuid() not null,CONSTRAINT check_15e644d856 CHECK ((char_length(s) <= 200)));

insert into text_exp(id) select g.n from generate_series(1,10000000) as g(n);

alter table text_exp drop constraint check_15e644d856;

alter table text_exp add constraint check_15e644d856 CHECK ((char_length(s) <= 100));


ALTER TABLE
Time: 1870.250 ms (00:01.870)

CREATE TABLE project_custom_attributes (
    id integer NOT NULL,
    created_at timestamp with time zone NOT NULL,
    updated_at timestamp with time zone NOT NULL,
    project_id integer NOT NULL,
    key character varying NOT NULL,
    value character varying NOT NULL
);

CREATE TABLE issues (
    id integer NOT NULL,
    title character varying,
    created_at timestamp without time zone,
    updated_at timestamp without time zone,
    closed_at timestamp with time zone,
    closed_by_id integer,
);

CREATE TABLE merge_request_metrics (
    id integer NOT NULL,
    latest_build_started_at timestamp without time zone,
    latest_build_finished_at timestamp without time zone,
    merged_at timestamp without time zone,
    created_at timestamp without time zone NOT NULL,
    updated_at timestamp without time zone NOT NULL,


    latest_closed_at timestamp with time zone,
    first_comment_at timestamp with time zone,
    first_commit_at timestamp with time zone,
    last_commit_at timestamp with time zone,
    first_approved_at timestamp with time zone,
    first_reassigned_at timestamp with time zone
);

ALTER TABLE ONLY todos
    ADD CONSTRAINT fk_rails_a27c483435 FOREIGN KEY (group_id) REFERENCES namespaces(id) ON DELETE CASCADE;
ALTER TABLE ONLY projects
    ADD CONSTRAINT fk_projects_namespace_id FOREIGN KEY (namespace_id) REFERENCES namespaces(id) ON DELETE RESTRICT;
ALTER TABLE ONLY authentication_events
    ADD CONSTRAINT fk_rails_b204656a54 FOREIGN KEY (user_id) REFERENCES users(id) ON DELETE SET NULL;

ERROR:  update or delete on table "a" violates foreign key constraint "fk_a_id" on table "b"
DETAIL:  Key (id)=(1) is still referenced from table "b".

CREATE INDEX index_issues_on_title_trigram ON issues USING gin (title gin_trgm_ops);
CREATE INDEX index_issues_on_description_trigram ON issues USING gin (description gin_trgm_ops);

create table words(id serial primary key, word text not null);

\copy words(word) from '/Users/xxx/Aword.csv' CSV;

select count(*) from words;


count
-------
11616
(1 row)

create index id1 on words using btree (word);

EXPLAIN select * from words where word like '%bul%';


QUERY PLAN
-----------------------------------------------------------
Seq Scan on words  (cost=0.00..211.20 rows=1 width=14)
Filter: (word ~~ '%bul%'::text)
(2 rows)

drop index id1;

CREATE EXTENSION pg_trgm;

create index index_words_on_word_trigram ON words USING gin (word gin_trgm_ops);

EXPLAIN select count(*) from words where word like '%bul%';


QUERY PLAN


----------------------------------------------------------------------------------------------------
  Aggregate  (cost=16.02..16.03 rows=1 width=8)
   ->  Bitmap Heap Scan on words  (cost=12.01..16.02 rows=1 width=0)
         Recheck Cond: (word ~~ '%bul%'::text)
          ->  Bitmap Index Scan on index_words_on_word_trigram  (cost=0.00..12.01 rows=1 width=0)
            Index Cond: (word ~~ '%bul%'::text)
(5 rows)

CREATE TABLE error_tracking_error_events (
    id bigint NOT NULL,
    payload jsonb DEFAULT '{}'::jsonb NOT NULL,
     ...
);

CREATE TABLE operations_strategies (
    id bigint NOT NULL,
    feature_flag_id bigint NOT NULL,
    name character varying(255) NOT NULL,
    parameters jsonb DEFAULT '{}'::jsonb NOT NULL
);

CREATE TABLE packages_debian_file_metadata (    created_at timestamp with time zone NOT NULL,    updated_at timestamp with time zone NOT NULL,    package_file_id bigint NOT NULL,    file_type smallint NOT NULL,    component text,    architecture text,fields jsonb,);

CREATE TABLE vulnerability_finding_evidences (
    id bigint NOT NULL,
    created_at timestamp with time zone NOT NULL,
    updated_at timestamp with time zone NOT NULL,
    vulnerability_occurrence_id bigint NOT NULL,
    data jsonb DEFAULT '{}'::jsonb NOT NULL
);

CREATE TABLE issues (
    id integer NOT NULL,
    title character varying,
    author_id integer,
    project_id integer,
    created_at timestamp without time zone,
    updated_at timestamp without time zone,
    // removed remaining columns and constraints
);

CREATE TABLE audit_events (
    id bigint NOT NULL,
    author_id integer NOT NULL,
    entity_id integer NOT NULL,
    created_at timestamp without time zone NOT NULL,
     removed remaining columns and constraints
);

CREATE TABLE merge_requests_compliance_violations (
    id bigint NOT NULL,
    violating_user_id bigint NOT NULL,
    merge_request_id bigint NOT NULL,
    reason smallint NOT NULL,
    severity_level smallint DEFAULT 0 NOT NULL
);

CREATE TABLE ci_builds (
    status character varying,
    finished_at timestamp without time zone,
    trace text,


      lock_version integer DEFAULT 0,


       removed columns
    CONSTRAINT check_1e2fbd1b39 CHECK ((lock_version IS NOT NULL))
);

CREATE TABLE audit_events (
    id bigint NOT NULL,
    ip_address inet,
     ……
);

create table e (id serial primary key, ip_addr inet not null);

insert into e(ip_addr) values ('192.168.1.255');

insert into e(ip_addr) values ('192.168.1.5/24');

select id, abbrev(ip_addr) from e;


id |     abbrev
----+----------------
1 | 192.168.1.255
2 | 8.8.8.8
3 | 192.168.1.5/24
(3 rows)

insert into e(ip_addr) values ('192.168.1');


ERROR:  invalid input syntax for type inet: "192.168.1"
LINE 1: insert into e(ip_addr) values ('192.168.1');

select * from e where ip_addr << inet '192.168.1.1/24';


id |    ip_addr
----+---------------
1 | 192.168.1.255
(1 row)

select * from e where ip_addr <<= inet '192.168.1.1/24';
id |    ip_addr
----+----------------
1 | 192.168.1.255
3 | 192.168.1.5/24
(2 rows)

CREATE TABLE alert_management_alert_user_mentions (    id bigint NOT NULL,    alert_management_alert_id bigint NOT NULL,    note_id bigint,    mentioned_users_ids integer[],    mentioned_projects_ids integer[],    mentioned_groups_ids integer[]);

CREATE TABLE dast_site_profiles (
    id bigint NOT NULL,
    excluded_urls text[] DEFAULT '{}'::text[] NOT NULL,
);


CREATE TABLE alert_management_alerts (
    id bigint NOT NULL,
    hosts text[] DEFAULT '{}'::text[] NOT NULL,
);


CREATE TABLE ci_pending_builds (
    id bigint NOT NULL,
    tag_ids integer[] DEFAULT '{}'::integer[],
);
