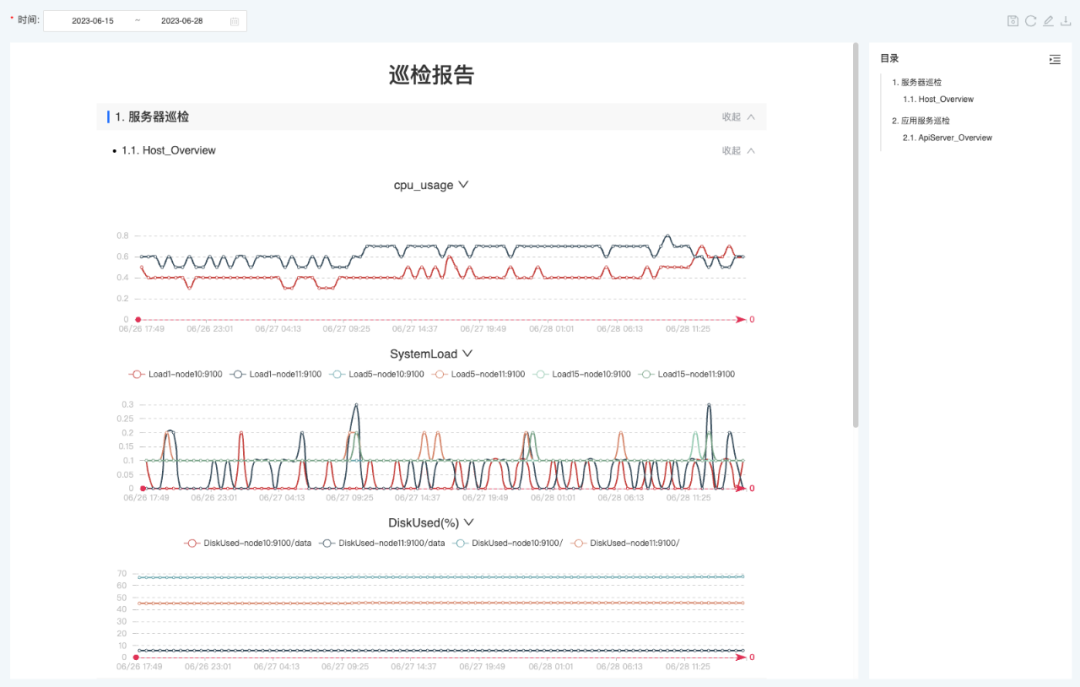

让运维无忧，实战解析巡检报告功能实现方案

\ | /

class DashboardModel {
    id: string | number;
    panels: PanelModel[]; // 各个面板
    // ...
}

class PanelModel {
    key?: string;
    id!: number;
    gridPos!: GridPos; // 位置信息
    title?: string;
    type: string;
    panels: PanelModel[]; // 目录面板需要维护当前目录下的面板信息
    // ...
}

export function useForceUpdate() {
    const [_, setValue] = useState(0);
    return debounce(() => setValue((prevState) => prevState + 1), 0);
}

useSyncExternalStore(dashboard?.subscribe ?? (() => {}), dashboard?.getSnapshot ?? (() => 0));


useSyncExternalStore(panel?.subscribe ?? (() => {}), panel?.getSnapshot ?? (() => 0));

class DashboardModel {  // PanelModel 一样
    count = 0;


    forceUpdate() {
        this.count += 1;
        eventEmitter.emit(this.key);
    }


    /**
     * useSyncExternalStore 的第一个入参，执行 listener 可以触发组件的重渲染
     * @param listener
     * @returns
     */
    subscribe = (listener: () => void) => {
        eventEmitter.on(this.key, listener);
        return () => {
            eventEmitter.off(this.key, listener);
        };
    };


    /**
     * useSyncExternalStore 的第二个入参，count 在这里改变后触发diff的通过。
     * @param listener
     * @returns
     */
    getSnapshot = () => {
        return this.count;
    };
}

const onLayoutChange = (newLayout: ReactGridLayout.Layout[]) => {
    for (const newPos of newLayout) {
        panelMap[newPos.i!].updateGridPos(newPos);
    }
    dashboard!.sortPanelsByGridPos();
};

const panelMap: Record<PanelModel['key'], PanelModel> = {};

class DashboardModel {
    sortPanelsByGridPos() {
        this.panels.sort((panelA, panelB) => {
            if (panelA.gridPos.y === panelB.gridPos.y) {
                return panelA.gridPos.x - panelB.gridPos.x;
            } else {
                return panelA.gridPos.y - panelB.gridPos.y;
            }
        });
    }
    // ...
}

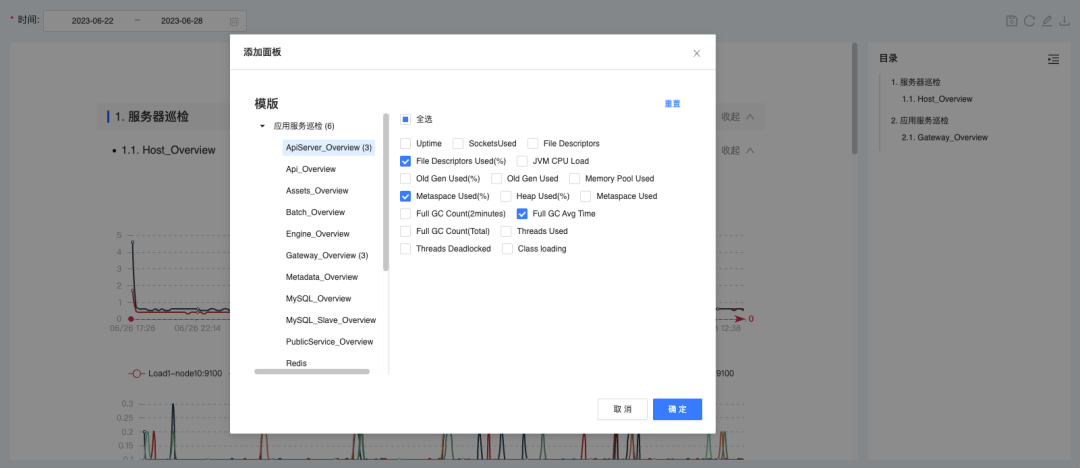

import { createContext } from 'react';

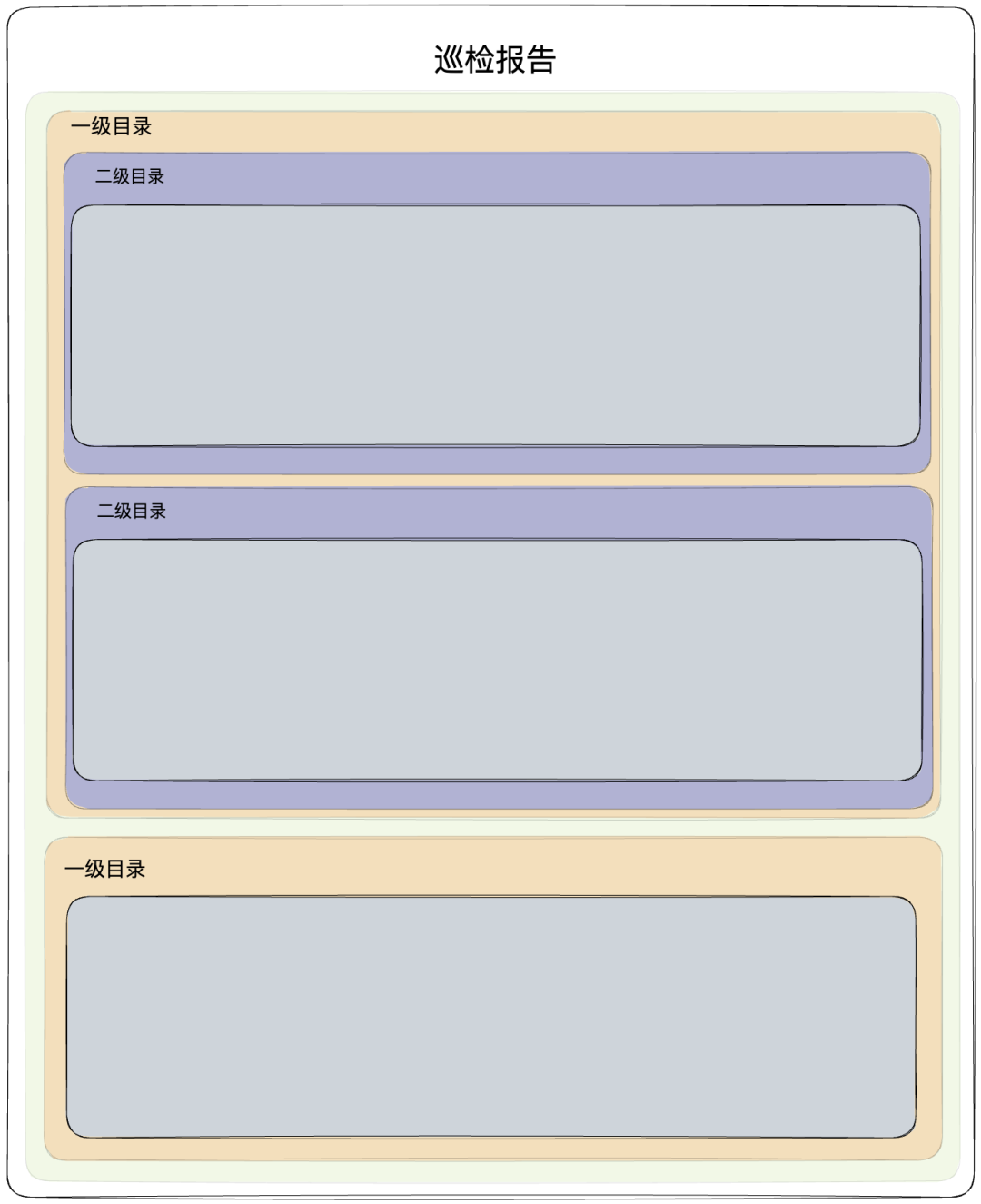

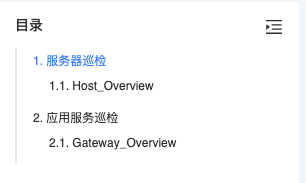

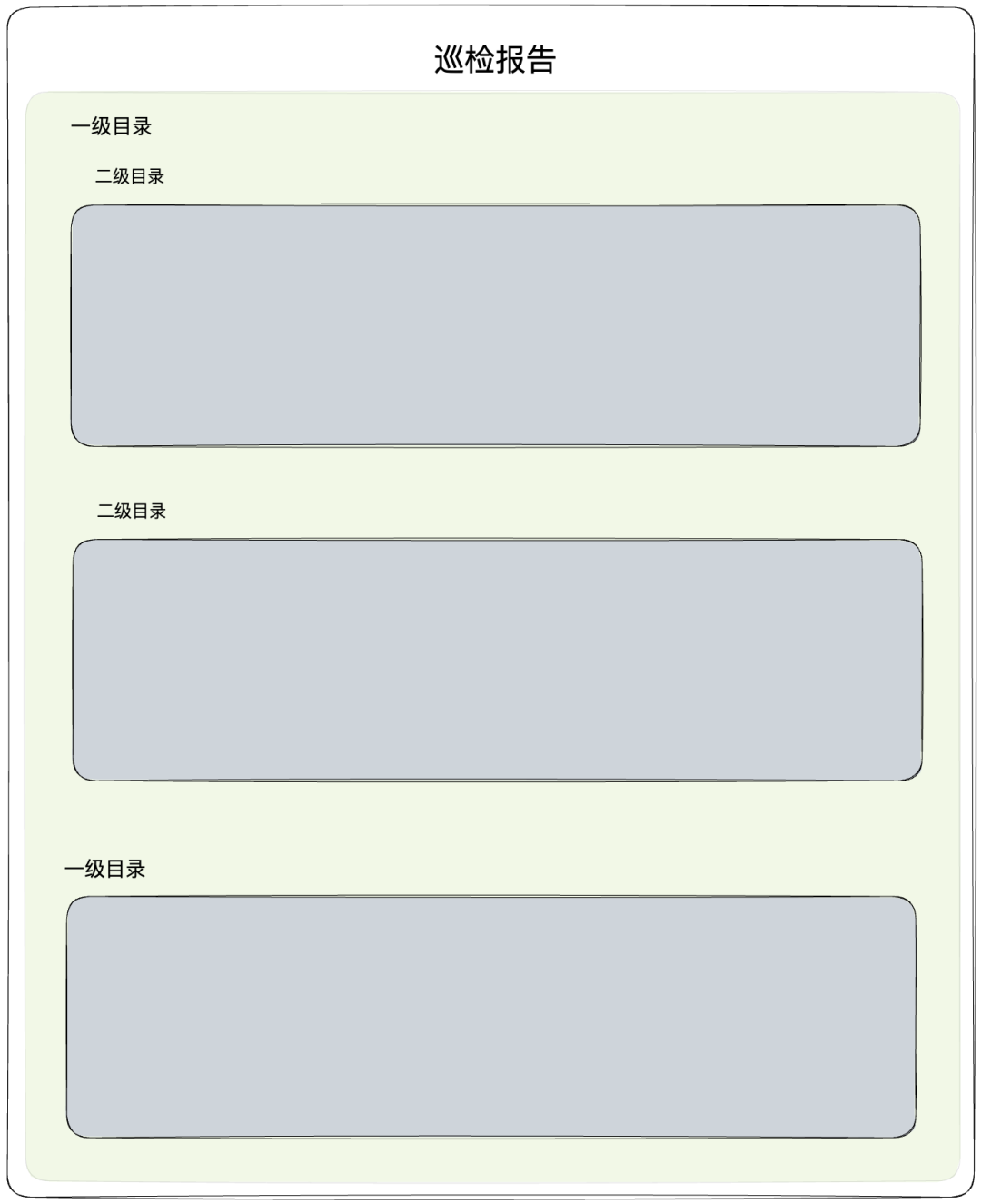

export interface Module { // 一级目录
    key: string;
    label: string;
    dashboards?: string[];
    sub_module?: Dashboard[];
}


export interface Dashboard { // 二级目录
    key: string;
    dashboard_key: string;
    label: string;
    panels?: number[];
    selectPanels?: number[];
    metrics?: Panel[];
}


export interface Panel {
    expr: Expr[]; // 数据源语句信息
    label: string;
    panel_id: number;
}


type Expr = {
    expr: string;
    legendFormat: string;
};


export const DashboardContext = createContext({
    moduleMap: new Map<string, Module>(),
    dashboardMap: new Map<string, Dashboard>(),
    panelMap: new Map<number, Panel>(),
});

{
    ...map, // moduleMap、dashboardMap、panelMap
    getData, // 生成巡检报告的数据结构
    init: initData, // 初始化 Map
}

dashboardMap.forEach((dashboard) => {
    dashboard.selectPanels = [];
});

import { Params, params as fetchParams } from '../../components/useParams';


class PanelModel {
    target: string; // 数据源信息


    getParams() {
        return {
            targets: this.target,
            ...fetchParams,
        } as Params;
    }


    request = () => {
        if (!this.needRequest) return;
        this.fetchData(this.getParams());
    };


    fetchData = async (params: Params) => {
        const data = await this.fetch(params);
        this.data = data;
        this.needRequest = false;
        this.forceUpdate();
    };

    fetch = async (params: Params) => { /* ... */ }
}

export let params: Params = {
    decimal: 1,
    unit: null,
};


function useParams() {
    const change = (next: (() => Params) | Params) => {
        if (typeof next === 'function') params = next();
        params = { ...params, ...next } as Params;
    };


    return { params, change };
}


export default useParams;

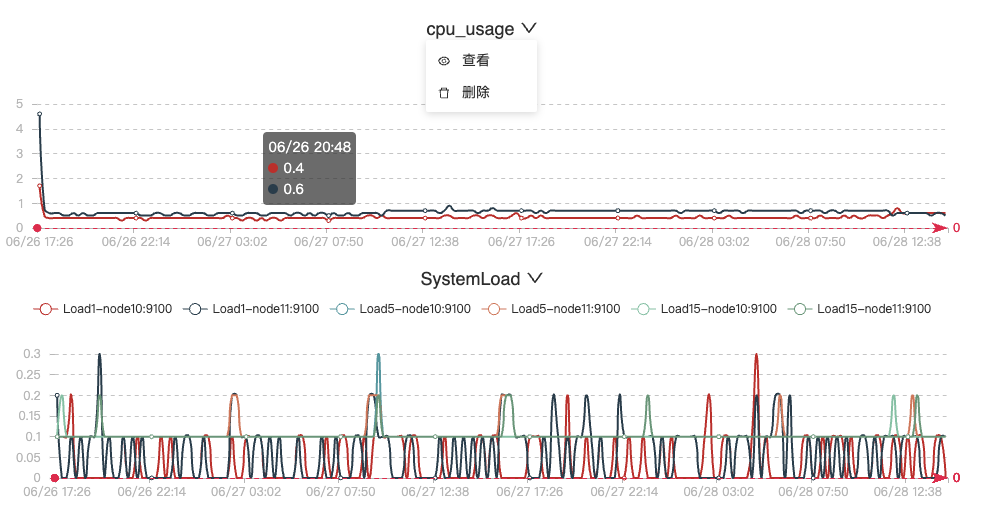

class DashboardModel {
    /**
     * @param panel 删除的面板
     */
    removePanel(panel: PanelModel) {
        this.panels = this.filterPanelsByPanels([panel]);


        // 冒泡父容器，减少的高度
        const h = -panel.gridPos.h;
        this.top?.changeHeight(h);


        this.forceUpdate();
    }


    /**
     * 根据传入的面板进行过滤
     * @param panels 需要过滤的面板数组
     * @returns 过滤后的面板
     */
    filterPanelsByPanels(panels: PanelModel[]) {
        return this.panels.filter((panel) => !panels.includes(panel));
    }
    // ...
}

class DashboardModel {
    /**
     * 获取所有面板数据
     * @returns
     */
    getSaveModel() {
        const panels: PanelData[] = this.panels.map((panel) => panel.getSaveModel());
        return panels;
    }
    // ...
}


// 最终保存时所需要的属性，其他的都不需要
const persistedProperties: { [str: string]: boolean } = {
    id: true,
    title: true,
    type: true,
    gridPos: true,
    collapsed: true,
    target: true,
};


class PanelModel {
    /**
     * 获取所有面板数据
     * @returns
     */
    getSaveModel() {
        const model: any = {};


        for (const property in this) {
            if (persistedProperties[property] && this.hasOwnProperty(property)) {
                model[property] = cloneDeep(this[property]);
            }
        }
        model.panels = this.dashboard?.getSaveModel() ?? [];


        return model;
    }
    // ...
}

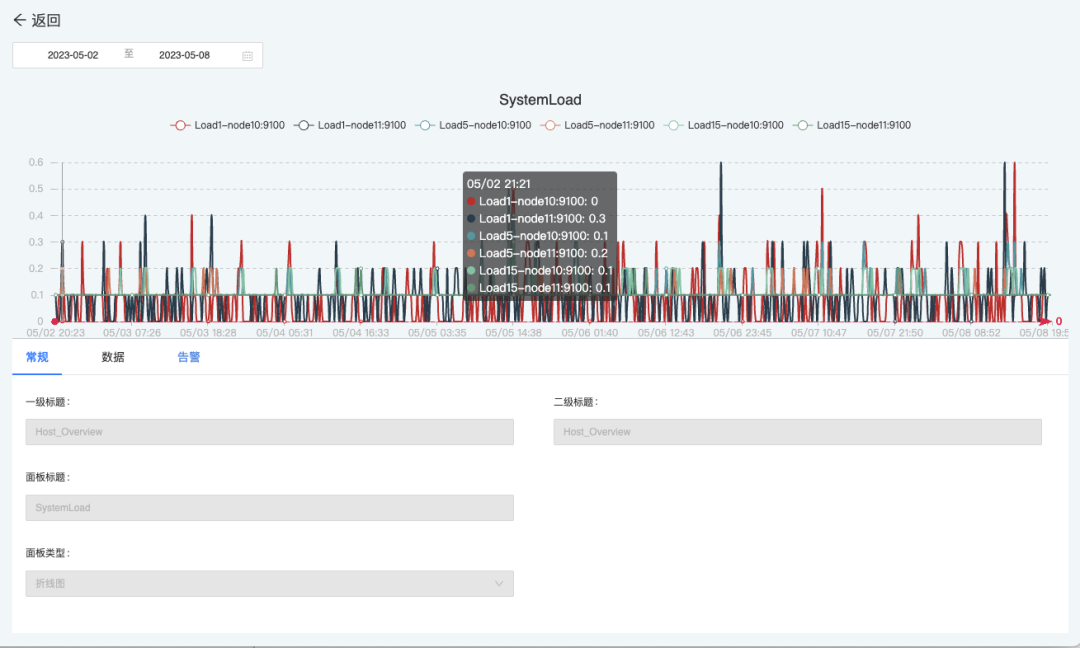

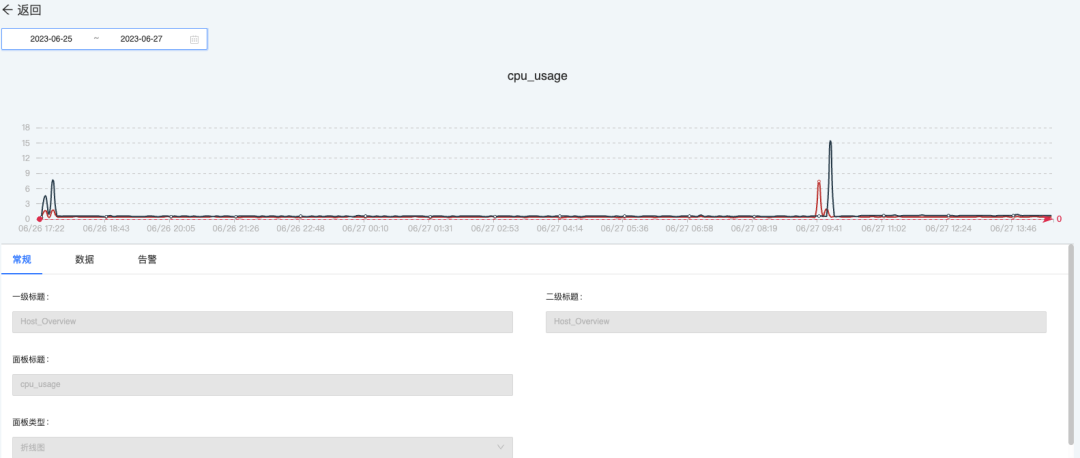

const model = panel.getSaveModel();
const newPanel = new PanelModel({ ...model, top: panel.top }); // 创建一个新的实例
setEditPanel(newPanel); // 设置为详情

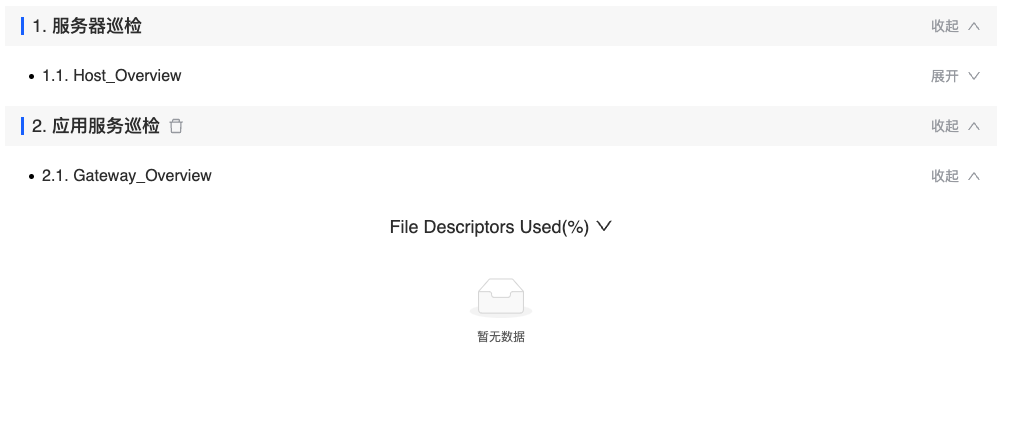

class PanelModel {

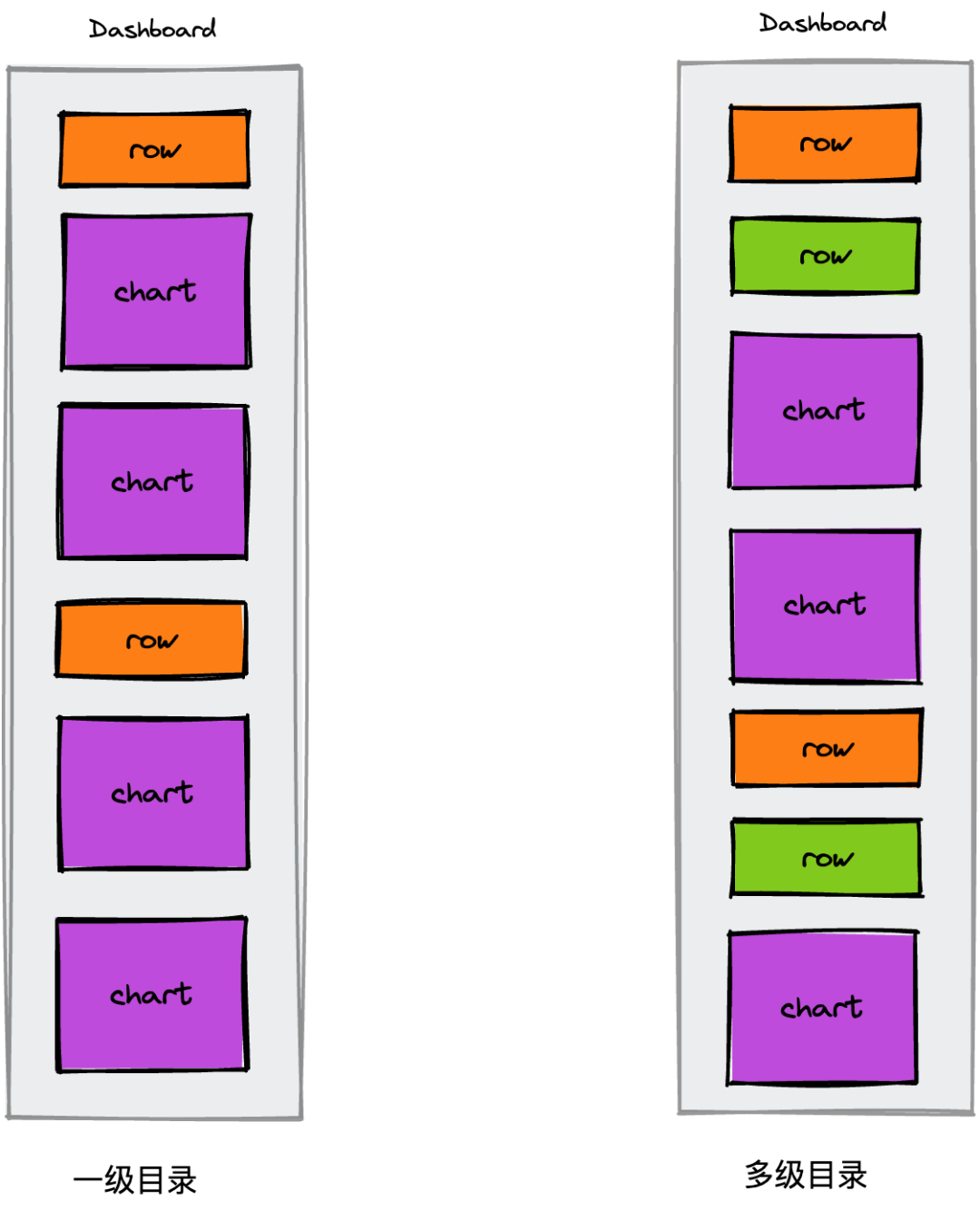

    collapsed?: boolean; // type = row
    // ...
}


// 组件渲染
{!collapsed && <DashBoard dashboard={panel.dashboard} serialNumber={serialNumber} >}

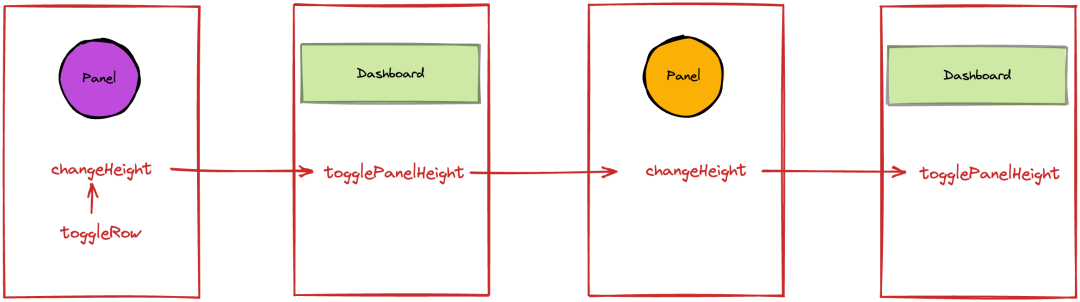

class DashboardModel {
    top?: null | PanelModel; // 最近的 panel 面板


    /**
     * 面板高度变更，同步修改其他面板进行对应高度 Y 轴的变更
     * @param row 变更高度的 row 面板
     * @param h 变更高度
     */
    togglePanelHeight(row: PanelModel, h: number) {
        const rowIndex = this.getIndexById(row.id);


        for (let panelIndex = rowIndex + 1; panelIndex < this.panels.length; panelIndex++) {
            this.panels[panelIndex].gridPos.y += h;
        }
        this.panels = [...this.panels];


        // 顶级 dashBoard 容器没有 top
        this.top?.changeHeight(h);
        this.forceUpdate();
    }
    // ...
}


class PanelModel {
    top: DashboardModel; // 最近的 dashboard 面板


    /**
     * @returns h 展开收起影响的高度
     */
    toggleRow() {
        this.collapsed = !this.collapsed;
        let h = this.dashboard?.getHeight();
        h = this.collapsed ? -h : h;
        this.changeHeight(h);
    }


    /**
     *
     * @param h 变更的高度
     */
    changeHeight(h: number) {
        this.updateGridPos({ ...this.gridPos, h: this.gridPos.h + h }); // 更改自身面板的高度
        this.top.togglePanelHeight(this, h); // 触发父级变更
        this.forceUpdate();
    }
    // ...
}

class EventEmitter {
    list: Record<string, any[]> = {};


    /**
     * 订阅
     * @param event 订阅事件
     * @param fn 订阅事件回调
     * @returns
     */
    on(event: string, fn: () => void) {}


    /**
     * 取消订阅
     * @param event 订阅事件
     * @param fn 订阅事件回调
     * @returns
     */
    off(event: string, fn: () => void) {}


    /**
     * 发布
     * @param event 订阅事件
     * @param arg 额外参数
     * @returns
     */
    emit(event: string, ...arg: any[]) {
}
