Sharding-JDBC源码解析与vivo的定制开发

//获取数据库连接
try (Connection conn = DriverManager.getConnection("mysqlUrl", "userName", "password")) {
    String sql = "SELECT * FROM  t_user WHERE name = ?";
    //预编译SQL
    try (PreparedStatement preparedStatement = conn.prepareStatement(sql)) {
        //参数设置与执行
        preparedStatement.setString(1, "vivo");
        preparedStatement.execute(sql);
        //获取结果集
        try (ResultSet resultSet = preparedStatement.getResultSet()) {
            while (resultSet.next()) {
                //处理结果
            }
        }
    }
}

org.apache.shardingsphere.shardingjdbc.jdbc.core.statement#execute
    public boolean execute() throws SQLException {
        try {
            clearPrevious();
            //解析+路由+重写 内部调用BasePrepareEngine#prepare方法
            prepare();
            initPreparedStatementExecutor();
            //执行
            return preparedStatementExecutor.execute();
        } finally {
            clearBatch();
        }
    }

org.apache.shardingsphere.underlying.pluggble.prepare.BasePrepareEngine#prepare
    public ExecutionContext prepare(final String sql, final List<Object> parameters) {
        List<Object> clonedParameters = cloneParameters(parameters);
        //解析+路由(executeRoute内部先进行解析再执行路由)
        RouteContext routeContext = executeRoute(sql, clonedParameters);
        ExecutionContext result = new ExecutionContext(routeContext.getSqlStatementContext());
        //重写
        result.getExecutionUnits().addAll(executeRewrite(sql, clonedParameters, routeContext));
        if (properties.<Boolean>getValue(ConfigurationPropertyKey.SQL_SHOW)) {
            SQLLogger.logSQL(sql, properties.<Boolean>getValue(ConfigurationPropertyKey.SQL_SIMPLE), result.getSqlStatementContext(), result.getExecutionUnits());
        }
        return result;
    }

org.apache.shardingsphere.shardingjdbc.jdbc.core.statement.ShardingPreparedStatement#getResultSet
    public ResultSet getResultSet() throws SQLException {
        if (null != currentResultSet) {
            return currentResultSet;
        }
        if (executionContext.getSqlStatementContext() instanceof SelectStatementContext || executionContext.getSqlStatementContext().getSqlStatement() instanceof DALStatement) {
            List<ResultSet> resultSets = getResultSets();

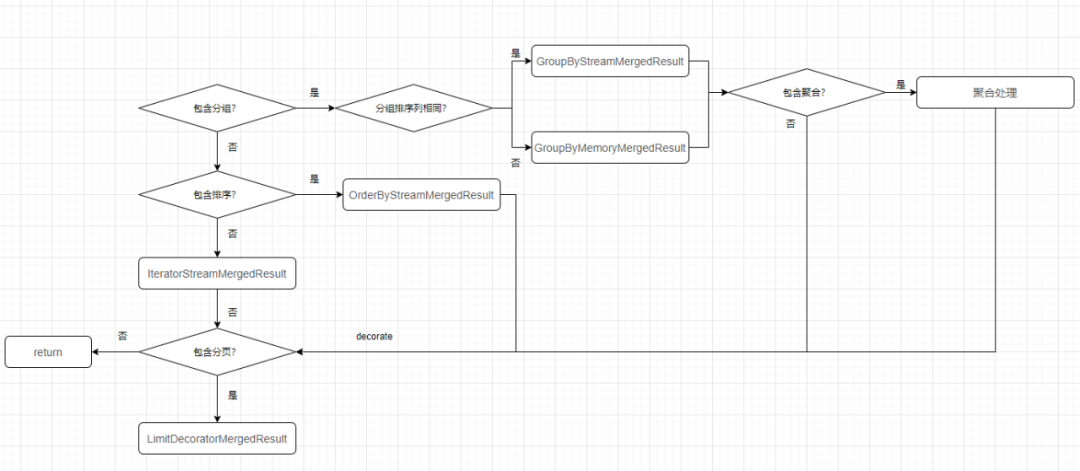

            //归并结果集
            MergedResult mergedResult = mergeQuery(getQueryResults(resultSets));
            currentResultSet = new ShardingResultSet(resultSets, mergedResult, this, executionContext);
        }
        return currentResultSet;
    }

org.apache.shardingsphere.underlying.route.DataNodeRouter#createRouteContext#96
    private RouteContext createRouteContext(final String sql, final List<Object> parameters, final boolean useCache) {
        //解析引擎解析SQL
        SQLStatement sqlStatement = parserEngine.parse(sql, useCache);
        try {
            SQLStatementContext sqlStatementContext = SQLStatementContextFactory.newInstance(metaData.getSchema(), sql, parameters, sqlStatement);
            return new RouteContext(sqlStatementContext, parameters, new RouteResult());
            // TODO should pass parameters for master-slave
        } catch (final IndexOutOfBoundsException ex) {
            return new RouteContext(new CommonSQLStatementContext(sqlStatement), parameters, new RouteResult());
        }
    }

org.apache.shardingsphere.sql.parser.SQLParserEngine#parse0#72
    private SQLStatement parse0(final String sql, final boolean useCache) {
        //缓存
        if (useCache) {
            Optional<SQLStatement> cachedSQLStatement = cache.getSQLStatement(sql);
            if (cachedSQLStatement.isPresent()) {
                return cachedSQLStatement.get();
            }
        }

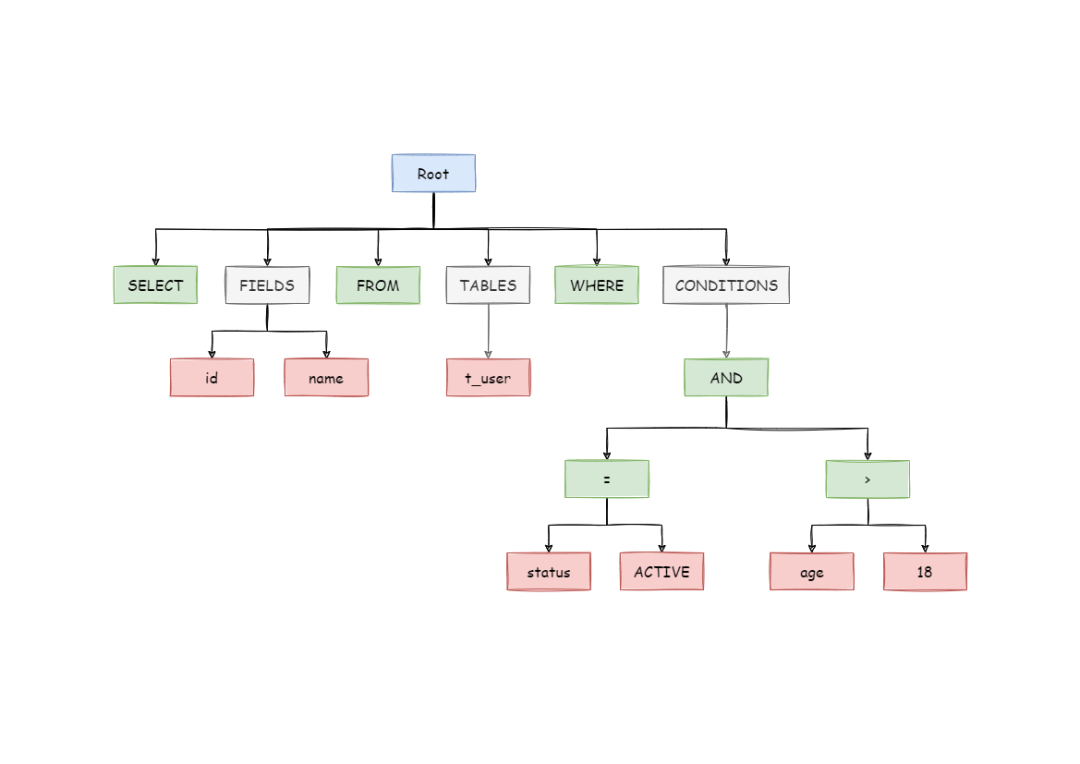

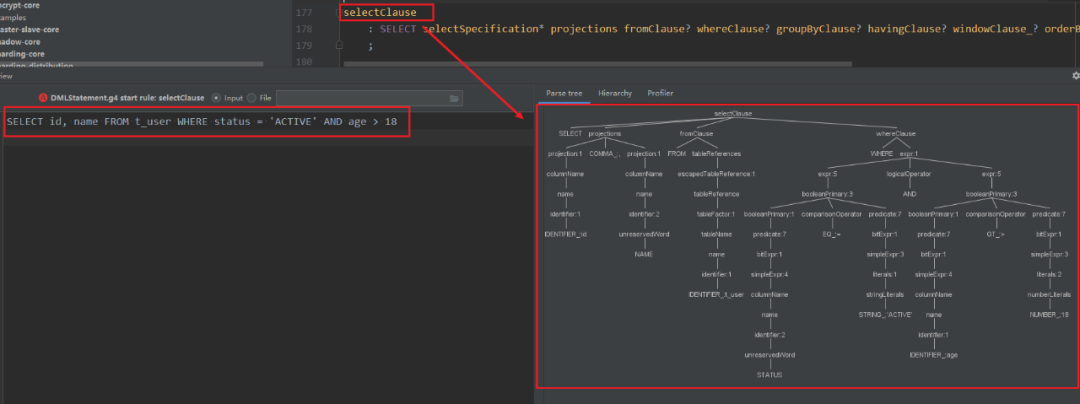

        //根据数据库类型和sql生成解析树
        ParseTree parseTree = new SQLParserExecutor(databaseTypeName, sql).execute().getRootNode();
        //ParseTreeVisitor的visit方法对解析树进行处理得到SQLStatement
      SQLStatement result = (SQLStatement) ParseTreeVisitorFactory.newInstance(databaseTypeName, VisitorRule.valueOf(parseTree.getClass())).visit(parseTree);
        if (useCache) {
            cache.put(sql, result);
        }
        return result;
    }

public final class SelectStatement extends DMLStatement {
    // 字段
    private ProjectionsSegment projections;
    // 表
    private final Collection<TableReferenceSegment> tableReferences = new LinkedList<>();
    // where
    private WhereSegment where;
    // groupBy
    private GroupBySegment groupBy;
    // orderBy
    private OrderBySegment orderBy;
    // limit
    private LimitSegment limit;
    // 父statement
    private SelectStatement parentStatement;
    // lock
    private LockSegment lock;
}

public final class SelectStatementContext extends CommonSQLStatementContext<SelectStatement> implements TableAvailable, WhereAvailable {

    private final TablesContext tablesContext;

    private final ProjectionsContext projectionsContext;

    private final GroupByContext groupByContext;

    private final OrderByContext orderByContext;

    private final PaginationContext paginationContext;

    private final boolean containsSubquery;
}

    private boolean containsSubquery() {
        // FIXME process subquery
//        Collection<SubqueryPredicateSegment> subqueryPredicateSegments = getSqlStatement().findSQLSegments(SubqueryPredicateSegment.class);
//        for (SubqueryPredicateSegment each : subqueryPredicateSegments) {
//            if (!each.getAndPredicates().isEmpty()) {
//                return true;
//            }
//        }
        return false;
    }

public final class RouteResult {

    private final Collection<Collection<DataNode>> originalDataNodes = new LinkedList<>();

    private final Collection<RouteUnit> routeUnits = new LinkedHashSet<>();
}

public final class DataNode {

    private static final String DELIMITER = ".";

    private final String dataSourceName;

    private final String tableName;
}

public final class RouteUnit {

    private final RouteMapper dataSourceMapper;

    private final Collection<RouteMapper> tableMappers;
}

public final class RouteMapper {

    private final String logicName;

    private final String actualName;
}

org.apache.shardingsphere.sharding.route.engine.ShardingRouteDecorator#decorate#57
public RouteContext decorate(final RouteContext routeContext, final ShardingSphereMetaData metaData, final ShardingRule shardingRule, final ConfigurationProperties properties) {
        SQLStatementContext sqlStatementContext = routeContext.getSqlStatementContext();
        List<Object> parameters = routeContext.getParameters();
        //SQL校验  校验INSERT INTO .... ON DUPLICATE KEY UPDATE 和UPDATE语句中是否存在分片键
      ShardingStatementValidatorFactory.newInstance(
                sqlStatementContext.getSqlStatement()).ifPresent(validator -> validator.validate(shardingRule, sqlStatementContext.getSqlStatement(), parameters));
        //生成分片条件
        ShardingConditions shardingConditions = getShardingConditions(parameters, sqlStatementContext, metaData.getSchema(), shardingRule);
        //合并分片值
        boolean needMergeShardingValues = isNeedMergeShardingValues(sqlStatementContext, shardingRule);
        if (sqlStatementContext.getSqlStatement() instanceof DMLStatement && needMergeShardingValues) {
            checkSubqueryShardingValues(sqlStatementContext, shardingRule, shardingConditions);
            mergeShardingConditions(shardingConditions);
        }

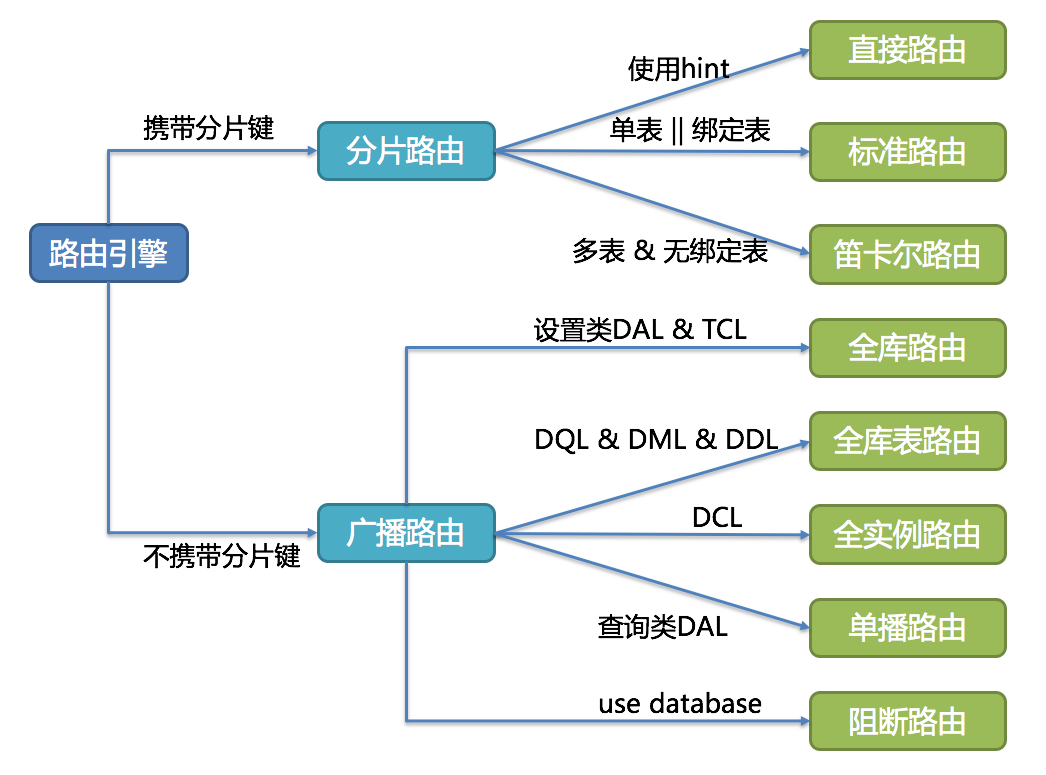

        ShardingRouteEngine shardingRouteEngine = ShardingRouteEngineFactory.newInstance(shardingRule, metaData, sqlStatementContext, shardingConditions, properties);
        //得到路由结果
        RouteResult routeResult = shardingRouteEngine.route(shardingRule);
        if (needMergeShardingValues) {
            Preconditions.checkState(1 == routeResult.getRouteUnits().size(), "Must have one sharding with subquery.");
        }
        return new RouteContext(sqlStatementContext, parameters, routeResult);
    }

public final class ShardingConditions {

    private final List<ShardingCondition> conditions;
}

public class ShardingCondition {

    private final List<RouteValue> routeValues = new LinkedList<>();
}


public final class ListRouteValue<T extends Comparable<?>> implements RouteValue {

    private final String columnName;

    private final String tableName;
    //in或=条件对应的值
    private final Collection<T> values;

    @Override
    public String toString() {
        return tableName + "." + columnName + (1 == values.size() ? " = " + new ArrayList<>(values).get(0) : " in (" + Joiner.on(",").join(values) + ")");
    }
}

public final class RangeRouteValue<T extends Comparable<?>> implements RouteValue {

    private final String columnName;

    private final String tableName;
    //between and 大于小于等范围值的上下限
    private final Range<T> valueRange;
}

org.apache.shardingsphere.sharding.route.engine.ShardingRouteDecorator#isNeedMergeShardingValues#87
private boolean isNeedMergeShardingValues(final SQLStatementContext sqlStatementContext, final ShardingRule shardingRule) {
        return sqlStatementContext instanceof SelectStatementContext && ((SelectStatementContext) sqlStatementContext).isContainsSubquery()
                && !shardingRule.getShardingLogicTableNames(sqlStatementContext.getTablesContext().getTableNames()).isEmpty();
    }

org.apache.shardingsphere.core.strategy.route.inline.InlineShardingStrategy#doSharding
    public Collection<String> doSharding(final Collection<String> availableTargetNames, final Collection<RouteValue> shardingValues, final ConfigurationProperties properties) {
        RouteValue shardingValue = shardingValues.iterator().next();
        //ALLOW_RANGE_QUERY_WITH_INLINE_SHARDING设置为true，直接返回availableTargetNames，而不是根据RangeRouteValue计算
        if (properties.<Boolean>getValue(ConfigurationPropertyKey.ALLOW_RANGE_QUERY_WITH_INLINE_SHARDING) && shardingValue instanceof RangeRouteValue) {
            return availableTargetNames;
        }
        Preconditions.checkState(shardingValue instanceof ListRouteValue, "Inline strategy cannot support this type sharding:" + shardingValue.toString());
        Collection<String> shardingResult = doSharding((ListRouteValue) shardingValue);
        Collection<String> result = new TreeSet<>(String.CASE_INSENSITIVE_ORDER);
        for (String each : shardingResult) {
            if (availableTargetNames.contains(each)) {
                result.add(each);
            }
        }
        return result;
    }

org.apache.shardingsphere.masterslave.route.engine.MasterSlaveRouteDecorator#decorate
    public RouteContext decorate(final RouteContext routeContext, final ShardingSphereMetaData metaData, final MasterSlaveRule masterSlaveRule, final ConfigurationProperties properties) {
        //为空证明没有经过分片路由
        if (routeContext.getRouteResult().getRouteUnits().isEmpty()) {
            //根据SQL判断选择走主库还是从库
            String dataSourceName = new MasterSlaveDataSourceRouter(masterSlaveRule).route(routeContext.getSqlStatementContext().getSqlStatement());
            RouteResult routeResult = new RouteResult();
           //根据具体的主库/从库名创建路由单元
            routeResult.getRouteUnits().add(new RouteUnit(new RouteMapper(dataSourceName, dataSourceName), Collections.emptyList()));
            return new RouteContext(routeContext.getSqlStatementContext(), Collections.emptyList(), routeResult);
        }
        Collection<RouteUnit> toBeRemoved = new LinkedList<>();
        Collection<RouteUnit> toBeAdded = new LinkedList<>();
        //不为空证明已经被分片路由处理了
        for (RouteUnit each : routeContext.getRouteResult().getRouteUnits()) {
            if (masterSlaveRule.getName().equalsIgnoreCase(each.getDataSourceMapper().getActualName())) {
                //先标记移除 因为这里是一组主从的名字而不是实际的库
                toBeRemoved.add(each);
                //根据SQL判断选择走主库还是从库
                String actualDataSourceName = new MasterSlaveDataSourceRouter(masterSlaveRule).route(routeContext.getSqlStatementContext().getSqlStatement());
                //根据具体的主库/从库名创建路由单元
                toBeAdded.add(new RouteUnit(new RouteMapper(each.getDataSourceMapper().getLogicName(), actualDataSourceName), each.getTableMappers()));
            }
        }
        routeContext.getRouteResult().getRouteUnits().removeAll(toBeRemoved);
        routeContext.getRouteResult().getRouteUnits().addAll(toBeAdded);
        return routeContext;
    }

public final class MasterSlaveDataSourceRouter {

    private final MasterSlaveRule masterSlaveRule;

    /**
     * Route.
     *
     * @param sqlStatement SQL statement
     * @return data source name
     */
    public String route(final SQLStatement sqlStatement) {
        if (isMasterRoute(sqlStatement)) {
            MasterVisitedManager.setMasterVisited();
            return masterSlaveRule.getMasterDataSourceName();
        }
        return masterSlaveRule.getLoadBalanceAlgorithm().getDataSource(
                masterSlaveRule.getName(), masterSlaveRule.getMasterDataSourceName(), new ArrayList<>(masterSlaveRule.getSlaveDataSourceNames()));
    }

    private boolean isMasterRoute(final SQLStatement sqlStatement) {
        return containsLockSegment(sqlStatement) || !(sqlStatement instanceof SelectStatement) || MasterVisitedManager.isMasterVisited() || HintManager.isMasterRouteOnly();
    }

    private boolean containsLockSegment(final SQLStatement sqlStatement) {
        return sqlStatement instanceof SelectStatement && ((SelectStatement) sqlStatement).getLock().isPresent();
    }
}

public final class MasterVisitedManager {

    private static final ThreadLocal<Boolean> MASTER_VISITED = ThreadLocal.withInitial(() -> false);

    /**
     * Judge master data source visited in current thread.
     *
     * @return master data source visited or not in current thread
     */
    public static boolean isMasterVisited() {
        return MASTER_VISITED.get();
    }

    /**
     * Set master data source visited in current thread.
     */
    public static void setMasterVisited() {
        MASTER_VISITED.set(true);
    }

    /**
     * Clear master data source visited.
     */
    public static void clear() {
        MASTER_VISITED.remove();
    }
}

org.apache.shardingsphere.underlying.pluggble.prepare.BasePrepareEngine#executeRewrite
    private Collection<ExecutionUnit> executeRewrite(final String sql, final List<Object> parameters, final RouteContext routeContext) {
        //注册重写装饰器
        registerRewriteDecorator();
        //创建 SQLRewriteContext
        SQLRewriteContext sqlRewriteContext = rewriter.createSQLRewriteContext(sql, parameters, routeContext.getSqlStatementContext(), routeContext);
        //重写
        return routeContext.getRouteResult().getRouteUnits().isEmpty() ? rewrite(sqlRewriteContext) : rewrite(routeContext, sqlRewriteContext);
    }

@RequiredArgsConstructor
@Getter
@EqualsAndHashCode
@ToString
public final class ExecutionUnit {

    private final String dataSourceName;

    private final SQLUnit sqlUnit;
}

@AllArgsConstructor
@RequiredArgsConstructor
@Getter
@Setter
//根据sql判断是否相等
@EqualsAndHashCode(of = { "sql" })
@ToString
public final class SQLUnit {

    private String sql;

    private final List<Object> parameters;

}

org.apache.shardingsphere.underlying.rewrite.SQLRewriteEntry#createSQLRewriteContext
    public SQLRewriteContext createSQLRewriteContext(final String sql, final List<Object> parameters, final SQLStatementContext sqlStatementContext, final RouteContext routeContext) {
        SQLRewriteContext result = new SQLRewriteContext(schemaMetaData, sqlStatementContext, sql, parameters);
        //sql参数重写
        decorate(decorators, result, routeContext);
        //生成SQLToken
        result.generateSQLTokens();
        return result;
    }

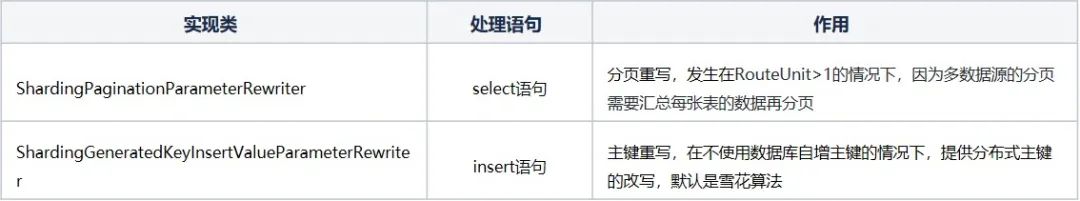

org.apache.shardingsphere.sharding.rewrite.context.ShardingSQLRewriteContextDecorator#decorate
    public void decorate(final ShardingRule shardingRule, final ConfigurationProperties properties, final SQLRewriteContext sqlRewriteContext) {
        for (ParameterRewriter each : new ShardingParameterRewriterBuilder(shardingRule, routeContext).getParameterRewriters(sqlRewriteContext.getSchemaMetaData())) {
            if (!sqlRewriteContext.getParameters().isEmpty() && each.isNeedRewrite(sqlRewriteContext.getSqlStatementContext())) {
                //参数重写
                each.rewrite(sqlRewriteContext.getParameterBuilder(), sqlRewriteContext.getSqlStatementContext(), sqlRewriteContext.getParameters());
            }
        }
        //sqlTokenGenerators
        sqlRewriteContext.addSQLTokenGenerators(new ShardingTokenGenerateBuilder(shardingRule, routeContext).getSQLTokenGenerators());
    }

org.apache.shardingsphere.underlying.rewrite.context.SQLRewriteContext#generateSQLTokens
    public void generateSQLTokens() {
        sqlTokens.addAll(sqlTokenGenerators.generateSQLTokens(sqlStatementContext, parameters, schemaMetaData));
    }

@RequiredArgsConstructor
@Getter
public abstract class SQLToken implements Comparable<SQLToken> {

    private final int startIndex;

    @Override
    public final int compareTo(final SQLToken sqlToken) {
        return startIndex - sqlToken.getStartIndex();
    }
}

org.apache.shardingsphere.underlying.rewrite.engine.SQLRouteRewriteEngine#rewrite
    public Map<RouteUnit, SQLRewriteResult> rewrite(final SQLRewriteContext sqlRewriteContext, final RouteResult routeResult) {
        Map<RouteUnit, SQLRewriteResult> result = new LinkedHashMap<>(routeResult.getRouteUnits().size(), 1);
        for (RouteUnit each : routeResult.getRouteUnits()) {
            //重写SQL+组装参数
            result.put(each, new SQLRewriteResult(new RouteSQLBuilder(sqlRewriteContext, each).toSQL(), getParameters(sqlRewriteContext.getParameterBuilder(), routeResult, each)));
        }
        return result;
    }

org.apache.shardingsphere.underlying.rewrite.sql.impl.AbstractSQLBuilder#toSQL
    public final String toSQL() {
        if (context.getSqlTokens().isEmpty()) {
            return context.getSql();
        }
        Collections.sort(context.getSqlTokens());
        StringBuilder result = new StringBuilder();
        //截取第一个SQLToken之前的内容  select * from
        result.append(context.getSql().substring(0, context.getSqlTokens().get(0).getStartIndex()));
        for (SQLToken each : context.getSqlTokens()) {
            //重写拼接每个SQLToken对应的内容  t_order ->t_order_0
            result.append(getSQLTokenText(each));
            //拼接SQLToken中间不变的内容 where created_by = '123'
            result.append(getConjunctionText(each));
        }
        return result.toString();
    }

org.apache.shardingsphere.underlying.rewrite.engine.SQLRouteRewriteEngine#getParameters
    private List<Object> getParameters(final ParameterBuilder parameterBuilder, final RouteResult routeResult, final RouteUnit routeUnit) {
        if (parameterBuilder instanceof StandardParameterBuilder || routeResult.getOriginalDataNodes().isEmpty() || parameterBuilder.getParameters().isEmpty()) {
            //非插入语句直接返回
            return parameterBuilder.getParameters();
        }
        List<Object> result = new LinkedList<>();
        int count = 0;
        for (Collection<DataNode> each : routeResult.getOriginalDataNodes()) {
            if (isInSameDataNode(each, routeUnit)) {
                //插入语句参数分组构造
                result.addAll(((GroupedParameterBuilder) parameterBuilder).getParameters(count));
            }
            count++;
        }
        return result;
    }

org.apache.shardingsphere.sharding.execute.sql.prepare.SQLExecutePrepareTemplate#getSynchronizedExecuteUnitGroups
    private Collection<InputGroup<StatementExecuteUnit>> getSynchronizedExecuteUnitGroups(
            final Collection<ExecutionUnit> executionUnits, final SQLExecutePrepareCallback callback) throws SQLException {
        //根据数据源将SQLUnit分组 key=dataSourceName
        Map<String, List<SQLUnit>> sqlUnitGroups = getSQLUnitGroups(executionUnits);
        Collection<InputGroup<StatementExecuteUnit>> result = new LinkedList<>();
        //创建sql执行组
        for (Entry<String, List<SQLUnit>> entry : sqlUnitGroups.entrySet()) {
            result.addAll(getSQLExecuteGroups(entry.getKey(), entry.getValue(), callback));
        }
        return result;
    }

org.apache.shardingsphere.sharding.execute.sql.prepare.SQLExecutePrepareTemplate#getSQLExecuteGroups
    private List<InputGroup<StatementExecuteUnit>> getSQLExecuteGroups(final String dataSourceName,
                                                                       final List<SQLUnit> sqlUnits, final SQLExecutePrepareCallback callback) throws SQLException {
        List<InputGroup<StatementExecuteUnit>> result = new LinkedList<>();
        //每个连接需要执行的最大sql数量
        int desiredPartitionSize = Math.max(0 == sqlUnits.size() % maxConnectionsSizePerQuery ? sqlUnits.size()  maxConnectionsSizePerQuery : sqlUnits.size()  maxConnectionsSizePerQuery + 1, 1);
        //分组，每组对应一条数据库连接
        List<List<SQLUnit>> sqlUnitPartitions = Lists.partition(sqlUnits, desiredPartitionSize);

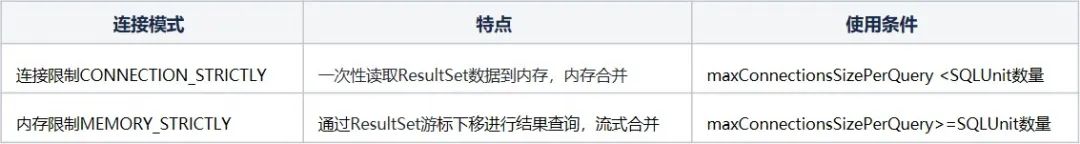

        //选择连接模式 连接限制/内存限制
        ConnectionMode connectionMode = maxConnectionsSizePerQuery < sqlUnits.size() ? ConnectionMode.CONNECTION_STRICTLY : ConnectionMode.MEMORY_STRICTLY;
        //创建连接
        List<Connection> connections = callback.getConnections(connectionMode, dataSourceName, sqlUnitPartitions.size());
        int count = 0;
        for (List<SQLUnit> each : sqlUnitPartitions) {
            //绑定连接和SQLUnit 创建StatementExecuteUnit
            result.add(getSQLExecuteGroup(connectionMode, connections.get(count++), dataSourceName, each, callback));
        }
        return result;
    }

private List<Connection> createConnections(final String dataSourceName, final ConnectionMode connectionMode, final DataSource dataSource, final int connectionSize) throws SQLException {
    if (1 == connectionSize) {
        Connection connection = createConnection(dataSourceName, dataSource);
        replayMethodsInvocation(connection);
        return Collections.singletonList(connection);
    }
    if (ConnectionMode.CONNECTION_STRICTLY == connectionMode) {
        return createConnections(dataSourceName, dataSource, connectionSize);
    }
    //内存限制模式加锁 一次性获取所有的连接
    synchronized (dataSource) {
        return createConnections(dataSourceName, dataSource, connectionSize);
    }
}

org.apache.shardingsphere.shardingjdbc.executor.PreparedStatementExecutor#executeQuery#101
  org.apache.shardingsphere.shardingjdbc.executor.PreparedStatementExecutor#getQueryResult
    private QueryResult getQueryResult(final Statement statement, final ConnectionMode connectionMode) throws SQLException {
        PreparedStatement preparedStatement = (PreparedStatement) statement;
        ResultSet resultSet = preparedStatement.executeQuery();
        getResultSets().add(resultSet);
        //executeQuery 中根据连接模式选择流式/内存
        return ConnectionMode.MEMORY_STRICTLY == connectionMode ? new StreamQueryResult(resultSet) : new MemoryQueryResult(resultSet);
    }

//execute 单独调用getResultSet中只会使用流式合并
org.apache.shardingsphere.shardingjdbc.jdbc.core.statement.ShardingPreparedStatement#getResultSet#158
  org.apache.shardingsphere.shardingjdbc.jdbc.core.statement.ShardingPreparedStatement#getQueryResults
    private List<QueryResult> getQueryResults(final List<ResultSet> resultSets) throws SQLException {
        List<QueryResult> result = new ArrayList<>(resultSets.size());
        for (ResultSet each : resultSets) {
            if (null != each) {
                result.add(new StreamQueryResult(each));
            }
        }
        return result;
    }

public boolean isHoldTransaction() {
        return (TransactionType.LOCAL == transactionType && !getAutoCommit()) || (TransactionType.XA == transactionType && isInShardingTransaction());
    }

org.apache.shardingsphere.shardingjdbc.jdbc.core.statement.ShardingPreparedStatement#mergeQuery#190
 org.apache.shardingsphere.underlying.pluggble.merge.MergeEngine#merge#61
    org.apache.shardingsphere.underlying.merge.MergeEntry#process
    public MergedResult process(final List<QueryResult> queryResults, final SQLStatementContext sqlStatementContext) throws SQLException {
        //分片合并
        Optional<MergedResult> mergedResult = merge(queryResults, sqlStatementContext);
        //脱敏处理
        Optional<MergedResult> result = mergedResult.isPresent() ? Optional.of(decorate(mergedResult.get(), sqlStatementContext)) : decorate(queryResults.get(0), sqlStatementContext);
        //只有读写分离的情况下，orElseGet会不存在，TransparentMergedResult
        return result.orElseGet(() -> new TransparentMergedResult(queryResults.get(0)));
    }

@RequiredArgsConstructor
public final class TransparentMergedResult implements MergedResult {

    private final QueryResult queryResult;

    @Override
    public boolean next() throws SQLException {
        return queryResult.next();
    }

    @Override
    public Object getValue(final int columnIndex, final Class<?> type) throws SQLException {
        return queryResult.getValue(columnIndex, type);
    }

    @Override
    public Object getCalendarValue(final int columnIndex, final Class<?> type, final Calendar calendar) throws SQLException {
        return queryResult.getCalendarValue(columnIndex, type, calendar);
    }

    @Override
    public InputStream getInputStream(final int columnIndex, final String type) throws SQLException {
        return queryResult.getInputStream(columnIndex, type);
    }

    @Override
    public boolean wasNull() throws SQLException {
        return queryResult.wasNull();
    }
}

org.apache.shardingsphere.underlying.merge.MergeEntry#merge
    private Optional<MergedResult> merge(final List<QueryResult> queryResults, final SQLStatementContext sqlStatementContext) throws SQLException {
        for (Entry<BaseRule, ResultProcessEngine> entry : engines.entrySet()) {
            if (entry.getValue() instanceof ResultMergerEngine) {
                //选择不同类型的 resultMerger
                ResultMerger resultMerger = ((ResultMergerEngine) entry.getValue()).newInstance(databaseType, entry.getKey(), properties, sqlStatementContext);
                //归并
                return Optional.of(resultMerger.merge(queryResults, sqlStatementContext, schemaMetaData));
            }
        }
        return Optional.empty();
    }

org.apache.shardingsphere.sharding.merge.ShardingResultMergerEngine#newInstance
    public ResultMerger newInstance(final DatabaseType databaseType, final ShardingRule shardingRule, final ConfigurationProperties properties, final SQLStatementContext sqlStatementContext) {
        if (sqlStatementContext instanceof SelectStatementContext) {
            return new ShardingDQLResultMerger(databaseType);
        }
        if (sqlStatementContext.getSqlStatement() instanceof DALStatement) {
            return new ShardingDALResultMerger(shardingRule);
        }
        return new TransparentResultMerger();
    }

org.apache.shardingsphere.sharding.merge.dql.ShardingDQLResultMerger#merge
    public MergedResult merge(final List<QueryResult> queryResults, final SQLStatementContext sqlStatementContext, final SchemaMetaData schemaMetaData) throws SQLException {
        if (1 == queryResults.size()) {
            return new IteratorStreamMergedResult(queryResults);
        }
        Map<String, Integer> columnLabelIndexMap = getColumnLabelIndexMap(queryResults.get(0));
        SelectStatementContext selectStatementContext = (SelectStatementContext) sqlStatementContext;
        selectStatementContext.setIndexes(columnLabelIndexMap);
        //分组聚合，排序，遍历
        MergedResult mergedResult = build(queryResults, selectStatementContext, columnLabelIndexMap, schemaMetaData);
        //分页归并
        return decorate(queryResults, selectStatementContext, mergedResult);
    }

org.apache.shardingsphere.sharding.merge.dql.ShardingDQLResultMerger#build
    private MergedResult build(final List<QueryResult> queryResults, final SelectStatementContext selectStatementContext,
                               final Map<String, Integer> columnLabelIndexMap, final SchemaMetaData schemaMetaData) throws SQLException {
        if (isNeedProcessGroupBy(selectStatementContext)) {
            //分组聚合归并
            return getGroupByMergedResult(queryResults, selectStatementContext, columnLabelIndexMap, schemaMetaData);
        }
        if (isNeedProcessDistinctRow(selectStatementContext)) {
            setGroupByForDistinctRow(selectStatementContext);
            //分组聚合归并
            return getGroupByMergedResult(queryResults, selectStatementContext, columnLabelIndexMap, schemaMetaData);
        }
        if (isNeedProcessOrderBy(selectStatementContext)) {
            //排序归并
            return new OrderByStreamMergedResult(queryResults, selectStatementContext, schemaMetaData);
        }
        //遍历归并
        return new IteratorStreamMergedResult(queryResults);
    }

org.apache.shardingsphere.sharding.merge.dql.ShardingDQLResultMerger#decorate
    private MergedResult decorate(final List<QueryResult> queryResults, final SelectStatementContext selectStatementContext, final MergedResult mergedResult) throws SQLException {
        PaginationContext paginationContext = selectStatementContext.getPaginationContext();
        if (!paginationContext.isHasPagination() || 1 == queryResults.size()) {
            return mergedResult;
        }
        String trunkDatabaseName = DatabaseTypes.getTrunkDatabaseType(databaseType.getName()).getName();
        //根据数据库类型分页归并
        if ("MySQL".equals(trunkDatabaseName) || "PostgreSQL".equals(trunkDatabaseName)) {
            return new LimitDecoratorMergedResult(mergedResult, paginationContext);
        }
        if ("Oracle".equals(trunkDatabaseName)) {
            return new RowNumberDecoratorMergedResult(mergedResult, paginationContext);
        }
        if ("SQLServer".equals(trunkDatabaseName)) {
            return new TopAndRowNumberDecoratorMergedResult(mergedResult, paginationContext);
        }
        return mergedResult;
    }

public class ExecutionContext {

    private final SQLStatementContext sqlStatementContext;

    private final Collection<ExecutionUnit> executionUnits = new LinkedHashSet<>();
}

public final class ExecutionUnit {

    private final String dataSourceName;

    private final SQLUnit sqlUnit;
}

public final class SQLUnit {

    private String sql;

    private final List<Object> parameters;

}
