数据库国产化SQL代码兼容性分析的最强工具！强烈建议收藏！

Roger的数据库专栏 2024-03-12

1343

这几年国内最火的话题无疑就是国产化了，作为数据库爱好者，那么自然是最关心数据库软件了。xc这几年，各行各业都在如火如荼地开展相关工作，一些进展比较快的用户已经上线了部分系统。

就现阶段而言，很多用户已经对国产分布式、集中式等数据库有了很多认识，因此在进行数据库选型和迁移改造的过程中，通常很关注每家数据库的兼容性评估、数据迁移工具等等。首先对于数据库的兼容性分析，实际上各个数据库厂商都在做，这里我给大家分享下我们的兼容性分析工具SQL Compatible Analysis,我们简称SCA。实际上这个工具的设计思路也是借鉴了Oracle，这里不多说，毕竟是数据库全球龙头。

本文算是一个小小的开头吧，后续将陆续推出围绕MogDB的一系列生态工具以及最佳实践文章。

大家在使用MogDB软件或相关工具如果遇到了问题，那么可以进我们的社区技术交流分享群！

言归正传！目前SCA兼容性分析工具，已经支持了不低于6种数据库到MogDB(openGauss)的分析，这里我进行简单介绍：

1、支持的源端数据库类型:

Oracle, MySQL, DB2, PostgreSQL, Informix, SQL Server

当然对一些具体的版本号也有一定要求(后续有需求会进行支持扩充).

a、Oracle: 不低于 10.2

b、MySQL: 不低于 5.5

c、DB2: 不低于 11.5

d、PostgreSQL: 不低于 9

e、Informix: 不低于 14.10 (更低版本未做验证)

f、SQL Server: 不低于 10.0 (更低版本未做验证)

2、操作系统和平台架构

目前SCA仅支持如下3种操作系统类型和平台架构，如果有其他需求，也可以反馈给我们，会进一步支持。

1)Linux x86_64

2)Linux arm64 (ARM 平台由于没有 DB2/Informix 客户端，故不支持 DB2/Informix 数据采集)

3)MacOS (MacOS 版本不支持 openGauss/MogDB 中的 SHA256 加密认证方式)

3、工具的使用说明

首先直接www.mogdb.io 官网下载即可，至于获取license，使用公网邮箱即可。

[omm@MogDBdb1 tmp]$ ./sca_linux_x86_64 --h


Introduction:
    SCA is a tool used to do SQL life-cycle inspection and simulation
    when migration from heterogeneous database to MogDB.
    Source databases supported as below:
        1. Oracle     : SQL Inspection, Simulation
        2. DB2        : SQL Inspection
        3. MySQL      : SQL Inspection
        4. PostgreSQL : SQL Inspection
        5. Informix   : SQL Inspection
        6. SQL Server : SQL Inspection


Options:
                          --[ Overall ]--
        --help            : Show help message
    -v, --version         : Show SCA version
    -T, --type            : Run type:
                          :        I = Init SCA repository
                          :        L = Apply for license
                          :        D = Delete repository data
                          :     ----------------[Analysis: Target required]---------------
                          :       OI = Oracle Inspection, this is default type
                          :       MI = MySQL Inspection
                          :       DI = DB2 Inspection
                          :       PI = PostgreSQL Inspection
                          :       II = Informix Inspection
                          :       SI = SQL Server Inspection
                          :       OS = Oracle Simulation, just like Oracle SPA
                          :      OIS = Oracle Inspection & Simulation
                          :     ------------[Collection: No need of target DB]------------
                          :       OC = Oracle Collection
                          :       MC = MySQL Collection
                          :       DC = DB2 Collection
                          :       PC = PostgreSQL Collection
                          :       IC = Informix Collection
                          :       SC = SQL Server Collection
    -d, --data            : Unzipped data directory for analyzer, or directory for collection
    -D, --data-id         : Use data with data id existed in the repository
    -w, --workers         : Parallel workers for tasks, default: 8
    -x, --debug           : Enable debug mode
    -l, --logfile         : Output to both logfile (without progress-bar) and screen (with progress-bar)
    -L, --log-only        : Output to only logfile (without progress-bar)
    -F, --force           : Force mode in REPO Creation, drop old objects before create it
    -r, --report          : Final report file location, default in data directory with name 'report'
        --report-lang     : Report language, you can use this option to create multiple report
                          : Built-in languages: zh_CN (default), en_US, ja_JP
        --license         : License file, default is [./license.json]
        --sql-modified    : Modified SQL list used in simulation
        --sql-config      : SQL configuration file (for internal use)
        --sql-transformer : Regular rules for SQL transformation (for internal use)
                          : Format: [{"name": "xxx"
                          :           "source": "xxx",
                          :           "target": "xxx",
                          :           "comment": "xxx"}, ...]
        --steps           : Run given steps (with step id or name) in analysis tasks
                          : Valid in type:
                          :     OI/MI/DI/PI/OS/OIS
                          : Step valid in order:
                          :     1.load            : Load data from file to repository database
                          :     2.object_inspect  : Do object compatible analysis
                          :     3.make_object     : Create source objects in target database
                          :     4.sql_inspect     : Do SQL compatible analysis
                          :     5.rollback_object : Rollback source objects created by make_object
                          :     6.simulate        : Do SQL performance analysis
                          :     7.html_report     : Genarate summary report in HTML format
                          :     8.excel_report    : Genarate detail report in Excel format
                          : Option value for example:
                          :     --steps 'load'        : Just load data to repository database
                          :     --steps 'sql_inspect-': Run steps after 'sql_inspect' (Step 4-7)
                          :     --steps '-6'          : Run steps before 'simulate' (Step 1-6)
                          :     --steps '3-6'         : Run steps from 'make_object' to 'simulate' (Step 3-6)
        --upgrade         : Upgrade current binary SCA command
        --passwd_encrypt  : DB password is encrypted


                          --[ Repository Connection ]--
    -H, --repo-host       : Repository DB Server host address, default: 127.0.0.1
    -P, --repo-port       : Repository DB server port, default: 5432
    -N, --repo-name       : Repository database, default: sca_db
    -U, --repo-user       : Repository user, default: sca_repo
    -E, --repo-password   : Repository password, default: SCA@password
        --repo-schema     : Repository schema, default: sca_repo
        --user            : Administrator used to create repository DB and user, default: mogdb
        --password        : Password for Administrator, default: mogdb


                          --[ Source & Target Connection ]--
    -h, --db-host         : Source & Target DB Server host address, default same as -H
    -p, --db-port         : Source & Target DB server port, default same as -P
    -n, --db-name         : Source & Target database, default same as -N
    -u, --db-user         : Source & Target user, default same as -U
    -e, --db-password     : Source & Target password, default same as -E
        --target-type     : Target database type in analysis tasks, default: MOGDB
                          : Valid type: MOGDB, OPENGAUSS, POSTGRESQL


                          --[ Collection Options ]--
    -q, --sql-days        : How many days for session sql data, default: 7
    -Q, --sql-interval    : SQL collect interval in seconds, default: 600
    -s, --schema-include  : Users/Schemas included in data collection, default: ''
    -S, --schema-exclude  : Users/Schemas excluded in data collection
                          : Default: <<depends on DB type>>
    -m, --enable-monitor  : Starting background monitor process in SQL Collection
                          : Valid values: 1/on/true/t = ENABLE, default: on
                          :               0/off/false/f = DISABLE
        --slow-log        : MySQL slow-log for client data collection
        --ignore-bind-plan: Ingore SQL binds and plans in Oracle data collection
        --callback        : Using callback to get PID/progress
        --disable-rowid   : Disable rowid rules and type convertor in SQL inspector
        --sql-csv         : SQL file in csv format for SQL Inspection (@todo)


Usage:
    0. Apply for license
       ./sca_linux_x86_64 -T L
    1. Init repository (used for first running)
       ./sca_linux_x86_64 -T i -H <host> -P <port> -N <repo-database> -U <repo-user> -E <repo-password> --user <super_user> --password <super_password>
    2. Oracle data collection
       # Notice: "-q 0.001 -Q 60" means gather Session SQL only once
       #         "-m off" means do not monitor system status (CPU Idle and Disk Free)
       ./sca_linux_x86_64 -T OC -s SCOTT -h <host> -p <port> -n '<target-db>' -u <oracle-user> -e <oracle-password> -q 0.001 -Q 60 -m off
       ./sca_linux_x86_64 -T OC -s SCOTT -h <host> -p <port> -n '<target-db>' -u <oracle-user> -e <oracle-password>
    3. MySQL data collection using slow-log file
       ./sca_linux_x86_64 -T MC -d <report-directory> --slow-log=<slow-log-file>
    4. Oracle SQL compatible analysis (Required: Repository, Target DB)
       Note: use [H/P/N/U/E] options to assign the repository
             use [h/p/n/u/e] options to assign the target database
       ./sca_linux_x86_64 -T OI -d <unzipped data directory> -n <target_db>
    5. Oracle SQL performance simulation (Required: Repository, Target DB)
       Note: use [H/P/N/U/E] options to assign the repository
             use [h/p/n/u/e] options to assign the target database
       ./sca_linux_x86_64 -T OS -d <unzipped data directory> -n <target_db>
    6. MySQL SQL compatible analysis (Required: Repository, Target DB)
       Not e: use [H/P/N/U/E] options to assign the repository
             use [h/p/n/u/e] options to assign the target database
       ./sca_linux_x86_64 -T MI -d <unzipped data directory> -h <host> -p <port> -n <target-db>

话不多说，直接上干货，给大家简单演示一把！

首先在MogDB端创建一个测试用户：

[omm@MogDBdb1 tmp]$ gsql -r
gsql ((MogDB 5.0.5 build b77f1a82) compiled at 2023-12-08 03:11:47 commit 0 last mr 1804 )
Non-SSL connection (SSL connection is recommended when requiring high-security)
Type "help" for help.


MogDB=# create user roger encrypted password 'Enmo1234';
NOTICE:  The encrypted password contains MD5 ciphertext, which is not secure.
CREATE ROLE
MogDB=# GRANT ALL PRIVILEGES TO roger;
ALTER ROLE
MogDB=# \q

接下来在MogDB端初始化一个SCA工具所使用的资料库，由于我这里sca工具和MogDB数据库在同一个环境，因此我就直接使用127.0.0.1这个地址了（如果不在同一个环境，请使用实际的IP地址);其中-N 所创建的资料DB名称，-U 表示资料库所户所有者名称，-E 表示密码。

[omm@MogDBdb1 tmp]$  ./sca_linux_x86_64 -T i -H 127.0.0.1 -P 26000 -N sca_db -U sca_repo -E 'ENMO@1234' --user roger --password Enmo1234
2024-03-12 04:13:04.693542 INFO [runMe.py:417] Get license file [license.json]
2024-03-12 04:13:04.693642 INFO [runMe.py:462] Run steps from [1:load] to [8:excel_report]
2024-03-12 04:13:04.715990 INFO [runMe.py:519] License verification succeed
2024-03-12 04:13:04.716041 INFO [runMe.py:524] Begin init repository
2024-03-12 04:13:04.832835 INFO [Repo.py:34] Create sca repo user
2024-03-12 04:13:04.892212 INFO [Repo.py:44] Create sca repo database
2024-03-12 04:13:05.742208 INFO [Repo.py:52] Switch to repository database
2024-03-12 04:13:05.835805 INFO [Repo.py:63] Create sca repo schema
2024-03-12 04:13:05.847651 INFO [Repo.py:68] Init objects in repository
2024-03-12 04:13:05.851601 INFO [Repo.py:76] Init all repo objects
2024-03-12 04:13:07.807832 INFO [Repo.py:93] Init successfully
[omm@MogDBdb1 tmp]$

当我们完成资料库初始化之后，就可以使用sca工具来抓取目标端数据库的SQL代码了，在此之前你需要在目标端（我这里是Oracle 19c Rac）上创建一个用户，且该用户应该具备一定的权限。



[oracle@orclrac1 ~]$ sqlplus "/as sysdba"


SQL*Plus: Release 19.0.0.0.0 - Production on Mon Mar 11 19:59:53 2024
Version 19.3.0.0.0


Copyright (c) 1982, 2019, Oracle.  All rights reserved.




Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.3.0.0.0


SQL> show pdbs;


    CON_ID CON_NAME                       OPEN MODE  RESTRICTED
---------- ------------------------------ ---------- ----------
         2 PDB$SEED                       READ ONLY  NO
         3 ENMODB                         READ WRITE NO
SQL> alter session set container=enmodb;


Session altered.


Elapsed: 00:00:00.04
SQL> create user test_sca identified by "test_sca123" ;
grant connect to test_sca;
grant SELECT ANY DICTIONARY to test_sca;
grant CREATE PROCEDURE to test_sca;
grant EXECUTE ON DBMS_LOB to test_sca;
grant SELECT ON GV_$SQL_PLAN to test_sca;
User created.


Elapsed: 00:00:00.61
SQL>
Grant succeeded.


Elapsed: 00:00:00.05
SQL>
Grant succeeded.


Elapsed: 00:00:00.04
SQL>
Grant succeeded.


Elapsed: 00:00:00.01
SQL>
Grant succeeded.


Elapsed: 00:00:00.13
SQL>


Grant succeeded.


Elapsed: 00:00:00.08
SQL>

准备工作就绪之后，我们就可以开始进行代码抓取了，如下操作记录所示：

[omm@MogDBdb1 tmp]$ ./sca_linux_x86_64 -T OC -s test_sca -h 172.20.22.127 -p1521 -n enmodb -u test_sca -e test_sca123  -q 0.001 -Q 60 -m off -d data
2024-03-12 04:24:17.522386 INFO [runMe.py:417] Get license file [license.json]
2024-03-12 04:24:17.522524 INFO [runMe.py:462] Run steps from [1:load] to [8:excel_report]
2024-03-12 04:24:17.557395 INFO [runMe.py:519] License verification succeed
2024-03-12 04:24:17.731580 INFO [OraCollector.py:59] Check DB privilege for [test_sca]
2024-03-12 04:24:17.831800 INFO [OraCollector.py:167] Get DB information
2024-03-12 04:24:17.838555 INFO [OraCollector.py:192] DB Info: [ENMODB (19.0.0.0)]
2024-03-12 04:24:17.838668 INFO [OraCollector.py:193] DB Charset: [ZHS16GBK]
2024-03-12 04:24:17.839003 INFO [OraCollector.py:233] Parse schema filter
2024-03-12 04:24:17.846431 INFO [OraCollector.py:259] SCHEMA_NAME_LIST: ['TEST_SCA']
2024-03-12 04:24:17.847076 INFO [OraCollector.py:362] Start collecting metadata information ...
2024-03-12 04:24:17.847283 INFO [OraCollector.py:390] Start meta collection for [COLUMN_DEFINITION]
2024-03-12 04:24:17.883868 INFO [OraCollector.py:412] Finish meta collection for [COLUMN_DEFINITION]
2024-03-12 04:24:17.884367 INFO [OraCollector.py:390] Start meta collection for [PLSQL_DEFINITION]
2024-03-12 04:24:17.936944 INFO [OraCollector.py:412] Finish meta collection for [PLSQL_DEFINITION]
2024-03-12 04:24:17.937372 INFO [OraCollector.py:390] Start meta collection for [ORA_ASM_DISKGROUP]
2024-03-12 04:24:18.080999 INFO [OraCollector.py:412] Finish meta collection for [ORA_ASM_DISKGROUP]
2024-03-12 04:24:18.081463 INFO [OraCollector.py:390] Start meta collection for [ORA_ORA_DATABASE]
2024-03-12 04:24:18.098660 INFO [OraCollector.py:412] Finish meta collection for [ORA_ORA_DATABASE]
2024-03-12 04:24:18.099106 INFO [OraCollector.py:390] Start meta collection for [ORA_INSTANCE]
2024-03-12 04:24:18.117538 INFO [OraCollector.py:412] Finish meta collection for [ORA_INSTANCE]
2024-03-12 04:24:18.117988 INFO [OraCollector.py:390] Start meta collection for [ORA_PARAMETER]
2024-03-12 04:24:18.212109 INFO [OraCollector.py:412] Finish meta collection for [ORA_PARAMETER]
2024-03-12 04:24:18.212497 INFO [OraCollector.py:390] Start meta collection for [ORA_USERS]
2024-03-12 04:24:18.227194 INFO [OraCollector.py:412] Finish meta collection for [ORA_USERS]
2024-03-12 04:24:18.227557 INFO [OraCollector.py:390] Start meta collection for [ORA_SEGMENTS]
2024-03-12 04:24:18.762603 INFO [OraCollector.py:412] Finish meta collection for [ORA_SEGMENTS]
2024-03-12 04:24:18.762992 INFO [OraCollector.py:390] Start meta collection for [ORA_DATA_FILES]
2024-03-12 04:24:18.802799 INFO [OraCollector.py:412] Finish meta collection for [ORA_DATA_FILES]
2024-03-12 04:24:18.803157 INFO [OraCollector.py:390] Start meta collection for [ORA_HIST_SNAPSHOT]
2024-03-12 04:24:18.824077 INFO [OraCollector.py:412] Finish meta collection for [ORA_HIST_SNAPSHOT]
2024-03-12 04:24:18.824409 INFO [OraCollector.py:390] Start meta collection for [ORA_HIST_SYSSTAT]
2024-03-12 04:24:18.839611 INFO [OraCollector.py:412] Finish meta collection for [ORA_HIST_SYSSTAT]
2024-03-12 04:24:18.839877 INFO [OraCollector.py:390] Start meta collection for [ORA_HIST_TIME_MODEL]
2024-03-12 04:24:18.850457 INFO [OraCollector.py:412] Finish meta collection for [ORA_HIST_TIME_MODEL]
2024-03-12 04:24:18.850726 INFO [OraCollector.py:390] Start meta collection for [ORA_OBJECTS]
2024-03-12 04:24:18.870447 INFO [OraCollector.py:412] Finish meta collection for [ORA_OBJECTS]
2024-03-12 04:24:18.870772 INFO [OraCollector.py:390] Start meta collection for [ORA_LOBS]
2024-03-12 04:24:18.902798 INFO [OraCollector.py:412] Finish meta collection for [ORA_LOBS]
2024-03-12 04:24:18.903238 INFO [OraCollector.py:390] Start meta collection for [ORA_TABLES]
2024-03-12 04:24:18.933401 INFO [OraCollector.py:412] Finish meta collection for [ORA_TABLES]
2024-03-12 04:24:18.933740 INFO [OraCollector.py:390] Start meta collection for [ORA_TAB_COLS]
2024-03-12 04:24:18.950905 INFO [OraCollector.py:412] Finish meta collection for [ORA_TAB_COLS]
2024-03-12 04:24:18.951265 INFO [OraCollector.py:390] Start meta collection for [ORA_TAB_MODIFICATIONS]
2024-03-12 04:24:18.993691 INFO [OraCollector.py:412] Finish meta collection for [ORA_TAB_MODIFICATIONS]
2024-03-12 04:24:18.994029 INFO [OraCollector.py:390] Start meta collection for [ORA_PART_TABLES]
2024-03-12 04:24:18.997605 INFO [OraCollector.py:412] Finish meta collection for [ORA_PART_TABLES]
2024-03-12 04:24:18.997869 INFO [OraCollector.py:390] Start meta collection for [ORA_INDEXES]
2024-03-12 04:24:19.016518 INFO [OraCollector.py:412] Finish meta collection for [ORA_INDEXES]
2024-03-12 04:24:19.016801 INFO [OraCollector.py:390] Start meta collection for [ORA_IND_COLUMNS]
2024-03-12 04:24:19.019598 INFO [OraCollector.py:412] Finish meta collection for [ORA_IND_COLUMNS]
2024-03-12 04:24:19.019918 INFO [OraCollector.py:390] Start meta collection for [ORA_CONSTRAINTS]
2024-03-12 04:24:19.043302 INFO [OraCollector.py:412] Finish meta collection for [ORA_CONSTRAINTS]
2024-03-12 04:24:19.043625 INFO [OraCollector.py:390] Start meta collection for [ORA_SOURCE]
2024-03-12 04:24:19.056187 INFO [OraCollector.py:412] Finish meta collection for [ORA_SOURCE]
2024-03-12 04:24:19.056529 INFO [OraCollector.py:390] Start meta collection for [ORA_VIEWS]
2024-03-12 04:24:19.084051 INFO [OraCollector.py:412] Finish meta collection for [ORA_VIEWS]
2024-03-12 04:24:19.084574 INFO [OraCollector.py:390] Start meta collection for [ORA_MVIEWS]
2024-03-12 04:24:19.088011 INFO [OraCollector.py:412] Finish meta collection for [ORA_MVIEWS]
2024-03-12 04:24:19.088163 INFO [OraCollector.py:416] All metadata information collected
2024-03-12 04:24:19.088333 INFO [MTKCollector.py:39] Search MTK program
2024-03-12 04:24:19.088467 INFO [MTKCollector.py:47] Found mtk program in directory [/tmp/_MEIXo3uDG]
2024-03-12 04:24:19.089010 INFO [MTKCollector.py:64] Prepare MTK config
2024-03-12 04:24:19.090469 INFO [MTKCollector.py:221] Executing MTK (see logfile: data/mtk_terminal.err)
2024-03-12 04:24:19.834048 INFO [MTKCollector.py:226] Parsing MTK result data
2024-03-12 04:24:19.835126 WARNING [OraCollector.py:310] Cannot collect MTK data [[Errno 2] No such file or directory: '/tmp/_MEIXo3uDG/mtk_in_sca/report/data.js']
2024-03-12 04:24:19.841896 INFO [OraCollector.py:320] Session query progress [1 of 1]
2024-03-12 04:24:19.938891 INFO [OraCollector.py:430] Start collecting sql information ...
2024-03-12 04:24:21.452495 INFO [OraCollector.py:527] Finish current SQL collection [All: 42, New: 36]
2024-03-12 04:24:21.455113 INFO [OraCollector.py:351] SQL collection all completed
2024-03-12 04:24:21.457109 INFO [runMe.py:680] +====================== [ Summary Information ] ======================+
2024-03-12 04:24:21.457256 INFO [runMe.py:681] | Task Name                                      File Name  File Size |
2024-03-12 04:24:21.457331 INFO [runMe.py:682] | ---------------------- --------------------------------- ---------- |
2024-03-12 04:24:21.457411 INFO [runMe.py:684] | SCA_SESSION_SQL                  sca_sql_information.dat   164.73KB |
2024-03-12 04:24:21.457461 INFO [runMe.py:684] | ORA_PARAMETER                      sca_ora_parameter.dat    46.75KB |
2024-03-12 04:24:21.457503 INFO [runMe.py:684] | ORA_HIST_SNAPSHOT              sca_ora_hist_snapshot.dat    43.78KB |
2024-03-12 04:24:21.457545 INFO [runMe.py:684] | ORA_SOURCE                            sca_ora_source.dat     6.18KB |
2024-03-12 04:24:21.457586 INFO [runMe.py:684] | ORA_USERS                              sca_ora_users.dat     3.75KB |
2024-03-12 04:24:21.457674 INFO [runMe.py:684] | SCA_SESSION_SQL_PERF             sca_sql_performance.dat     3.12KB |
2024-03-12 04:24:21.457721 INFO [runMe.py:684] | ORA_DATA_FILES                    sca_ora_data_files.dat     1.67KB |
2024-03-12 04:24:21.457763 INFO [runMe.py:684] | ORA_ORA_DATABASE                    sca_ora_database.dat     1.34KB |
2024-03-12 04:24:21.457804 INFO [runMe.py:684] | ORA_ASM_DISKGROUP              sca_ora_asm_diskgroup.dat       582B |
2024-03-12 04:24:21.457865 INFO [runMe.py:684] | SCA_OS_NETWORK                        sca_os_network.dat       479B |
2024-03-12 04:24:21.457933 INFO [runMe.py:684] | ORA_INSTANCE                        sca_ora_instance.dat       429B |
2024-03-12 04:24:21.457978 INFO [runMe.py:684] | SCA_OS_FILE_SYSTEM                sca_os_file_system.dat       321B |
2024-03-12 04:24:21.458019 INFO [runMe.py:684] | PLSQL_DEFINITION                sca_plsql_definition.dat       309B |
2024-03-12 04:24:21.458060 INFO [runMe.py:684] | SCA_DATABASE                            sca_database.dat       298B |
2024-03-12 04:24:21.458100 INFO [runMe.py:684] | SCA_OS_INFORMATION                sca_os_information.dat       294B |
2024-03-12 04:24:21.458141 INFO [runMe.py:684] | ORA_OBJECTS                          sca_ora_objects.dat       292B |
2024-03-12 04:24:21.458182 INFO [runMe.py:684] | COLUMN_DEFINITION              sca_column_definition.dat        70B |
2024-03-12 04:24:21.458242 INFO [runMe.py:684] | ORA_SEGMENTS                        sca_ora_segments.dat         0B |
2024-03-12 04:24:21.458296 INFO [runMe.py:684] | ORA_HIST_SYSSTAT                sca_ora_hist_sysstat.dat         0B |
2024-03-12 04:24:21.458342 INFO [runMe.py:684] | ORA_HIST_TIME_MODEL          sca_ora_hist_time_model.dat         0B |
2024-03-12 04:24:21.458383 INFO [runMe.py:684] | ORA_LOBS                                sca_ora_lobs.dat         0B |
2024-03-12 04:24:21.458425 INFO [runMe.py:684] | ORA_TABLES                            sca_ora_tables.dat         0B |
2024-03-12 04:24:21.458465 INFO [runMe.py:684] | ORA_TAB_COLS                        sca_ora_tab_cols.dat         0B |
2024-03-12 04:24:21.458520 INFO [runMe.py:684] | ORA_TAB_MODIFICATIONS      sca_ora_tab_modifications.dat         0B |
2024-03-12 04:24:21.458565 INFO [runMe.py:684] | ORA_PART_TABLES                  sca_ora_part_tables.dat         0B |
2024-03-12 04:24:21.458609 INFO [runMe.py:684] | ORA_INDEXES                          sca_ora_indexes.dat         0B |
2024-03-12 04:24:21.458650 INFO [runMe.py:684] | ORA_IND_COLUMNS                  sca_ora_ind_columns.dat         0B |
2024-03-12 04:24:21.458691 INFO [runMe.py:684] | ORA_CONSTRAINTS                  sca_ora_constraints.dat         0B |
2024-03-12 04:24:21.458731 INFO [runMe.py:684] | ORA_VIEWS                              sca_ora_views.dat         0B |
2024-03-12 04:24:21.458772 INFO [runMe.py:684] | ORA_MVIEWS                            sca_ora_mviews.dat         0B |
2024-03-12 04:24:21.458813 INFO [runMe.py:685] +=====================================================================+


 >>> Final Result is:
 >>> ----------------------------------------------
 >>> data.zip


[omm@MogDBdb1 tmp]$

这里需要注意的是，默认会抓最近1周的数据，其中-q 表示采集天数,-Q 表示间隔时间。我这里是为了演示，因此把时间缩短了，否则程序会跑很久。

数据采集完成之后我们接下来进入到数据分析过程，也是最重要的一步。

[omm@MogDBdb1 tmp]$ ./sca_linux_x86_64 -T OIS -H 127.0.0.1 -P 26000  -d ./data.zip  -N sca_db -U sca_repo -E 'ENMO@1234'
2024-03-12 04:31:37.780901 INFO [runMe.py:417] Get license file [license.json]
2024-03-12 04:31:37.780991 INFO [runMe.py:462] Run steps from [1:load] to [8:excel_report]
2024-03-12 04:31:37.802835 INFO [runMe.py:519] License verification succeed
2024-03-12 04:31:37.936105 INFO [runMe.py:770] Load data from [./data]
2024-03-12 04:31:37.936208 INFO [Loader.py:136] Begin to load data from directory [./data]
2024-03-12 04:31:38.019935 INFO [Loader.py:163] Get current data id [1]
2024-03-12 04:31:38.023733 INFO [Logger.py:142] Set task [File_Loader] [0 of 280897]
2024-03-12 04:31:38.051348 INFO [Loader.py:177] Loader order [['sca_sql_information.dat', 'sca_ora_parameter.dat', 'sca_ora_hist_snapshot.dat', 'sca_ora_source.dat', 'sca_ora_users.dat', 'sca_sql_performance.dat', 'sca_ora_data_files.dat', 'sca_ora_database.dat', 'sca_ora_asm_diskgroup.dat', 'sca_os_network.dat', 'sca_ora_instance.dat', 'sca_os_file_system.dat', 'sca_plsql_definition.dat', 'sca_database.dat', 'sca_os_information.dat', 'sca_ora_objects.dat', 'sca_column_definition.dat']]
2024-03-12 04:31:38.054560 INFO [Loader.py:178] Start loading with [8] workers
2024-03-12 04:31:38.093068 INFO [Loader.py:27] Begin to load file [./data/sca_ora_users.dat] into table [sca_ora_users]
2024-03-12 04:31:38.092369 INFO [Loader.py:27] Begin to load file [./data/sca_ora_parameter.dat] into table [sca_ora_parameter]
......
2024-03-12 04:31:48.064080 INFO [OraPotraitData.py:727] Generate JSON data for [Portrait constraint type]
2024-03-12 04:31:48.068693 INFO [OraPotraitData.py:727] Generate JSON data for [Portrait constraint no pk/uk]
2024-03-12 04:31:48.074069 INFO [OraPotraitData.py:727] Generate JSON data for [Portrait PLSQL rows]
2024-03-12 04:31:48.080662 INFO [OraPotraitData.py:727] Generate JSON data for [Portrait PLSQL sql]
2024-03-12 04:31:48.095335 INFO [OraPotraitData.py:727] Generate JSON data for [Portrait view summary]
2024-03-12 04:31:48.101088 INFO [OraPotraitData.py:727] Generate JSON data for [Portrait mview detail]
2024-03-12 04:31:48.104832 INFO [OraPotraitData.py:727] Generate JSON data for [Portrait SQL time]
2024-03-12 04:31:48.114583 INFO [OraPotraitData.py:727] Generate JSON data for [Portrait SQL length]
2024-03-12 04:31:48.121776 INFO [OraPotraitData.py:727] Generate JSON data for [Portrait SQL special]

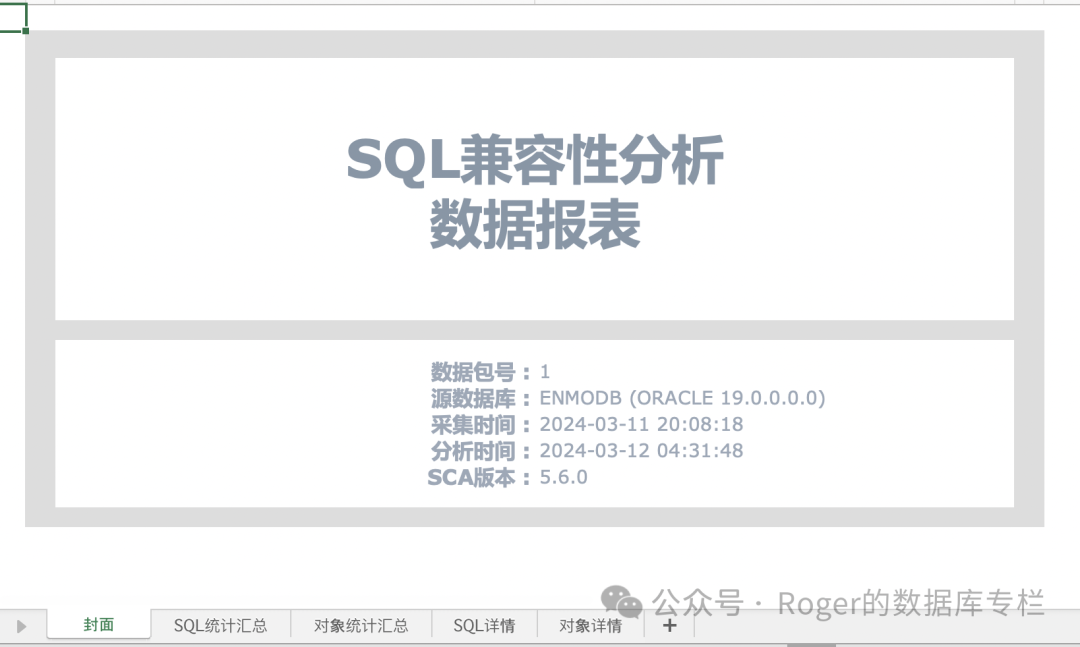

2024-03-12 04:31:48.195408 INFO [runMe.py:995] Make Excel report for language [LOCALIZATION_ZH_CN]
2024-03-12 04:31:48.208666 INFO [ExcelReport.py:61] Make [Cover] page for Excel report
2024-03-12 04:31:48.214661 INFO [ExcelReport.py:168] Make [Summary] page for Excel report
2024-03-12 04:31:48.233739 INFO [ExcelReport.py:460] Make [Object Summary] page for Excel report
2024-03-12 04:31:48.245709 INFO [ExcelReport.py:714] Make [Detail SQL] page for Excel report
2024-03-12 04:31:48.265782 INFO [ExcelReport.py:772] Make [Detail Object] page for Excel report
2024-03-12 04:31:48.277959 INFO [ExcelReport.py:837] Make [Rewrite SQL] page for Excel report
2024-03-12 04:31:48.342654 INFO [runMe.py:1003]
2024-03-12 04:31:48.342761 INFO [runMe.py:1004] >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
2024-03-12 04:31:48.342805 INFO [runMe.py:1005] Summary:
2024-03-12 04:31:48.342842 INFO [runMe.py:1006]            Data ID: 1
2024-03-12 04:31:48.346347 INFO [runMe.py:1007]          SQL Count: 35
2024-03-12 04:31:48.346444 INFO [runMe.py:1010]   Report Directory: ./data/report_LOCALIZATION_ZH_CN
2024-03-12 04:31:48.346490 INFO [runMe.py:1013]
