【问题诊断】Oracle 11g 备份任务报RMAN-06820错误

本期将为大家分享“Oracle 11g 备份任务报RMAN-06820错误”的解决方案。

关键词：RMAN-06820、ORA-17629、ORA-17627、ORA-00942

基于Oracle 11.2.0.4 版本搭建ADG主备架构的高可用环境，并将定时备份脚本部署在备节点上。检查备份日志发现数据文件备份异常，但是归档日志备份成功。错误信息如下：

启动 backup
RMAN-06820: 警告: 无法在主数据库中归档当前日志
来自目标数据库的 ORACLE 错误:
ORA-17629: 无法连接到远程数据库服务器
ORA-17627: ORA-00942: table or view does not exist


Starting backup
RMAN-06820: WARNING: failed to archive current log at primary database
ORACLE error from target database:
ORA-17629: Cannot connect to the remote database server
ORA-17627: ORA-00942: table or view does not exist

首先，检查监听程序状态是否正常，命令为lsnrctl status，结果验证监听运行正常，服务状态为ready。

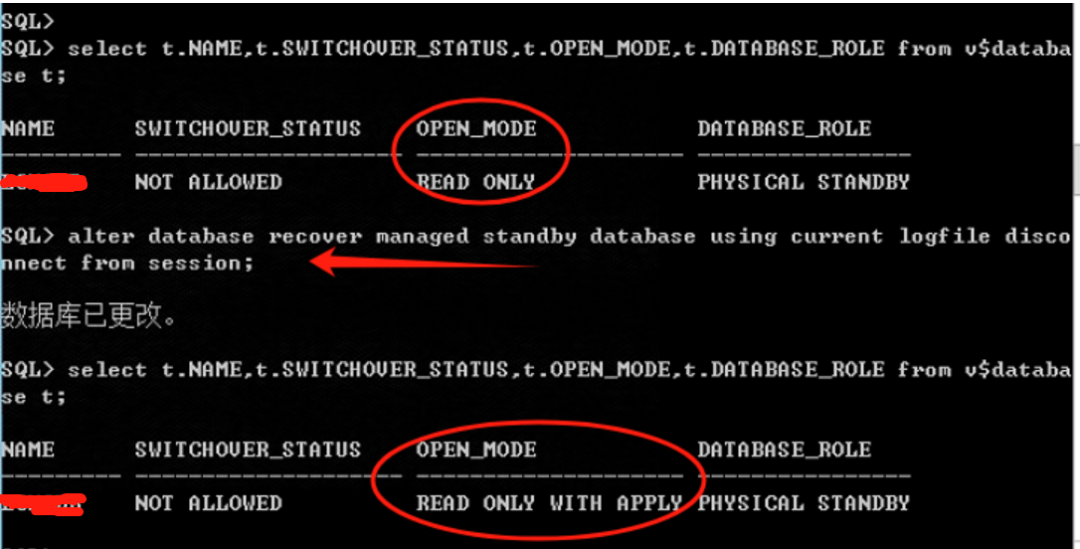

然后，登录数据库检查实例状态，看到备库的Open_mode值为“READ ONLY”，表示备库没有实时在应用日志。通过SQL查看发现主备日志同步出现GAP，即日志文件没有在备库应用。

1、登录主备库检查数据库角色
select t.NAME,t.SWITCHOVER_STATUS,t.OPEN_MODE,t.DATABASE_ROLE from v$database t;


2、登录备库检查数据库日志同步情况，接收和应用日志的数量正常相差1个
select thread#, max(sequence#) arc, max(decode(registrar||','||applied,'RFS,YES',sequence#,0)) app
from v$archived_log where  resetlogs_id = (SELECT resetlogs_id
FROM v$database_incarnation WHERE status = 'CURRENT' AND rownum = 1)
group by thread#;

接着，手动开启主从实时同步，解决实时同步问题。

最后，手动发起脚本备份，依旧会出现RMAN-06820错误。

查阅官方文档(Doc ID 1616074.1)，并确认这是一个未发布的bug导致。

Per 'unpublished' Bug 8740124, as of 11.2.0.4, we now include the current standby redo log
as part of an RMAN archivelog backup at the standby site. This is achieved by forcing a log switch
at the primary site.However, the connection to the primary failed when attempting to do so.

最终解决方式是：不要使用操作系统认证的方式登录RMAN，并采用明文的方式进行登录。

修改前：$ rman target
修改后：$ rman target sys/password@stby

注意，sys的密码必须与password file里的一致。

-------全量备份-------
ywzd_rman_level0.bat
set ORACLE_SID=ywzddg
rman target sys/密码@standby_ywzddg nocatalog  CMDFILE 'E:\backup\ywzd\ywzd_rman_level0.txt' LOG 'E:\backup\ywzd\ywzd_rman_backup_%DATE:~0,4%%DATE:~5,2%%DATE:~8,2%".log'


ywzd_rman_level0.txt
run{
allocate channel c1 device type disk;
backup as compressed backupset filesperset 6 incremental level 0 database format 'E:\backup\ywzd\ywzd_db_level0_%d_%T_%U.bak' plus archivelog delete all input format 'E:\backup\ywzd\ywzd_arch_%d_%T_%U.bak';
backup current controlfile format 'E:\backup\ywzd\ywzd_ctl_%d_%T_%U';
crosscheck backup;
report obsolete device type disk;
delete noprompt obsolete device type disk;
delete noprompt expired backup device type disk;
release channel c1;
}


--------增量备份-------
ywzd_rman_level1.bat
set ORACLE_SID=ywzddg
rman target sys/密码@standby_ywzddg nocatalog  CMDFILE 'E:\backup\ywzd\ywzd_rman_level1.txt' LOG 'E:\backup\ywzd\rman_backup_%DATE:~0,4%%DATE:~5,2%%DATE:~8,2%".log'


ywzd_rman_level1.txt
run{
allocate channel c1 device type disk;
backup as compressed backupset filesperset 6 incremental level 1 database format 'E:\backup\ywzd\db_level1_%d_%T_%U.bak' plus archivelog delete all input format 'E:\backup\ywzd\arch_%d_%T_%U.bak';
backup current controlfile format 'E:\backup\ywzd\ctl_%d_%T_%U';
crosscheck backup;
report obsolete device type disk;
delete noprompt obsolete device type disk;
delete noprompt expired backup device type disk;
release channel c1;
}


--------归档备份-------
ywzd_rman_arch.bat
set ORACLE_SID=ywzddg
rman target sys/密码@standby_ywzddg nocatalog  CMDFILE 'E:\backup\ywzd\ywzd_rman_arch.txt' LOG 'E:\backup\ywzd\rman_backup_arch_%DATE:~0,4%%DATE:~5,2%%DATE:~8,2%".log'


ywzd_rman_arch.txt
run{
allocate channel c1 device type disk;
backup archivelog all delete all input format 'E:\backup\ywzd\arch_%d_%T_%U.bak';
backup current controlfile format 'E:\backup\ywzd\ctl_%d_%T_%U';
release channel c1;
}

RMAN-06820 ORA-17629 During Backup at Standby Site (Doc ID 1616074.1)

以上就是本期关于“Oracle 11g 备份任务报RMAN-06820错误”的解决方案。希望能给大家带来帮助！
