Flowable 扩展流程定义属性

 <definitions
 xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xmlns:xsd="http://www.w3.org/2001/XMLSchema"
 xmlns:flowable="http://flowable.org/bpmn"
 xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI"
 xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC"
 xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI"
 typeLanguage="http://www.w3.org/2001/XMLSchema"
 expressionLanguage="http://www.w3.org/1999/XPath"
 targetNamespace="http://www.flowable.org/processdef">
 <!-- id：流程定义key name:流程定义名称  isExecutable：是否可执行-->
 <!-- flowable:自定义属性名="自定义属性值" -->
<process id="test_bpmn" name="test BPMN" isExecutable="true"
    flowable:organizationCode="流程所属组织编码" >
  <!-- documentation：流程描述 -->
  <documentation>test BPMN</documentation>
</process>
... ...


</definitions>

/**
 * bpmn xml和BpmnModel 转换器
 */
private BpmnXMLConverter bpmnXMLConverter = new BpmnXMLConverter();
/**
 * bpmn json和BpmnModel 转换器
 */
private BpmnJsonConverter bpmnJsonConverter = new BpmnJsonConverter();


XMLStreamReader reader = null;
InputStream inputStream = null;
try {
    XMLInputFactory factory = XMLInputFactory.newInstance();
    inputStream = new FileInputStream(new File(filePath));
    reader = factory.createXMLStreamReader(inputStream);
    //校验bpmn xml文件是否异常
    BpmnModel bpmnModel = bpmnXMLConverter.convertToBpmnModel(reader);
    List<Process> processes = bpmnModel.getProcesses();
    if (CollectionUtils.isEmpty(processes)) {
        log.error("BPMN模型没有配置流程");
        return null;
    }


    /**
     * 获取流程定义信息
     */
    Process mainProcess = bpmnModel.getMainProcess();
    //获取流程定义信息
    //获取流程key
    String id = mainProcess.getId();
    //获取流程名称
    String name = mainProcess.getName();
    //获取流程描述
    String documentation = mainProcess.getDocumentation();

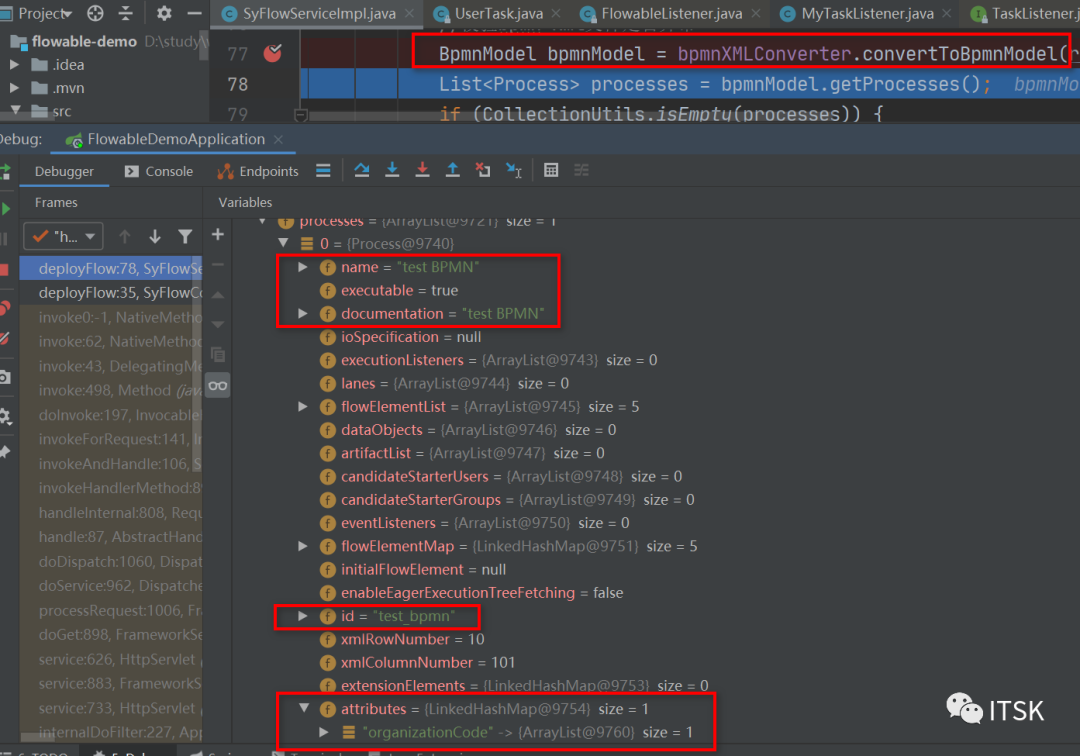

    //获取process节点中的扩展属性信息
    Map<String, List<ExtensionAttribute>> attributes = mainProcess.getAttributes();
    for (Map.Entry<String, List<ExtensionAttribute>> entry : attributes.entrySet()) {
        System.out.println("扩展属性key:" + entry.getKey() + ",对应的值：" + entry.getValue().get(0).getValue());
    }

    //保存或修改的流程模板信息
    Model newModel = new Model();
    // 查询是否已经存在流程模板 ：即判断是修改还是新增
    List<Model> existModelList = modelRepository.findByKeyAndType(mainProcess.getId(), AbstractModel.MODEL_TYPE_BPMN);
    if (!existModelList.isEmpty()) {
        newModel.setId(existModelList.get(0).getId());
    }
    User userDo = new FlowUser();
    userDo.setId("aaaaaaaa");
    //设置流程名称
    newModel.setName(mainProcess.getName());
    //设置流程编码
    newModel.setKey(mainProcess.getId());
    //设置流程引擎类型
    newModel.setModelType(AbstractModel.MODEL_TYPE_BPMN);
    // newModel.setCreated(DateUtils.getCurrentTime());
    //设置流程描述
    newModel.setDescription(mainProcess.getDocumentation());

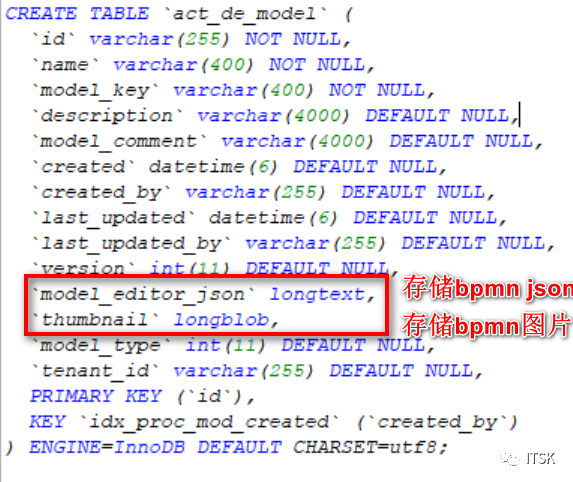

    //设置模板json格式
    ObjectNode bpmnJson = bpmnJsonConverter.convertToJson(bpmnModel);
    newModel.setModelEditorJson(bpmnJson.toString());
    if (StringUtils.isEmpty(newModel.getId())) {
        //修改
        newModel.setLastUpdated(Calendar.getInstance().getTime());
        newModel.setLastUpdatedBy(userDo.getId());
    } else {
        //新增
        newModel.setCreated(Calendar.getInstance().getTime());
        newModel.setCreatedBy(userDo.getId());
    }
    modelService.createModel(newModel, userDo);
} catch (Exception e) {
    log.error("BPMN模型创建流程异常", e);
    return null;
} finally {
    try {
        reader.close();
    } catch (XMLStreamException e) {
        log.error("关闭异常", e);
    }
}
}

 自定义：CustomBpmnJsonConverter 类继承BpmnJsonConverter
 public class CustomBpmnJsonConverter extends BpmnJsonConverter {
    /**
     * 重写BpmnModel 和 bpmn Json转换方法：实现扩展属性转换
     */
    @Override
    public ObjectNode convertToJson(BpmnModel model, Map<String, ModelInfo> formKeyMap, Map<String, ModelInfo> decisionTableKeyMap) {
      ... ...
      if (mainProcess.getExtensionElements().containsKey("historyLevel")) {
          ... ...
       }

       //扩展process中自定义属性
      Map<String, List<ExtensionAttribute>> extAttributes = mainProcess.getAttributes();
      for (Map.Entry<String, List<ExtensionAttribute>> entry : extAttributes.entrySet()) {
          String key = entry.getKey();
          String value = entry.getValue().get(0).getValue();
          //获取流程所属组织编码
          if (key.equalsIgnoreCase("organizationCode")) {
              propertiesNode.put("organizationCode", value);
              continue;
          }
       }
       ... ...
      }
 }

 自定义：CustomBpmnJsonConverter 类继承BpmnJsonConverter
 public class CustomBpmnJsonConverter extends BpmnJsonConverter {
   /**
    * 重写bpmn Json和 BpmnModel转换方法：实现扩展属性转换
    */
    @Override
    public BpmnModel convertToBpmnModel(JsonNode modelNode, Map<String, String> formKeyMap, Map<String, String> decisionTableKeyMap) {
        ... ...
        if (!nonEmptyPoolFound) {
           String organizationCode = BpmnJsonConverterUtil.getPropertyValueAsString("organizationCode ", modelNode);
           if (StringUtils.isNotEmpty(organizationCode)) {
                ExtensionAttribute organizationCodeExtensionAttribute = new ExtensionAttribute();
                organizationCodeExtensionAttribute.setName("organizationCode ");
                organizationCodeExtensionAttribute.setValue(organizationCode);
                organizationCodeExtensionAttribute.setNamespace("http://flowable.org/bpmn");
                organizationCodeExtensionAttribute.setNamespacePrefix("flowable");
                process.addAttribute(organizationCodeExtensionAttribute);
            }
        }
        }
    ... ...
 }
