Flowable 实现扩展UserTask自定义属性

<definitions
 xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xmlns:xsd="http://www.w3.org/2001/XMLSchema"
 xmlns:flowable="http://flowable.org/bpmn"
 xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI"
 xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC"
 xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI"
 typeLanguage="http://www.w3.org/2001/XMLSchema"
 expressionLanguage="http://www.w3.org/1999/XPath"
 targetNamespace="http://www.flowable.org/processdef">
 <!-- id：流程定义key name:流程定义名称  isExecutable：是否可执行-->
 <!-- flowable:自定义属性名="自定义属性值" -->
<process id="test_bpmn" name="test BPMN" isExecutable="true"
    flowable:organizationCode="流程所属组织编码" >
    ... ...
     <userTask id="test_usertask" name="用户任务测试"
      flowable:assignee="张三" flowable:owner="李四"
      flowable:formKey="表单地址"
      flowable:customArr="自定义属性">
          <!-- 监听器配置  -->
          <extensionElements>
             <!-- class类型 -->
             <flowable:taskListener event="complete" class="com.flow.test.flowabledemo.service.MyListener.MyTaskListener"/>
             <!-- 表达式类型  -->
             <flowable:taskListener expression="${myExpressionExecutionListener.test(execution.eventName)}" event="complete" />
              <!-- 脚本类型类型 -->
               <flowable:taskListener event="complete" class="org.flowable.engine.impl.bpmn.listener.ScriptTaskListener" >
                  <flowable:field name="script">
                  <flowable:string>
                    def bar = "BAR";  // local variable
                    foo = "FOO"; // pushes variable to execution context
                    task.setOwner("kermit"); // test access to task instance
                    bar // implicit return value
                  </flowable:string>
                  </flowable:field>
                  <flowable:field name="language" stringValue="groovy" />
                  <flowable:field name="resultVariable" stringValue="myVar" />
                </flowable:taskListener>
          </extensionElements>
      </userTask>
    ... ...
</process>
... ...


</definitions>

/**
 * bpmn xml和BpmnModel 转换器
 */
private BpmnXMLConverter bpmnXMLConverter = new BpmnXMLConverter();
/**
 * bpmn json和BpmnModel 转换器
 */
private BpmnJsonConverter bpmnJsonConverter = new BpmnJsonConverter();


XMLStreamReader reader = null;
InputStream inputStream = null;
try {
    XMLInputFactory factory = XMLInputFactory.newInstance();
    inputStream = new FileInputStream(new File(filePath));
    reader = factory.createXMLStreamReader(inputStream);
    //校验bpmn xml文件是否异常
    BpmnModel bpmnModel = bpmnXMLConverter.convertToBpmnModel(reader);
    List<Process> processes = bpmnModel.getProcesses();
    if (CollectionUtils.isEmpty(processes)) {
        log.error("BPMN模型没有配置流程");
        return null;
    }


    /**
     * 获取流程定义信息
     */
    Process mainProcess = bpmnModel.getMainProcess();
    //获取流程定义信息
    //获取流程key
    String id = mainProcess.getId();
    //获取流程名称
    String name = mainProcess.getName();
    //获取流程描述
    String documentation = mainProcess.getDocumentation();

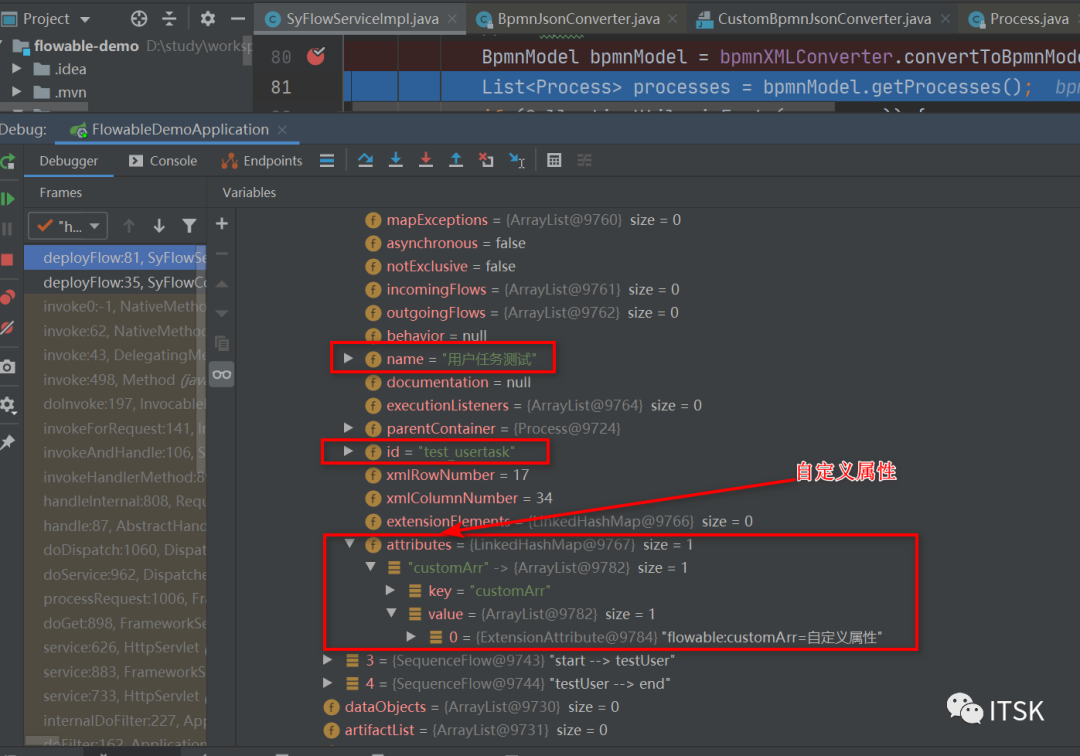

    //获取process节点中的扩展属性信息
    Map<String, List<ExtensionAttribute>> attributes = mainProcess.getAttributes();
    for (Map.Entry<String, List<ExtensionAttribute>> entry : attributes.entrySet()) {
        System.out.println("扩展属性key:" + entry.getKey() + ",对应的值：" + entry.getValue().get(0).getValue());
    }

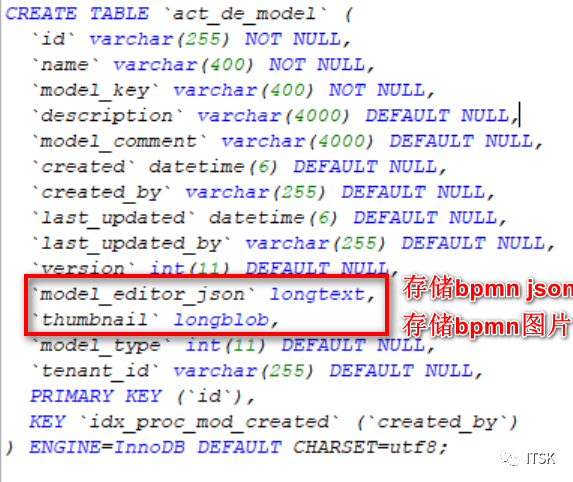

    //保存或修改的流程模板信息
    Model newModel = new Model();
    // 查询是否已经存在流程模板 ：即判断是修改还是新增
    List<Model> existModelList = modelRepository.findByKeyAndType(mainProcess.getId(), AbstractModel.MODEL_TYPE_BPMN);
    if (!existModelList.isEmpty()) {
        newModel.setId(existModelList.get(0).getId());
    }
    User userDo = new FlowUser();
    userDo.setId("aaaaaaaa");
    //设置流程名称
    newModel.setName(mainProcess.getName());
    //设置流程编码
    newModel.setKey(mainProcess.getId());
    //设置流程引擎类型
    newModel.setModelType(AbstractModel.MODEL_TYPE_BPMN);
    // newModel.setCreated(DateUtils.getCurrentTime());
    //设置流程描述
    newModel.setDescription(mainProcess.getDocumentation());
    //设置模板json格式
    ObjectNode bpmnJson = bpmnJsonConverter.convertToJson(bpmnModel);
    newModel.setModelEditorJson(bpmnJson.toString());
    if (StringUtils.isEmpty(newModel.getId())) {
        //修改
        newModel.setLastUpdated(Calendar.getInstance().getTime());
        newModel.setLastUpdatedBy(userDo.getId());
    } else {
        //新增
        newModel.setCreated(Calendar.getInstance().getTime());
        newModel.setCreatedBy(userDo.getId());
    }
    modelService.createModel(newModel, userDo);
} catch (Exception e) {
    log.error("BPMN模型创建流程异常", e);
    return null;
} finally {
    try {
        reader.close();
    } catch (XMLStreamException e) {
        log.error("关闭异常", e);
    }
}
}

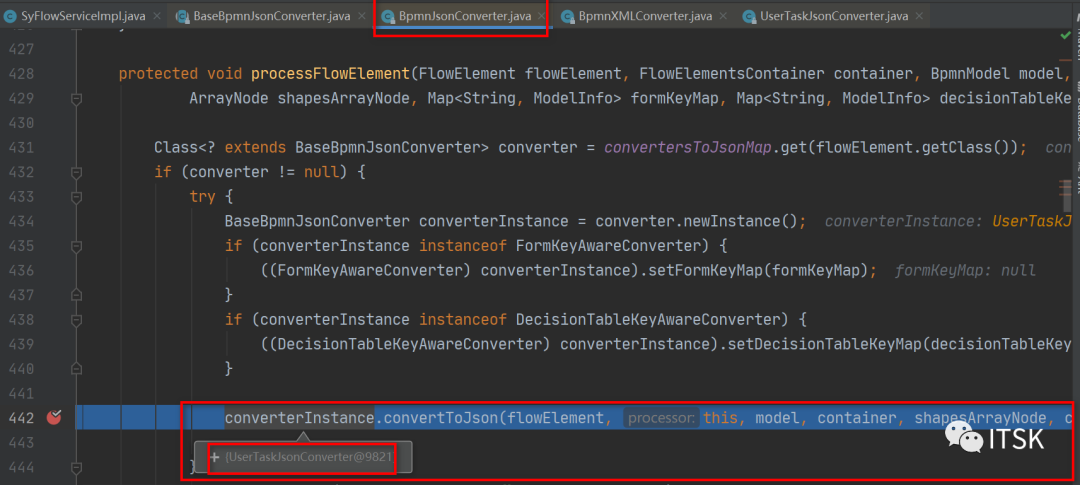

public class BpmnJsonConverter implements EditorJsonConstants, StencilConstants, ActivityProcessor {
    protected static Map<Class<? extends BaseElement>, Class<? extends BaseBpmnJsonConverter>> convertersToJsonMap = new HashMap<>();
    protected static Map<String, Class<? extends BaseBpmnJsonConverter>> convertersToBpmnMap = new HashMap<>();
    ...
    static {
        ...
        // task types
        ...
        UserTaskJsonConverter.fillTypes(convertersToBpmnMap, convertersToJsonMap);
        ...
    }
    ...
}

//自定义UserTaskJsonConverter:
public class CustomUserTaskJsonConverter extends UserTaskJsonConverter {

   //注入自定义CustomUserTaskJsonConverter
   static void customFillTypes(Map<String, Class<? extends BaseBpmnJsonConverter>> convertersToBpmnMap, Map<Class<? extends BaseElement>, Class<? extends BaseBpmnJsonConverter>> convertersToJsonMap) {
        fillJsonTypes(convertersToBpmnMap);
        fillBpmnTypes(convertersToJsonMap);
    }


    public static void fillJsonTypes(Map<String, Class<? extends BaseBpmnJsonConverter>> convertersToBpmnMap) {
        convertersToBpmnMap.put(STENCIL_TASK_USER, CustomUserTaskJsonConverter.class);
    }


    public static void fillBpmnTypes(Map<Class<? extends BaseElement>, Class<? extends BaseBpmnJsonConverter>> convertersToJsonMap) {
        convertersToJsonMap.put(UserTask.class, CustomUserTaskJsonConverter.class);
    }

    //重写UserTask Element和Json转换方法
     @Override

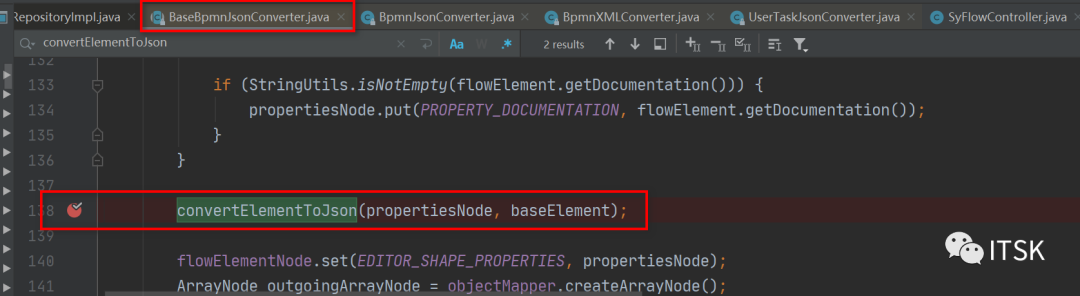

    protected void convertElementToJson(ObjectNode propertiesNode, BaseElement baseElement) {
        super.convertElementToJson(propertiesNode, baseElement);
        //获取扩展属性并进行设置
        UserTask userTask = (UserTask) baseElement;
        Map<String, List<ExtensionAttribute>> attributes = userTask.getAttributes();
        for (Map.Entry<String, List<ExtensionAttribute>> entry : attributes.entrySet()) {
            String key = entry.getKey();
            String value = entry.getValue().get(0).getValue();
            //自定义属性
            if (key.equalsIgnoreCase("customArr")) {
                propertiesNode.put("customArr", value);
                continue;
            }
        }
    }

    //重写Json和UserTask Element转换方法
     @Override
    protected FlowElement convertJsonToElement(JsonNode elementNode, JsonNode modelNode, Map<String, JsonNode> shapeMap) {
        return super.convertJsonToElement(elementNode, modelNode, shapeMap);
    }


    @Override
    protected void convertJsonToFormProperties(JsonNode objectNode, BaseElement element) {
        super.convertJsonToFormProperties(objectNode, element);
        if (element instanceof UserTask) {
            UserTask userTask = (UserTask) element;
            //将Json转为UserTask中的Element
            String customArr= BpmnJsonConverterUtil.getPropertyValueAsString("customArr", objectNode);

            if (StringUtils.isNotEmpty(customArr)) {
                ExtensionAttribute customArrExtensionAttribute = new ExtensionAttribute();
                customArrExtensionAttribute.setName("customArr");
                customArrExtensionAttribute.setValue(nodeClassType);
                customArrExtensionAttribute.setNamespace("http://flowable.org/bpmn");
                customArrExtensionAttribute.setNamespacePrefix("flowable");
                userTask.addAttribute(customArrExtensionAttribute);
            }
        }
    }
}
