openGauss/MogDB数据库逻辑复制实现双写

好久之前写过一篇关于逻辑复制的文章openGauss/MogDB 同一个实例下完成发布订阅，现在在此基础上再添加一篇关于逻辑复制实现双写的案例，本来准备了3个环境，分别是306、501和505，奈何在5版本向3版本订阅的时候，出现了报错，但也将整个过程都记录下来吧。

环境准备

节点信息

MogDB=# select version();                                                                  version

------------------------------------------------------------------------------------------------------------------------------------------------------
 (MogDB 5.0.5 build b77f1a82) compiled at 2023-12-08 03:11:47 commit 0 last mr 1804  on x86_64-unknown-linux-gnu, compiled by g++ (GCC) 7.3.0, 64-bit
(1 row)

MogDB=# show wal_level ;
 wal_level
-----------
 logical
(1 row)

MogDB=# select version();
                                                                       version
------------------------------------------------------------------------------------------------------------------------------------------------------
 (MogDB 5.0.1 build ae6d2ada) compiled at 2023-08-16 09:07:43 commit 0 last mr 1804  on x86_64-unknown-linux-gnu, compiled by g++ (GCC) 7.3.0, 64-bit
(1 row)

MogDB=# show wal_level ;
 wal_level
-----------
 logical
(1 row)

MogDB=# select version();                                                                    version

------------------------------------------------------------------------------------------------------------------------------------------------------
 (MogDB 3.0.6 build 0e82b772) compiled at 2023-09-08 03:05:33 commit 0 last mr 1801  on x86_64-unknown-linux-gnu, compiled by g++ (GCC) 7.3.0, 64-bit
(1 row)

MogDB=# show wal_level ;
 wal_level
-----------
 logical
(1 row)

用户权限 (所有节点)

--创建用户
create user logicalrep REPLICATION OPRADMIN encrypted password 'logicalrep@123';

--配置白名单
host    replication            logicalrep  172.20.22.1/24     sha256

语句准备

--测试表（所有节点）
create table logicaltest(id serial, col1 text, ctime timestamp);
alter table logicaltest REPLICA IDENTITY full;

--初始数据（源）
insert into logicaltest select generate_series(1,5),md5(random()),now();

--发布者mypub506（在505实例，发布者名字应该叫505）
create publication mypub506 for table logicaltest;

--订阅者mysub506（在501实例）
create subscription mysub506 connection 'dbname=postgres host=172.20.22.218 user=logicalrep password=logicalrep@123 port=25001' publication mypub506;

--发布者mypub501（在501实例）
create publication mypub501 for table logicaltest;

--订阅者mysub501（在505实例）
create subscription mysub501 connection 'dbname=postgres host=172.20.22.220 user=logicalrep password=logicalrep@123 port=26001' publication mypub501;

--订阅者mysub501（在306实例）
create subscription mysub501 connection 'dbname=postgres host=172.20.22.220 user=logicalrep password=logicalrep@123 port=26001' publication mypub501;

复制测试

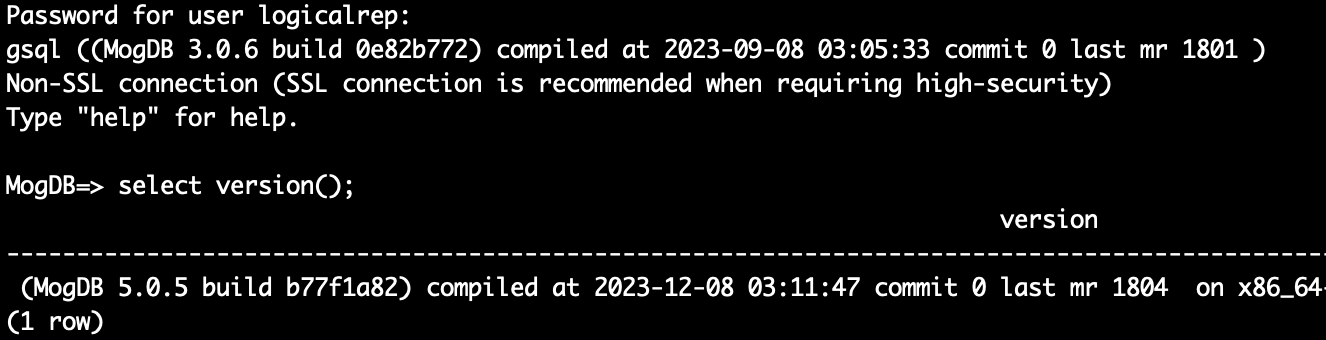

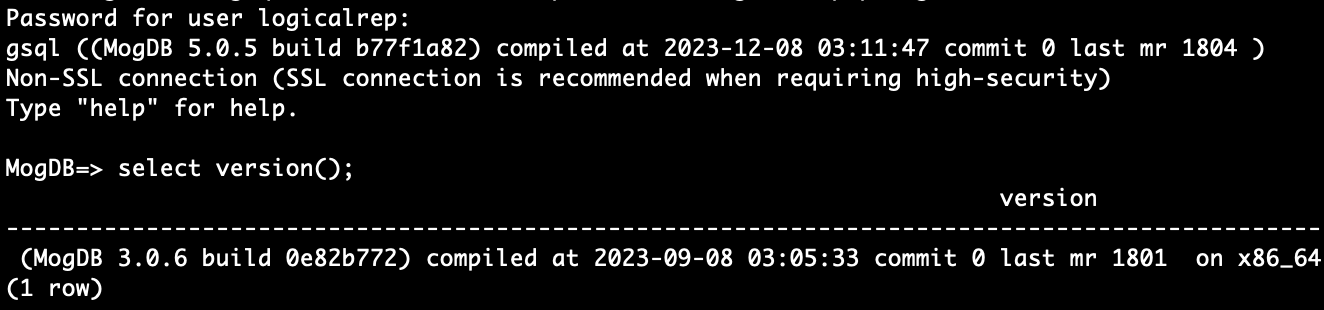

用户访问测试

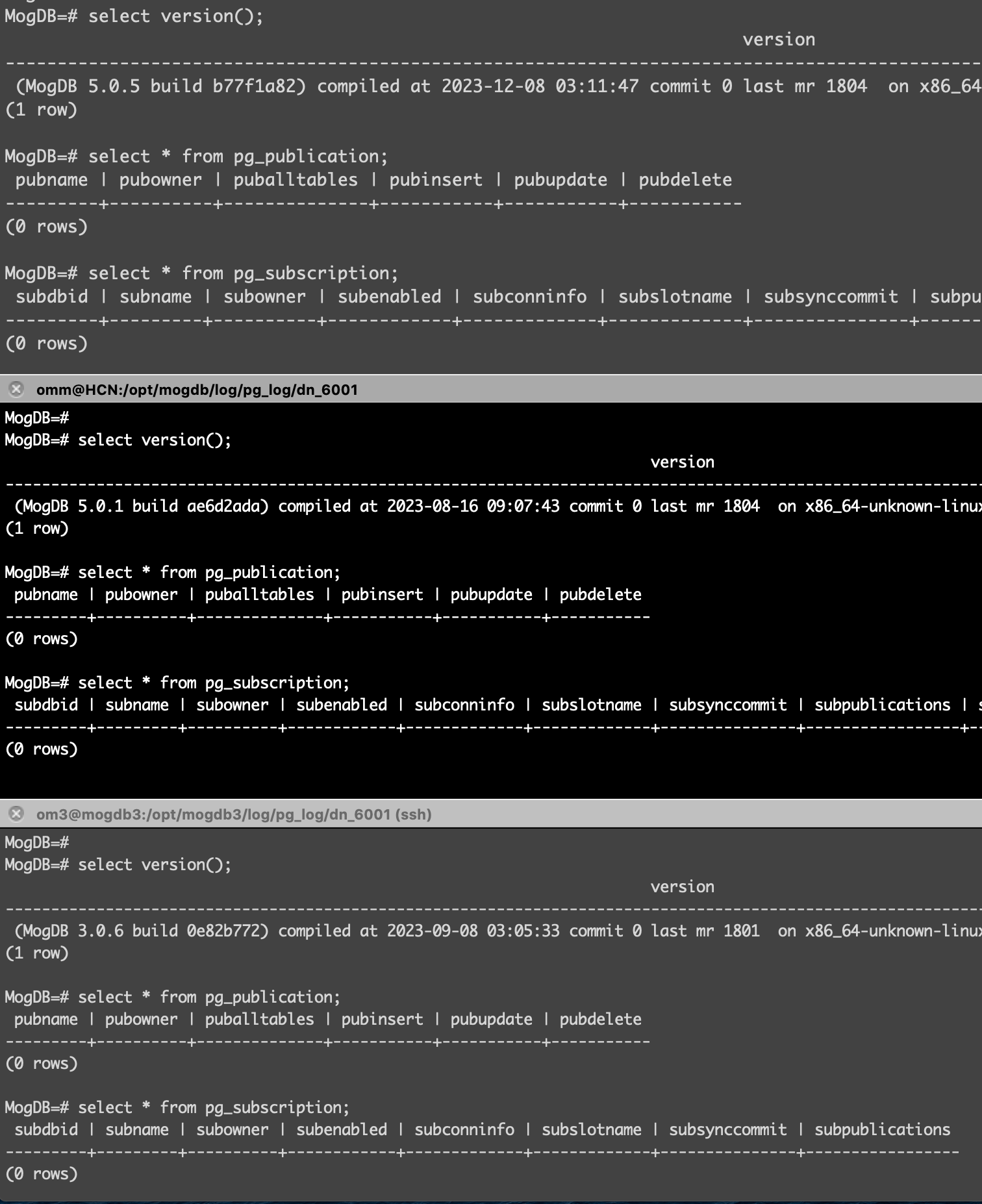

订阅发布信息检查

目前三个节点都是干净的，没有订阅发布

建立发布订阅关系

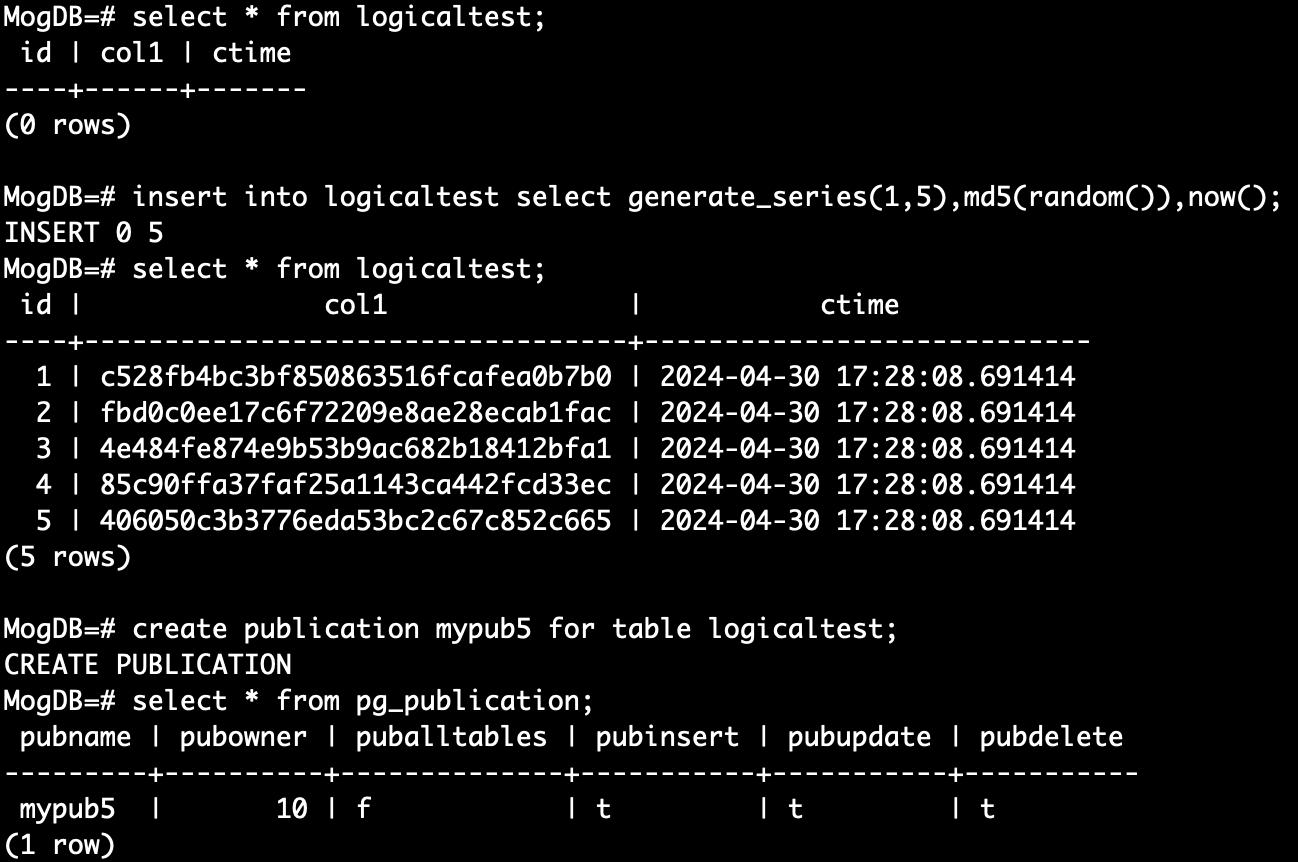

506实例初始化数据，并创建发布者

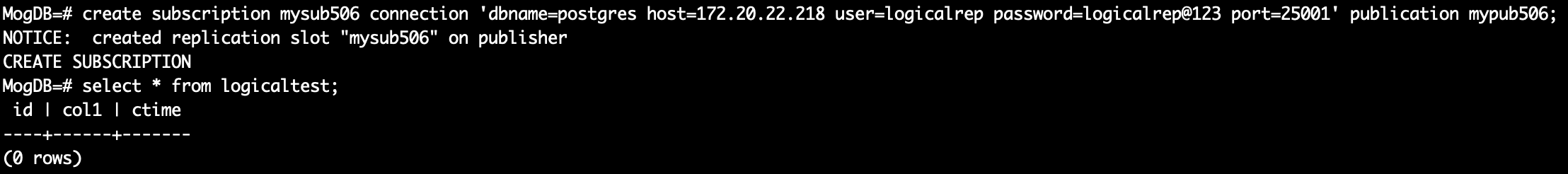

501创建订阅者，发布者是mypub506

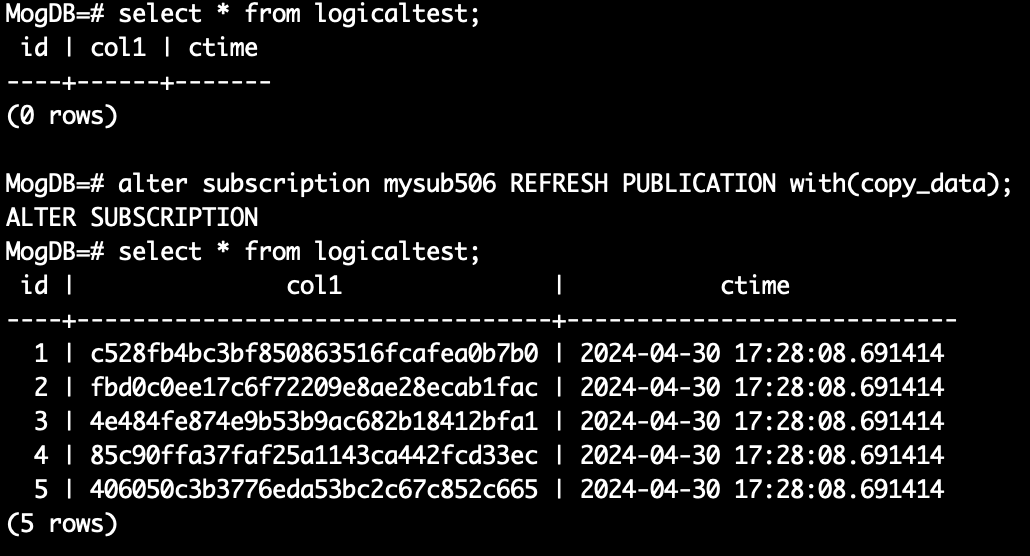

5.0.x版本支持了复制历史数据

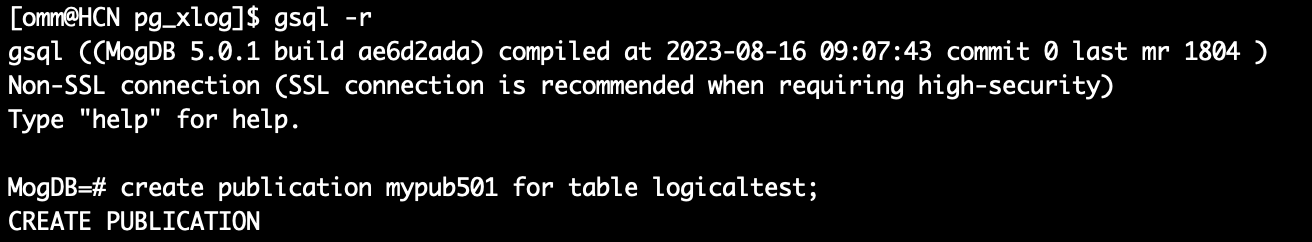

501创建发布者

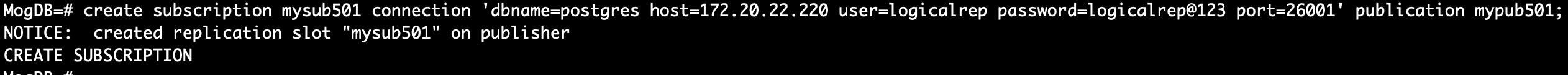

506创建订阅者

双写测试

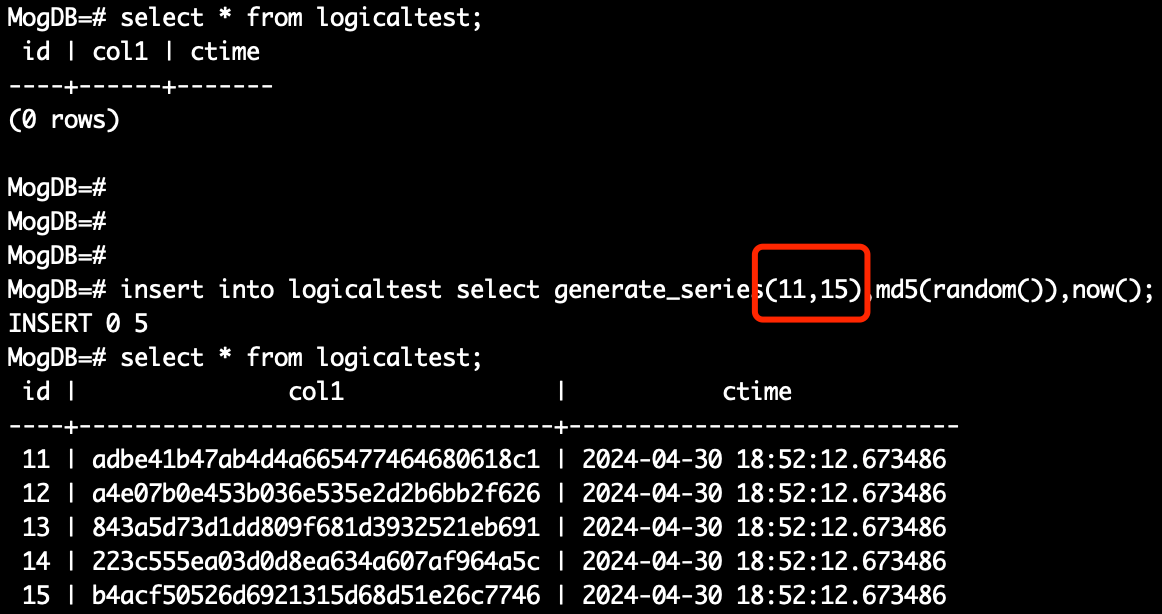

在501节点上插入数据11-15

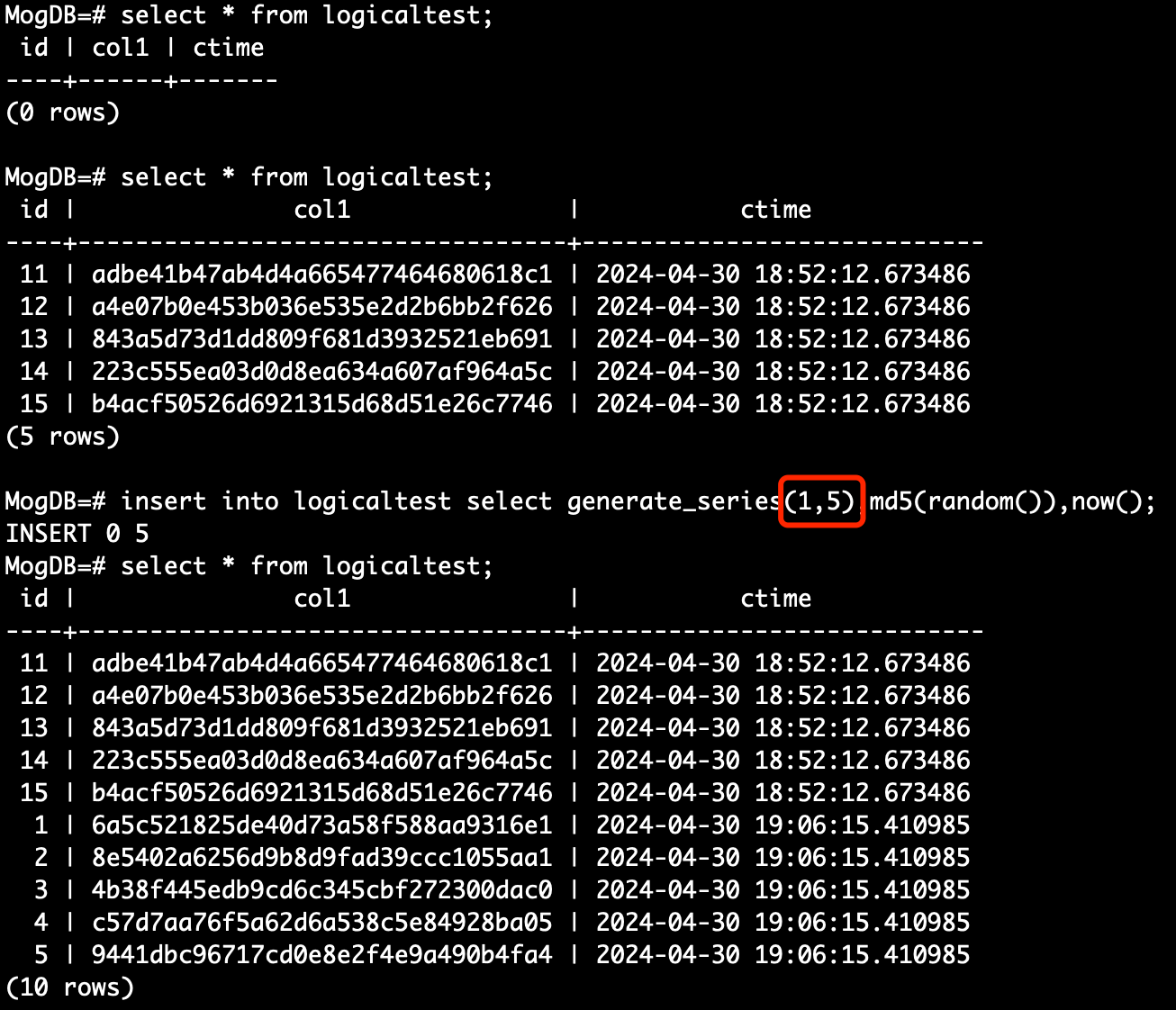

数据已经同步到506，且在506上再次插入数据1-5，发现数据已经正常写入且同步到501

双写分析

逻辑复制实现双写，没有造成数据循环的原因在于record_origin这个标记，这与PG16中的WITH (ORIGIN = NONE)异曲同工

REDO @ 1B/312EC090; LSN 1B/312EC100: prev 1B/312EC050; xid 1233997; term 1; len 72; total 111; crc 4149308913; desc: Transaction - XLOG_XACT_COMMIT commit: 2024-04-30 18:28:45.671021 CST; csn:1049046; RecentXmin:1233996; origin: node 1, lsn C/2EE68978, at 2024-04-30 18:42:35.911074 CST
	SYSID 0; record_origin 1; max_block_id 4294967295; readSegNo 6961; readOff 3063808; readPageTLI 0; curReadSegNo 0; curReadOff 0 latestPagePtr 1B/312EC000; latestPageTLI 1; currRecPtr 1B/312EC090
	PRIVATE @1B/31000000-1B/32000000; TLI 1; endptr_reached 0
	MAINDATA main_data_len 72; main_data_bufsz 72
mog_xlogdump: FATAL:  error in WAL record at 1B/3141D9E0: invalid record length at 1B/3141DA38: wanted 32, got 0

问题汇总

高版本5.0.x无法订阅低版本3.0.x

LOG:  received wal replication command: IDENTIFY_MODE
LOG:  received wal replication command: SELECT 1 FROM pg_catalog.pg_publication t WHERE t.pubname IN ('mypub3')
FATAL:  replication command parser returned 1
