openGauss operator实战-环境准备（二）之疑难问题

上一篇：openGauss operator实战-环境准备（一）

疑难问题

1）Exiting due tO GUEST MISSING CONNTRACK: Sorry, Kubernetes 1.20.2 requires conntrack to be installed in root’s path

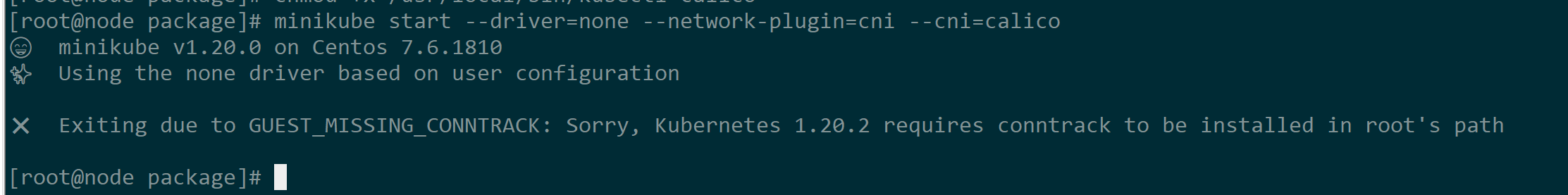

问题现象

# minikube start --driver=none--network-plugin=cni --cni=calico
minikube v1.20.0 on centos 7.6.1810
Using the none driver based on user configuration
Exiting due tO GUEST MISSING CONNTRACK: Sorry, Kubernetes 1.20.2 requires conntrack to be installed in root's path

解决

yum -y install conntrack

2）连不上外网导致拉取相关镜像失败

现象

💢  initialization failed, will try again: wait: /bin/bash -c "sudo env PATH=/var/lib/minikube/binaries/v1.20.2:$PATH kubeadm init --config /var/tmp/minikube/kubeadm.yaml  --ignore-preflight-errors=DirAvailable--etc-kubernetes-manifests,DirAvailable--var-lib-minikube,DirAvailable--var-lib-minikube-etcd,FileAvailable--etc-kubernetes-manifests-kube-scheduler.yaml,FileAvailable--etc-kubernetes-manifests-kube-apiserver.yaml,FileAvailable--etc-kubernetes-manifests-kube-controller-manager.yaml,FileAvailable--etc-kubernetes-manifests-etcd.yaml,Port-10250,Swap,Mem": exit status 1
stdout:
[init] Using Kubernetes version: v1.20.2
...
error execution phase preflight: [preflight] Some fatal errors occurred:
        [ERROR ImagePull]: failed to pull image k8s.gcr.io/kube-apiserver:v1.20.2: output: Error response from daemon: Get "https://k8s.gcr.io/v2/": net/http: request canceled while waiting for connection (Client.Timeout exceeded while awaiting headers)
, error: exit status 1
        [ERROR ImagePull]: failed to pull image k8s.gcr.io/kube-controller-manager:v1.20.2: output: Error response from daemon: Get "https://k8s.gcr.io/v2/": dial tcp 108.177.125.82:443: i/o timeout
, error: exit status 1
        [ERROR ImagePull]: failed to pull image k8s.gcr.io/kube-scheduler:v1.20.2: output: Error response from daemon: Get "https://k8s.gcr.io/v2/": net/http: request canceled while waiting for connection (Client.Timeout exceeded while awaiting headers)
, error: exit status 1
...

原因

启动时需要拉取镜像，访问外网失败导致

解决方法

手动拉取所需镜像

#1.脚本文件
# cat kubeadm.sh
#!/bin/bash

## 使用如下脚本下载国内镜像，并修改tag为google的tag
set -e

KUBE_VERSION=v1.20.2
KUBE_PAUSE_VERSION=3.2
ETCD_VERSION=3.4.13-0
CORE_DNS_VERSION=1.7.0

GCR_URL=k8s.gcr.io
ALIYUN_URL=registry.aliyuncs.com/google_containers

images=(kube-proxy:${KUBE_VERSION}
kube-scheduler:${KUBE_VERSION}
kube-controller-manager:${KUBE_VERSION}
kube-apiserver:${KUBE_VERSION}
pause:${KUBE_PAUSE_VERSION}
etcd:${ETCD_VERSION}
coredns:${CORE_DNS_VERSION})

for imageName in ${images[@]} ; do
  docker pull $ALIYUN_URL/$imageName
  docker tag  $ALIYUN_URL/$imageName $GCR_URL/$imageName
  docker rmi $ALIYUN_URL/$imageName
done

#2.执行
# sh kubeadm.sh

#3.查看镜像
# docker images
REPOSITORY                           TAG        IMAGE ID       CREATED        SIZE
opengauss-5.0.2                      latest     11b49a372af4   46 hours ago   2.12GB
openeuler-20.03-lts-sp3              latest     12d0b819f478   2 years ago    189MB
k8s.gcr.io/kube-proxy                v1.20.2    43154ddb57a8   3 years ago    118MB
k8s.gcr.io/kube-controller-manager   v1.20.2    a27166429d98   3 years ago    116MB
k8s.gcr.io/kube-apiserver            v1.20.2    a8c2fdb8bf76   3 years ago    122MB
k8s.gcr.io/kube-scheduler            v1.20.2    ed2c44fbdd78   3 years ago    46.4MB
k8s.gcr.io/etcd                      3.4.13-0   0369cf4303ff   3 years ago    253MB
k8s.gcr.io/coredns                   1.7.0      bfe3a36ebd25   3 years ago    45.2MB
k8s.gcr.io/pause                     3.2        80d28bedfe5d   4 years ago    683kB

3）pod不断重启，状态异常：Unable to auto-detect an IPv4 address using interface regexes [eth.*]: no valid host interfaces found

问题现象

# kubectl get pods -l k8s-app=calico-node -A
NAMESPACE     NAME                READY   STATUS             RESTARTS   AGE
kube-system   calico-node-wb2m4   0/1     CrashLoopBackOff   6          9m18s

问题排查

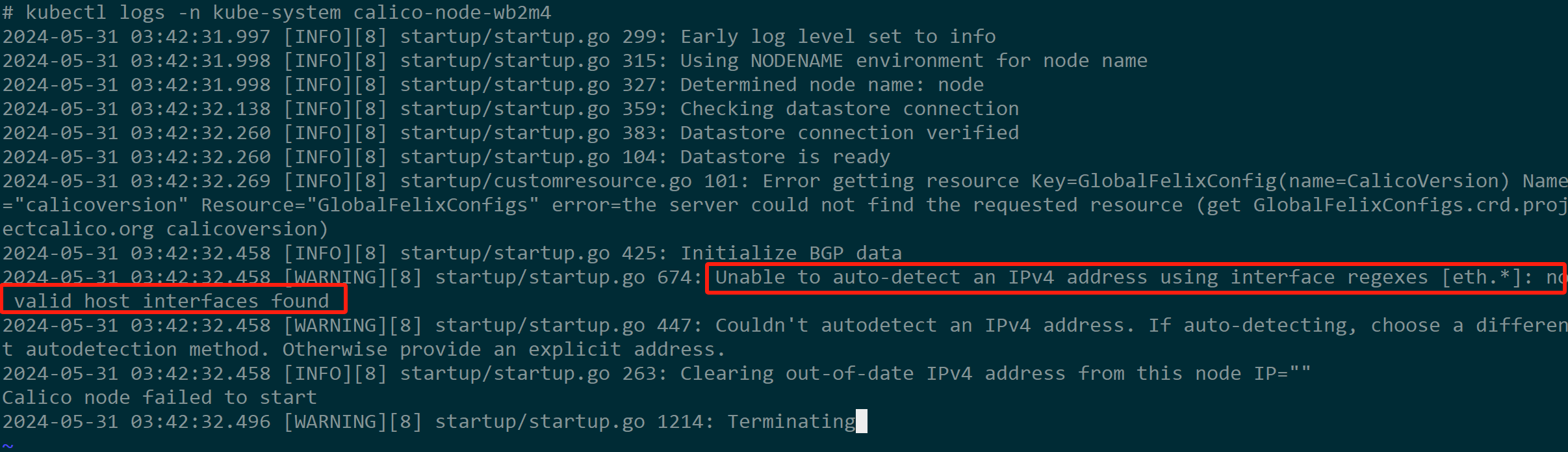

1）查看pod日志

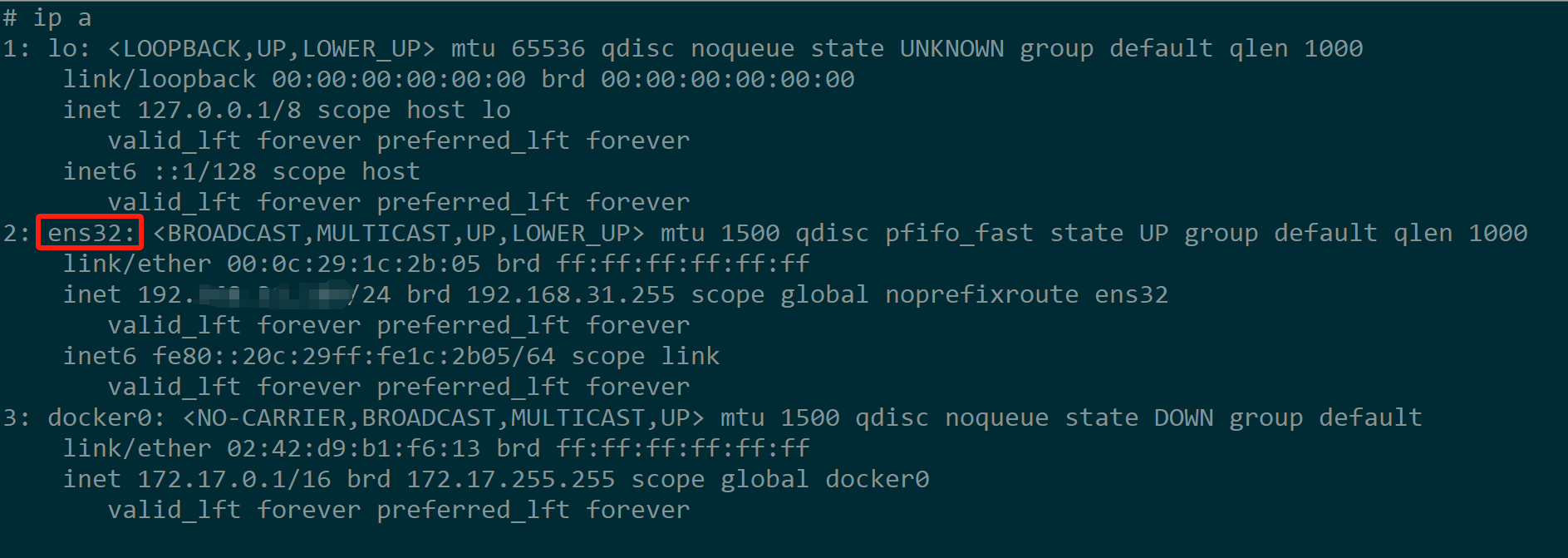

2）查看本地网卡

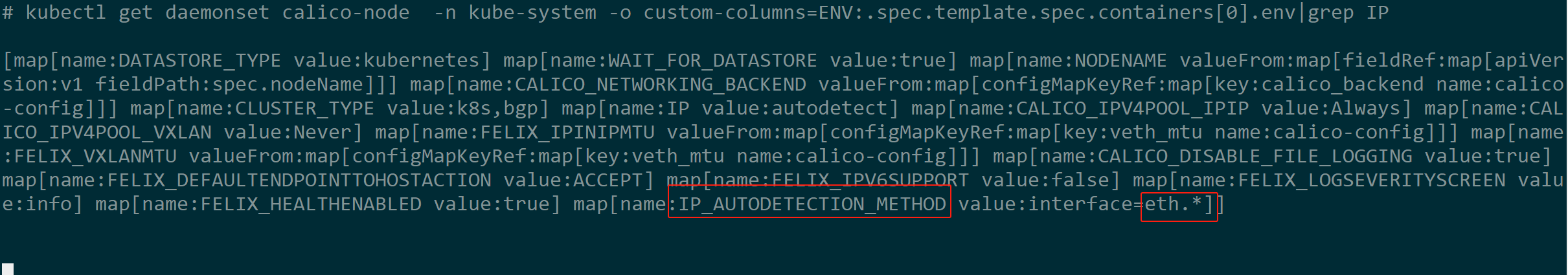

3）检查calico是否开启自动检测IPV4地址：

问题原因很清楚了，calico会根据默认的eth.*网卡名的匹配规自动检测，找不到相关的网卡，自动分配IP自然也会报错，需要修改calico的IPV4网卡匹配规则

解决办法

• 法一：改网卡名

# 命令修改
kubectl set env daemonset/calico-node -n kube-system IP_AUTODETECTION_METHOD=interface=ens*,eth.*
或者
# 修改配置文件
kubectl edit daemonset calico-node -n kube-system

• 法二：手动指定IP

kubectl set env daemonset/calico-node -n kube-system IP=192.170.3.100/24

再次查看pod状态：

#  kubectl get pods -l k8s-app=calico-node -A
NAMESPACE     NAME                READY   STATUS    RESTARTS   AGE
kube-system   calico-node-phwth   0/1     Running   0          13s
#  kubectl get pods -l k8s-app=calico-node -A
NAMESPACE     NAME                READY   STATUS    RESTARTS   AGE
kube-system   calico-node-phwth   1/1     Running   0          5m10s
