一、创建webhook脚本

# -*- coding: utf-8 -*-
"""
====================================
@File Name ：email_webhook.py
@Time ： 2023/10/27 14:55
@Program IDE ：PyCharm
@Create by Author ：zayki
====================================
"""

import smtplib
import time
from os import popen
from email.mime.text import MIMEText
from email.header import Header
from flask import Flask, request

app = Flask(__name__)

def send_mail(content):
    # content=request.data
    # print(content)
    # 发送邮件
    sender = 'sysmonitor@test.com.cn'
    receiver = 'zhaoyuanji@test.com.cn'
    message = MIMEText(content,'plain', 'utf-8')
    message['From'] = Header('sysmonitor','utf-8')
    message['To'] =  Header(receiver, 'utf-8')
    subject = 'Elasticsearch测试集群监控'
    message['Subject'] = Header(subject, 'utf-8')
    smtpObj = smtplib.SMTP('email.test.com.cn',port=25)
    try:
        smtpObj.sendmail(sender, receiver, message.as_string())
        print("Send mail successfully.")
    except Exception as err:
        print(str(err))

@app.route("/send_mail", methods=["POST"])
def send():
    monopt=request.args["monopt"]
    client=request.remote_addr

    if monopt=="tookvalue":
        content = "近一分钟内命中率低于500个，请检查集群状态。集群IP地址为：{0}".format(client)
        popen("systemctl restart logstash")
        logstash_status=popen("systemctl status logstash").read().strip()
        print(logstash_status)

    if monopt=="taskcount":
        content = "近一分钟内执行的task数量低于5个，请检查集群状态。集群IP地址为：{0}".format(client)
    send_mail(content)
    return "Successfully."


if __name__ == "__main__":
    app.run("0.0.0.0", "5000")

二、配置告警通知方式为webhook

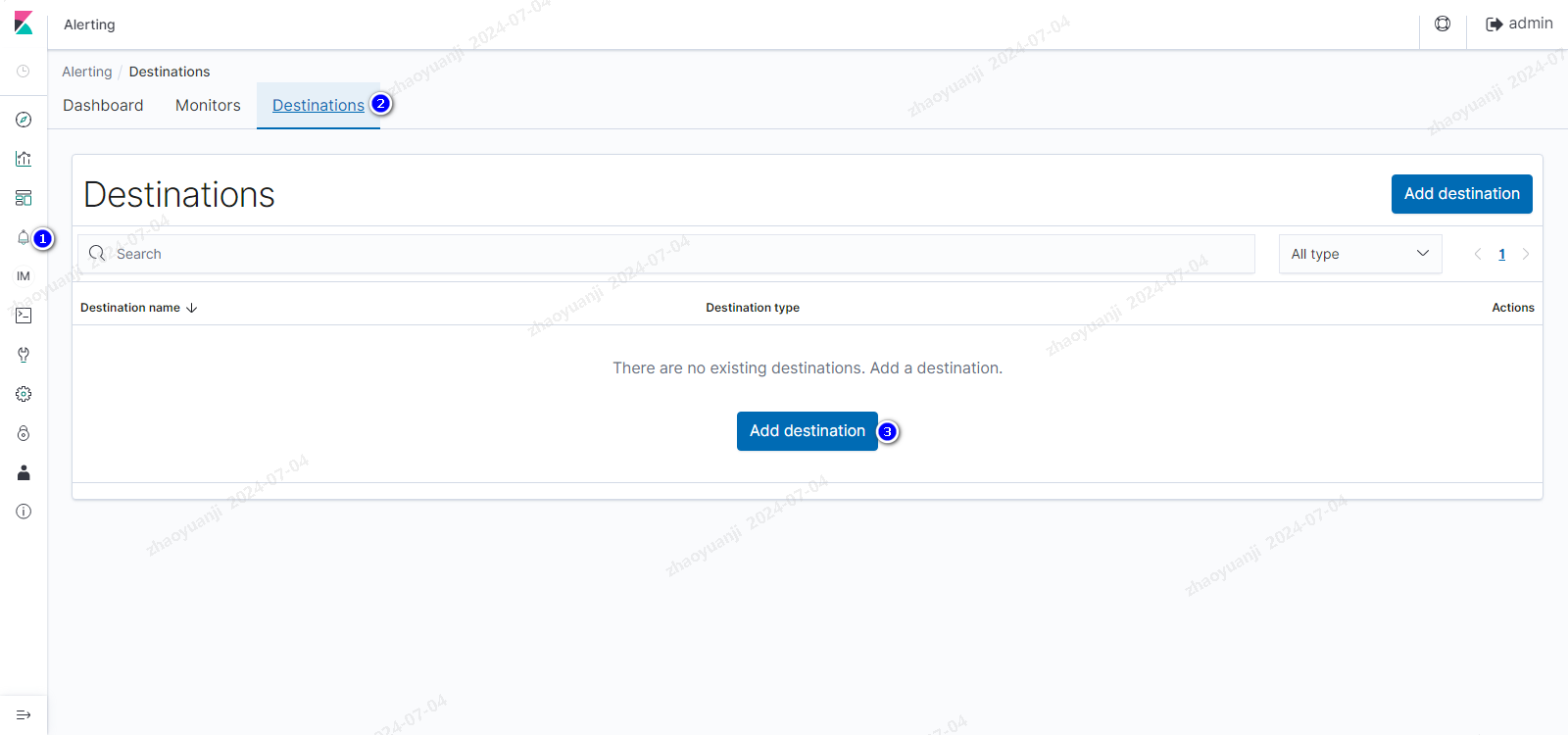

如图所示，按照步骤点击。

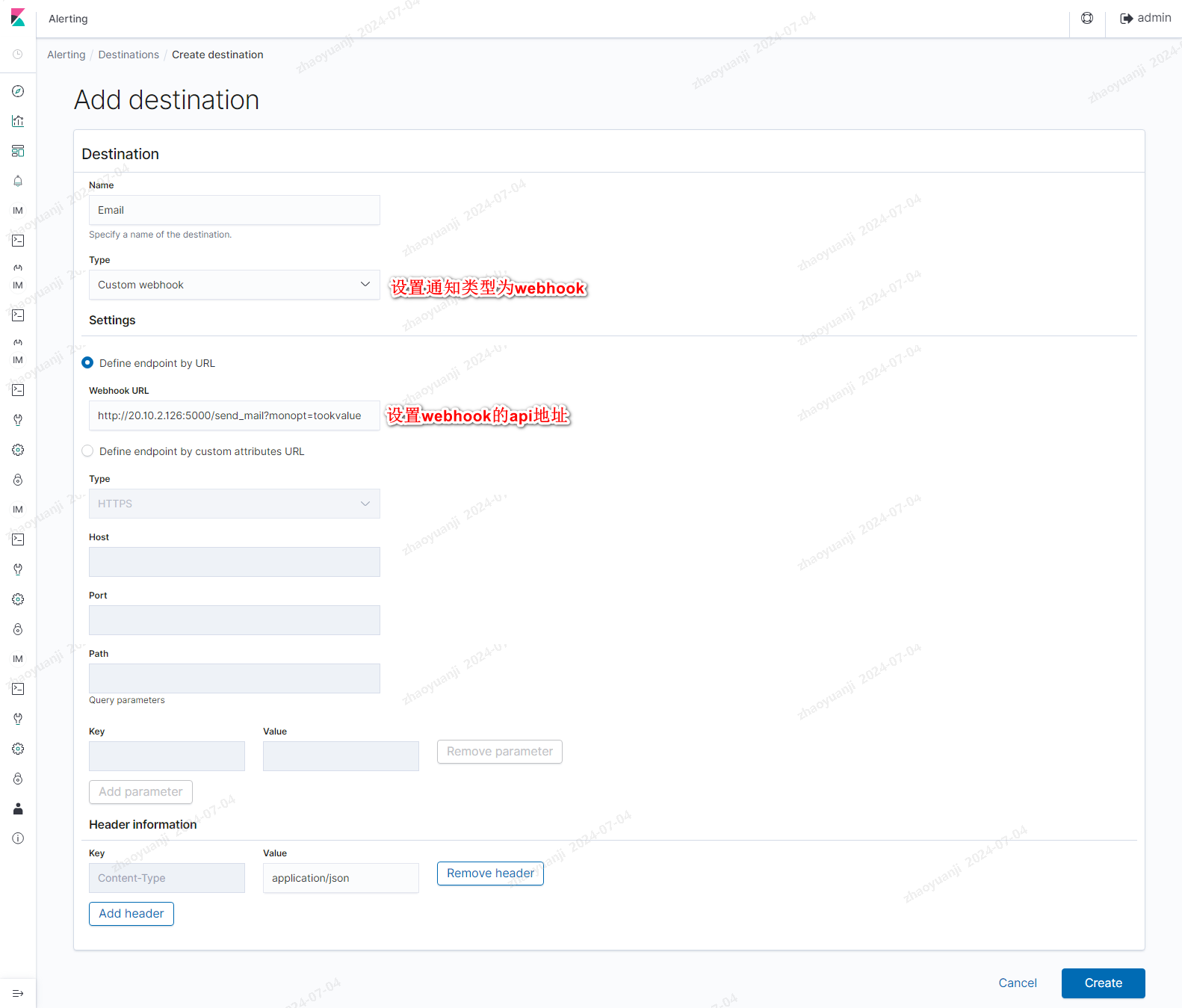

来到通知目标地址的配置：

三、配置监控器，关联通知

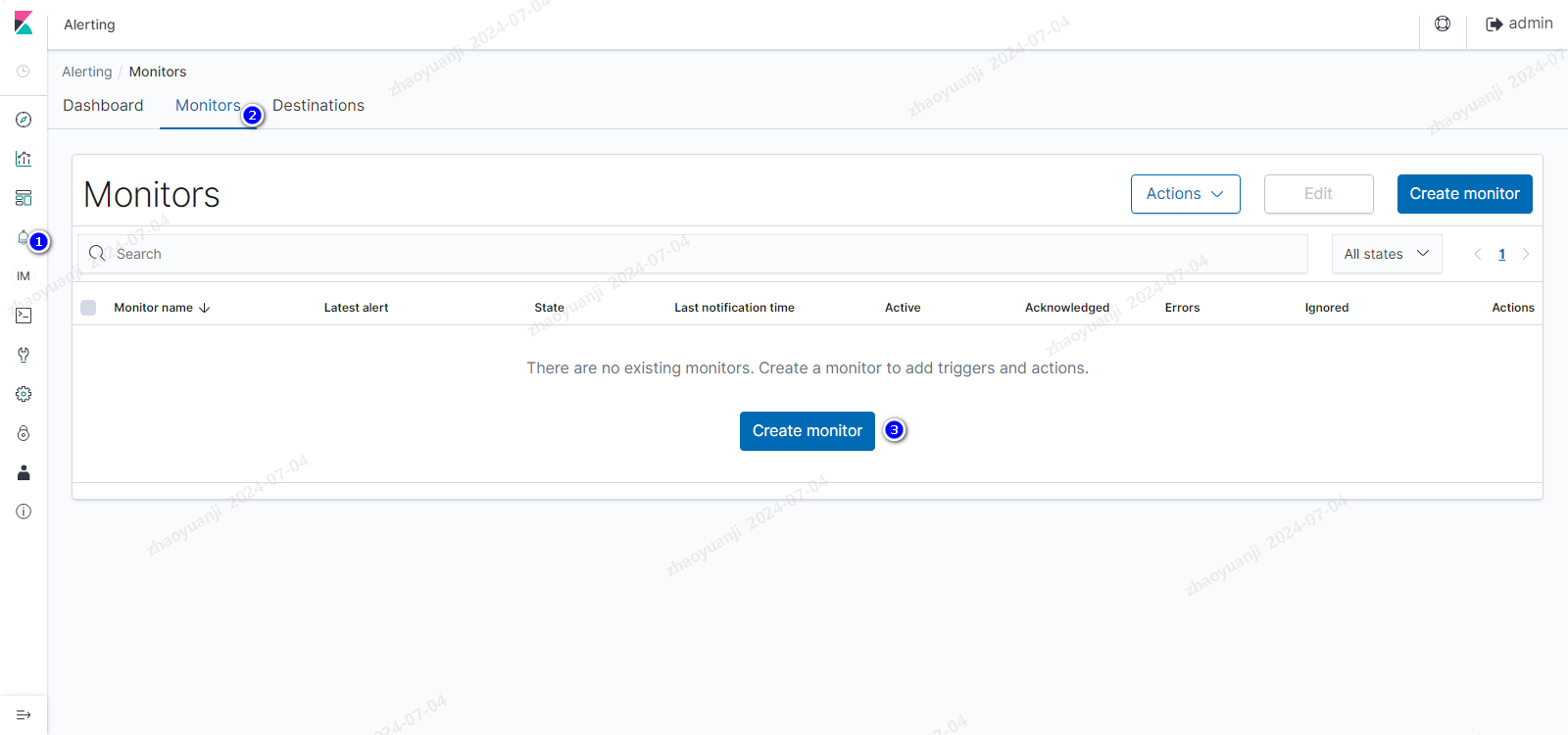

如图所示，按照步骤点击：

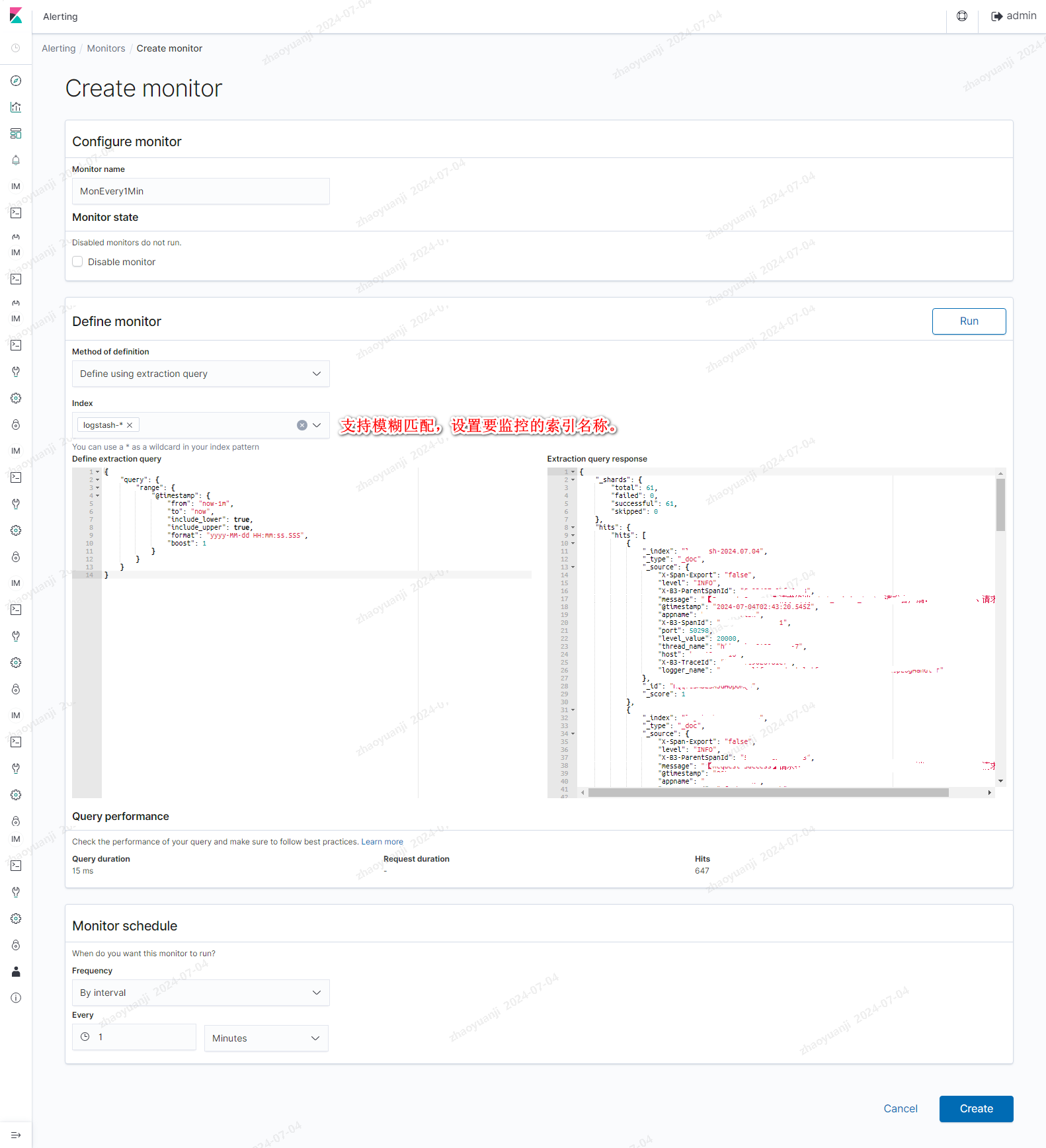

进入到Monitors监控器配置页面：

四、创建触发器Trigger

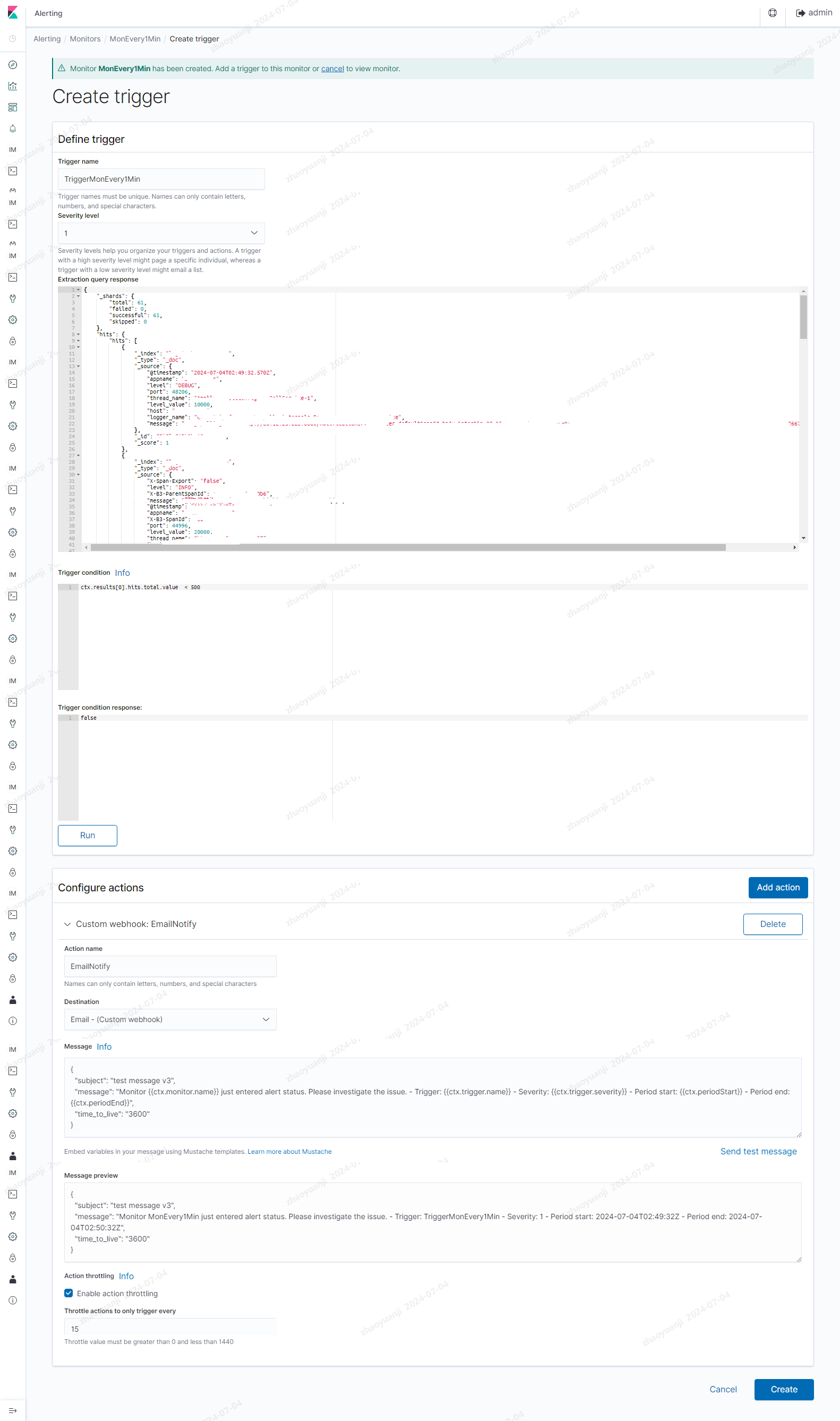

上一步点击“Create”按钮之后，会来到如下页面，配置如图所示：

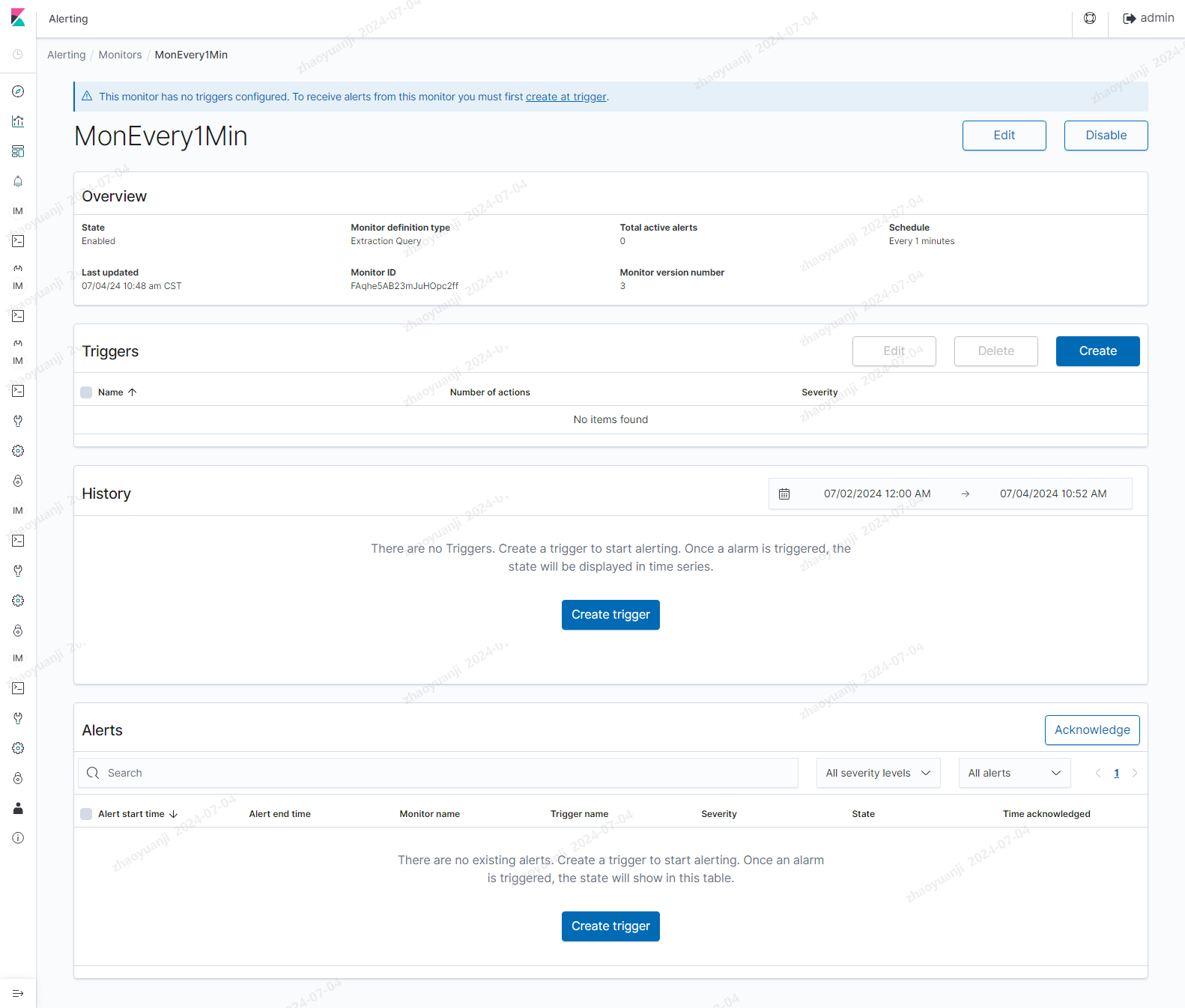

附：如何进入到trigger配置页面：

五、简单方法实现类似功能

1. 使用python创建如下脚本：

#!/usr/bin/evn python3
# -*-coding:utf-8-*-
# Author: zyjsuper
# Filename: mon_total_hits_alert.py
# CreateTime: 2023/11/1 10:42

import os
import random
import requests
import json
import smtplib
from email.mime.text import MIMEText
from email.header import Header
import base64 as b64
from warnings import  filterwarnings

filterwarnings('ignore')

class monitor_total_hits_alert:

    def __init__(self,username,password):
        auth=b64.b64encode(('{0}:{1}'.format(username,password)).encode('utf-8')).decode('utf-8')

        es_cluster = [ '20.1.5.114','20.1.5.146','20.1.5.197' ]

        self.url = 'https://{0}:9200/*/_search?size=0'.format(es_cluster[random.randint(0,2)])
        self.json_request = '''{
            "track_total_hits": true,
            "query": {
                "range": {
                    "@timestamp": {
                        "from": "now-1m",
                        "to": "now",
                        "format": "yyyy-MM-dd HH:mm:ss.SSS",
                        "include_lower": true,
                        "include_upper": true,
                        "boost": 1
                    }
                }
            }
        }'''

        self.headers = {
            'Content-Type': 'application/json',
            'Authorization': 'Basic {0}'.format(auth)
        }

    def get_total_hits(self):
        response = requests.post(self.url, headers = self.headers , data = self.json_request,verify=False)
        print("本次请求得到的响应数据为:{0}".format(response.text))
        return json.loads(response.text)

    def send_mail(self,subject, content):
        sender = 'sysmonitor@test.com.cn'
        receiver = 'zyjsuper@test.com.cn'
        message = MIMEText(content, 'plain', 'utf-8')
        message['From'] = Header('sysmonitor', 'utf-8')
        message['To'] = Header(receiver, 'utf-8')
        # subject = 'OpenSearch集群监控'
        message['Subject'] = Header(subject, 'utf-8')
        smtpObj = smtplib.SMTP('email.test.com.cn', port=25)
        try:
            smtpObj.sendmail(sender, receiver, message.as_string())
            print("Send mail successfully.")
        except Exception as err:
            print(str(err))

    def restart_logstash(self):
        os.popen('systemctl restart logstash')


if __name__ == '__main__':

    obj = monitor_total_hits_alert("admin","admin")
    result = obj.get_total_hits()
    total_hits = result['hits']['total']['value']
    print("本次查询的命中次数为:{0}".format(total_hits))

    if total_hits < 500:
        obj.send_mail("ElasticSearch集群监控","近一分钟内命中率低于500个，请检查集群状态。")
    else:
        pass

2. 定义crontab每隔十五分钟执行：

[root@zht-logstash-pro-app-1 ~]# crontab -l
*/15 * * * *  /usr/bin/python3 /root/scripts/mon_total_hits_alert.py

六、使用fastapi完成的webhook脚本

#!/usr/bin/env python3
# -*-coding:utf-8-*-
# Author: zyjsuper
# Filename: webhook.py
# CreateTime: 2024/7/4 14:37

import uvicorn
import smtplib
from os import popen
from email.mime.text import MIMEText
from email.header import Header
from fastapi import FastAPI,Request
import fastapi_cdn_host

app = FastAPI()

def send_mail(content):
    # 发送邮件
    sender = 'sysmonitor@test.com.cn'
    receiver = 'zhaoyuanji@test.com.cn'
    message = MIMEText(content,'plain', 'utf-8')
    message['From'] = Header('sysmonitor','utf-8')
    message['To'] =  Header(receiver, 'utf-8')
    subject = 'OpenSearch测试集群监控'
    message['Subject'] = Header(subject, 'utf-8')
    smtpObj = smtplib.SMTP('email.test.com.cn',port=25)
    try:
        smtpObj.sendmail(sender, receiver, message.as_string())
        print("Send mail successfully.")
    except Exception as err:
        print(str(err))


@app.post("/send_mail/{item_id}")
def send(item_id: int, request: Request):

    item_id = item_id               # 1代表生产通知，2代表测试通知
    client_host = request.client.host

    if item_id == 1:           # 访问http://192.168.128.2:9000/send_mail/1触发
        content = "近一分钟内命中率低于500个，请检查集群状态。来源IP地址为：{0}".format(client_host)
        popen("systemctl restart logstash")
        logstash_status = popen("systemctl status logstash").read().strip()
        print(logstash_status)
        send_mail(content)

    elif item_id == 2:        # 访问http://192.168.128.2:9000/send_mail/2触发
        content = "近一分钟内执行的task数量低于50个，请检查集群状态。来源IP地址为：{0}".format(client_host)
        popen("systemctl restart logstash")
        logstash_status = popen("systemctl status logstash").read().strip()
        print(logstash_status)
        send_mail(content)
    else:
        pass
    return {"client_host": client_host }

if __name__ == '__main__':
    fastapi_cdn_host.patch_docs(app)
    uvicorn.run(app, host="192.168.128.2", port=9000)
