金蝶K3Cloud插件开发*单据下推

不想做程序员 2020-06-19
1740

下推调用服务如下:

IConvertService :单据转换服务,获取转换规则,下推操作

ISaveService:单据保存服务,对目标单据进行保存操作

ISubmitService:单据提交服务

IAuditService:单据审核服务

插件中调用服务,使用Kingdee.BOS.App.ServiceHelper.GetService<>()泛型方法。如调用保存服务,ServiceHelper.GetService<ISaveService>().Save(...)。

下推操作步骤比较简单:根据源单FormId和目标单FormId,获取转换规则,将源单FID和分录ID,传递给转换服务,产生目标单据动态类型;获取目标单据FormMetadata,保存目标单据。

1、获取转换规则

2、下推参数,实例化PushArgs,传递两个参数:转换规则、源单数据ListSelectedRow[]。

ListSelectedRow主要三个参数:源单FID、源单分录行ID,源单FormId.

ListSelectedRowCollection selectRows = new ListSelectedRowCollection();
selectRows.Add(new ListSelectedRow(100000, 100000, 0, "PRD_MO"));


3、下推,保存操作


4、提交,审核


由于目标单据有些必填项,如果没有默认值得,下推操作会失败。那就需要在下推完成时,先对数据修改,再保存。

下推操作返回值ConvertOperationResult类,属性TargetDataEntities,包含了产生的目标单据数据,如下操作可取得动态数据集:

DynamicObject[] collection = (from p in convertOperationResult.TargetDataEntities
select p.DataEntity).ToArray<DynamicObject>();


 (DynamicObjectCollection)collection[0]["Entity"]可取得单据明细,collection[0]为单据头,根据需要对collection进行修改即可。

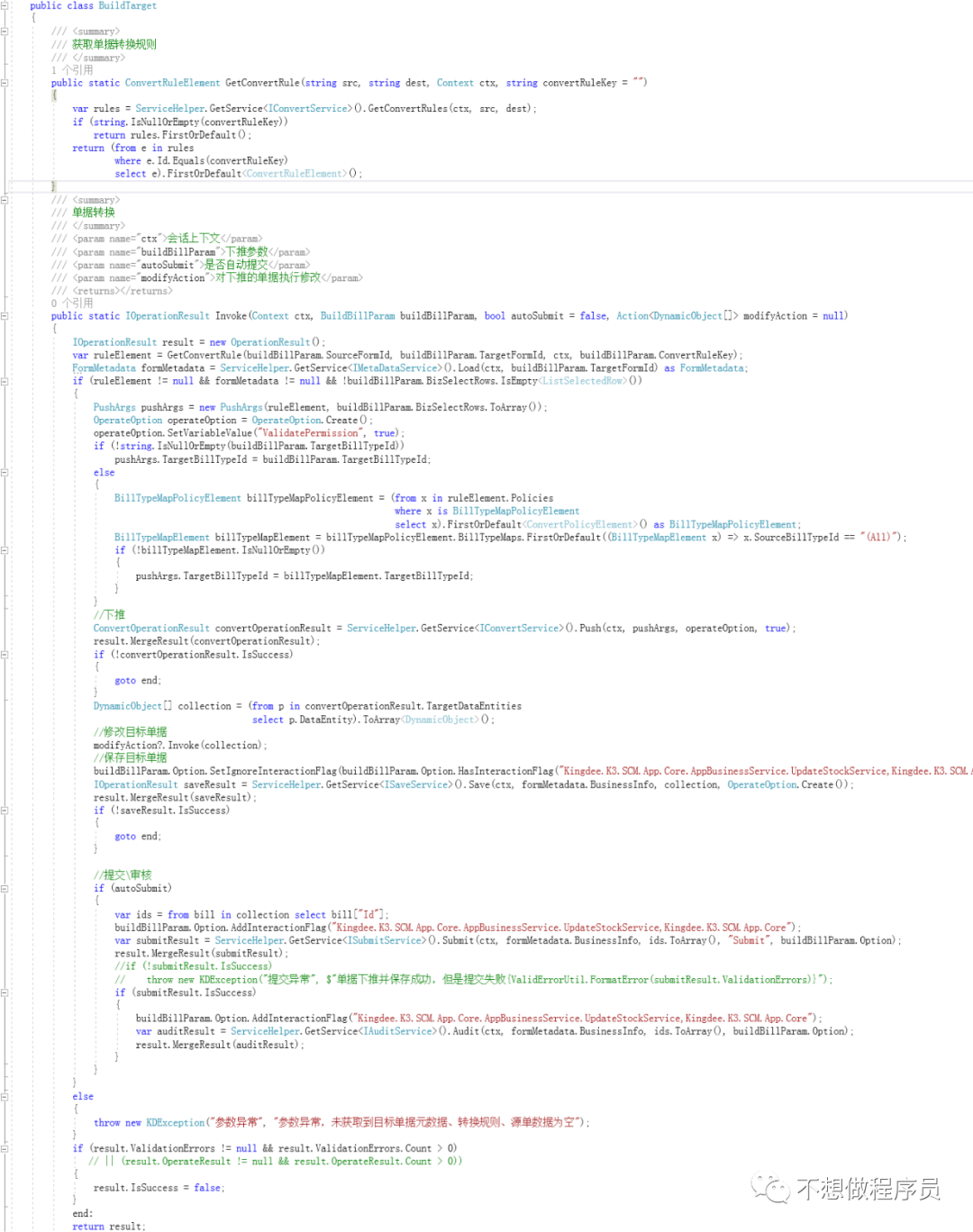

如下是封装好的方法

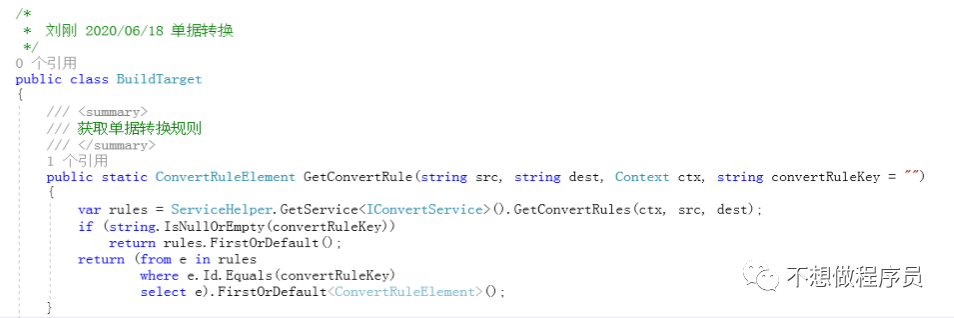

/// <summary>
/// 获取单据转换规则
/// </summary>
public static ConvertRuleElement GetConvertRule(string src, string dest, Context ctx, string convertRuleKey = "")
{
var rules = ServiceHelper.GetService<IConvertService>().GetConvertRules(ctx, src, dest);
if (string.IsNullOrEmpty(convertRuleKey))
return rules.FirstOrDefault();
return (from e in rules
where e.Id.Equals(convertRuleKey)
select e).FirstOrDefault<ConvertRuleElement>();
}
/// <summary>
/// 单据转换
/// </summary>
/// <param name="ctx">会话上下文</param>
/// <param name="buildBillParam">下推参数</param>
/// <param name="autoSubmit">是否自动提交</param>
/// <param name="modifyAction">委托,对下推的单据执行修改</param>
/// <returns></returns>
public static IOperationResult Invoke(Context ctx, BuildBillParam buildBillParam, bool autoSubmit = false, Action<DynamicObject[]> modifyAction = null)
{
IOperationResult result = new OperationResult();
var ruleElement = GetConvertRule(buildBillParam.SourceFormId, buildBillParam.TargetFormId, ctx, buildBillParam.ConvertRuleKey);
FormMetadata formMetadata = ServiceHelper.GetService<IMetaDataService>().Load(ctx, buildBillParam.TargetFormId) as FormMetadata;
if (ruleElement != null && formMetadata != null && !buildBillParam.BizSelectRows.IsEmpty<ListSelectedRow>())
{
PushArgs pushArgs = new PushArgs(ruleElement, buildBillParam.BizSelectRows.ToArray());
OperateOption operateOption = OperateOption.Create();
operateOption.SetVariableValue("ValidatePermission", true);
if (!string.IsNullOrEmpty(buildBillParam.TargetBillTypeId))
pushArgs.TargetBillTypeId = buildBillParam.TargetBillTypeId;
else
{
BillTypeMapPolicyElement billTypeMapPolicyElement = (from x in ruleElement.Policies
where x is BillTypeMapPolicyElement
select x).FirstOrDefault<ConvertPolicyElement>() as BillTypeMapPolicyElement;
BillTypeMapElement billTypeMapElement = billTypeMapPolicyElement.BillTypeMaps.FirstOrDefault((BillTypeMapElement x) => x.SourceBillTypeId == "(All)");
if (!billTypeMapElement.IsNullOrEmpty())
{
pushArgs.TargetBillTypeId = billTypeMapElement.TargetBillTypeId;
}
}

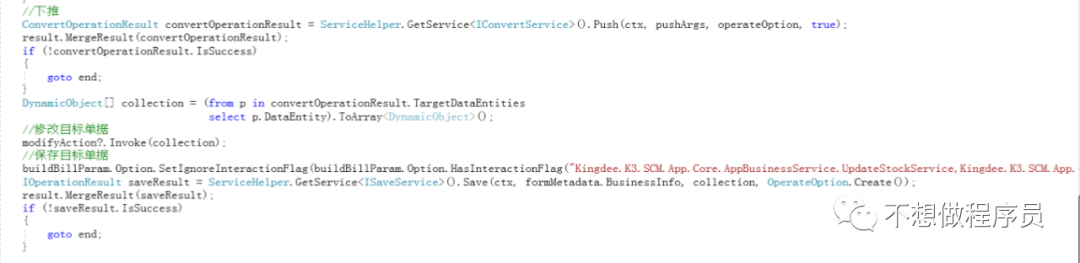

//下推
ConvertOperationResult convertOperationResult = ServiceHelper.GetService<IConvertService>().Push(ctx, pushArgs, operateOption, true);
result.MergeResult(convertOperationResult);
if (!convertOperationResult.IsSuccess)
{
goto end;
}
DynamicObject[] collection = (from p in convertOperationResult.TargetDataEntities
select p.DataEntity).ToArray<DynamicObject>();
//修改目标单据
modifyAction?.Invoke(collection);
//保存目标单据
buildBillParam.Option.SetIgnoreInteractionFlag(buildBillParam.Option.HasInteractionFlag("Kingdee.K3.SCM.App.Core.AppBusinessService.UpdateStockService,Kingdee.K3.SCM.App.Core"));
IOperationResult saveResult = ServiceHelper.GetService<ISaveService>().Save(ctx, formMetadata.BusinessInfo, collection, OperateOption.Create());
result.MergeResult(saveResult);
if (!saveResult.IsSuccess)
{
goto end;
    }

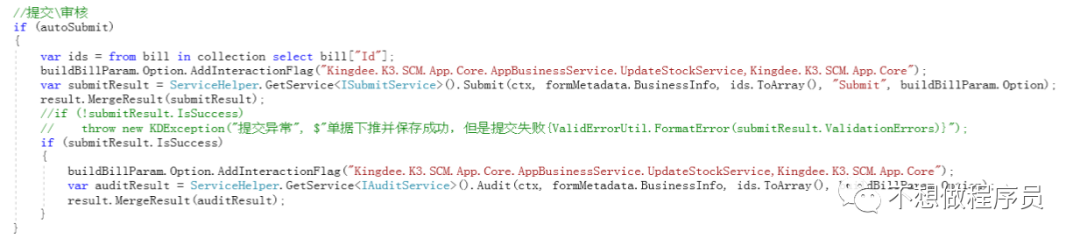

//提交\审核
if (autoSubmit)
{
var ids = from bill in collection select bill["Id"];
buildBillParam.Option.AddInteractionFlag("Kingdee.K3.SCM.App.Core.AppBusinessService.UpdateStockService,Kingdee.K3.SCM.App.Core");
var submitResult = ServiceHelper.GetService<ISubmitService>().Submit(ctx, formMetadata.BusinessInfo, ids.ToArray(), "Submit", buildBillParam.Option);
result.MergeResult(submitResult);
//if (!submitResult.IsSuccess)
// throw new KDException("提交异常", $"单据下推并保存成功,但是提交失败{ValidErrorUtil.FormatError(submitResult.ValidationErrors)}");
if (submitResult.IsSuccess)
{
buildBillParam.Option.AddInteractionFlag("Kingdee.K3.SCM.App.Core.AppBusinessService.UpdateStockService,Kingdee.K3.SCM.App.Core");
var auditResult = ServiceHelper.GetService<IAuditService>().Audit(ctx, formMetadata.BusinessInfo, ids.ToArray(), buildBillParam.Option);
result.MergeResult(auditResult);
}
}
}
else
{
throw new KDException("参数异常", "参数异常,未获取到目标单据元数据、转换规则、源单数据为空");
}
  if (result.ValidationErrors != null && result.ValidationErrors.Count > 0)
{
result.IsSuccess = false;
}
end:
return result;
}


Invoke方法最后一个参数为委托类型,可以对目标单据在保存前修改。调用方法如下

var ppbomRows = new ListSelectedRowCollection();
ppbomRows.Add(new ListSelectedRow(row["F_PXJT_PPBOMFID"].ToString(), row["F_PXJT_PPBOMENTRYID"].ToString(), 0, "PRD_PPBOM"));
var pickMtrlParam = new BuildBillParam()
{
SourceFormId =PrdFormIdEnum.PRD_PPBOM.ToString(), //"PRD_PPBOM",
TargetFormId =PrdFormIdEnum.PRD_PickMtrl.ToString(), //"PRD_PickMtrl",
ConvertRuleKey =_rulePickMtrlKey, //"PRD_PPBOM2PICKMTRL_NORMAL",
BizSelectRows = ppbomRows.ToList(),
Option = option,
};
IOperationResult pickMtrlResult = BuildTarget.Invoke(base.Context, pickMtrlParam, true, list =>
{
var entrys = (DynamicObjectCollection)list[0]["Entity"];
list[0]["OwnerId_Id"] = _orgId;
list[0]["StockOrgId_Id"] = _orgId;
foreach (var dy in entrys)
{
dy["Lot_Id"] = stockEntrys[0]["Lot_Id"]; //批号
dy["Lot_Text"] = stockEntrys[0]["Lot_Text"];
dy["OwnerTypeId"] = "BD_OwnerOrg"; //货主类型
dy["OwnerId_Id"] = _orgId; //货主
dy["OwnerId"] = _org;
dy["StockId_Id"] = _whse["Id"]; //仓库
dy["StockStatusId_Id"] = 10000;
dy["APPQTY"] = _moveQty;
dy["ACTUALQTY"] = _moveQty;
dy["BASEAPPQTY"] = _moveQty * x;
dy["BASEACTUALQTY"] = _moveQty * x;
dy["STOCKAPPQTY"] = _moveQty;
dy["STOCKACTUALQTY"] = _moveQty;
}
});
