Linux 压力测试工具---ab安装及使用参数【测试成功】

巴韭特锁螺丝 2024-05-05
84

ab压测工具

ab是apache bench命令的缩写。

原理:

       ab命令会创建多个并发访问线程,模拟多个访问者同时对某一URL地址进行访问。它的测试目标是基于URL的,因此,它既可以用来测试apache的负载压力,也可以测试nginx、lighthttp、tomcat、IIS等其它Web服务器的压力。

ab命令对发出负载的计算机要求很低,它既不会占用很高CPU,也不会占用很多内存。但却会给目标服务器造成巨大的负载,其原理类似CC攻击。测试时也需要注意,一次性太大的负载。可能会造成目标服务器资源占用过高,严重时可能会导致死机。

使用ab命令但是不想安装apache,我们可以直接安装apache的工具包httpd-tools,这里已腾讯云的云服务器为例。

安装

yum -y install httpd-tools

参数:

    [root@VM-2-14-centos ~]# ab --help
    ab: wrong number of arguments
    Usage: ab [options] [http[s]://]hostname[:port]/path
    Options are:
    -n requests Number of requests to perform ##要执行的请求数
    -c concurrency Number of multiple requests to make at a time ##单次发出的并发请求数
    -t timelimit Seconds to max. to spend on benchmarking
    This implies -n 50000 ##用于测试的最大秒数,等价于 -n 等于50000
    -s timeout Seconds to max. wait for each response
    Default is 30 seconds ##等待每个响应的最长秒数,默认值为30秒
    -b windowsize Size of TCP send/receive buffer, in bytes ##TCP发送/接收缓存区的大小(字节)
    -B address Address to bind to when making outgoing connections ##建立传出连接时要绑定的地址
    -p postfile File containing data to POST. Remember also to set -T ##包含POST数据的文件。还需要设置-T
    -u putfile File containing data to PUT. Remember also to set -T ##包含PUT数据的文件,还需要设置-T
    -T content-type Content-type header to use for POST/PUT data, eg.
    'application/x-www-form-urlencoded'
    Default is 'text/plain' ## 用于POST/PUT数据的内容类型头。
    -v verbosity How much troubleshooting info to print ##设置显示信息的详细程度 - 4或更大值会显示头信息, 3或更大值可以显示响应代码(404, 200等), 2或更大值可以显示警告和其他信息。
    -w Print out results in HTML tables 以HTML表的格式输出结果。默认时,它是白色背景的两列宽度的一张表
    -i Use HEAD instead of GET ##执行HEAD请求,而不是GET
    -x attributes String to insert as table attributes ##设置<table>属性的字符串。
    -y attributes String to insert as tr attributes ##设置<tr>属性的字符串。
    -z attributes String to insert as td or th attributes ##设置<td>属性的字符串。
    -C attribute Add cookie, eg. 'Apache=1234'. (repeatable) ##对请求附加一个Cookie行。其典型形式是name=value的一个参数对。此参数可以重复。
    -H attribute Add Arbitrary header line, eg. 'Accept-Encoding: gzip'
    Inserted after all normal header lines. (repeatable) ##对请求附加额外的头信息。此参数的典型形式是一个有效的头信息行,其中包含了以冒号分隔的字段和值的对。
    -A attribute Add Basic WWW Authentication, the attributes are a colon separated username and password. ##对服务器提供BASIC认证信任。用户名和密码由一个:隔开,并以base64编码形式发送。无论服务器是否需要(即, 是否发送了401认证需求代码),此字符串都会被发送。
    -P attribute Add Basic Proxy Authentication, the attributes are a colon separated username and password. ##对一个中转代理提供BASIC认证信任。用户名和密码由一个:隔开,并以base64编码形式发送。无论服务器是否需要(即, 是否发送了401认证需求代码),此字符串都会被发送
    -X proxy:port Proxyserver and port number to use ##对请求使用代理服务器。
    -V Print version number and exit ##显示版本号并退出。
    -k Use HTTP KeepAlive feature ##启用HTTP KeepAlive功能,即, 在一个HTTP会话中执行多个请求。默认时,不启用KeepAlive功能。
    -d Do not show percentiles served table. ##显示”percentage served within XX [ms] table”的消息(为以前的版本提供支持)。
    -S Do not show confidence estimators and warnings. ##不显示中值和标准背离值, 而且在均值和中值为标准背离值的1到2倍时,也不显示警告或出错信息。默认时,会显示 最小值/均值/最大值等数值。(为以前的版本提供支持)。
    -q Do not show progress when doing more than 150 requests ##如果处理的请求数大于150, ab每处理大约10%或者100个请求时,会在stderr输出一个进度计数。此-q标记可以抑制这些信息。
    -l Accept variable document length (use this for dynamic pages) ##接受可变文档长度(用于动态页面)
    -g filename Output collected data to gnuplot format file. ##把所有测试结果写入一个’gnuplot’或者TSV (以Tab分隔的)文件。此文件可以方便地导入到Gnuplot, IDL, Mathematica, Igor甚至Excel中。其中的第一行为标题。
    -e filename Output CSV file with percentages served ##产生一个以逗号分隔的(CSV)文件, 其中包含了处理每个相应百分比的请求所需要(从1%到100%)的相应百分比的(以微妙为单位)时间。由于这种格式已经“二进制化”,所以比’gnuplot’格式更有用。
    -r Don't exit on socket receive errors. ##套接字接收错误时不退出。
    -m method Method name ##方法名称
    -h Display usage information (this message) ##显示使用方法。
    -I Disable TLS Server Name Indication (SNI) extension ##禁用TLS服务器名称指示(SNI)扩展
    -Z ciphersuite Specify SSL/TLS cipher suite (See openssl ciphers) ##指定SSL/TLS密码套件。
    -f protocol Specify SSL/TLS protocol (SSL2, TLS1, TLS1.1, TLS1.2 or ALL) ##指定SSL/TLS协议(SSL2、TLS1、TLS1.1、TLS1.2或ALL)
    -E certfile Specify optional client certificate chain and private key ##指定可选的客户端证书链和私钥

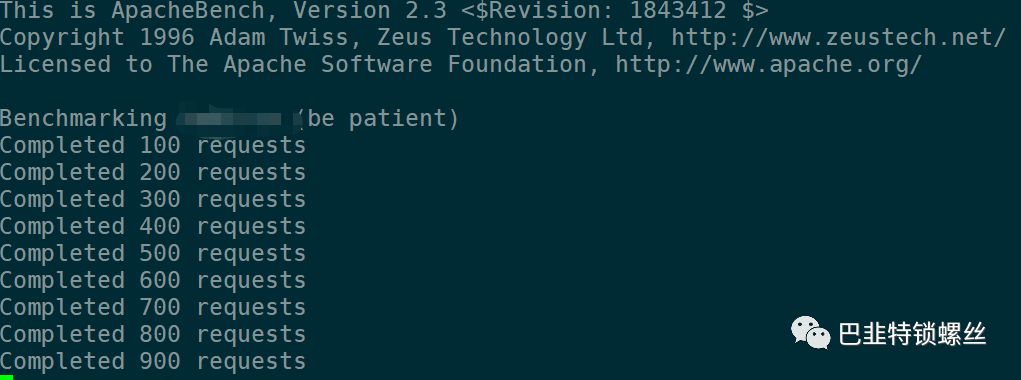

    压测返回结果解析

    此处以该云服务器所属同一VPC的另一台云服务器为例:

    ab -c 1 -n 10000 https://xxx.cn/q.php/bbs.topic.105510.html

    host之后必须有”/“,表示此目录而不是此文件;
