性能被DuckDB碾压,PG最应该反省哪几方面？

文中参考文档点击阅读原文打开, 同时推荐2个学习环境:

1、懒人Docker镜像, 已打包200+插件:《最好的PostgreSQL学习镜像》

2、有web浏览器就能用的云起实验室: 《免费体验PolarDB开源数据库》

3、PolarDB开源数据库内核、最佳实践等学习图谱:  https://www.aliyun.com/database/openpolardb/activity

PG被DuckDB碾压,还不反省? DuckDB v0.10.3 在Macmini 2023款上的tpch性能表现如何? PostgreSQL使用duckdb_fdw 的tpch加速性能表现如何?PG本地表的表现如何？

1、star数被超越

DuckDB 2018年发布第一个版本, 17.2k star https://db-engines.com/en/system/DuckDB

postgres 1989年发布第一个版本, 14.9k star https://db-engines.com/en/system/PostgreSQL

2、分析能力被全面碾压

一些用户在数据量不是特别大(例如TB级别时)会将postgres用于分析型业务, 因为pg 9.6开始引入了并行计算, 分析性能还可以, 并且它不像大型分析产品部署和管理起来那么复杂, 对机器要求也不高, 适合中小型数据量的分析. 但是现在性能被duckdb全面碾压了, 看本文后面的测试数据. 并且DuckDB使用起来还更加简单.

当然PG也有一些增强分析性能和数据融合能力的插件, 如parquet fdw, pg_lakehouse, duckdb fdw, columnar等插件.

pg_lakehouse 理念很不错, 把PG从孤岛变成连接外部数据的桥梁, 结合pg_analytics实现分析(datafusion那套架构), 让用户只要使用Pg就可以处理TP和AP. oss、s3 都是云上使用最为广泛的产品, 为什么不是云数据库厂商先发做出这块能力(我是说要有好的体验)的呢?

这些插件在以下docker image中都有集成, 有兴趣的朋友可以参考digoal github阅读:

• 《2023-PostgreSQL Docker镜像学习环境 ARM64版, 已集成热门插件和工具》

• 《2023-PostgreSQL Docker镜像学习环境 AMD64版, 已集成热门插件和工具》

3、PG扩展接口最近发展真的是太慢了, 导致包括以上在内的插件从性能到体验都离产品化有一段距离. 再这样发展下去, extension也很快会被碾压. 最近DuckDB出的extension都非常的赞, 体验杠杠的.

举几个例子:

• fdw接口都出来多少年了, 下推还行, 但是事务支持、数据传输效率、cache plan等都有改进空间, 所以通过fdw来读写oss里面的parquet数据效率还有很大提升空间.

• tam(table access method)也有很多需要完善的地方, 所以你看从PG 12发布tam后到现在都6年了, 一个真正能打（生产大量应用）的三方 table am 都没有. 甚至17版本发布之前上线的好几个tam扩展能力, 又被tom lane打回. 参考: 《PostgreSQL 17 到底值不值得期待? 看完这篇就明白了.》 tom lane一边拒绝 tam, 自己crunchydata databridge 确大张旗鼓的改进tam, 提升s3等云对象存储访问效率和体验. 参考: 《什么? PostgreSQL大佬tom lane公司crunchydata“模仿”DuckDB创意?》

• 另外是wire protocol兼容性扩展能力, aws负责babelfish(协议层兼容sql server)哥们提交的增加wire protocol hook的Patch, 死活不让进Master分支, 导致扩展Pg 语法兼容性特别麻烦.

PG需要做好稳定性，同时为生态做好扩展接口，才能持续获得用户青睐的同时有生态持续为其注入活力。

好消息是, 基于PG的商业数据库在不懈努力, 例如
1、haloDB:

• 章老板正在借鉴duckdb实现halodb的 in-memory table. 据了解这块也要大量扩展tam的接口. 这就是社区不作为了, 明明要打造好扩展接口, 现在接口也不好好做.

• 协议层兼容 mysql, oracle.

2、PolarDB 云原生分布式数据库.

• 不用多介绍懂的都懂, 跳转至官网: openpolardb.com

开始PK

DuckDB v0.10.3
 发布性能表现如何?

DuckDB v0.10.3
 发布, 在Macmini 2023款上的tpch性能表现如何? PostgreSQL使用duckdb_fdw 的tpch加速性能表现如何? PostgreSQL能打吗?

机器: Macmini 2023款 M2芯片 16GiB内存 256GiB硬盘

使用我打包的万能镜像: 《2023-PostgreSQL Docker镜像学习环境 ARM64版, 已集成热门插件和工具》

获取 docker 镜像:

docker pull registry.cn-hangzhou.aliyuncs.com/digoal/opensource_database:pg14_with_exts_arm64

docker 资源配置:

4 Core
8GiB 内存
4GiB SWAP
Virtual disk limit: 128 GB

DuckDB 版本: v0.10.3

PostgreSQL 版本: 14.12

创建本地volume, 将docker内较大量的数据存放至此:

mkdir -p ~/docker_volumn/pg

启动容器(宿主机volumn
映射到容器的/data
):

docker run -d -it -P --cap-add=SYS_PTRACE --cap-add SYS_ADMIN --privileged=true -v ~/docker_volumn/pg:/data --name pg --shm-size=1g registry.cn-hangzhou.aliyuncs.com/digoal/opensource_database:pg14_with_exts_arm64

进入容器, 进入postgres用户, DuckDB和PostgreSQL测试都在这个用户下进行:

docker exec -ti pg bash

echo "vm.swappiness = 0" >> etc/sysctl.d/99-sysctl.conf
sysctl -p

su - postgres

DuckDB + parquet

进入DuckDB shell:

./duckdb  data/new.db

生成20GB tpch原始数据:

.timer on
PRAGMA max_temp_directory_size='64GiB';
load tpch;
call dbgen(sf='20');
  -- Run Time (s): real 129.280 user 114.879912 sys 12.317068

将20GB tpch原始数据导出到本地Parquet文件:

EXPORT DATABASE '/data' (FORMAT PARQUET);
  --  Run Time (s): real 196.960 user 121.116805 sys 47.395505
EXPORT DATABASE '/data' (FORMAT CSV);   -- 这一份测试3时用于导入PostgreSQL本地表

生成22条tpch查询sql:

copy (select query from tpch_queries()) to '/data/tpch.sql' with (quote '', HEADER false);
-- or
-- copy (select 'PRAGMA tpch('||query_nr||');' from tpch_queries()) to '/data/tpch.sql' with (quote '', HEADER false);

创建22条tpch查询sql对应的22个视图 tpch_q1, ... tpch_q22

copy (select 'create or replace view tpch_q'|| query_nr ||' as '||query from tpch_queries()) to '/data/tpch_query_view.sql' with (quote '', HEADER false);

退出DuckDB shell:

.quit

修改 tpch_q12
 , 否则使用duckdb_fdw
时会有 duckdb -> pg
 类型映射错误

vi data/tpch_query_view.sql

create or replace view tpch_q12 as SELECT
    l_shipmode,
    sum(
        CASE WHEN o_orderpriority = '1-URGENT'
            OR o_orderpriority = '2-HIGH' THEN
            1.0  -- 修改这里, 1 修改为 1.0
        ELSE
            0
        END) AS high_line_count,
    sum(
        CASE WHEN o_orderpriority <> '1-URGENT'
            AND o_orderpriority <> '2-HIGH' THEN
            1.0   -- 修改这里, 1 修改为 1.0
        ELSE
            0
        END) AS low_line_count
FROM
    orders,
    lineitem
WHERE
    o_orderkey = l_orderkey
    AND l_shipmode IN ('MAIL', 'SHIP')
    AND l_commitdate < l_receiptdate
    AND l_shipdate < l_commitdate
    AND l_receiptdate >= CAST('1994-01-01' AS date)
    AND l_receiptdate < CAST('1995-01-01' AS date)
GROUP BY
    l_shipmode
ORDER BY
    l_shipmode;

DuckDB tpch 性能测试 (数据存储在外部parquet文件)

进入DuckDB shell:

-- 创建duckdb数据文件,

./duckdb data/digoal.db

创建tpch表对应视图, 使用视图访问tpch测试表对应的parquet文件:

CREATE VIEW lineitem AS SELECT * FROM read_parquet('/data/lineitem.parquet');
CREATE VIEW orders AS SELECT * FROM read_parquet('/data/orders.parquet');
CREATE VIEW partsupp AS SELECT * FROM read_parquet('/data/partsupp.parquet');
CREATE VIEW part AS SELECT * FROM read_parquet('/data/part.parquet');
CREATE VIEW customer AS SELECT * FROM read_parquet('/data/customer.parquet');
CREATE VIEW supplier AS SELECT * FROM read_parquet('/data/supplier.parquet');
CREATE VIEW nation AS SELECT * FROM read_parquet('/data/nation.parquet');
CREATE VIEW region AS SELECT * FROM read_parquet('/data/region.parquet');

新建tpch 22条query对应的视图:

.read data/tpch_query_view.sql

执行检查点, 保存以上视图到duckdb数据文件内:

checkpoint;

列出DuckDB当前配置的内存限制:

select * from duckdb_settings() where name like '%memory%';

┌──────────────┬─────────┬─────────────────────────────────────────────┬────────────┬─────────┐
│     name     │  value  │                 description                 │ input_type │  scope  │
│   varchar    │ varchar │                   varchar                   │  varchar   │ varchar │
├──────────────┼─────────┼─────────────────────────────────────────────┼────────────┼─────────┤
│ max_memory   │ 6.2 GiB │ The maximum memory of the system (e.g. 1GB) │ VARCHAR    │ GLOBAL  │
│ memory_limit │ 6.2 GiB │ The maximum memory of the system (e.g. 1GB) │ VARCHAR    │ GLOBAL  │
└──────────────┴─────────┴─────────────────────────────────────────────┴────────────┴─────────┘

执行tpch查询:

.timer on
.output data/tpch.result
.read data/tpch.sql

DuckDB+parquet tpch(sf=20) 22条query 总耗时 48.615 秒

Run Time (s): real 3.382 user 12.270868 sys 0.726760
Run Time (s): real 0.368 user 1.218201 sys 0.158289
Run Time (s): real 1.942 user 6.884382 sys 0.659815
Run Time (s): real 1.355 user 4.854397 sys 0.385653
Run Time (s): real 1.947 user 7.001857 sys 0.656324
Run Time (s): real 1.641 user 6.084068 sys 0.417452
Run Time (s): real 3.796 user 12.373250 sys 1.841919
Run Time (s): real 2.679 user 8.851007 sys 1.206746
Run Time (s): real 3.614 user 12.323548 sys 1.859185
Run Time (s): real 2.432 user 8.720211 sys 0.730984
Run Time (s): real 0.324 user 1.141013 sys 0.134006
Run Time (s): real 2.145 user 7.591906 sys 0.762911
Run Time (s): real 2.337 user 8.099739 sys 0.890027
Run Time (s): real 1.509 user 5.274063 sys 0.672981
Run Time (s): real 2.858 user 10.097497 sys 1.140366
Run Time (s): real 0.333 user 1.150265 sys 0.066505
Run Time (s): real 1.915 user 6.869154 sys 0.679118
Run Time (s): real 4.749 user 16.525018 sys 1.626446
Run Time (s): real 2.668 user 9.203536 sys 0.730004
Run Time (s): real 1.654 user 5.814008 sys 0.677364
Run Time (s): real 4.553 user 16.418398 sys 1.327657
Run Time (s): real 0.414 user 1.466042 sys 0.092717

PostgreSQL + duckdb_fdw + parquet + query view (相当于全部pushdown)

安装duckdb parquet插件:

mkdir -p var/lib/postgresql/.duckdb/extensions/v0.10.3/linux_arm64
cd var/lib/postgresql/.duckdb/extensions/v0.10.3/linux_arm64
wget http://extensions.duckdb.org/v0.10.3/linux_arm64/parquet.duckdb_extension.gz
gunzip parquet.duckdb_extension.gz

PostgreSQL 使用duckdb_fdw 利用duckdb计算能力, 访问存储在本地tpch原始数据对应的parquet数据文件. 通过view执行22条tpch query.

进入PostgreSQL shell:

psql

创建duckdb_fdw插件

create extension duckdb_fdw;

创建duckdb server, 指定前面保存好的duckdb数据文件, 包含视图定义.

CREATE SERVER duckdb_server FOREIGN DATA WRAPPER duckdb_fdw OPTIONS (database '/data/digoal.db' );

将duckdb的视图倒入PostgreSQL的外部表

IMPORT FOREIGN SCHEMA public FROM SERVER DuckDB_server INTO public;

生成在PostgreSQL内执行22条tpch query的SQL语句 (通过view来执行22条tpch query).

copy (select 'select * from tpch_q'||i||';' from generate_series(1,22) i) to '/data/pg_tpch_duckdb_fdw.sql' ;

执行query之前, 需导入parquet插件

select duckdb_execute('duckdb_server', 'load parquet;');

设置为测试DuckDB时一样的内存限制大小

select duckdb_execute('duckdb_server', $$set max_memory='6.2GiB';$$);
select duckdb_execute('duckdb_server', $$set memory_limit='6.2GiB';$$);

通过view来执行22条tpch query

\timing on
\o data/pg_tpch_duckdb_fdw.result
\i data/pg_tpch_duckdb_fdw.sql

-- OR
-- \i data/tpch.sql  -- q12 也需要像前面修改 data/tpch_query_view.sql 一样修改

PostgreSQL+duckdb_fdw+parquet+query view (相当于全部pushdown到DuckDB) tpch(sf=20) 22条query 总耗时 201.25 秒

Time: 10748.084 ms (00:10.748)
Time: 1373.017 ms (00:01.373)
Time: 5718.034 ms (00:05.718)
Time: 5113.934 ms (00:05.114)
Time: 6551.738 ms (00:06.552)
Time: 2519.208 ms (00:02.519)
Time: 19162.414 ms (00:19.162)
Time: 8009.050 ms (00:08.009)
Time: 14776.421 ms (00:14.776)
Time: 6496.172 ms (00:06.496)
Time: 1075.576 ms (00:01.076)
Time: 5435.326 ms (00:05.435)
Time: 11202.727 ms (00:11.203)
Time: 4192.284 ms (00:04.192)
Time: 8945.932 ms (00:08.946)
Time: 2817.935 ms (00:02.818)
Time: 6108.834 ms (00:06.109)
Time: 43550.500 ms (00:43.550)
Time: 7598.709 ms (00:07.599)
Time: 4932.664 ms (00:04.933)
Time: 22832.490 ms (00:22.832)
Time: 2088.688 ms (00:02.089)

PostgreSQL 本地行存表

新建与当前用户postgres同名存放本地表的schema

postgres=# create schema postgres;
CREATE SCHEMA

新建表空间, 设置为默认表空间

mkdir data/abc

create tablespace tbs location '/data/abc';

set default_tablespace ='tbs';
alter role postgres set default_tablespace ='tbs';

建表

postgres=# \i data/schema.sql
CREATE TABLE
CREATE TABLE
CREATE TABLE
CREATE TABLE
CREATE TABLE
CREATE TABLE
CREATE TABLE
CREATE TABLE

为了导入方便,改成unlogged table

alter table customer set unlogged;
alter table lineitem set unlogged;
alter table nation set unlogged;
alter table orders set unlogged;
alter table part set unlogged;
alter table partsupp set unlogged;
alter table region set unlogged;
alter table supplier set unlogged;

通过duckdb_fdw将tpch数据从parquet文件导入postgresql本地表

\i data/load.sql

创建postgresql本地表的索引(PG 没有索引跑不出来, 有一些嵌套查询实在太慢了. q17 30秒, q20 过了十几分钟没跑出来.), 参考: https://github.com/digoal/gp_tpch/blob/master/dss/tpch-index.sql

set maintenance_work_mem='1GB';
-- indexes on the foreign keys

CREATE INDEX IDX_SUPPLIER_NATION_KEY ON SUPPLIER (S_NATIONKEY);

CREATE INDEX IDX_PARTSUPP_PARTKEY ON PARTSUPP (PS_PARTKEY);
CREATE INDEX IDX_PARTSUPP_SUPPKEY ON PARTSUPP (PS_SUPPKEY);

CREATE INDEX IDX_CUSTOMER_NATIONKEY ON CUSTOMER (C_NATIONKEY);

CREATE INDEX IDX_ORDERS_CUSTKEY ON ORDERS (O_CUSTKEY);

CREATE INDEX IDX_LINEITEM_ORDERKEY ON LINEITEM (L_ORDERKEY);
CREATE INDEX IDX_LINEITEM_PART_SUPP ON LINEITEM (L_PARTKEY,L_SUPPKEY);

CREATE INDEX IDX_NATION_REGIONKEY ON NATION (N_REGIONKEY);

-- aditional indexes

CREATE INDEX IDX_LINEITEM_SHIPDATE ON LINEITEM (L_SHIPDATE, L_DISCOUNT, L_QUANTITY);

CREATE INDEX IDX_ORDERS_ORDERDATE ON ORDERS (O_ORDERDATE);

改成logged 对象

update pg_class set relpersistence = 'p' where relpersistence = 'u';

调整shared buffer和work_mem

alter system set shared_buffers='2GB';
alter role postgres set work_mem='32MB';

重启容器

docker stop pg
docker start pg
docker exec -ti pg bash
su - postgres
psql

以下是PG增加了索引之后的tpch query结果. tpch(sf=20) 22条query 总耗时 2790.94 秒

analyze;
\timing on
\o data/pg_tpch.result
\i data/tpch.sql

Time: 60317.546 ms (01:00.318)
Time: 88929.610 ms (01:28.930)
Time: 32596.940 ms (00:32.597)
Time: 48620.736 ms (00:48.621)
Time: 55727.432 ms (00:55.727)
Time: 207391.359 ms (03:27.391)
Time: 27132.845 ms (00:27.133)
Time: 117553.008 ms (01:57.553)
Time: 829795.748 ms (13:49.796)
Time: 45392.179 ms (00:45.392)
Time: 32471.915 ms (00:32.472)
Time: 25439.356 ms (00:25.439)
Time: 22745.637 ms (00:22.746)
Time: 153935.888 ms (02:33.936)
Time: 124949.464 ms (02:04.949)
Time: 12197.386 ms (00:12.197)
Time: 14841.749 ms (00:14.842)
Time: 42511.465 ms (00:42.511)
Time: 38056.589 ms (00:38.057)
Time: 505946.346 ms (08:25.946)
Time: 302506.388 ms (05:02.506)
Time: 1880.400 ms (00:01.880)

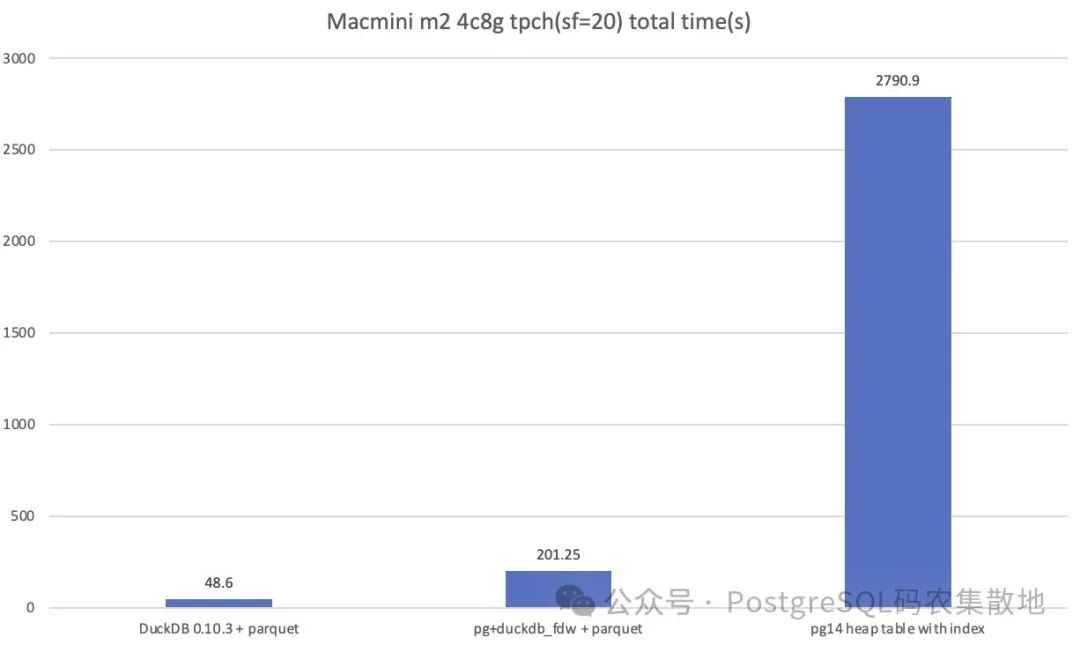

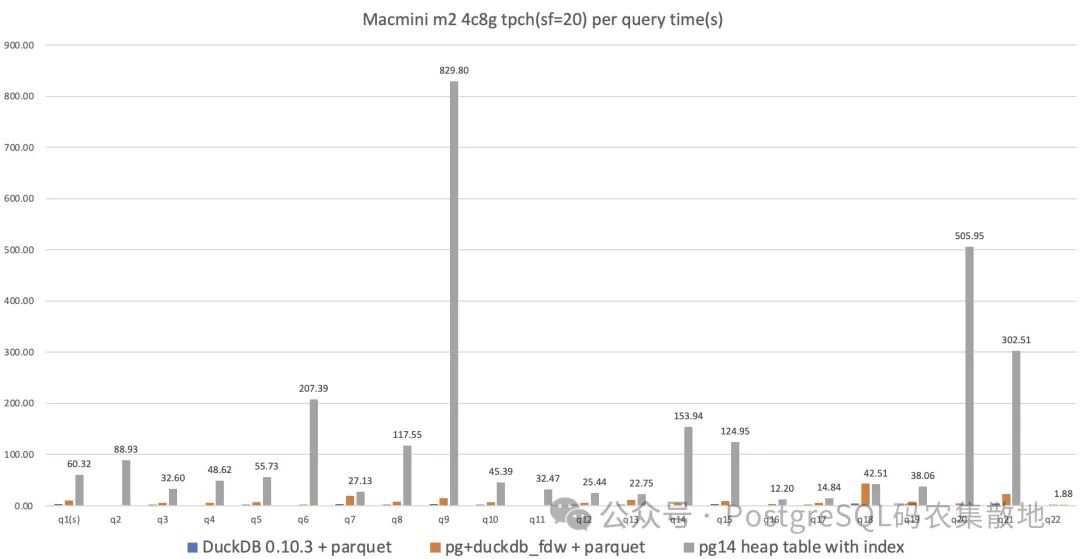

小结

DuckDB+parquet tpch(sf=20) 22条query 总耗时 48.615 秒

PostgreSQL+duckdb_fdw+parquet+query view (相当于全部pushdown到DuckDB) tpch(sf=20) 22条query 总耗时 201.25 秒

PostgreSQL本地行存表(包括索引) tpch(sf=20) 22条query 总耗时 2790.94 秒
